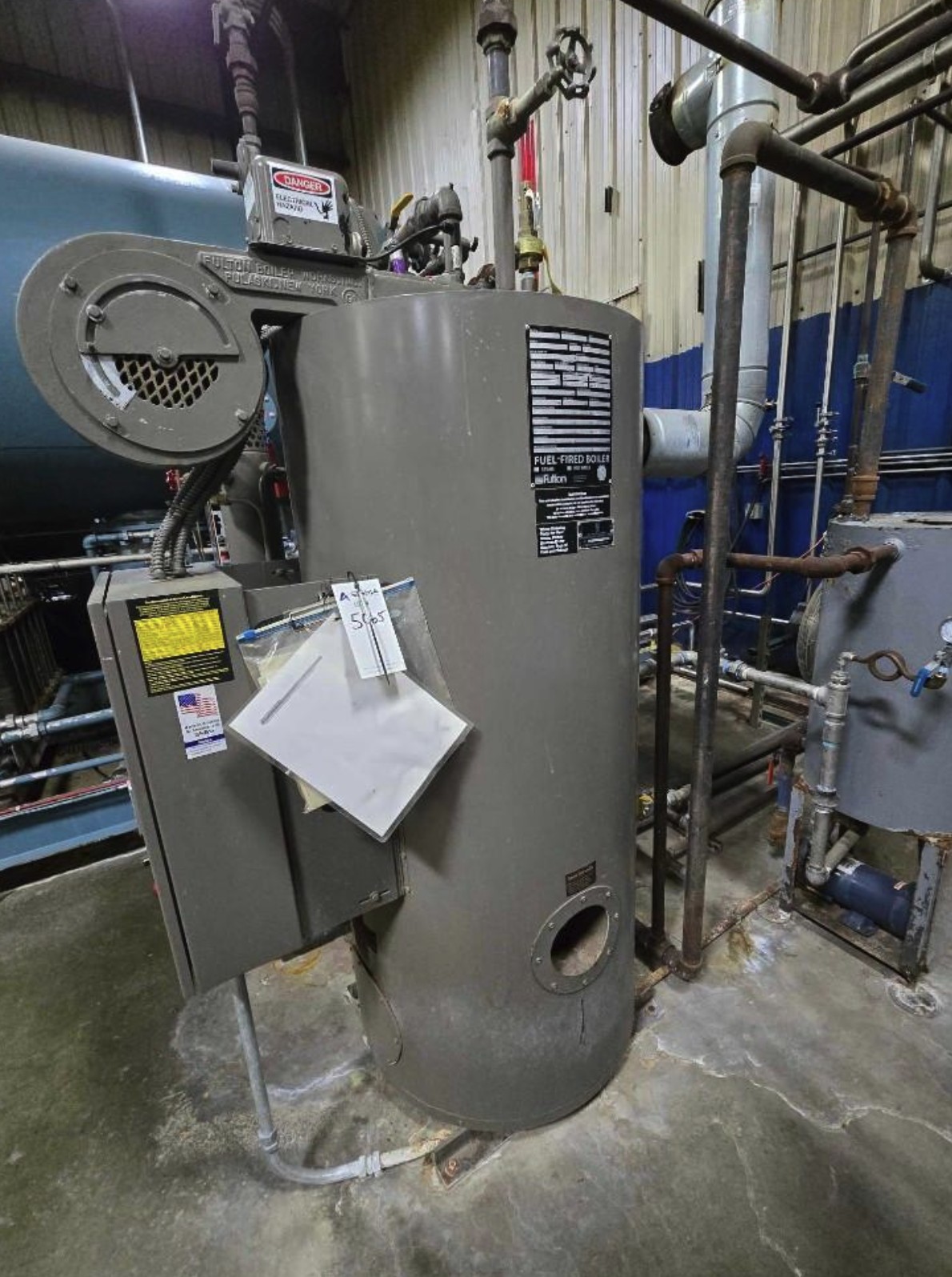

Fulton Classic 10HP 150PSI FB-010-A Vertical Tubeless Steam Boiler Natural Gas 2023

OVERVIEW

Fulton Classic Model FB-010-A, a 10 boiler HP vertical tubeless steam boiler (Fulton Classic ICS/FB-A series, ASME Section I). National Board No. 126487, built in 2023. Rated 335,000 BTU/HR output, 150 PSI MAWP steam, natural gas fired, 30 sq ft heating surface. Built by Fulton Boiler Works, Inc., Pulaski, NY, USA.

Suited to laundries, dry cleaners, food processing, small process steam, humidification, sterilization and light commercial / industrial plants needing compact natural-gas steam (subject to site pressure and code requirements).

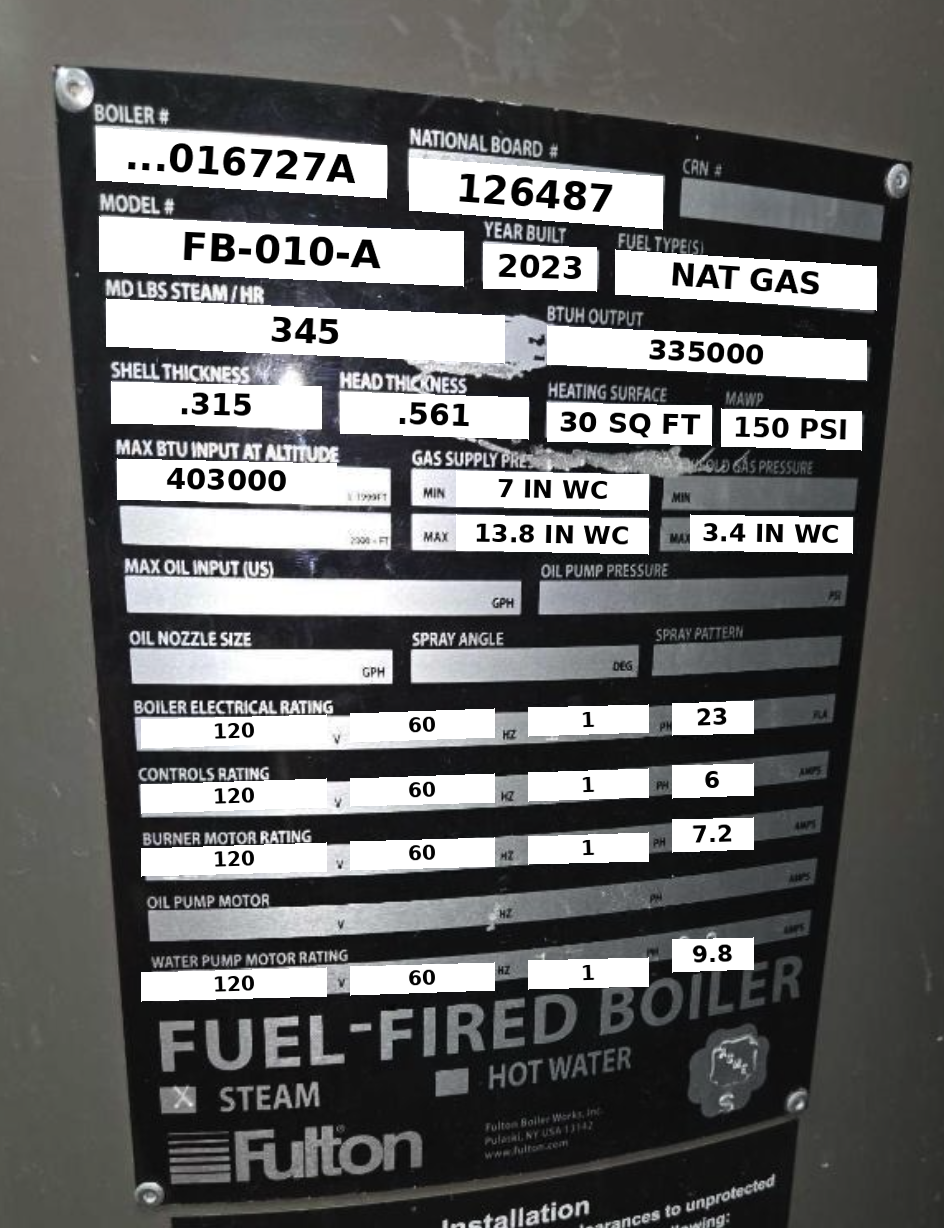

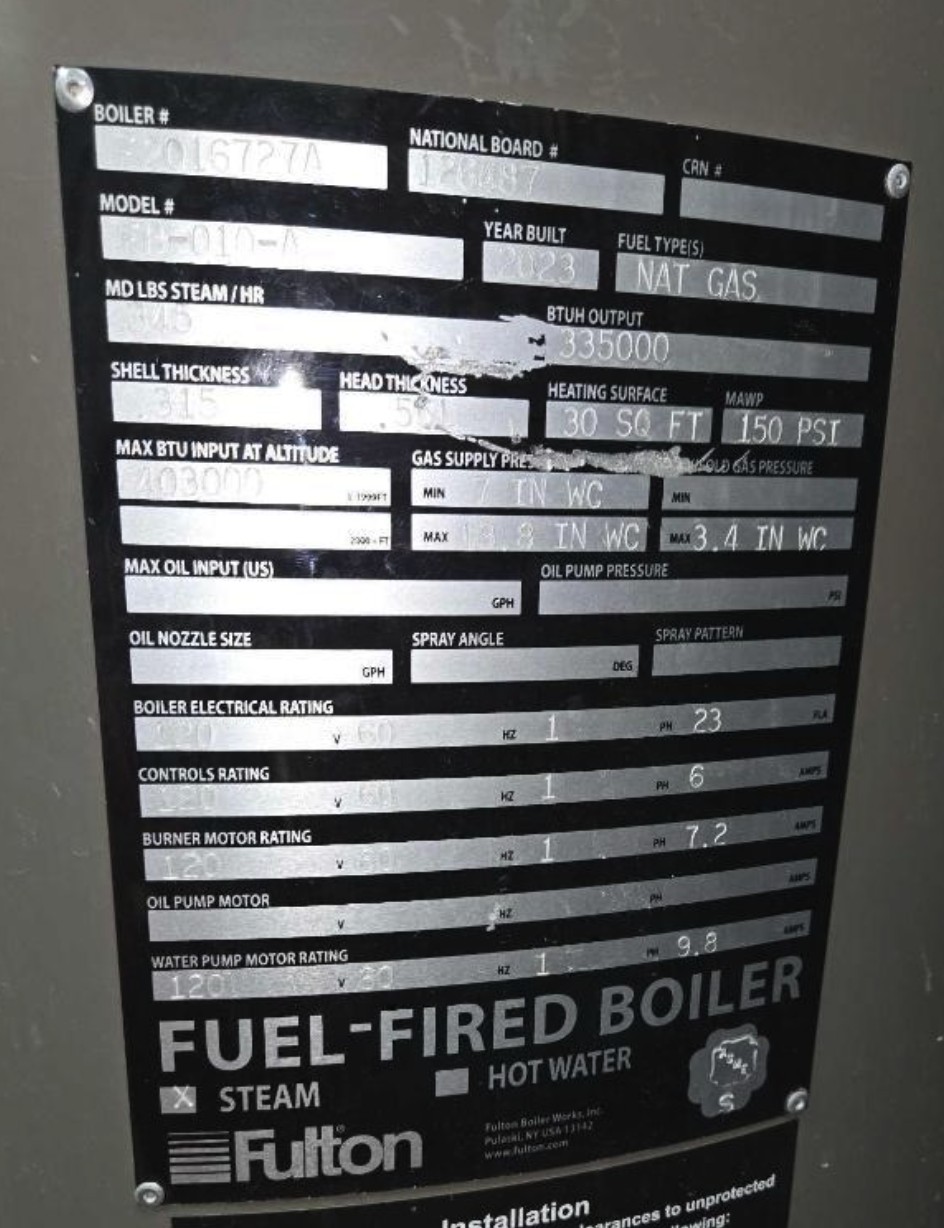

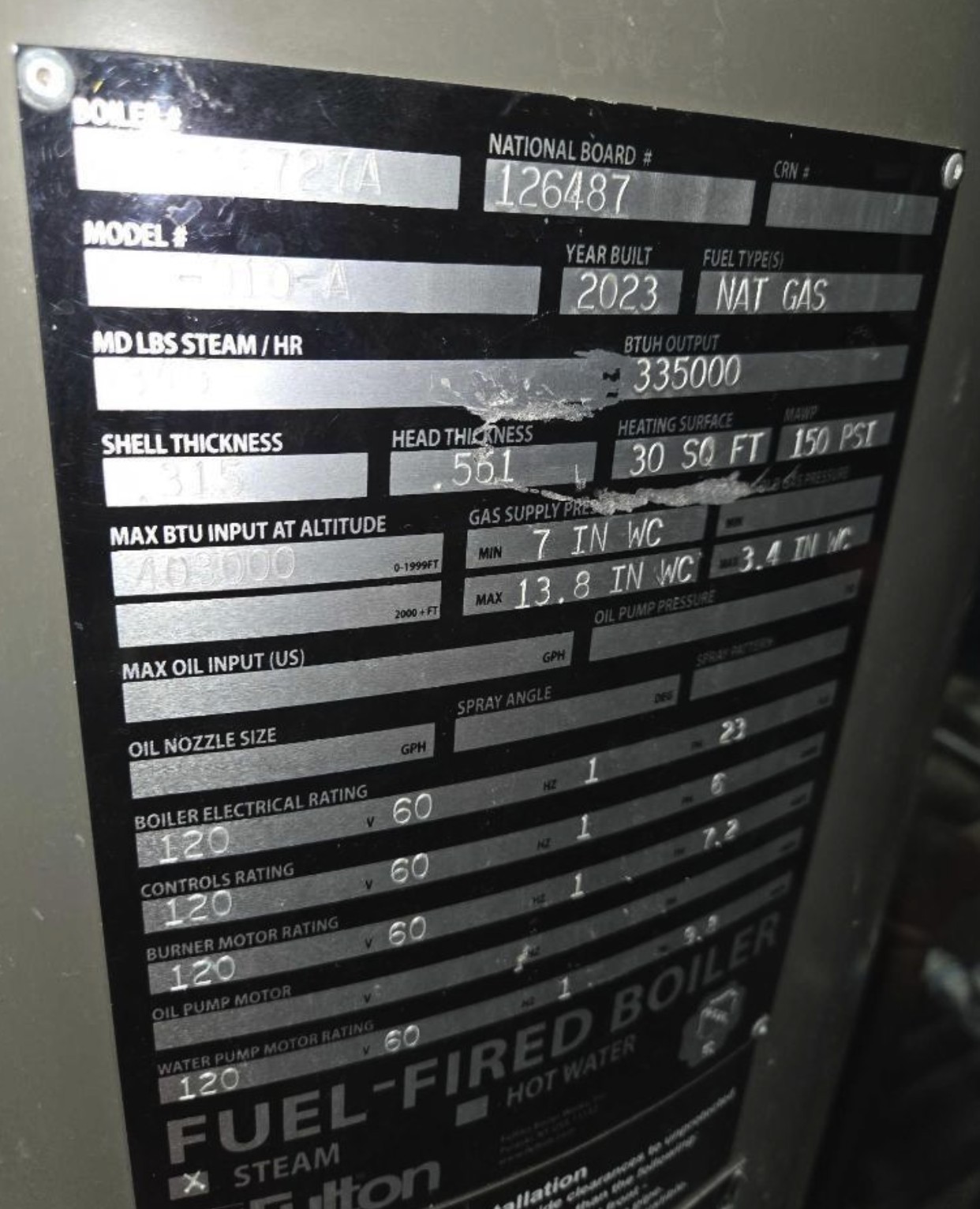

EQUIPMENT SPECIFICATIONS (from nameplate unless noted)

Boiler Model Information:
Manufacturer: Fulton Boiler Works, Inc. (Pulaski, NY, USA)
Product Line: Fulton Classic vertical tubeless
Model Number: FB-010-A
National Board No.: 126487
Year Built: 2023
Boiler Type: Fuel-fired vertical tubeless steam boiler
Fuel Type: Natural Gas

Performance Ratings:
Boiler Horsepower: 10 HP
Output: 335,000 BTU/HR (nameplate)
Max BTU Input (0-1,999 ft): 403,000 BTU/HR (nameplate)
Steam Capacity: 345 lb/hr from and at 212°F
Heating Surface: 30 sq ft (nameplate)
MAWP: 150 PSI (nameplate)
Shell Thickness: .315 in; Head Thickness: .561 in (nameplate)

HP note: the plate has no HP field. 10 HP agrees with the model number FB-010-A (010 = 10 HP) and the plate output of 335,000 BTU/HR (10 BHP x 33,475 BTU/HR), and matches Fulton's Classic 10 HP technical data (335,000 BTU/HR output, 345 lb/hr, 30 sq ft heating surface).

Burner / Gas Train:
Burner: integral forced-draft gas burner, 1/3 HP burner motor (Fulton literature)
Gas Supply Pressure: 7 in WC min / 13.8 in WC max (nameplate)
Manifold Gas Pressure: 3.4 in WC max (nameplate)
Rated natural gas use: ~404 SCFH at 1,000 BTU/cu ft (Fulton literature)

Electrical (nameplate):
Boiler Electrical Rating: 120 V, 60 Hz, 1 Ph, 23 FLA
Controls Rating: 120 V, 60 Hz, 1 Ph, 6 A
Burner Motor Rating: 120 V, 60 Hz, 1 Ph, 7.2 A
Water Pump Motor Rating: 120 V, 60 Hz, 1 Ph, 9.8 A

Literature cross-check (Fulton Classic 10 HP technical data, typical, not measured on this unit):
Connections: steam outlet 1 in (>75 psig) / 1-1/2 in (75 psig or less); feedwater 1 in; bottom blowdown 1 in; gas train inlet 1 in; stack 6 in
Water volume at normal level: 24 gal
Dry weight: ~2,000 lb; operating weight: ~2,200 lb
Boiler diameter: 28 in; overall height ~69.5 in (~80 in with trim and fuel train); depth stack to burner housing ~45 in; width with water column ~37 in
Burner removal headroom: 86 in
Sound level at high fire: 71 dBA

KEY FEATURES

Fulton Classic 10 HP vertical tubeless steam boiler, 150 PSI MAWP
2023 build, Fulton Boiler Works, Pulaski, NY
Natural gas fired; 335,000 BTU/HR output, ~345 lb/hr steam
Tubeless design, compact vertical footprint
Single-phase 120 V power

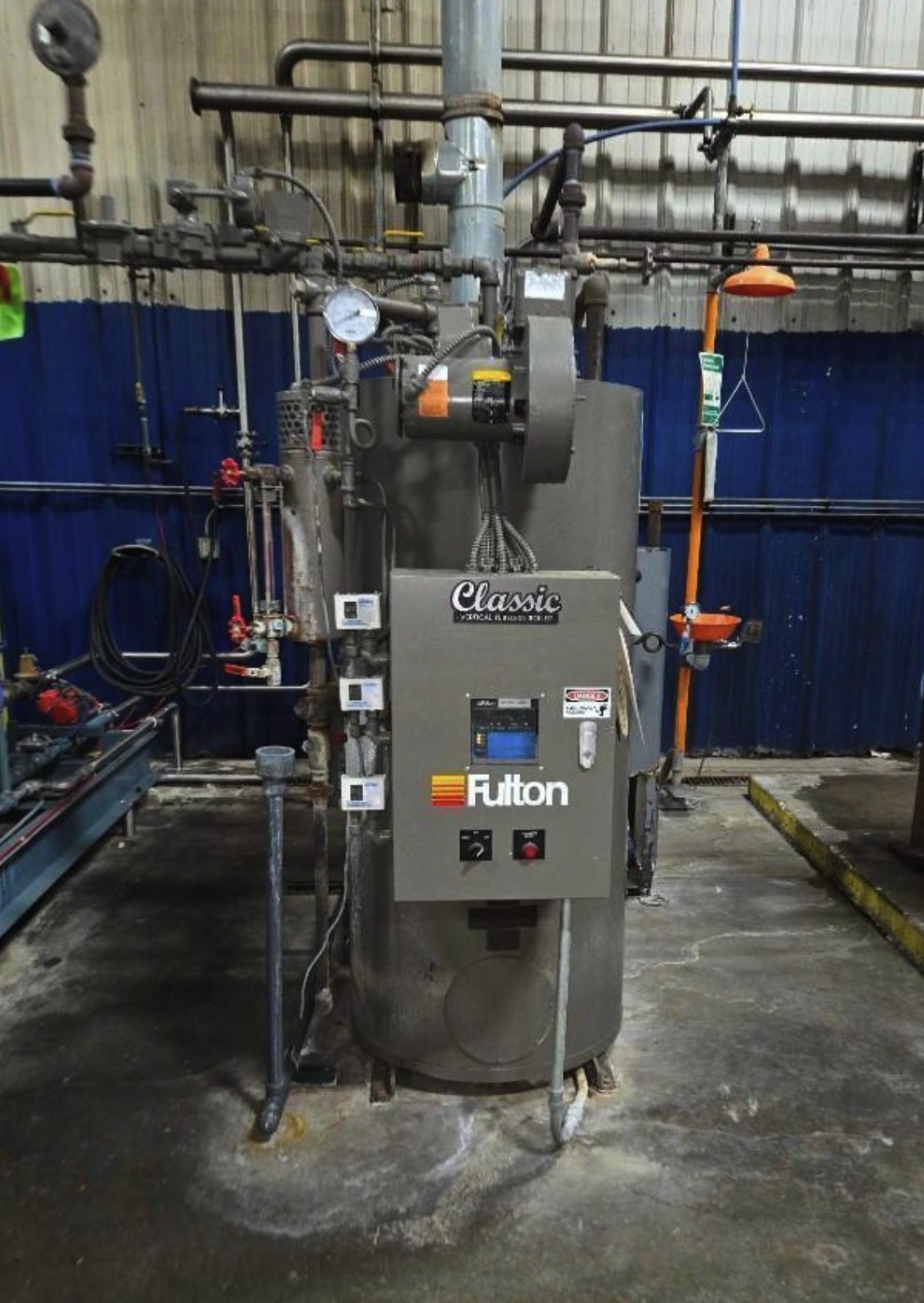

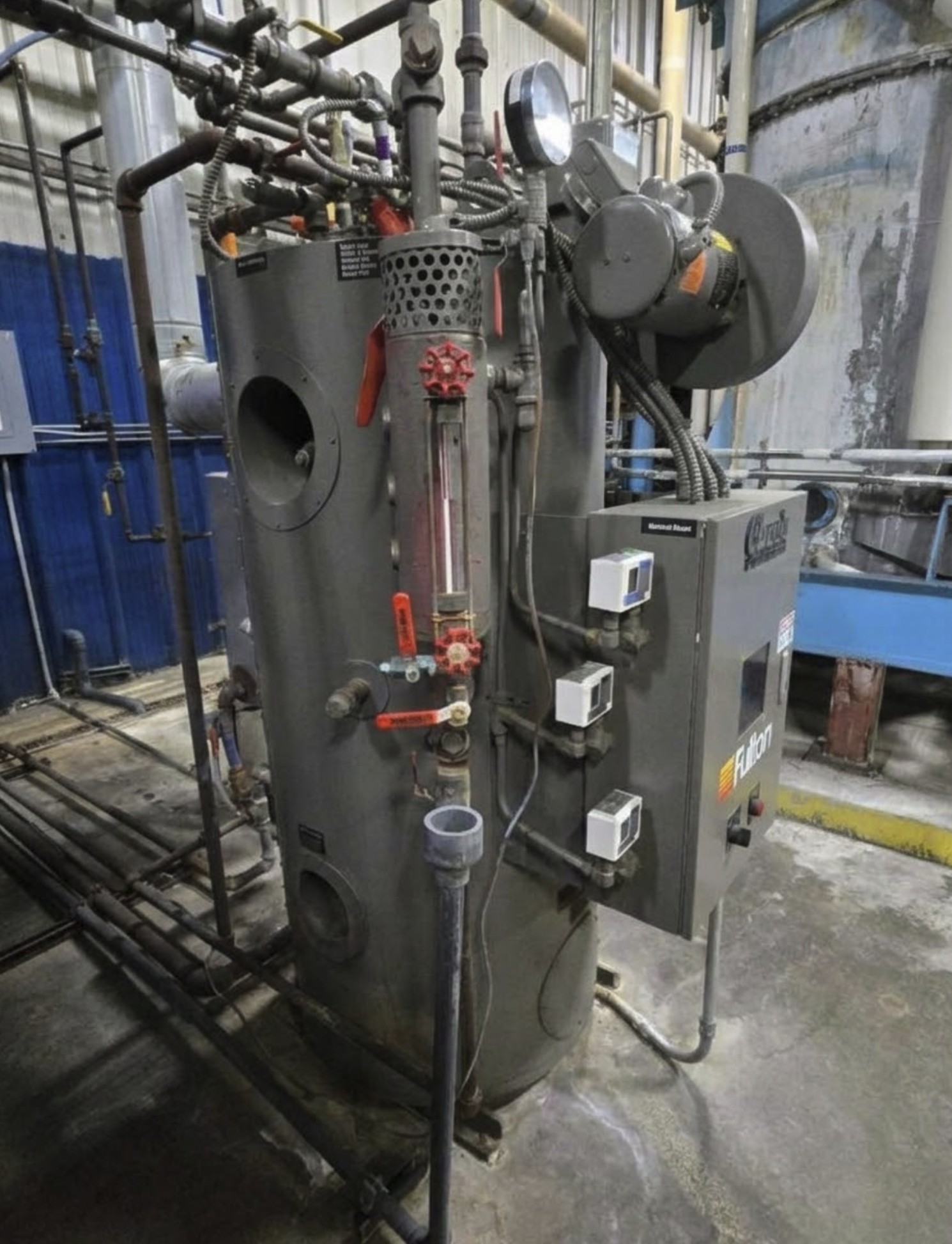

Fulton control panel with display, water column with gauge glass, steam pressure gauge and pressure controls (see photos)

ADDITIONAL INFORMATION

Condition: Used
Location: TBD

IMPORTANT NOTES:
Natural gas only per nameplate
Buyer responsible for transport and rigging once released for sale
Specs marked "literature" are manufacturer typical values, not measured on this unit

Yard tag: BSF10HP6727
