Cleaver Brooks 1500HP 150PSI CBEX-2W 700-1500-150ST Steam Boiler Natural Gas 2022

OVERVIEW

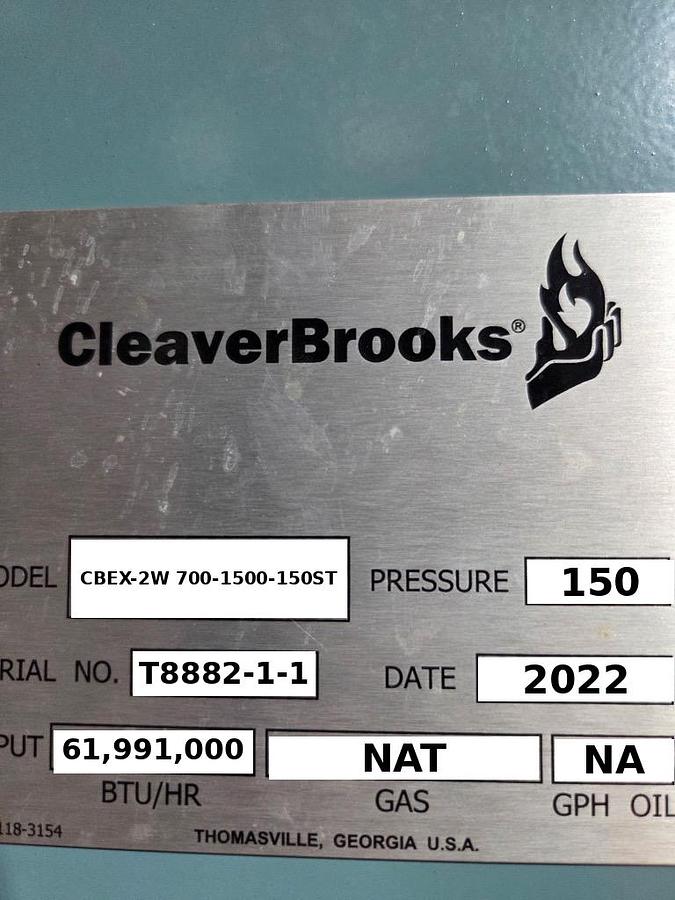

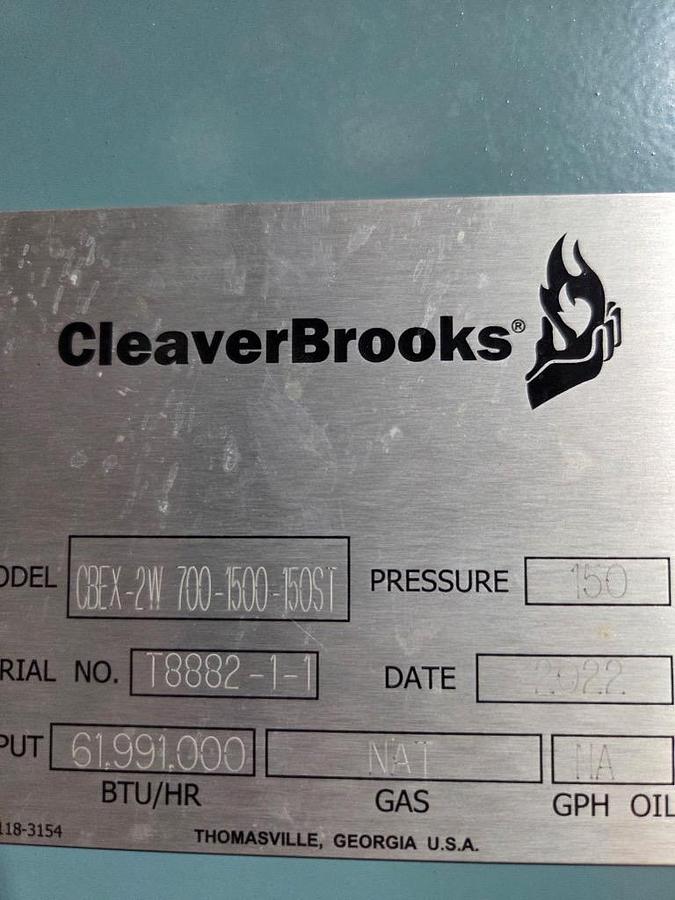

Used Cleaver Brooks Model CBEX-2W 700-1500-150ST, a 1500 boiler HP packaged firetube steam boiler (CBEX Elite, two-pass wetback) built in 2022. Rated 150 PSI steam with 61,991,000 BTU/HR input, natural gas fired (nameplate gas = NAT; GPH oil = NA). Built by Cleaver-Brooks, Thomasville, Georgia, USA.

Suited to large process steam, manufacturing, institutional / campus and district heating, food and beverage and other high-capacity natural-gas steam plants (subject to site pressure and emissions requirements).

EQUIPMENT SPECIFICATIONS (from nameplate unless noted)

Boiler Model Information:

Manufacturer: Cleaver Brooks (Thomasville, Georgia, USA)

Model Number: CBEX-2W 700-1500-150ST

Year: 2022

Boiler Type: Firetube Steam (CBEX Elite 2-W, two-pass wetback, packaged)

Fuel Type: Natural Gas (NAT); oil GPH = NA on plate

Model Number Decoded (per Cleaver-Brooks CBEX boiler literature):

CBEX-2W = CBEX Elite two-pass wetback firetube boiler

700 = fuel series 700 (gas only)

1500 = 1500 boiler horsepower

150ST = 150 PSI design pressure, steam

Performance Ratings:

Boiler Horsepower: 1500 HP

Pressure: 150 PSI steam (nameplate)

Input: 61,991,000 BTU/HR (nameplate)

Rated Steam Capacity: 51,750 lb/hr from and at 212°F (CB literature, 1500 HP)

Rated Output: ~50,208,000 BTU/HR (CB literature, 1500 HP)

HP note: the plate does not state horsepower. 1500 HP agrees with the model number (series 700 – 1500 HP – 150 PSI). The nameplate input of 61,991,000 BTU/HR matches the published natural gas input for a 1500 HP CBEX Elite at 150 psig (61,991 CFH at 1,000 Btu/cu ft, nominal 81% efficiency) in the Cleaver-Brooks CBEX Elite 1300-2200 HP Boiler Book. The 700 in the model is the gas fuel series, not horsepower.

Literature cross-check (Cleaver-Brooks CBEX Elite 1300-2200 HP boiler book, 1500 HP column typical, not unit-specific; confirm on this unit):

Fireside heating surface: 4,212 sq ft

Design: two-pass wetback packaged firetube

Overall length: ~413 in; shell length: ~309 in

Overall width: ~131 in; boiler I.D.: 114 in

Base to vent outlet: ~145-1/2 in; vent stack outlet: 36 in

Steam nozzle (150 PSIG): 12 in

Blower motor: 100-125 HP depending on NOx option (not verified on this unit)

Approx. shipping weight (150 PSIG): ~71,435 lb; normal water weight: ~45,392 lb

KEY FEATURES

Cleaver Brooks CBEX Elite 2-W 1500 HP firetube steam boiler, 150 PSI

2022 build — Thomasville, Georgia

Natural gas fired; 61,991,000 BTU/HR input per nameplate

Packaged design with forced-draft burner and blower, controls and base frame (see photos)

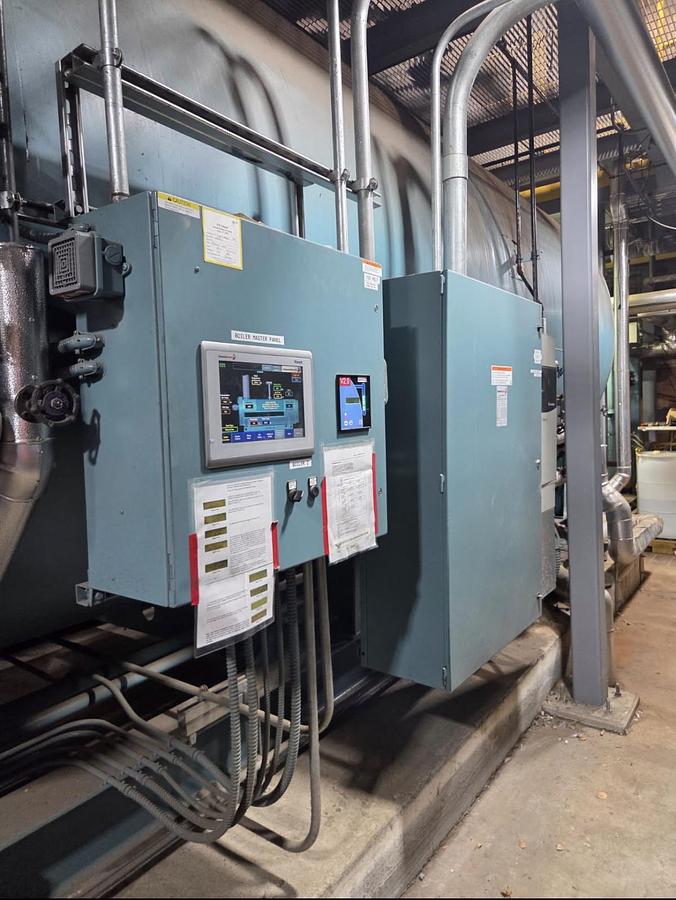

Controls: Cleaver-Brooks boiler master panel with color touchscreen HMI (visible in photo) and a second control cabinet

Burner model, NOx option, control model, trim, economizer and feedwater package: not confirmed

ADDITIONAL INFORMATION

Condition: Used

Location: TBD

Operating hours and condition of tubes/refractory: not verified

IMPORTANT NOTES:

Natural gas only per series 700 and nameplate (oil field = NA)

Buyer responsible for transport and rigging once released for sale

Specs marked "literature" are manufacturer typical values, not measured on this unit

Yard tag: BSCB1500HP8882
