Cleaver Brooks 200HP 150PSI CBEX-P700-200-150 Steam Boiler Natural Gas 2014

OVERVIEW

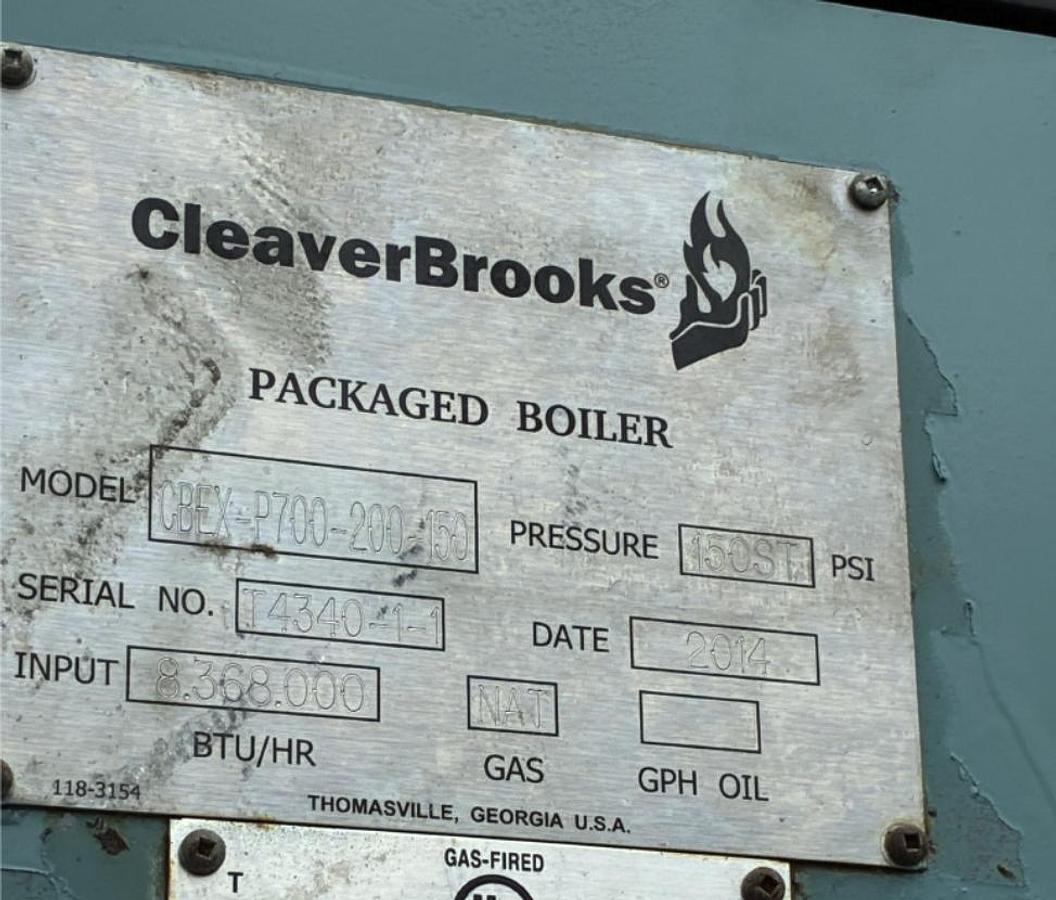

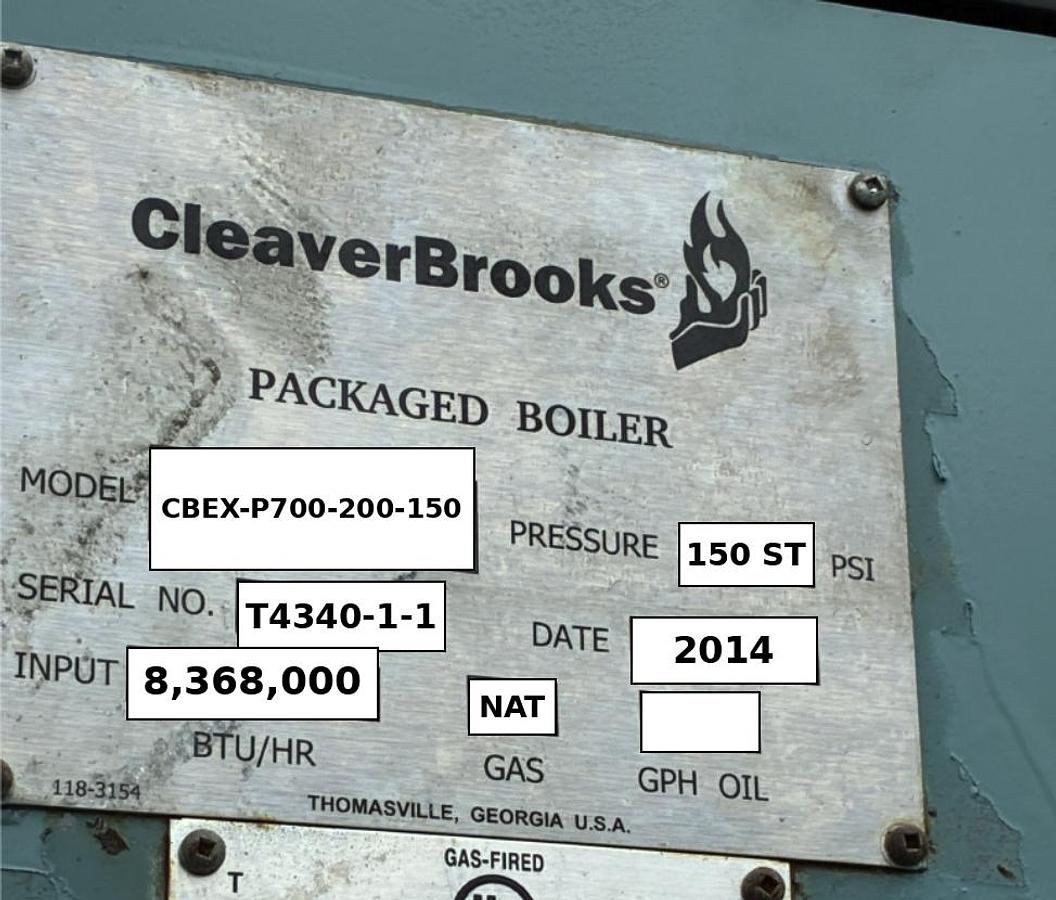

Used Cleaver Brooks Model CBEX-P700-200-150, a 200 boiler HP packaged firetube steam boiler built in 2014. Rated 150 PSI steam (nameplate "150 ST") with 8,368,000 BTU/HR input, natural gas fired (nameplate gas = NAT; oil GPH blank). Built by Cleaver-Brooks, Thomasville, Georgia, USA.

Suited to process steam, manufacturing, institutional / campus heating, food and beverage, laundry and other mid-size natural-gas steam applications (subject to site pressure and emissions requirements).

EQUIPMENT SPECIFICATIONS (from nameplate unless noted)

Manufacturer: Cleaver Brooks (Thomasville, Georgia, USA)

Model Number: CBEX-P700-200-150

Year: 2014

Boiler Type: Firetube Steam (CBEX-P series, packaged)

Fuel Type: Natural Gas (NAT); oil GPH field blank on plate

Model Number Decoded (per Cleaver-Brooks CBEX boiler manuals):

CBEX = Cleaver-Brooks EX series packaged firetube boiler; "P" = CBEX Premium line

700 = fuel series 700 (gas only)

200 = 200 boiler horsepower

150 = 150 PSI design pressure (plate: 150 ST = steam)

Performance Ratings:

Boiler Horsepower: 200 HP (from model number; the plate does not state horsepower)

Pressure: 150 PSI steam (nameplate)

Input: 8,368,000 BTU/HR (nameplate)

Rated Steam Capacity: 6,900 lb/hr from and at 212°F (CB literature, 200 HP)

Rated Output: ~6,694,000 BTU/HR (CB literature, 200 HP)

Literature cross-check (Cleaver-Brooks CBEX Premium 100-800 HP boiler book, 200 HP column; typical values, not measured on this unit):

Fireside heating surface: 671 sq ft

Design: 2-pass, water-back packaged firetube

Standard burner model listed: VLG-84 (not verified on this unit)

Standard blower motor listed: 7-1/2 HP (not verified on this unit)

Overall length: ~204 in; shell length: ~163 in

Overall width: ~86 in; boiler I.D.: 60 in

Base to vent outlet: ~87 in; vent stack: 16 in flanged

Steam nozzle: 4 in, 300# ANSI flange

Approx. shipping weight (150 psig): ~13,250 lb; normal water weight: ~8,830 lb

KEY FEATURES

Cleaver Brooks CBEX-P series 200 HP firetube steam boiler, 150 PSI

2014 build, Thomasville, Georgia

Natural gas fired; 8,368,000 BTU/HR input per nameplate

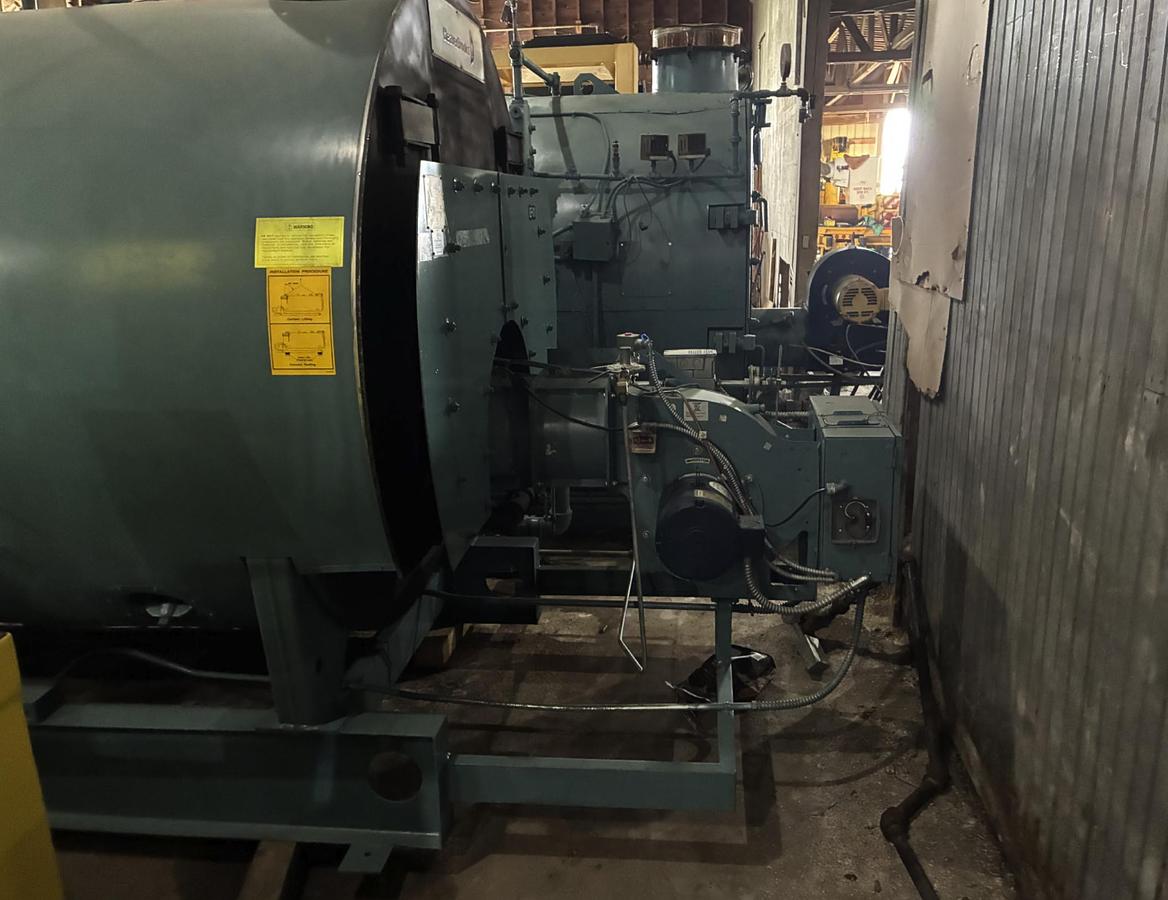

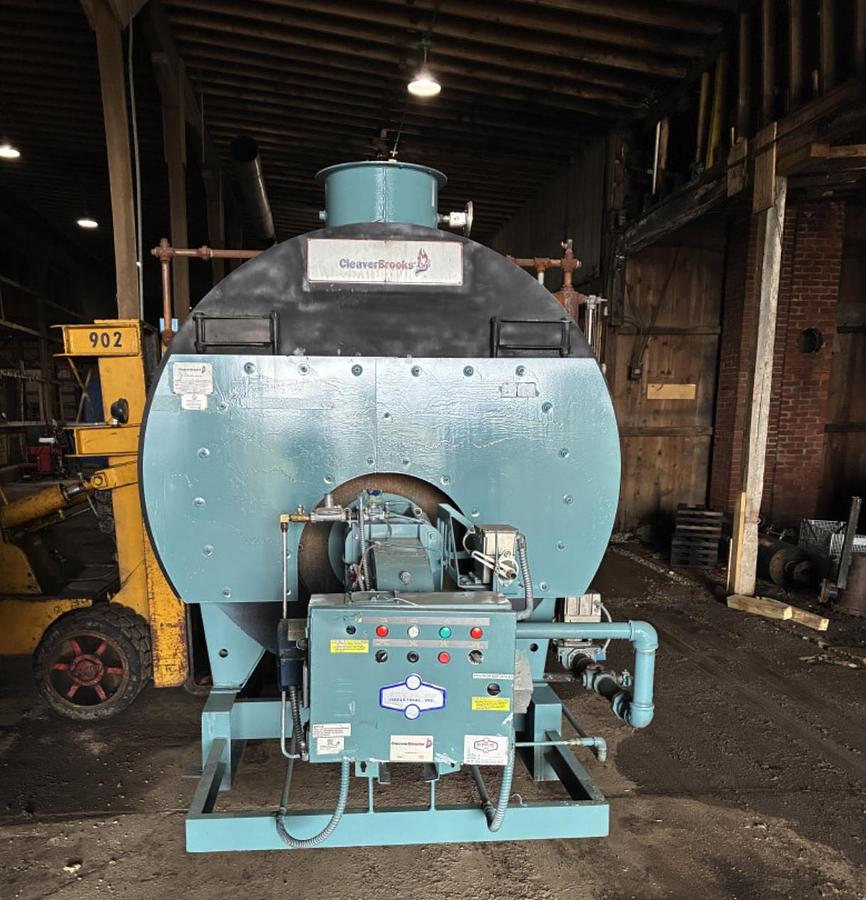

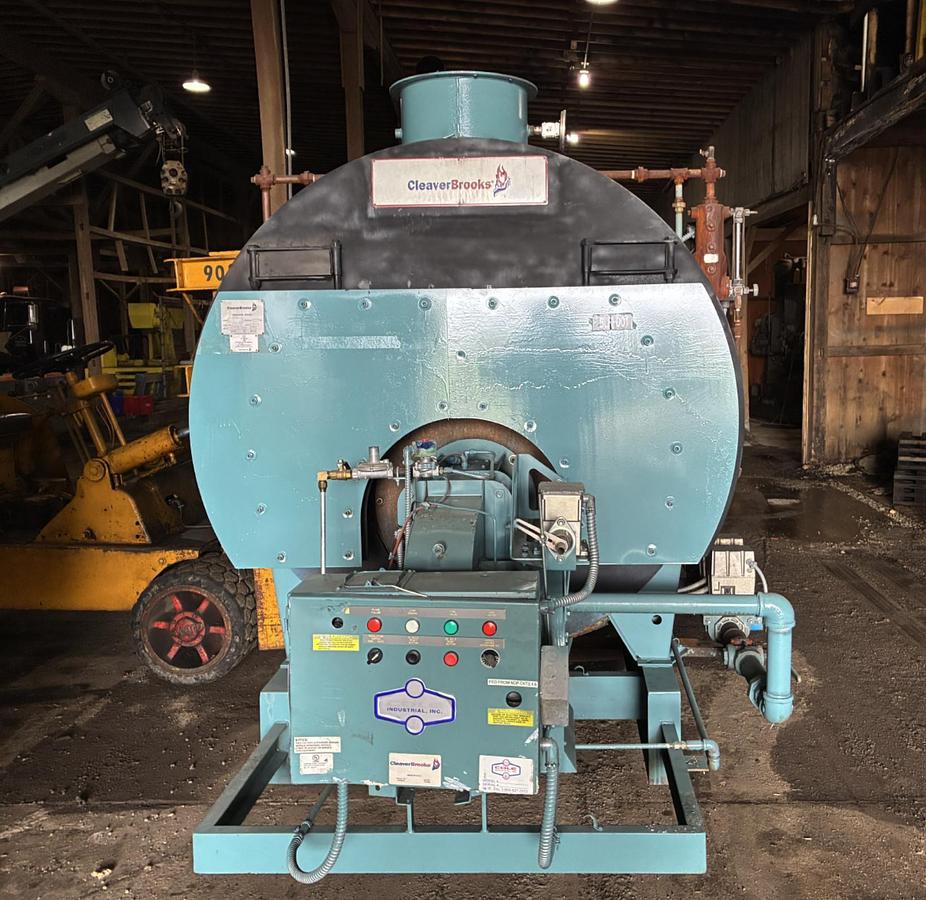

Packaged design: boiler, burner, controls and base frame on one skid (see photos)

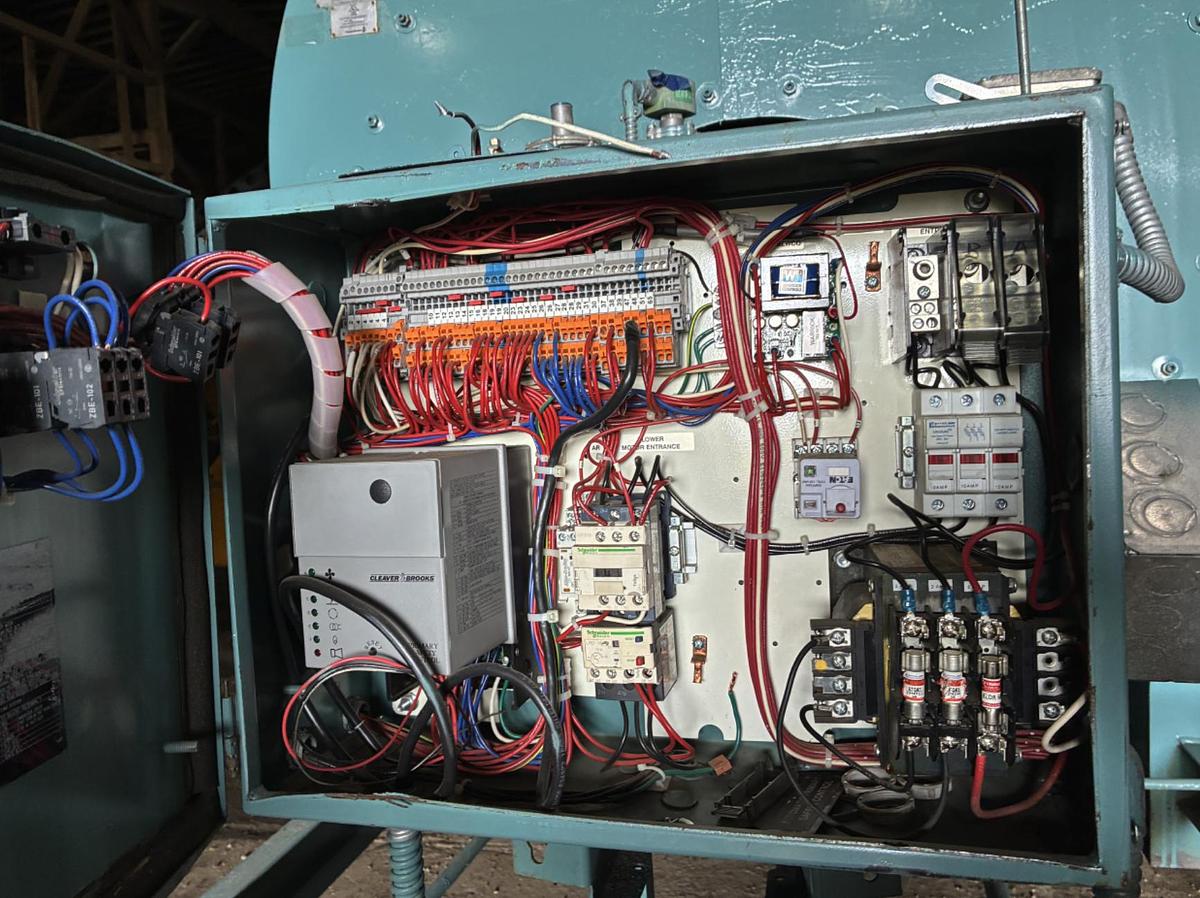

Control panel with a Cleaver-Brooks-branded flame safeguard controller visible inside the open panel (photo); specific control model, burner model, trim, economizer and feedwater package not confirmed

ADDITIONAL INFORMATION

Condition: Used

Location: Ohio

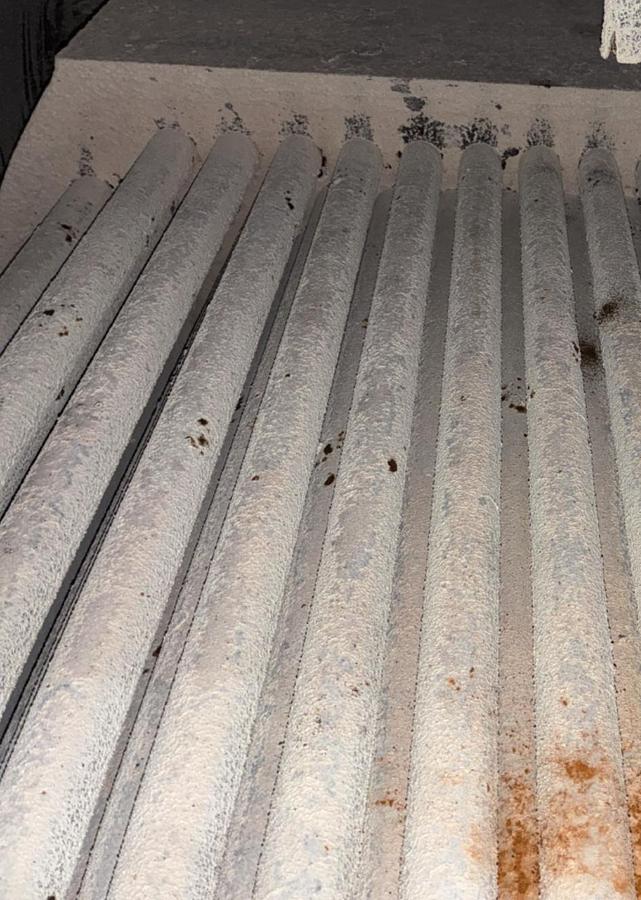

Operating hours and condition of tubes/refractory: not verified

Buyer responsible for transport and rigging once released for sale

Specs marked "literature" are manufacturer typical values, not measured on this unit

Yard tag: BSCB200HP4340
