Gardner Denver EAU99AA 250 HP 125 PSI Electra-Saver Rotary Screw Air Compressor SN S657041 2022

OVERVIEW

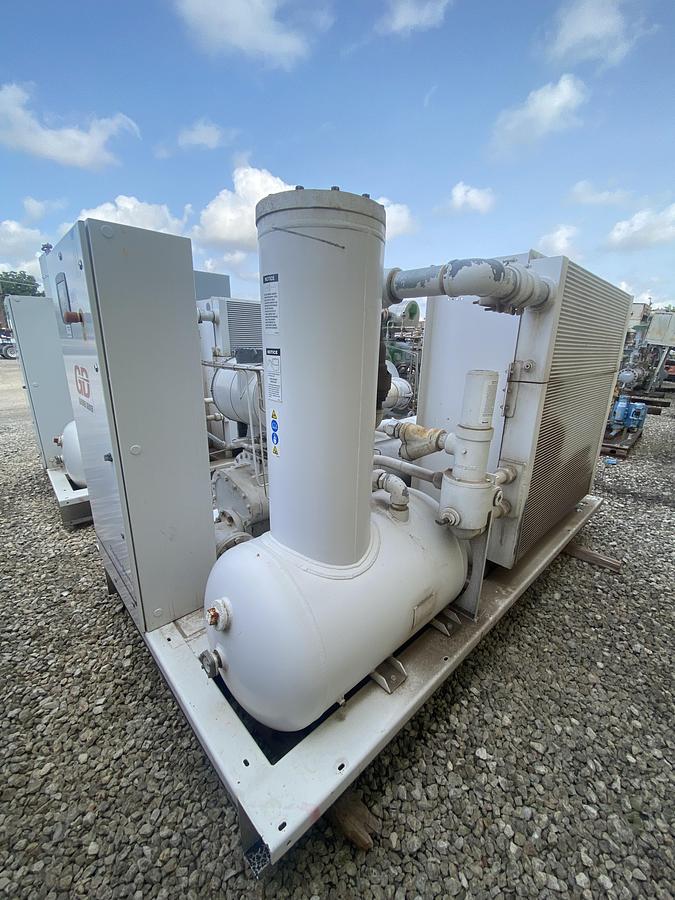

This is a Gardner Denver Electra-Saver rotary screw air compressor, model EAU99AA, manufactured in September 2022. It is rated for 125 PSIG full load operating pressure and driven by a 250 HP Marathon electric motor. The package includes an integral air-cooled fin fan aftercooler and a Benshaw 2400 VAC motor control panel. Estimated hours are approximately 600. Ready for inspection, contact us to schedule.

EQUIPMENT SPECIFICATIONS

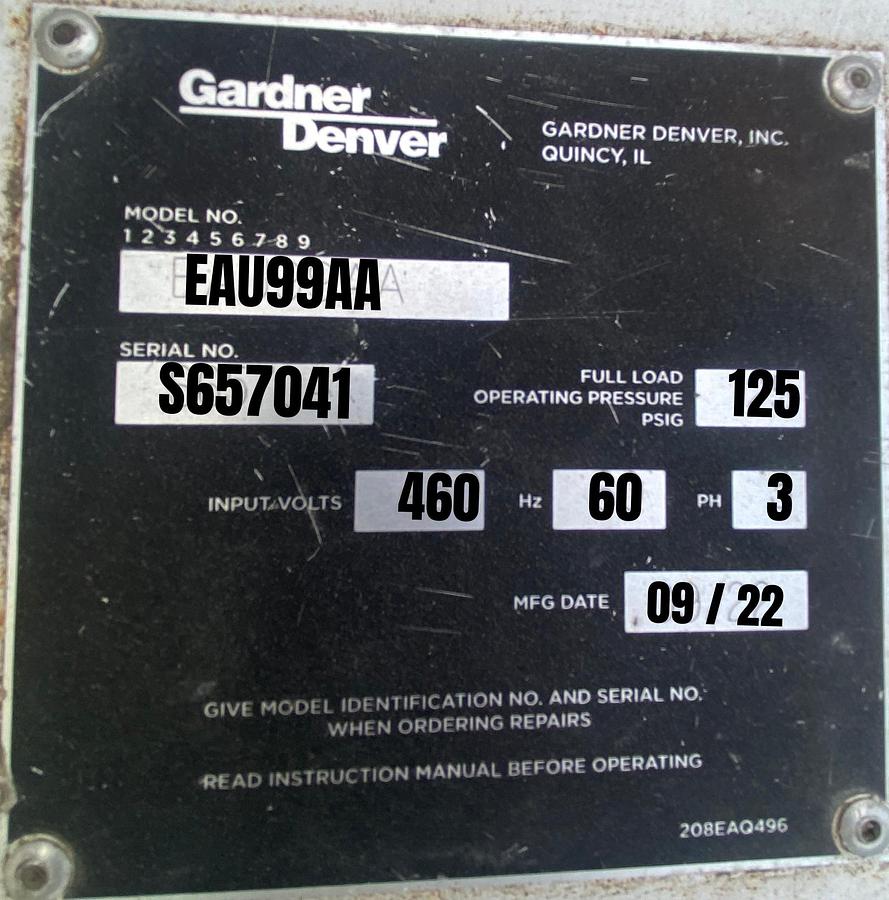

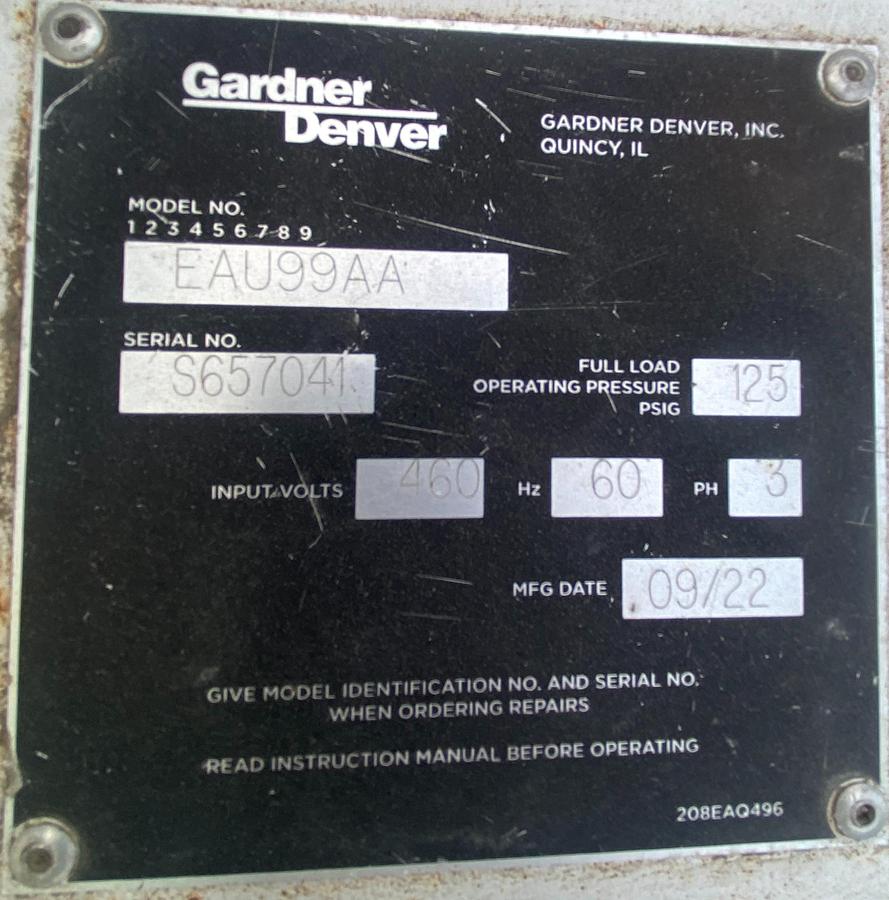

Compressor:

• Manufacturer: Gardner Denver, Quincy, IL
• Equipment Type: Rotary Screw Air Compressor, Electra-Saver Series
• Model: EAU99AA

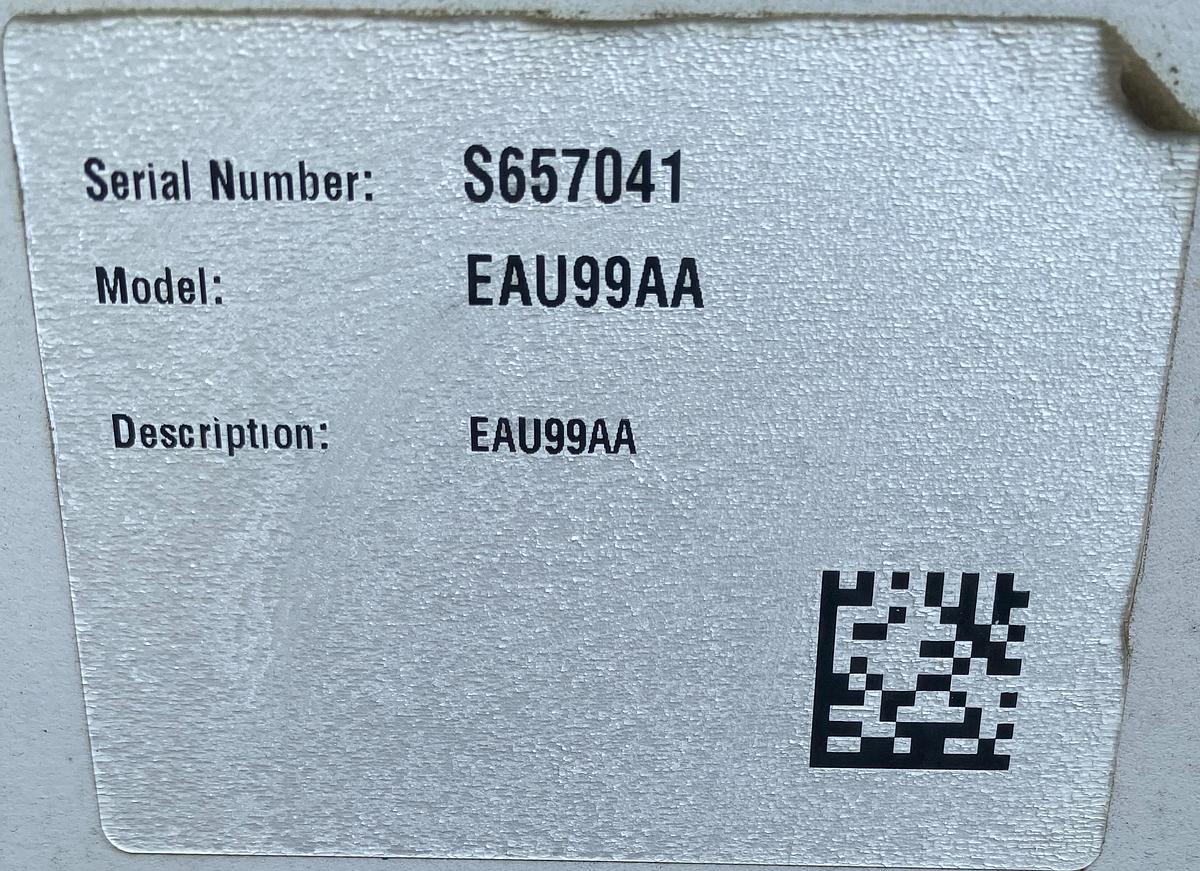

• Serial No.: S657041
• Date of Manufacture: 09/2022
• Full Load Operating Pressure: 125 PSIG
• Input Volts: 460, Hz: 60, Phase: 3
• Estimated Hours: Approximately 600

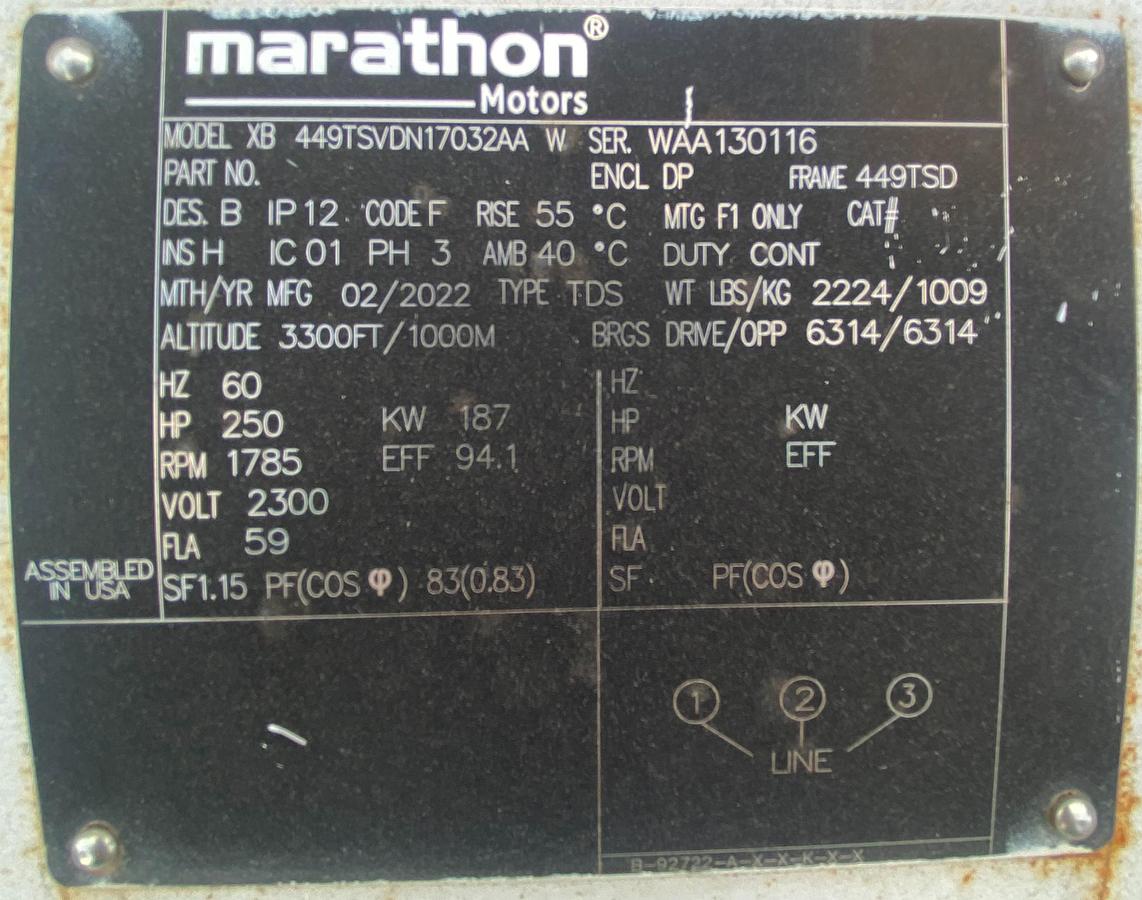

Motor:

• Manufacturer: Marathon Motors
• Model: XB 449TSVDN17032AA W
• Serial No.: WAA130116
• Frame: 449TSD
• Horsepower: 250 HP
• Kilowatts: 187 KW
• RPM: 1,785
• Voltage: 2,300 V
• Full Load Amps: 59
• Efficiency: 94.1%
• Phase: 3, Hz: 60
• Service Factor: 1.15
• Enclosure: DP (drip-proof)
• Assembled in USA

Controls and Cooling:

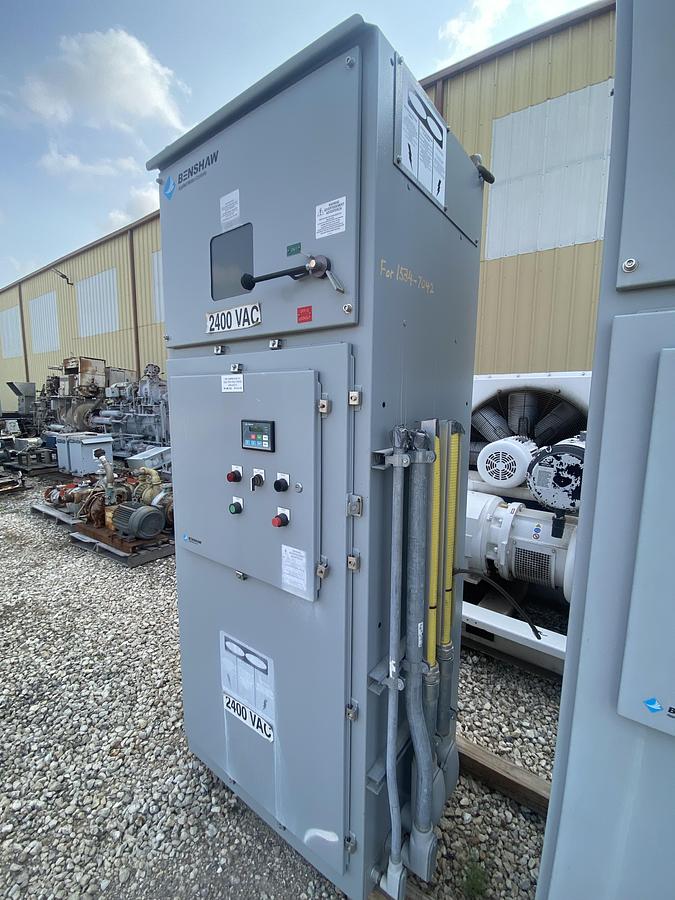

• Benshaw 2400 VAC motor control panel
• Air-cooled fin fan cooler
• Rated to 203 PSI
• Max cooling temp rating: 212°F

KEY FEATURES AND BENEFITS

• Gardner Denver Electra-Saver rotary screw design
• 250 HP Marathon motor, 2,300 V, high efficiency (94.1%)
• 125 PSIG full load operating pressure
• Low estimated hours (approximately 600)
• Integral air-cooled fin fan aftercooler
• Benshaw 2400 VAC control panel
• Skid-mounted, ready to move

SYSTEM COMPONENTS

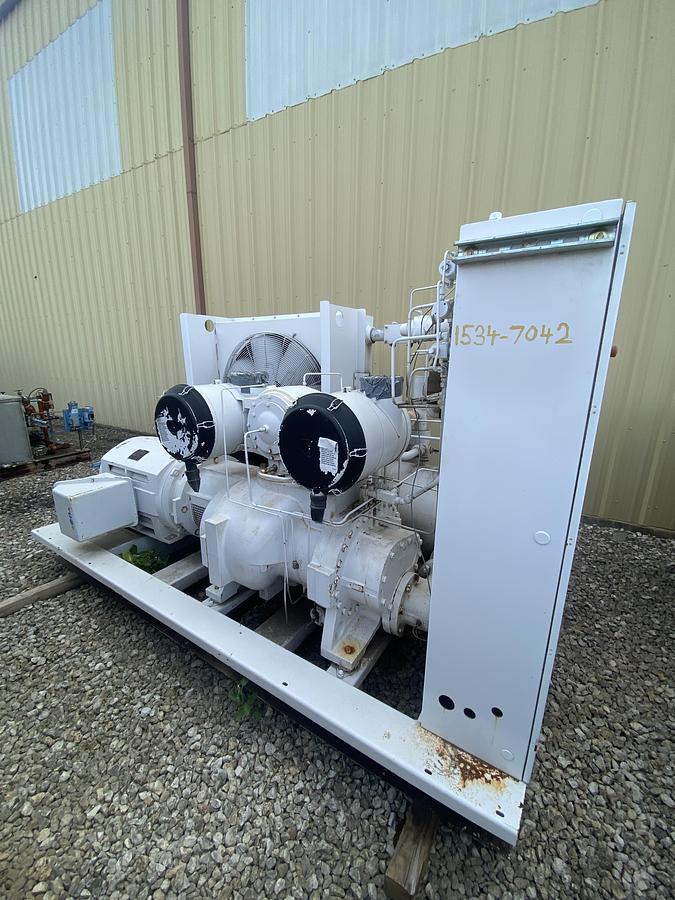

• Compressor: Gardner Denver EAU99AA rotary screw airend, mounted on skid base
• Motor: Marathon 250 HP, 2,300 V, 1,785 RPM, frame 449TSD
• Cooling: Air-cooled fin fan cooler with blower motor

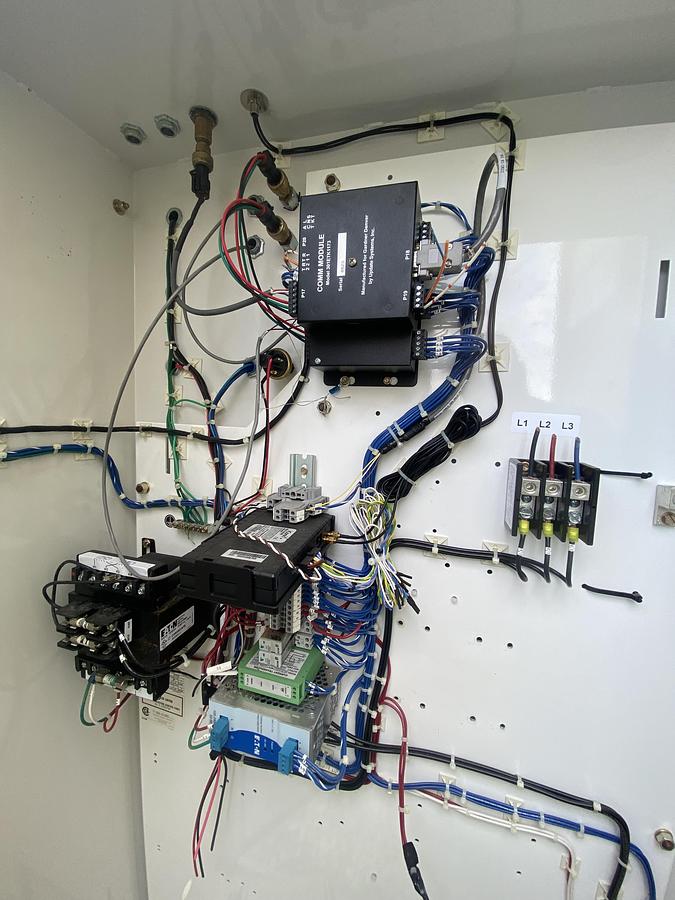

• Controls: Benshaw 2400 VAC panel, control interface and pushbutton station
• Trim: Piping, isolation valves, filtration

SPECIFICATIONS SUMMARY

• Manufacturer: Gardner Denver
• Model: EAU99AA
• Horsepower: 250 HP (Marathon motor)
• Full Load Operating Pressure: 125 PSIG
• Input Volts: 460 (compressor), 2,300 (motor)
• Serial No.: S657041
• Year Built: 2022
• Estimated Hours: Approximately 600
• Condition: Used, running hours as noted

ADDITIONAL INFORMATION

• Condition: Used, low hours, running condition
• Manufacturer: Gardner Denver, Quincy, IL
• Model: EAU99AA, 250 HP
• Year Built: 2022
• Rated: 125 PSIG
• Inspection: Welcome, contact us to schedule
