Fulton Deaerator Tank System DA 1001 — Shipco Pumps Skid Model 005DA ISTP — Triplex 20 HP Pump Set — Schneider Electric Controls

OVERVIEW

This is a Fulton deaerator (DA) tank system — unit tag DA-1001. Horizontal stainless steel deaerator vessel mounted on a structural steel skid with an integrated Shipco Pumps boiler feed pump set (Unit Model 005DA ISTP, Serial Number F 228). Three vertical inline feedwater pumps with insulated pump bodies, Fulton control panel with Schneider Electric touchscreen HMI, and dual Schneider Electric Altivar 212 variable frequency drives. Electrical supply 480V, 3-Phase, 3-Wire — fed from DP-MD12/9. Ready for inspection — contact us to schedule.

Fulton DA-1001 deaerator system — horizontal cylindrical deaerator tank with spray/tray type oxygen removal, dual sight glass level gauges, and complete steam and water trim. Skid-mounted Shipco triplex pump set rated 71 GPM at 165 PSIG, each pump driven by a 20 HP motor at 460V, 3-Phase. Fulton factory control panel with Schneider Electric Harmony touchscreen and two Schneider Altivar 212 VFDs (15 kW / 480V) for variable-speed pump control. Suitable for boiler feedwater conditioning in industrial and institutional steam plants.

Ideal for boiler feedwater deaeration, industrial steam plants, institutional and campus heating systems, hospital or healthcare steam systems, food and beverage processing, or any application requiring oxygen removal and feedwater conditioning for boiler protection.

EQUIPMENT SPECIFICATIONS

Deaerator System:

• Manufacturer: Fulton
• Equipment Type: Deaerator (DA) Tank System with Boiler Feed Pump Skid
• Unit Tag: DA-1001 (DA-01)
• Electrical Supply: 480V, 3-Phase, 3-Wire
• Power Feed: DP-MD12/9
• Tank Orientation: Horizontal
• Tank Construction: Stainless steel
• Recorded Hours: P1 6,825 hrs / P2 5,472 hrs (as handwritten on panel)

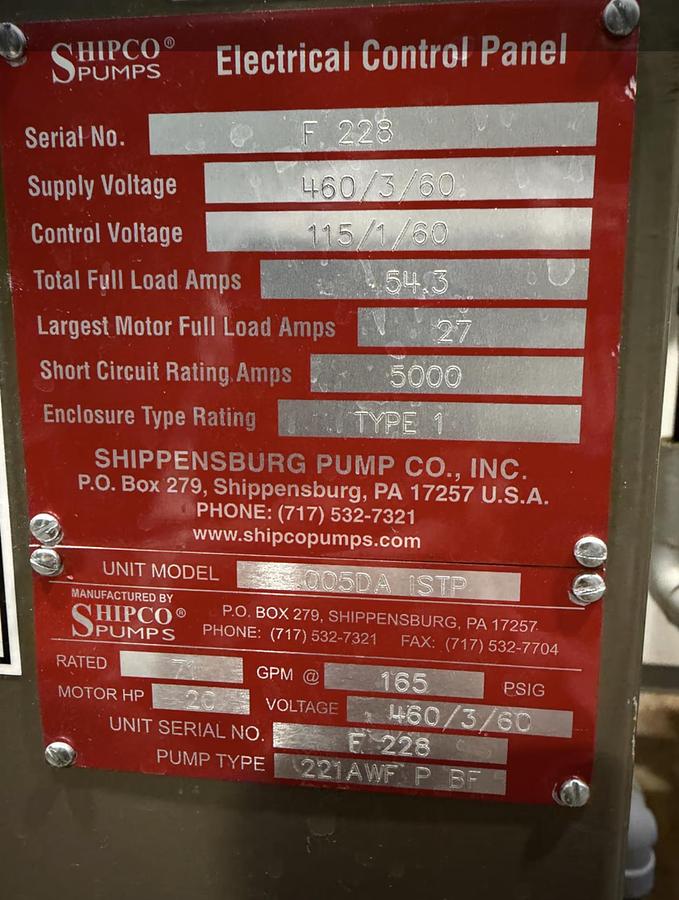

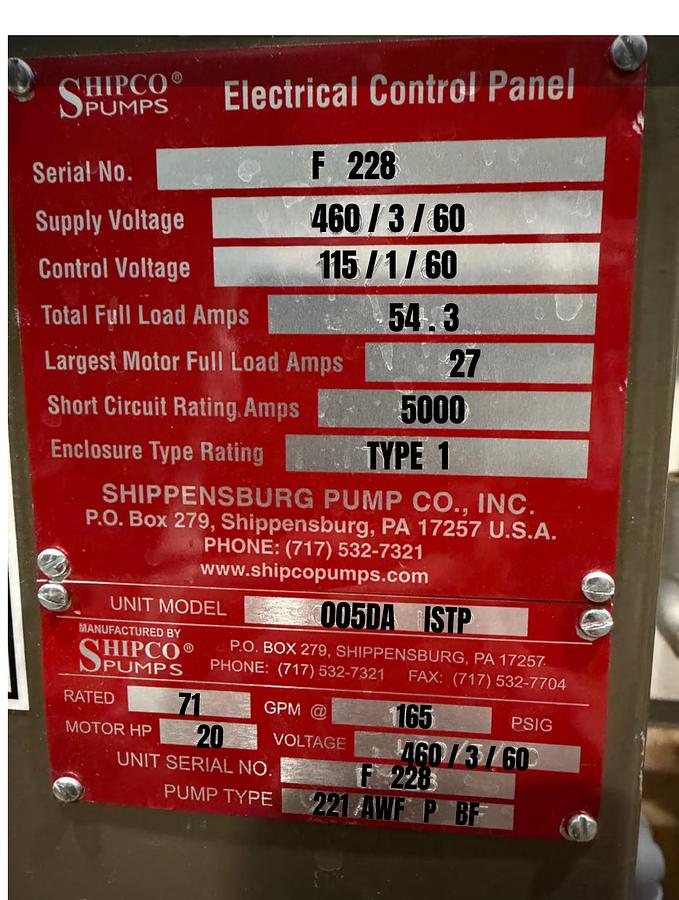

Shipco Pump Skid:

• Manufacturer: Shippensburg Pump Co., Inc. (Shipco Pumps) — Shippensburg, PA, USA
• Unit Model: 005DA ISTP
• Unit Serial Number: F 228
• Supply Voltage: 460V, 3-Phase, 60 Hz
• Control Voltage: 115V, 1-Phase, 60 Hz
• Total Full Load Amps: 54.3
• Largest Motor Full Load Amps: 27
• Short Circuit Rating: 5,000 Amps
• Enclosure Type Rating: Type 1
• Rated: 71 GPM @ 165 PSIG
• Motor HP: 20 HP (each)
• Pump Type: 221 AWF P BF

Control System:

• Fulton factory control panel
• Schneider Electric Harmony touchscreen HMI

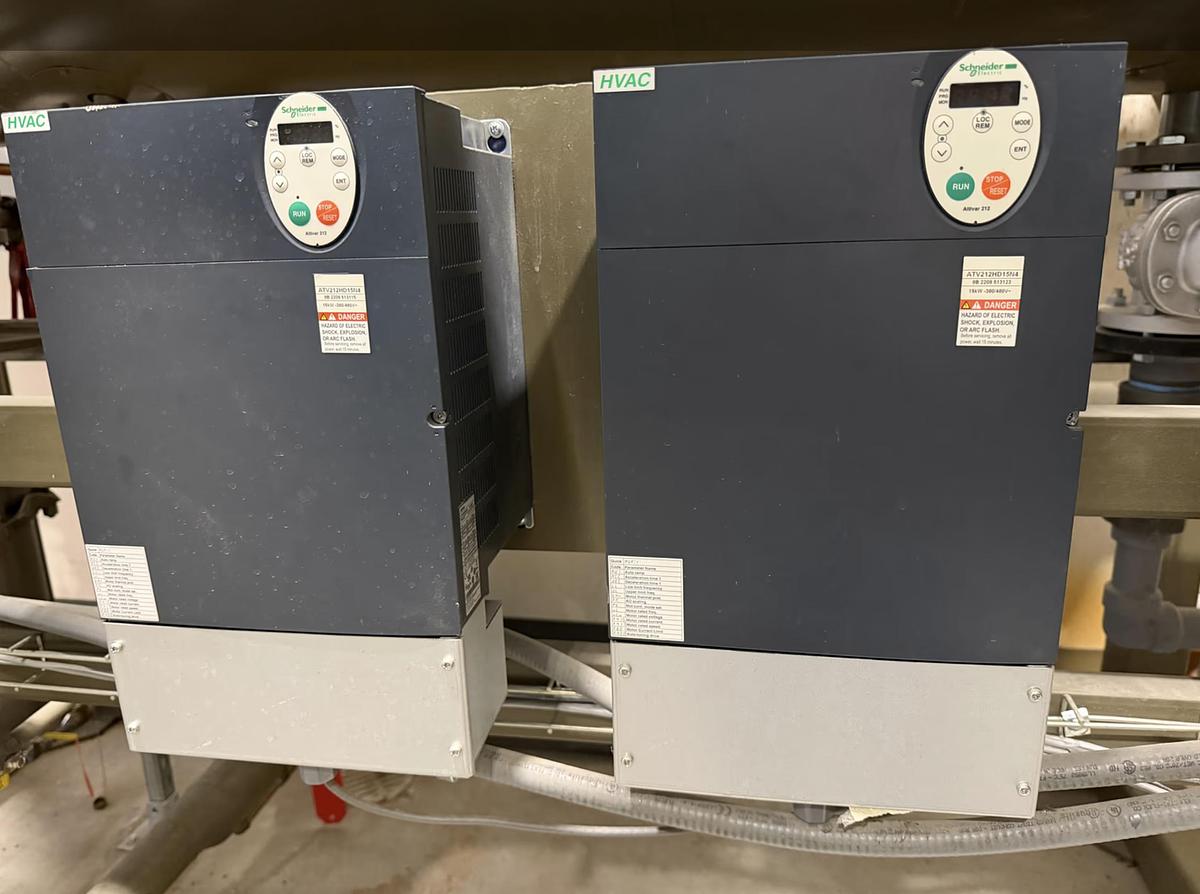

• Dual Schneider Electric Altivar 212 VFDs — Model ATV212HD15N4, 15 kW, 380/480V
• Control circuit disconnect and main disconnect
• Auto/Off/Cont pump selector switches and alarm light

KEY FEATURES & BENEFITS

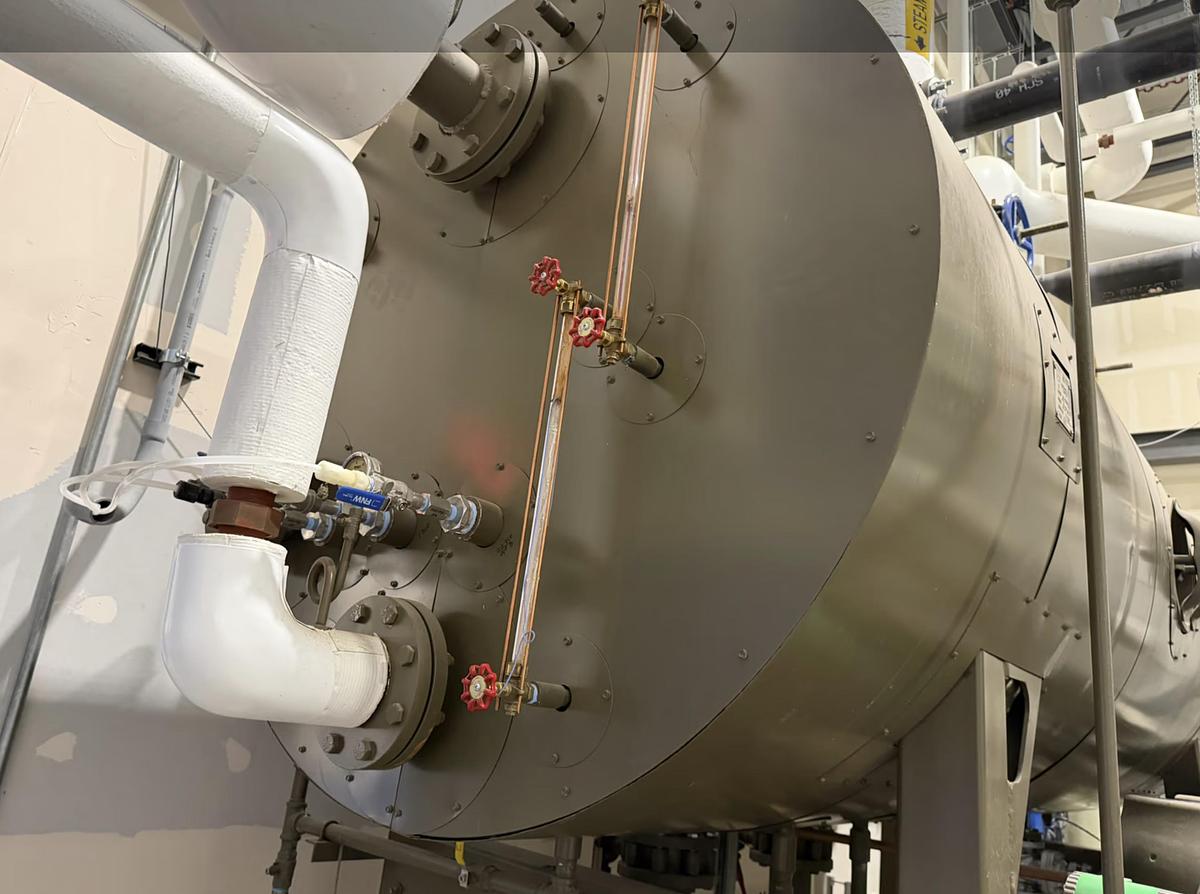

Fulton Deaerator Tank:

• Horizontal stainless steel deaerator vessel — boiler feedwater oxygen removal
• Spray/tray-type deaeration design
• Dual sight glass / gauge glass level indicators with isolation valves
• Complete steam and water trim — flanged process connections
• Insulated steam inlet and outlet piping

Shipco Triplex Pump Set:

• Three vertical inline boiler feed pumps — redundant triplex configuration
• Rated 71 GPM at 165 PSIG
• 20 HP motors — 460V, 3-Phase each
• Insulated pump bodies — removable insulation jackets
• Stainless steel suction and discharge piping with isolation valves
• Mounted on heavy structural steel skid

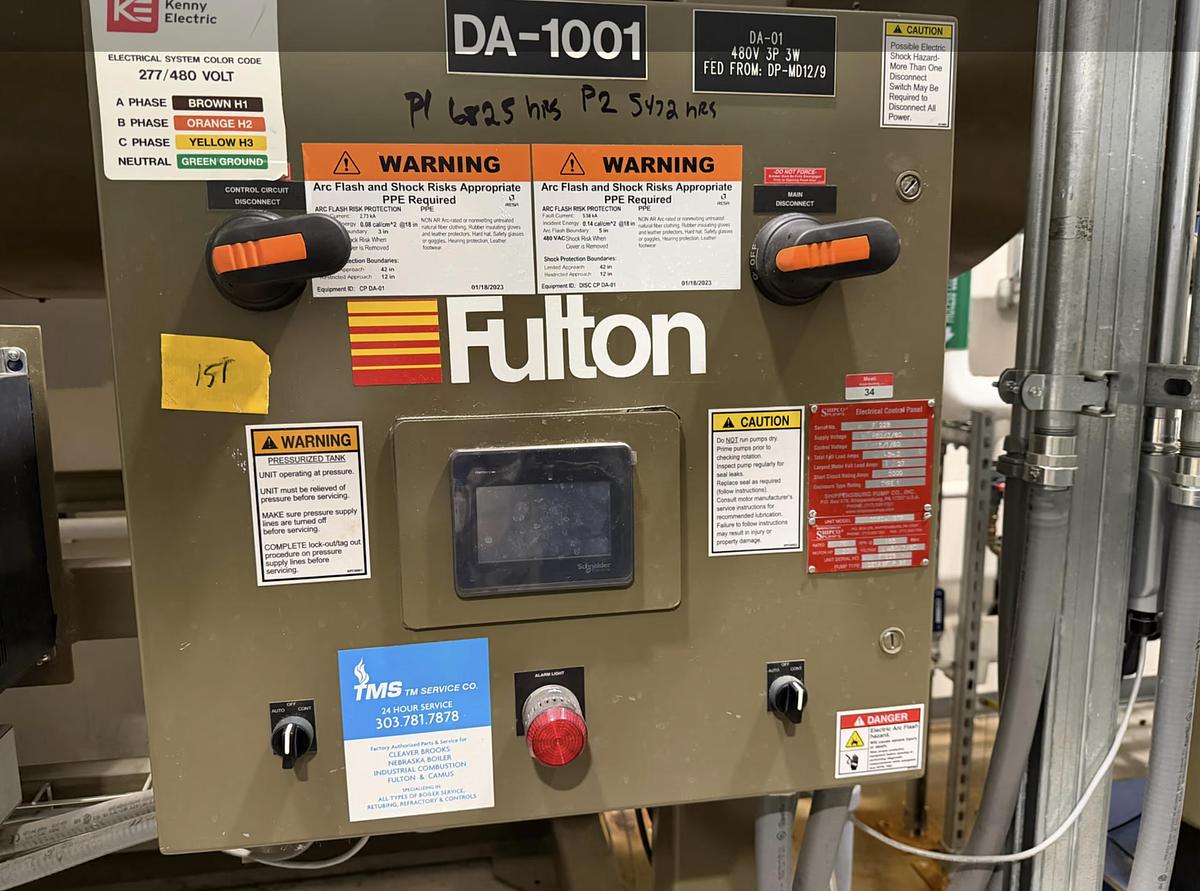

Fulton Control Panel & Schneider Drives:

• Fulton factory-mounted control panel — NEMA enclosure
• Schneider Electric Harmony touchscreen HMI — digital operation and monitoring
• Dual Schneider Electric Altivar 212 variable frequency drives (15 kW / 480V) — variable-speed pump control
• Control circuit disconnect and main disconnect switches
• Auto/Off/Continuous pump selector switches
• Alarm light and full safety labeling
• Phase color code reference (277/480V)

Skid & Construction:

• Heavy structural steel skid base — single-piece deaerator and pump assembly
• Forklift-accessible base frame
• Factory-finish tan/grey paint

SYSTEM COMPONENTS

Deaerator Tank:

• Fulton horizontal stainless steel deaerator vessel
• Dual gauge glass level indicators with red-handle isolation valves
• Steam inlet/outlet trim — insulated
• Flanged process and manway connections
• Unit tag DA-1001

Pump Skid:

• Three Shipco vertical inline boiler feed pumps
• 20 HP motors — 460V, 3-Phase (each)
• Insulated pump bodies
• Suction/discharge isolation valves
• Shipco Unit Model 005DA ISTP, S/N F 228

Control System:

• Fulton control panel with Schneider Electric Harmony touchscreen HMI
• Dual Schneider Electric Altivar 212 VFDs (Model ATV212HD15N4, 15 kW, 480V)
• Main and control circuit disconnects
• Auto/Off/Cont selector switches and alarm light

SPECIFICATIONS SUMMARY

• Manufacturer: Fulton (Deaerator) / Shipco Pumps (Pump Skid)
• Equipment Type: Deaerator Tank System with Boiler Feed Pump Skid
• Unit Tag: DA-1001
• Shipco Unit Model: 005DA ISTP
• Shipco Serial Number: F 228
• Tank: Horizontal stainless steel
• Rated Flow: 71 GPM @ 165 PSIG
• Pumps: Triplex vertical inline boiler feed pumps
• Motor HP: 20 HP each — 460V, 3-Phase
• Pump Type: 221 AWF P BF
• Total Full Load Amps: 54.3
• Control: Fulton panel with Schneider Electric Harmony HMI
• VFDs: Dual Schneider Altivar 212 (15 kW, 480V)
• Electrical: 480V, 3-Phase, 3-Wire — Fed from DP-MD12/9
• Enclosure Rating: Type 1
• Condition: Used

ADDITIONAL INFORMATION

• Condition: Used
• Manufacturer: Fulton (Deaerator) / Shipco Pumps (Pump Skid)
• Unit Tag: DA-1001
• Shipco Unit Model: 005DA ISTP — S/N F 228
• Rated: 71 GPM @ 165 PSIG
• Pumps: Triplex 20 HP vertical inline boiler feed pumps included
• Control: Fulton panel with Schneider Electric touchscreen and dual Altivar 212 VFDs
• Electrical: 480V, 3-Phase, 3-Wire — Fed from DP-MD12/9
• Inspection: Welcome — contact us to schedule

IMPORTANT NOTES:

• Complete deaerator system — tank, triplex pump skid, control panel, and VFDs included
• Boiler feedwater deaeration / oxygen removal — protects downstream boilers
• 480V 3-Phase supply required
• Buyer responsible for transport and rigging arrangements from current location
• Contact us for additional photos, video walkthroughs, or technical questions
