1992 Cleaver Brooks CB-200-150 150 HP High Pressure Steam Boiler Natural Gas Oil Fired 150 PSI S/N L 91225 National Board No. 03010

OVERVIEW

This is a Cleaver Brooks Model CB 200-150 packaged firetube steam boiler — 150 HP, 150 PSI maximum working pressure, dual-fuel natural gas and oil fired. Serial Number L-91225, Date 9/10/92. National Board Number 03010, certified by Cleaver Brooks. ASME rated — 750 sq ft heating surface. Maximum input 6,277,000 BTU/HR. UL Listed Gas-Oil Fired Boiler Assembly No. AH252491. Manufactured by Cleaver-Brooks Division, Aqua-Chem, Inc., Milwaukee, Wisconsin, USA. Ready for inspection — contact us to schedule.

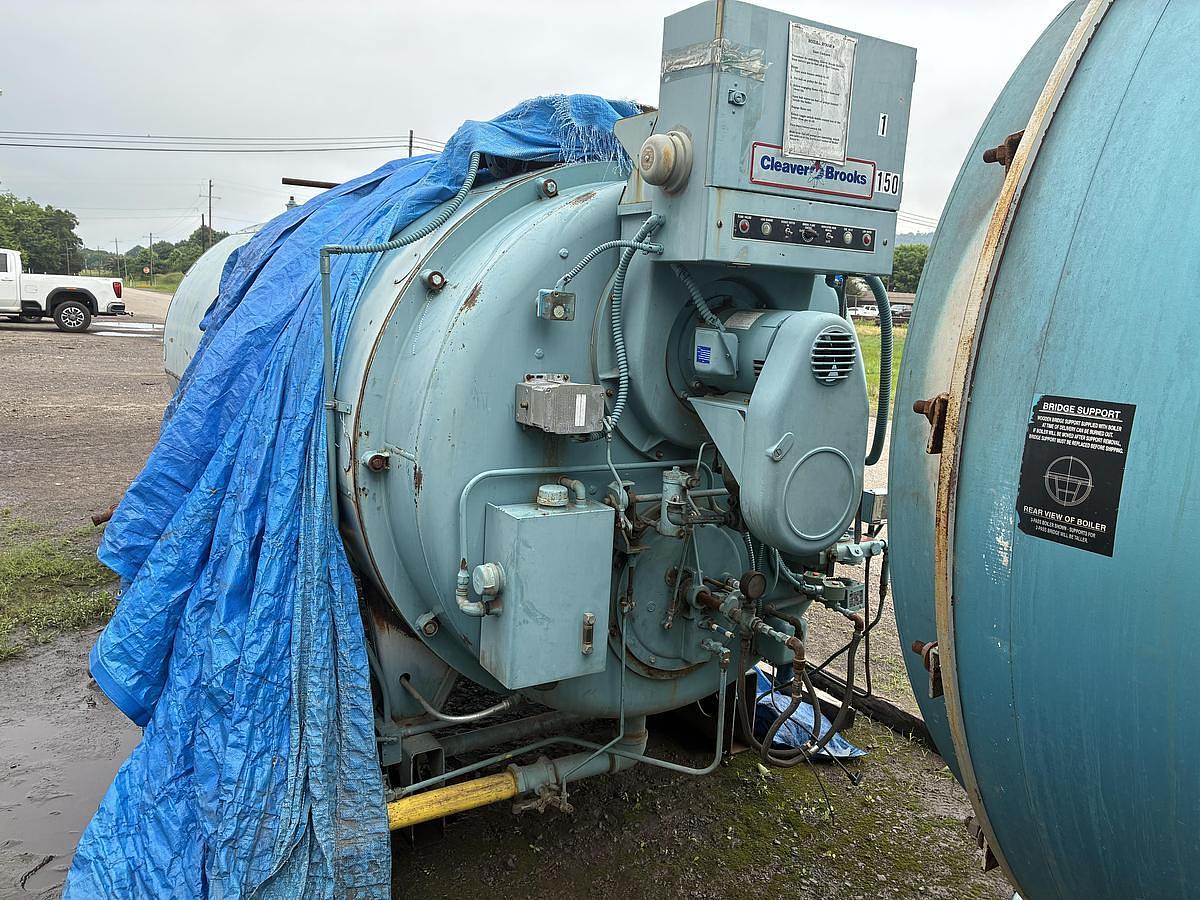

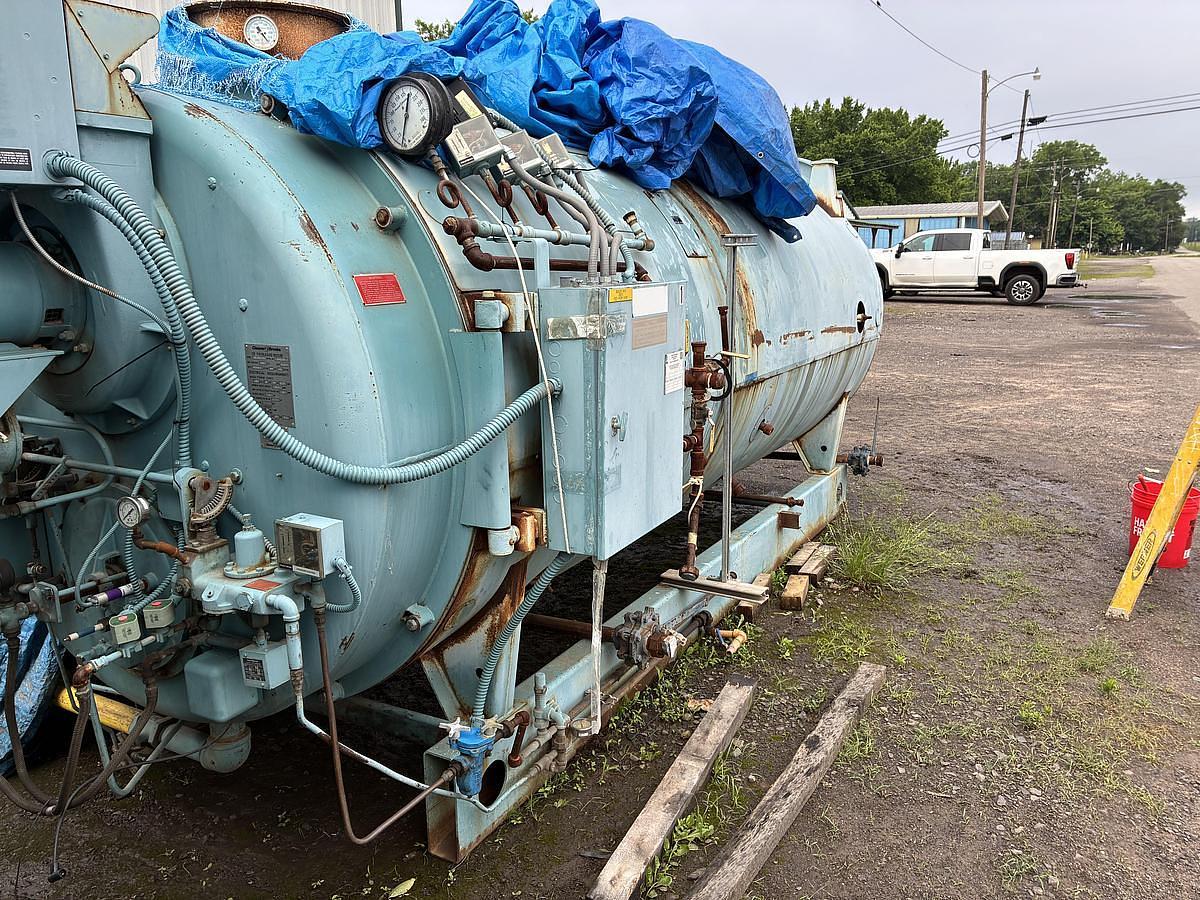

Cleaver Brooks CB Series horizontal firetube packaged steam boiler — one of the most recognized and trusted names in industrial steam generation. 150 HP capacity with 6,277,000 BTU/HR maximum input. Dual-fuel capability — natural gas primary with No. 2 oil backup (45 GPH oil). 150 PSI MAWP — high-pressure steam. Factory-mounted Cleaver Brooks control panel with Honeywell burner management system, modulating burner control, pressure control, and full safety interlock system. 7.5 HP blower motor — 460V, 3-Phase. Complete with gas train, safety shut-off valves, pressure regulators, and all boiler trim. Horizontal shell with structural steel base frame.

Ideal for large-scale industrial process steam, manufacturing, institutional heating, food and beverage processing, laundry operations, hospital or healthcare steam systems, or any application requiring a proven, high-capacity dual-fuel firetube steam boiler.

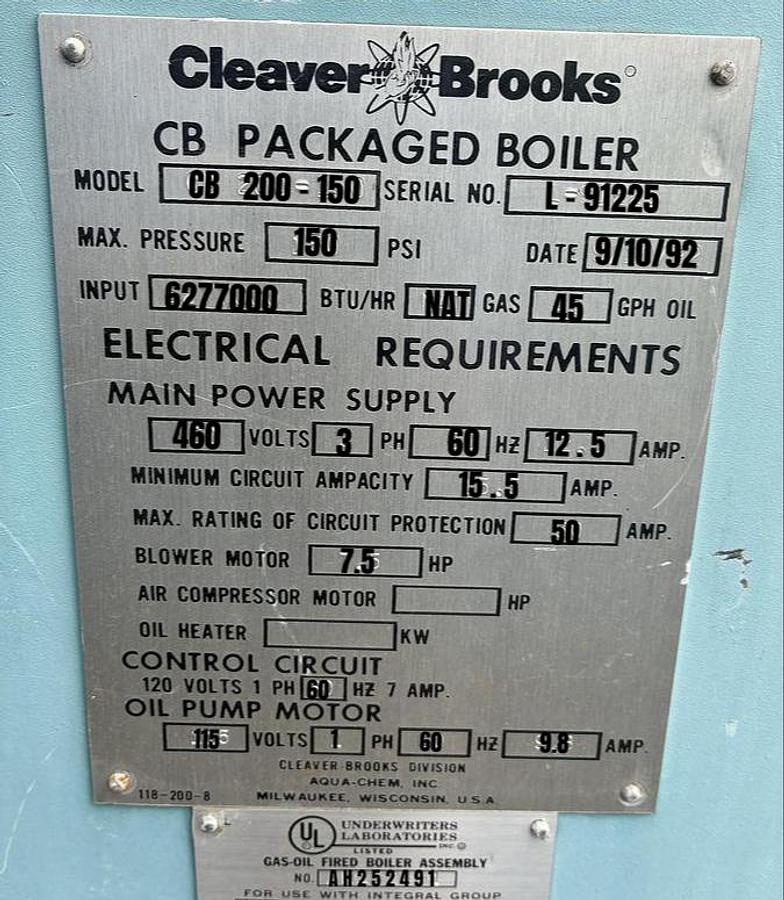

EQUIPMENT SPECIFICATIONS

• Manufacturer: Cleaver Brooks (Cleaver-Brooks Division, Aqua-Chem, Inc. — Milwaukee, Wisconsin, USA)
• Model: CB 200-150
• Serial Number: L-91225

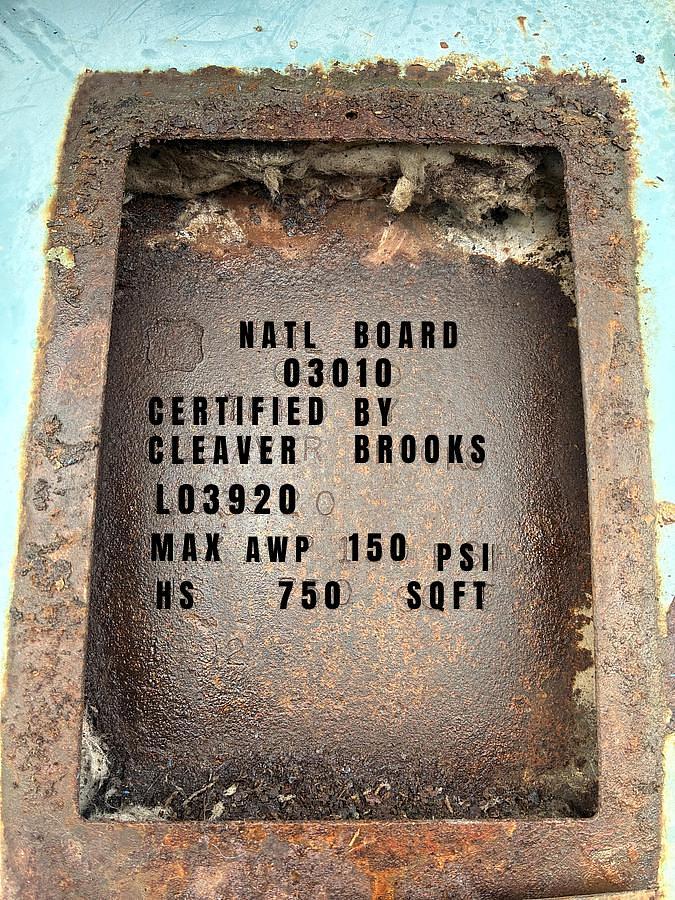

• National Board Number: 03010
• Date: 9/10/92
• Boiler Type: Firetube Packaged Steam Boiler — Horizontal
• Fuel Type: Dual Fuel — Natural Gas / No. 2 Oil
• Boiler Horsepower: 150 HP
• Max. Working Pressure (MAWP): 150 PSI
• Heating Surface: 750 Sq Ft
• Max. Gas Input: 6,277,000 BTU/HR
• Oil Input: 45 GPH

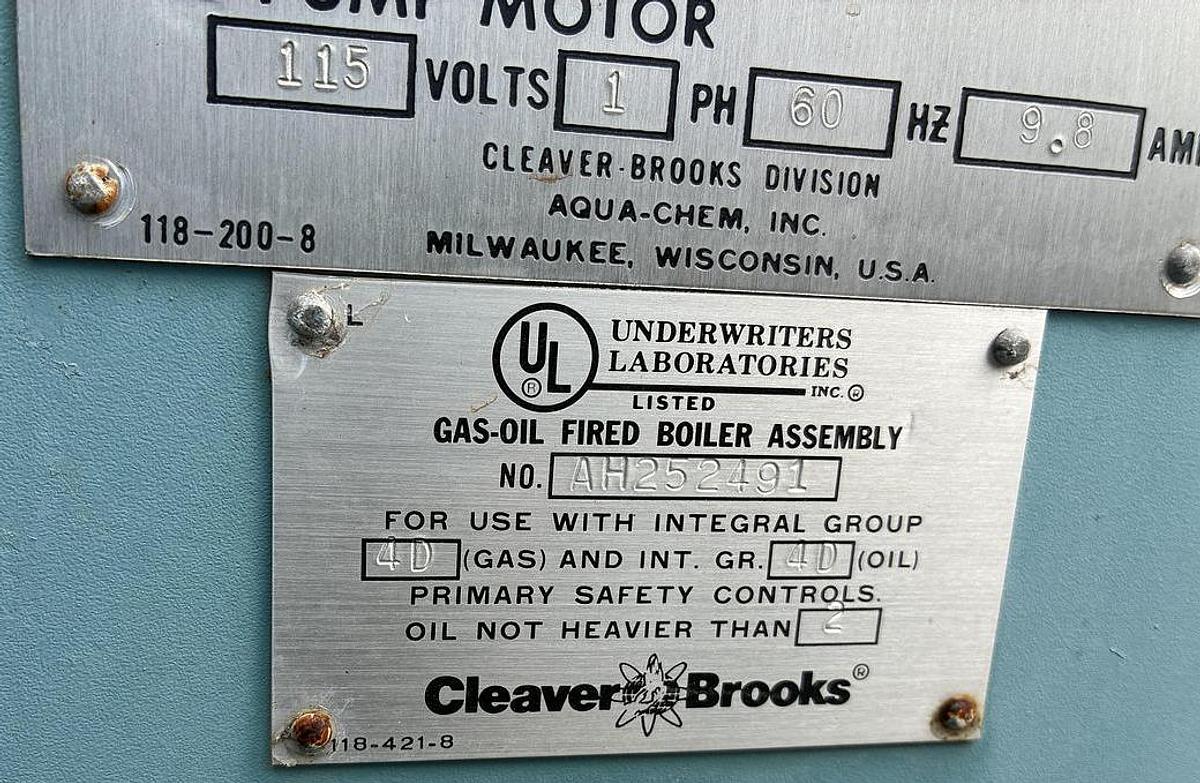

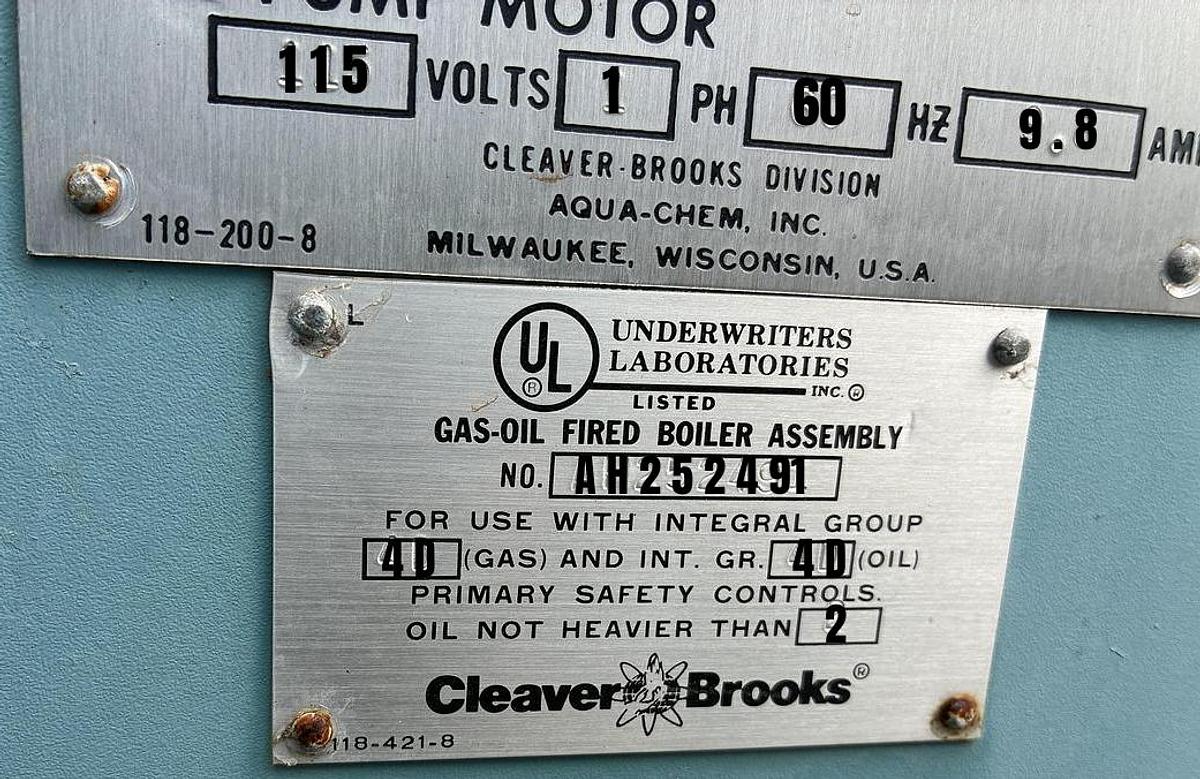

• UL Listed: Gas-Oil Fired Boiler Assembly No. AH252491
• Certification: ASME — Certified by Cleaver Brooks

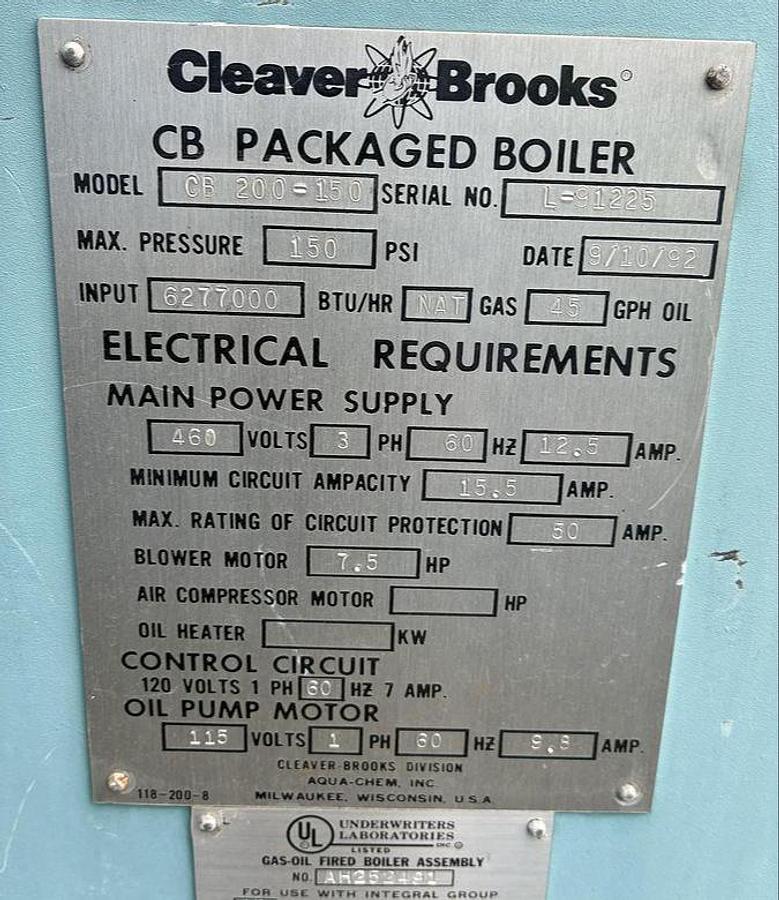

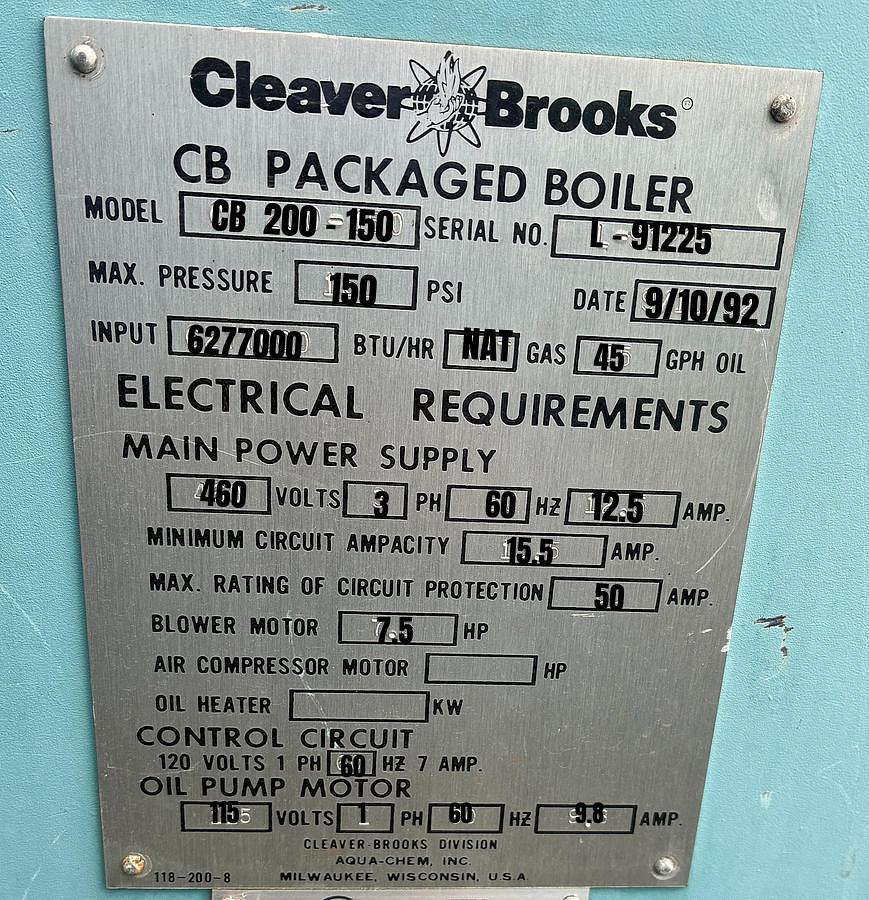

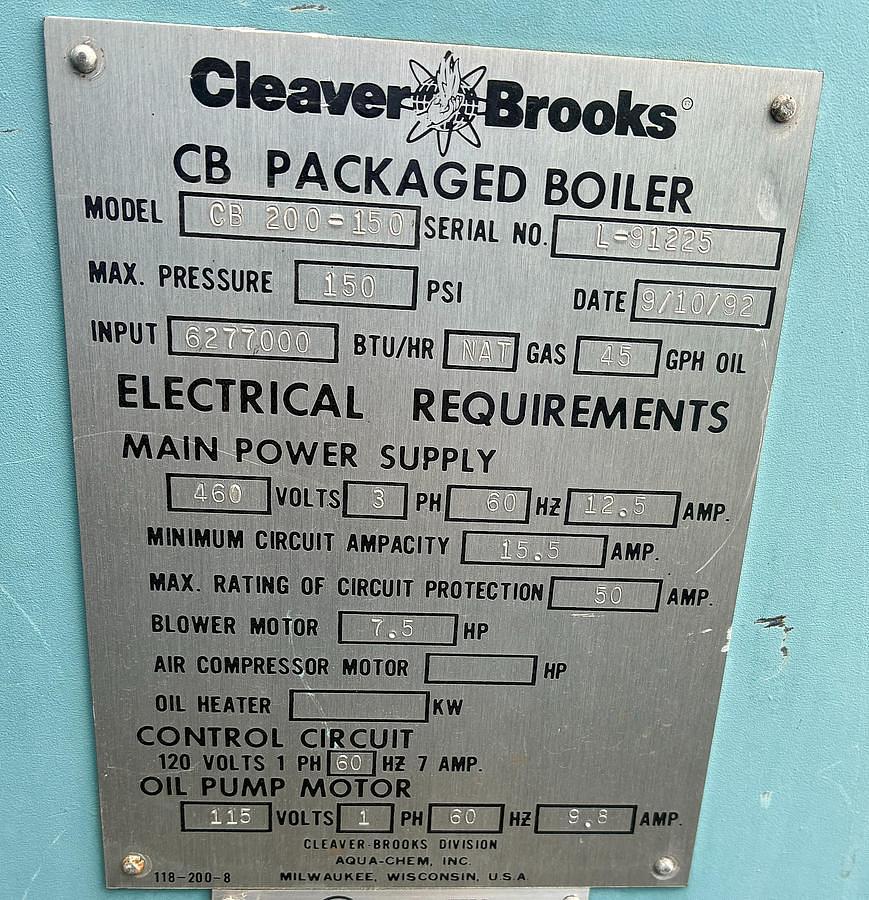

Electrical Requirements:

• Main Power Supply: 460V, 3-Phase, 60 Hz, 12.5 Amps
• Min. Circuit Ampacity: 15.5 Amps
• Max. Circuit Protection: 50 Amps
• Blower Motor: 7.5 HP
• Control Circuit: 120V, 1-Phase, 60 Hz, 7 Amps
• Oil Pump Motor: 115V, 1-Phase, 60 Hz, 9.8 Amps

KEY FEATURES & BENEFITS

Cleaver Brooks CB Series Firetube Design:

• Cleaver Brooks CB Series — industry-leading horizontal firetube packaged boiler platform
• 150 HP / 6,277,000 BTU/HR maximum input
• 750 sq ft heating surface — robust steam generating capacity
• 150 PSI MAWP — high-pressure steam capability
• ASME certified — National Board No. 03010
• Horizontal shell design — structural steel base frame with skid runners

Dual-Fuel Burner System:

• Factory-mounted dual-fuel burner — natural gas and No. 2 oil (up to 45 GPH)
• Fuel selector switch — Gas/Oil selection visible in control panel

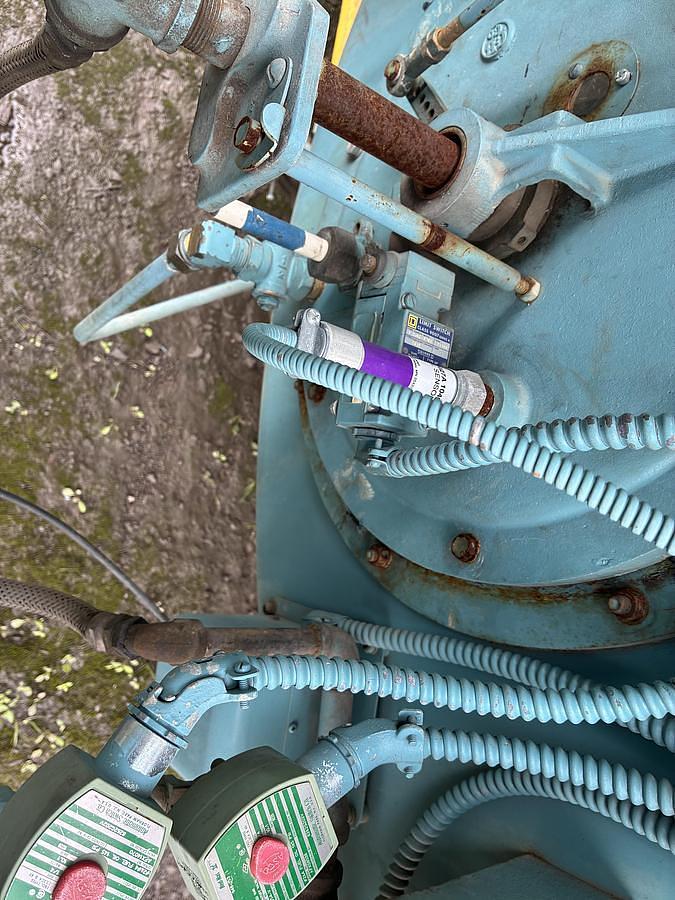

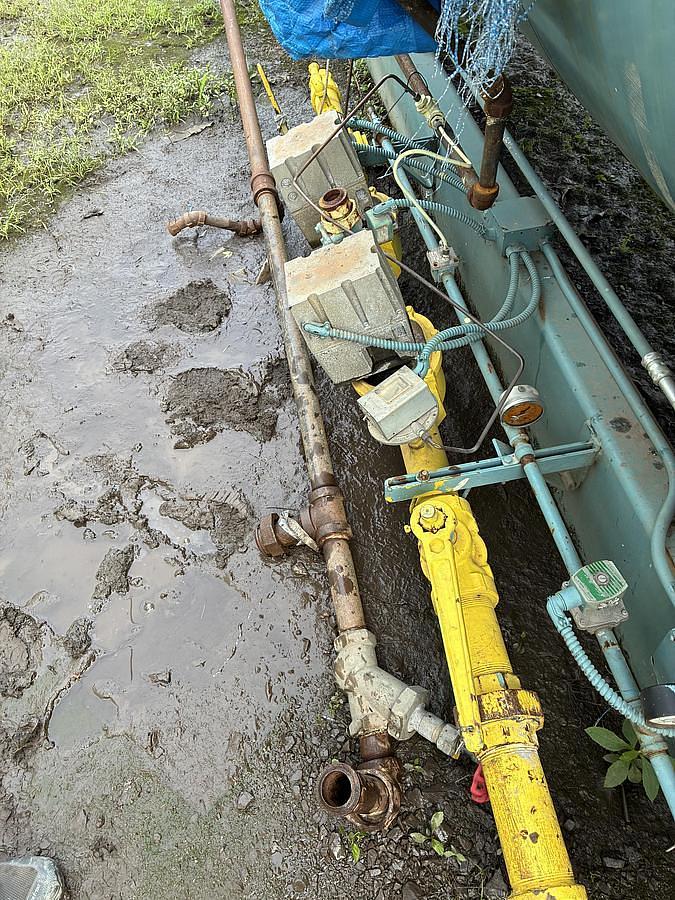

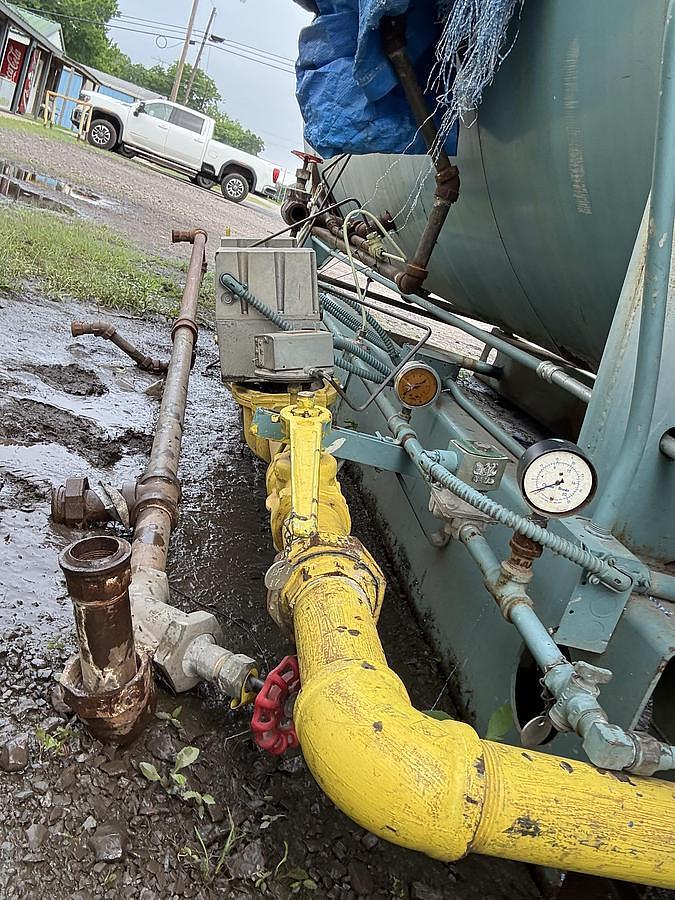

• Complete gas train — safety shut-off valves, pressure regulators
• Square D limit switch — burner linkage assembly
• Modulating burner control — full modulation from low to high fire

Cleaver Brooks Control Panel:

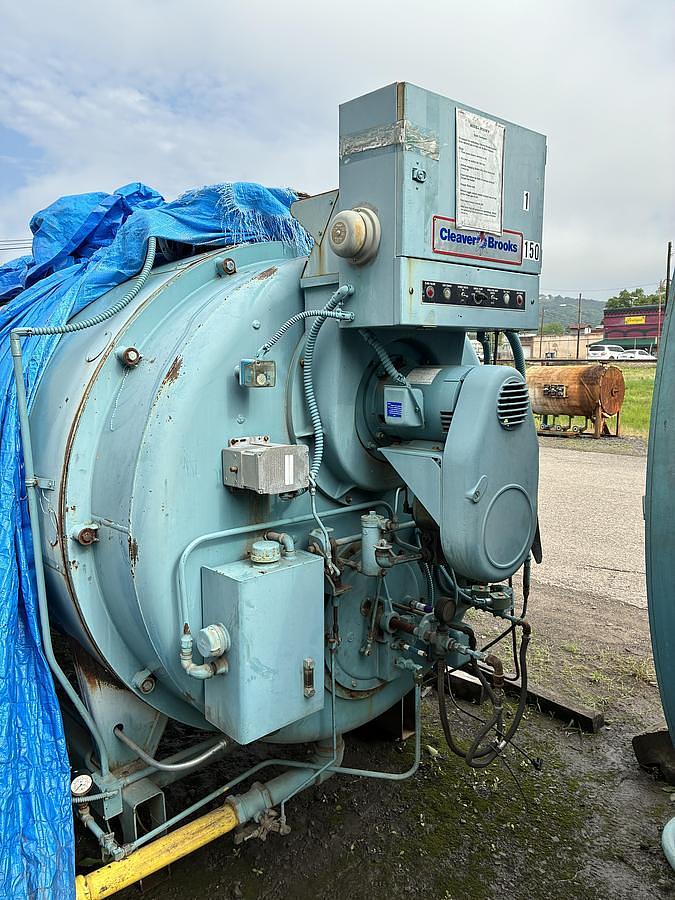

• Factory-mounted Cleaver Brooks control panel — top-mounted enclosure
• Honeywell burner management / flame safeguard module

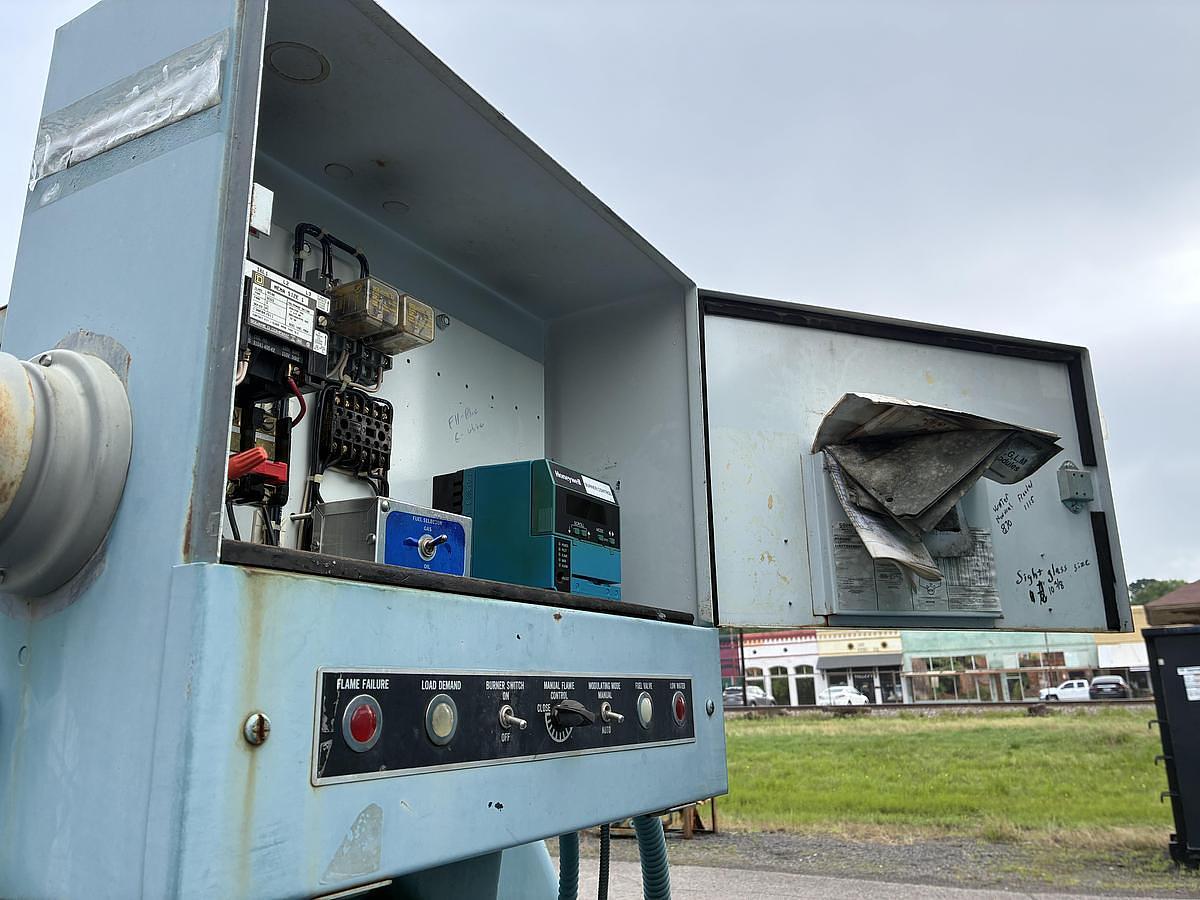

• Front panel controls: Flame Failure indicator, Load Demand, Burner Switch On/Off, Manual Flame Control (Close to Auto), Modulating Mode, Fuel Valve, Low Water
• Cleaver Brooks pressure control — Main and Differential pressure adjustment

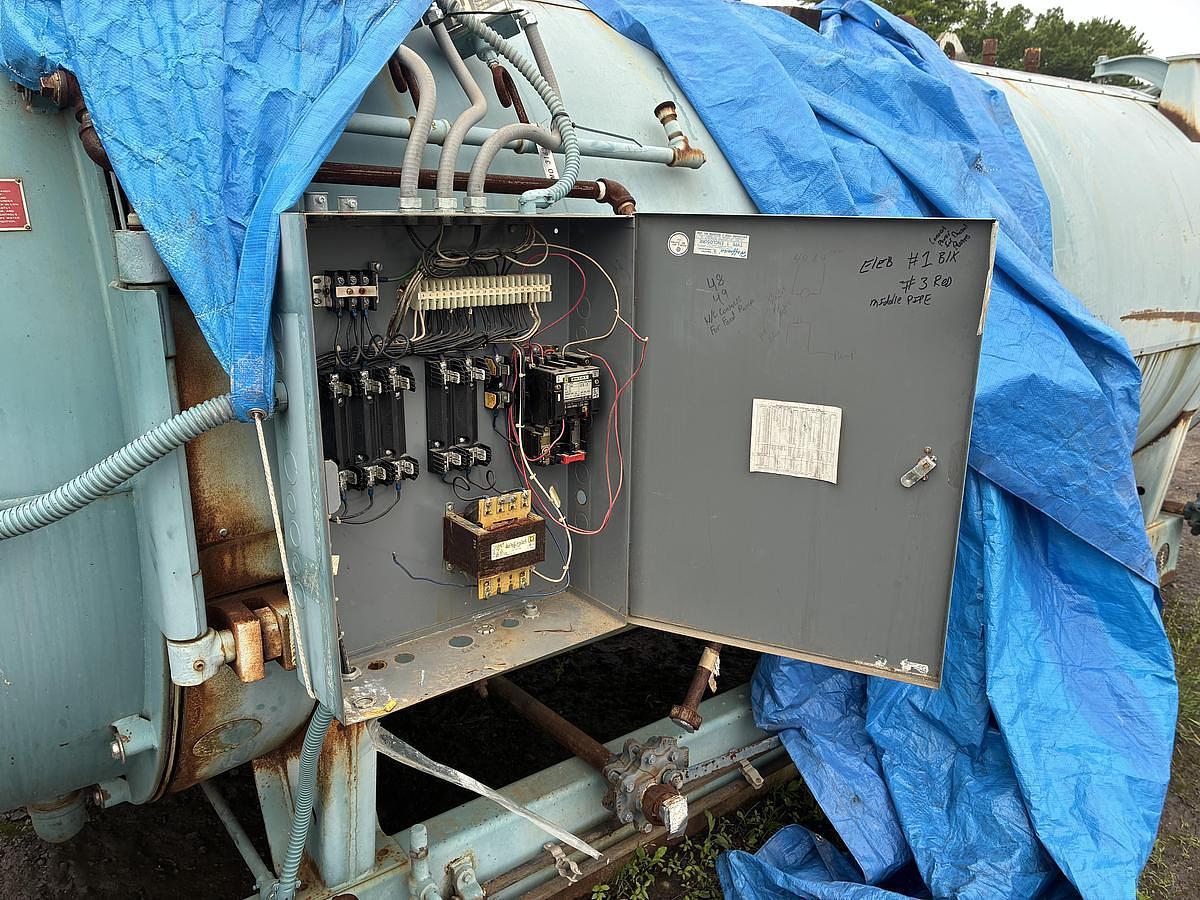

• Internal panel: Square D motor starter, contactor, control transformer, terminal strips
• UL listed control assembly

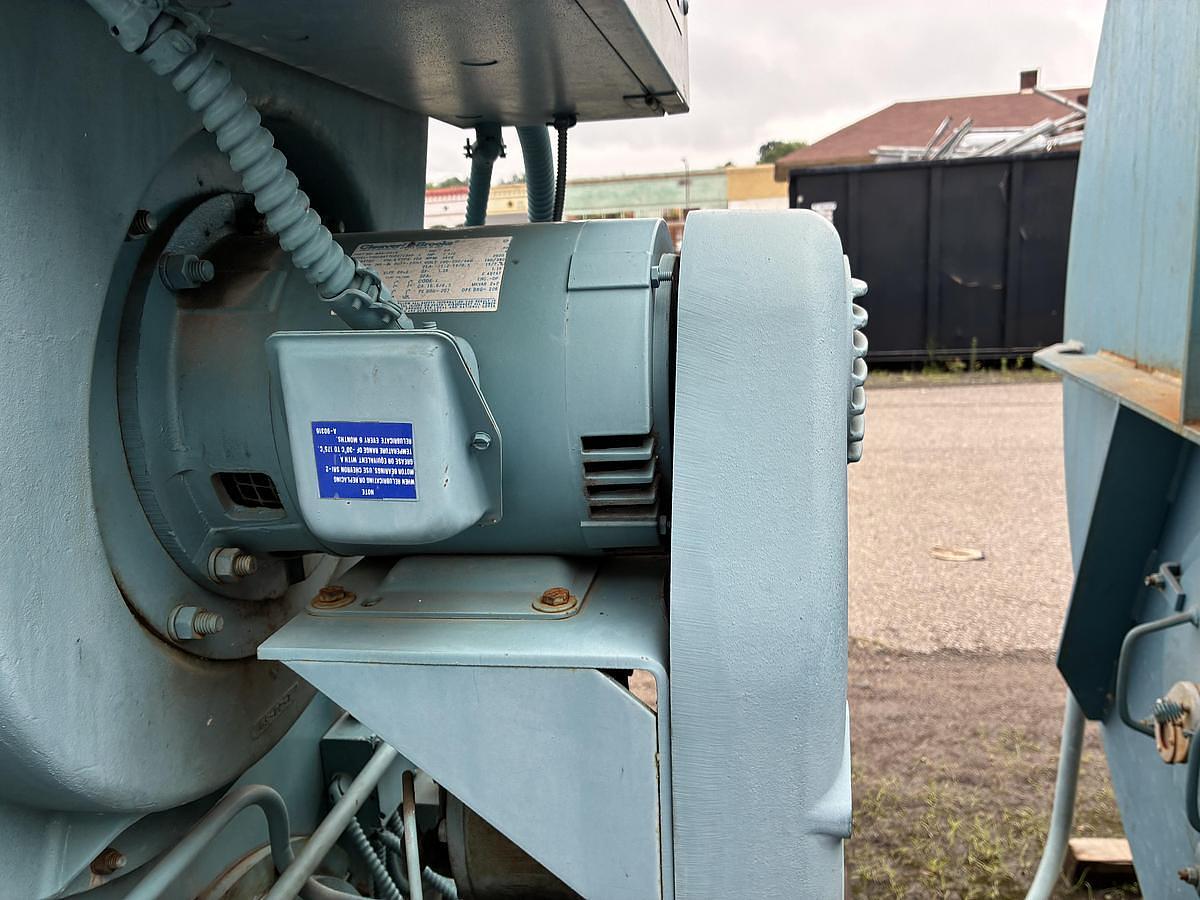

Blower Motor:

• 7.5 HP blower motor — factory mounted on burner end
• 460V, 3-Phase drive — belt-driven centrifugal blower wheel
• Cleaver Brooks labeled motor with lubrication instructions

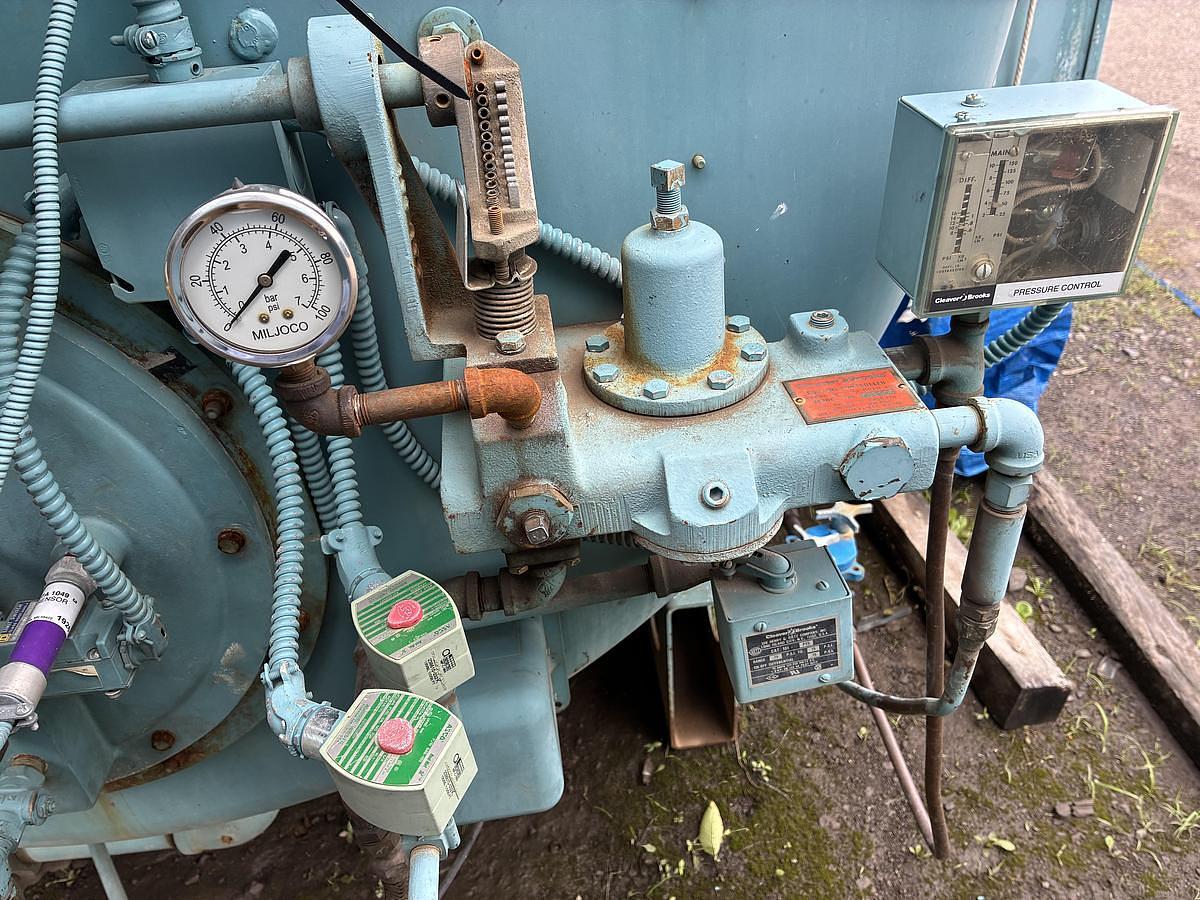

Pressure & Safety Controls:

• Cleaver Brooks pressure control (Main/Differential)
• Miljoco pressure gauge — visible on burner end
• Low water cutoff
• Safety relief valve provisions
• Full safety interlock system

Shell & Fireside:

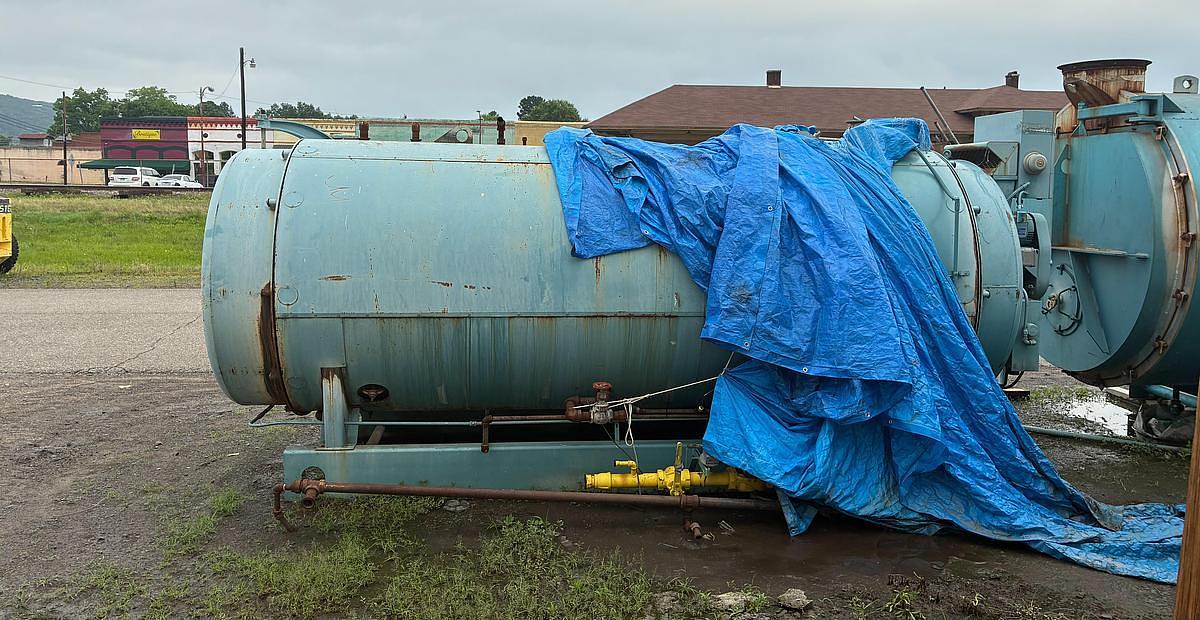

• Horizontal firetube shell — light blue factory finish

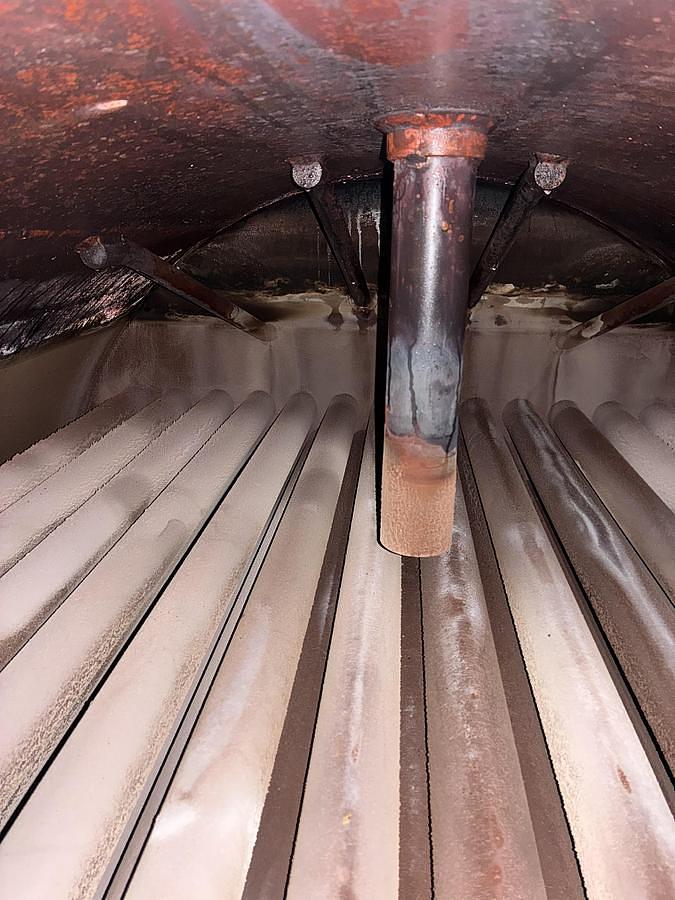

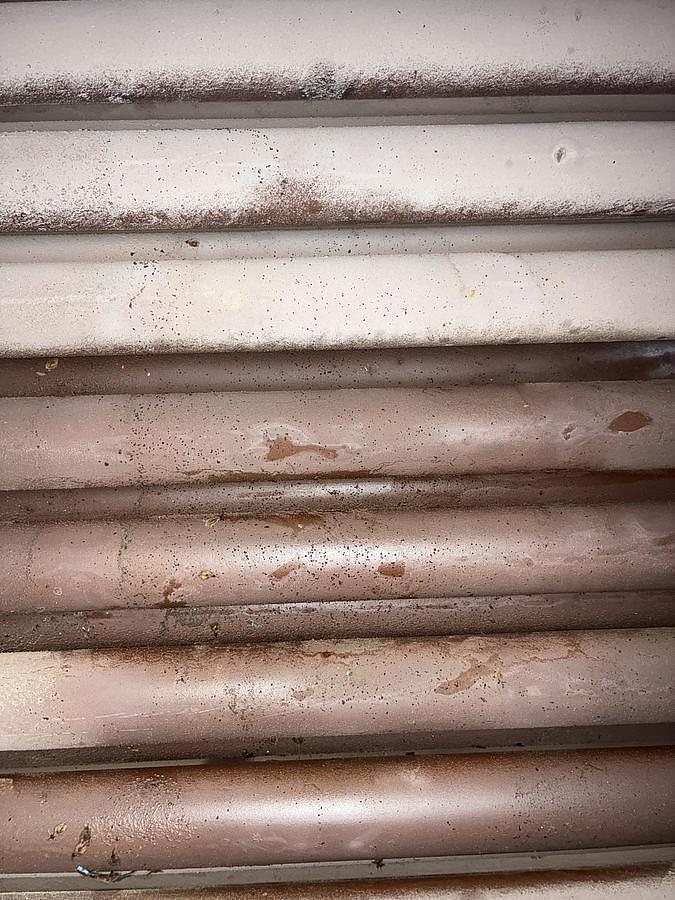

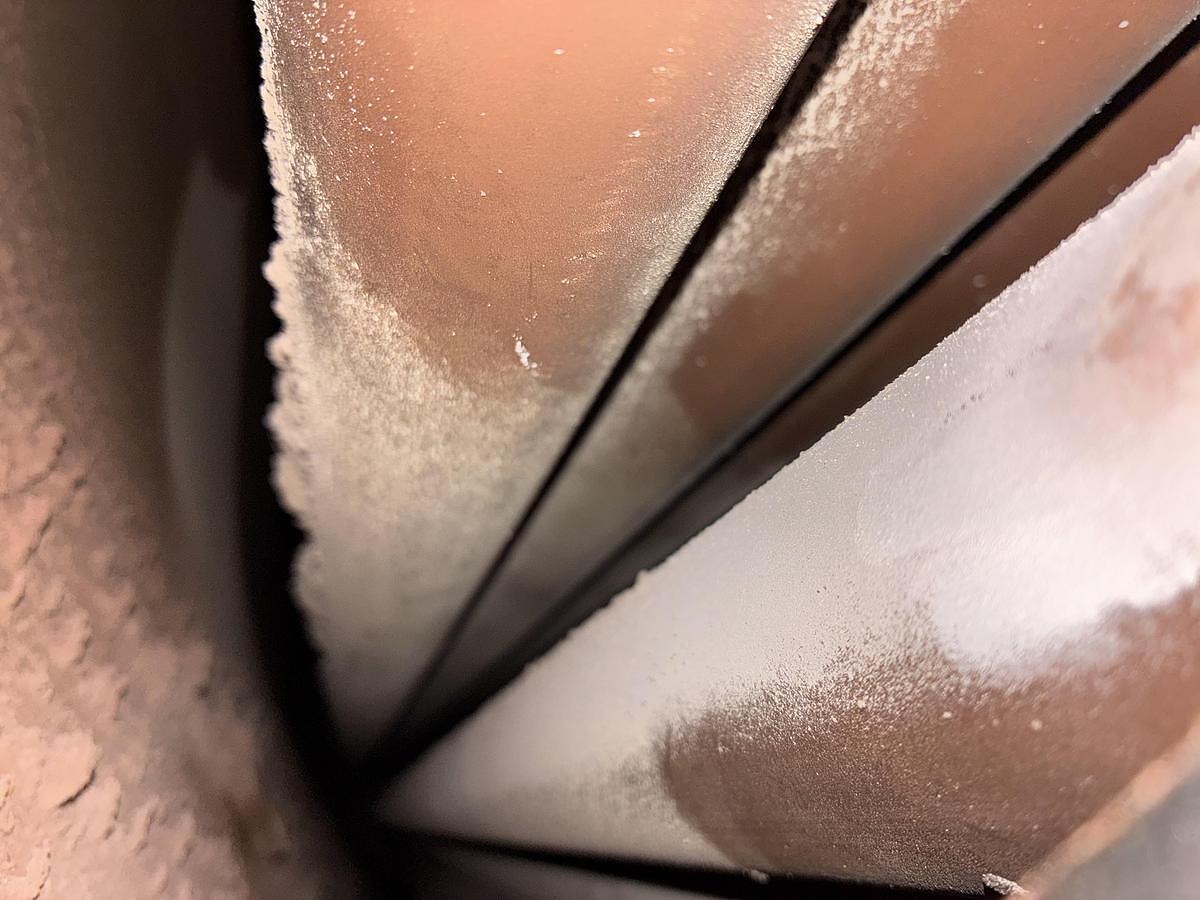

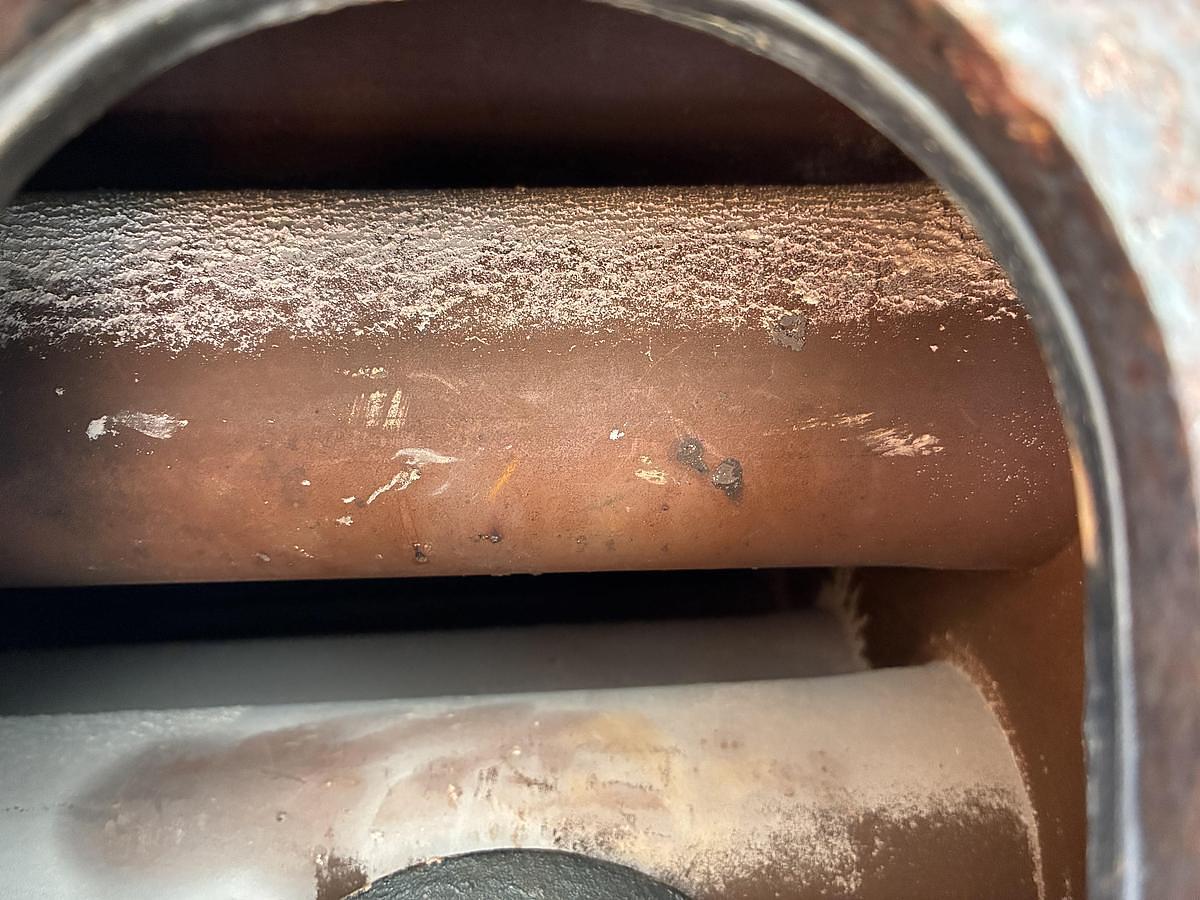

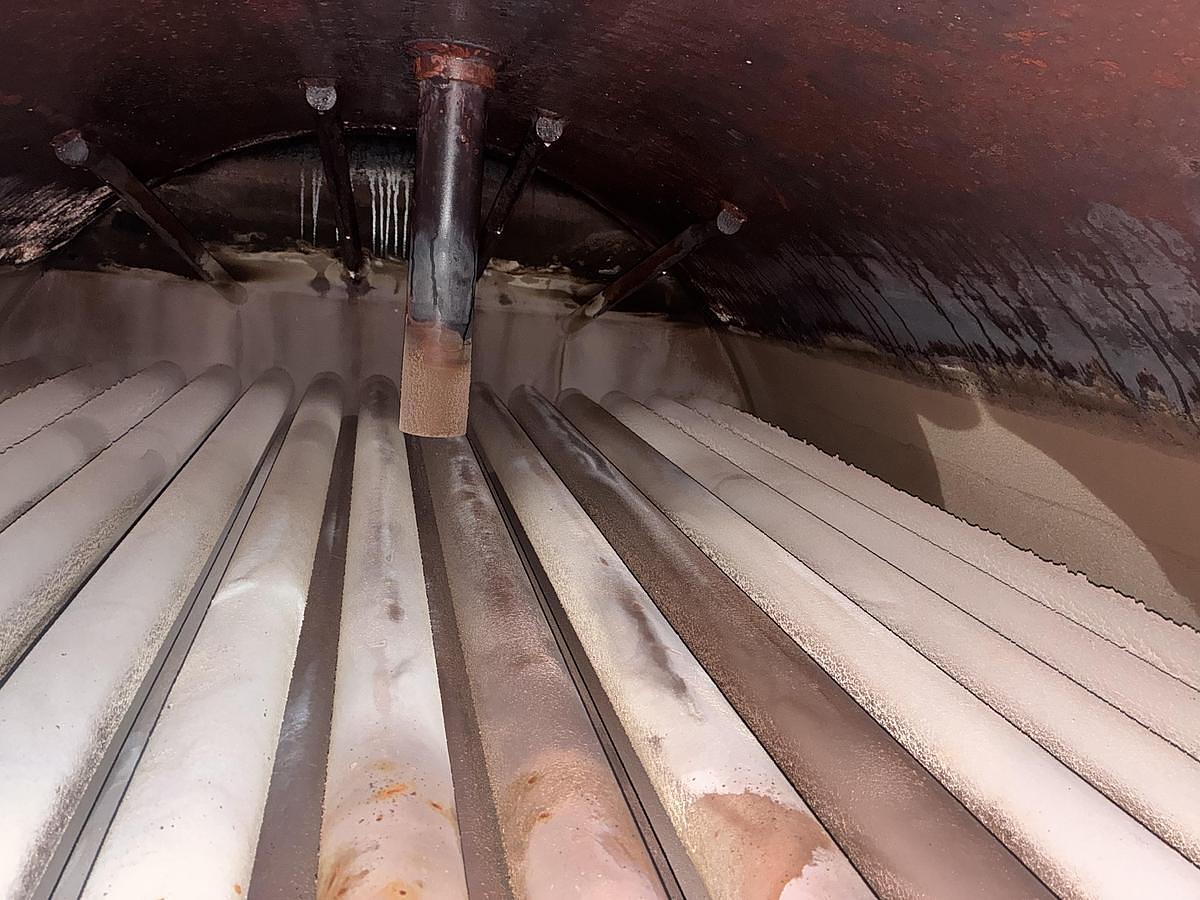

• Firetube bundle visible through rear inspection opening — tubes in clean condition

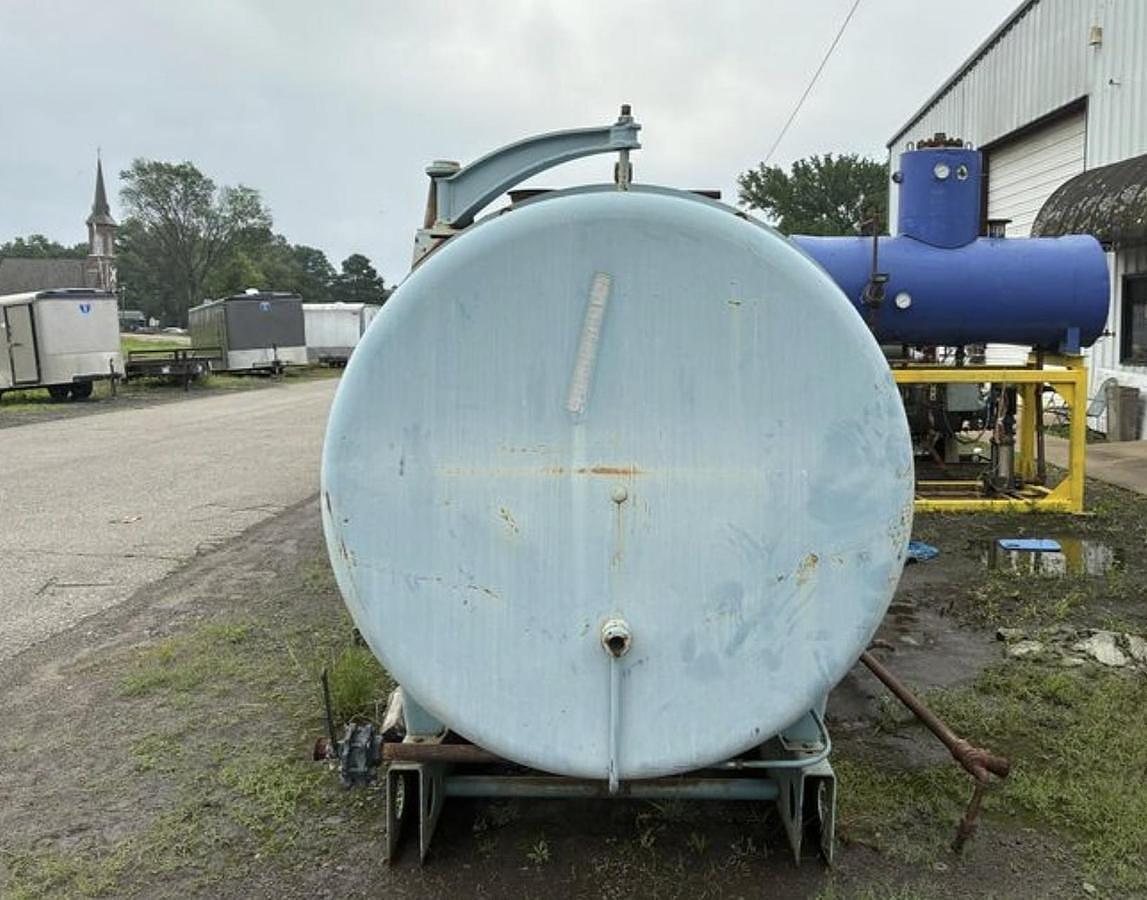

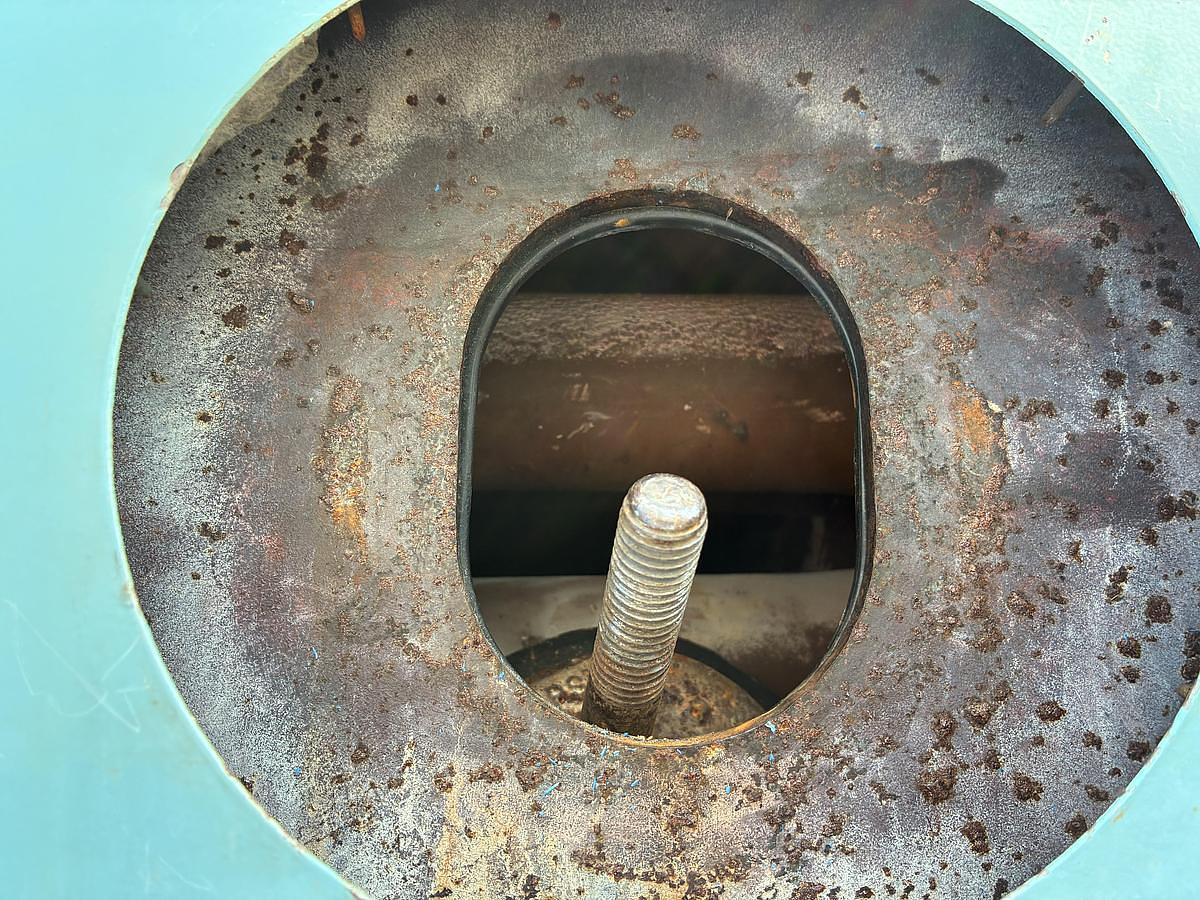

• Rear access door / rear head — accessible for tube inspection and cleaning

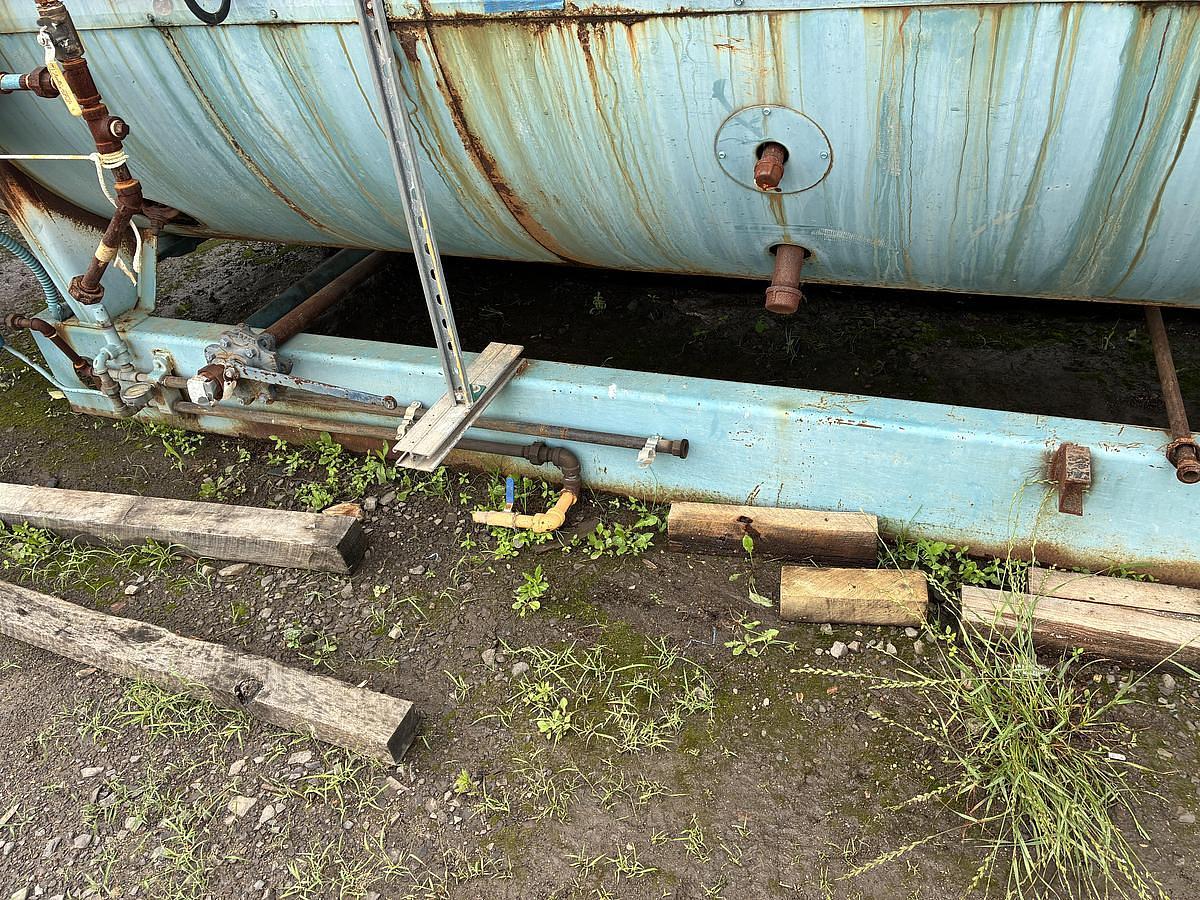

• Blow down connections on shell

SYSTEM COMPONENTS

Main Boiler:

• Cleaver Brooks CB 200-150 horizontal firetube shell
• S/N L-91225, NB No. 03010, Date 9/10/92
• 150 HP, 150 PSI MAWP, 750 sq ft HS
• Structural steel base frame / skid runners

Burner & Fuel System:

• Dual-fuel burner assembly — Natural Gas / No. 2 Oil
• Complete gas train — safety shut-off valves and pressure regulators
• Oil pump motor — 115V, 1-Phase, 9.8 Amps
• Fuel selector switch

Control System:

• Cleaver Brooks factory control panel — top-mounted
• Honeywell flame safeguard / burner management module
• Square D motor starter and contactor
• Control transformer
• Pressure control (Main/Differential)
• Front panel operator controls — Flame Failure, Load Demand, Burner Switch, Modulating Control, Fuel Valve, Low Water

Blower:

• 7.5 HP blower motor — 460V, 3-Phase, 60 Hz
• Belt-driven centrifugal blower

SPECIFICATIONS SUMMARY

• Manufacturer: Cleaver Brooks — Milwaukee, Wisconsin, USA
• Model: CB 200-150
• Serial Number: L-91225
• National Board Number: 03010
• Date: 9/10/92
• Boiler Type: Horizontal Firetube Packaged Steam Boiler
• Fuel: Dual Fuel — Natural Gas / No. 2 Oil
• Boiler HP: 150 HP
• Max. Working Pressure: 150 PSI
• Heating Surface: 750 Sq Ft
• Max. Input: 6,277,000 BTU/HR
• Oil Input: 45 GPH
• Main Power: 460V, 3-Phase, 60 Hz
• Blower Motor: 7.5 HP
• Control Circuit: 120V, 1-Phase, 60 Hz
• Oil Pump Motor: 115V, 1-Phase, 60 Hz, 9.8 Amps
• UL Listed: Gas-Oil Fired Boiler Assembly No. AH252491
• Condition: Used

ADDITIONAL INFORMATION

• Condition: Used
• Manufacturer: Cleaver Brooks — Milwaukee, Wisconsin, USA
• Model: CB 200-150
• Serial Number: L-91225
• National Board Number: 03010
• Boiler HP: 150 HP — 150 PSI MAWP
• Fuel: Dual Fuel — Natural Gas / No. 2 Oil
• Blower Motor: 7.5 HP — 460V, 3-Phase
• Control Panel: Cleaver Brooks factory panel with Honeywell burner management
• Inspection: Welcome — contact us to schedule

IMPORTANT NOTES:

• Dual-fuel firetube steam boiler — natural gas and No. 2 oil capable
• 150 HP / 150 PSI MAWP — high-pressure steam — ASME certified

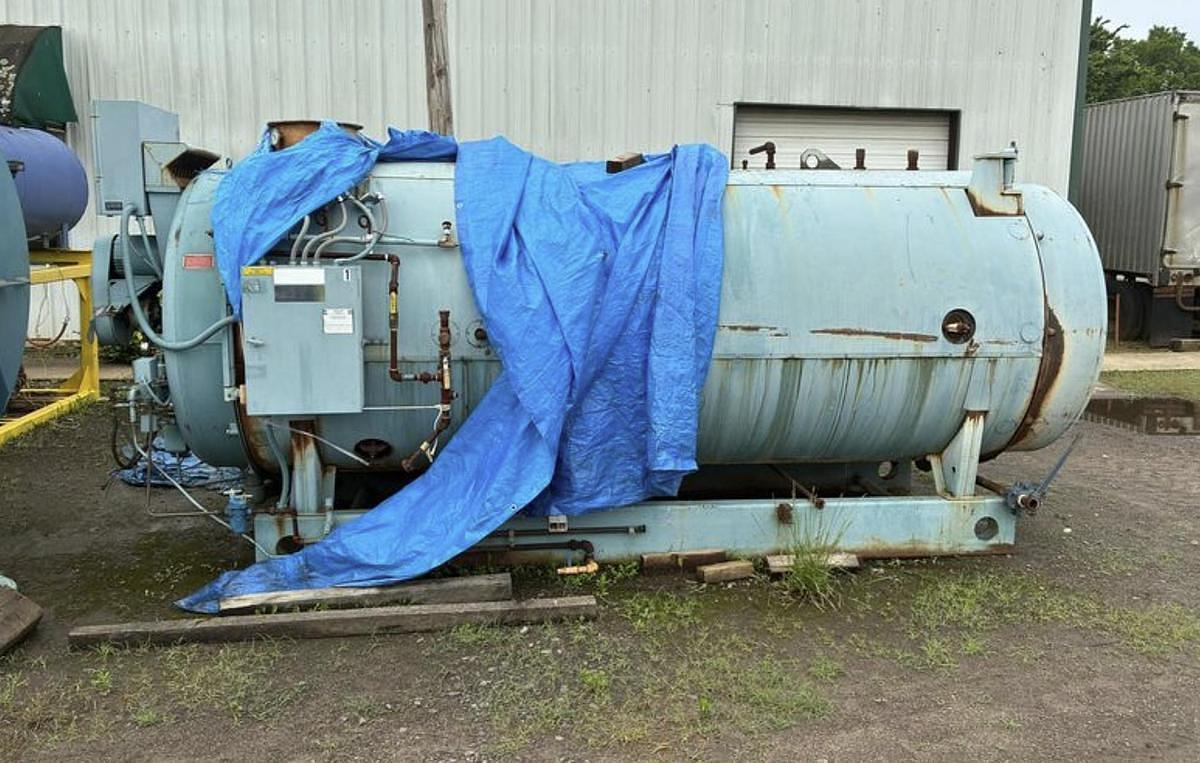

• Unit is stored outdoors — buyer should inspect condition thoroughly prior to purchase
• Buyer responsible for transport and rigging arrangements from current location
• Contact us for additional photos, video walkthroughs, or technical questions
