Lattner Vertical Natural Gas Steam Boiler System Package with Feed Water Tank Duplex Pumps Surge Tank and Control Panel

OVERVIEW

NOTE: This is a complete steam boiler system package including a Lattner vertical natural gas fired steam boiler, stainless steel boiler feed water tank with duplex pump assembly, vertical pressure surge tank, and dedicated control panel. All components are currently installed together and available as a complete system. Pallet-mounted boiler is ready for rigging and transport. Ready for inspection — contact us to schedule.

Lattner Vertical Natural Gas Fired Steam Boiler System Package — including Stainless Steel Boiler Feed Water Tank, Duplex Bluffton/WEG Pump Assembly, Vertical Pressure Surge Tank, and Control Panel. Lattner Boiler Company is one of the most recognized names in vertical steam boiler manufacturing, known for their reliable, compact, and efficient steam generation equipment widely used across food processing, institutional, and industrial applications. This system represents a complete, self-contained steam generation and distribution support package. The Lattner vertical boiler features a side-mounted burner assembly with gas train and safety controls, top-mounted steam outlet connections, and pressure relief valve. The stainless steel feed water tank is equipped with two Bluffton Motor Works/WEG Group 3/4 HP pump motors providing duplex redundant feed water pumping capability. The vertical pressure surge tank provides system buffer capacity with multiple inlet and outlet connections. A dedicated wall-mounted control panel with emergency stop and start controls is included.

Yellow gas supply piping visible at boiler base. All major system components included. Buyer responsible for disconnection, removal, and transport from current location.

Ideal for facility steam heating, process steam, institutional steam, food and beverage processing, laundry operations, or any application requiring a complete packaged steam system with feed water management.

EQUIPMENT SPECIFICATIONS

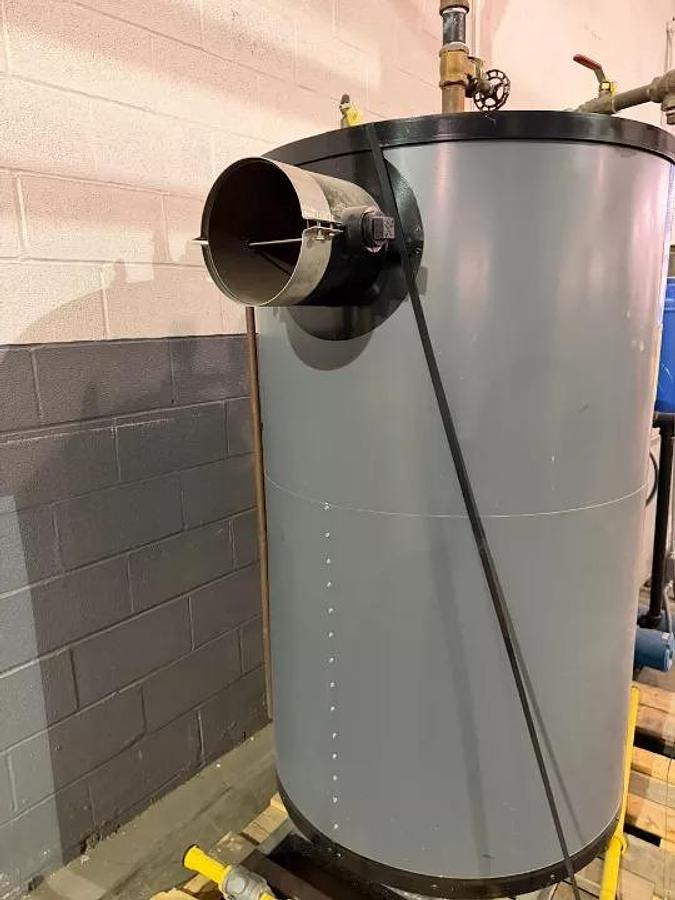

Component 1 — Lattner Vertical Natural Gas Fired Steam Boiler:

• Manufacturer: Lattner Boiler Company
• Type: Vertical Natural Gas Fired Steam Boiler
• Orientation: Vertical
• Fuel: Natural Gas
• Burner: Side-mounted burner assembly with gas train
• Controls: Boiler control panel with safety interlocks mounted on boiler body
• Connections: Top-mounted steam outlet, pressure relief valve, multiple pipe connections
• Gas Supply: Yellow gas piping at base
• Mounting: Pallet-mounted — ready for transport

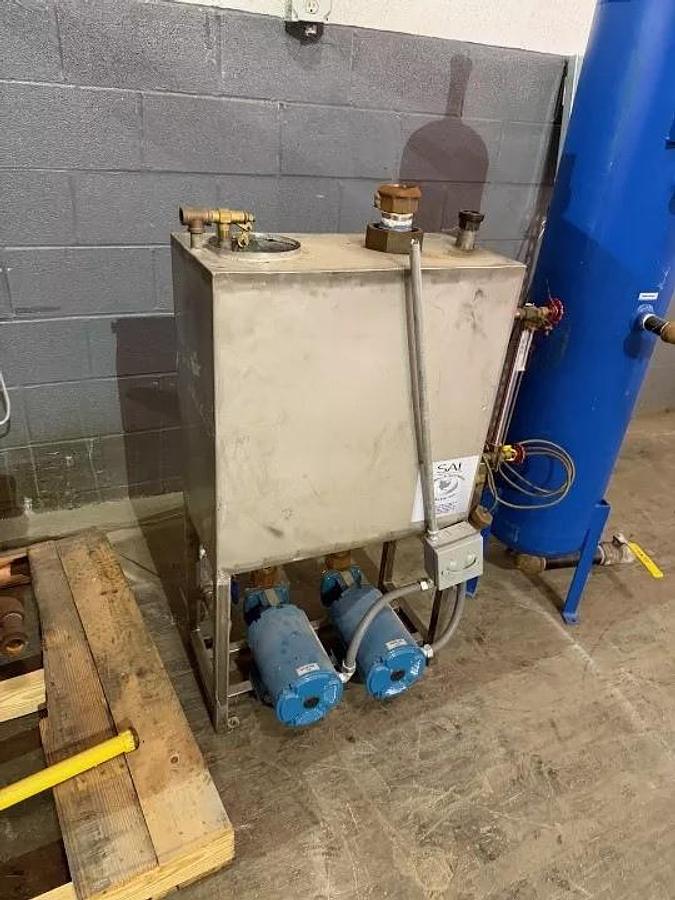

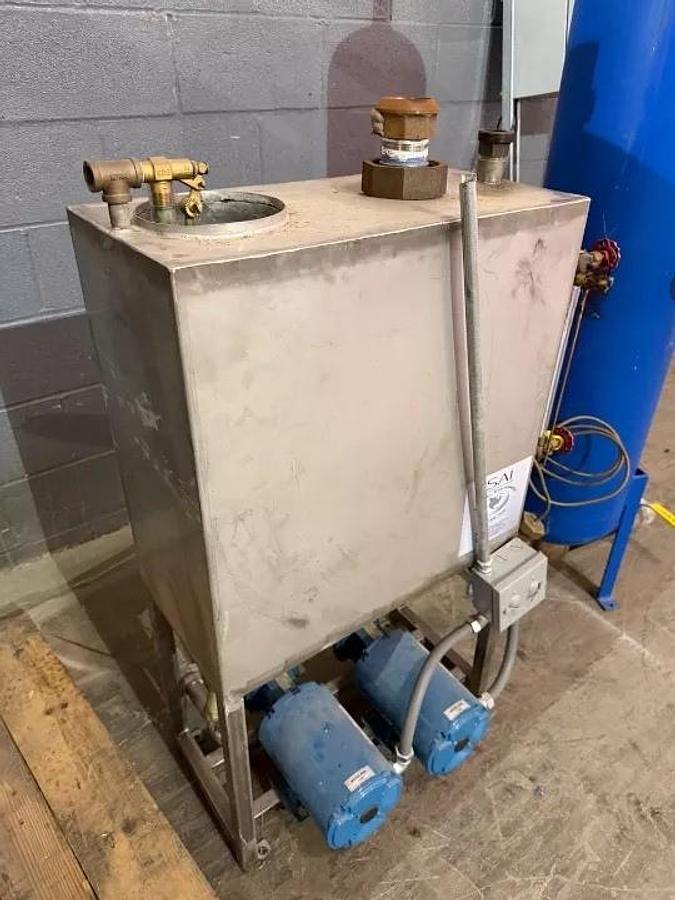

Component 2 — Stainless Steel Boiler Feed Water Tank with Duplex Pump Assembly:

• Construction: Stainless steel rectangular tank
• Mounting: Stainless steel leg frame

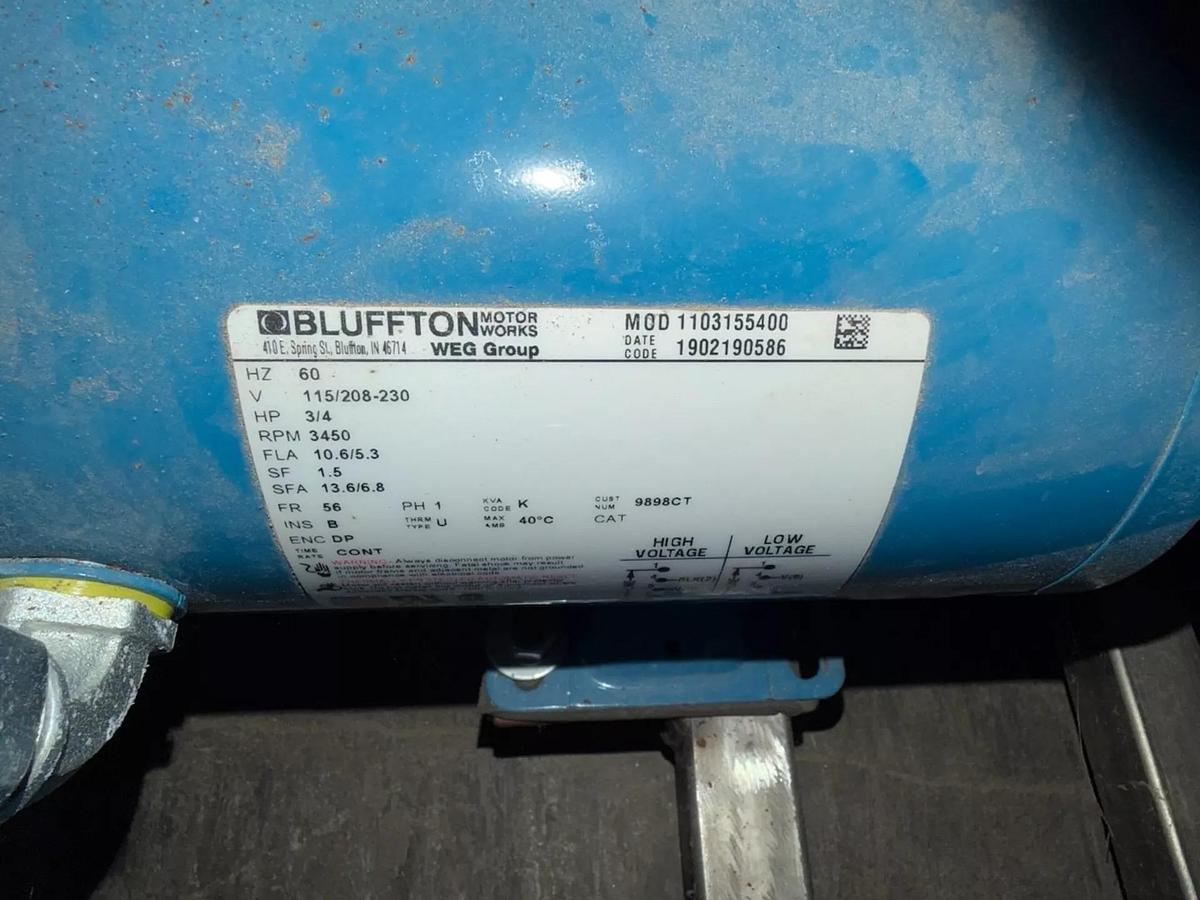

• Pumps: Two (2) Bluffton Motor Works / WEG Group pump motors
• Pump Model: MOD 1103155400
• Pump Motor HP: 3/4 HP each
• Pump Motor Voltage: 115/208-230V
• Pump Motor Phase: 1 Phase
• Pump Motor RPM: 3,450 RPM
• Pump Motor Hz: 60 Hz
• Pump Motor Frame: 56
• Pump Motor FLA: 10.6/5.3 Amp
• Pump Motor SF: 1.5
• Pump Motor Date Code: 1902190586
• Top Connections: Multiple — includes fill valve, sight glass connection, and vent/overflow fittings
• Control: Duplex pump control junction box mounted on tank frame

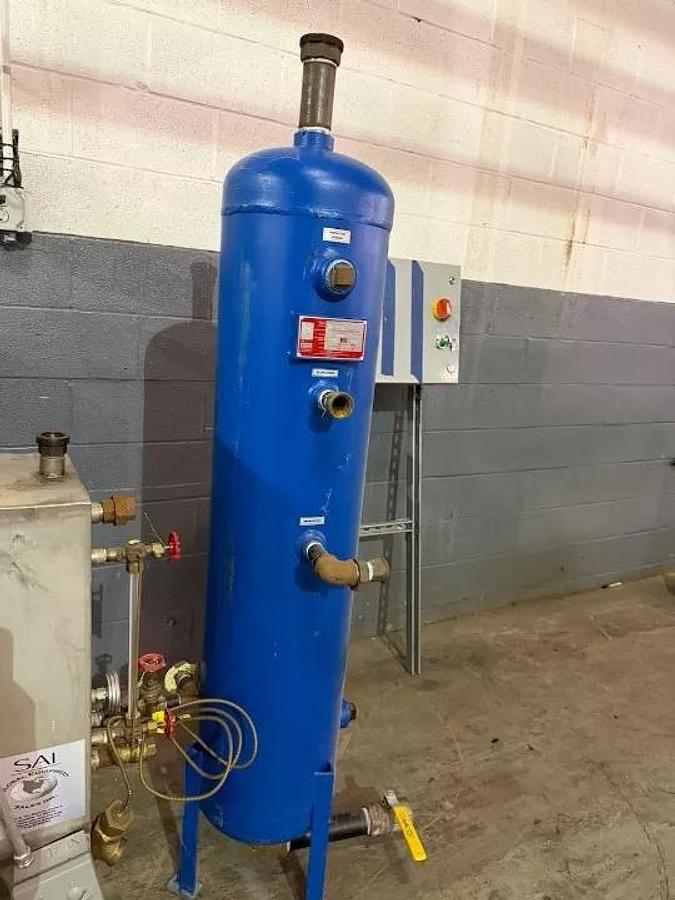

Component 3 — Vertical Pressure Surge Tank:

• Type: Vertical Pressure Vessel / Surge Tank
• Finish: Blue painted carbon steel
• Orientation: Vertical, leg-mounted
• Connections: Multiple side inlet/outlet connections, top vent/stack connection

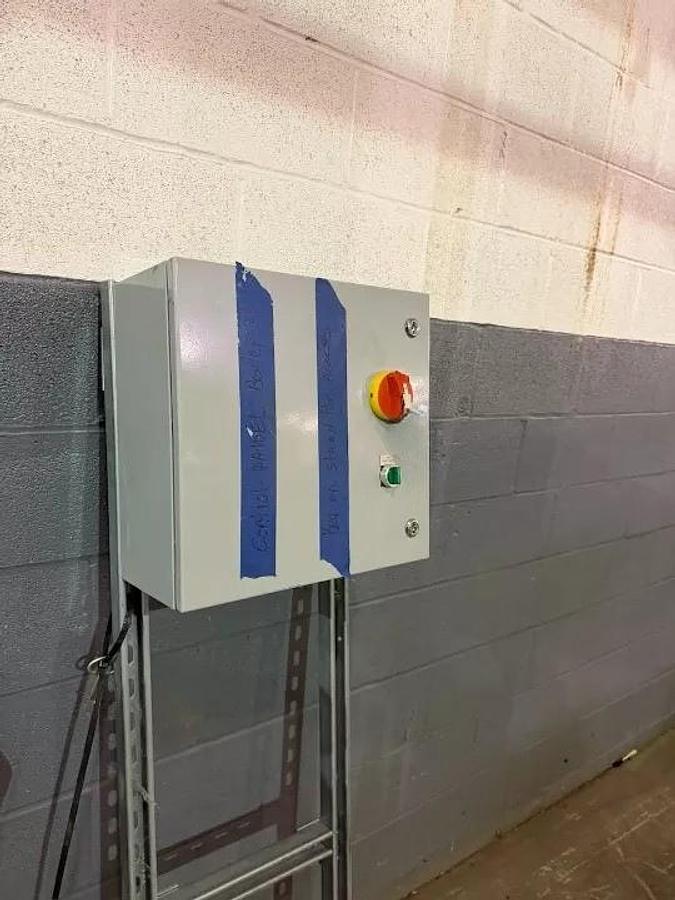

Component 4 — Control Panel:

• Type: Wall-mounted electrical enclosure
• Controls: Emergency stop (red/yellow mushroom head), green start pushbutton
• Label: Control Panel Boiler No. 2
• Mounting: DIN rail mounted enclosure on unistrut wall frame

KEY FEATURES AND BENEFITS

Lattner Quality Steam Generation:

• Lattner Boiler Company — one of the most recognized names in vertical steam boiler manufacturing
• Compact vertical configuration — minimal floor space required
• Natural gas fired — clean burning, lower maintenance fuel system
• Side-mounted burner assembly with gas train and safety controls
• Top-mounted steam outlet connections with pressure relief valve
• Boiler manufacturer control panel mounted directly on boiler body
• Pallet-mounted — easy rigging and transport

Complete Steam System Package:

• All major steam system components included in one lot
• Complete package reduces sourcing, integration, and installation time versus assembling individual components
• Lattner vertical natural gas fired steam boiler
• Stainless steel boiler feed water tank with duplex pump redundancy
• Vertical pressure surge tank for system buffer capacity
• Dedicated control panel with emergency stop included

Duplex Boiler Feed Water System:

• Stainless steel rectangular feed water tank on stainless steel leg frame
• Two Bluffton Motor Works / WEG Group 3/4 HP pump motors
• Duplex pump configuration provides redundancy — one pump backup if primary fails
• 3,450 RPM single phase motors
• 115/208-230V — flexible electrical connection options
• Multiple top connections for fill, overflow, and instrumentation

Pressure Surge Tank:

• Vertical pressure vessel providing system buffer and surge capacity
• Blue painted carbon steel construction
• Multiple side connections for system integration
• Top vent/stack connection
• Leg-mounted for floor installation

Control Panel:

• Dedicated wall-mounted control panel included
• Emergency stop mushroom head pushbutton
• Green start pushbutton
• Clean professional enclosure
• Labeled Control Panel Boiler No. 2

SYSTEM COMPONENTS

Package Includes:

• One (1) Lattner Vertical Natural Gas Fired Steam Boiler — pallet mounted with burner assembly, gas train, and boiler controls
• One (1) Stainless Steel Boiler Feed Water Tank — with duplex Bluffton/WEG 3/4 HP pump motors and control junction box
• One (1) Vertical Pressure Surge Tank — blue painted carbon steel, leg mounted, with multiple connections
• One (1) Wall-Mounted Control Panel — with emergency stop and start pushbutton, labeled Control Panel Boiler No. 2
• Yellow gas supply piping at boiler base
• All interconnecting piping and valves visible in photos

SPECIFICATIONS SUMMARY

• System Type: Complete Steam Boiler System Package
• Boiler Manufacturer: Lattner Boiler Company
• Boiler Type: Vertical Natural Gas Fired Steam Boiler
• Boiler Fuel: Natural Gas
• Boiler Mounting: Pallet-Mounted
• Feed Water Tank: Stainless Steel Rectangular Tank on Stainless Steel Frame
• Pump Manufacturer: Bluffton Motor Works / WEG Group
• Pump Model: MOD 1103155400
• Pump Motor HP: 3/4 HP Each (Two Motors — Duplex)
• Pump Motor Voltage: 115/208-230V
• Pump Motor Phase: 1 Phase
• Pump Motor RPM: 3,450 RPM
• Pump Motor Hz: 60 Hz
• Pump Motor Frame: 56
• Surge Tank: Vertical Blue Carbon Steel Pressure Vessel — Leg Mounted
• Control Panel: Wall-Mounted Enclosure with Emergency Stop and Start Pushbutton
• Condition: Used

ADDITIONAL INFORMATION

• Condition: Used
• System Type: Complete Steam Boiler System Package
• Boiler Manufacturer: Lattner Boiler Company
• Boiler Type: Vertical Natural Gas Fired Steam Boiler
• Boiler Fuel: Natural Gas
• Boiler Mounting: Pallet-Mounted
• Feed Water Tank: Stainless Steel with Duplex 3/4 HP Bluffton/WEG Pump Motors
• Surge Tank: Vertical Blue Carbon Steel Pressure Vessel
• Control Panel: Included — Control Panel Boiler No. 2
• Inspection: Welcome — contact us to schedule

IMPORTANT NOTES:

• All four components sold together as a complete system package
• Buyer responsible for all disconnection, rigging, removal, and transport from current location
• Natural gas fired — yellow gas supply piping visible at boiler base
• Contact us for additional photos, video walkthroughs, or technical questions
