Trane Ascend Air-Cooled Chiller 551 Tons Model ACRC-5504 R-513A 460V/3Ph

OVERVIEW

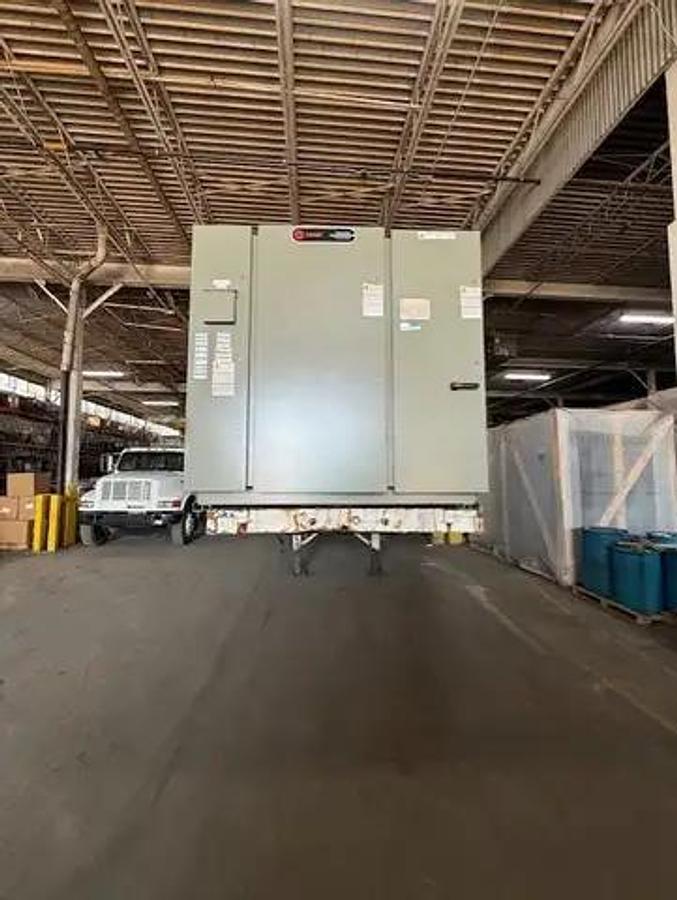

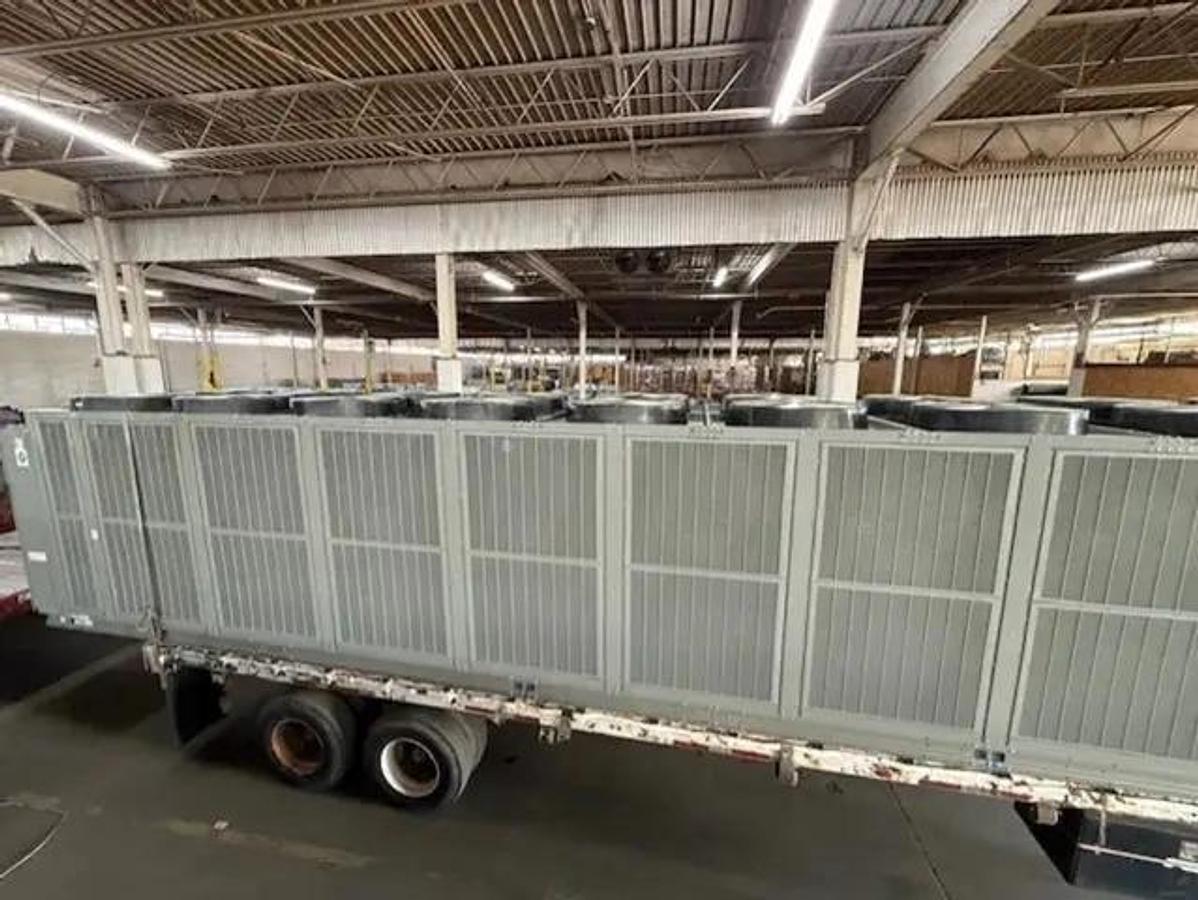

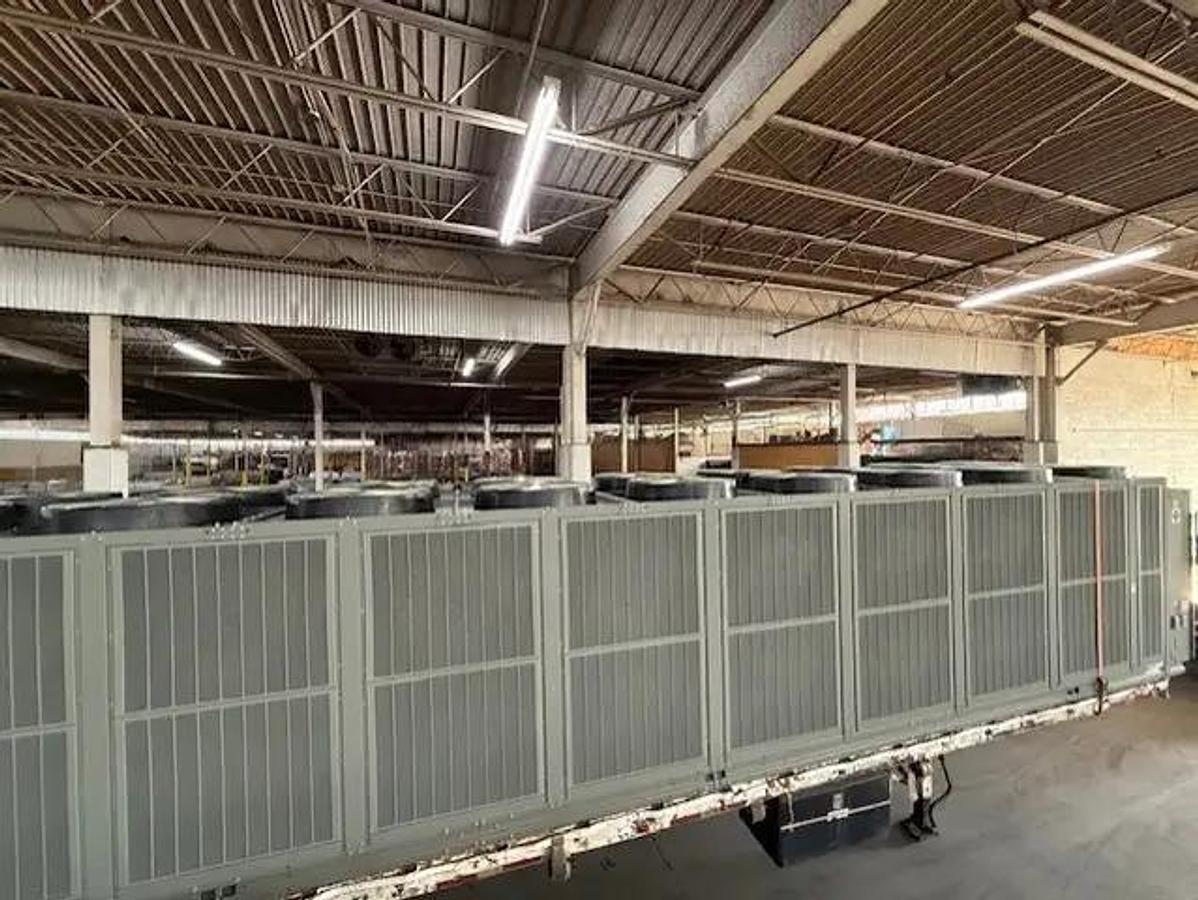

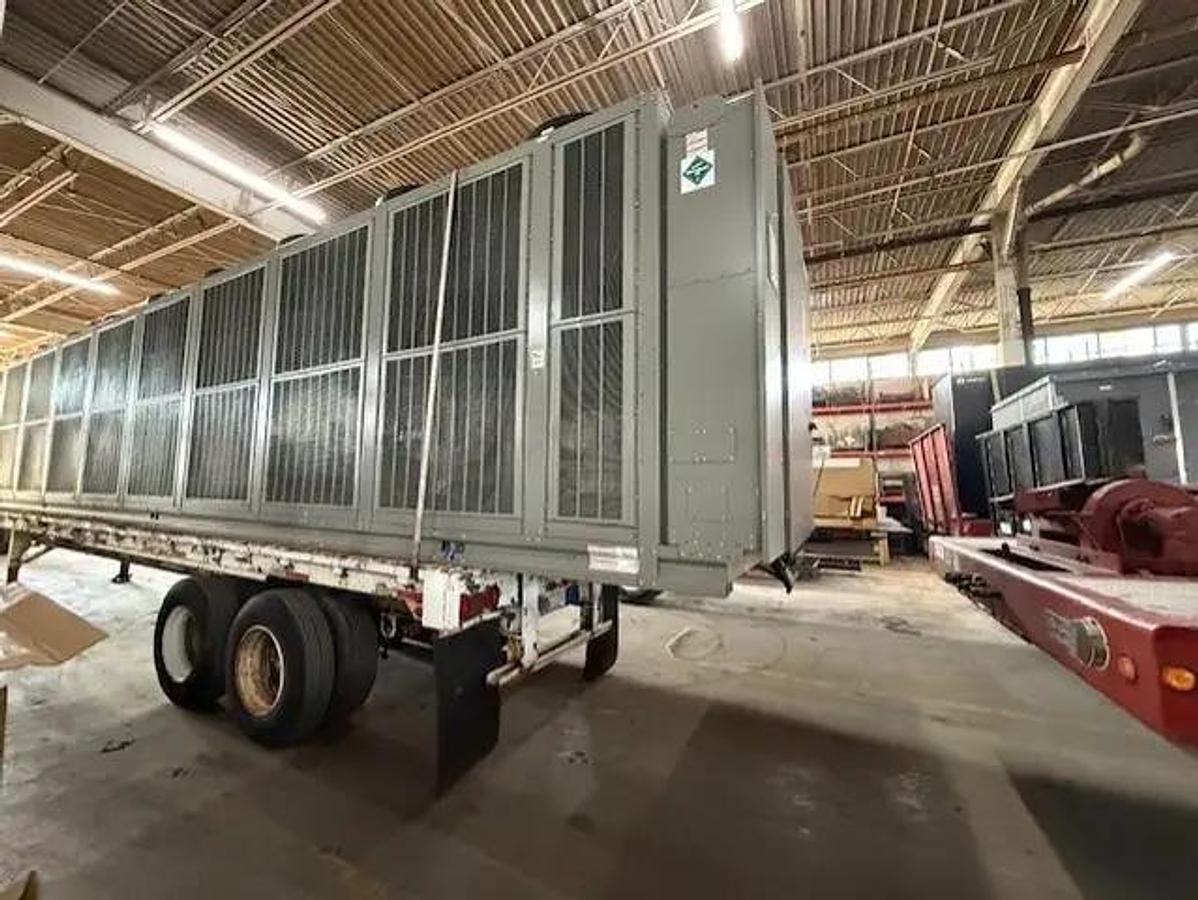

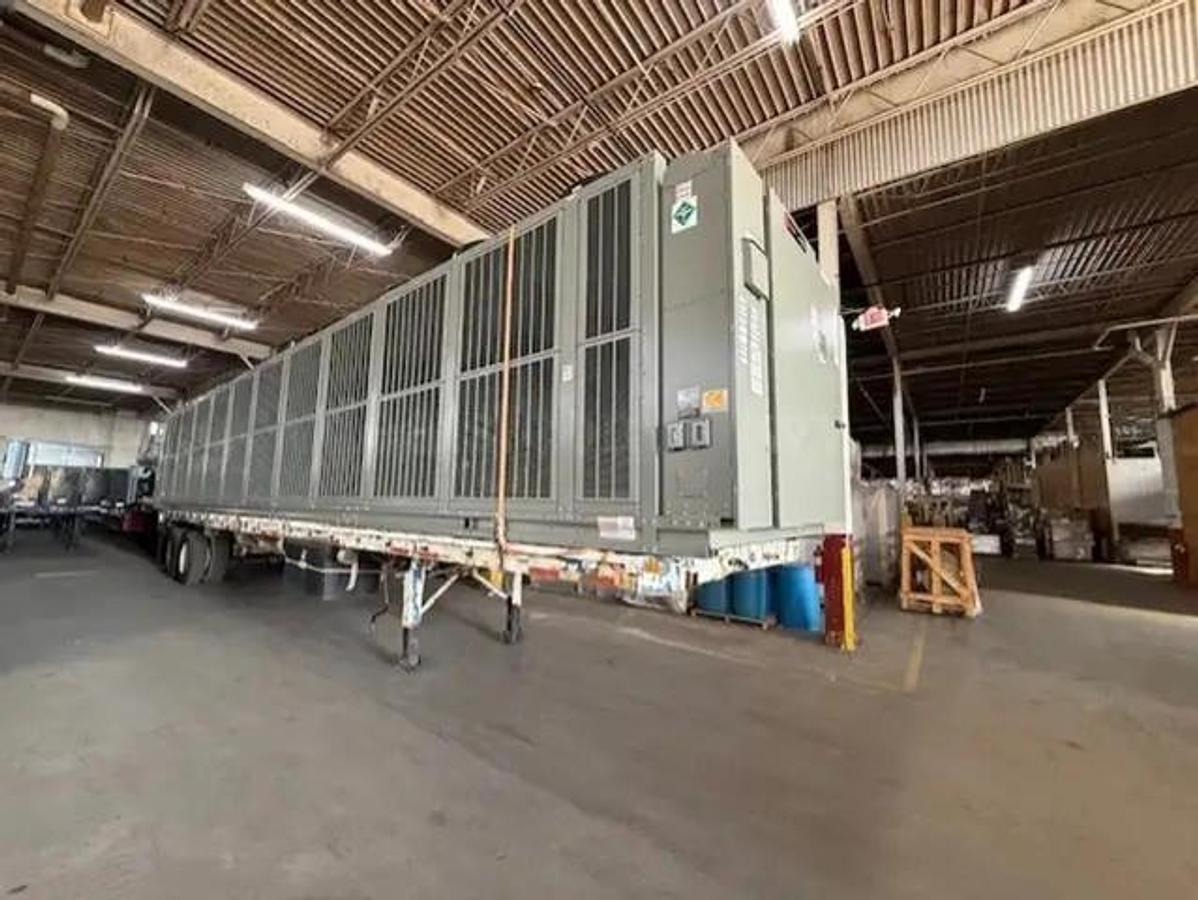

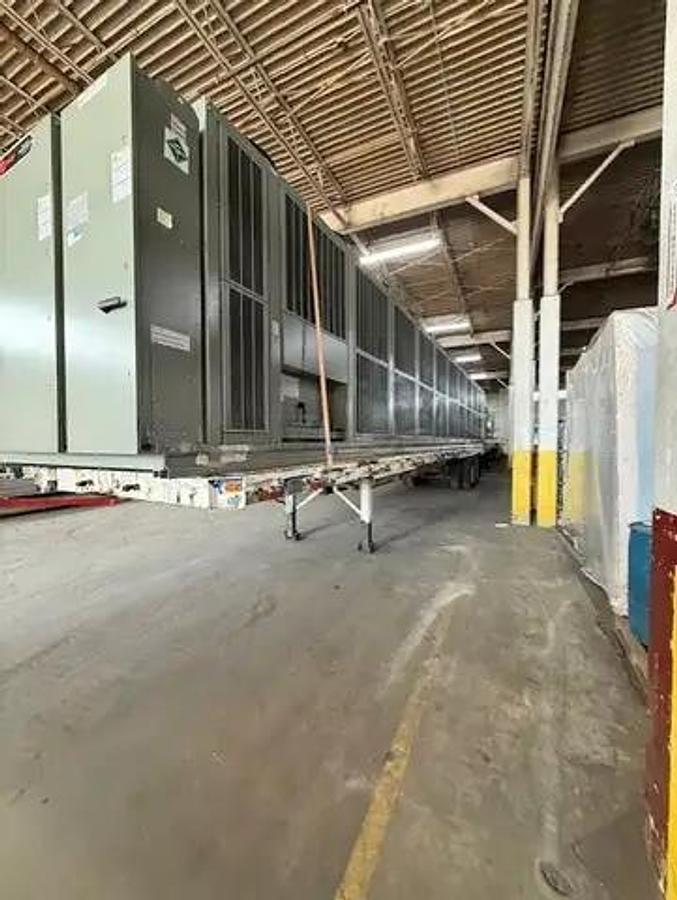

NOTE: This is a Trane Ascend™ Air-Cooled Screw Chiller, 551 nominal tons of cooling capacity, manufactured by Trane Technologies. The unit is new and has never been installed. Features two independent refrigerant circuits with R-513A refrigerant, 22 VFD-controlled condenser fan motors, and an IPLV of 18.92 EER (Btu/W-h). Serial Number U25F0234S. Currently loaded on flatbed trailer. Original specifications sheet attached to listing. Sold As-Is / Where-Is. Ready for inspection — contact us to schedule.

Trane Ascend™ Air-Cooled Chiller — 551 Nominal Tons, Two Independent Refrigerant Circuits. Rated at 460V/3-Phase/60Hz. Equipped with 22 VFD-driven condenser fan motors for exceptional part-load efficiency, achieving an IPLV of 18.92 EER (Btu/W-h). R-513A low-GWP refrigerant. Serial Number U25F0234S.

New, never installed — still loaded on flatbed trailer. Original Trane specifications sheet included. Ideal for large commercial buildings, industrial facilities, data centers, hospitals, universities, or any application requiring reliable high-capacity chilled water production.

EQUIPMENT SPECIFICATIONS

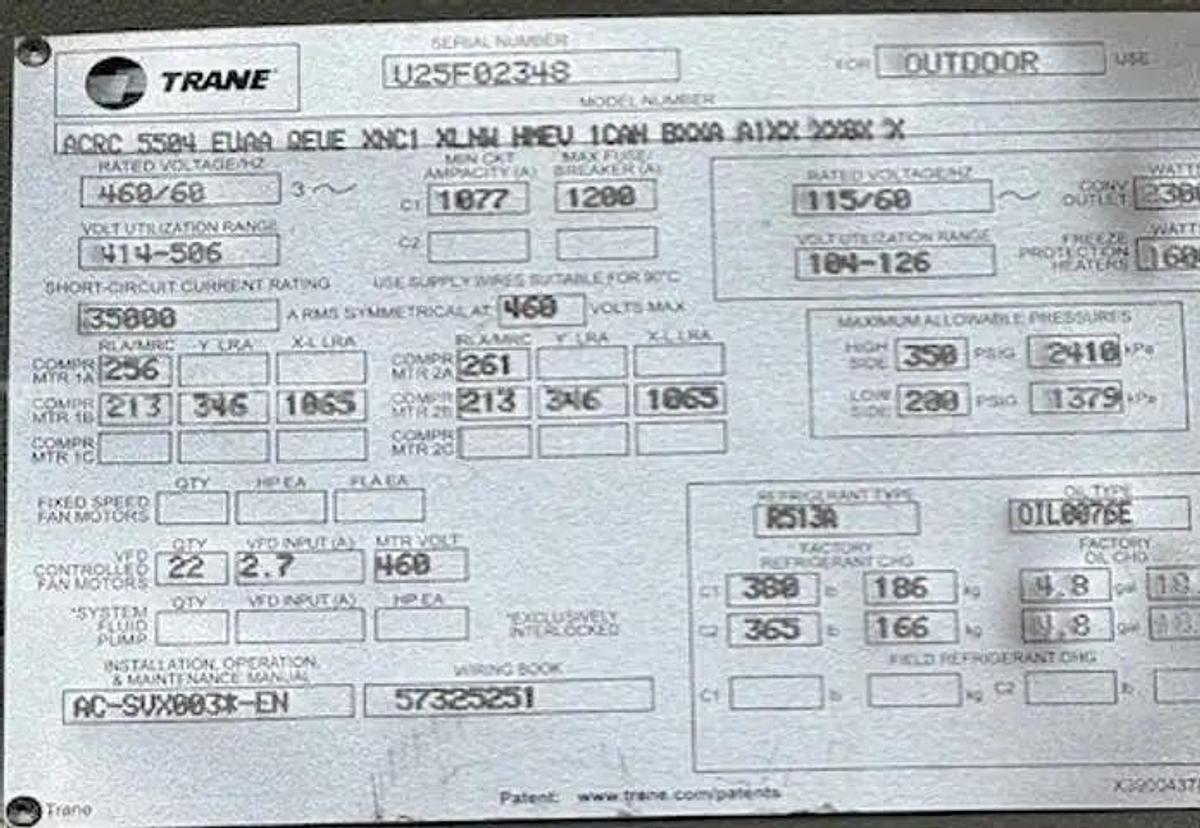

Chiller Model Information:

• Manufacturer: Trane Technologies
• Brand: Trane Ascend™
• Model Number: ACRC5504EUAAQEUEXNC1XLNXHMEV1CANBXXAA1XXXX0XXX
• Serial Number: U25F0234S
• Unit Type: Air-Cooled Screw Chiller
• Condition: New — Never Installed
• Refrigerant: R-513A
• Installation: Outdoor Use
• Operation & Maintenance Manual: AC-SVX003X-EN
• Wiring Book: 57325251

Performance Ratings:

• Nominal Cooling Capacity: 551 Tons (at 100% load, 95°F ambient)
• IPLV Efficiency: 18.92 EER (Btu/W-h)
• Number of Refrigerant Circuits: 2
• Leaving Water Temp (Evap): 44°F
• Entering Water Temp (Evap): 54°F (at 100% load)
• Evaporator Flow Rate: 1,317 GPM
• Full Load Power: 650.9 kW
• Full Load EER: 10.16 Btu/W-h

Electrical Specifications:

• Main Power Supply: 460V / 3-Phase / 60Hz
• Voltage Utilization Range: 414 – 506V
• Min. Circuit Ampacity (CT): 1,077 A
• Max. Fuse / Breaker (CT): 1,200 A
• Short-Circuit Current Rating: 35,000 A RMS Symmetrical at 460V Max.
• Control Power: 115V / 1-Phase / 60Hz
• Control Voltage Utilization Range: 104 – 126V
• Convenience Outlet: 230V
• VFD Condenser Fan Motors (Qty): 22
• VFD Input: 2.7 A per motor
• VFD Motor Voltage: 460V
• Compressor 2A — RLA/MRC: 256 A
• Compressor 2A — Y-LRA / X-L LRA: 346 / 1,065 A
• Compressor 2B — RLA/MRC: 213 A
• Compressor 2B — Y-LRA / X-L LRA: 346 / 1,065 A

Physical Dimensions & Weight:

• Length: 623.0 in (51.9 ft)
• Width: 88.0 in (7.3 ft)
• Height: 98.0 in (8.2 ft)
• Operating Weight: 27,900 lb
• Shipping Weight: 27,400 lb

Refrigerant & Oil Charge:

• Refrigerant Type: R-513A
• Oil Type: OIL0076E
• Circuit 1 — Refrigerant Charge: 411 lb (Factory) / 186 kg
• Circuit 1 — Oil Charge: 4.8 gal
• Circuit 2 — Refrigerant Charge: 365 lb (Factory) / 166 kg
• Circuit 2 — Oil Charge: 4.8 gal
• High-Side Max. Allowable Pressure: 350 PSIG / 2,410 kPa
• Low-Side Max. Allowable Pressure: 200 PSIG / 1,379 kPa

KEY FEATURES & BENEFITS

Trane Ascend™ Platform:

• Premium air-cooled screw chiller platform engineered for superior efficiency, reliability, and serviceability
• Designed for large commercial and industrial applications requiring dependable chilled water production without the complexity of a cooling tower
• Backed by Trane's global service network and parts availability
• Factory-new condition — no deferred maintenance, no unknown service history

Exceptional Part-Load Efficiency:

• IPLV of 18.92 EER (Btu/W-h) — industry-leading part-load efficiency
• 22 VFD-controlled condenser fan motors allow precise airflow modulation to match ambient and load conditions
• Dramatically reduced energy consumption during part-load operation vs. fixed-speed fan designs
• Significant operating cost savings over the life of the equipment

Dual Independent Refrigerant Circuits:

• Two fully independent refrigerant circuits with separate compressors
• If one circuit requires service, the second continues to operate — maintaining partial cooling capacity
• Increased redundancy and operational flexibility for mission-critical applications
• R-513A low-GWP refrigerant — non-flammable, environmentally compliant, aligned with current and future regulations

VFD Condenser Fan Technology:

• All 22 condenser fan motors are VFD-controlled
• Stepless speed modulation from minimum to maximum airflow
• Quieter operation and reduced mechanical wear vs. fixed-speed fans
• Significant energy savings at ambient temperatures below design day

New, Never Installed Condition:

• Unit is factory-new and has never been put into service
• Still loaded on flatbed trailer — ready for rigging and transport
• Significant opportunity to acquire a premium chiller at a fraction of new equipment lead times (12–24 months for this capacity class)
• All factory documentation and specifications intact

Natural Applications:

• Large commercial office buildings and campuses
• Industrial manufacturing facilities
• Data centers and critical facilities
• Hospitals and healthcare campuses
• Universities and institutional facilities
• Any application requiring high-capacity, reliable chilled water production

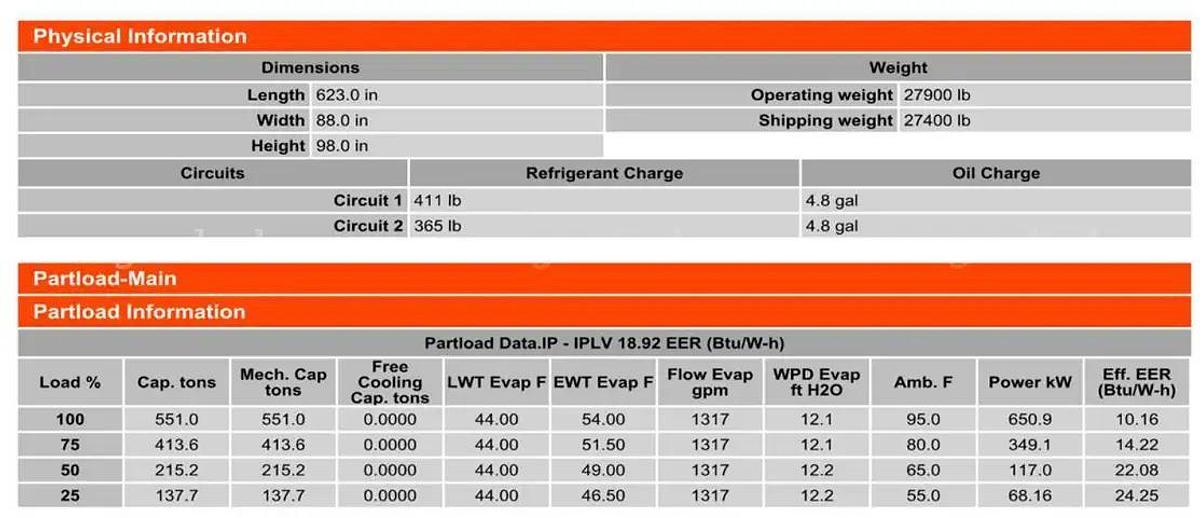

PART-LOAD PERFORMANCE DATA

IPLV: 18.92 EER (Btu/W-h) | Evaporator Flow: 1,317 GPM | LWT: 44°F | Ambient Design: 95°F

• 100% Load: 551.0 Tons | 650.9 kW | 10.16 EER | Amb. 95°F | EWT 54.00°F
• 75% Load: 413.6 Tons | 349.1 kW | 14.22 EER | Amb. 80°F | EWT 51.50°F
• 50% Load: 215.2 Tons | 117.0 kW | 22.08 EER | Amb. 65°F | EWT 49.00°F
• 25% Load: 137.7 Tons | 68.16 kW | 24.25 EER | Amb. 55°F | EWT 46.50°F

SYSTEM COMPONENTS

Main Chiller Unit:

• Trane Ascend™ Model ACRC-5504
• Serial Number U25F0234S
• 551 Nominal Tons cooling capacity
• Two independent refrigerant circuits
• Screw-type compressors
• R-513A refrigerant

Condenser Fan System:

• 22 VFD-controlled condenser fan motors
• Factory installed
• Motor voltage: 460V
• VFD input: 2.7 A per motor

Controls & Electrical:

• 460V / 3-Phase / 60Hz main power
• Trane Ascend™ integrated control system
• O&M Manual: AC-SVX003X-EN
• Wiring Book: 57325251

SPECIFICATIONS SUMMARY

• Manufacturer: Trane Technologies
• Model: ACRC5504EUAAQEUEXNC1XLNXHMEV1CANBXXAA1XXXX0XXX
• Serial No.: U25F0234S
• Type: Air-Cooled Screw Chiller
• Condition: New — Never Installed
• Nominal Capacity: 551 Tons
• IPLV Efficiency: 18.92 EER (Btu/W-h)
• Refrigerant: R-513A
• Refrigerant Circuits: 2
• Condenser Fans: 22 VFD-Controlled
• Main Power: 460V / 3-Phase / 60Hz
• Min. Circuit Ampacity: 1,077 A
• Max. Fuse / Breaker: 1,200 A
• Length: 623.0 in (51.9 ft)
• Width: 88.0 in (7.3 ft)
• Height: 98.0 in (8.2 ft)
• Operating Weight: 27,900 lb
• Shipping Weight: 27,400 lb
• Evaporator Flow Rate: 1,317 GPM
• LWT / EWT: 44°F / 54°F
• High-Side Pressure Max: 350 PSIG
• Low-Side Pressure Max: 200 PSIG
• Installation: Outdoor
• Oil Type: OIL0076E

ADDITIONAL INFORMATION

• Condition: New — Never Installed
• Manufacturer: Trane Technologies
• Brand: Trane Ascend™
• Model: ACRC-5504
• Serial Number: U25F0234S
• Chiller Type: Air-Cooled Screw
• Capacity: 551 Nominal Tons
• Refrigerant: R-513A
• Power Supply: 460V / 3-Phase / 60Hz
• VFD Fans: 22 — Factory Installed
• Documents: Original Specifications Sheet Included
• Sale Terms: As-Is / Where-Is
• Transport: Currently loaded on flatbed trailer — buyer responsible for rigging and transport
• Inspection: Welcome — contact us to schedule

IMPORTANT NOTES:

• Unit is new and has never been placed into service — original factory condition
• Original Trane specifications sheet attached to this listing
• R-513A refrigerant — low-GWP, non-flammable, environmentally compliant
• 460V / 3-Phase power required — confirm site electrical prior to purchase
• Currently loaded on flatbed trailer — professional rigging required for offloading
• Buyer responsible for all transport and rigging arrangements from current location
• Sold As-Is / Where-Is
• Contact us for additional photos, video walkthroughs, or technical questions
