Hurst Boiler 400HP 15PSI S2000-15-9 4-Pass Scotch Marine Firetube Steam Boiler 2011

OVERVIEW

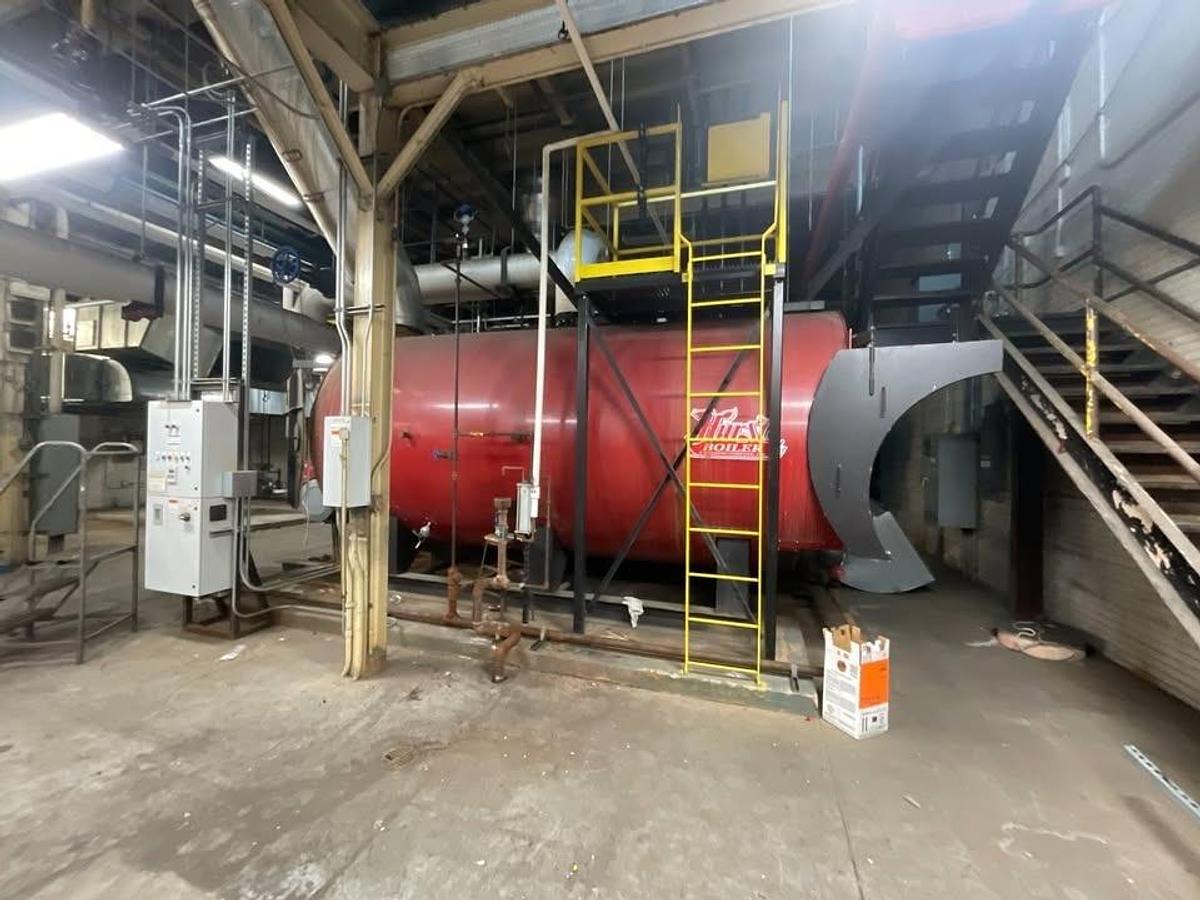

NOTE: This is a 400 boiler horsepower, 4-pass scotch marine firetube steam boiler manufactured by Hurst Boiler & Welding Co., Inc. in 2011. Low-pressure unit rated at 15 PSI maximum working pressure. National Board registered (No. 17360), State of Wisconsin registered (No. B 90948). Previously operational as Boiler #3 in a Wisconsin facility. Packaged burner included. Ready for inspection — contact us to schedule.

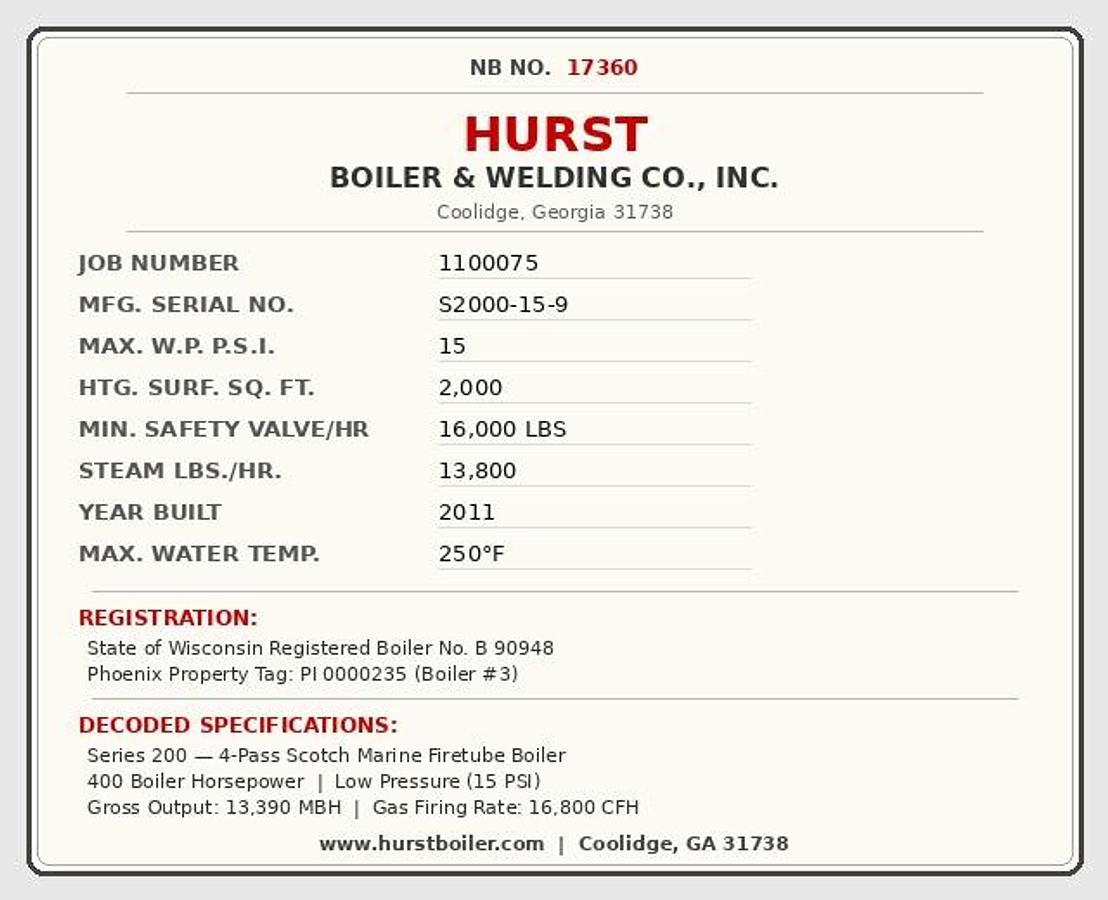

Hurst Boiler & Welding Co. Series 200 Model S2000-15-9 — 400 HP, 4-Pass Scotch Marine Firetube Steam Boiler. Mfg. Serial Number S2000-15-9, National Board Number 17360, Job Number 1100075, Year Built 2011. Rated at 15 PSI maximum working pressure with 13,800 Lbs./Hr. steam output and 2,000 Sq. Ft. of heating surface. Gross output 13,390 MBH. Minimum safety valve capacity 16,000 Lbs./Hr. Maximum water temperature 250°F. Built at Hurst's Coolidge, Georgia facility.

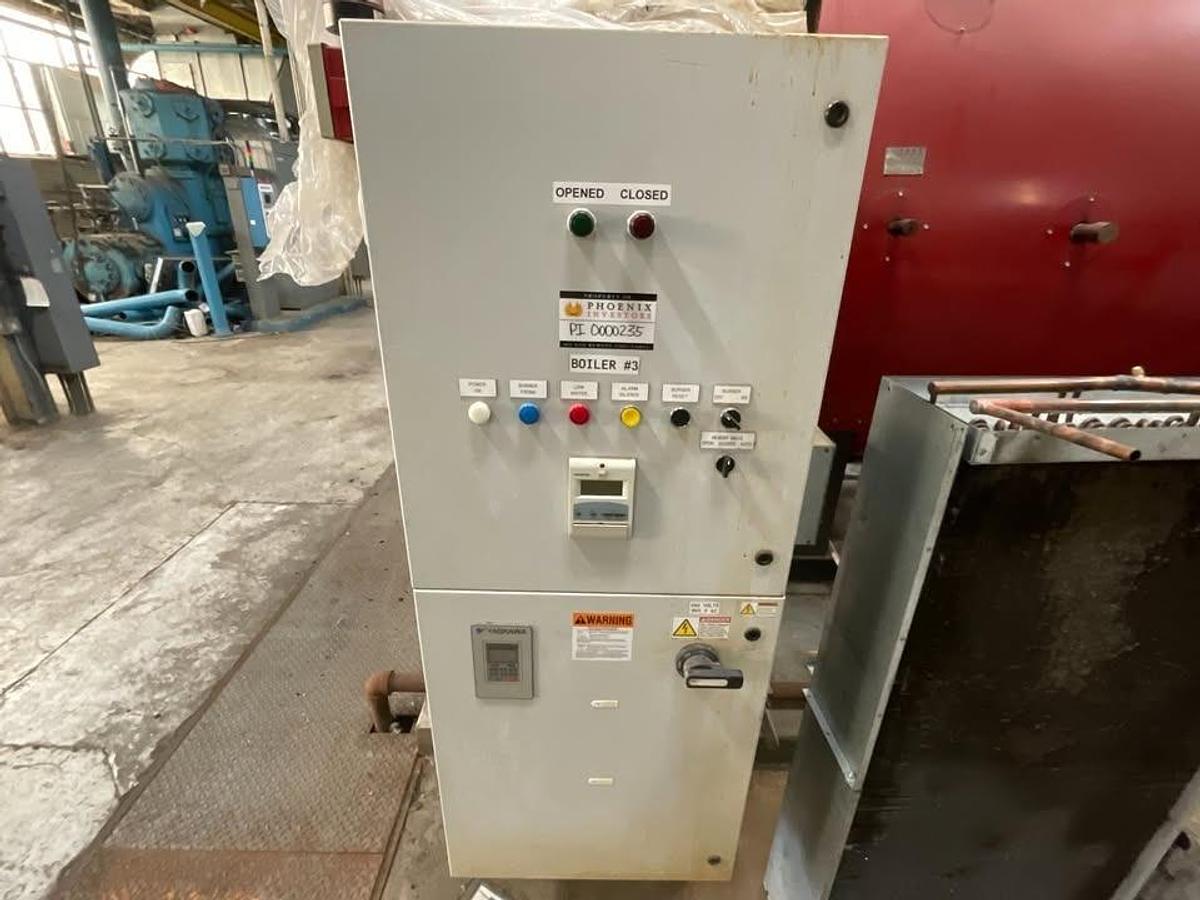

Burner and control panel included. Yaskawa VFD installed in control panel lower section. Control panel labeled Boiler #3 with burner firing / alarm / low water indicator lights and Opened/Closed status indicators.

Ideal for low-pressure process steam, facility heating, laundry and sterilization, food and beverage processing, institutional campuses, or any application requiring high-capacity low-pressure steam generation.

EQUIPMENT SPECIFICATIONS

Boiler Model Information:

• Manufacturer: Hurst Boiler & Welding Co., Inc.
• Address: P.O. Drawer 530, 21971 US Hwy 319 N., Coolidge, Georgia 31738
• Model/Series: Series 200 — 4-Pass Scotch Marine Firetube
• Mfg. Serial No.: S2000-15-9
• National Board No.: 17360
• Job Number: 1100075
• Year Built: 2011
• Boiler Type: 4-Pass Scotch Marine Firetube
• ASME Stamp: Yes (ASME Section I / Section IV — low pressure)

Performance Ratings:

• Boiler Horsepower: 400 HP
• Max. Working Pressure (Max. W.P. P.S.I.): 15 PSI (Low Pressure)
• Heating Surface: 2,000 Sq. Ft.
• Steam Output: 13,800 Lbs./Hr.
• Gross Output: 13,390 MBH
• Min. Safety Valve Capacity: 16,000 Lbs./Hr.
• Max. Water Temperature: 250°F

Fuel Firing Rates:

• Natural Gas: 16,800 CFH
• LP Gas: 183.6 GPH
• No. 2 Fuel Oil: 120.0 GPH
• No. 5 & No. 6 Oil: 112.0 GPH

Physical Dimensions:

• Shell Inside Diameter: 90 in.
• Furnace O.D.: 42 in.
• Width (without trim): 99 in.
• Width (with trim): 103 in.
• Length (front to rear): 187 in.
• Overall Length: 235 in. (~19.6 ft)
• Shipping Weight: ~33,000 lbs
• Water Capacity: 1,872 gallons

Registration:

• State of Wisconsin Registered Boiler No.: B 90948
• Phoenix Property Tag: PI 0000235 (Boiler #3)

KEY FEATURES & BENEFITS

Hurst Boiler Quality Manufacturing:

• Proven Series 200 4-pass scotch marine firetube design
• 400 HP low-pressure industrial capacity
• 13,800 Lbs./Hr. steam output at 15 PSI
• Heavy-duty commercial/industrial construction
• National Board registered (No. 17360)
• State of Wisconsin registered (No. B 90948)
• Built 2011 — relatively modern unit

4-Pass Scotch Marine Firetube Design:

• Combustion gases make four passes through the boiler before exiting
• Maximizes heat extraction and thermal efficiency
• Large combustion chamber with low heat release for complete combustion
• Front-mounted smoke box with slip-on stack connector
• Hinged and davited rear door for easy fireside access and tube inspection/cleaning

Low Maintenance Construction:

• Eliminates refractory baffles between flue gas passes
• 2-inch high-density mineral wool insulation with 22-gauge grip jacketing
• Structural steel support legs on skids — no special foundations required
• Rugged construction for long service life with minimal downtime

Control Panel Included:

• Dedicated boiler control panel (Boiler #3)
• Burner firing / burner off indicator lights
• Low water alarm indicator
• Alarm silence control
• Opened / Closed status indicators
• Yaskawa VFD (variable frequency drive) installed in lower panel section

Burner Included:

• Packaged burner (red) installed on boiler front

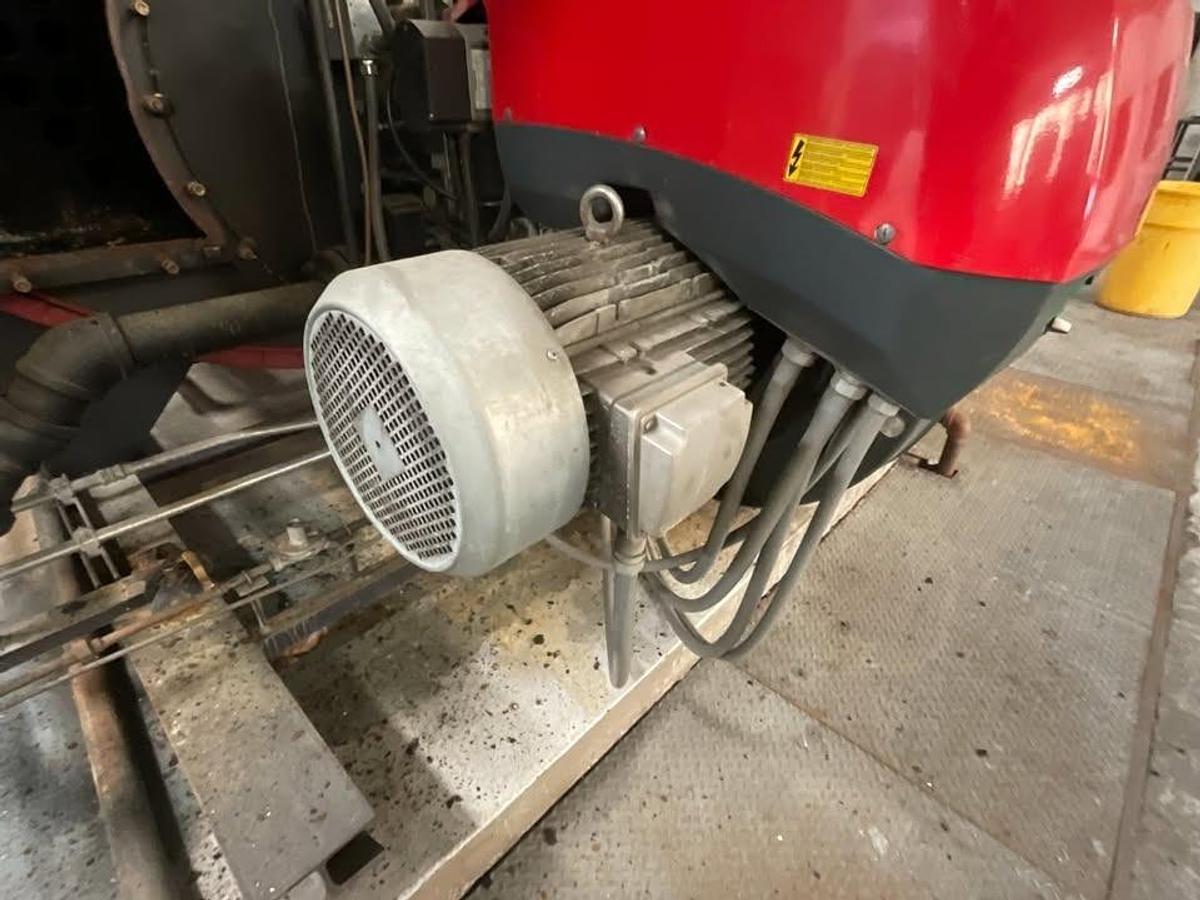

• Large combustion air fan/blower motor
• Multi-fuel capable per published firing rate specifications

SYSTEM COMPONENTS

Main Boiler:

• Hurst Boiler Series 200 Model S2000-15-9
• Mfg. Serial No. S2000-15-9 / National Board No. 17360
• 400 HP, 15 PSI, 13,800 Lbs./Hr. steam output
• 2,000 Sq. Ft. heating surface
• 4-pass scotch marine firetube design
• Complete with all trim and controls

Burner System:

• Packaged burner — factory-mounted on boiler front
• Large combustion air blower motor
• Multi-fuel capability (gas / oil per spec)

Control Panel:

• Dedicated boiler control panel
• Burner firing / alarm / low water indicator lights
• Opened / Closed status indicators
• Yaskawa VFD installed in lower section

SPECIFICATIONS SUMMARY

• Manufacturer: Hurst Boiler & Welding Co., Inc.
• Model: S2000-15-9
• Series: 200 (4-Pass Scotch Marine Firetube)
• Mfg. Serial No.: S2000-15-9
• National Board No.: 17360
• Job Number: 1100075
• Year Built: 2011
• Boiler Type: 4-Pass Scotch Marine Firetube
• Capacity: 400 BoHP
• Max. Working Pressure: 15 PSI (Low Pressure)
• Heating Surface: 2,000 Sq. Ft.
• Steam Output: 13,800 Lbs./Hr.
• Gross Output: 13,390 MBH
• Min. Safety Valve Capacity: 16,000 Lbs./Hr.
• Max. Water Temp.: 250°F
• Gas Firing Rate: 16,800 CFH
• Burner: Packaged burner included
• Control Panel: Included with Yaskawa VFD
• Origin: Coolidge, GA, USA
• Condition: Used

ADDITIONAL INFORMATION

• Condition: Used — previously operational
• Year Built: 2011
• Manufacturer: Hurst Boiler & Welding Co., Inc.
• Model: S2000-15-9
• National Board No.: 17360
• WI Registered Boiler No.: B 90948
• Boiler Type: 4-Pass Scotch Marine Firetube
• Capacity: 400 HP
• Max. Working Pressure: 15 PSI
• Steam Output: 13,800 Lbs./Hr.
• Heating Surface: 2,000 Sq. Ft.
• Gross Output: 13,390 MBH
• Max. Water Temp.: 250°F
• Burner: Packaged burner included
• Control Panel: Included (with Yaskawa VFD)
• Origin: Coolidge, GA, USA
• Previously: Boiler #3 in Wisconsin facility
• Inspection: Welcome — contact us to schedule

IMPORTANT NOTES:

• Burner and control panel included with boiler
• Yaskawa VFD included in control panel
• National Board registered and State of Wisconsin registered
• 2011 manufacture — relatively modern industrial unit
• Professional rigging recommended for loading and transport
• Buyer responsible for transport arrangements from current location
• Contact us for additional photos, video walkthroughs, or technical questions
