FRC Systems DAF Scum Collector 320 Dissolved Air Flotation Solids Separator

OVERVIEW

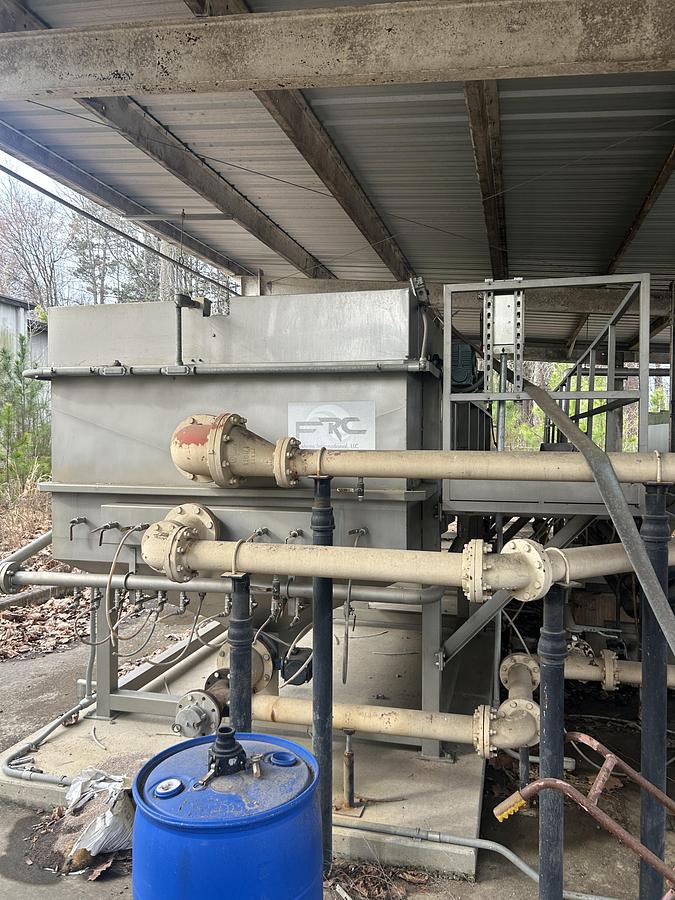

Large industrial Dissolved Air Flotation (DAF) scum collector and solids separator system, designated "Daft Scum Coll 320," engineered and integrated by FRC Systems International, LLC (Gainesville, Georgia). This is a complete, large-scale DAF clarifier scum collection and solids removal system used in industrial wastewater treatment operations. The system features a heavy-gauge steel rectangular clarifier basin with integral inclined screw/paddle conveyor mechanism for continuous automated removal of floated solids (scum) from the DAF flotation surface. Complete with drive motor and gearbox, FRP grating operator walkway platform with steel stair access, multiple large-diameter flanged influent/effluent piping connections, spherical air/pressure vessel, solenoid valve control package, Danfoss controller, Eaton Cutler-Hammer safety disconnect switches, and all associated instrumentation and controls.

DAF systems work by dissolving air into pressurized water and releasing it at atmospheric pressure inside a flotation tank, causing suspended solids, fats, oils, and greases (FOG) to float to the surface where they are continuously skimmed by the collector mechanism and removed as a concentrated sludge stream. Ideal for food and beverage processing, rendering plants, poultry and meat processing, pulp and paper, industrial laundry, municipal wastewater, and any facility requiring high-efficiency suspended solids and FOG removal from process wastewater.

EQUIPMENT SPECIFICATIONS

System Identification:

• System Designation: Daft Scum Coll 320
• Equipment Type: DAF Scum Collector / Dissolved Air Flotation Solids Separator
• System Integrator: FRC Systems International, LL
• Application: Industrial wastewater treatment — solids/FOG removal

Physical Description:

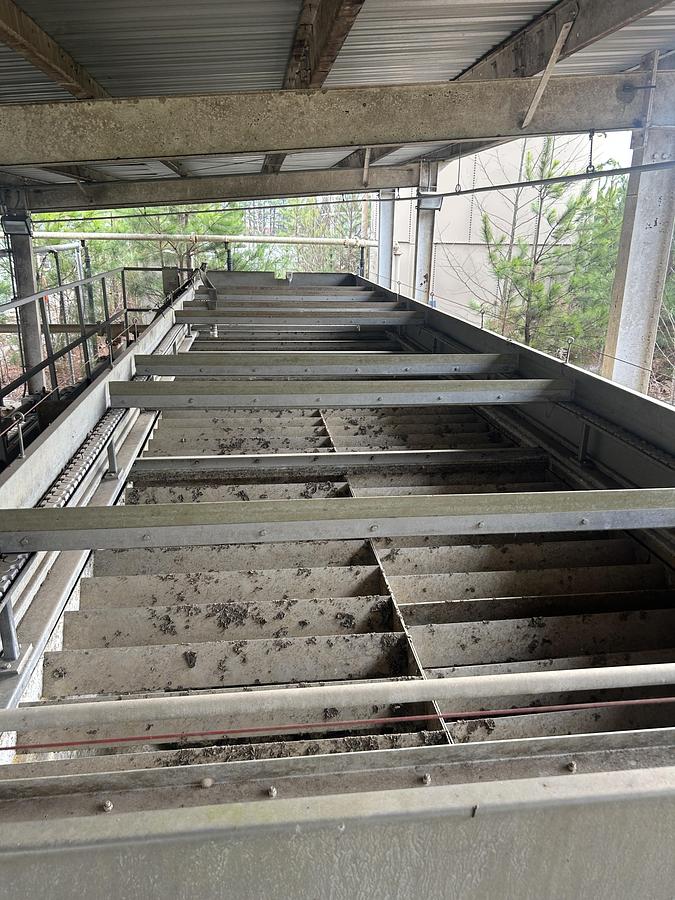

• Configuration: Large rectangular steel clarifier basin with inclined screw/paddle conveyor
• Construction: Heavy-gauge welded steel basin
• Size: Approximately 40+ feet in length (estimate from photos)

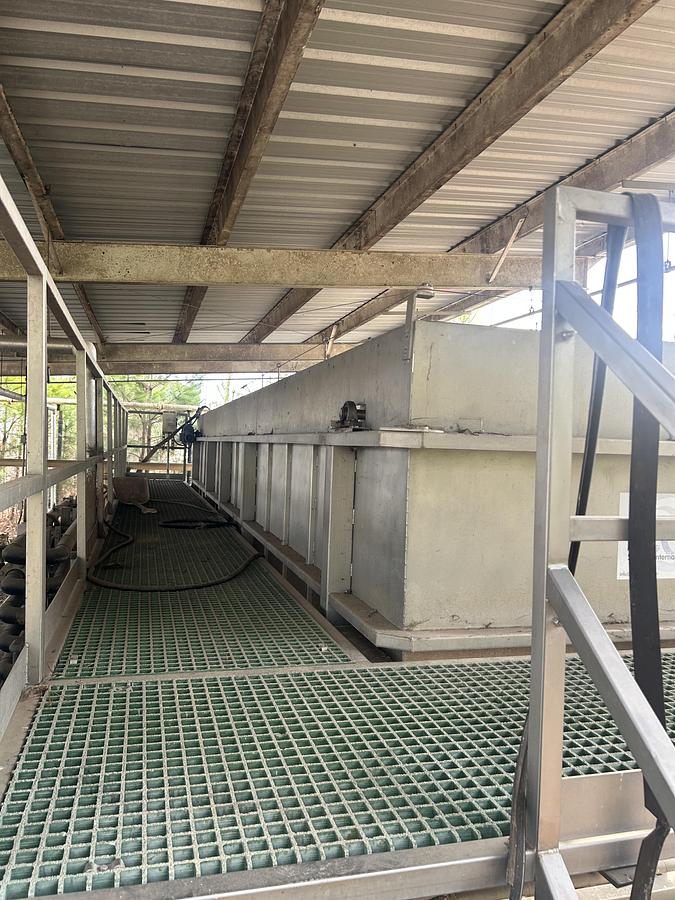

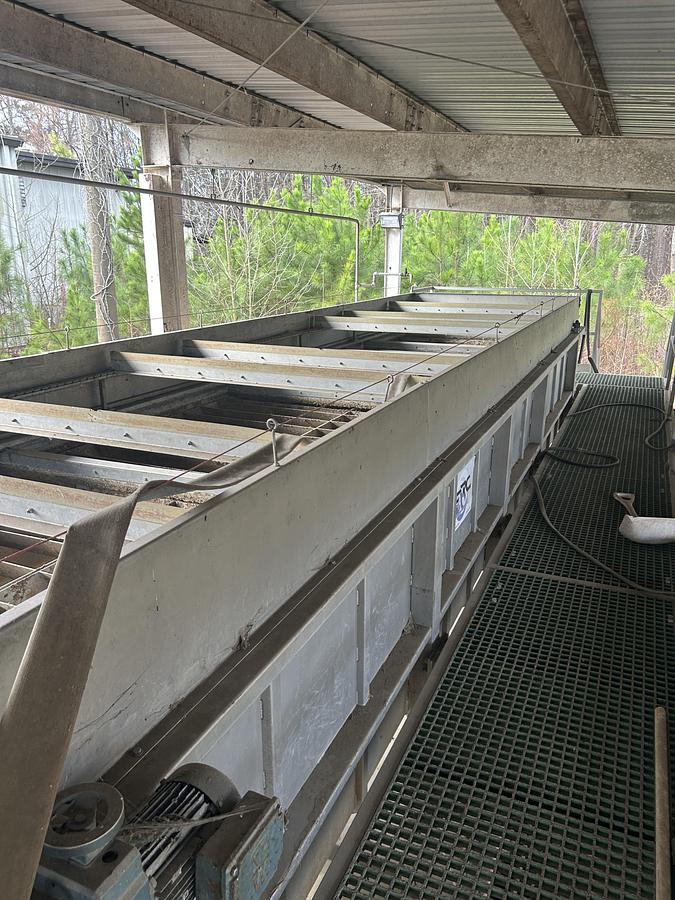

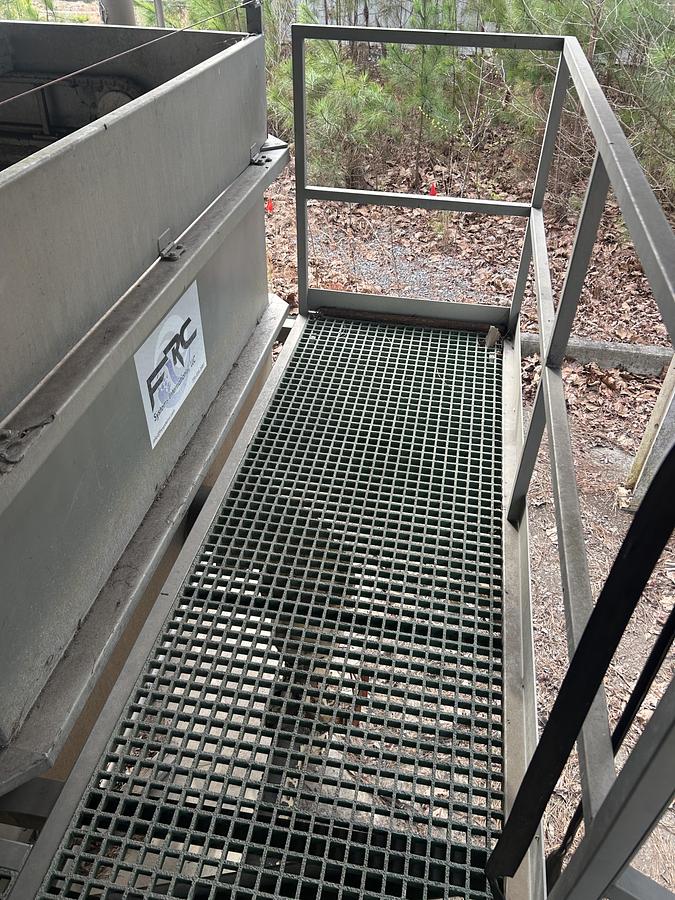

• Access Platform: FRP (fiberglass reinforced plastic) grating walkway

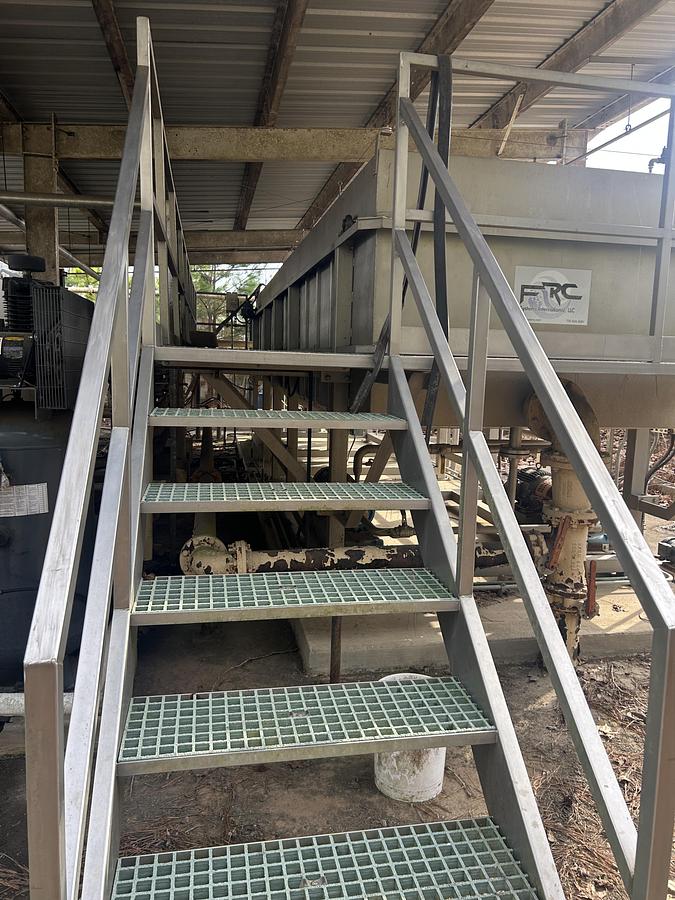

• Access Stairs: Steel stair assembly with handrail
• Coverage: Covered installation (roofed structure)

Drive System:

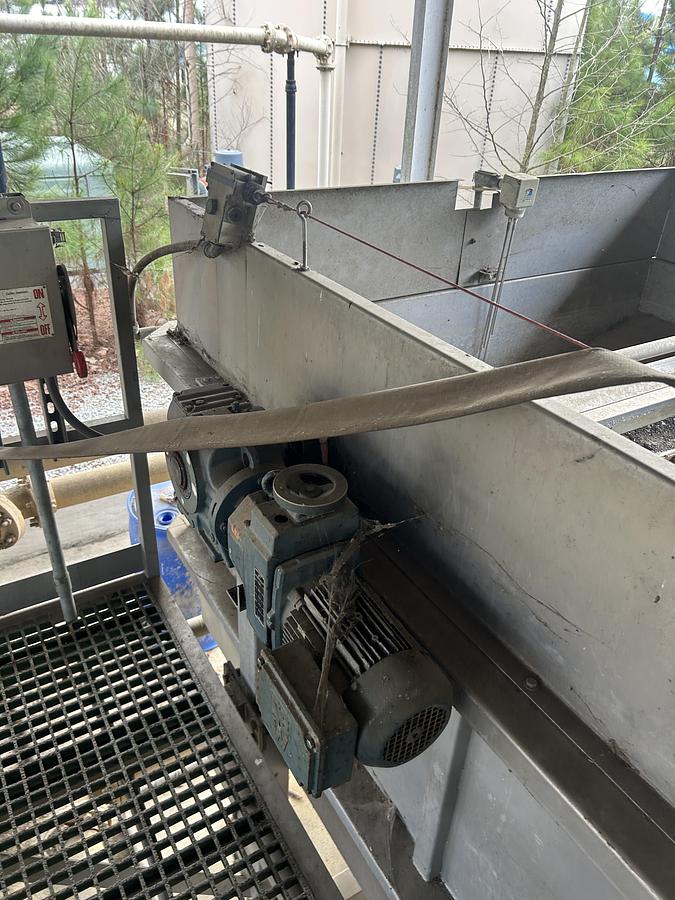

• Drive Motor: Blue TEFC electric motor with integral gearbox
• Drive Type: Geared reducer driving screw/collector conveyor mechanism

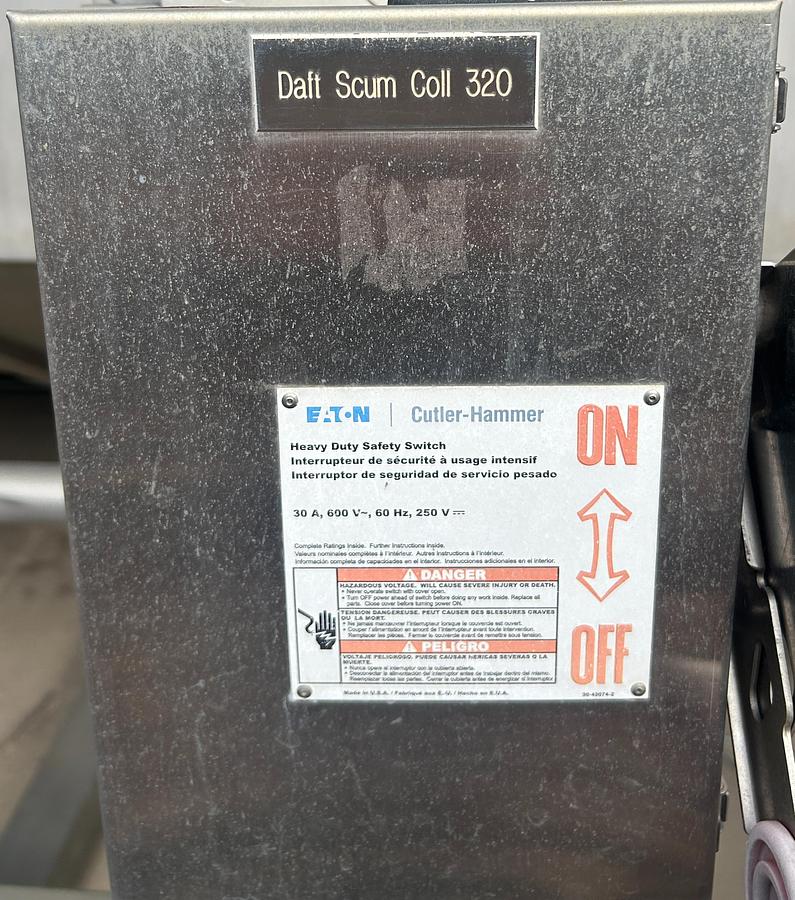

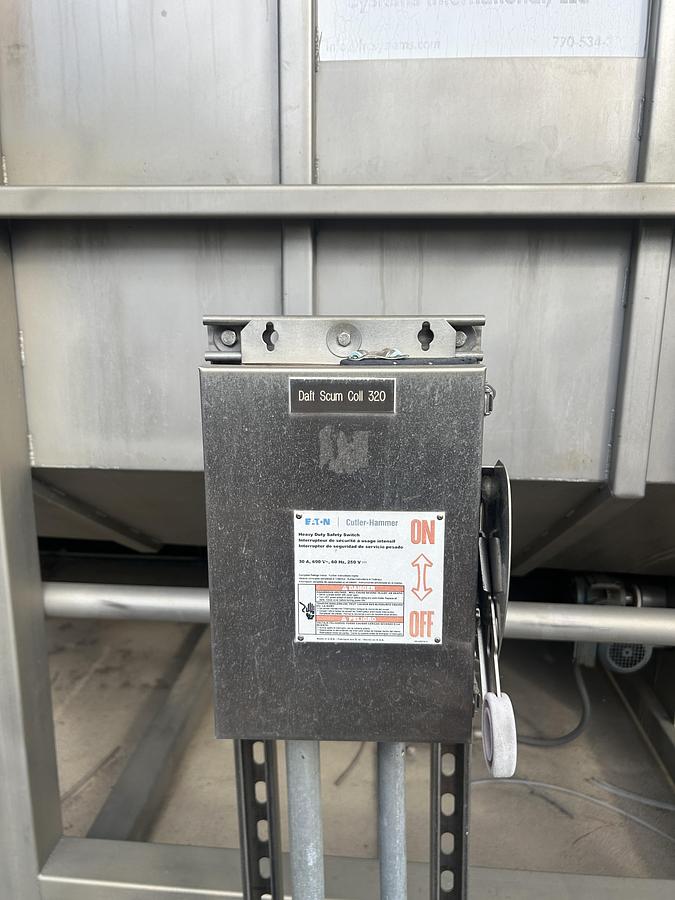

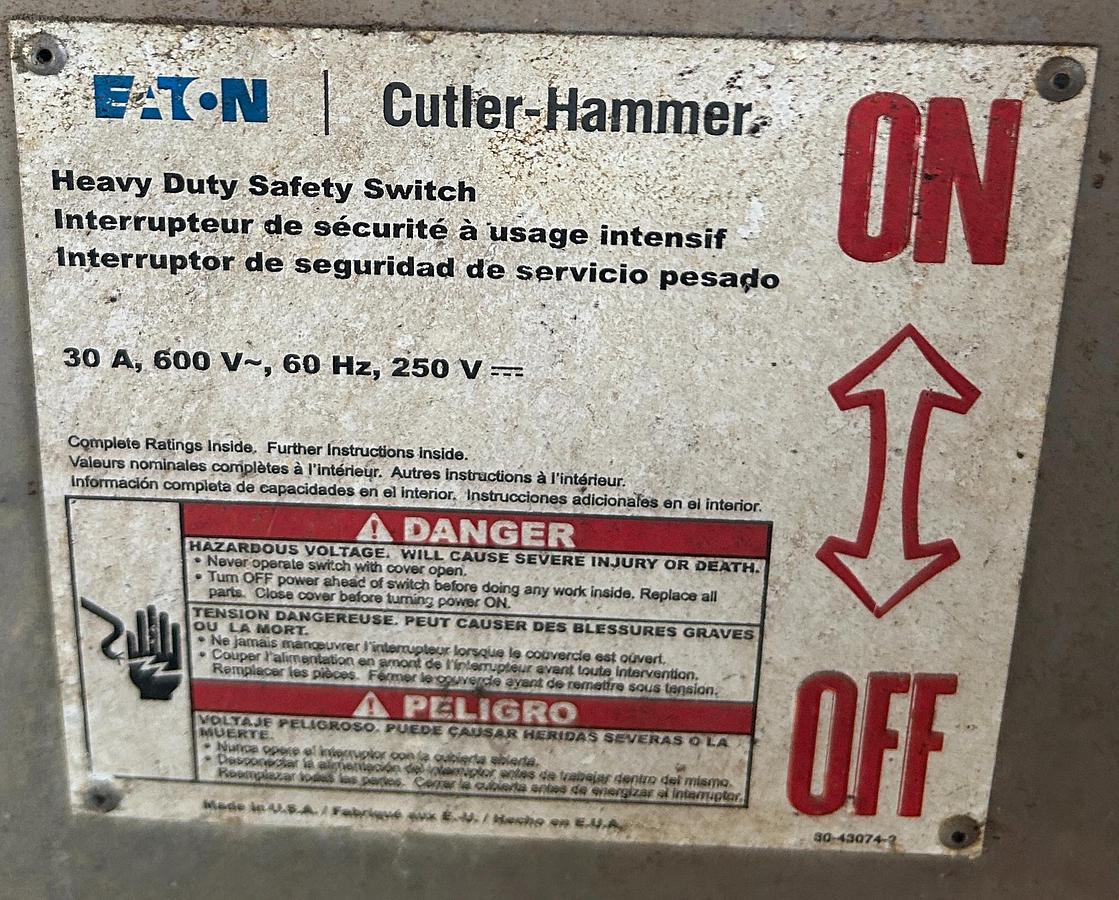

• Safety Disconnect: Eaton Cutler-Hammer heavy duty safety switch

Electrical Specifications:

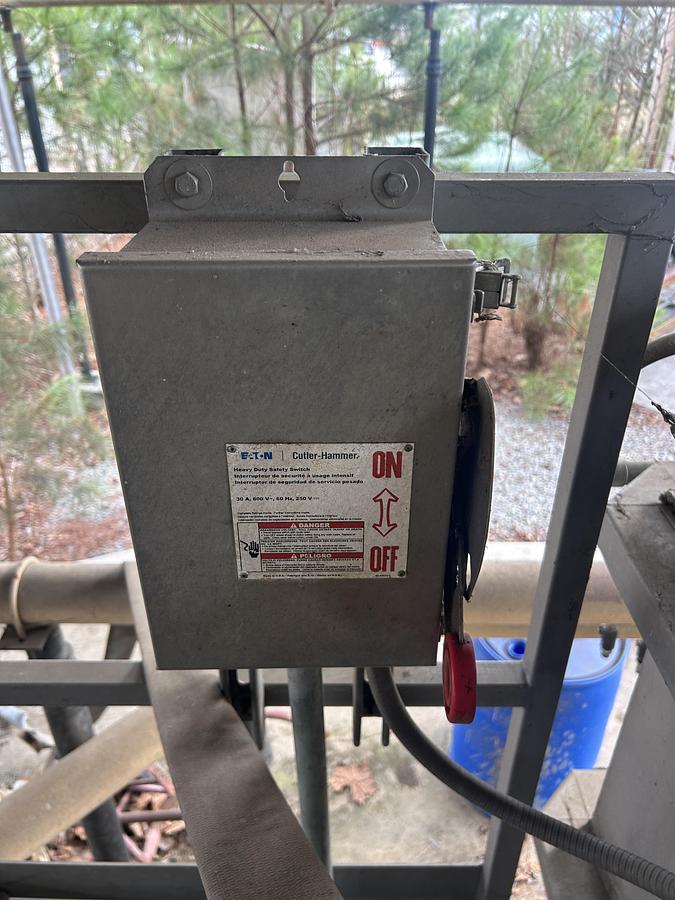

• Safety Switches: Eaton Cutler-Hammer heavy duty safety switches (multiple)
• Switch Rating: 30A, 600V AC, 60Hz, 250V DC
• Controls: Danfoss digital controller

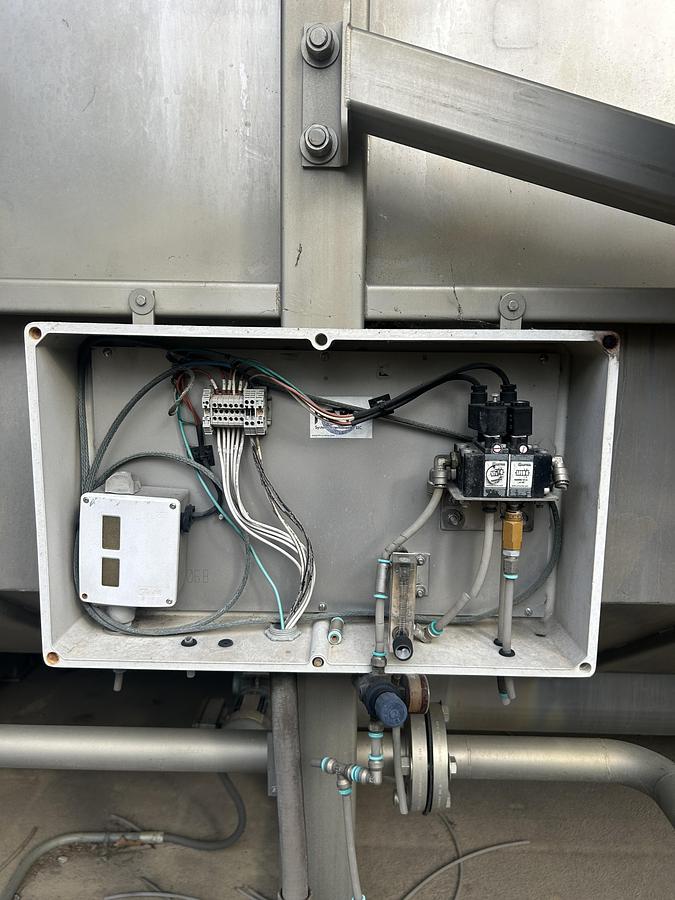

• Solenoid Valves: Multiple (manifold-mounted in junction box)
• Flow Meter: Inline flow meter installed
• Terminal Strip: Multi-wire terminal strip junction box

Piping & Process Connections:

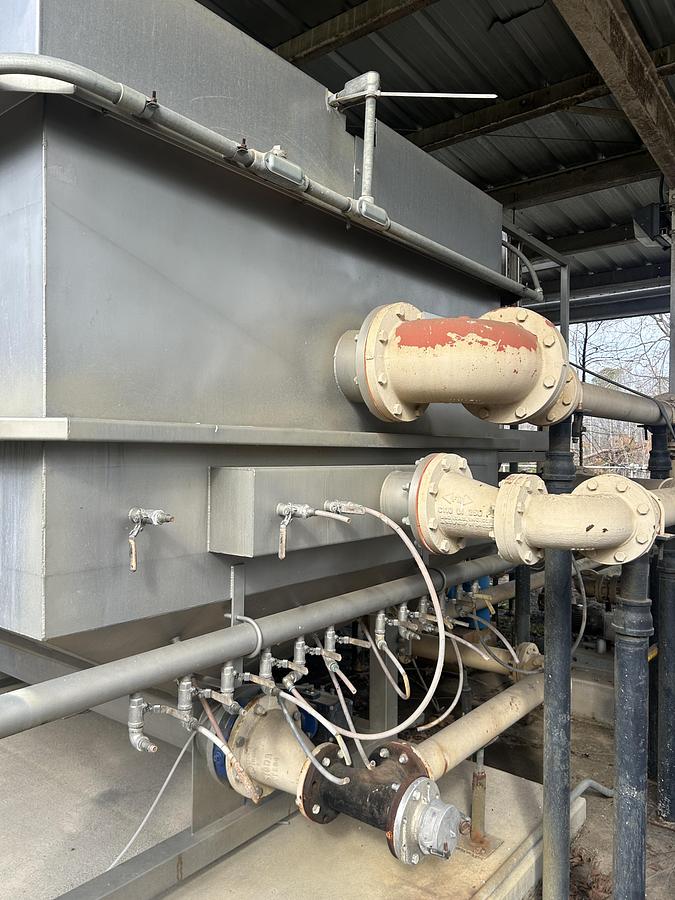

• Multiple large-diameter flanged inlet connections
• Multiple large-diameter flanged outlet connections
• Flanged check valves on process lines
• Instrumentation taps and sample ports throughout

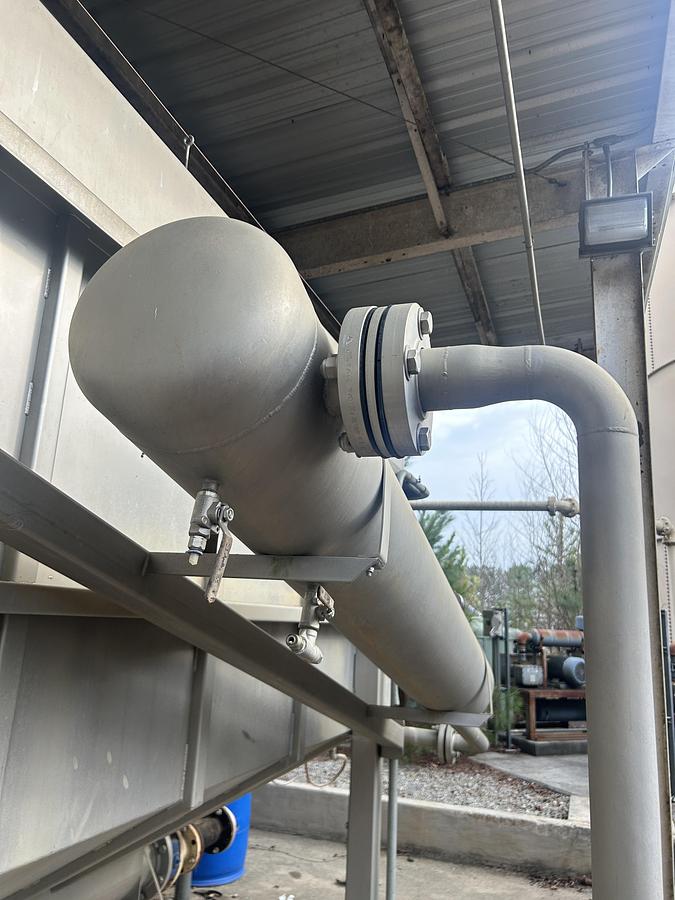

• Spherical air/pressure vessel on discharge end
• Ball valves and isolation valves throughout
• Pneumatic actuator on process valve

KEY FEATURES & BENEFITS

Large-Scale Industrial DAF Capacity:

• Size 320 designation — large industrial capacity unit
• Heavy-duty continuous duty operation
• High solids loading capability
• Automated scum collection and removal
• Continuous operation design
• Industrial-grade construction throughout

FRC Systems International Engineering:

• Professional wastewater treatment system integrator
• FRC Systems International — established Georgia-based specialist
• Professional engineering and integration
• Complete system approach
• Proven industrial wastewater treatment design

Complete Automated Scum Collection:

• Inclined screw/paddle conveyor mechanism
• Continuous automated skimming of floated solids
• Concentrated sludge discharge
• Minimal operator intervention required
• Geared motor drive for reliable low-speed operation
• Consistent solids removal performance

Heavy-Duty Electrical Package:

• Eaton Cutler-Hammer safety disconnect switches (30A, 600V)
• Danfoss digital controller
• Solenoid valve control manifold with flow meter
• Professional electrical installation
• Lockable safety disconnects
• Industrial-grade components throughout

Operator Access Platform:

• Full-length FRP grating walkway platform
• Non-slip fiberglass grating surface
• Steel stair access with handrail
• Safe elevated access for inspection and maintenance
• Corrosion-resistant FRP grating

Broad Wastewater Treatment Applications:

• Food and beverage processing wastewater
• Rendering and meat/poultry processing
• Pulp and paper mill effluent
• Industrial laundry wastewater
• Municipal wastewater treatment
• Oil and grease separation
• Suspended solids removal
• FOG (fats, oils, greases) removal
• Industrial process water treatment

SYSTEM COMPONENTS

DAF Clarifier Basin:

• Large rectangular heavy-gauge steel basin
• Welded construction
• Internal baffling and flow distribution
• Flanged inlet and outlet connections
• Multiple process connection ports
• Drain and sample connections

Scum Collector Mechanism:

• Inclined screw/paddle conveyor assembly
• Continuous surface skimming operation
• Concentrated sludge/scum discharge
• Geared drive system for low-speed reliable operation
• Full basin-width coverage

Drive Package:

• Blue TEFC electric motor
• Integral gearbox/speed reducer
• Eaton Cutler-Hammer safety disconnect switch (30A, 600V)

Operator Platform:

• Full-length FRP grating walkway
• Steel structural frame
• Steel access stair with handrail
• Non-slip corrosion-resistant surface

Control & Instrumentation Package:

• Danfoss digital controller
• Solenoid valve manifold (multiple solenoids)
• Inline flow meter
• Multi-wire terminal strip junction box
• FRC Systems International control integration
• Pneumatic actuated process valve

Pressure/Air System:

• Spherical air/pressure vessel on discharge end
• Pressurized recycle system connections
• Air dissolution and release system components

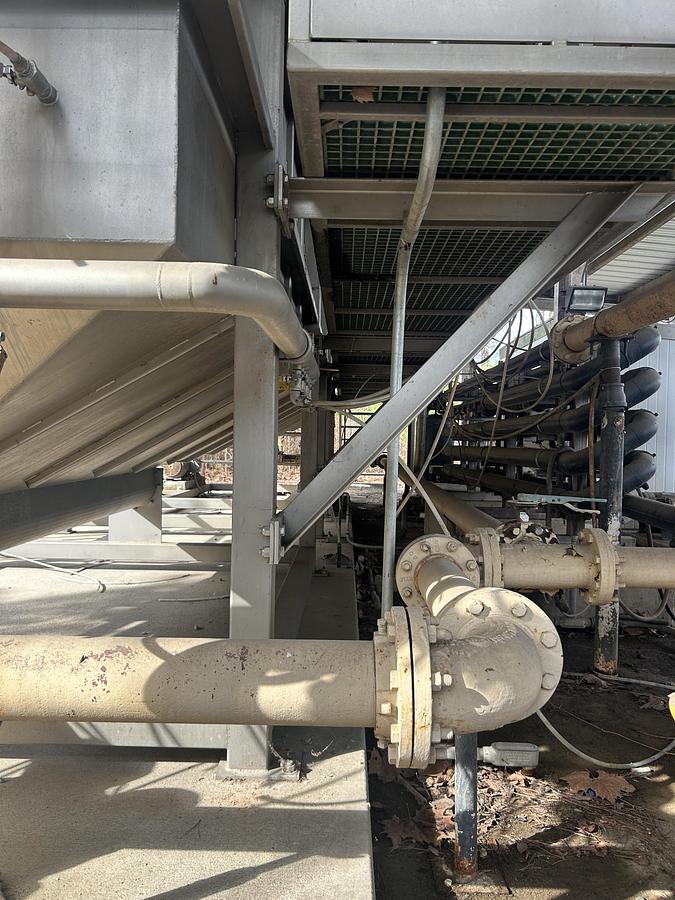

Piping & Valves:

• Multiple large-diameter flanged process connections
• Flanged check valves (multiple)
• Ball valves and isolation valves throughout
• Instrumentation taps and sample ports
• Pneumatic valve actuator
• All interconnecting process piping

SPECIFICATIONS SUMMARY

• System: DAF Scum Collector / Solids Separator
• Designation: Daft Scum Coll 320
• Integrator: FRC Systems International, LLC — Gainesville, GA
• Type: Dissolved Air Flotation Scum Collection System
• Basin: Large rectangular heavy-gauge steel
• Estimated Length: 40+ feet
• Collector: Inclined screw/paddle conveyor mechanism
• Drive: TEFC motor with geared reducer
• Electrical: 30A, 600V, 60Hz safety switches (Eaton Cutler-Hammer)
• Controller: Danfoss digital
• Platform: FRP grating walkway with steel stair access
• Application: Industrial wastewater treatment — solids/FOG removal
• Condition: Used

ADDITIONAL INFORMATION

• Condition: Used
• Equipment Type: DAF Scum Collector — Dissolved Air Flotation Solids Separator
• System Designation: Daft Scum Coll 320
• System Integrator: FRC Systems International, LLC
• Integrator Location: Gainesville, Georgia, USA
• Application: Industrial wastewater treatment
• Process Function: Continuous automated removal of floated solids, FOG, and suspended solids from DAF flotation surface
• Basin Construction: Heavy-gauge welded steel rectangular clarifier basin
• Collector Mechanism: Inclined screw/paddle conveyor — continuous surface skimming
• Drive: TEFC electric motor with integral gearbox
• Electrical Disconnects: Eaton Cutler-Hammer heavy duty 30A, 600V, 60Hz safety switches
• Controller: Danfoss digital controller
• Controls: Solenoid valve manifold, flow meter, terminal strip junction box
• Pressure Vessel: Spherical air/pressure vessel — discharge end
• Operator Access: Full-length FRP grating walkway platform with steel stair and handrail
• Piping: Multiple large-diameter flanged process connections with check valves and instrumentation

INSTALLATION NOTES:

• Large industrial unit — professional rigging and heavy lifting equipment required

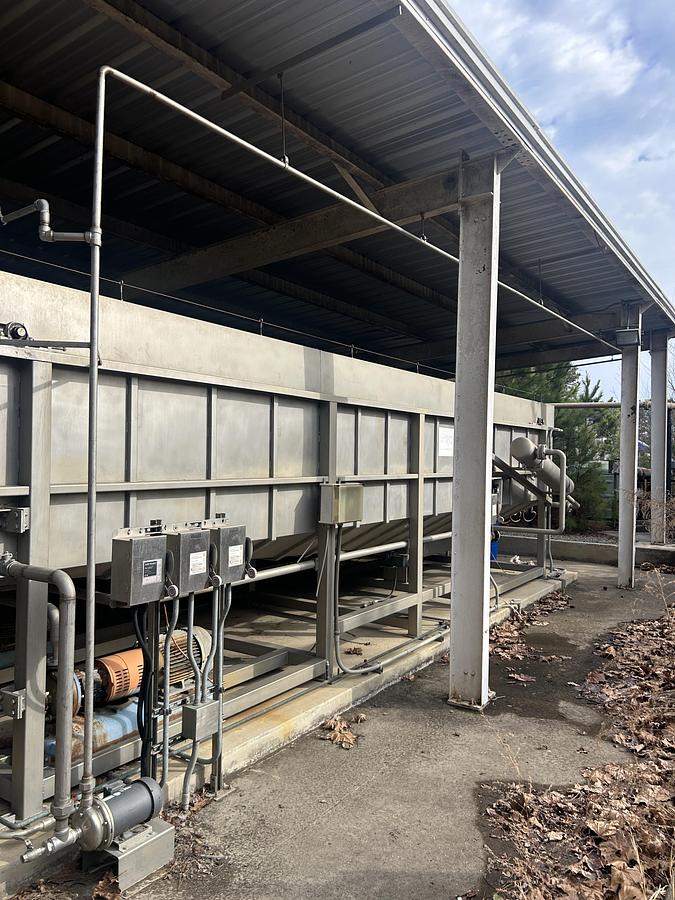

• Currently in covered outdoor installation
• All major components present and intact
