Parker Boiler Thermal Liquid Heater 125 PSI HT1920 1920000 BTU Natural Gas

OVERVIEW

Parker Industrial Boiler Thermal Liquid Heater — Model HT1920, Sales Order 966013. High-temperature industrial thermal liquid heating system rated at 1,920,000 BTU/HR maximum input and 960,000 BTU/HR minimum input on natural gas. Safety valve and trim maximum pressure 125 PSI. Complete skid-mounted thermal fluid heating system with expansion tank, thermal fluid receiver/storage tank, circulation pumps, gas train, insulated piping, Square D electrical panel with main disconnect, and all associated system components. ETL Listed, conforms to UL Standard 508, Certified CAN/CSA C22.2 No. 14. Manufactured by Parker Boiler Co., Los Angeles, California — one of the largest and most successful manufacturers of packaged boilers in the USA.

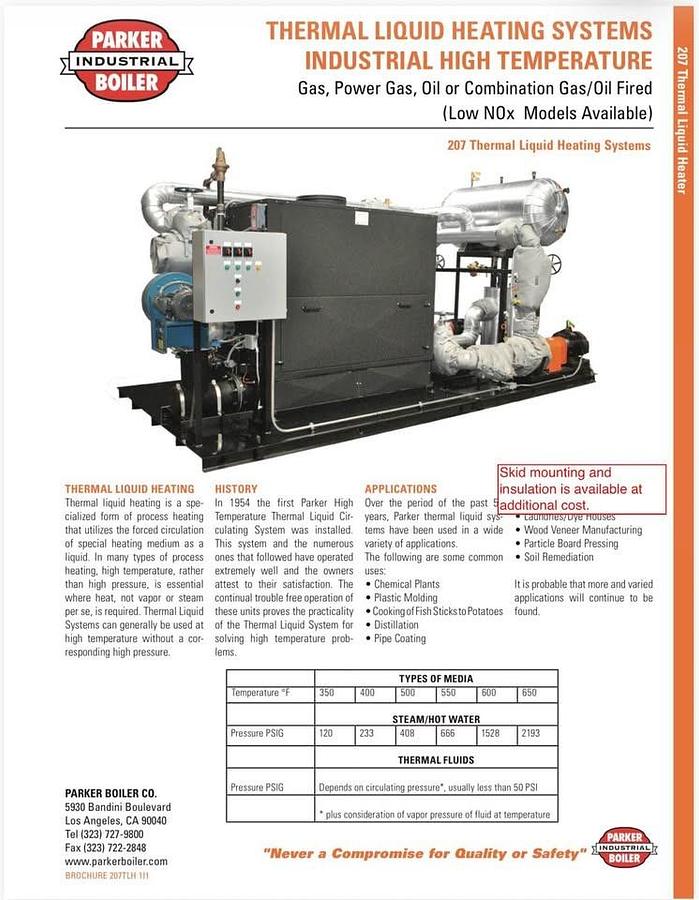

Parker Thermal Liquid Heating systems use the forced circulation of a special heat transfer fluid (thermal oil) as the heating medium — delivering high-temperature process heat without the high pressures associated with steam or hot water systems. Thermal fluid pressure depends on circulating pressure, typically less than 50 PSI regardless of operating temperature. Ideal for chemical plants, plastic molding, cooking/food processing, distillation, pipe coating, laundries/dye houses, wood veneer manufacturing, particle board pressing, soil remediation, and any process requiring precise high-temperature heat transfer.

EQUIPMENT SPECIFICATIONS

Heater Model Information:

• Manufacturer: Parker Boiler Co.
• Manufacturing Location: 5930 Bandini Blvd., Los Angeles, CA 90040
• Product Line: Thermal Liquid Heater — Industrial High Temperature
• Model Number: HT1920
• Description: Thermal Liquid Heater
• Sales Order Number: 966013
• Fuel Type: Natural Gas
• ETL Listed: Yes — conforms to UL STD 508
• Certified: CAN/CSA C22.2 No. 14

Performance Ratings:

• Maximum Input Rating: 1,920,000 BTU/HR
• Minimum Input Rating: 960,000 BTU/HR
• Turndown Ratio: 2:1
• Safety Valve & Trim Max Pressure: 125 PSI
• System Operating Pressure: Typically less than 50 PSI (thermal fluid)

Gas Train Specifications:

• Fuel Type: Natural Gas
• Max Gas Manifold Pressure: 4" W.C.
• Required Fuel Inlet Supply Pressure: 7–14" W.C.
• Gas pressure regulation and safety shut-off valves installed

Thermal Fluid System Capabilities (per Parker specifications):

• Temperature Range: Up to 650°F thermal fluid service
• Steam/Hot Water equivalent pressures at temperature:
• 350°F = 120 PSIG
• 400°F = 233 PSIG
• 500°F = 408 PSIG
• 550°F = 666 PSIG
• 600°F = 1,528 PSIG
• 650°F = 2,193 PSIG
• Thermal fluid operating pressure: Depends on circulating pressure, typically less than 50 PSI

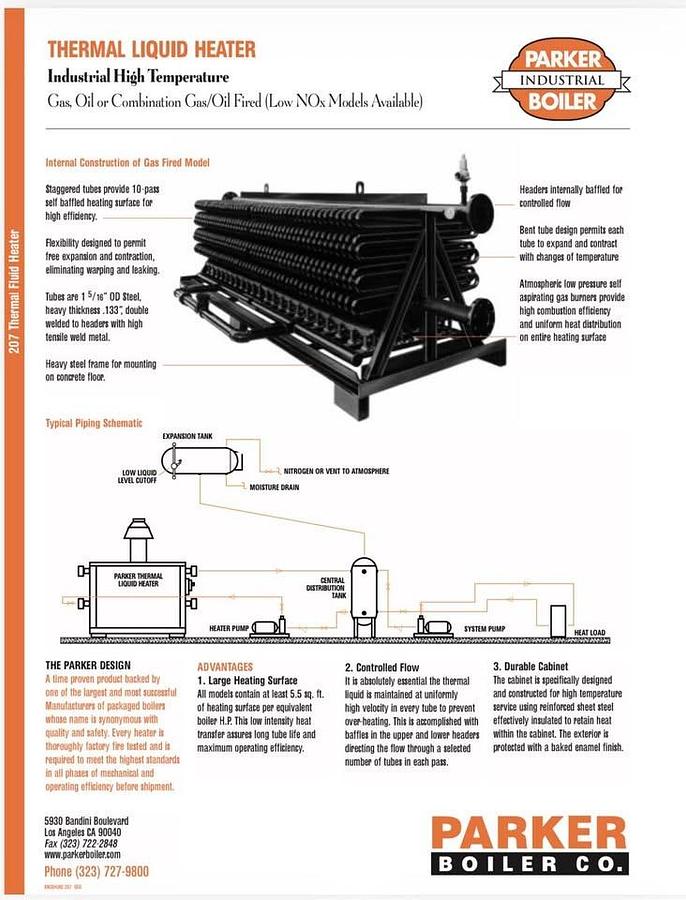

Heater Construction (per Parker HT Series design):

• Tube: 1-5/16" OD steel, 0.133" wall thickness, double welded to headers
• Staggered tube 10-pass self-baffled heating surface for high efficiency
• Bent tube design — free expansion and contraction, no warping or leaking
• Headers internally baffled for controlled flow
• Atmospheric low-pressure self-aspirating gas burners
• Heavy steel frame for concrete floor mounting
• Reinforced sheet steel cabinet, high-temperature insulation, baked enamel finish

KEY FEATURES & BENEFITS

Parker Boiler Quality Manufacturing:

• Parker Boiler Co. — Los Angeles, CA
• One of the largest US packaged boiler manufacturers
• Factory fire-tested before shipment
• ETL Listed — UL STD 508 compliance
• Certified CAN/CSA C22.2 No. 14
• Heavy-duty industrial construction
• Baked enamel exterior finish

High-Temperature Process Heating Without High Pressure:

• Delivers process heat up to 650°F
• Thermal fluid system operates at low pressure (typically under 50 PSI)
• Eliminates high-pressure steam hazards at equivalent temperatures
• Precise temperature control across wide range
• Consistent, uniform heat distribution
• No steam generation — no boiler operator license required in many jurisdictions

High-Capacity Natural Gas Firing:

• 1,920,000 BTU/HR maximum input
• 960,000 BTU/HR minimum input
• 2:1 turndown ratio
• Natural gas fuel
• 4" W.C. max manifold pressure
• 7–14" W.C. supply pressure required
• Complete gas train installed

10-Pass Self-Baffled Heating Surface:

• Staggered tube design — 10-pass heat transfer
• High-efficiency heat absorption
• At least 5.5 SQFT of heating surface per equivalent boiler HP
• Long tube life through low-intensity heat transfer
• Maximum operating efficiency
• No overheating through controlled flow design

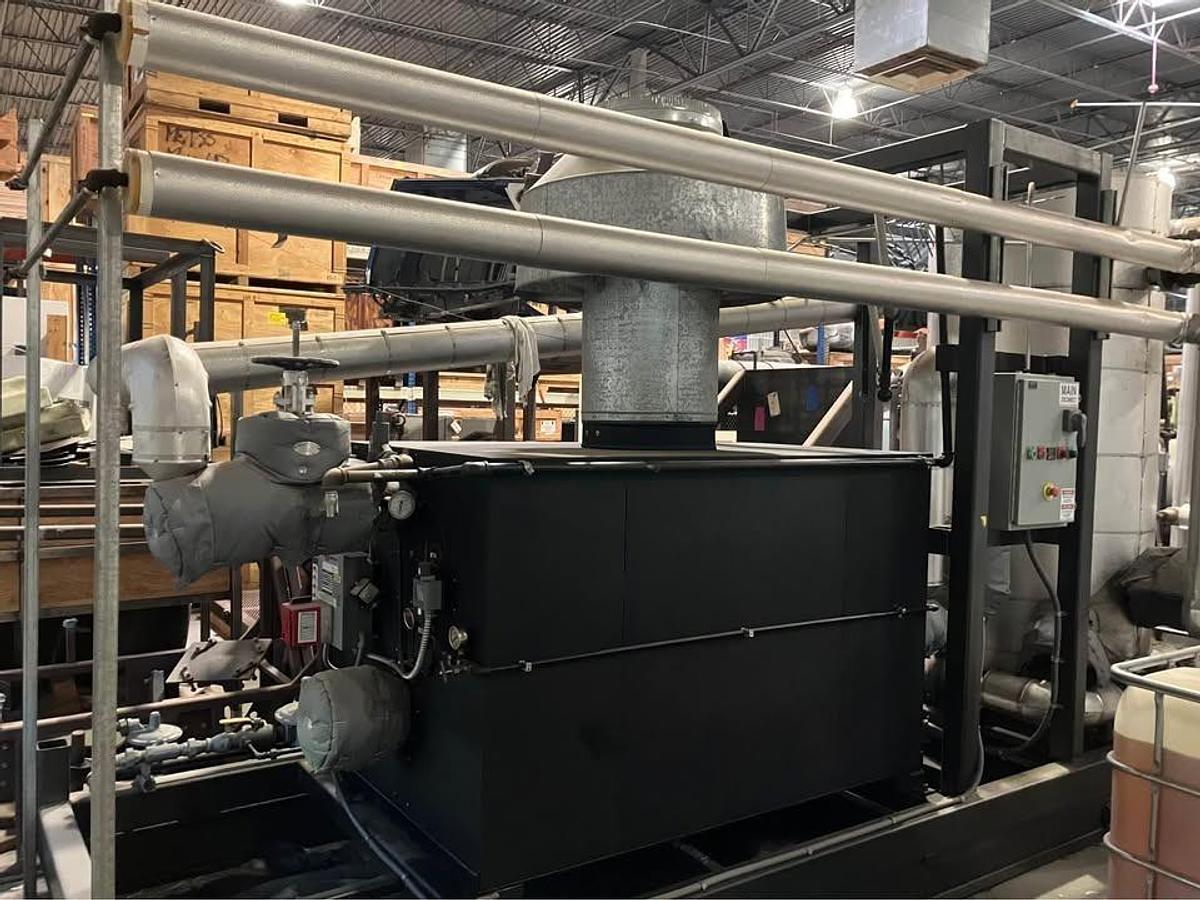

Complete Skid-Mounted System:

• Full thermal fluid heating plant on skid
• Expansion tank included
• Horizontal thermal fluid receiver/storage tank
• Circulation pump(s) — multiple motors installed
• Gas train with regulators and safety valves
• Insulated piping throughout
• Square D electrical panel
• Main disconnect switch
• All interconnecting piping and valves

Broad Industrial Application Range:

• Chemical plants
• Plastic molding
• Food processing (cooking, fish sticks, potatoes)
• Distillation systems
• Pipe coating operations
• Laundries and dye houses
• Wood veneer manufacturing
• Particle board pressing
• Soil remediation
• Any high-temperature process heating application

SYSTEM COMPONENTS

Main Thermal Liquid Heater:

• Parker Boiler Model HT1920
• Sales Order 966013
• 1,920,000 BTU/HR max input
• 125 PSI safety valve and trim max pressure
• Natural gas fired
• ETL Listed, UL STD 508
• Complete with all trim and controls

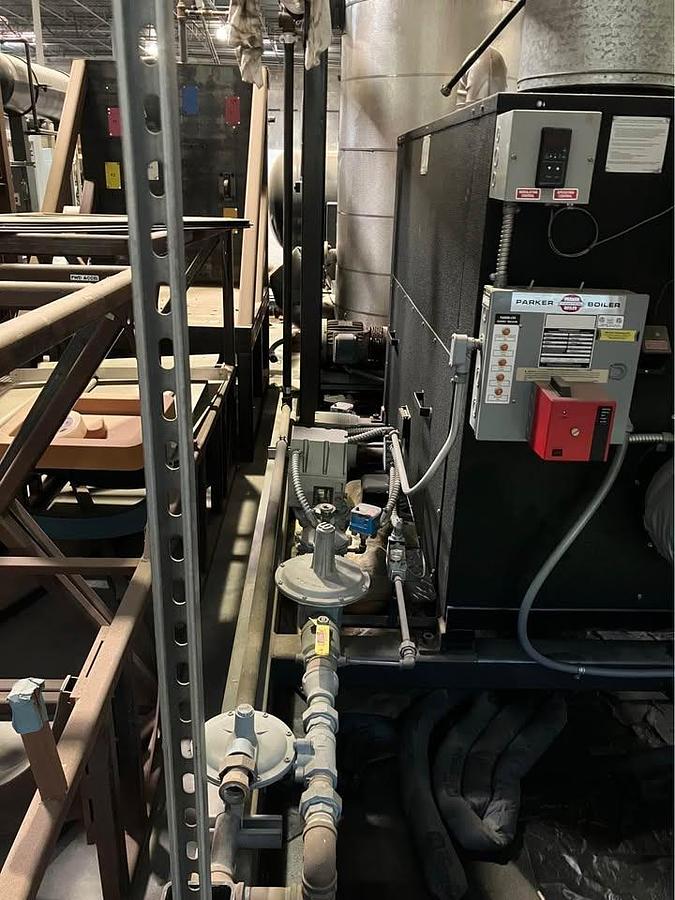

Burner & Gas Train:

• Natural gas atmospheric self-aspirating burners
• Gas pressure regulator assembly
• Safety shut-off valves
• Max manifold pressure 4" W.C.
• Required supply pressure 7–14" W.C.
• Complete gas train with instrumentation

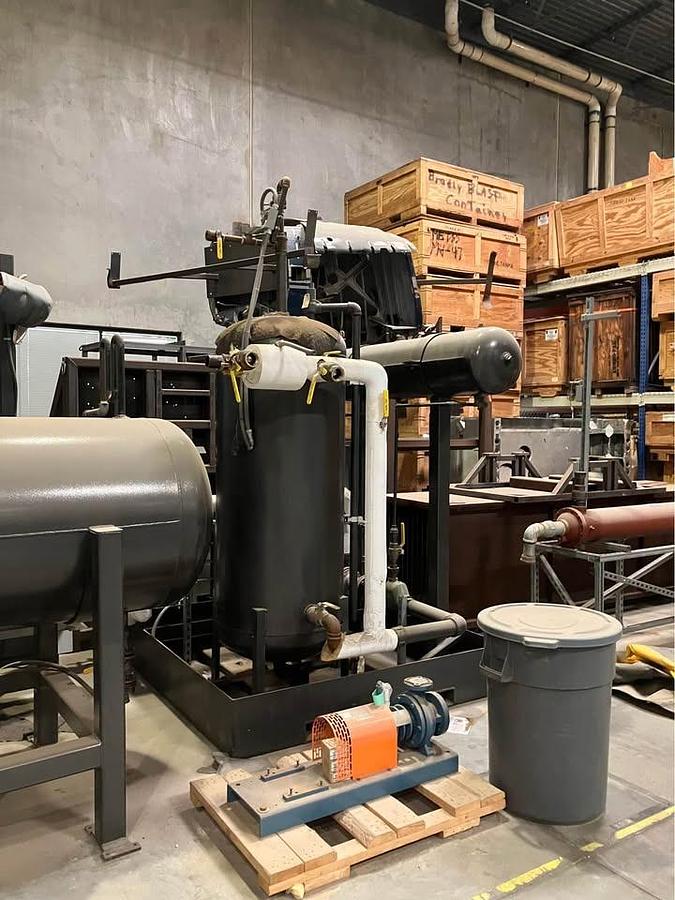

Thermal Fluid Circulation System:

• Expansion tank (horizontal, skid-mounted)
• Thermal fluid receiver/storage tank (large horizontal vessel)
• Vertical thermal fluid surge/separator tank

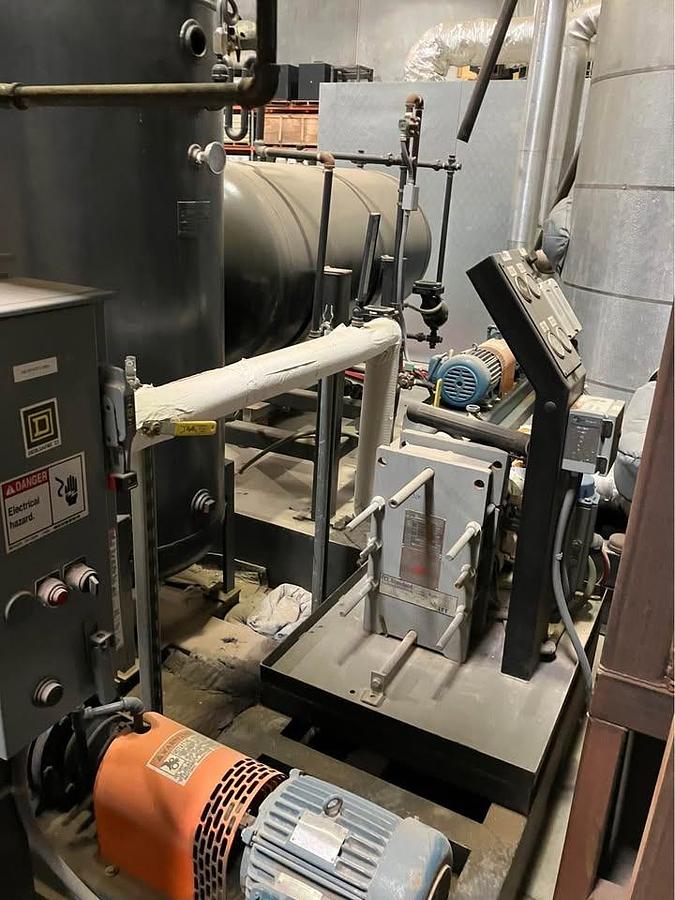

• Circulation pump — orange motor drive
• Secondary/system pump — blue motor drive

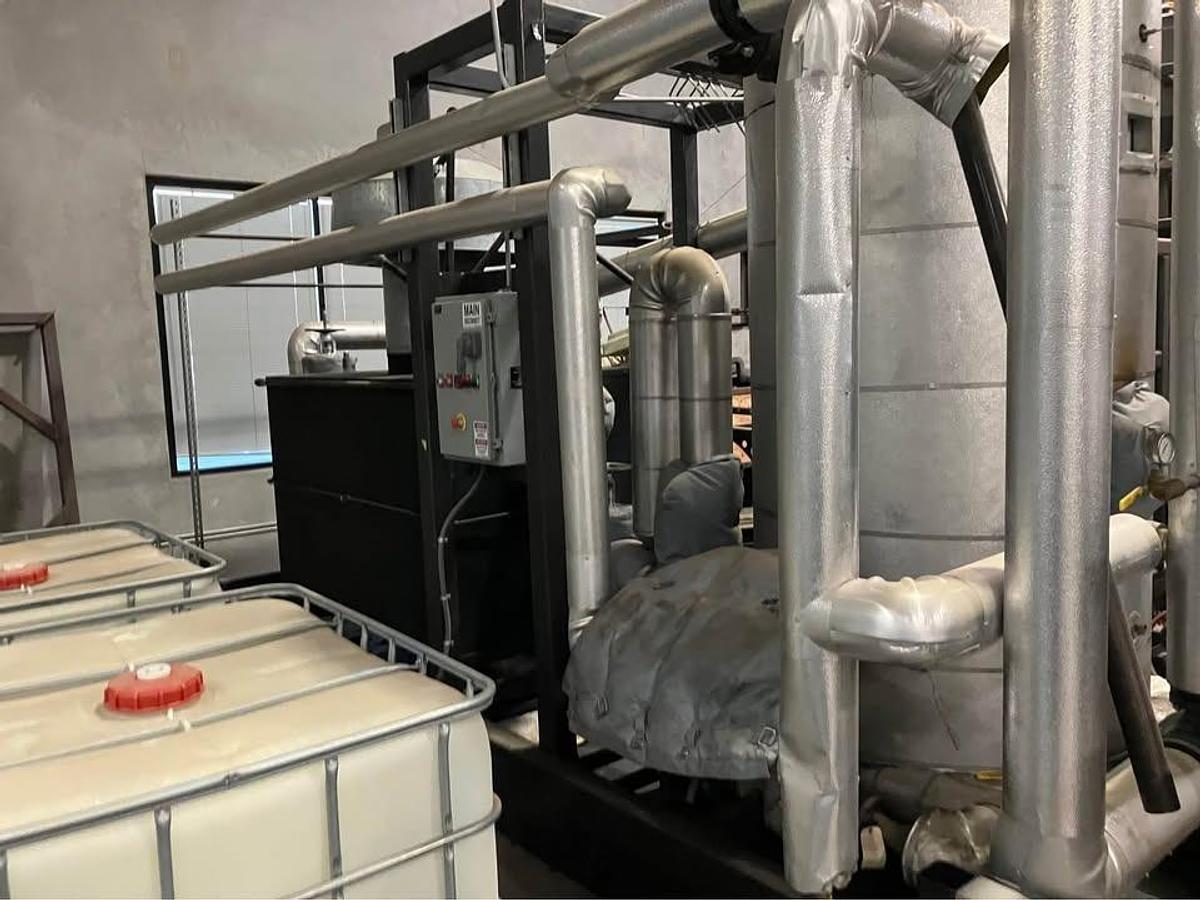

• All interconnecting thermal fluid piping (insulated)
• Isolation and gate valves throughout

Electrical System:

• Square D electrical panel
• Main disconnect switch (Square D)
• Control panel with pilot lights and indicators
• Parker-Lite flame indicator
• Level safe indicator
• Limit safe indicator
• Control power indicator
• Pilot on indicator
• All wiring and conduit installed

Insulation & Piping:

• Full insulation jacketing on all hot piping
• Insulated thermal fluid piping throughout system
• Insulated expansion loop connections
• Professional piping installation

Safety Systems:

• Safety valve and trim (125 PSI max)
• Low liquid level cutoff
• Flame safeguard system
• Gas pressure monitoring
• High temperature limit controls
• Emergency shutdown capability

SPECIFICATIONS SUMMARY

• Manufacturer: Parker Boiler Co., Los Angeles, CA
• Model: HT1920
• Description: Thermal Liquid Heater
• Sales Order: 966013
• Fuel: Natural Gas
• Max Input: 1,920,000 BTU/HR
• Min Input: 960,000 BTU/HR
• Turndown: 2:1
• Safety Valve Max Pressure: 125 PSI
• Thermal Fluid Operating Pressure: Typically less than 50 PSI
• Max Gas Manifold Pressure: 4" W.C.
• Required Supply Pressure: 7–14" W.C.
• Max Operating Temperature: Up to 650°F (thermal fluid)
• Tube Construction: 1-5/16" OD, 0.133" wall, double welded
• Heat Transfer: 10-pass staggered tube self-baffled design
• Mounting: Skid-mounted
• Listing: ETL Listed — UL STD 508 / CAN/CSA C22.2 No. 14
• Condition: Used

ADDITIONAL INFORMATION

• Condition: Used
• Manufacturer: Parker Boiler Co.
• Manufacturing Location: Los Angeles, California, USA
• Model: HT1920
• Sales Order: 966013
• Type: Thermal Liquid Heater — Industrial High Temperature
• Fuel: Natural Gas
• Max Input: 1,920,000 BTU/HR
• Min Input: 960,000 BTU/HR
• Safety Valve & Trim Max Pressure: 125 PSI
• Max Gas Manifold Pressure: 4" W.C.
• Required Fuel Inlet Supply Pressure: 7–14" W.C.
• Certifications: ETL Listed (UL STD 508), CAN/CSA C22.2 No. 14
• Tube: 1-5/16" OD steel, 0.133" wall, double welded to headers
• Design: 10-pass staggered tube self-baffled, bent tube expansion design

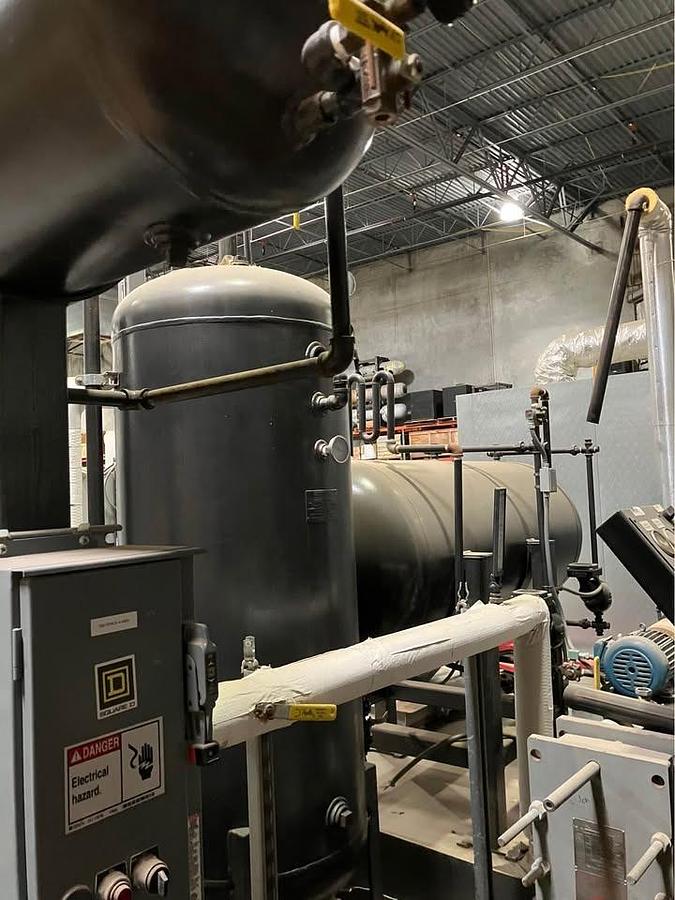

• System Includes: Expansion tank, thermal fluid receiver/storage tank, vertical surge tank, circulation pumps (x2), gas train, insulated piping, Square D electrical panel, main disconnect, all controls and instrumentation
• Mounting: Skid-mounted complete system
• Application: High-temperature process heat transfer without high-pressure steam

WHAT'S INCLUDED:

• Parker HT1920 thermal liquid heater — complete with all trim and controls
• Expansion tank
• Horizontal thermal fluid receiver/storage tank
• Vertical thermal fluid surge/separator tank
• Circulation pump with orange motor drive
• Secondary system pump with blue motor drive
• Complete insulated thermal fluid piping system
• Gas train with pressure regulators and safety shut-off valves
• Square D electrical panel with main disconnect
• All associated valves, instrumentation, and controls

INSTALLATION NOTES:

• Natural gas supply required — 7 to 14" W.C. inlet pressure
• Skid-mounted for straightforward installation
• Professional rigging recommended
• Non-combustible floor installation required per Parker specifications
• Clearances: 18" cabinet sides and rear, 48" cabinet top, 18" draft hood vent connector, 18" barometric damper chimney connector
