Cleaver Brooks 200HP 150PSI CB-500-200C Portable Steam Boiler Dual Fuel 1982

OVERVIEW

NOTE: This is a complete, self-contained mobile steam boiler plant fully assembled inside a 40-foot insulated trailer. The trailer IS included with this sale. Unit is ready to deploy — connect utilities and put to work.

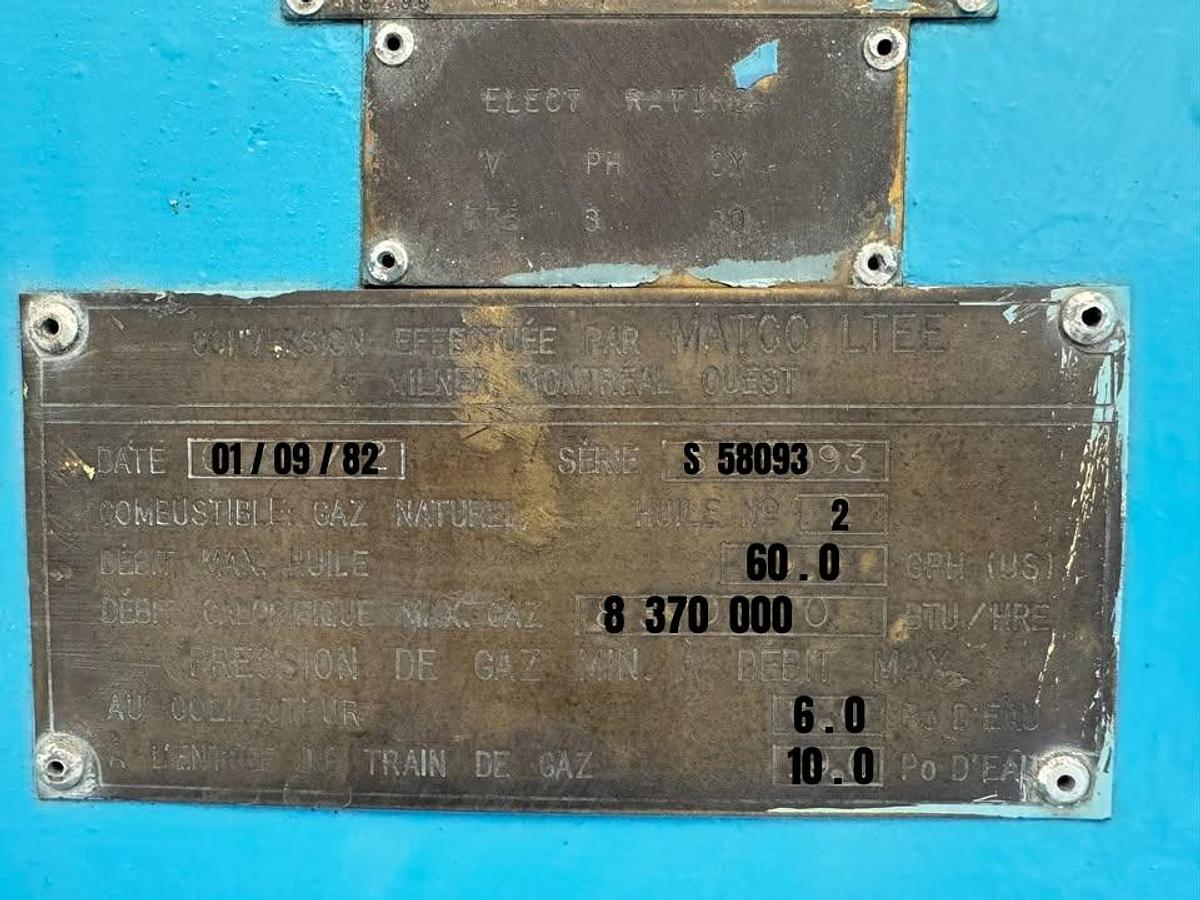

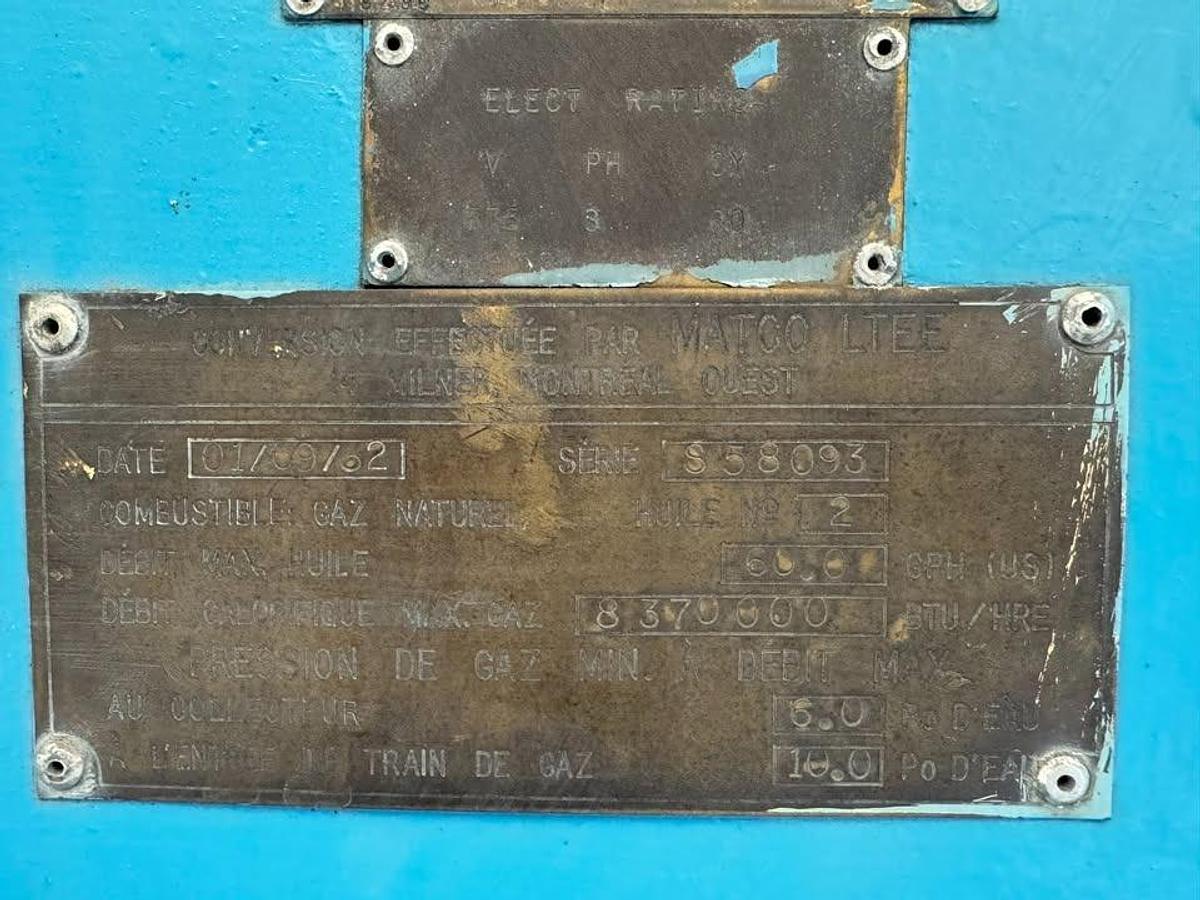

Cleaver Brooks CB Packaged Boiler — Model CB-500-200C, Serial Number S-58093, Date 01/09/1982. Professional-grade dual fuel (natural gas / No. 2 oil) packaged steam boiler rated at 200 horsepower. Converted and commissioned by Watco Ltée, Montreal, Quebec. Maximum gas heat input rated at 8,370,000 BTU/HR with 60.0 GPH maximum oil flow rate. Three-phase 60 Hz electrical package. Complete self-contained mobile boiler plant housed inside a fully insulated 40-foot trailer skid-mounted for portability and rapid deployment. Boiler features Servitech burner management controls with Cleaver Brooks burner assembly, mercury-free water level controls, and a comprehensive auxiliary support system including feedwater treatment, water softening, storage tanks, and full electrical distribution panel board.

Ideal for emergency steam backup, temporary process steam, remote site operations, construction projects, industrial shutdowns, or any application requiring mobile high-capacity steam generation.

EQUIPMENT SPECIFICATIONS

Boiler Model Information:

• Manufacturer: Cleaver Brooks Division
• Model Number: CB-500-200C
• Serial Number: S-58093
• Date: 01/09/1982
• Configuration: Packaged steam boiler
• Fuel Type: Dual Fuel — Natural Gas / No. 2 Oil
• Horsepower Rating: 200 HP
• Conversion By: Watco Ltée, Montréal Ouest, Quebec

Performance Ratings:

• Horsepower: 200 HP
• Maximum Gas Heat Input: 8,370,000 BTU/HR
• Maximum Oil Flow Rate: 60.0 GPH (US)
• Fuel Type: Natural Gas / No. 2 Fuel Oil (Dual Fuel)
• Gas Pressure at Manifold (Au Collecteur): 6.0 Po d'Eau
• Gas Pressure at Train Inlet (À l'Entrée du Train de Gaz): 10.0 Po d'Eau

Electrical Specifications:

• Power Supply: 3-Phase, 60 Hz
• Electrical Distribution: 6 Square D safety disconnect panels
• Power Main Switch: Square D
• Sub-panel and branch circuit protection included

Trailer & External Connections:

• Oil Tank Vent
• Steam Vent: 4" @ 150 (x2 locations)
• Water Inlet: 3/4" NPT
• Steam Outlet: 4" @ 150
• Safety Valve Vents
• Drain: 4" @ 150
• Drain: 1-1/2" NPT

Physical Configuration:

• Housing: 40-foot fully insulated trailer
• Mounting: Skid-mounted inside trailer
• Insulation: Full interior insulation for cold weather operation
• Condition: Used — Like New, Ready to Deploy
• Origin: Canada (Cleaver Brooks / Watco Ltée)

KEY FEATURES & BENEFITS

Complete Mobile Steam Plant:

• Fully self-contained portable boiler system
• 40-foot insulated trailer included
• Skid-mounted for stability and transport
• All systems pre-plumbed and pre-wired
• Ready for rapid deployment to any site
• Interior lighting installed
• Insulated for extreme cold weather environments

Cleaver Brooks Quality Manufacturing:

• Proven Cleaver Brooks CB Packaged Boiler platform
• 200 HP industrial capacity
• 8,370,000 BTU/HR maximum gas input
• Heavy-duty commercial/industrial construction
• Servitech burner management controls installed
• Cleaver Brooks burner assembly

Dual Fuel Capability:

• Natural gas primary fuel
• No. 2 fuel oil backup / alternate fuel
• 60.0 GPH maximum oil flow rate
• Flexible fuel sourcing for remote or emergency applications
• Dual fuel train installed

Complete Water Treatment System:

• Feedwater tank included
• Feed pump included
• Water softener system (3 filter/softener tanks)
• Full water treatment plumbing
• Level controls and instrumentation

Robust Electrical Distribution:

• 6 Square D safety disconnect switches
• Power main switch
• Sub-panel with branch circuit breakers
• All wiring and conduit installed inside trailer
• Professional electrical installation

Safety Systems:

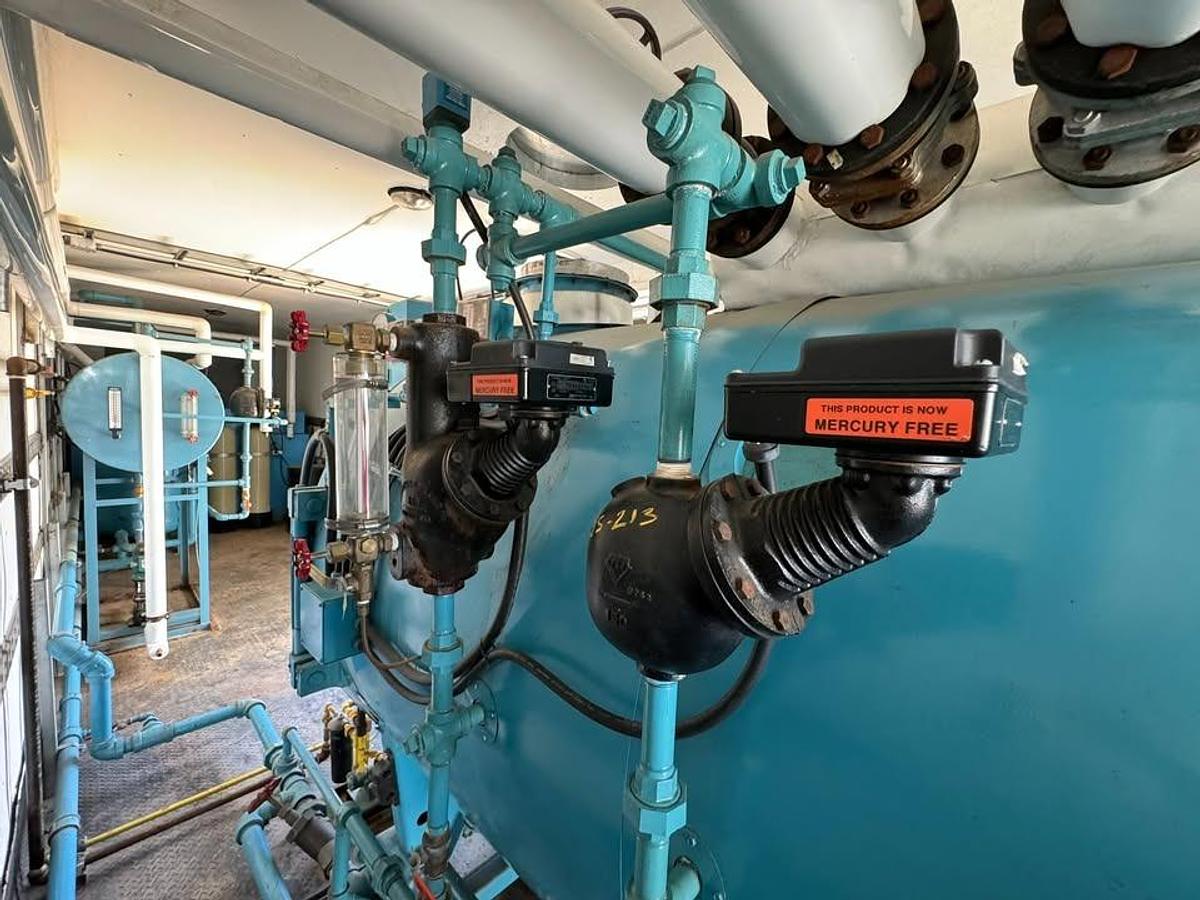

• Mercury-free water level controls (updated)
• Safety valve vents through trailer roof
• Flame supervision system
• Pressure monitoring instrumentation
• Low water cutoff protection
• Emergency shutdown capability

Auxiliary Equipment Included:

• 300-gallon steel tank
• 500-gallon diesel/fuel oil tank
• Vacuum pump
• Oil pump
• Complete interior plumbing throughout trailer

SYSTEM COMPONENTS

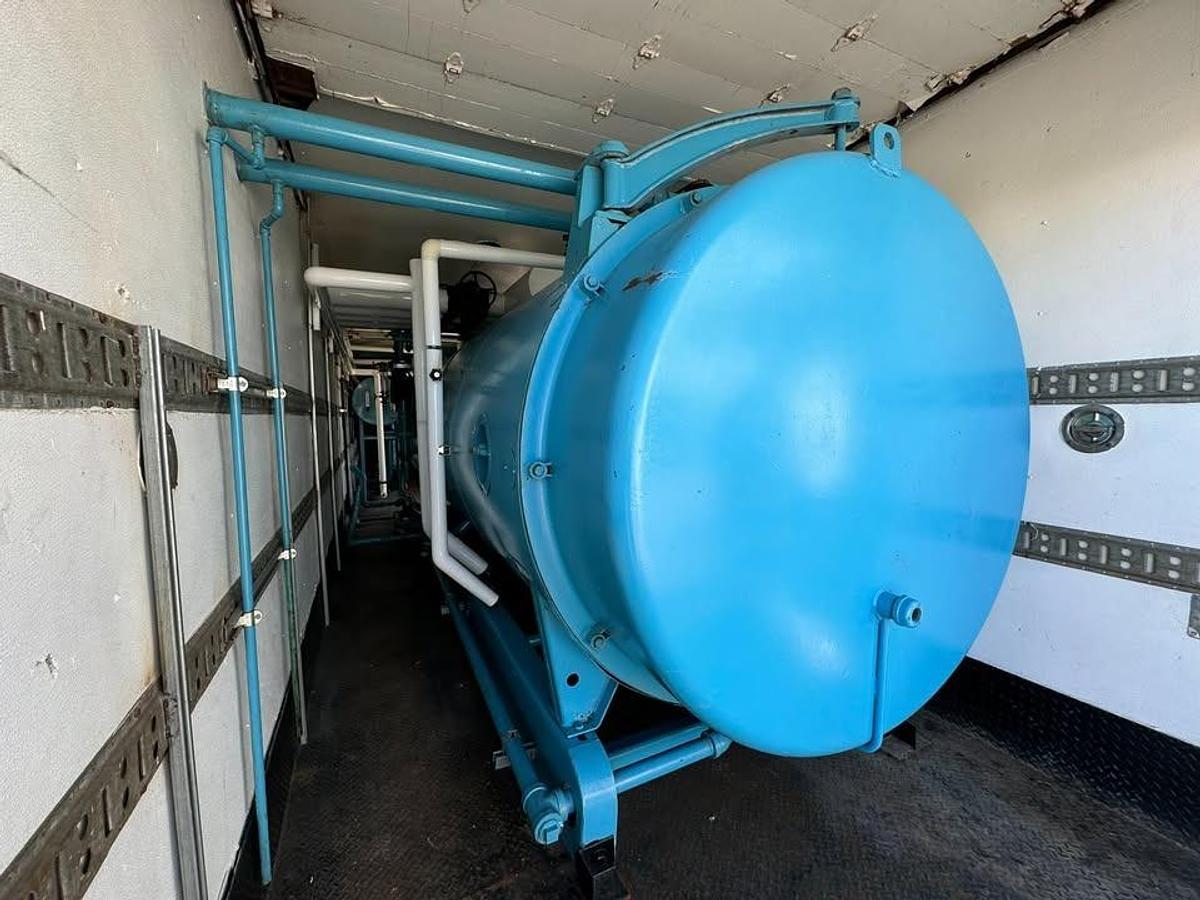

Main Boiler:

• Cleaver Brooks Model CB-500-200C
• Serial Number S-58093
• Date 01/09/1982
• 200 HP rating
• Packaged boiler design
• 8,370,000 BTU/HR max gas input
• Complete with all trim and controls

Burner System:

• Dual fuel burner assembly (gas / No. 2 oil)
• Servitech burner management controls
• Cleaver Brooks burner head
• Natural gas train with safety shut-off valves
• Oil train — max 60.0 GPH
• Flame safeguard system
• Gas pressure regulation

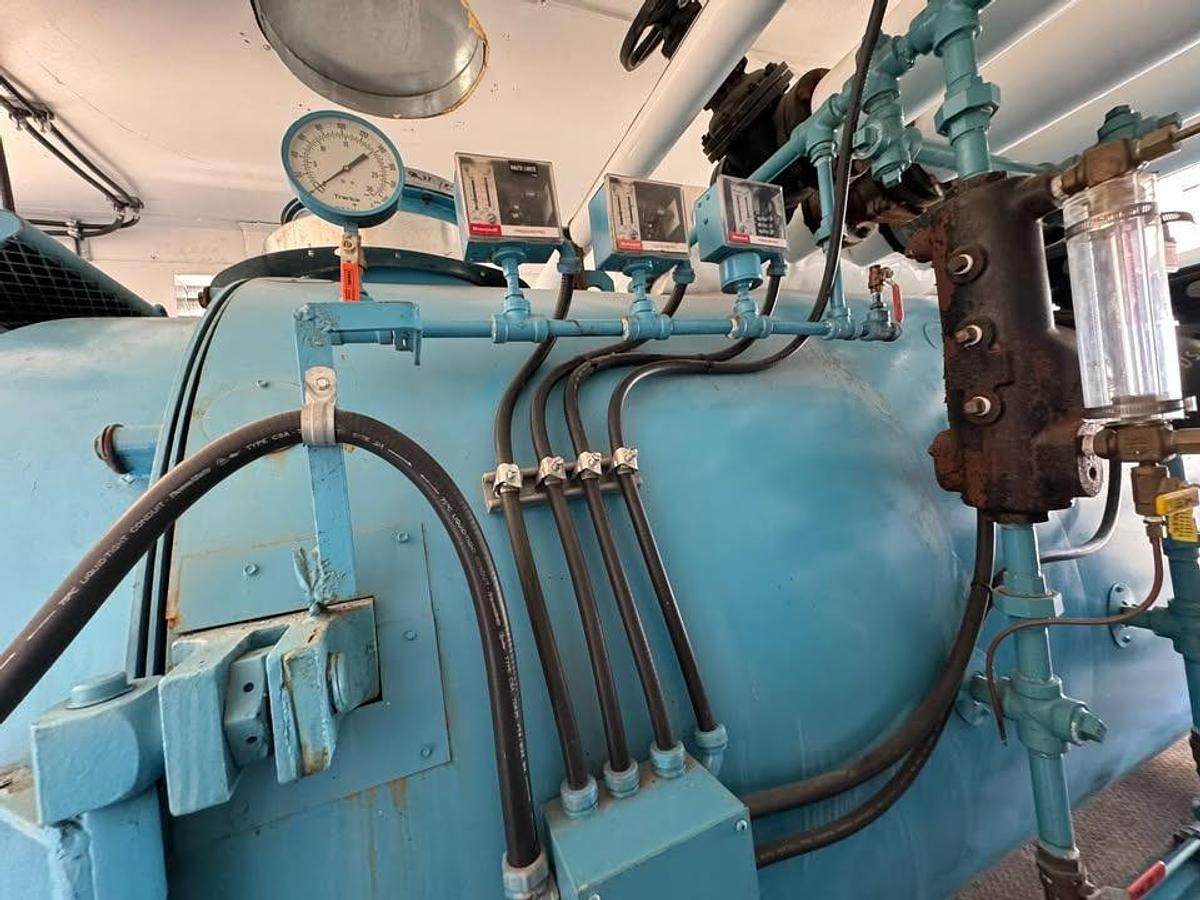

Control Systems:

• Servitech burner management panel
• Cleaver Brooks integrated controls
• Pressure monitoring gauges
• Flow meters
• Temperature controls
• Safety interlocks

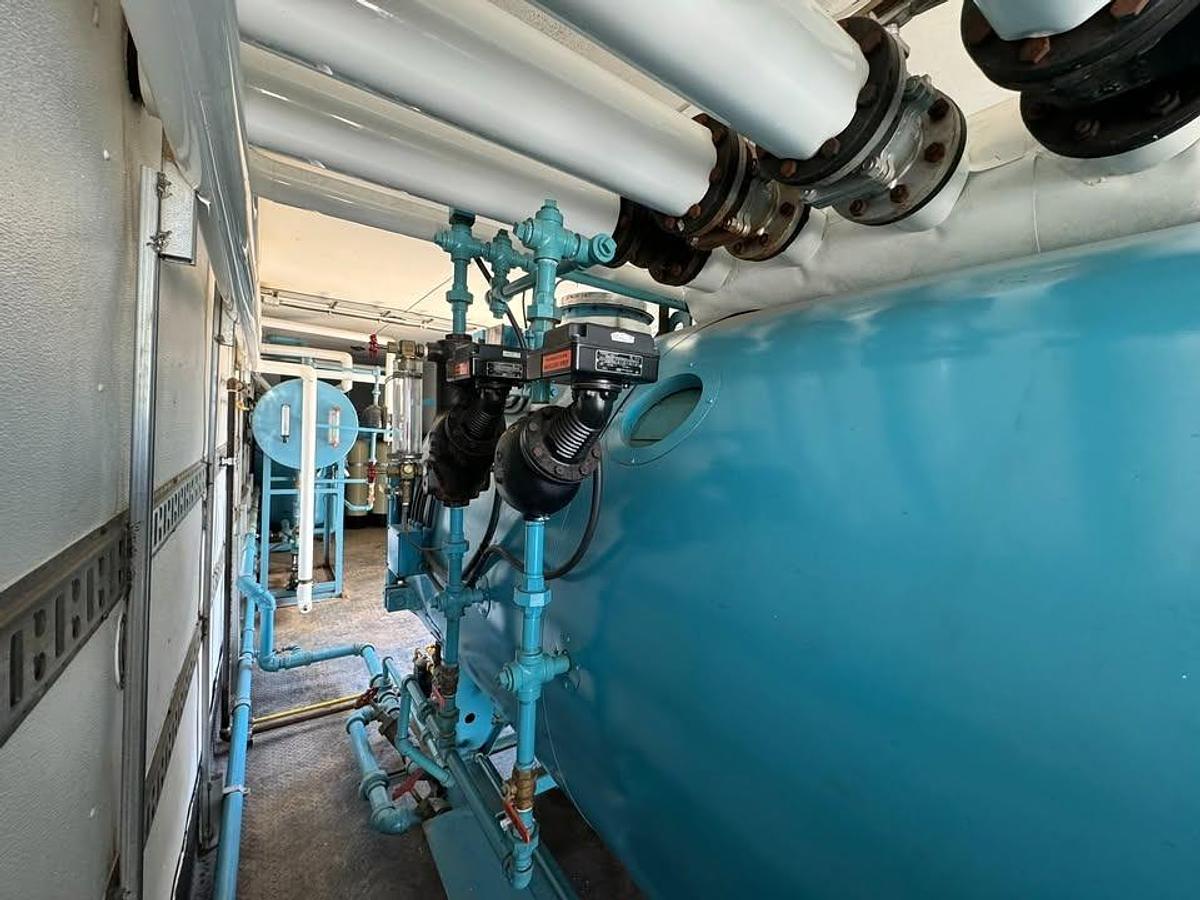

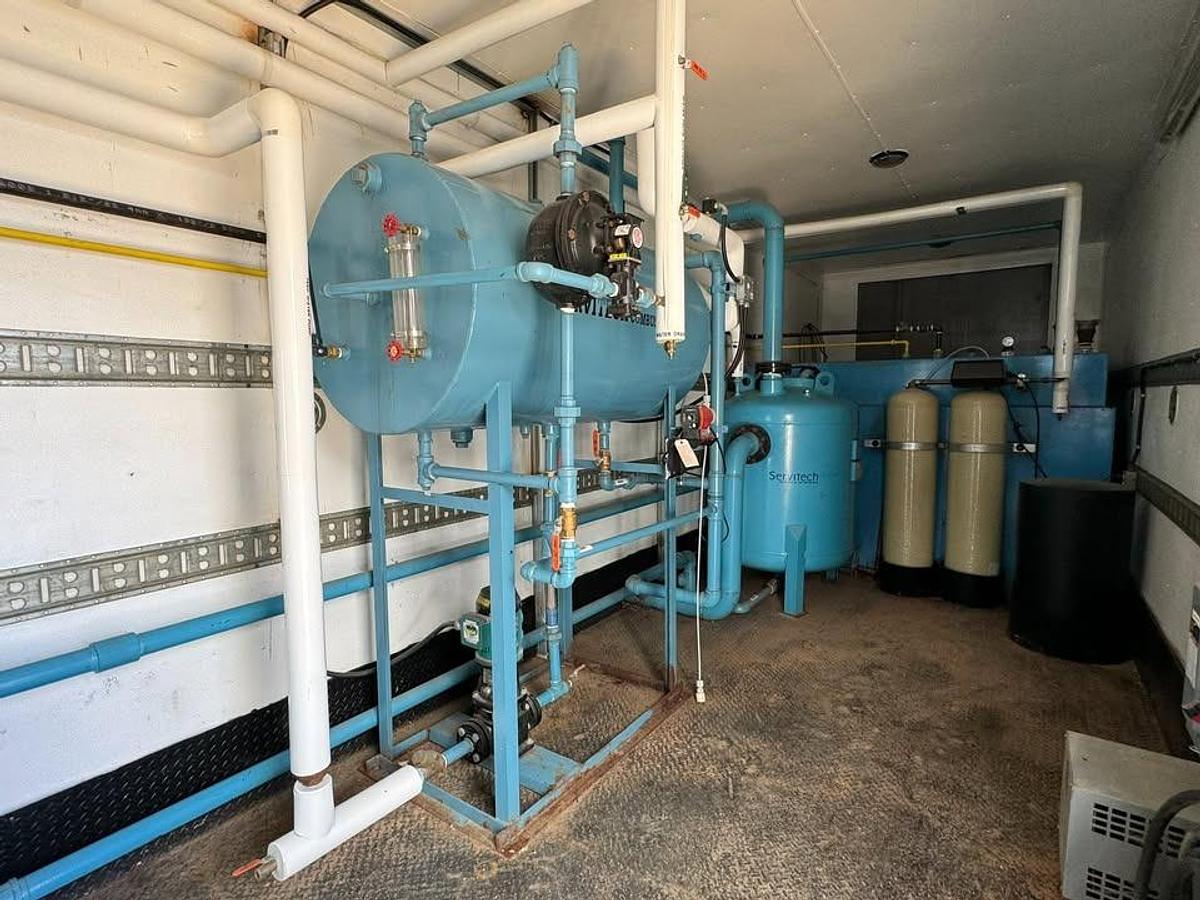

Water System:

• Feedwater tank
• Feed pump
• Vacuum pump
• Water softener (3 filter/softener tanks)
• Pressure tank (blue, Servitech-branded)
• Complete feedwater piping
• Mercury-free water level controls
• Blowdown valves and drain connections

Fuel System:

• 300-gallon steel fuel oil tank
• 500-gallon diesel/fuel oil storage tank
• Oil pump
• Oil supply and return piping
• Dual fuel train assembly
• Safety shut-off valves

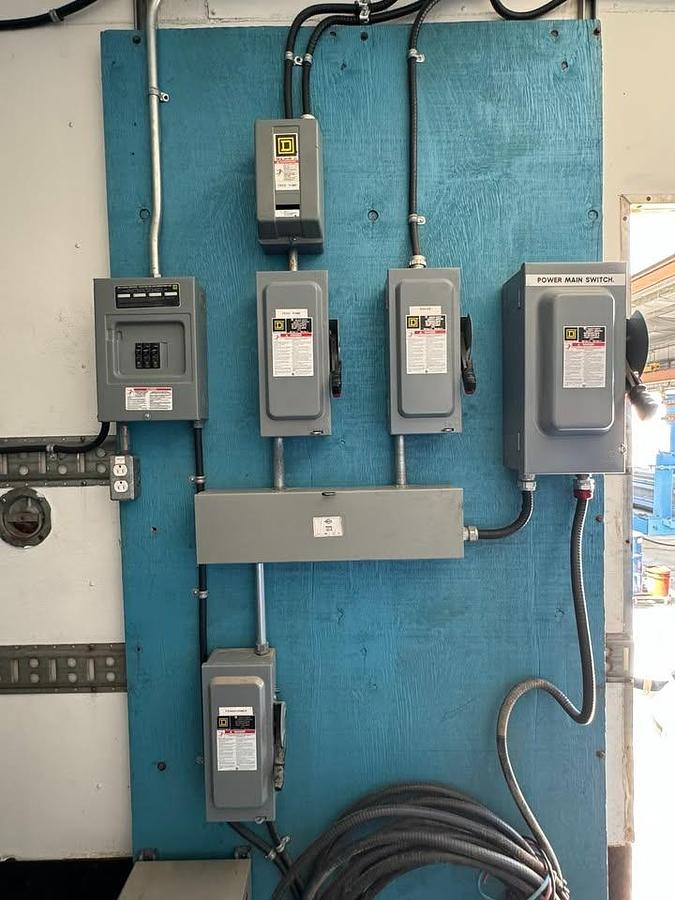

Electrical System:

• 6 Square D safety disconnect panels
• Power main switch (Square D)
• Sub-panel with branch circuit breakers
• Interior lighting
• All wiring, conduit, and connections throughout trailer

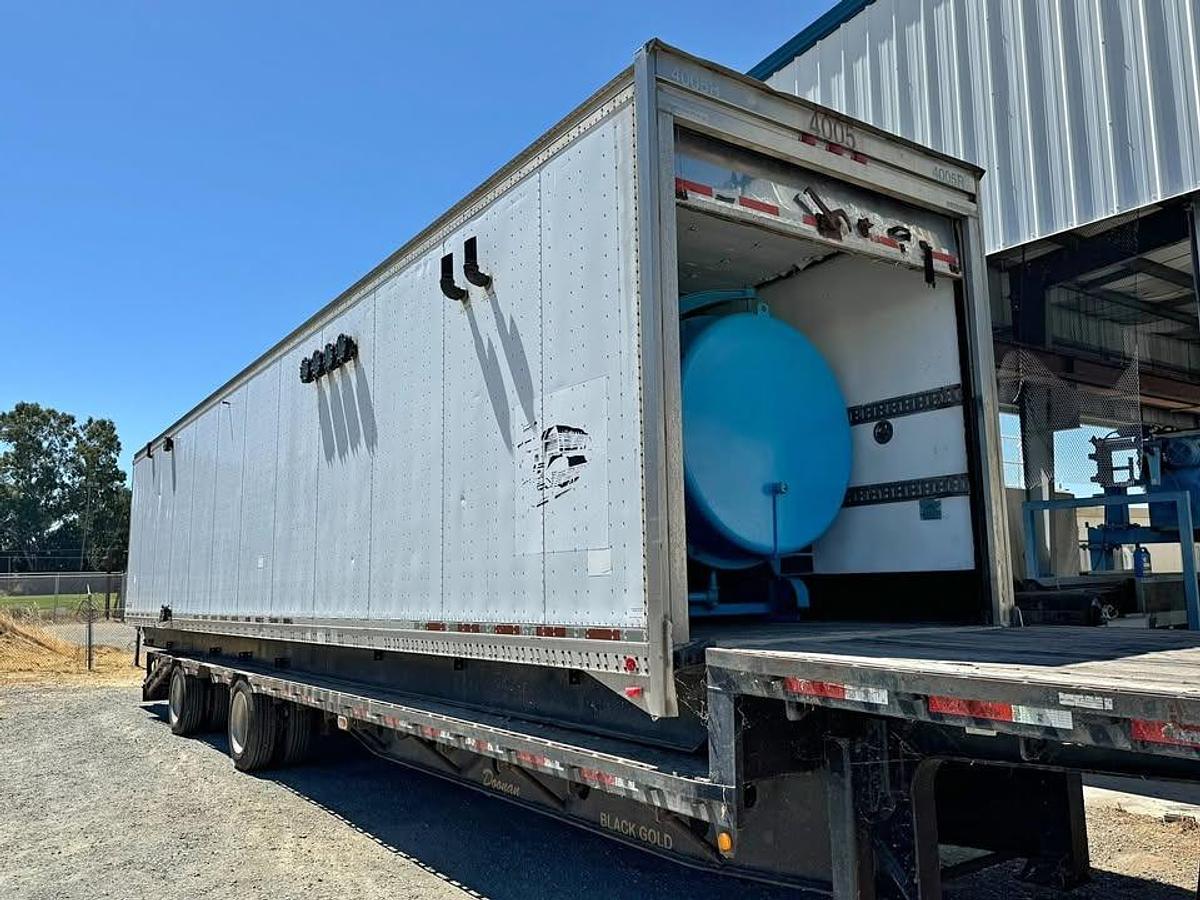

Trailer & Housing:

• 40-foot van/box trailer
• Full interior insulation (walls and ceiling)
• Diamond plate flooring
• Interior lighting
• External utility connections through trailer sides
• Trailer axles and road gear included

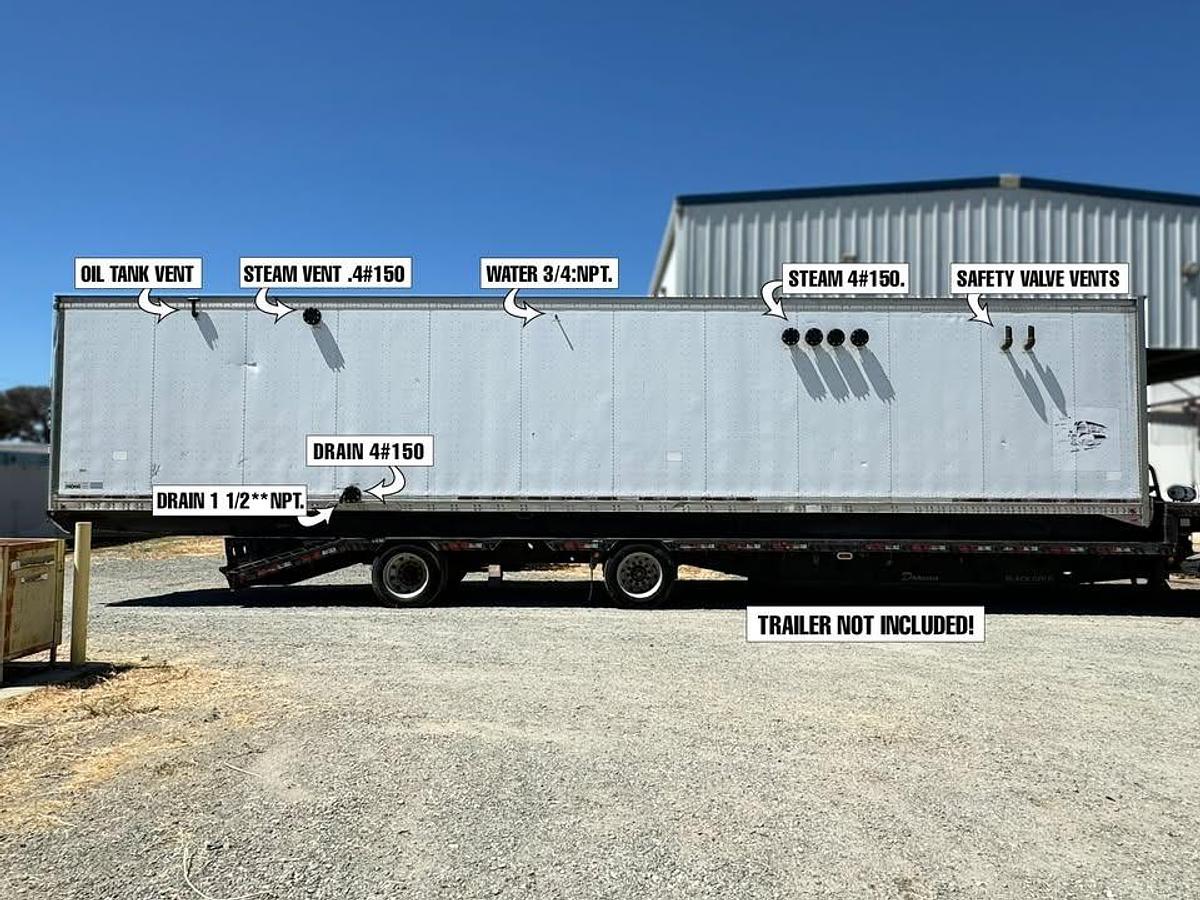

EXTERNAL UTILITY CONNECTIONS

• Oil Tank Vent
• Steam Vent (4" @ 150) — 2 locations
• Water Inlet (3/4" NPT)
• Steam Outlet (4" @ 150)
• Safety Valve Vents — multiple
• Drain (4" @ 150)
• Drain (1-1/2" NPT)

SPECIFICATIONS SUMMARY

• Manufacturer: Cleaver Brooks Division
• Conversion By: Watco Ltée, Montréal Ouest
• Model: CB-500-200C
• Serial No: S-58093
• Date: 01/09/1982
• Type: CB Packaged Steam Boiler
• Fuel: Dual Fuel — Natural Gas / No. 2 Oil
• Max Gas Input: 8,370,000 BTU/HR
• Max Oil Flow: 60.0 GPH (US)
• Horsepower: 200 HP
• Gas Pressure (Manifold): 6.0 Po d'Eau
• Gas Pressure (Train Inlet): 10.0 Po d'Eau
• Electrical: 3-Phase, 60 Hz
• Electrical Panels: 6 Square D safety disconnects + main switch
• Housing: 40-foot insulated trailer (INCLUDED)
• Mounting: Skid-mounted inside trailer
• Condition: Used — Like New

ADDITIONAL INFORMATION

• Condition: Used — Like New
• Year Built: 1982
• Manufacturer: Cleaver Brooks Division
• Conversion/Commission: Watco Ltée, Montréal Ouest, Quebec
• Model: CB-500-200C
• Serial Number: S-58093
• Fuel Type: Dual Fuel — Natural Gas / No. 2 Oil
• BTU Input (Gas): 8,370,000 BTU/HR maximum
• Oil Flow Rate: 60.0 GPH (US) maximum
• Horsepower Rating: 200 HP
• Burner Controls: Servitech system with Cleaver Brooks burner
• Water Treatment: Softener system, feedwater tank, feed pump, vacuum pump
• Storage Tanks: 300-gallon steel tank, 500-gallon diesel/fuel tank
• Electrical: 6 Square D disconnect panels, power main switch, sub-panel
• Housing: 40-foot fully insulated trailer included
• Interior: Diamond plate floor, full insulation, interior lighting
• External Connections: Steam, water, drain, safety vent penetrations through trailer sides/roof
• Trailer Included: YES
• Inspection: Welcome — contact us to schedule

IMPORTANT NOTES:

• Trailer IS included with this sale
• Complete turnkey mobile steam plant — all systems intact
• Servitech burner management controls installed and functional
• Mercury-free water level controls upgraded
• Insulated for cold weather / extreme environment operation
• Professional rigging recommended for offloading
• Buyer responsible for transport arrangements from current location
• Contact us for additional photos, video walkthroughs, or technical questions
