FES / GEA Industrial Ammonia Screw Compressor Package Natural Refrigerant R-717 2002

OVERVIEW

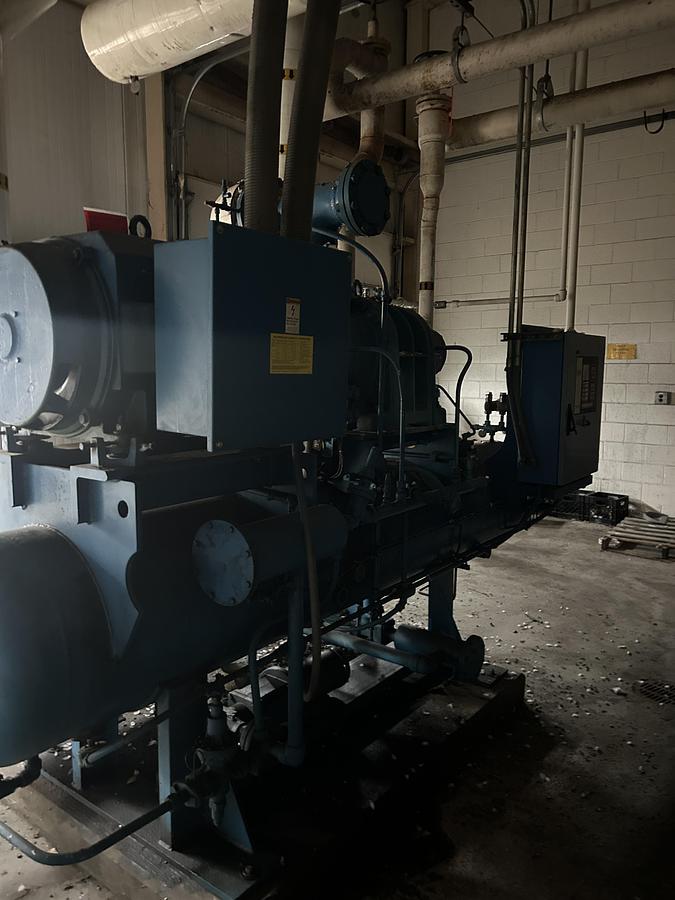

FES Systems / GEA Industrial Ammonia Refrigeration Screw Compressor Package — FES Serial Number 020449, National Board Number 12955, Year 2002. Heavy-duty industrial ammonia (R-717) screw compressor package certified by FES Systems Inc. with 300 PSI maximum allowable working pressure at 500°F and minimum design metal temperature of 20°F at 300 PSI. Complete skid-mounted package with integrated GEA microprocessor control panel, oil separator vessel, suction accumulator, Henry Technologies Chil-Con liquid separator vessel (Model TSCC-08084-100, Serial C211050B-3, NB# 13643, Year 2001), drive motor, and all associated piping, valves, and instrumentation.

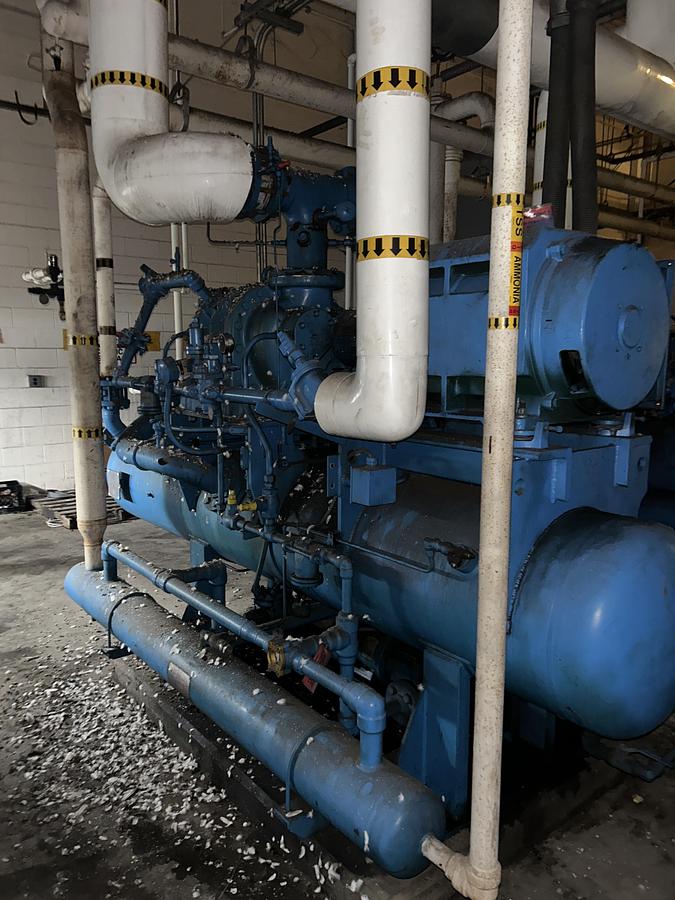

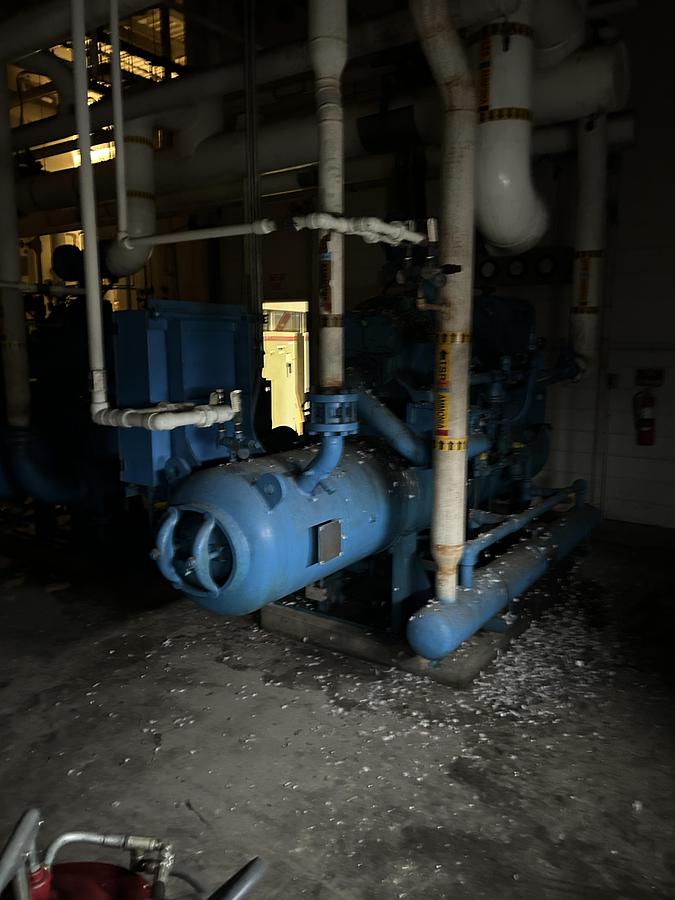

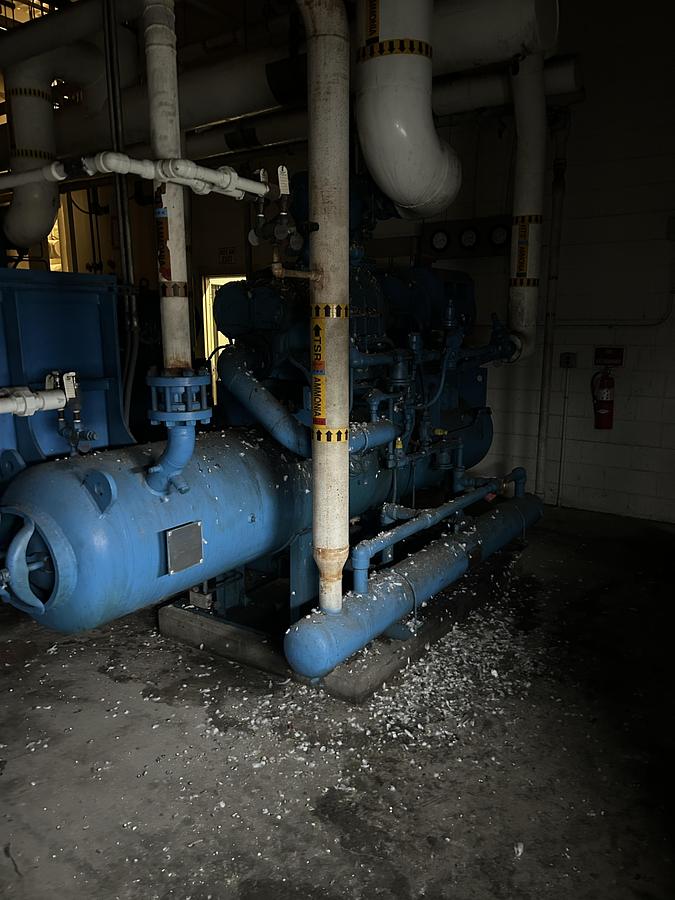

Complete industrial ammonia refrigeration compressor package mounted on a heavy-duty structural steel skid with all pressure vessels, controls, and safety systems intact. Ammonia refrigerant (R-717) system with full integrated skid assembly. Heavy-duty industrial construction ideal for cold storage facilities, food processing plants, ice rinks, industrial refrigeration systems, pharmaceutical manufacturing, or any large-scale industrial application requiring proven ammonia refrigeration technology with GEA / FES screw compressor reliability.

Note: This is an ammonia (R-717) refrigeration system. Buyer is responsible for proper ammonia handling, evacuation, and compliance with all applicable federal, state, and local regulations regarding ammonia refrigerant systems.

EQUIPMENT SPECIFICATIONS

Compressor Package Identification:

• Manufacturer: FES Systems Inc. (GEA Refrigeration)
• Product Line: Industrial Ammonia Screw Compressor Package
• Refrigerant: Ammonia (R-717)
• FES Serial Number: 020449
• National Board Number: 12955
• Year: 2002
• Control System: GEA Microprocessor Control Panel
• Configuration: Skid-mounted package
• ASME / National Board Certified: Yes

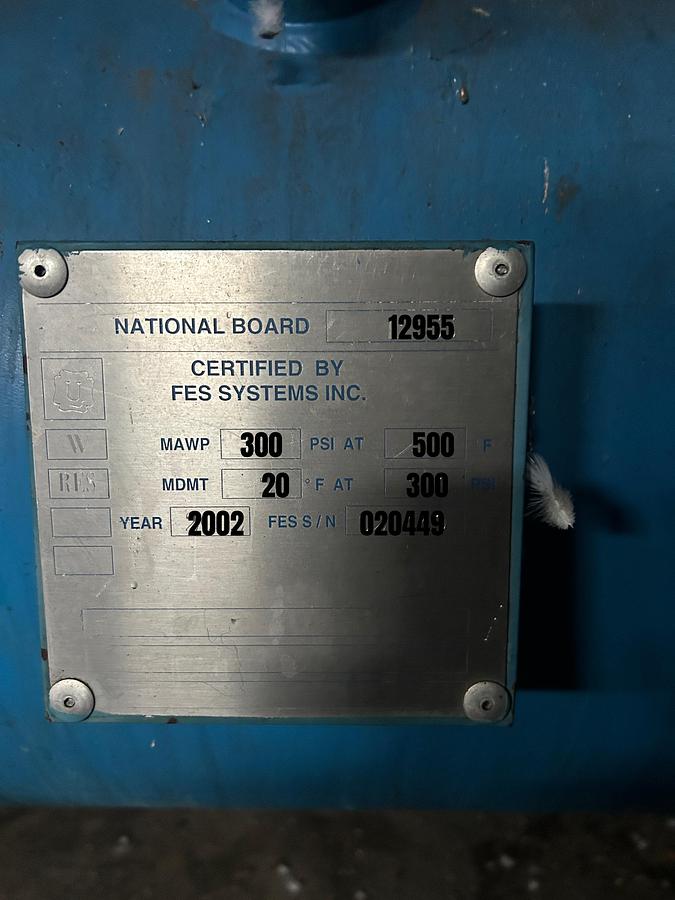

FES Systems Pressure Vessel (Oil Separator):

• Certified By: FES Systems Inc.
• National Board Number: 12955
• FES Serial Number: 020449
• Year: 2002
• MAWP: 300 PSI at 500°F
• MDMT: 20°F at 300 PSI

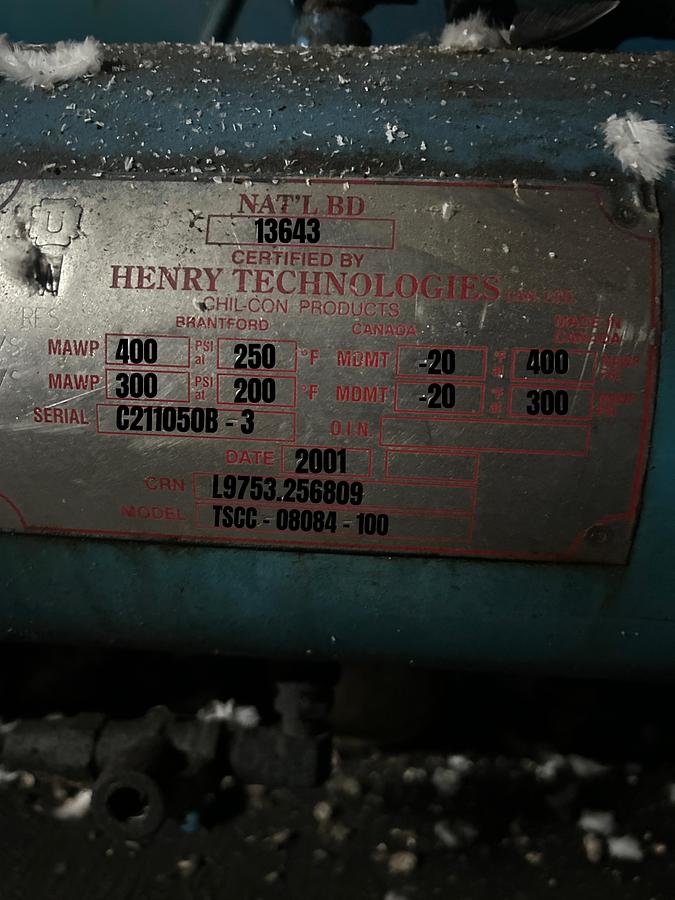

Henry Technologies Vessel (Liquid Separator):

• Certified By: Henry Technologies, Chil-Con Products
• Manufacturing Location: Brantford, Ontario, Canada
• National Board Number: 13643
• Model: TSCC-08084-100
• Serial Number: C211050B-3
• Date: 2001
• CRN: L9753.256809
• MAWP: 400 PSI at 250°F / 300 PSI at 200°F
• MDMT: -20°F at 400 PSI / -20°F at 300 PSI

Refrigerant:

• Refrigerant Type: Ammonia (R-717)
• System Type: Industrial ammonia refrigeration
• Compressor Type: Screw compressor

KEY FEATURES & BENEFITS

FES Systems / GEA Quality Manufacturing:

• FES Systems Inc. — leading industrial ammonia compressor manufacturer
• GEA Refrigeration product lineage (FES acquired by GEA)
• 2002 year of manufacture
• Industrial ammonia screw compressor design
• Heavy-duty commercial/industrial construction
• Professional engineering and design
• Proven reliability in demanding industrial refrigeration applications

Industrial Ammonia Screw Compressor Design:

• Screw compressor technology for continuous-duty operation
• Ammonia (R-717) natural refrigerant — zero GWP, zero ODP
• High-efficiency ammonia refrigeration cycle
• Large-scale industrial refrigeration capacity
• Robust skid-mounted package design
• Designed for 24/7 continuous industrial service
• Long service life construction

GEA Microprocessor Control System:

• Integrated GEA microprocessor control panel
• Keypad operator interface
• Digital display and monitoring
• Compressor capacity control
• Operating parameter monitoring
• Safety interlock integration
• Professional industrial controls package

Complete Skid-Mounted Package:

• Full compressor package on heavy-duty structural steel skid
• All pressure vessels included on skid
• Integrated oil separator vessel (FES, NB# 12955)
• Henry Technologies liquid separator vessel included (NB# 13643)
• Drive motor included
• Oil system components included
• All skid piping, valves, and instrumentation
• Factory-assembled and integrated package

Ammonia (R-717) Natural Refrigerant:

• Natural refrigerant — no phase-out concerns
• Zero global warming potential (GWP)
• Zero ozone depletion potential (ODP)
• High thermodynamic efficiency
• Industry standard for industrial refrigeration
• Long-term refrigerant supply assured
• No refrigerant replacement cost risk

ASME Certified Pressure Vessels:

• FES Systems pressure vessel — ASME certified, NB# 12955
• Henry Technologies vessel — ASME certified, NB# 13643
• National Board registered vessels
• 300 PSI rated FES vessel
• 400 PSI rated Henry Technologies vessel
• Professional pressure vessel construction
• Code-compliant design and certification

Safety & Compliance:

• ASME-certified pressure vessel construction
• National Board registered vessels
• 300 PSI MAWP FES oil separator
• 400 PSI MAWP Henry Technologies vessel
• Safety relief valve provisions
• Ammonia safety compliance design
• Professional industrial safety systems
• Multiple safety interlocks

SYSTEM COMPONENTS

Main Compressor:

• Industrial ammonia screw compressor
• FES Systems / GEA design
• Skid-mounted configuration
• Drive motor included
• Compressor capacity control system
• Oil injection system
• Suction and discharge connections
• Complete compressor assembly

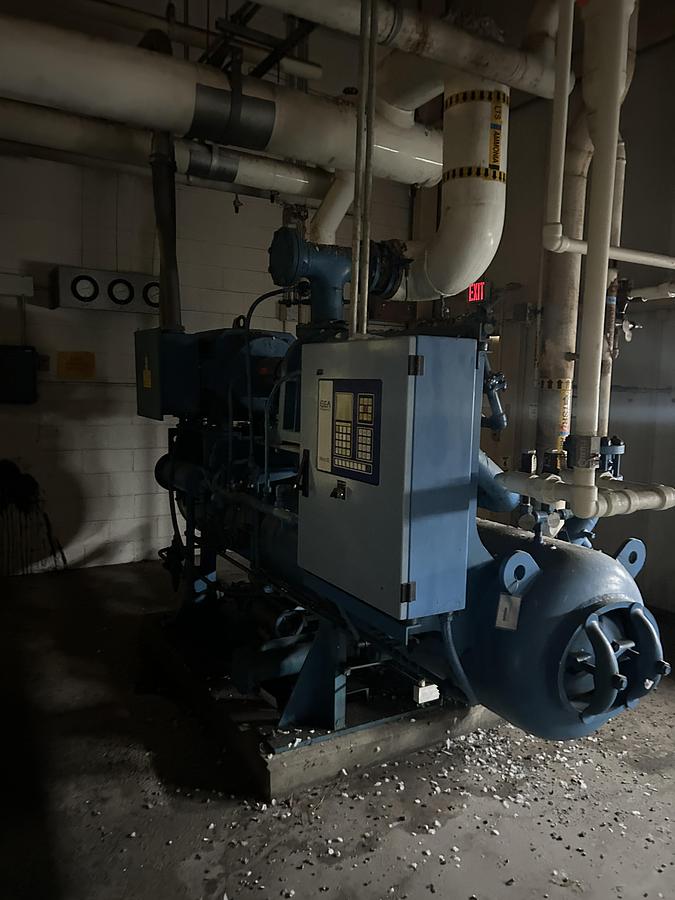

GEA Control Panel:

• GEA microprocessor controller
• Keypad operator interface
• Digital display panel
• Capacity control functions
• Safety interlock integration
• Operational monitoring
• Professional industrial controls

FES Oil Separator Vessel:

• Certified by FES Systems Inc.
• National Board Number 12955
• FES Serial Number 020449
• Year 2002
• MAWP 300 PSI at 500°F
• MDMT 20°F at 300 PSI
• ASME certified construction

Henry Technologies Liquid Separator Vessel:

• Certified by Henry Technologies, Chil-Con Products
• National Board Number 13643
• Model TSCC-08084-100
• Serial Number C211050B-3
• Date 2001
• CRN L9753.256809
• MAWP 400 PSI at 250°F / 300 PSI at 200°F
• MDMT -20°F at 400 and 300 PSI
• Made in Canada

Oil System:

• Oil separator vessel (FES, NB# 12955)
• Oil return system
• Oil level controls
• Oil filter provisions
• Oil injection to compressor
• Oil management instrumentation

Suction System:

• Suction accumulator / separator vessel
• Suction header piping
• Suction isolation valves
• Suction pressure monitoring
• Liquid carryover protection

Safety & Instrumentation:

• Safety relief valves
• Pressure gauges
• High pressure safety cutouts
• Low pressure safety cutouts
• High temperature protection
• Oil pressure safety
• Ammonia leak provisions
• Multiple safety interlocks

Structural Assembly:

• Heavy-duty structural steel skid base
• All vessels mounted to skid
• Integrated skid piping and valves
• Professional industrial assembly
• Forklift pocket provisions
• Ready for rigging and relocation

SPECIFICATIONS SUMMARY

Compressor Package:

• Manufacturer: FES Systems Inc. / GEA Refrigeration
• FES Serial Number: 020449
• National Board Number: 12955
• Year: 2002
• Refrigerant: Ammonia (R-717)
• Compressor Type: Screw compressor
• Control System: GEA Microprocessor Panel
• Configuration: Skid-mounted package
• ASME Certified: Yes

FES Oil Separator Vessel:

• NB#: 12955
• FES S/N: 020449
• Year: 2002
• MAWP: 300 PSI at 500°F
• MDMT: 20°F at 300 PSI

Henry Technologies Liquid Separator:

• NB#: 13643
• Model: TSCC-08084-100
• Serial: C211050B-3
• Date: 2001
• CRN: L9753.256809
• MAWP: 400 PSI at 250°F / 300 PSI at 200°F
• MDMT: -20°F at both ratings
• Origin: Canada

ADDITIONAL INFORMATION

• Condition: Used — 2002 Manufacture, Previously Installed Industrial Refrigeration System
• Manufacturer: FES Systems Inc. (GEA Refrigeration)
• FES Serial Number: 020449
• National Board Number: 12955
• Year: 2002
• Refrigerant: Ammonia (R-717)
• Compressor Type: Industrial screw compressor

Safety Features:

• ASME-certified pressure vessel construction
• National Board registered vessels
• Safety relief valve provisions
• High and low pressure safety cutouts
• High temperature protection
• Oil pressure safety interlocks
• Multiple operational safety interlocks
• Ammonia-rated design and construction

Installation Notes:

• Complete skid-mounted package — professional rigging required for removal
• Ammonia refrigerant system — requires licensed ammonia contractor for decommissioning
• Buyer responsible for ammonia evacuation and disposal per applicable regulations
• All pressure vessels intact and included on skid
• Professional rigging and crane service recommended
• Site inspection welcome prior to purchase
• Compressor HP and capacity data not available from nameplate — buyer to verify

Features:

• FES Systems / GEA industrial ammonia screw compressor package
• 2002 year of manufacture
• Ammonia (R-717) natural refrigerant — zero GWP, zero ODP
• Industrial screw compressor design for continuous-duty operation
• GEA microprocessor control panel with keypad interface
• ASME-certified FES oil separator vessel — NB# 12955, 300 PSI MAWP
• Henry Technologies Chil-Con liquid separator — NB# 13643, 400 PSI MAWP
• Henry Technologies Model TSCC-08084-100, Serial C211050B-3, CRN L9753.256809
• Complete skid-mounted package — all vessels, motor, controls included
• Heavy-duty structural steel skid base
• Oil separator and return system included
• Suction accumulator / liquid separator included
• All skid piping, valves, and instrumentation included
• Safety relief valve provisions
• High and low pressure safety cutouts
• Proven FES Systems / GEA industrial refrigeration reliability
• Ideal for cold storage, food processing, ice rinks, industrial refrigeration
• Previously installed industrial refrigeration system
• Professional rigging required for removal
• Ammonia contractor required for decommissioning
