Cryenco 5000 Gallon Liquid Oxygen LOX Cryogenic Storage Tank 2000 PSI 1992 with Great Lakes Refrigeration System

OVERVIEW

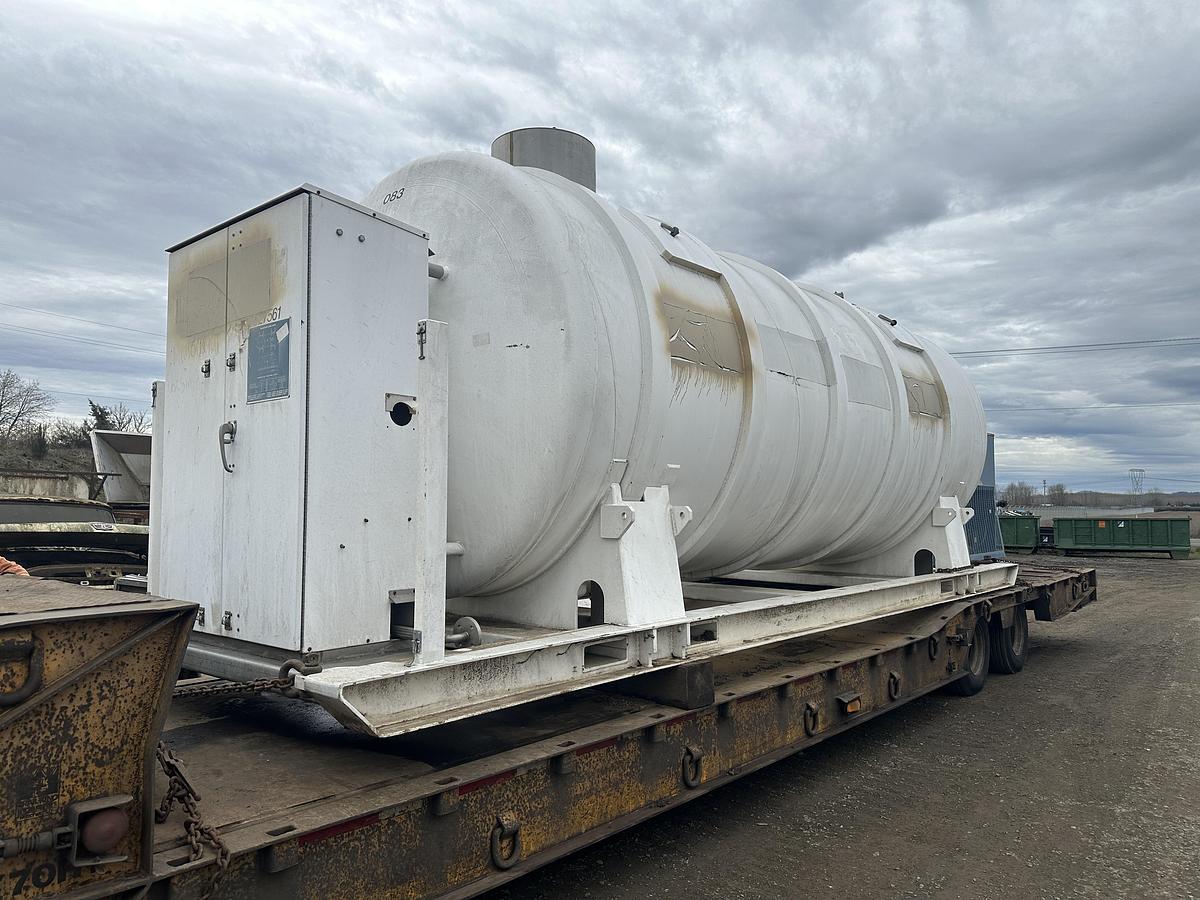

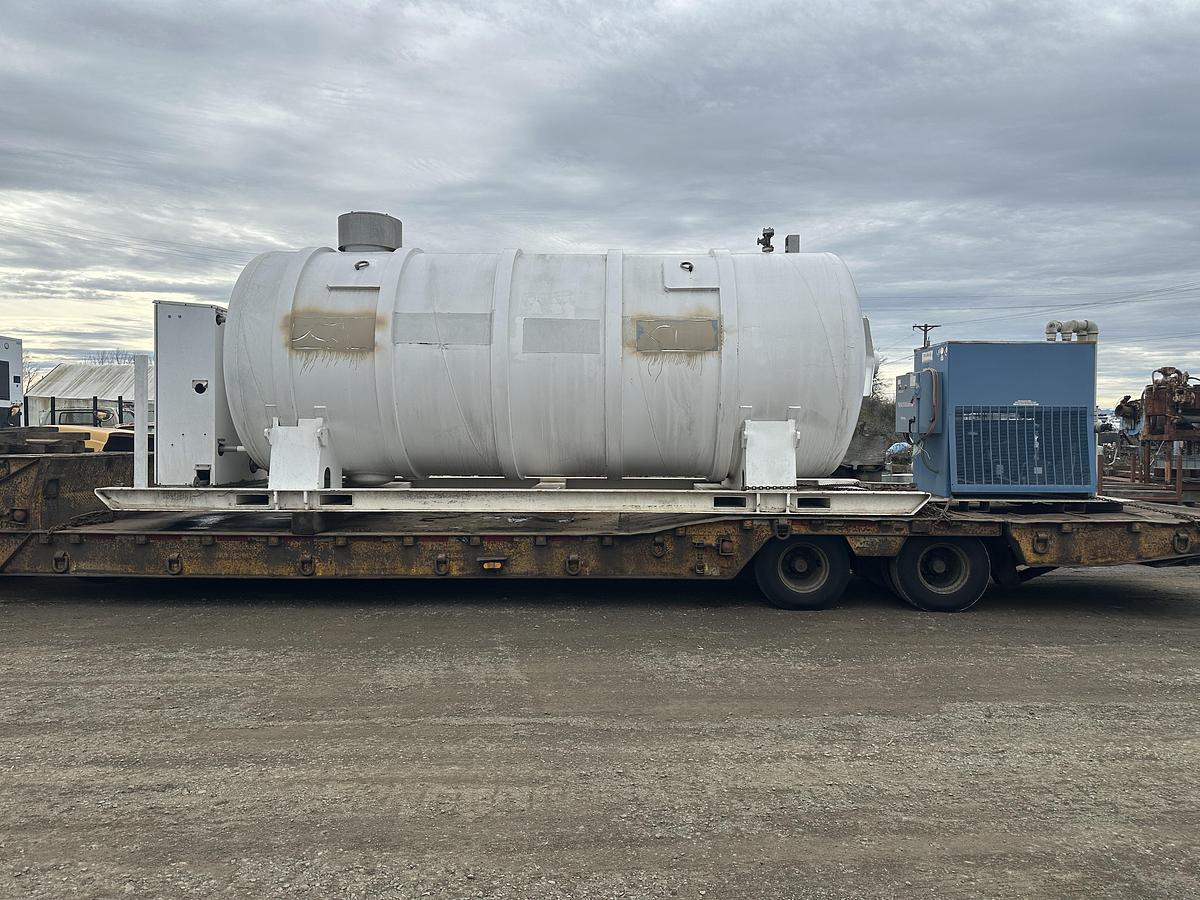

Cryenco 5000-Gallon Liquid Oxygen (LOX) Cryogenic Storage Tank with integrated Great Lakes Air refrigeration system. Professional-grade horizontal cryogenic storage vessel certified by Cryence Inc. at their Denver, Colorado plant. ASME pressure vessel rated for 2000 PSI maximum allowable working pressure at 120°F design temperature. National Board registered tank with complete specifications for liquid oxygen storage and distribution. Manufactured May 1992 with USAF registration number and NSN military specification. Heavy-duty horizontal vessel measuring 300 inches in length, 96 inches in diameter, with 25,000-pound empty weight and 73,000-pound full weight capacity. Complete system includes Great Lakes Air refrigeration compressor unit (Model GRF800AFDN4-436, 460V 3-phase, 4HP/7.8FLA), dual pressure gauges, control panel, safety systems, and all mounting hardware. White insulated exterior finish on saddle-mounted supports ready for transport. Type TMU/20E, Code 900 Test certified construction. Ideal for industrial gas suppliers, medical facilities, aerospace applications, welding operations, water treatment plants, or any facility requiring bulk liquid oxygen storage with proven cryogenic reliability and ASME certification.

EQUIPMENT SPECIFICATIONS

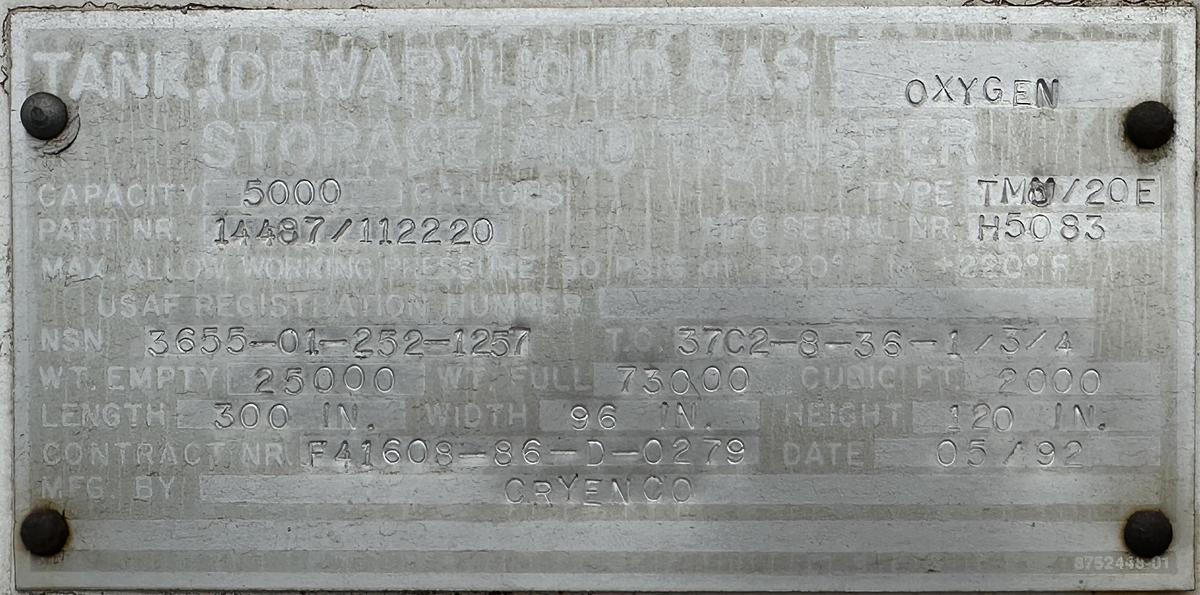

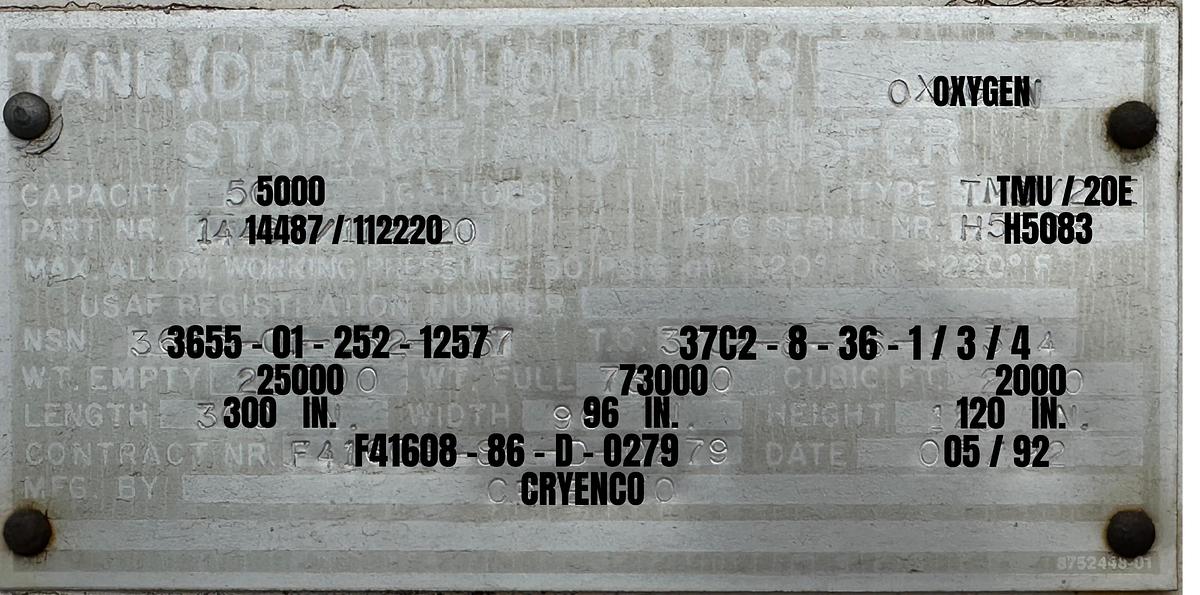

Tank Model Information:

• Manufacturer: Cryenco (Cryence Inc.)
• Certified By: Cryence Inc., Denver Cold Plant No. 1
• Tank Type: Liquid Oxygen (LOX) Cryogenic Storage
• Type Designation: TMU/20E
• Model Number: H5083
• Capacity: 5000 Gallons
• Date Manufactured: 05/92 (May 1992)
• Configuration: Horizontal cryogenic pressure vessel

Performance Ratings:

• Capacity: 5000 Gallons
• Maximum Allowable Working Pressure: 2000 PSI
• Design Pressure: 2000 PSI at 120°F
• Design Temperature: -325°F minimum / 120°F maximum
• Contents: Liquid Oxygen (LOX)
• Code: 900 Test
• Certification: ASME pressure vessel code

Physical Dimensions:

• Length: 300 Inches (25 feet)
• Diameter: 96 Inches (8 feet)
• Height: 120 Inches (10 feet) overall
• Empty Weight: 25,000 Pounds
• Full Weight: 73,000 Pounds (approximately)
• Configuration: Horizontal saddle-mounted

National Board & Registration:

• National Board Number: Visible on nameplate
• USAF Registration Number: 3655-01-252-1257
• NSN: 37C2-8-36-1/3/4
• Contract Number: F41608-86-D-0279
• Part Number: 14487/112220
• Type: TMU/20E
• Model: H5083

ASME & Code Compliance:

• ASME Pressure Vessel Code certified
• Code 900 Test certification
• National Board registered
• USAF certified construction
• Cryogenic service rated
• Liquid oxygen compatible materials

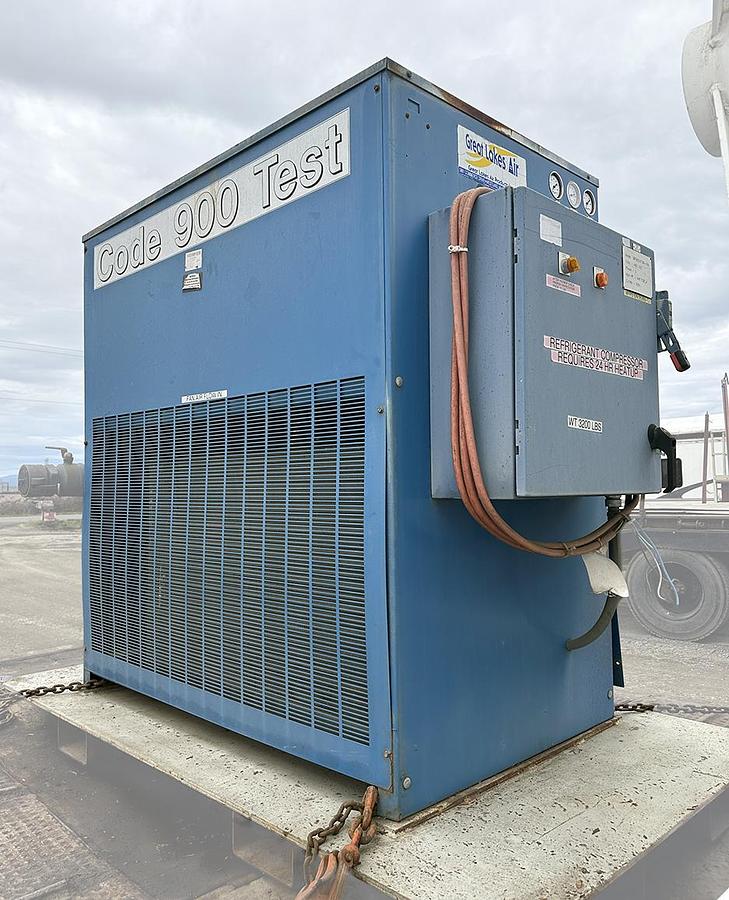

Refrigeration System Specifications:

• Manufacturer: Great Lakes Air Products Inc.
• Location: 6961 Commerce Drive, Westland, MI USA
• Phone: 48185 • 734-326-7080
• Model: GRF800AFDN4-436
• Type: Refrigerant Compressor
• Manufacturer Serial Number: 25360-TJ
• Voltage: 460 VAC
• Phase: 3-Phase
• Frequency: 60Hz
• Motor: 4HP / 7.8 FLA (Full Load Amps)
• Configuration: Packaged refrigeration unit
• Color: Blue cabinet

Construction Materials:

• Pressure Vessel: Stainless steel (cryogenic grade)
• Insulation: High-performance vacuum insulation
• Outer Shell: White insulated jacket
• Supports: Heavy steel saddle mounts
• Piping: Stainless steel cryogenic piping
• Fittings: Cryogenic-rated connections

KEY FEATURES & BENEFITS

Cryenco/Cryence Quality Manufacturing:

• Premium USA cryogenic vessel manufacturer
• May 1992 manufacture date
• Denver Cold Plant No. 1 certification
• Heavy-duty industrial construction
• Professional cryogenic engineering
• Denver, Colorado manufacturing
• USAF certified construction
• Proven reliability in demanding applications

Large Capacity Cryogenic Storage:

• 5000-gallon liquid oxygen capacity
• 2000 PSI maximum working pressure
• High-pressure industrial capacity
• Continuous cryogenic duty rated
• Large-scale LOX storage
• Heavy-duty pressure vessel design
• Industrial/commercial grade
• Military specification construction

ASME & National Board Certification:

• ASME pressure vessel code certified
• National Board registered
• Code 900 Test certification
• USAF registration number
• NSN military specification
• Professional engineering certification
• Code-compliant construction
• Complete documentation available

Integrated Refrigeration System:

• Great Lakes Air refrigeration compressor
• Model GRF800AFDN4-436
• 460V 3-phase power
• 4HP motor (7.8 FLA)
• Packaged refrigeration unit
• Professional blue cabinet
• Temperature management system
• Maintains cryogenic temperatures

Cryogenic Design Features:

• High-performance vacuum insulation
• Double-wall construction
• Cryogenic-grade materials
• Temperature range: -325°F to +120°F
• Thermal efficiency design
• Minimal boil-off rate
• Extended hold time
• Professional insulation system

Heavy-Duty Construction:

• 25,000-pound empty weight
• 73,000-pound full capacity
• 300-inch length (25 feet)
• 96-inch diameter (8 feet)
• Saddle-mounted configuration
• Heavy steel support structure
• White insulated exterior
• Professional finish

Complete Safety Systems:

• Dual pressure gauge monitoring
• Safety relief protection
• Pressure regulation system
• Emergency venting capability
• Oxygen service safety features
• Professional control panel
• Multiple safety interlocks
• Code-compliant safety devices

Professional Installation Ready:

• Saddle-mounted on transport skid
• Complete refrigeration system included
• All controls and instrumentation
• Ready for transport and installation
• Foundation mounting provisions
• Professional rigging points
• Site preparation specifications available
• Commissioning requirements documented

SYSTEM COMPONENTS

Main Cryogenic Vessel:

• Cryenco/Cryence 5000-gallon tank
• Type TMU/20E, Model H5083
• 2000 PSI MAWP at 120°F
• 300" length x 96" diameter
• Double-wall vacuum-insulated construction
• White insulated outer jacket
• Heavy saddle-mounted supports
• All cryogenic piping and connections

Refrigeration System:

• Great Lakes Air Model GRF800AFDN4-436
• 460V 3-phase 60Hz power
• 4HP motor (7.8 FLA)
• Refrigerant compressor assembly
• Professional blue cabinet
• Control panel with indicators
• Temperature management
• Mounted on separate skid

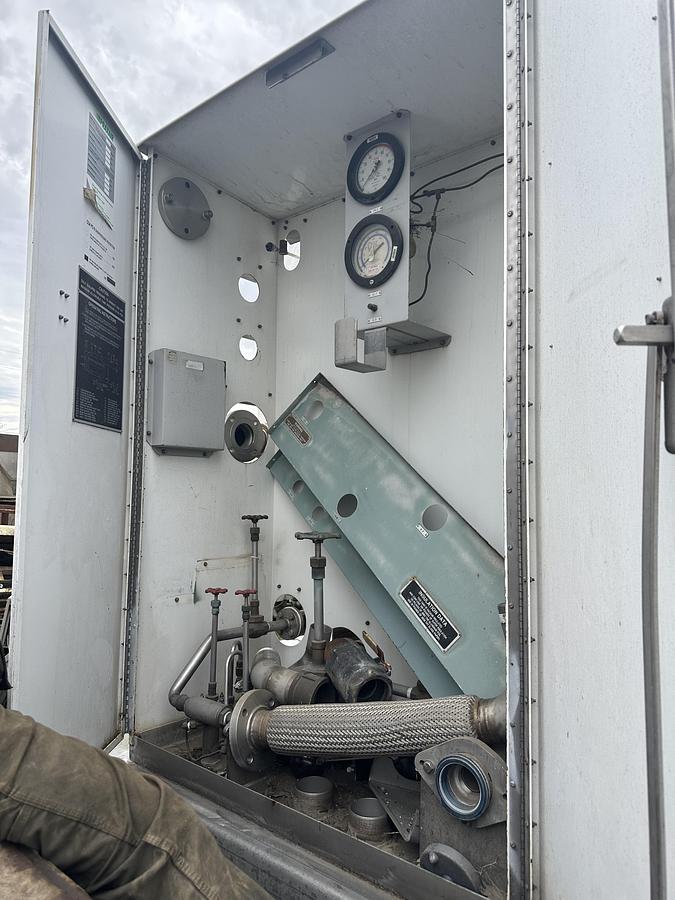

Control & Instrumentation:

• Dual pressure gauge assembly
• Temperature monitoring
• Level indication provisions
• Safety relief valves
• Control panel with switches
• Pressure regulation system
• Professional instrumentation package
• Monitoring capabilities

Safety Systems:

• Pressure relief protection
• Safety valve assemblies
• Emergency venting system
• Oxygen service safety features
• Pressure monitoring
• Temperature monitoring
• Multiple safety interlocks
• Professional safety engineering

Piping & Connections:

• Stainless steel cryogenic piping
• Vacuum-jacketed transfer lines
• Fill and withdrawal connections
• Vent connections
• Drain provisions
• Pressure building circuit
• All necessary valving
• Cryogenic-rated fittings

Mounting & Support:

• Heavy-duty saddle supports
• Structural steel mounting frame
• Transport skid assembly
• Lifting provisions
• Foundation mounting points
• Seismic restraint provisions
• Professional installation hardware

SPECIFICATIONS SUMMARY

Cryogenic Tank:

• Manufacturer: Cryenco (Cryence Inc.)
• Capacity: 5000 Gallons
• Pressure: 2000 PSI MAWP
• Temperature: -325°F to +120°F
• Length: 300 Inches (25 feet)
• Diameter: 96 Inches (8 feet)
• Empty Weight: 25,000 Lbs
• Full Weight: 73,000 Lbs
• Date: 05/92 (May 1992)
• Type: TMU/20E
• Model: H5083
• Contents: Liquid Oxygen (LOX)
• Origin: USA

Certification:

• ASME: Pressure Vessel Code
• National Board: Registered
• Code: 900 Test
• USAF Reg: 3655-01-252-1257
• NSN: 37C2-8-36-1/3/4
• Contract: F41608-86-D-0279

Refrigeration:

• Manufacturer: Great Lakes Air
• Model: GRF800AFDN4-436
• Serial: 25360-TJ
• Voltage: 460 VAC
• Phase: 3-Phase
• Motor: 4HP / 7.8 FLA
• Frequency: 60Hz

Configuration:

• Type: Horizontal saddle-mounted
• Finish: White insulated exterior
• Condition: Used
• Status: Available for transport

ADDITIONAL INFORMATION

• Condition: Used - 1992 Manufacture
• Manufacturer: Cryenco (Cryence Inc.)
• Refrigeration Manufacturer: Great Lakes Air Products Inc., Westland, Michigan
• Product Type: Liquid Oxygen (LOX) Cryogenic Storage Tank
• Capacity: 5000 Gallons
• Date Built: 05/92 (May 1992)

Performance Specifications:

• Capacity: 5000 Gallons liquid oxygen storage
• Maximum Allowable Working Pressure: 2000 PSI
• Design Pressure: 2000 PSI at 120°F design temperature
• Minimum Design Metal Temperature: -325°F (cryogenic)
• Maximum Design Temperature: 120°F
• Code: 900 Test certification
• Contents: Liquid Oxygen (LOX)
• Type: TMU/20E
• Model: H5083

Physical Specifications:

• Overall Length: 300 Inches (25 feet)
• Shell Diameter: 96 Inches (8 feet)
• Overall Height: 120 Inches (10 feet)
• Empty Weight: 25,000 Pounds
• Full Operating Weight: Approximately 73,000 Pounds
• Configuration: Horizontal vessel on saddle supports
• Exterior Finish: White insulated jacket
• Insulation: High-performance vacuum insulation

Registration & Certification:

• National Board Registered
• USAF Registration Number: 3655-01-252-1257
• NSN (National Stock Number): 37C2-8-36-1/3/4
• Contract Number: F41608-86-D-0279
• Part Number: 14487/112220
• ASME Pressure Vessel Code certified
• Code 900 Test certification

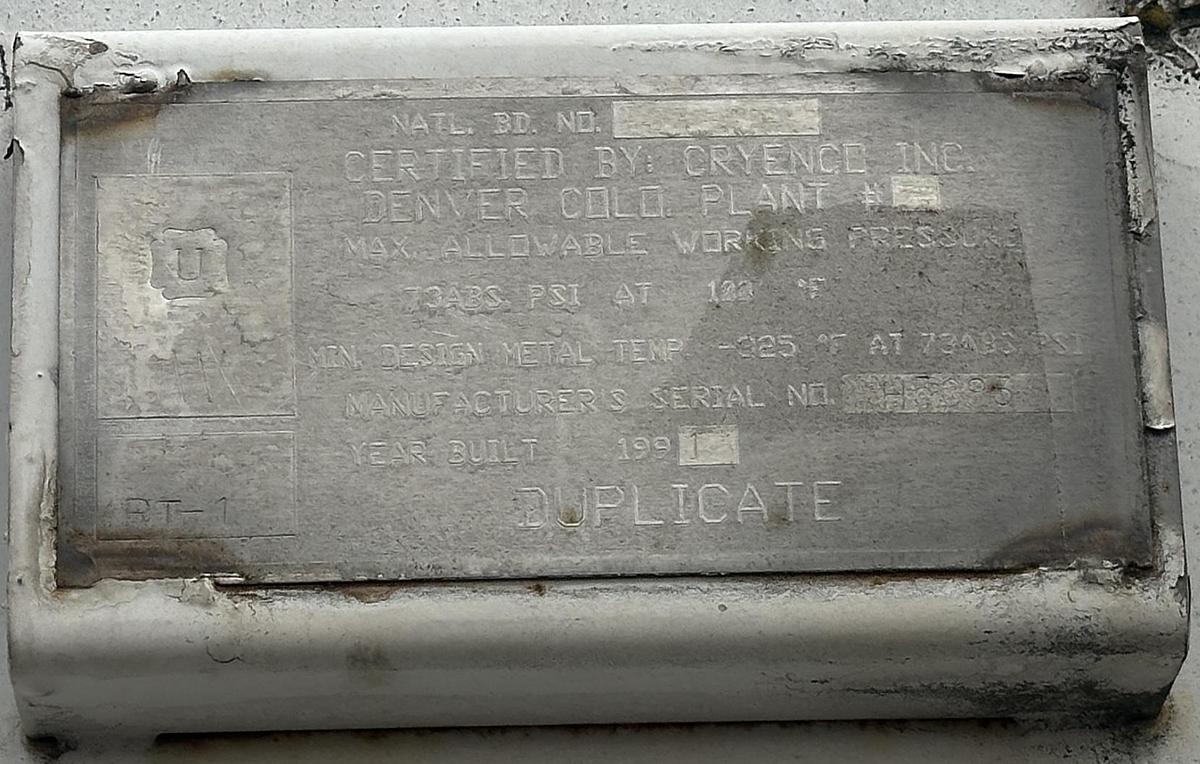

• Cryence Inc. certification (Denver Cold Plant No. 1)
• Duplicate National Board plate visible

Refrigeration System Details:

• Manufacturer: Great Lakes Air Products Inc.
• Address: 6961 Commerce Drive, Westland, MI 48185
• Phone: 734-326-7080
• Model Number: GRF800AFDN4-436
• Type: Refrigerant Compressor
• Manufacturer Serial Number: 25360-TJ
• Electrical: 460 VAC, 3-Phase, 60Hz
• Motor Rating: 4 Horsepower
• Full Load Amps: 7.8 FLA
• Cabinet Color: Industrial blue
• Control Panel: Integrated with indicators
• Mounted on: Separate skid for transport

Construction Details:

• Inner Vessel: Stainless steel cryogenic grade
• Outer Jacket: Carbon steel with white finish
• Insulation System: High-performance vacuum insulation
• Support System: Heavy-duty saddle mounts
• Piping: Stainless steel cryogenic piping
• Connections: Cryogenic-rated fittings
• Instrumentation: Dual pressure gauges, control panel
• Safety Devices: Relief valves, rupture discs
• Lifting Points: Integrated for rigging

Current Status:

• Used condition with operational history

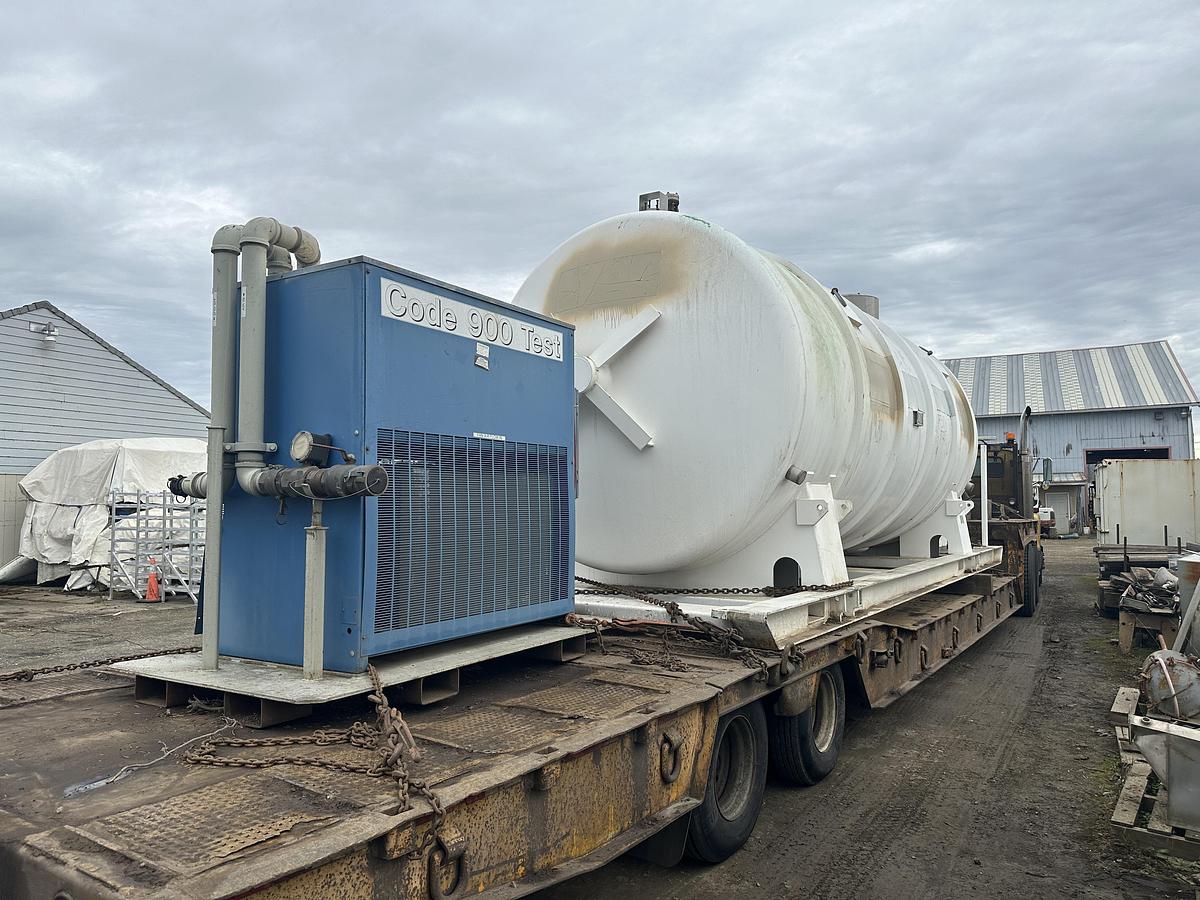

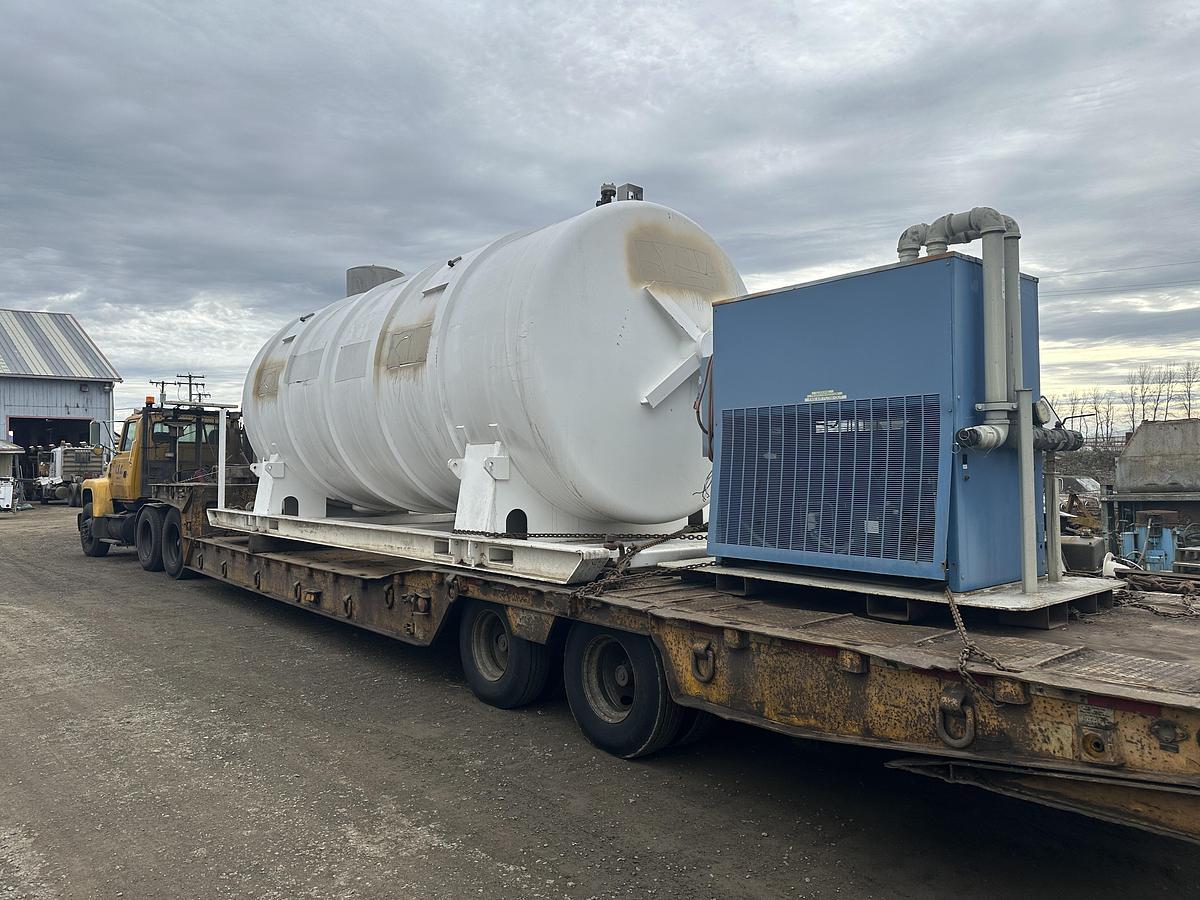

• Mounted on transport trailer/skid
• Complete with refrigeration system
• All major components present
• Ready for removal and transport
• Professional rigging required
• Heavy-haul transport necessary
• Available for immediate sale

Applications:

• Industrial gas suppliers and distributors
• Medical and hospital oxygen systems
• Aerospace and rocket propulsion facilities
• Metal fabrication and welding operations
• Water and wastewater treatment plants
• Chemical processing facilities
• Manufacturing operations
• Research and laboratory facilities
• Military and government installations
• Emergency oxygen supply systems

Cryogenic Storage Advantages:

• Large 5000-gallon capacity
• High-pressure 2000 PSI capability
• Efficient vacuum insulation
• Minimal product loss/boil-off
• Reliable cryogenic service
• ASME code compliance
• National Board registration
• Proven operational history

Transport & Installation Requirements:

• Heavy-haul transport required
• Professional rigging necessary
• Crane capacity: Minimum 40-ton for empty vessel
• Foundation: Reinforced concrete pad required
• Clearances: Per NFPA and local codes for oxygen service
• Electrical: 460V 3-phase for refrigeration system
• Piping: Cryogenic transfer lines to point of use
• Safety: Oxygen service safety zone per NFPA 50
• Commissioning: Professional startup recommended
• Inspection: Pressure vessel inspection may be required

Safety Considerations:

• Liquid oxygen is highly reactive with combustibles
• NFPA 50 requirements for bulk oxygen systems
• Proper clearances from combustible materials required
• Personnel training for cryogenic liquid handling
• Emergency procedures and equipment necessary
• Oxygen-clean service for all components
• Professional installation by qualified contractors
• Local fire marshal approval may be required

Features:

• Cryenco/Cryence 5000-gallon LOX tank design
• May 1992 year of manufacture
• Type TMU/20E, Model H5083
• 2000 PSI maximum allowable working pressure
• 120°F design temperature
• -325°F minimum cryogenic temperature
• 300 inches (25 feet) overall length
• 96 inches (8 feet) shell diameter
• 120 inches (10 feet) overall height
• 25,000 pounds empty weight
• 73,000 pounds approximate full weight
• ASME pressure vessel code certified
• National Board registered
• Code 900 Test certification
• USAF Registration Number 3655-01-252-1257
• NSN 37C2-8-36-1/3/4
• Contract F41608-86-D-0279
• Double-wall vacuum-insulated construction
• White insulated exterior jacket
• Heavy-duty saddle-mounted supports
• Horizontal configuration
• Great Lakes Air refrigeration system included
• Model GRF800AFDN4-436 compressor
• 460V 3-phase 60Hz electrical
• 4HP motor (7.8 FLA)
• Blue refrigeration cabinet
• Dual pressure gauge monitoring
• Complete control panel
• Safety relief protection
• Cryogenic piping and connections
• Professional instrumentation package
• Military specification construction
• Denver Cold Plant No. 1 certification
• Cryence Inc. certified
• Transport skid mounted
• Ready for removal and transport
• Complete system package
• Professional industrial construction
• Proven operational history
• Contact for pricing and availability
