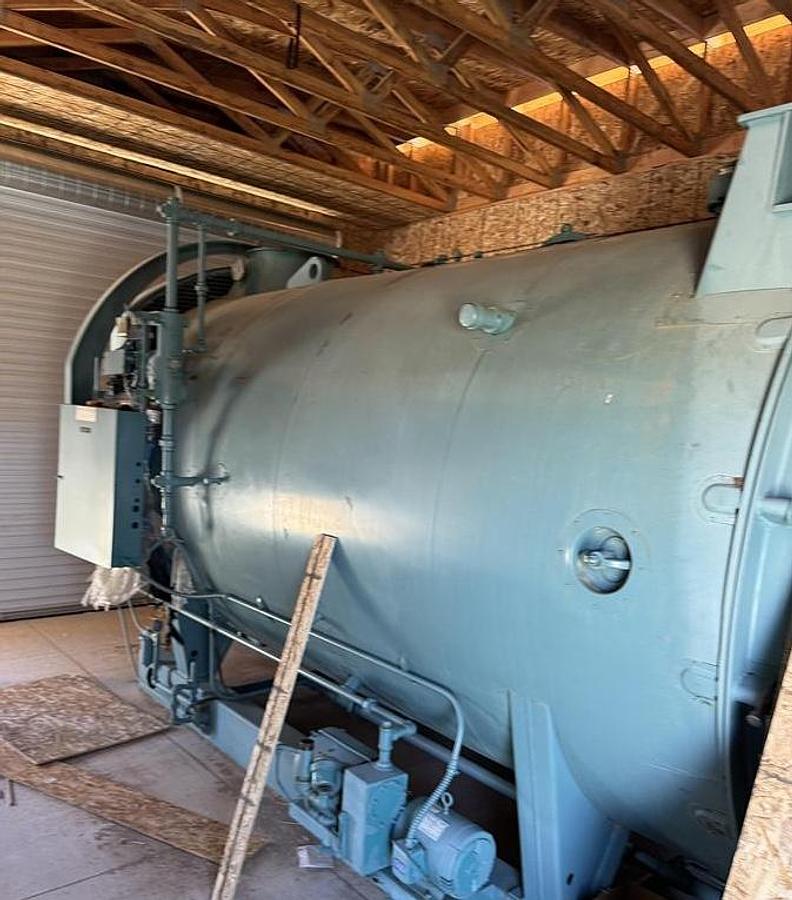

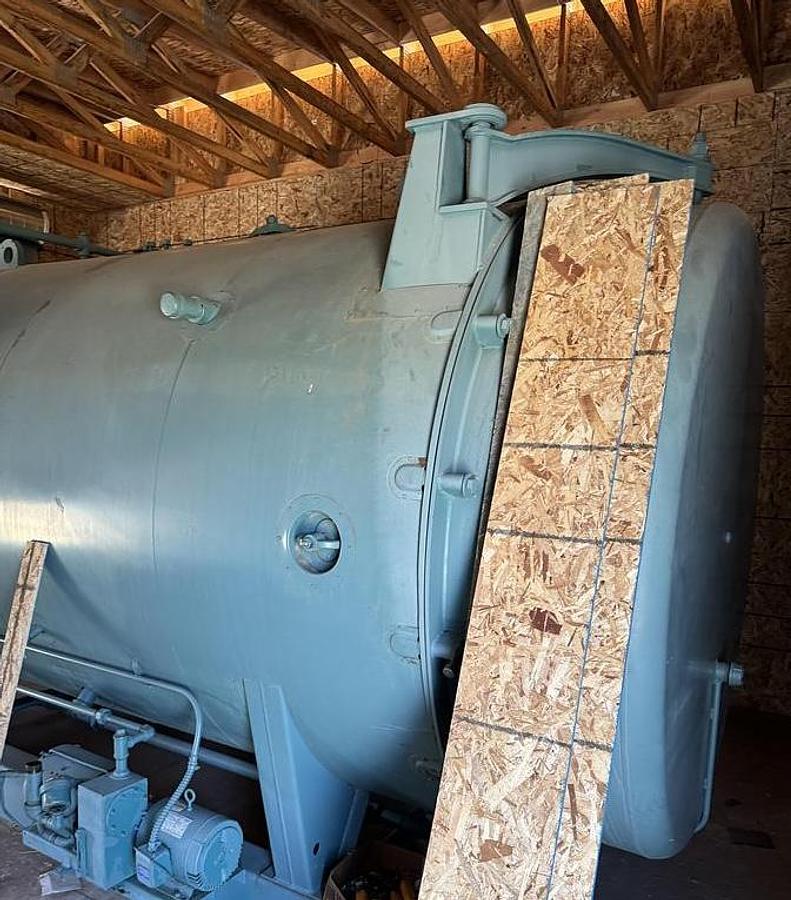

Cleaver Brooks 250HP 15PSI CB Packaged Low Pressure Steam Boiler - Model CBLE - Rebuilt

OVERVIEW

NOTE: This system was completely rebuilt and never put back into service. Excellent condition with minimal operating hours since rebuild.

Cleaver Brooks CB Packaged Boiler - Model CB200 (CBLE Configuration), Serial Number L-99065, Date 8/07/02. Professional-grade natural gas/oil dual-fuel capable low pressure packaged steam boiler featuring 12,767,817 BTU/HR input capacity with 250 horsepower rating at 15 PSI maximum allowable working pressure. Complete industrial packaged system with integrated control systems and 460V three-phase electrical package rated at 20 amps. Built to ASME standards with dual-fuel capability for natural gas (4.9 GPH equivalent) or fuel oil operation. Minimum circuit ampacity 23.5 amps with maximum circuit protection rating of 80 amps. Gas/oil fired boiler assembly with emission reduction equipment (Model Number AN52212). Previously rebuilt and never returned to service - excellent condition. Complete boiler assembly with all trim and controls installed, including 10 HP blower motor and oil pump motor systems. Heavy-duty industrial construction ideal for large commercial facilities, industrial plants, institutional applications, manufacturing operations, or any facility requiring high-capacity steam generation with proven Cleaver Brooks reliability and dual-fuel operational flexibility.

EQUIPMENT SPECIFICATIONS

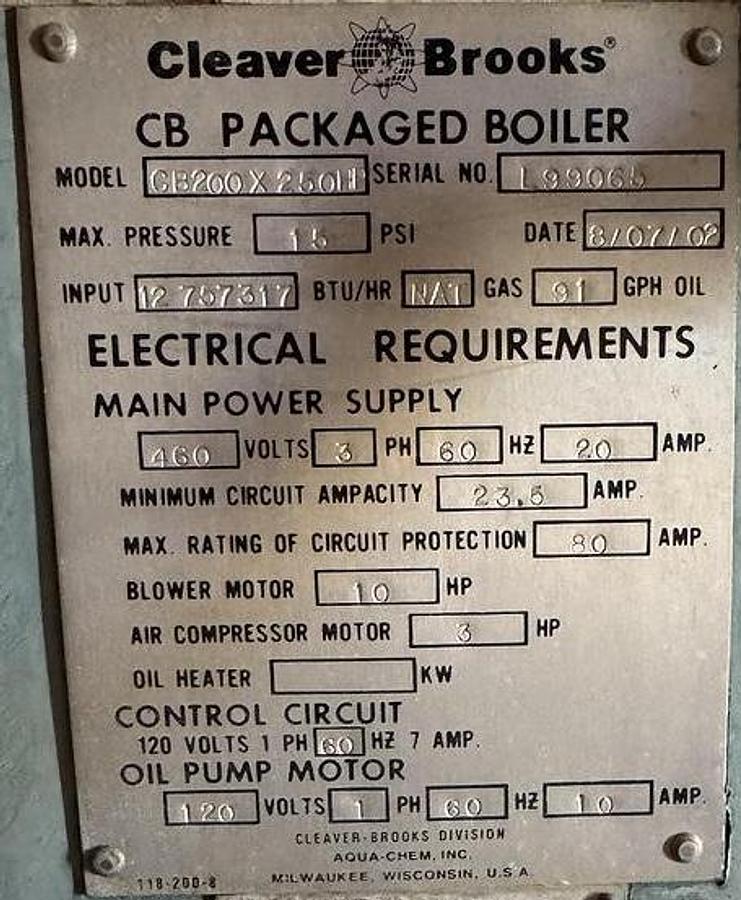

Boiler Model Information:

• Manufacturer: Cleaver Brooks Division
• Product Line: CB Packaged Boiler
• Model Number: CB200 (CBLE Configuration)
• Serial Number: L-99065
• Date: 8/07/02
• Configuration: Packaged low pressure steam boiler
• Type: Natural gas/oil dual-fuel capable
• Horsepower: 250 HP

Performance Ratings:

• BTU Input: 12,767,817 BTU/HR
• Horsepower: 250 HP
• Maximum Allowable Working Pressure: 15 PSI
• Fuel Type: Natural Gas / Oil
• Gas Consumption: 4.9 GPH equivalent
• Oil Consumption: Per application requirements

Electrical Specifications:

• Main Power Supply: 460V, 3-Phase, 60 Hz, 20 Amps
• Minimum Circuit Ampacity: 23.5 Amps
• Maximum Rating of Circuit Protection: 80 Amps
• Control Circuit: 120V, 1-Phase, 60 Hz, 7 Amps
• Blower Motor: 10 HP
• Oil Pump Motor: 120V, 1-Phase, 60 Hz, 10 Amps

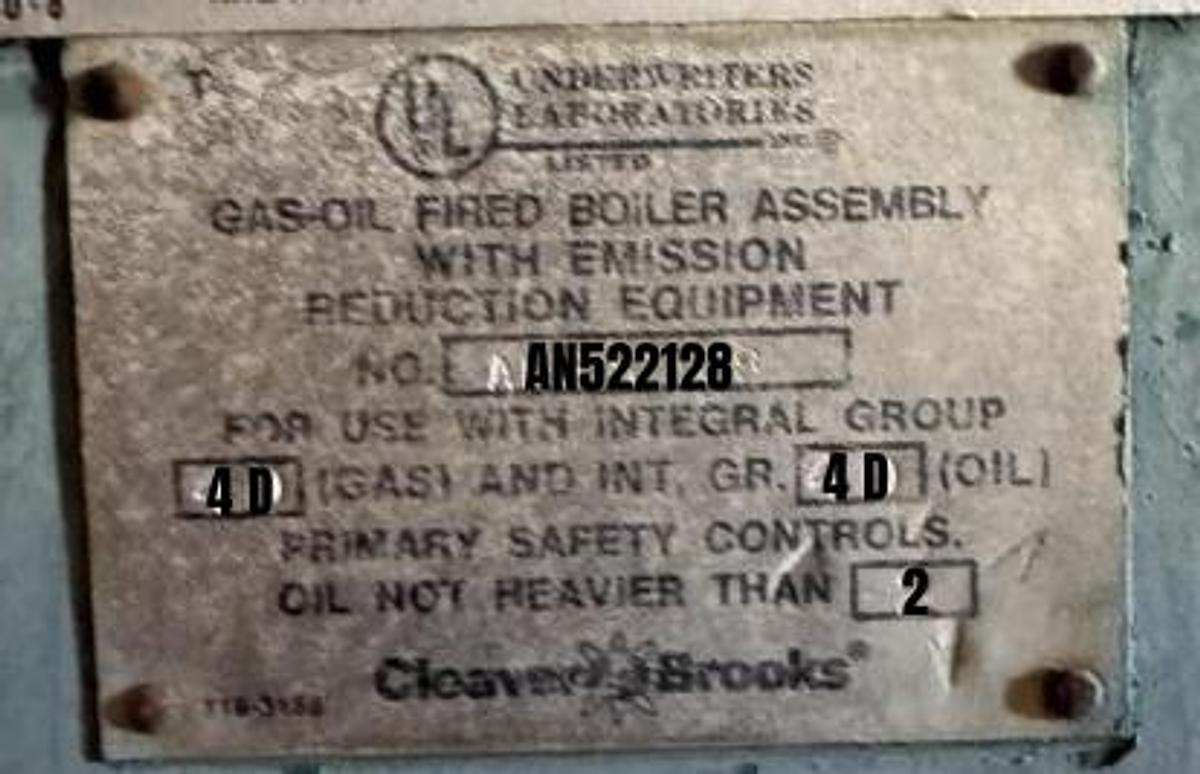

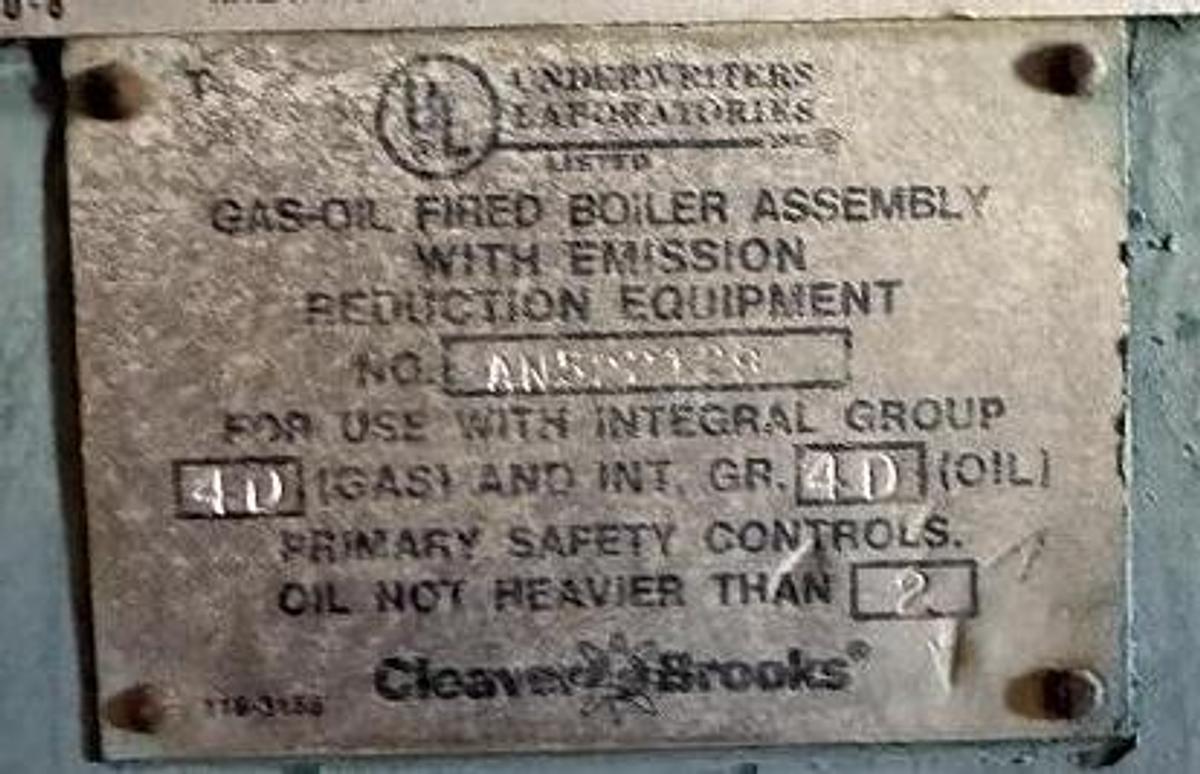

Emission Control:

• Gas/Oil Fired Boiler Assembly with Emission Reduction Equipment
• Model Number: AN52212
• For use with Integral Group 40 (Gas) and Integral Group 40 (Oil)
• Primary Safety Controls included

Physical Configuration:

• Configuration: Packaged low pressure boiler
• Mounting: Skid-mounted for stationary installation
• Origin: USA

KEY FEATURES & BENEFITS

Cleaver Brooks Quality Manufacturing:

• Premium USA boiler manufacturer
• 2002 manufacture date
• CB Packaged Boiler series
• CBLE low pressure configuration
• Heavy-duty commercial/industrial construction
• Professional engineering and design
• Milwaukee, Wisconsin manufacturing
• Proven reliability in demanding applications

Rebuilt System - Never Returned to Service:

• Complete system rebuild performed
• Never put back into service after rebuild
• Excellent condition with minimal operating hours
• Modern components and systems
• Ready for immediate installation
• Extended service life
• Turnkey solution
• Investment-ready equipment

High-Capacity Performance:

• 250 horsepower rating
• 12,767,817 BTU/HR input
• 15 PSI low pressure design
• Heavy-duty industrial capacity
• Continuous duty rated
• Large-scale steam generation
• Robust packaged design
• Commercial/industrial grade

Dual-Fuel Capability:

• Natural gas primary operation
• Fuel oil secondary capability
• Operational flexibility
• Fuel cost optimization
• Backup fuel option
• Site fuel availability adaptation
• 4.9 GPH gas equivalent consumption
• Professional dual-fuel train

Emission Reduction Equipment:

• Integrated emission reduction system
• Model AN52212
• Environmental compliance
• Reduced emissions profile
• Modern emission standards
• Clean combustion technology
• Regulatory compliance ready
• Professional engineering

Packaged Boiler Design:

• Complete factory-assembled package
• Integrated burner and controls
• Pre-wired electrical systems
• All trim and controls installed
• Simplified installation
• Reduced field labor requirements
• Factory-tested components
• Professional assembly quality

Robust Electrical Systems:

• 460V three-phase power supply
• 20 amp main power rating
• 23.5 amp minimum circuit ampacity
• 80 amp maximum circuit protection
• 120V control circuit
• 10 HP blower motor
• Oil pump motor included
• Professional electrical package

Industrial-Grade Construction:

• Heavy-duty pressure vessel design
• Proven Cleaver Brooks engineering
• Durable steel construction
• Professional-grade components
• Long service life design
• Minimal maintenance requirements
• Industrial reliability
• Commercial quality throughout

Safety & Compliance:

• 15 PSI ASME low pressure design
• Factory safety controls installed
• Low water cutoff protection
• Flame safeguard system
• Multiple safety interlocks
• Emergency shutdown capability
• Code-compliant construction
• Professional safety engineering

SYSTEM COMPONENTS

Main Boiler:

• Cleaver Brooks Model CB200 (CBLE)
• Serial Number L-99065
• Date 8/07/02
• 250 horsepower rating
• Packaged boiler design
• 12,767,817 BTU/HR capacity
• 15 PSI MAWP
• Low pressure configuration
• Complete with all trim
• Rebuilt condition

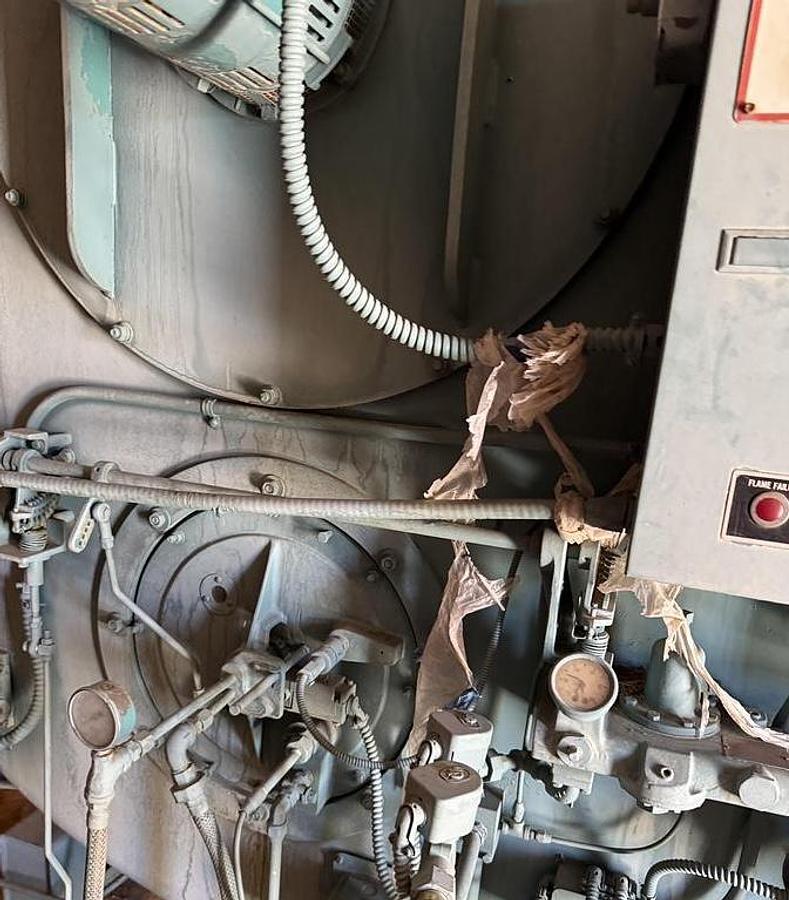

Burner System:

• Dual-fuel burner assembly
• Natural gas/oil capability
• Forced draft combustion
• Gas train components
• Oil supply system
• Safety shut-off valves
• Flame safeguard system
• Professional burner management
• 10 HP blower motor

Emission Control System:

• Emission reduction equipment
• Model AN52212
• Integral Group 40 (Gas)
• Integral Group 40 (Oil)
• Primary safety controls
• Environmental compliance
• Clean combustion technology

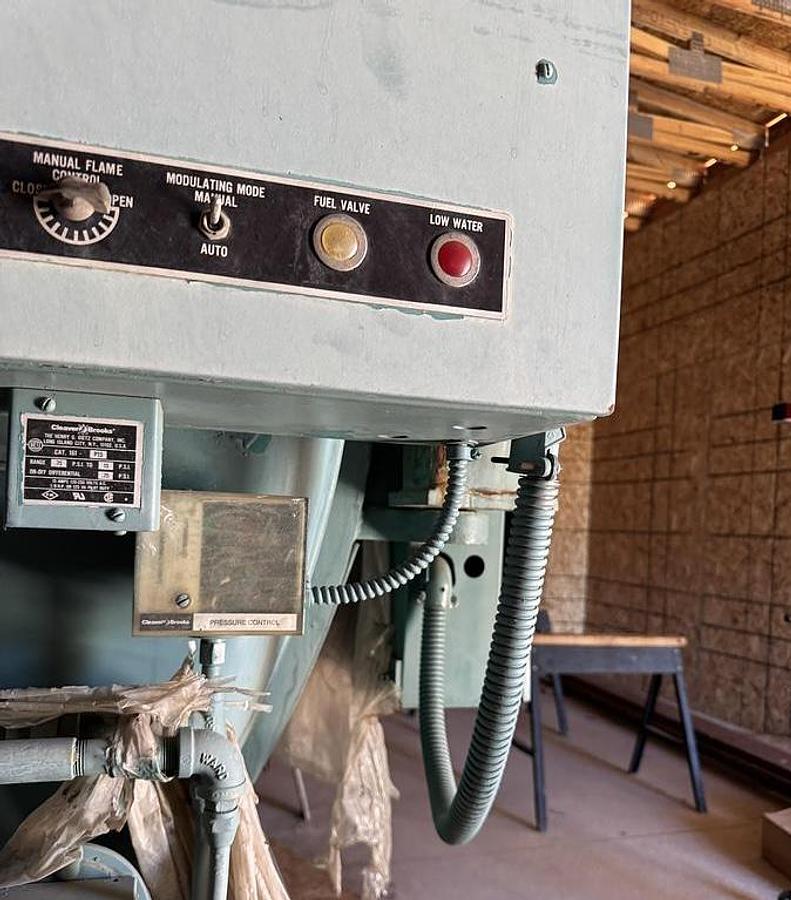

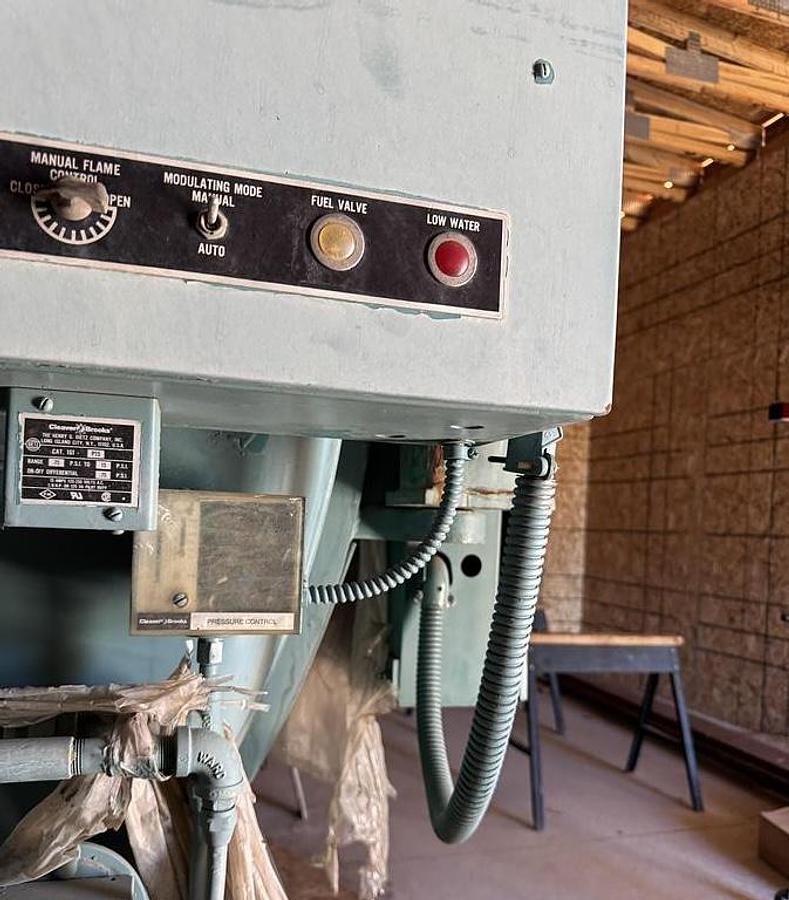

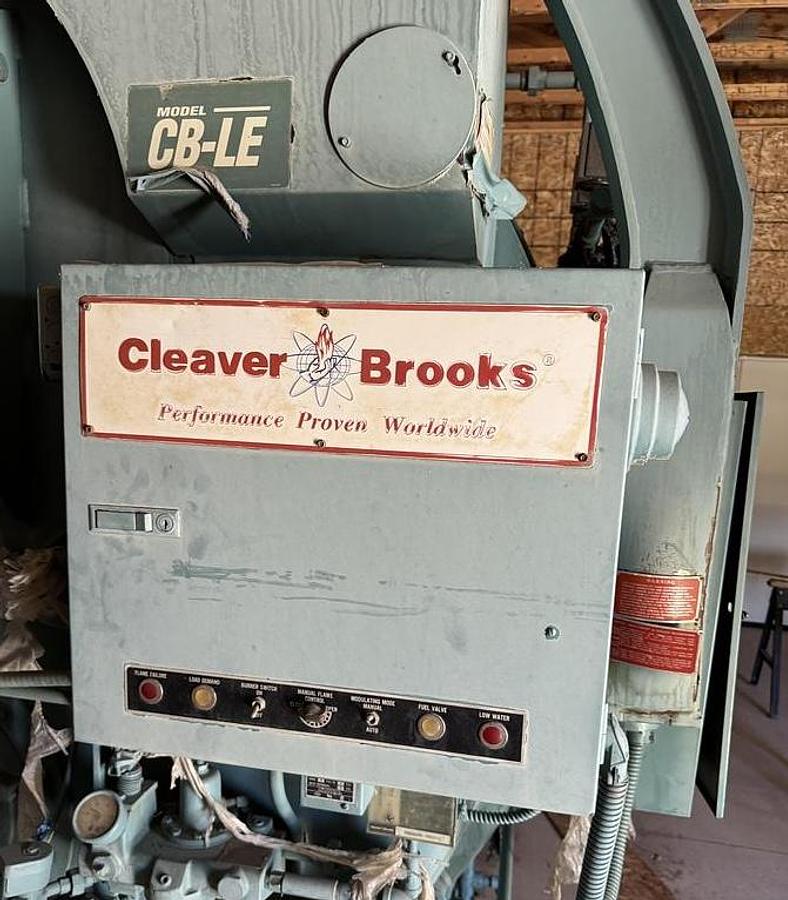

Control Systems:

• Integrated control panel
• Model CB-LE controls
• Burner management system
• Flame safeguard controls
• Operational diagnostics
• Manual flame control
• Modulating mode selector
• Fuel valve controls
• Low water indicator
• Safety interlocks
• 120V control circuit

Electrical Components:

• 460V 3-phase power supply (20A)
• 120V control circuit (7A)
• Blower motor (10 HP)
• Oil pump motor (120V, 10A)
• All wiring and connections
• Disconnect provisions
• Circuit protection
• Professional installation

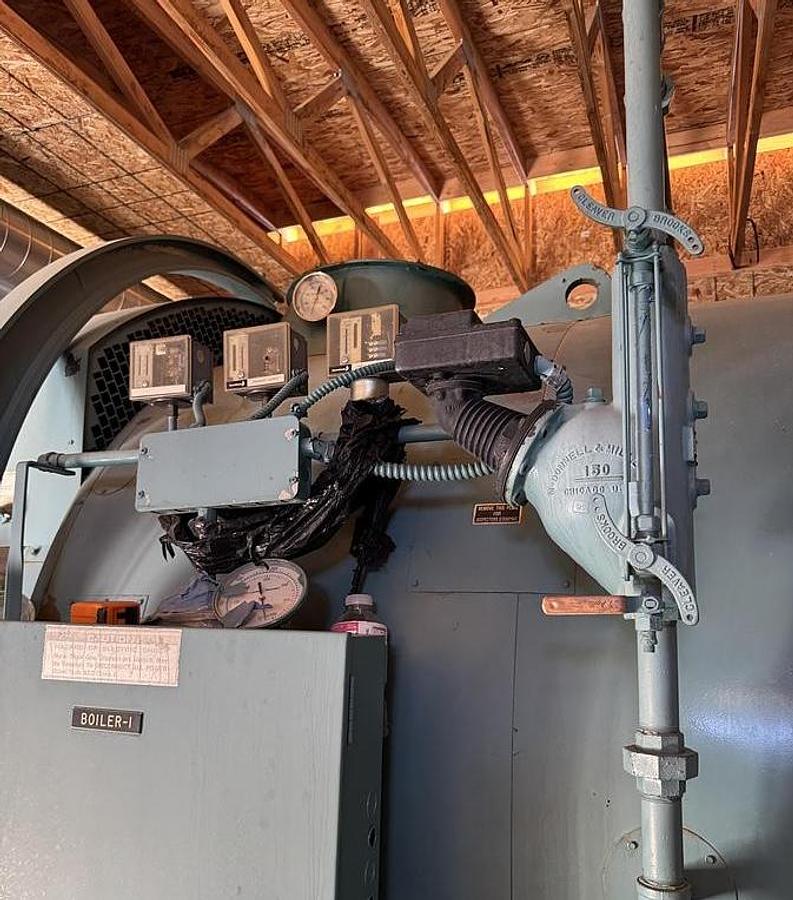

Safety & Instrumentation:

• Low water cutoff protection
• Safety relief valve
• Pressure gauge
• Temperature sensors
• Water level controls
• Fuel pressure monitoring
• Flame supervision
• Emergency shutdown capability
• Manual flame control

Water System:

• Feedwater connections
• Water level controls
• Feedwater valves
• Piping connections
• Blowdown valve
• Drain connections
• Level indication
• Low water protection

Fuel System:

• Gas pressure regulator
• Manual gas valve
• Safety shut-off valves
• Gas pressure switches
• Oil supply system
• Dual-fuel train
• Safety interlocks
• Professional fuel components
• 4.9 GPH gas consumption rating

Mounting System:

• Heavy-duty boiler skid
• Skid-mounted configuration
• Structural steel base
• Foundation mounting provisions
• Professional assembly
• Ready for installation

SPECIFICATIONS SUMMARY

Boiler:

• Manufacturer: Cleaver Brooks Division, Aqua-Chem, Inc.
• Location: Milwaukee, Wisconsin, USA
• Model: CB200 (CBLE Configuration)
• Serial No: L-99065
• Date: 8/07/02
• Type: CB Packaged low pressure steam boiler
• Fuel: Natural Gas / Oil
• Input: 12,767,817 BTU/HR
• Horsepower: 250 HP
• Max Pressure: 15 PSI
• Gas Consumption: 4.9 GPH equivalent
• Origin: USA

Fuel Supply:

• Primary: Natural Gas
• Secondary: Fuel Oil
• Gas Rating: 4.9 GPH equivalent
• Dual-Fuel Capable: Yes

Electrical:

• Main Supply: 460V, 3-Ph, 60 Hz, 20A
• Min Circuit: 23.5 Amps
• Max Protection: 80 Amps
• Control: 120V, 1-Ph, 60 Hz, 7A
• Blower Motor: 10 HP
• Oil Pump: 120V, 1-Ph, 60 Hz, 10A

Emission Control:

• Model: AN52212
• Type: Gas/Oil fired with emission reduction
• Integral Group: 40 (Gas) / 40 (Oil)

Configuration:

• Type: Packaged low pressure
• Model: CB-LE
• Mounting: Skid-mounted
• Condition: Rebuilt, never returned to service

ADDITIONAL INFORMATION

• Condition: Rebuilt - Never Returned to Service, Excellent Condition
• Manufacturer: Cleaver Brooks Division, Aqua-Chem, Inc.
• Manufacturing Location: Milwaukee, Wisconsin, USA
• Product Line: CB Packaged Boiler
• Model: CB200 (CBLE Low Pressure Configuration)
• Serial Number: L-99065
• Date Built: 8/07/02
• Fuel Type: Natural Gas / Oil (Dual-Fuel Capable)
• BTU Input: 12,767,817 BTU/HR
• Horsepower Rating: 250 HP
• Maximum Allowable Working Pressure: 15 PSI (Low Pressure Design)
• Gas Consumption: 4.9 GPH equivalent

Electrical Requirements:

• Main Power Supply: 460V, 3-Phase, 60 Hz, 20 Amps
• Minimum Circuit Ampacity: 23.5 Amps
• Maximum Rating of Circuit Protection: 80 Amps
• Control Circuit: 120V, 1-Phase, 60 Hz, 7 Amps
• Blower Motor: 10 HP
• Oil Pump Motor: 120V, 1-Phase, 60 Hz, 10 Amps

Emission Control: Gas/Oil Fired Boiler Assembly with Emission Reduction Equipment (Model AN52212)

Control System: CB-LE integrated control panel with burner management

Burner System: Dual-fuel burner assembly with 10 HP blower motor

Rebuild Status:

• System completely rebuilt
• Never put back into service after rebuild
• Excellent condition with minimal operating hours since rebuild
• All components refurbished or replaced
• Ready for immediate installation
• Extended service life remaining
• Investment-ready turnkey solution

Safety Features:

• Low water cutoff protection
• Safety relief valve
• Flame supervision system
• Multiple safety interlocks
• Emergency shutdown capability
• Pressure relief protection
• Fuel pressure monitoring
• Professional safety controls
• Emission reduction equipment

Installation Notes:

• Skid-mounted for easy installation
• All boiler components intact and rebuilt
• Ready for permanent installation
• Requires site preparation and foundation
• Professional rigging recommended for installation
• Electrical hookup by licensed electrician
• Fuel connections by licensed professional
• Professional commissioning recommended

Features:

• Cleaver Brooks CB Packaged Boiler design
• 2002 year of manufacture
• CBLE low pressure configuration (15 PSI)
• 250 horsepower industrial capacity
• 12,767,817 BTU/HR input rating
• Dual-fuel capability (natural gas/oil)
• Natural gas consumption rated 4.9 GPH equivalent
• Complete system rebuild performed
• Never returned to service after rebuild
• Excellent condition with minimal operating hours
• Emission reduction equipment included (Model AN52212)
• Integral Group 40 for gas and oil
• Primary safety controls integrated
• Heavy-duty industrial-grade construction
• Complete factory-packaged assembly
• Integrated burner and control systems
• Professional electrical package (460V 3-phase)
• 20 amp main power rating
• 23.5 amp minimum circuit ampacity
• 80 amp maximum circuit protection
• 120V control circuit (7 amps)
• 10 HP blower motor
• Oil pump motor included (120V, 10A)
• CB-LE control panel with manual flame control
• Modulating mode operation
• Low water indicator and protection
• Flame safeguard system
• Safety relief valve
• All safety trim and controls installed
• Skid-mounted for permanent installation
• Foundation mounting ready
• Proven Cleaver Brooks reliability
• Milwaukee, Wisconsin USA manufacturing
• Ready for natural gas or oil connection
• System completely rebuilt - never returned to service
• Excellent investment-ready condition
• Professional-grade commercial/industrial construction
