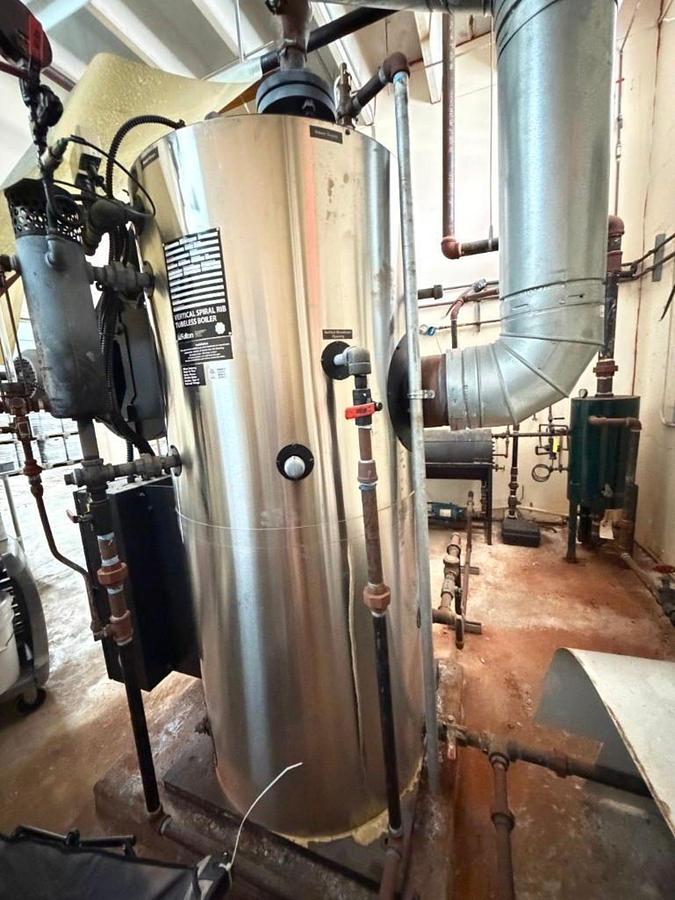

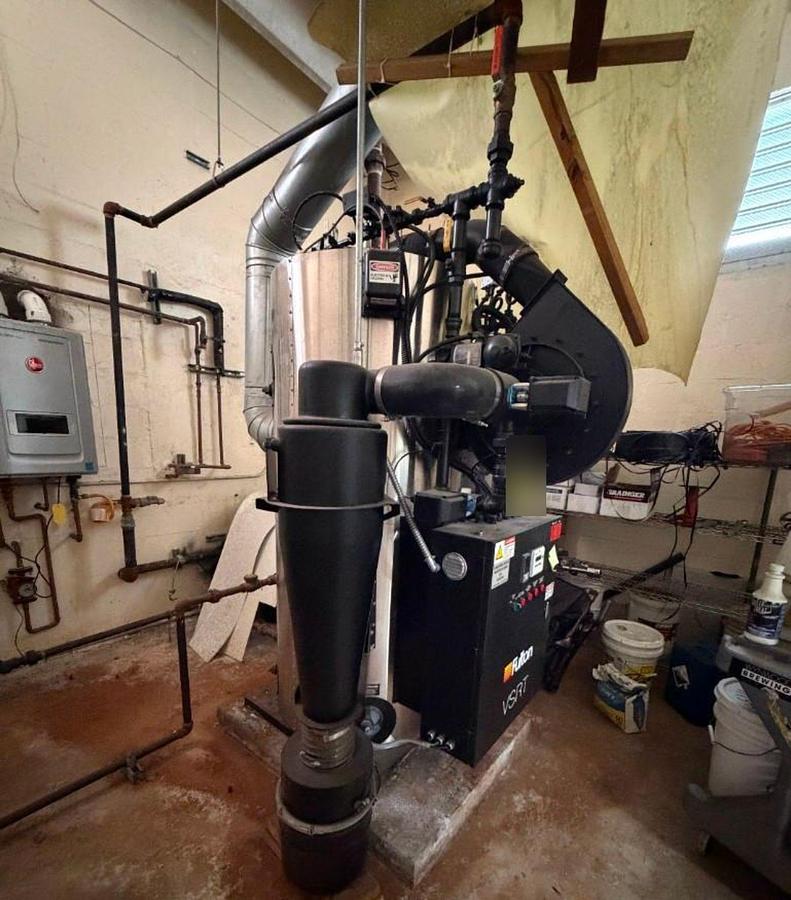

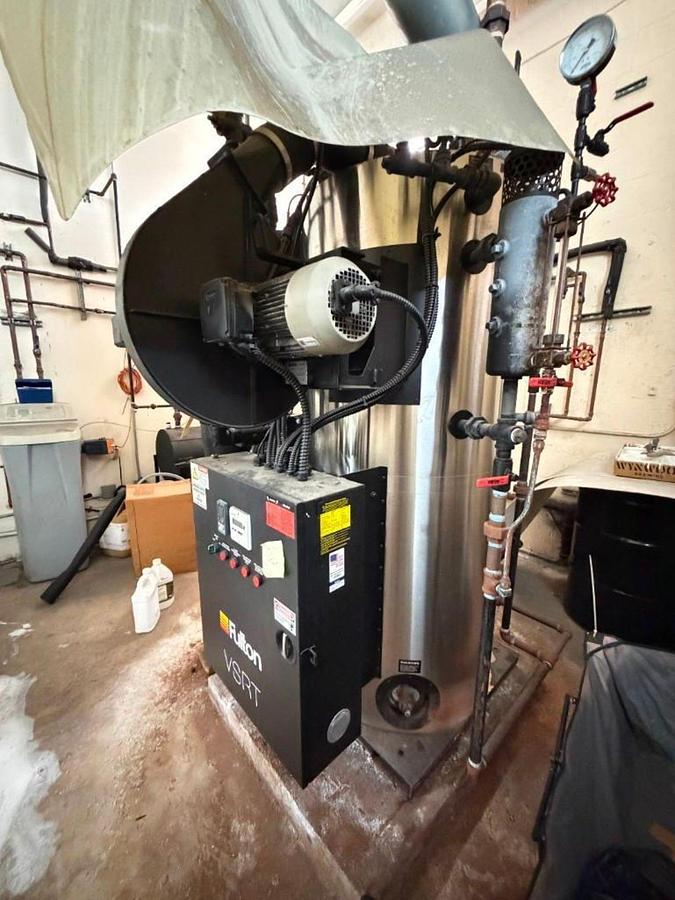

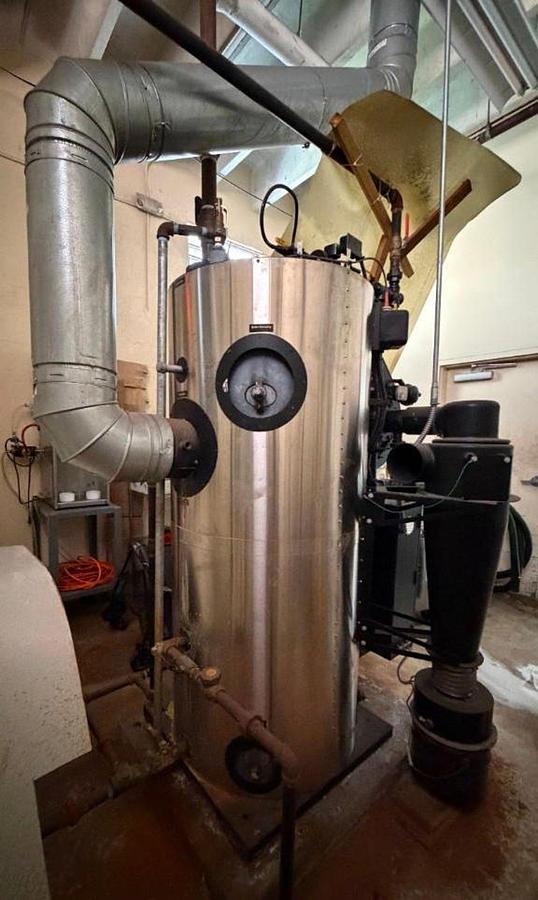

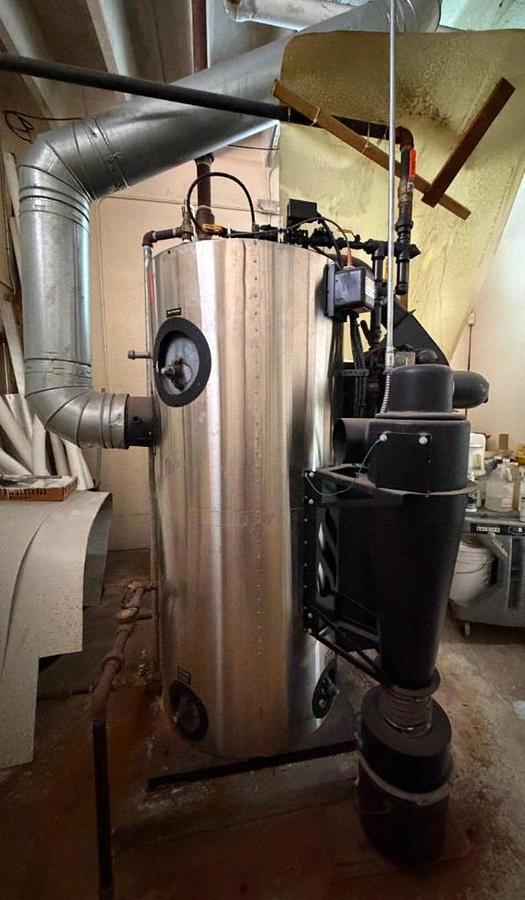

Fulton VSRT30 30HP 150PSI Vertical Spiral Rib Tubeless Steam Boiler - 2019

OVERVIEW

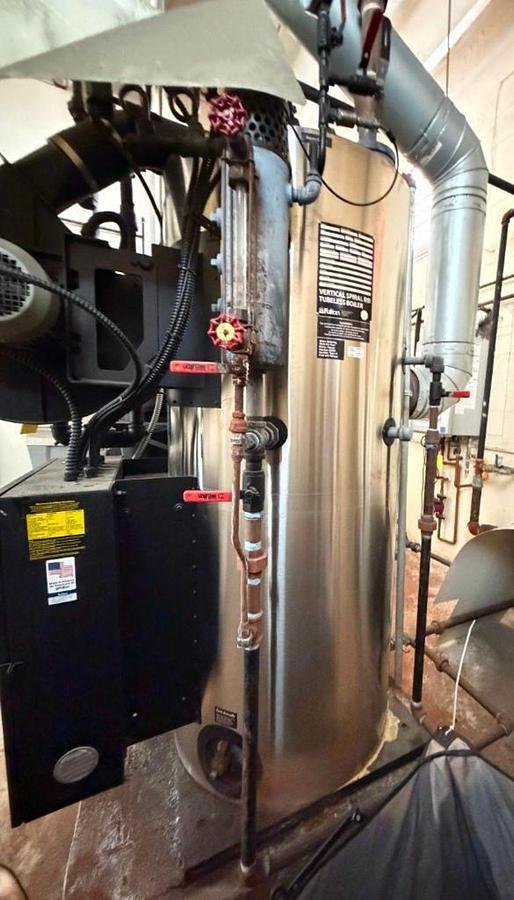

Fulton VSRT30 Vertical Spiral Rib Tubeless Steam Boiler - National Board Number 752, Serial Number F10110765A, Year Built 2019. Professional-grade natural gas-fired vertical spiral rib tubeless steam boiler featuring 1,005,000 BTU/HR output capacity with 1,035 lbs/hr steam generation at 150 PSI maximum allowable working pressure and 65 square feet heating surface. Complete packaged system includes Fulton integrated control panel, cyclone blower for combustion air, VFD drive control, and complete electrical systems. Built to ASME standards with innovative vertical spiral rib tubeless design for superior heat transfer and efficiency. Features 0.375" shell thickness, 1.25" head thickness, stainless steel construction, and modern digital monitoring systems. Maximum BTU input at altitude 1,200,000. Gas supply pressure range: 3" WC minimum to 13.8" WC maximum. Manifold gas pressure range: -2.8" WC minimum to -3" WC maximum. Complete with all safety trim and controls installed. Ideal for commercial buildings, light industrial facilities, institutional applications, or any operation requiring compact, efficient steam generation with proven Fulton vertical spiral rib tubeless technology and space-saving design.

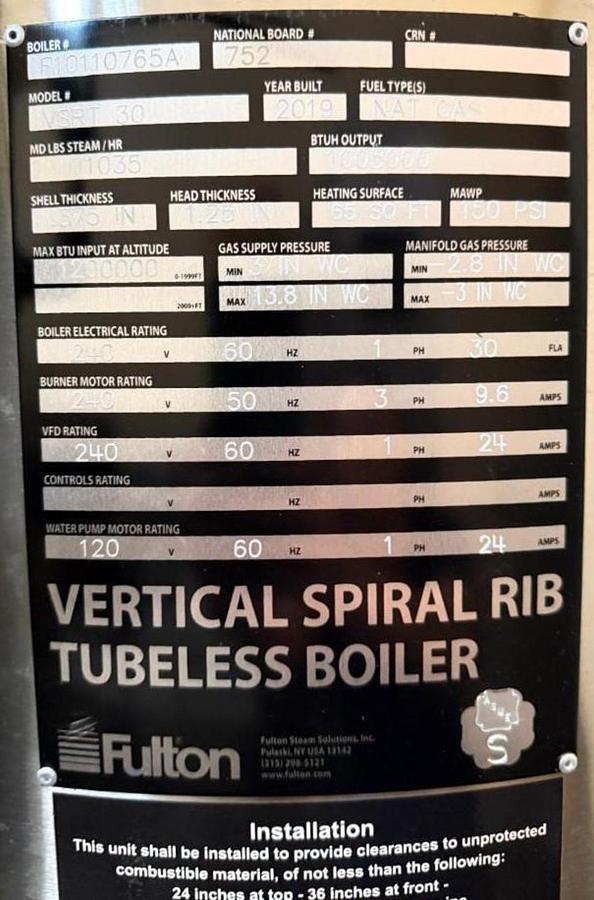

EQUIPMENT SPECIFICATIONS

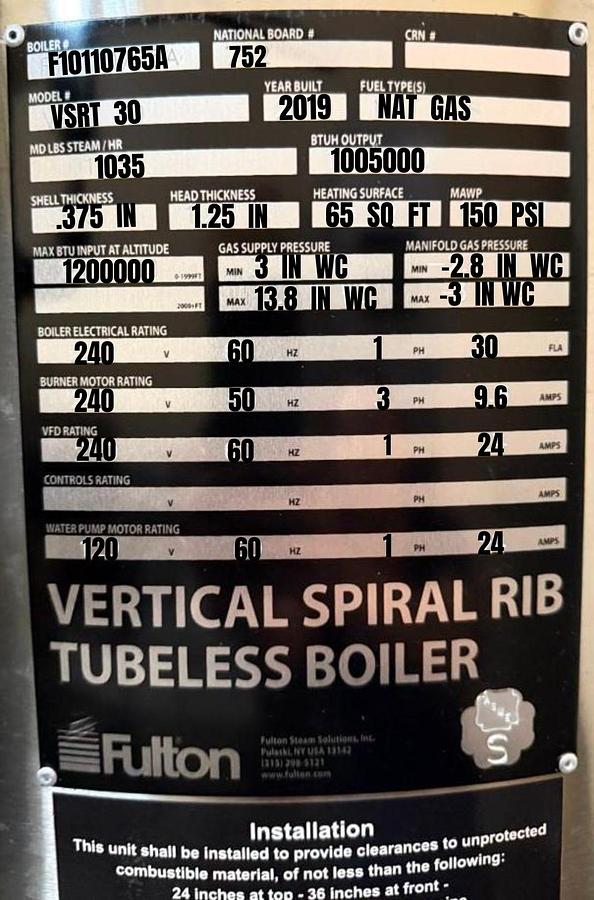

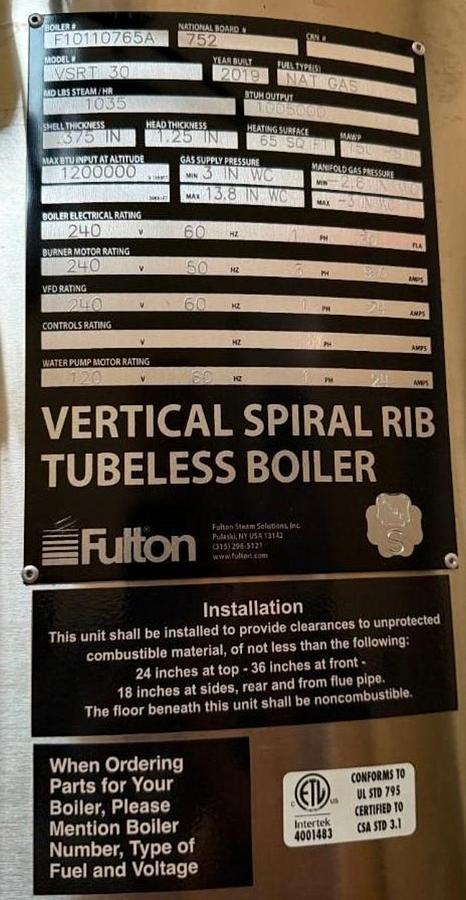

Boiler Model Information:

• Manufacturer: Fulton
• Location: Pulaski, NY USA 13142
• Product Line: Vertical Spiral Rib Tubeless Boiler
• Model Number: VSRT 30
• Serial Number: F10110765A
• National Board No: 752
• Year Built: 2019
• Configuration: Vertical spiral rib tubeless steam boiler
• Type: Natural gas-fired
• Horsepower: 30 HP

Performance Ratings:

• BTU Output: 1,005,000 BTU/HR
• Horsepower: 30 HP
• Steam Capacity: 1,035 lbs/hr
• Maximum BTU Input at Altitude: 1,200,000
• Heating Surface: 65 sq. ft.
• Maximum Allowable Working Pressure: 150 PSI
• Shell Thickness: 0.375" (3/8")
• Head Thickness: 1.25"
• Fuel Type: Natural Gas

Gas Supply Specifications:

• Gas Supply Pressure Min: 3" WC (Water Column)
• Gas Supply Pressure Max: 13.8" WC
• Manifold Gas Pressure Min: -2.8" WC
• Manifold Gas Pressure Max: -3" WC

Electrical Specifications:

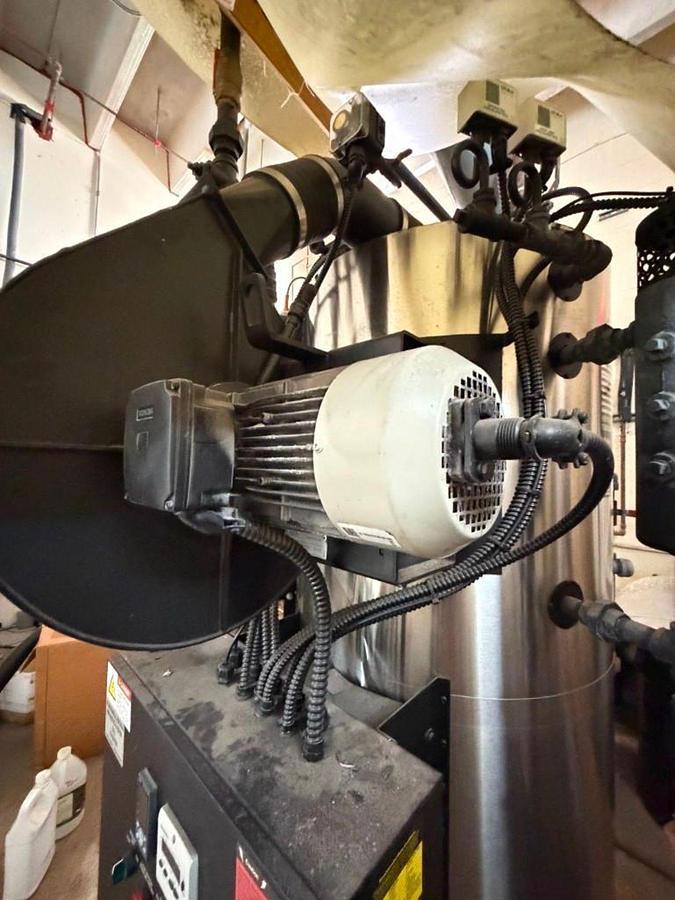

• Boiler Electrical Rating: 240V, 60 Hz, 1-Phase, 30 FLA
• Burner Motor Rating: 240V, 50 Hz, 3-Phase, 9.6 Amps
• VFD Rating: 240V, 60 Hz, 1-Phase, 24 Amps
• Water Pump Motor Rating: 120V, 60 Hz, 1-Phase, 24 Amps

Physical Configuration:

• Configuration: Vertical
• Design: Spiral rib tubeless
• Construction: Stainless steel
• Mounting: Floor-mounted
• Finish: Stainless steel exterior
• Origin: USA

KEY FEATURES & BENEFITS

Fulton Quality Manufacturing:

• Premium USA boiler manufacturer
• 2019 year of manufacture
• Vertical Spiral Rib Tubeless series
• National Board certified (752)
• Heavy-duty commercial construction
• Professional installation quality
• Nearly new condition
• Pulaski, New York manufacturing

High-Efficiency Performance:

• 30 horsepower rating
• 1,005,000 BTU/HR output
• 1,035 lbs/hr steam generation
• 65 sq. ft. heating surface
• 150 PSI maximum working pressure
• 1,200,000 BTU maximum input at altitude
• Natural gas fuel efficiency
• Compact vertical design
• Continuous duty rated

Vertical Spiral Rib Tubeless Design:

• Innovative spiral rib technology
• Tubeless construction eliminates tube maintenance
• No tube bundle to clean or replace
• Vertical orientation saves floor space
• Enhanced heat transfer surfaces
• Spiral rib configuration maximizes efficiency
• Faster steam generation
• Better thermal efficiency
• Reduced maintenance requirements
• Longer service life
• Improved water circulation

Advanced Combustion System:

• Cyclone blower for combustion air
• Variable frequency drive (VFD) control
• VFD rated 24 amps
• Optimized air/fuel ratio
• Enhanced combustion efficiency
• Reduced emissions
• Professional burner management
• Modern control technology

Digital Control Systems:

• Fulton integrated control panel
• VFD drive control
• Real-time monitoring
• Diagnostic capabilities
• Temperature and pressure monitoring
• User-friendly operation
• Warning and alarm indicators
• Professional-grade components

Heavy-Duty Construction:

• 0.375" (3/8") shell thickness
• 1.25" head thickness
• Stainless steel construction
• Corrosion-resistant materials
• Robust design
• Long service life
• Minimal maintenance
• Industrial-grade quality

Nearly New Condition:

• 2019 year of manufacture
• Modern design and technology
• Recent construction standards
• Minimal operating hours
• Excellent condition
• Current safety standards
• Up-to-date engineering
• Extended service life remaining

Safety & Compliance:

• 150 PSI ASME design pressure
• National Board certified (752)
• Multiple safety interlocks
• Safety relief valve protection
• Low water cutoff protection
• Flame safeguard system
• Code-compliant installation
• Professional engineering
• ETL certified to UL STD 795 and CSA STD 3.1

SYSTEM COMPONENTS

Main Boiler:

• Fulton Model VSRT 30
• Serial Number F10110765A
• National Board No: 752
• Year 2019 manufacture
• Vertical spiral rib tubeless design
• 30 HP capacity
• 65 sq. ft. heating surface
• 150 PSI MAWP
• Stainless steel construction
• Complete with all trim

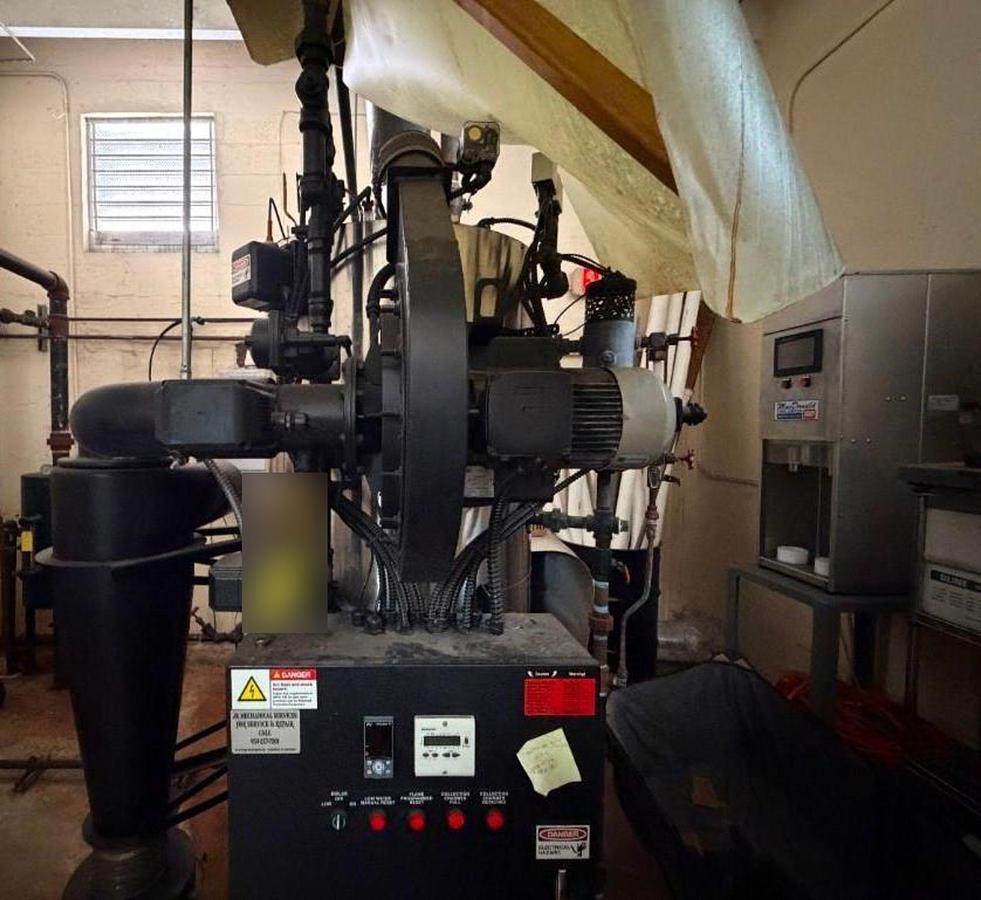

Burner System:

• Natural gas burner
• Power burner design
• Forced draft combustion
• Modulating control capability
• Gas train components
• Safety shut-off valves
• Flame safeguard system
• Professional installation

Combustion Air System:

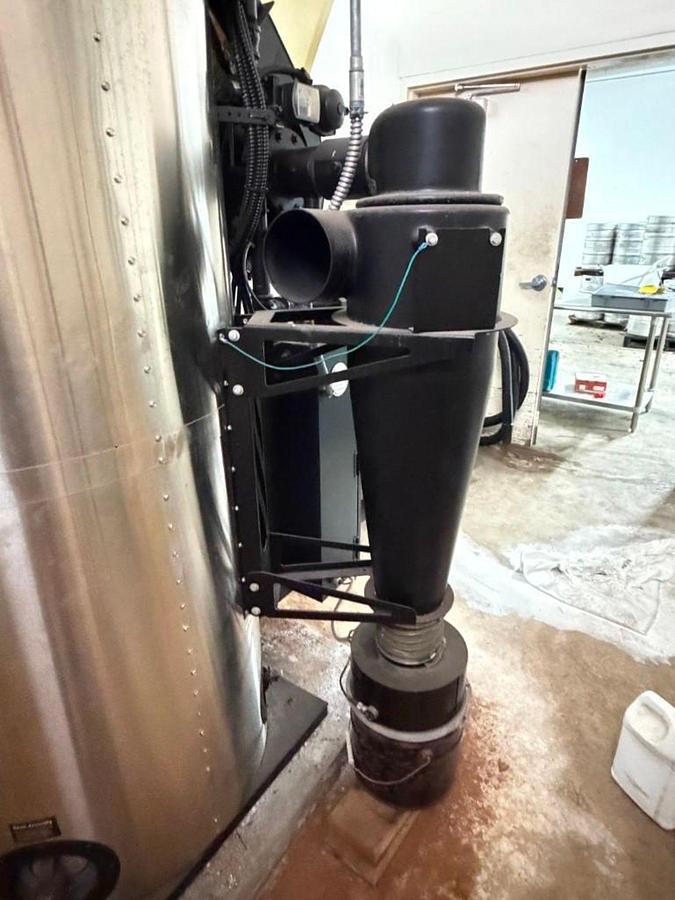

• Cyclone blower assembly
• Variable frequency drive control
• VFD rated 24 amps
• Air damper controls
• Combustion air ducting
• Professional installation
• Optimized air delivery

Control Systems:

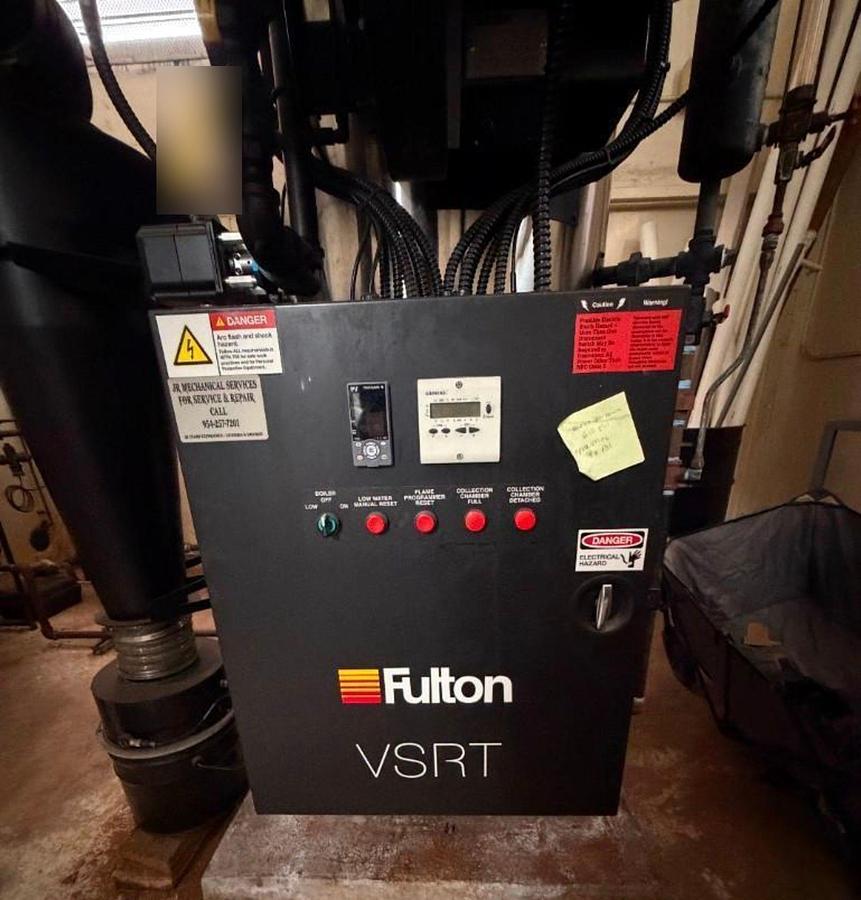

• Fulton integrated control panel
• VFD drive control panel
• Burner management system
• Flame safeguard controls
• Operational diagnostics
• Temperature controls
• Pressure monitoring
• Safety interlocks
• Warning and alarm indicators

Electrical Components:

• 240V single-phase power supply
• 60 Hz frequency
• 30 FLA boiler rating
• Burner motor: 240V, 50 Hz, 3-Ph, 9.6A
• VFD: 240V, 60 Hz, 1-Ph, 24A
• Water pump: 120V, 60 Hz, 1-Ph, 24A
• All wiring and connections
• Disconnect provisions
• Circuit protection
• Professional installation

Safety & Instrumentation:

• Low water cutoff protection
• Safety relief valve
• Pressure gauge
• Temperature sensors
• Water level controls
• Gas pressure switches
• Flame supervision
• Emergency shutdown capability

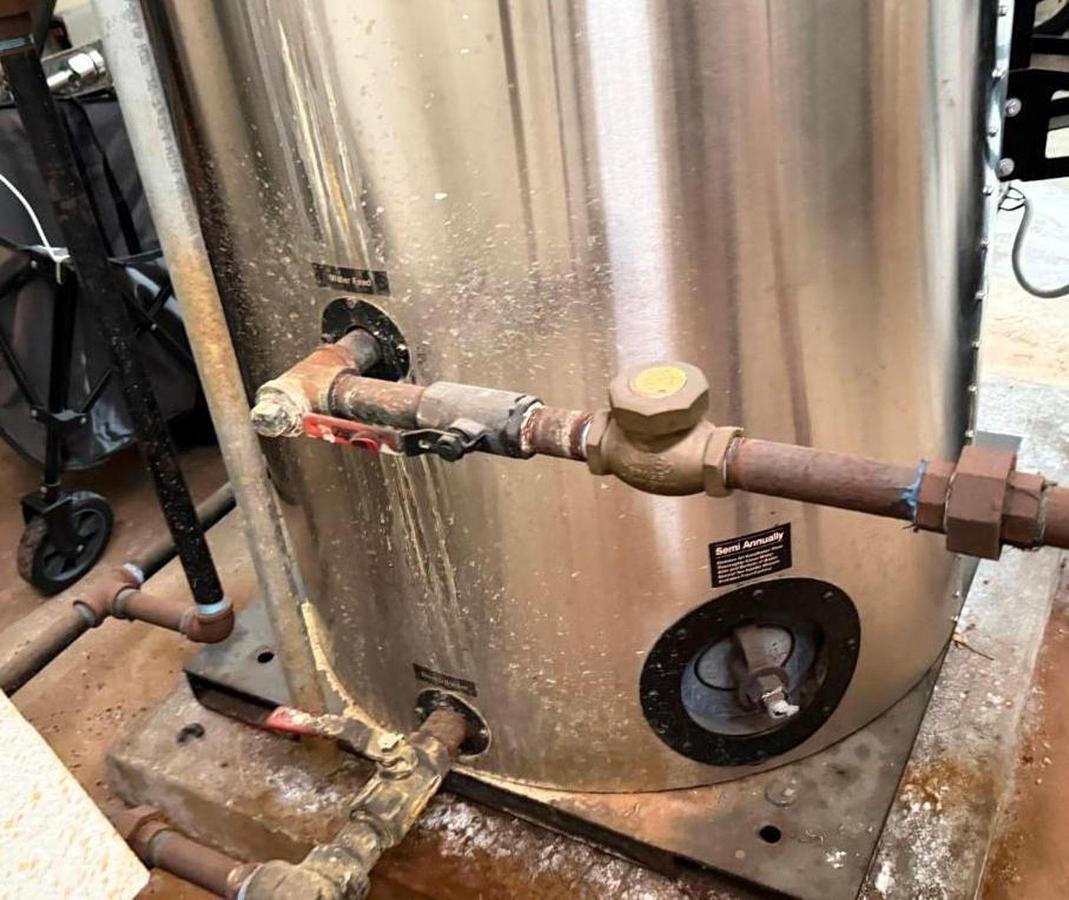

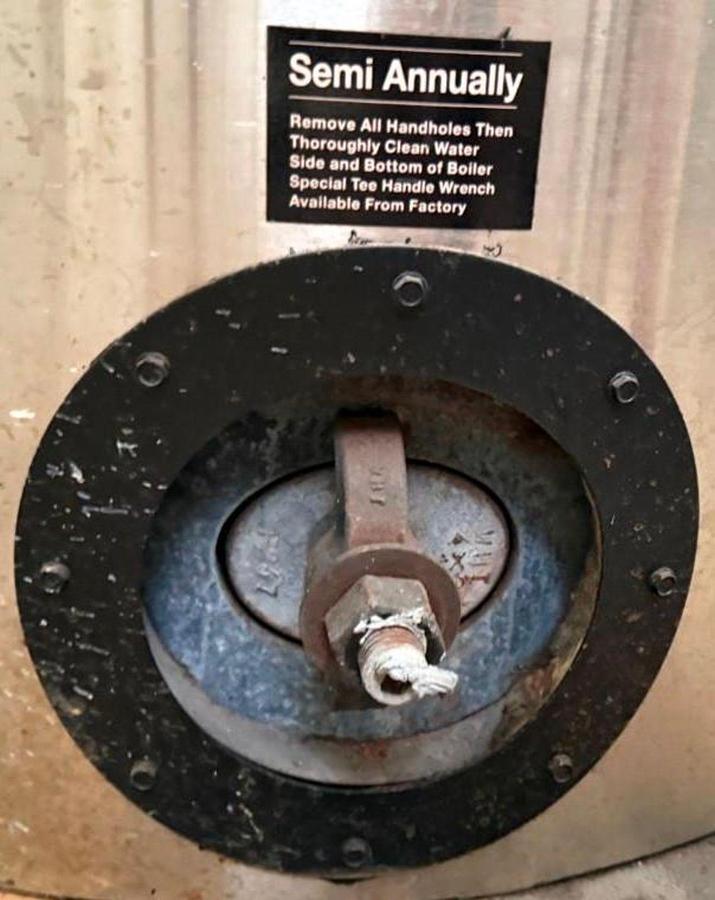

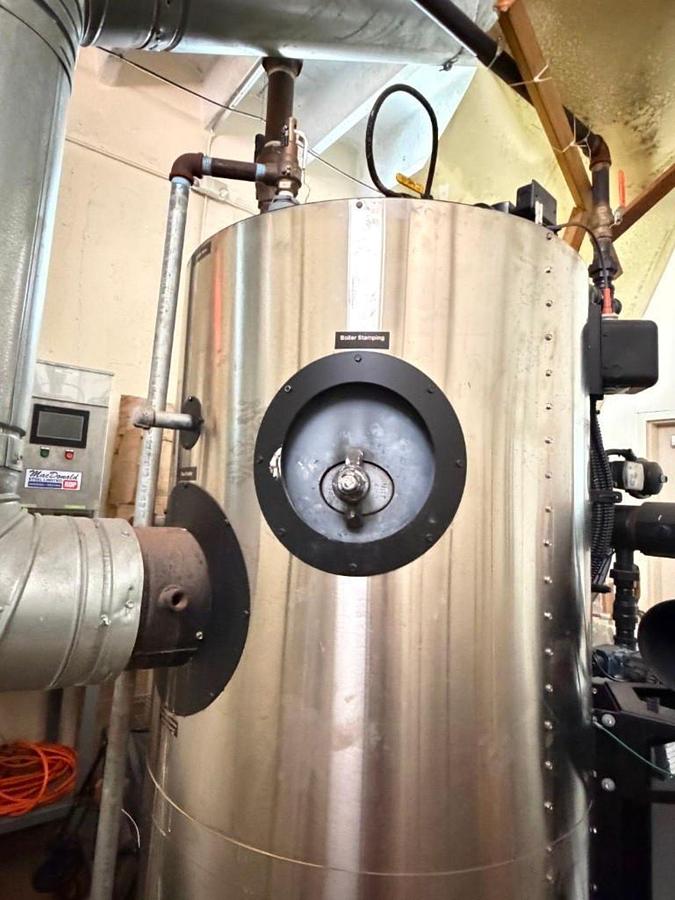

• Semi-annual handhole inspection label

Water System:

• Feedwater pump (120V, 24A)
• Water level controls
• Feedwater valves
• Piping connections
• Blowdown valve
• Drain connections
• Level indication
• Low water protection
• Handhole access ports

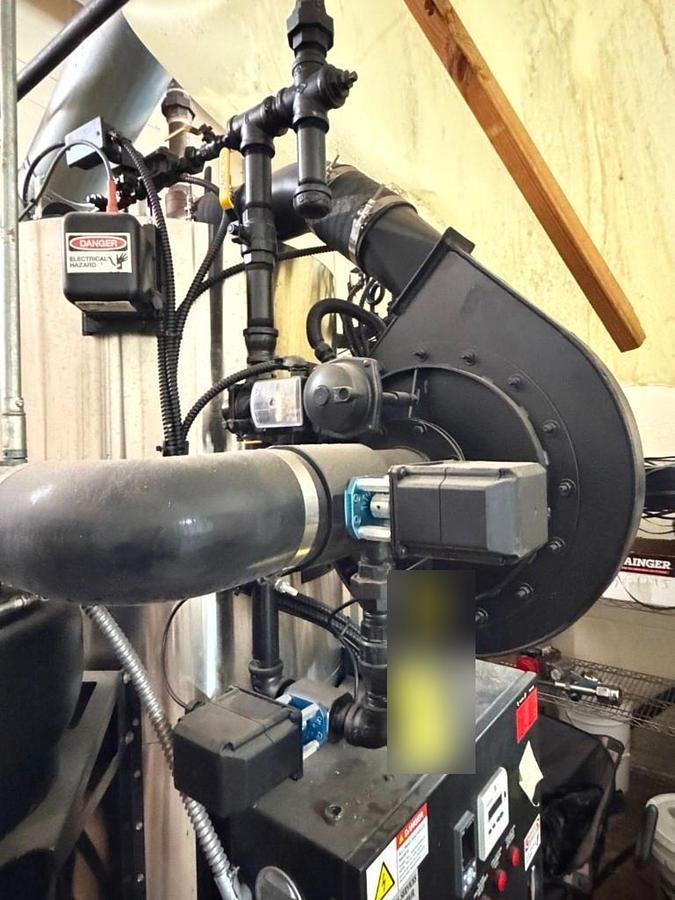

Gas System:

• Gas pressure regulator
• Manual gas valve
• Safety shut-off valves
• Gas pressure switches
• Inlet connection
• Manifold pressure monitoring
• Safety interlocks
• Professional gas train

SPECIFICATIONS SUMMARY

Boiler:

• Manufacturer: Fulton
• Location: Pulaski, NY USA 13142
• Model: VSRT 30
• Serial No: F10110765A
• National Board: 752
• Year: 2019
• Type: Vertical spiral rib tubeless steam boiler
• Fuel: Natural Gas
• Horsepower: 30 HP
• Output: 1,005,000 BTU/HR
• Max Input: 1,200,000 BTU at altitude
• Steam: 1,035 lbs/hr
• Heating Surface: 65 sq. ft.
• Max Pressure: 150 PSI
• Shell: 0.375" thickness
• Head: 1.25" thickness
• Origin: USA
• Construction: Stainless steel

Gas Supply:

• Supply Pressure Min: 3" WC
• Supply Pressure Max: 13.8" WC
• Manifold Pressure Min: -2.8" WC
• Manifold Pressure Max: -3" WC
• Fuel Type: Natural Gas

Electrical:

• Boiler: 240V, 1-Ph, 60 Hz, 30 FLA
• Burner Motor: 240V, 3-Ph, 50 Hz, 9.6A
• VFD: 240V, 1-Ph, 60 Hz, 24A
• Water Pump: 120V, 1-Ph, 60 Hz, 24A

Certifications:

• ETL Certified to UL STD 795
• Certified to CSA STD 3.1
• National Board Certified (752)
• ASME "S" Stamp

Physical:

• Configuration: Vertical
• Design: Spiral rib tubeless
• Mounting: Floor-mounted
• Finish: Stainless steel

ADDITIONAL INFORMATION

• Condition: Used - 2019 Manufacture, Excellent Condition
• Manufacturer: Fulton Steam Solutions, Inc.
• Manufacturing Location: Pulaski, NY USA 13142
• Product Line: Vertical Spiral Rib Tubeless Boiler
• Model: VSRT 30
• Serial Number: F10110765A
• National Board Number: 752
• Year Built: 2019
• Fuel Type: Natural Gas
• BTU Output: 1,005,000 BTU/HR
• Maximum BTU Input at Altitude: 1,200,000
• Horsepower: 30 HP
• Steam Generation: 1,035 lbs/hr
• Heating Surface: 65 square feet
• Maximum Allowable Working Pressure: 150 PSI
• Shell Thickness: 0.375 inches (3/8")
• Head Thickness: 1.25 inches
• Gas Supply Pressure: 3" WC minimum to 13.8" WC maximum
• Manifold Gas Pressure: -2.8" WC minimum to -3" WC maximum

Electrical Requirements:

• Boiler: 240V, 1-Phase, 60 Hz, 30 FLA
• Burner Motor: 240V, 3-Phase, 50 Hz, 9.6 Amps
• VFD: 240V, 1-Phase, 60 Hz, 24 Amps
• Water Pump Motor: 120V, 1-Phase, 60 Hz, 24 Amps

Certifications:

• ETL Certified to UL STD 795
• Certified to CSA STD 3.1
• ASME "S" Stamp on Shell
• National Board Certification (752)
• Intertek Listing (4001483)

Control System: Fulton integrated control panel with VFD drive

Combustion Air System: Cyclone blower with VFD control

Safety Features:

• Low water cutoff protection
• Safety relief valve
• Flame supervision system
• Multiple safety interlocks
• Emergency shutdown capability
• Pressure relief protection
• Gas pressure monitoring
• Professional safety controls
• Semi-annual handhole inspection requirements

Installation Requirements:

• 24 inches clearance at top
• 36 inches clearance at front
• 18 inches at sides, rear and from flue pipe
• Floor beneath unit shall be noncombustible
• Professional installation required
• Foundation specifications per manufacturer
• Adequate clearances per code requirements
• Professional rigging and placement
• Electrical hookup by licensed electrician
• Gas connection by licensed professional
• Professional commissioning recommended

Features:

• Fulton Vertical Spiral Rib Tubeless Boiler design
• 2019 year of manufacture - nearly new condition
• 30 horsepower rating
• 1,005,000 BTU/HR output capacity
• 1,200,000 BTU maximum input at altitude
• 1,035 lbs/hr steam generation
• 65 square feet heating surface
• 150 PSI maximum working pressure
• Natural gas-fired for efficient operation
• Vertical spiral rib tubeless design
• No tube bundle to clean or replace
• Spiral rib configuration maximizes heat transfer
• Tubeless construction eliminates tube maintenance
• Compact vertical footprint saves floor space
• Heavy-duty 0.375" shell thickness
• Robust 1.25" head thickness
• Stainless steel construction for corrosion resistance
• National Board certified (752)
• ASME construction and certification
• ETL certified to UL STD 795 and CSA STD 3.1
• Cyclone blower for combustion air
• Variable frequency drive (VFD) control
• VFD rated 24 amps
• Fulton integrated control system
• Real-time monitoring and diagnostics
• Low water cutoff protection
• Safety relief valve protection
• Flame safeguard system
• All safety trim and controls installed
• Complete electrical package
• Burner motor: 240V, 3-Phase, 9.6A
• Water pump: 120V, 1-Phase, 24A
• Professional-grade components throughout
• Complete packaged system
• Semi-annual handhole inspection access
• Special tee handle wrench available from factory
• Ready for natural gas connection and startup
• 2019 manufacture - excellent condition
• ETL certified to UL and CSA standards
• Professional-grade commercial/industrial construction
• Pulaski, New York USA manufacturing quality
