Fulton VSRT60 60HP 150PSI Vertical Spiral Rib Tubeless Steam Boiler - 2019

OVERVIEW

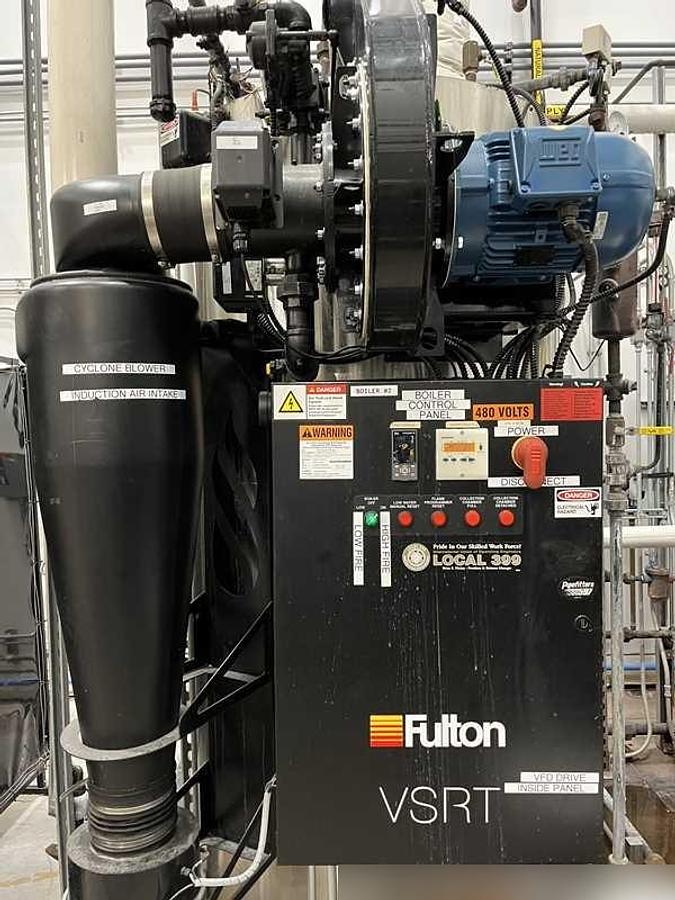

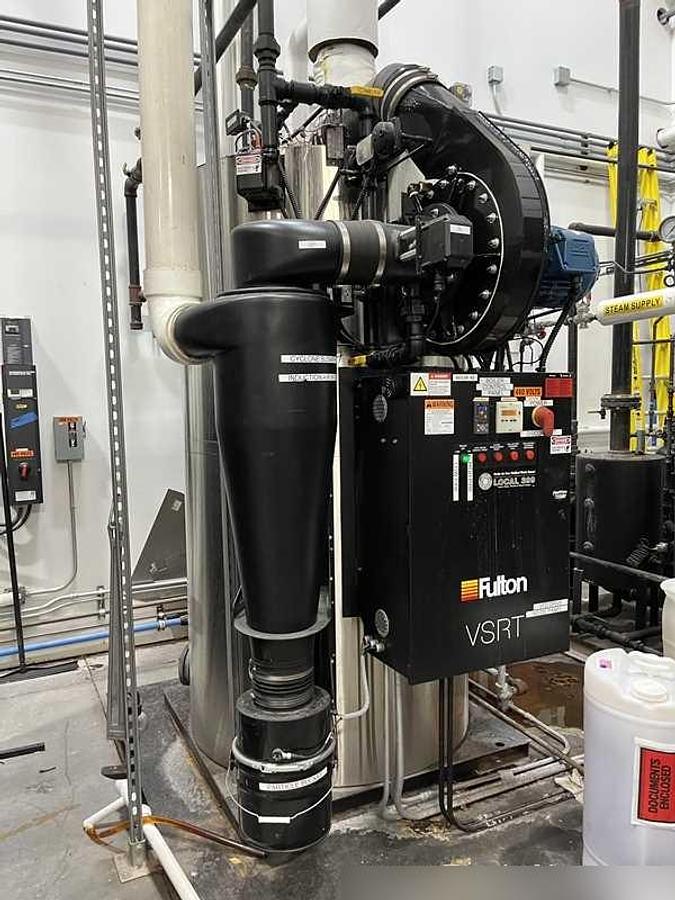

Fulton VSRT60 Vertical Spiral Rib Tubeless Steam Boiler - National Board Number 1064, Serial Number F10111581A, Year Built 2019. Professional-grade natural gas-fired vertical spiral rib tubeless steam boiler featuring 2,008,500 BTU/HR output capacity with 2,070 lbs/hr steam generation at 150 PSI maximum allowable working pressure and 116 square feet heating surface. Complete packaged system includes Fulton integrated control panel with Local 399 union certification, cyclone blower for combustion air, VFD drive control panel, and 460V three-phase electrical systems. Built to ASME standards with innovative vertical spiral rib tubeless design for superior heat transfer and efficiency. Features 3/8" shell thickness, 3/8" head thickness, stainless steel construction, and modern digital monitoring systems. Gas supply pressure range: 4" WC minimum to 13.8" WC maximum. Manifold gas pressure range: -1.9" WC minimum to -5.5" WC maximum. Complete with all safety trim and controls installed. Ideal for commercial buildings, light industrial facilities, institutional applications, or any operation requiring compact, efficient steam generation with proven Fulton vertical spiral rib tubeless technology and space-saving design.

EQUIPMENT SPECIFICATIONS

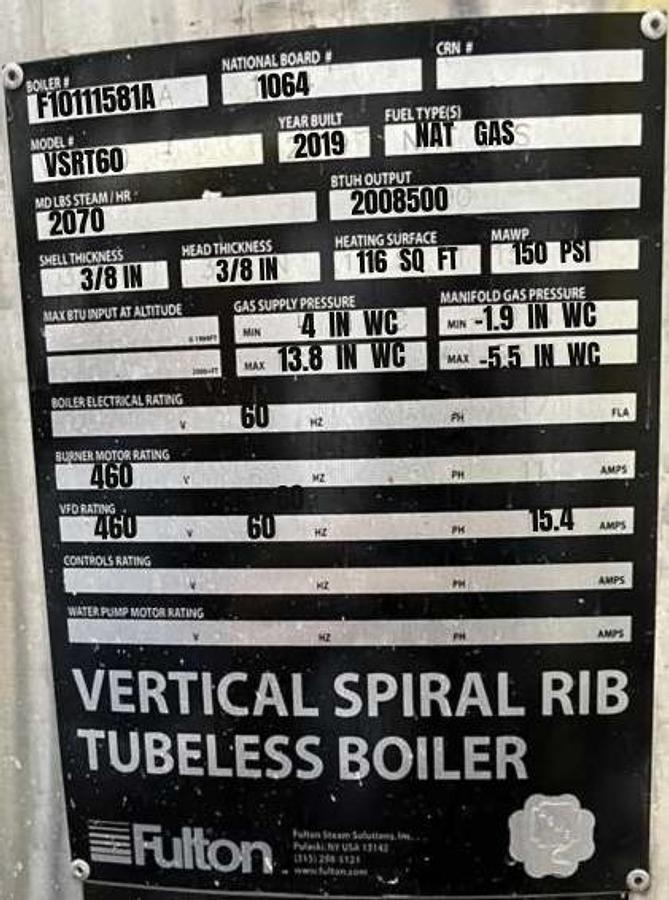

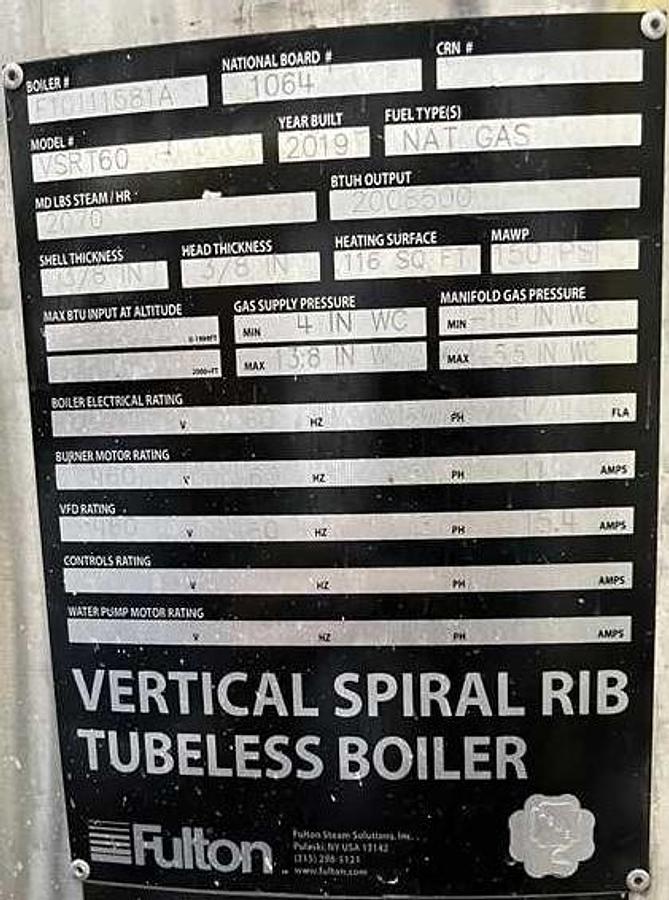

Boiler Model Information:

• Manufacturer: Fulton
• Product Line: Vertical Spiral Rib Tubeless Boiler
• Model Number: VSRT60
• Serial Number: F10111581A
• National Board No: 1064
• Year Built: 2019
• Configuration: Vertical spiral rib tubeless steam boiler
• Type: Natural gas-fired
• Horsepower: 60 BHP

Performance Ratings:

• BTU Output: 2,008,500 BTU/HR
• Boiler Horsepower: 60 BHP
• Steam Capacity: 2,070 lbs/hr
• Heating Surface: 116 sq. ft.
• Maximum Allowable Working Pressure: 150 PSI
• Shell Thickness: 3/8"
• Head Thickness: 3/8"
• Fuel Type: Natural Gas

Gas Supply Specifications:

• Gas Supply Pressure Min: 4" WC (Water Column)
• Gas Supply Pressure Max: 13.8" WC
• Manifold Gas Pressure Min: -1.9" WC
• Manifold Gas Pressure Max: -5.5" WC

Electrical Specifications:

• Boiler Electrical Rating: 460V, 60 Hz, 3-Phase
• Burner Motor Rating: 460V, 60 Hz, 3-Phase
• VFD Rating: 460V, 60 Hz, 15.4 Amps
• Controls Rating: 60V, 60 Hz

Physical Dimensions:

• Overall Length: 66"
• Overall Width: 66"
• Overall Height: 100"
• Weight: 5,500 lbs
• Recommended Packaging: Custom Pallet

Additional Components:

• Cyclone Blower: Induction air intake system
• VFD Drive: Variable frequency drive control panel
• Control Panel: Local 399 union certified
• Origin: USA

KEY FEATURES & BENEFITS

Fulton Quality Manufacturing:

• Premium USA boiler manufacturer
• 2019 year of manufacture
• Vertical Spiral Rib Tubeless series
• National Board certified (1064)
• Heavy-duty commercial construction
• Professional installation quality
• Nearly new condition
• Modern manufacturing standards

High-Efficiency Performance:

• 60 boiler horsepower rating
• 2,008,500 BTU/HR output
• 2,070 lbs/hr steam generation
• 116 sq. ft. heating surface
• 150 PSI maximum working pressure
• Natural gas fuel efficiency
• Compact vertical design
• Continuous duty rated

Vertical Spiral Rib Tubeless Design:

• Innovative spiral rib technology
• Tubeless construction eliminates tube maintenance
• No tube bundle to clean or replace
• Vertical orientation saves floor space
• Enhanced heat transfer surfaces
• Spiral rib configuration maximizes efficiency
• Faster steam generation
• Better thermal efficiency
• Reduced maintenance requirements
• Longer service life
• Improved water circulation

Advanced Combustion System:

• Cyclone blower for combustion air
• Induction air intake system
• Variable frequency drive (VFD) control
• Optimized air/fuel ratio
• Enhanced combustion efficiency
• Reduced emissions
• Professional burner management
• Modern control technology

Digital Control Systems:

• Fulton integrated control panel
• Local 399 union certified installation
• VFD drive control panel
• Real-time monitoring
• Diagnostic capabilities
• Temperature and pressure monitoring
• User-friendly operation
• Professional-grade components

Heavy-Duty Construction:

• 3/8" shell thickness
• 3/8" head thickness
• Stainless steel construction
• Corrosion-resistant materials
• Robust design
• Long service life
• Minimal maintenance
• Industrial-grade quality

Nearly New Condition:

• 2019 year of manufacture
• Modern design and technology
• Recent construction standards
• Minimal operating hours
• Excellent condition
• Current safety standards
• Up-to-date engineering
• Extended service life remaining

Safety & Compliance:

• 150 PSI ASME design pressure
• National Board certified (1064)
• Multiple safety interlocks
• Safety relief valve protection
• Low water cutoff protection
• Flame safeguard system
• Code-compliant installation
• Professional engineering
• Local 399 union certified

SYSTEM COMPONENTS

Main Boiler:

• Fulton Model VSRT60
• Serial Number F10111581A
• National Board No: 1064
• Year 2019 manufacture
• Vertical spiral rib tubeless design
• 60 BHP capacity
• 116 sq. ft. heating surface
• 150 PSI MAWP
• Stainless steel construction
• Complete with all trim

Burner System:

• Natural gas burner
• Power burner design
• Forced draft combustion
• Modulating control capability
• Gas train components
• Safety shut-off valves
• Flame safeguard system
• Professional installation

Combustion Air System:

• Cyclone blower assembly
• Induction air intake design
• Variable frequency drive control
• Air damper controls
• Combustion air ducting
• Professional installation
• Optimized air delivery

Control Systems:

• Fulton integrated control panel
• VFD drive control panel
• Local 399 union certified
• Burner management system
• Flame safeguard controls
• Operational diagnostics
• Temperature controls
• Pressure monitoring
• Safety interlocks

Electrical Components:

• 460V three-phase power supply
• 60 Hz frequency
• VFD rated 15.4 amps
• 60V control systems
• All wiring and connections
• Disconnect provisions
• Circuit protection
• Professional installation

Safety & Instrumentation:

• Low water cutoff protection
• Safety relief valve
• Pressure gauge
• Temperature sensors
• Water level controls
• Gas pressure switches
• Flame supervision
• Emergency shutdown capability

Water System:

• Feedwater connections
• Water level controls
• Feedwater valves
• Piping connections
• Blowdown valve
• Drain connections
• Level indication
• Low water protection

Gas System:

• Gas pressure regulator
• Manual gas valve
• Safety shut-off valves
• Gas pressure switches
• Inlet connection
• Manifold pressure monitoring
• Safety interlocks
• Professional gas train

SPECIFICATIONS SUMMARY

Boiler:

• Manufacturer: Fulton
• Model: VSRT60
• Serial No: F10111581A
• National Board: 1064
• Year: 2019
• Type: Vertical spiral rib tubeless steam boiler
• Fuel: Natural Gas
• Horsepower: 60 BHP
• Output: 2,008,500 BTU/HR
• Steam: 2,070 lbs/hr
• Heating Surface: 116 sq. ft.
• Max Pressure: 150 PSI
• Shell: 3/8" thickness
• Head: 3/8" thickness
• Origin: USA
• Construction: Stainless steel

Gas Supply:

• Supply Pressure Min: 4" WC
• Supply Pressure Max: 13.8" WC
• Manifold Pressure Min: -1.9" WC
• Manifold Pressure Max: -5.5" WC
• Fuel Type: Natural Gas

Electrical:

• Voltage: 460V
• Phase: 3-Phase
• Frequency: 60 Hz
• VFD: 15.4 Amps
• Controls: 60V

Physical:

• Length: 66"
• Width: 66"
• Height: 100"
• Weight: 5,500 lbs
• Configuration: Vertical
• Design: Spiral rib tubeless
• Mounting: Floor-mounted
• Finish: Stainless steel

Additional Components:

• Cyclone Blower: Included
• VFD Drive Panel: Included
• Control Panel: Local 399 certified
• Packaging: Custom pallet recommended

ADDITIONAL INFORMATION

• Condition: Used - 2019 Manufacture, Excellent Condition
• Manufacturer: Fulton
• Product Line: Vertical Spiral Rib Tubeless Boiler
• Model: VSRT60
• Serial Number: F10111581A
• National Board Number: 1064
• Year Built: 2019
• Fuel Type: Natural Gas
• BTU Output: 2,008,500 BTU/HR
• Boiler Horsepower: 60 BHP
• Steam Generation: 2,070 lbs/hr
• Heating Surface: 116 square feet
• Maximum Allowable Working Pressure: 150 PSI
• Shell Thickness: 3/8 inches
• Head Thickness: 3/8 inches
• Gas Supply Pressure: 4" WC minimum to 13.8" WC maximum
• Manifold Gas Pressure: -1.9" WC minimum to -5.5" WC maximum

Electrical Requirements:

• Boiler: 460V, 3-Phase, 60 Hz
• Burner Motor: 460V, 3-Phase, 60 Hz
• VFD: 460V, 60 Hz, 15.4 Amps
• Controls: 60V, 60 Hz

Physical Dimensions:

• Overall Length: 66 inches
• Overall Width: 66 inches
• Overall Height: 100 inches
• Total Weight: 5,500 lbs

Packaging Requirements:

• Recommended: Custom Pallet
• Rigging: Professional rigging required
• Transport: Specialized equipment needed

Control System: Fulton integrated control panel with VFD drive - Local 399 certified

Combustion Air System: Cyclone blower with induction air intake

Safety Features:

• Low water cutoff protection
• Safety relief valve
• Flame supervision system
• Multiple safety interlocks
• Emergency shutdown capability
• Pressure relief protection
• Gas pressure monitoring
• Professional safety controls
• Local 399 union certified installation

Installation Requirements:

• Professional installation required
• Foundation specifications per manufacturer
• Adequate clearances per code requirements
• Professional rigging and placement
• Electrical hookup by licensed electrician
• Gas connection by licensed professional
• Professional commissioning recommended

Features:

• Fulton Vertical Spiral Rib Tubeless Boiler design
• 2019 year of manufacture - nearly new condition
• 60 boiler horsepower rating
• 2,008,500 BTU/HR output capacity
• 2,070 lbs/hr steam generation
• 116 square feet heating surface
• 150 PSI maximum working pressure
• Natural gas-fired for efficient operation
• Vertical spiral rib tubeless design
• No tube bundle to clean or replace
• Spiral rib configuration maximizes heat transfer
• Tubeless construction eliminates tube maintenance
• Compact vertical footprint saves floor space
• Heavy-duty 3/8" shell thickness
• Robust 3/8" head thickness
• Stainless steel construction for corrosion resistance
• National Board certified (1064)
• ASME construction and certification
• Cyclone blower for combustion air
• Induction air intake system
• Variable frequency drive (VFD) control
• VFD rated 15.4 amps
• Fulton integrated control system
• Local 399 union certified control panel
• Real-time monitoring and diagnostics
• Low water cutoff protection
• Safety relief valve protection
• Flame safeguard system
• All safety trim and controls installed
• 460V three-phase electrical package
• 60V control systems
• Professional-grade components throughout
• Complete packaged system
• Ready for natural gas connection and startup
• 2019 manufacture - excellent condition
• Cyclone blower with VFD drive included
• Local 399 union certified installation
• Professional-grade commercial/industrial construction
• Dimensions: 66"L x 66"W x 100"H
• Weight: 5,500 lbs
• Custom pallet packaging recommended
