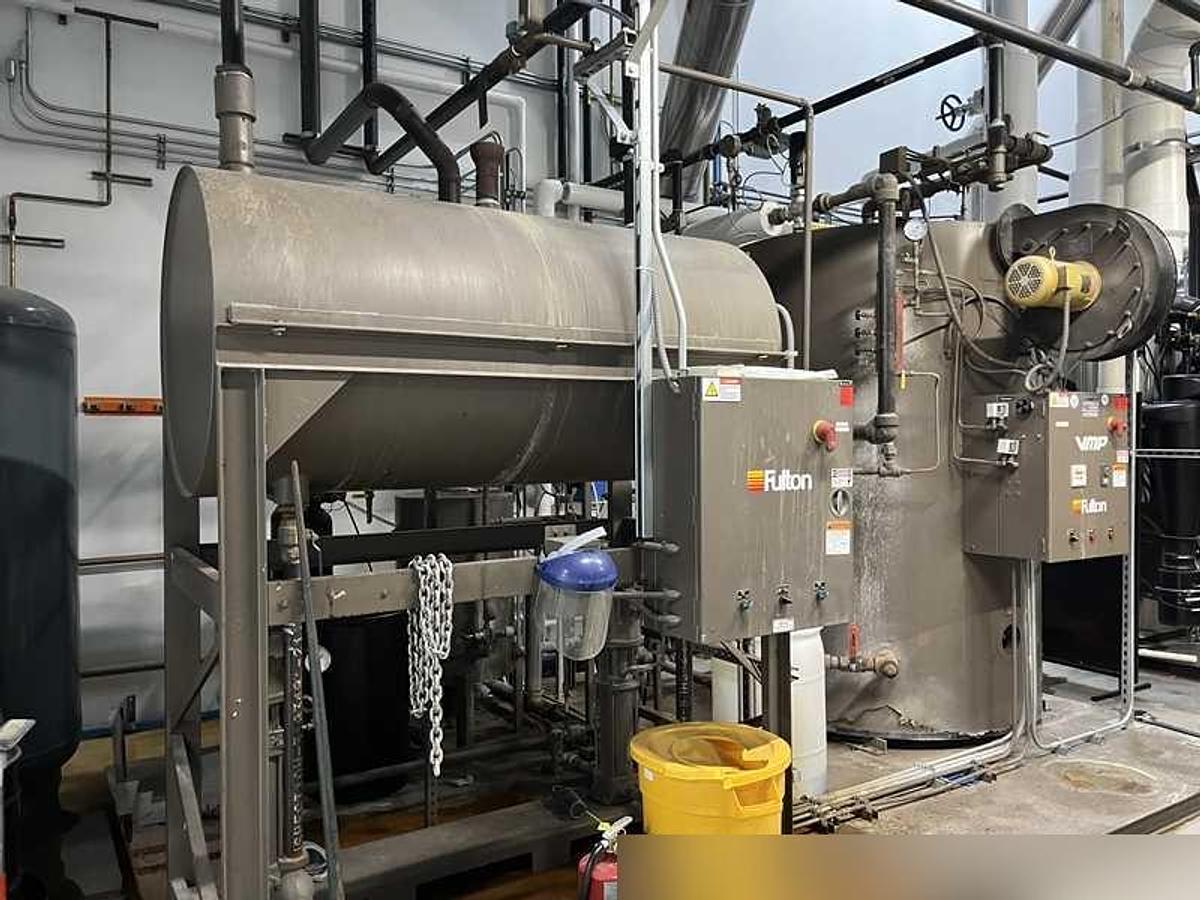

Fulton VMP 100 100HP 150PSI Vertical Multi-Port Steam Boiler with Condensate Return Tank - 2020

OVERVIEW

Fulton VMP 100 Vertical Multi-Port Steam Boiler - National Board Number 1423, Serial Number F2014968A, Year Built 2020. Professional-grade natural gas-fired vertical multi-port steam boiler featuring 3,348,000 BTU/HR output capacity with 3,450 lbs/hr steam generation at 150 PSI maximum allowable working pressure and 216 square feet heating surface. Complete packaged system includes condensate return tank, Fulton integrated control systems, 0.325" shell thickness, 0.50" head thickness, and heavy-duty steel construction. Built to ASME standards with 460V three-phase electrical systems for boiler and controls. Features innovative vertical multi-port design for superior heat transfer and efficiency. Complete with condensate return tank for closed-loop operation, all safety trim and controls installed, and modern digital monitoring systems. Ideal for commercial buildings, light industrial facilities, institutional applications, or any operation requiring compact, efficient steam generation with integrated condensate return and proven Fulton vertical multi-port technology.

EQUIPMENT SPECIFICATIONS

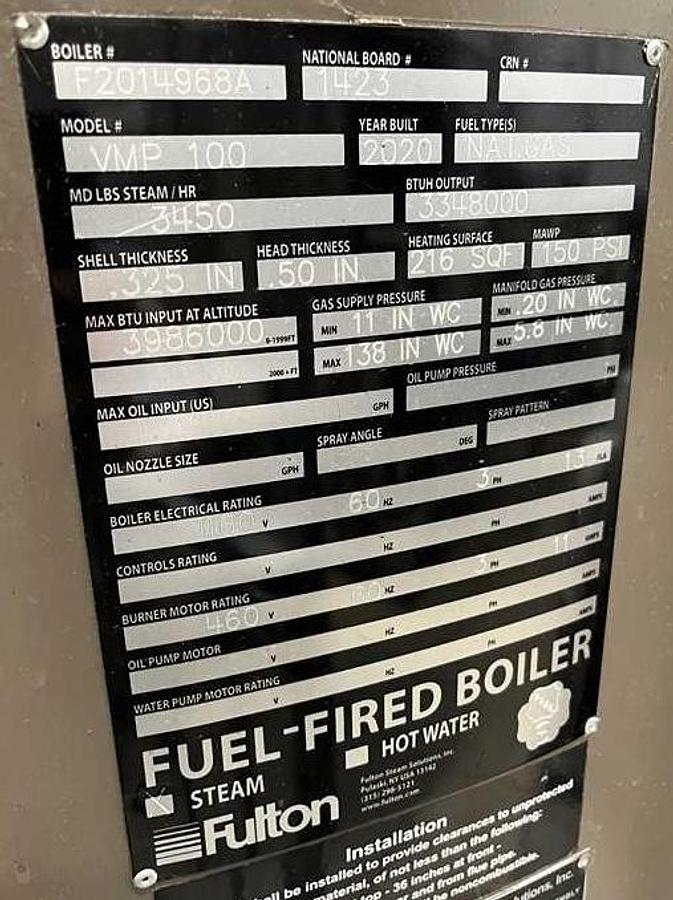

Boiler Model Information:

• Manufacturer: Fulton
• Product Line: Vertical Multi-Port Boiler
• Model Number: VMP 100
• Serial Number: F2014968A
• National Board No: 1423
• Year Built: 2020
• Configuration: Vertical multi-port steam boiler
• Type: Natural gas-fired
• Horsepower: 100 BHP

Performance Ratings:

• BTU Output: 3,348,000 BTU/HR
• Boiler Horsepower: 100 BHP
• Steam Capacity: 3,450 lbs/hr
• Heating Surface: 216 sq. ft.
• Maximum Allowable Working Pressure: 150 PSI
• Shell Thickness: 0.325"
• Head Thickness: 0.50"
• Fuel Type: Natural Gas

Electrical Specifications:

• Voltage: 460V
• Phase: 3-Phase
• Frequency: 60 Hz

Physical Dimensions:

• Overall Length: 73"
• Overall Width: 72"
• Overall Height: 120"
• Weight: 7,001 lbs
• Recommended Packaging: Custom Pallet

Additional Equipment:

• Condensate Return Tank: Included
• Configuration: Complete packaged system
• Origin: USA

KEY FEATURES & BENEFITS

Fulton Quality Manufacturing:

• Premium USA boiler manufacturer
• 2020 year of manufacture
• Vertical Multi-Port series design
• National Board certified (1423)
• Heavy-duty commercial construction
• Professional installation quality
• Nearly new condition
• Modern manufacturing standards

High-Efficiency Performance:

• 100 boiler horsepower rating
• 3,348,000 BTU/HR output
• 3,450 lbs/hr steam generation
• 216 sq. ft. heating surface
• 150 PSI maximum working pressure
• Natural gas fuel efficiency
• Compact vertical design
• Continuous duty rated

Vertical Multi-Port Design:

• Innovative multi-port technology
• Vertical orientation saves floor space
• Multiple heat transfer ports
• Enhanced combustion efficiency
• Superior heat transfer rates
• Faster steam generation
• Reduced footprint
• Better thermal efficiency
• Longer service life

Integrated Condensate Return System:

• Complete condensate return tank included
• Closed-loop operation capability
• Energy recovery optimization
• Reduced makeup water requirements
• Improved system efficiency
• Professional tank integration
• All piping connections provided
• Complete packaged solution

Advanced Control Systems:

• Fulton integrated control system
• Digital monitoring interface
• Real-time diagnostics
• Temperature and pressure monitoring
• Safety system integration
• User-friendly operation
• Automated controls
• Professional-grade components

Heavy-Duty Construction:

• 0.325" shell thickness
• 0.50" head thickness
• Heavy-duty steel construction
• Corrosion-resistant materials
• Robust design
• Long service life
• Minimal maintenance
• Industrial-grade quality

Nearly New Condition:

• 2020 year of manufacture
• Modern design and technology
• Recent construction standards
• Minimal operating hours
• Excellent condition
• Current safety standards
• Up-to-date engineering
• Extended service life remaining

Safety & Compliance:

• 150 PSI ASME design pressure
• National Board certified (1423)
• Multiple safety interlocks
• Safety relief valve protection
• Low water cutoff protection
• Flame safeguard system
• Code-compliant installation
• Professional engineering

SYSTEM COMPONENTS

Main Boiler:

• Fulton Model VMP 100
• Serial Number F2014968A
• National Board No: 1423
• Year 2020 manufacture
• Vertical multi-port design
• 100 BHP capacity
• 216 sq. ft. heating surface
• 150 PSI MAWP
• Complete with all trim

Burner System:

• Natural gas burner
• Power burner design
• Forced draft combustion
• Modulating control capability
• Gas train components
• Safety shut-off valves
• Flame safeguard system
• Professional installation

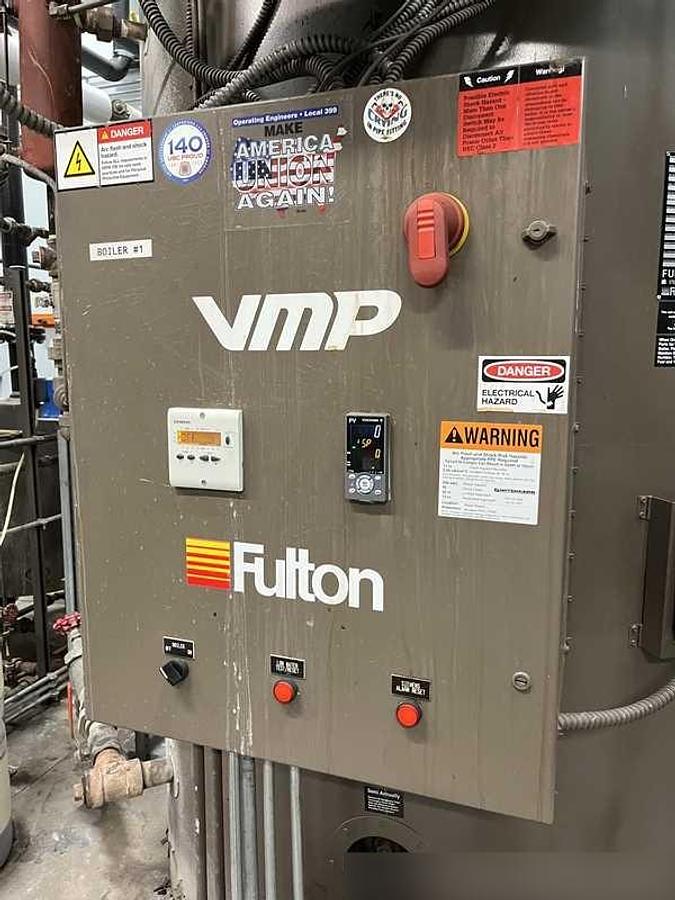

Control Systems:

• Fulton integrated control panel
• Digital monitoring interface
• Burner management system
• Flame safeguard controls
• Operational diagnostics
• Temperature controls
• Pressure monitoring
• Safety interlocks

Electrical Components:

• 460V three-phase power supply
• 60 Hz frequency
• All wiring and connections
• Disconnect provisions
• Circuit protection
• Control systems
• Professional installation
• Motor and control power

Safety & Instrumentation:

• Low water cutoff protection
• Pressure relief valve
• Pressure gauge
• Temperature sensors
• Water level controls
• Gas pressure switches
• Flame supervision
• Emergency shutdown capability

Water System:

• Feedwater connections
• Water level controls
• Feedwater valves
• Piping connections
• Blowdown valve
• Drain connections
• Level indication
• Low water protection

Condensate Return System:

• Condensate return tank included
• Tank mounting and support
• Piping connections
• Pump system (if applicable)
• Level controls
• Overflow protection
• Professional integration
• Complete packaged solution

Gas System:

• Gas pressure regulator
• Manual gas valve
• Safety shut-off valves
• Gas pressure switches
• Inlet connection
• Gas pressure monitoring
• Safety interlocks
• Professional gas train

SPECIFICATIONS SUMMARY

Boiler:

• Manufacturer: Fulton
• Model: VMP 100
• Serial No: F2014968A
• National Board: 1423
• Year: 2020
• Type: Vertical multi-port steam boiler
• Fuel: Natural Gas
• Horsepower: 100 BHP
• Output: 3,348,000 BTU/HR
• Steam: 3,450 lbs/hr
• Heating Surface: 216 sq. ft.
• Max Pressure: 150 PSI
• Shell: 0.325" thickness
• Head: 0.50" thickness
• Origin: USA

Electrical:

• Voltage: 460V
• Phase: 3-Phase
• Frequency: 60 Hz

Physical:

• Length: 73"
• Width: 72"
• Height: 120"
• Weight: 7,001 lbs
• Configuration: Vertical
• Design: Multi-port
• Mounting: Floor-mounted
• Finish: Factory finish

Additional Equipment:

• Condensate Return Tank: Included
• Packaging: Custom pallet recommended

ADDITIONAL INFORMATION

• Condition: Used - 2020 Manufacture, Excellent Condition
• Manufacturer: Fulton
• Product Line: Vertical Multi-Port Boiler
• Model: VMP 100
• Serial Number: F2014968A
• National Board Number: 1423
• Year Built: 2020
• Fuel Type: Natural Gas
• BTU Output: 3,348,000 BTU/HR
• Boiler Horsepower: 100 BHP
• Steam Generation: 3,450 lbs/hr
• Heating Surface: 216 square feet
• Maximum Allowable Working Pressure: 150 PSI
• Shell Thickness: 0.325 inches
• Head Thickness: 0.50 inches

Electrical Requirements:

• Voltage: 460V
• Phase: 3-Phase
• Frequency: 60 Hz

Physical Dimensions:

• Overall Length: 73 inches
• Overall Width: 72 inches
• Overall Height: 120 inches
• Total Weight: 7,001 lbs

Packaging Requirements:

• Recommended: Custom Pallet
• Rigging: Professional rigging required
• Transport: Specialized equipment needed

Control System: Fulton integrated control system with digital monitoring

Condensate System: Complete condensate return tank included

Safety Features:

• Low water cutoff protection
• Safety relief valve
• Flame supervision system
• Multiple safety interlocks
• Emergency shutdown capability
• Pressure relief protection
• Gas pressure monitoring
• Professional safety controls

Installation Requirements:

• Professional installation required
• Foundation specifications per manufacturer
• Adequate clearances per code requirements
• Professional rigging and placement
• Electrical hookup by licensed electrician
• Gas connection by licensed professional
• Condensate system integration
• Professional commissioning recommended

Features:

• Fulton Vertical Multi-Port Boiler design
• 2020 year of manufacture - nearly new condition
• 100 boiler horsepower rating
• 3,348,000 BTU/HR output capacity
• 3,450 lbs/hr steam generation
• 216 square feet heating surface
• 150 PSI maximum working pressure
• Natural gas-fired for efficient operation
• Vertical multi-port design for superior heat transfer
• Compact vertical footprint saves floor space
• Multiple heat transfer ports for enhanced efficiency
• Heavy-duty 0.325" shell thickness
• Robust 0.50" head thickness
• National Board certified (1423)
• ASME construction and certification
• Complete condensate return tank included
• Closed-loop operation capability
• Energy recovery optimization
• Fulton integrated control system
• Digital monitoring interface
• Low water cutoff protection
• Safety relief valve protection
• Flame safeguard system
• All safety trim and controls installed
• 460V three-phase electrical package
• Professional-grade components throughout
• Complete packaged system
• Ready for natural gas connection and startup
• Includes condensate return tank
• 2020 manufacture - excellent condition
• Professional-grade commercial/industrial construction
• Dimensions: 73"L x 72"W x 120"H
• Weight: 7,001 lbs
