Cleaver Brooks 600HP 150PSI Packaged Steam Boiler CB-600-600

OVERVIEW

NOTE: This boiler was previously installed in a trailer configuration and has been removed for stationary installation. This sale includes the boiler only - no deaerator (DA) tank is included.

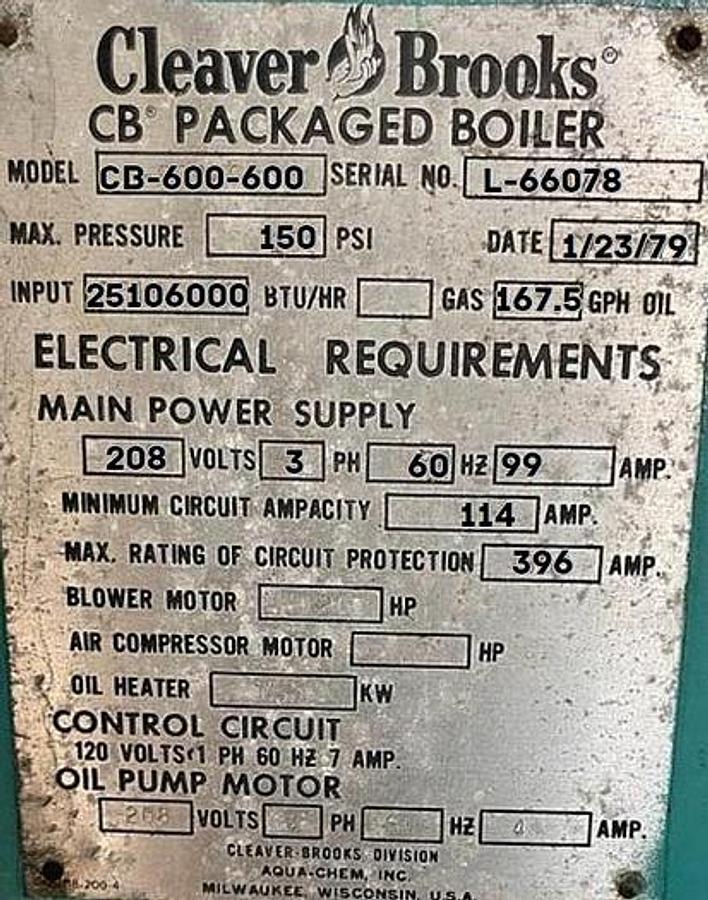

Cleaver Brooks CB Packaged Boiler - Model CB-600-600, Serial Number L-66078, Date 1/23/79. Professional-grade oil-fired packaged steam boiler featuring 25,106,000 BTU/HR input capacity with 600 horsepower rating at 150 PSI maximum allowable working pressure. Complete industrial packaged system with integrated control systems and 208V three-phase electrical package rated at 99 amps. Built to ASME standards for oil-fired operation with 167.5 GPH oil consumption rating. Minimum circuit ampacity 114 amps with maximum circuit protection rating of 396 amps. Previously housed in mobile trailer configuration, now available as standalone stationary unit. Complete boiler assembly with all trim and controls installed. Heavy-duty industrial construction ideal for large commercial facilities, industrial plants, institutional applications, manufacturing operations, or any facility requiring high-capacity steam generation with proven Cleaver Brooks reliability and efficient oil-fired operation.

EQUIPMENT SPECIFICATIONS

Boiler Model Information:

• Manufacturer: Cleaver Brooks Division
• Location: Aqua-Chem, Inc., Milwaukee, Wisconsin, USA
• Product Line: CB Packaged Boiler
• Model Number: CB-600-600
• Serial Number: L-66078
• Date: 1/23/79
• Configuration: Packaged steam boiler
• Type: Oil-fired
• Horsepower Rating: 600 HP

Performance Ratings:

• BTU Input: 25,106,000 BTU/HR
• Horsepower: 600 HP
• Maximum Allowable Working Pressure: 150 PSI
• Fuel Type: Oil
• Oil Consumption: 167.5 GPH

Electrical Specifications:

• Main Power Supply: 208V, 3-Phase, 60 Hz, 99 Amps
• Minimum Circuit Ampacity: 114 Amps
• Maximum Rating of Circuit Protection: 396 Amps
• Control Circuit: 120V, 1-Phase, 60 Hz, 7 Amps
• Oil Pump Motor: 208V
• Blower Motor: Per specifications
• Air Compressor Motor: Per specifications
• Oil Heater: KW rating per specifications

Fuel Supply:

• Fuel: Oil
• Oil Consumption: 167.5 GPH

Physical Configuration:

• Previous Installation: Mobile trailer-mounted
• Current Configuration: Standalone unit
• Mounting: Skid-mounted for stationary installation
• Origin: USA
• ASME Certified: Yes

KEY FEATURES & BENEFITS

Cleaver Brooks Quality Manufacturing:

• Premium USA boiler manufacturer
• 1979 manufacture date
• CB Packaged Boiler series
• Heavy-duty commercial/industrial construction
• Professional engineering and design
• Proven reliability in demanding applications
• Milwaukee, Wisconsin manufacturing quality

High-Capacity Performance:

• 600 horsepower rating
• 25,106,000 BTU/HR input
• 150 PSI maximum working pressure
• Heavy-duty industrial capacity
• Continuous duty rated
• Large-scale steam generation
• Robust packaged design
• Commercial/industrial grade

Oil-Fired Operation:

• Oil-fired burner system
• 167.5 GPH oil consumption rating
• Reliable fuel oil performance
• High BTU content fuel
• Consistent combustion
• Professional oil train
• Optimized combustion system
• Industrial oil burner design

Packaged Boiler Design:

• Complete factory-assembled package
• Integrated burner and controls
• Pre-wired electrical systems
• All trim and controls installed
• Simplified installation
• Reduced field labor requirements
• Factory-tested components
• Professional assembly quality

Formerly Trailer-Mounted:

• Previously mobile configuration
• Removed from trailer for stationary use
• Maintained structural integrity
• Skid-mounted for permanent installation
• Professional dismounting
• Ready for foundation mounting
• Transportable with appropriate equipment
• Flexible installation options

Robust Electrical Systems:

• 208V three-phase power supply
• 99 amp main power rating
• 114 amp minimum circuit ampacity
• 396 amp maximum circuit protection
• 120V control circuit
• Oil pump motor included
• Blower motor system
• Professional electrical package

Industrial-Grade Construction:

• Heavy-duty pressure vessel design
• Proven Cleaver Brooks engineering
• Durable steel construction
• Professional-grade components
• Long service life design
• Minimal maintenance requirements
• Industrial reliability
• Commercial quality throughout

Safety & Compliance:

• 150 PSI ASME design pressure
• Factory safety controls installed
• Low water cutoff protection
• Flame safeguard system
• Multiple safety interlocks
• Emergency shutdown capability
• Code-compliant construction
• Professional safety engineering

SYSTEM COMPONENTS

Main Boiler:

• Cleaver Brooks Model CB-600-600
• Serial Number L-66078
• Date 1/23/79
• 600 horsepower rating
• Packaged boiler design
• 25,106,000 BTU/HR capacity
• 150 PSI MAWP
• Complete with all trim

Burner System:

• Oil-fired burner assembly
• Forced draft combustion
• Oil train components
• Safety shut-off valves
• Flame safeguard system
• Oil pressure monitoring
• Professional burner management
• 167.5 GPH oil consumption

Control Systems:

• Integrated control panel
• Burner management system
• Flame safeguard controls
• Operational diagnostics
• Temperature controls
• Pressure monitoring
• Safety interlocks
• 120V control circuit

Electrical Components:

• 208V 3-phase power supply (99A)
• 120V control circuit (7A)
• Oil pump motor (208V)
• Blower motor system
• Air compressor motor
• Oil heater system
• All wiring and connections
• Circuit protection provisions

Safety & Instrumentation:

• Low water cutoff protection
• Safety relief valve
• Pressure gauge
• Temperature sensors
• Water level controls
• Oil pressure monitoring
• Flame supervision
• Emergency shutdown capability

Water System:

• Feedwater connections
• Water level controls
• Blowdown valves
• Piping connections
• Drain connections
• Level indication
• Low water protection
• Note: No deaerator tank included

Oil System:

• Oil pump motor (208V)
• Oil heater system
• Manual oil valve
• Safety shut-off valves
• Oil pressure switches
• Oil train assembly
• Safety interlocks
• 167.5 GPH rating
• Professional oil components

Mounting System:

• Heavy-duty boiler skid
• Previously trailer-mounted
• Now configured for stationary installation
• Structural steel base
• Foundation mounting provisions
• Professional dismounting completed
• Ready for permanent installation

SPECIFICATIONS SUMMARY

Boiler:

• Manufacturer: Cleaver Brooks Division, Aqua-Chem, Inc.
• Location: Milwaukee, Wisconsin, USA
• Model: CB-600-600
• Serial No: L-66078
• Date: 1/23/79
• Type: CB Packaged steam boiler
• Fuel: Oil
• Input: 25,106,000 BTU/HR
• Horsepower: 600 HP
• Max Pressure: 150 PSI
• Oil Consumption: 167.5 GPH
• Origin: USA
• ASME Certified: Yes

Fuel Supply:

• Fuel Type: Oil
• Oil Consumption: 167.5 GPH

Electrical:

• Main Supply: 208V, 3-Ph, 60 Hz, 99A
• Min Circuit: 114 Amps
• Max Protection: 396 Amps
• Control: 120V, 1-Ph, 60 Hz, 7A
• Oil Pump: 208V

Configuration:

• Previous: Trailer-mounted
• Current: Standalone unit
• Mounting: Skid-mounted
• Installation: Stationary

ADDITIONAL INFORMATION

• Condition: Used - 1979 Manufacture, Removed from Trailer Configuration
• Manufacturer: Cleaver Brooks Division, Aqua-Chem, Inc.
• Manufacturing Location: Milwaukee, Wisconsin, USA
• Product Line: CB Packaged Boiler
• Model: CB-600-600
• Serial Number: L-66078
• Date Built: 1/23/79
• Fuel Type: Oil
• BTU Input: 25,106,000 BTU/HR
• Horsepower Rating: 600 HP
• Maximum Allowable Working Pressure: 150 PSI
• Oil Consumption: 167.5 GPH

Electrical Requirements:

• Main Power Supply: 208V, 3-Phase, 60 Hz, 99 Amps
• Minimum Circuit Ampacity: 114 Amps
• Maximum Rating of Circuit Protection: 396 Amps
• Control Circuit: 120V, 1-Phase, 60 Hz, 7 Amps
• Oil Pump Motor: 208V

Control System: Integrated burner management and control panel

Burner System: Oil-fired burner assembly

Previous Configuration: Trailer-mounted mobile unit

Current Configuration: Standalone stationary boiler on skid

Safety Features:

• Low water cutoff protection
• Safety relief valve
• Flame supervision system
• Multiple safety interlocks
• Emergency shutdown capability
• Pressure relief protection
• Oil pressure monitoring
• Professional safety controls

Installation Notes:

• Previously housed in mobile trailer
• Professionally removed from trailer configuration
• Now available as standalone stationary unit
• Skid-mounted for foundation installation
• All boiler components intact
• Ready for permanent installation
• Requires site preparation and foundation
• Professional rigging recommended for installation

Features:

• Cleaver Brooks CB Packaged Boiler design
• 1979 year of manufacture
• 600 horsepower industrial capacity
• 25,106,000 BTU/HR input rating
• 150 PSI maximum working pressure
• Oil-fired operation
• Oil consumption rated 167.5 GPH
• ASME construction and certification
• Heavy-duty industrial-grade construction
• Complete factory-packaged assembly
• Integrated burner and control systems
• Professional electrical package (208V 3-phase)
• 99 amp main power rating
• 114 amp minimum circuit ampacity
• 396 amp maximum circuit protection
• 120V control circuit (7 amps)
• Oil pump motor included
• Blower motor system
• Oil heater system
• All safety trim and controls installed
• Low water cutoff protection
• Flame safeguard system
• Safety relief valve
• Previously trailer-mounted configuration
• Removed from trailer for stationary use
• Skid-mounted for permanent installation
• Foundation mounting ready
• Proven Cleaver Brooks reliability
• Milwaukee, Wisconsin USA manufacturing
• Ready for oil connection and startup
• Boiler only - no deaerator (DA) tank included
• Previously mobile trailer configuration, now stationary
• Professional-grade commercial/industrial construction
