Daikin DPS012AHHE2DW-4 & DPS015AHHE2DW-6 Rooftop HVAC Units - 10 & 12.5 Ton Electric Heat (2020)

Overview

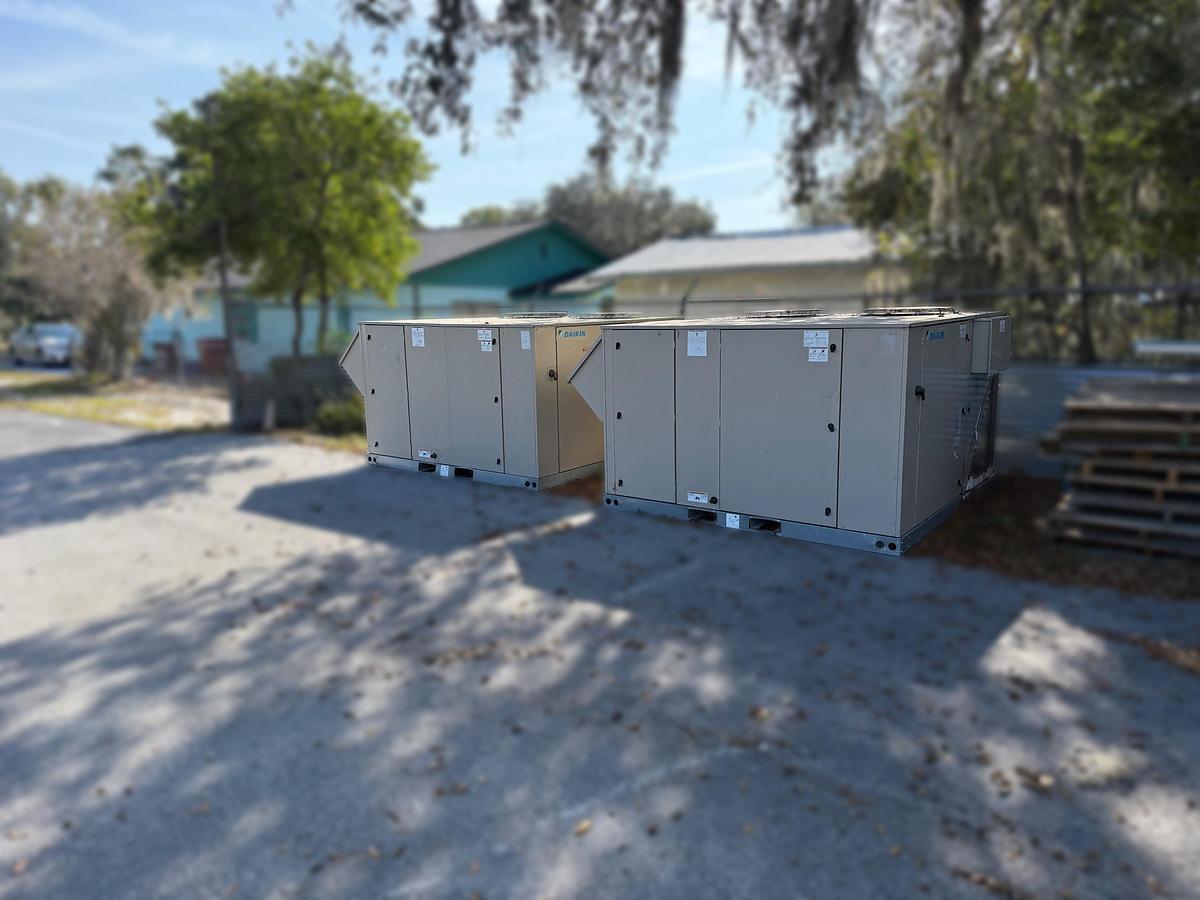

Matched pair of Daikin packaged rooftop HVAC units removed from the same facility. These commercial-grade air conditioning systems feature R410A refrigerant, 208V 3-phase power, electric heat, and ASHRAE 90.1-2016 compliance. Both units manufactured in 2020 and assembled in USA. Model DPS012AHHE2DW-4 delivers 10 tons cooling with 18 kW electric heat, while Model DPS015AHHE2DW-6 provides 12.5 tons cooling with 18 kW electric heat. Ideal for commercial buildings, offices, light industrial facilities, retail spaces, or multi-zone applications requiring reliable climate control.

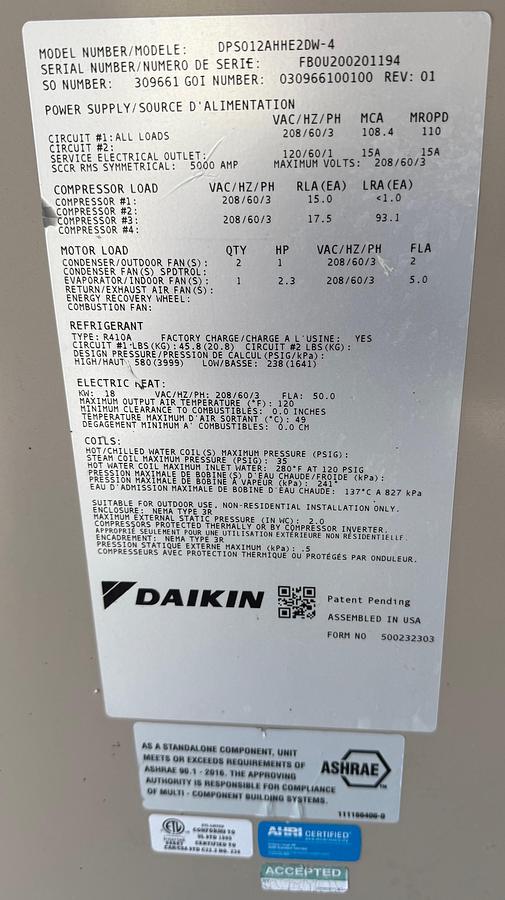

Unit #1: DPS012AHHE2DW-4 (10 Ton)

Equipment Specifications

• Model Number: DPS012AHHE2DW-4
• Serial Number: FB0U200201194
• SO Number: 309661
• GOI Number: 030966100100 REV: 01
• Form Number: 500232303
• Year Built: 2020
• Manufacturer: Daikin
• Country of Origin: Assembled in USA
• Certification: ASHRAE 90.1-2016 compliant
• Additional Certifications: ETL Listed to UL STD 1995, Certified to CAN/CSA STD C22.2 NO. 236, AHRI Certified

Performance Data

• Cooling Capacity: 10 Tons (120,000 BTU/HR nominal)
• Electric Heat: 18 kW (50.0 FLA)
• Refrigerant Type: R410A
• Factory Charge: YES
• Design Pressure: HIGH/HAUT: 580 (3995) LOW/BASSE: 238 (1641) PSIG/kPa
• Maximum Output Air Temperature: 120°F
• Minimum Clearance to Combustibles: 0.0 inches
• Temperature Maximum D'Air Sortant: 49°C
• Degagement Minimum A' Combustibles: 0.0 CM

Electrical Specifications

• Power Supply: 208/60/3 VAC/Hz/PH
• Circuit #1 (All Loads): 108.4 MCA, 110 MROPD
• Circuit #2: 125 MROPD
• Service Electrical Outlet: 120/60/1, 15A Maximum, 15A Max Volts
• SCCR RMS Symmetrical: 5000 AMP Maximum Volts: 208/60/3

Compressor Specifications

• Compressor #1: 208/60/3 VAC/Hz/PH, 15.0 RLA(EA), <1.0 LRA(EA)
• Compressor #3: 208/60/3 VAC/Hz/PH, 17.5 RLA(EA), 93.1 LRA(EA)

Motor Specifications

• Condenser/Outdoor Fan(s): Quantity: 2, 1 HP, 208/60/3 VAC/Hz/PH, 2 FLA
• Evaporator/Indoor Fan(s): Quantity: 1, 2.3 HP, 208/60/3 VAC/Hz/PH, 5.0 FLA

Coil Specifications

• Hot/Chilled Water Coil(s) Maximum Pressure: PSIG
• Steam Coil Maximum Pressure: 35 PSIG
• Hot Water Coil Maximum Inlet Water: 280°F at 120 PSIG
• Pression Maximale De Bobine A Vapeur: kPa: 241
• Pression Maximale De Bobine D'Eau Chaude/Froide: kPa: 137°C A 827 kPa
• Eau D'Admission Maximale De Bobine D'Eau Chaude: kPa

Physical Specifications

• Enclosure Type: NEMA Type 3R (outdoor use, non-residential)
• Maximum External Static Pressure: 2.0 in WC
• Configuration: Packaged rooftop unit
• Mounting: Factory curb-mounted design
• Cabinet Finish: Beige/tan powder-coated steel
• Suitable For: Outdoor use, non-residential installation only

Refrigeration Features

• Compressor Protection: Thermal and overcurrent protected by compressor or inverter
• Refrigerant: R410A (non-flammable gas)
• Factory Charged: Yes
• Appropriate Only For: Outdoor use, exterior non-residential use

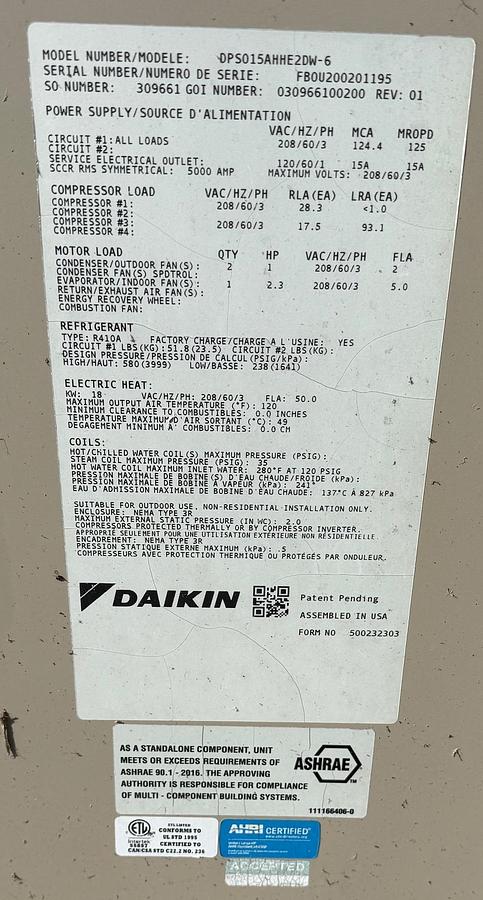

Unit #2: DPS015AHHE2DW-6 (12.5 Ton)

Equipment Specifications

• Model Number: DPS015AHHE2DW-6
• Serial Number: FB0U200201195
• SO Number: 309661
• GOI Number: 030966100200 REV: 01
• Form Number: 500232303
• Year Built: 2020
• Manufacturer: Daikin
• Country of Origin: Assembled in USA
• Certification: ASHRAE 90.1-2016 compliant
• Additional Certifications: ETL Listed to UL STD 1995, Certified to CAN/CSA STD C22.2 NO. 236, AHRI Certified

Performance Data

• Cooling Capacity: 12.5 Tons (150,000 BTU/HR nominal)
• Electric Heat: 18 kW (50.0 FLA)
• Refrigerant Type: R410A
• Factory Charge: YES
• Design Pressure: HIGH/HAUT: 580 (3995) LOW/BASSE: 238 (1641) PSIG/kPa
• Maximum Output Air Temperature: 120°F
• Minimum Clearance to Combustibles: 0.0 inches
• Temperature Maximum D'Air Sortant: 49°C
• Degagement Minimum A' Combustibles: 0.0 CM

Electrical Specifications

• Power Supply: 208/60/3 VAC/Hz/PH
• Circuit #1 (All Loads): 124.4 MCA, 125 MROPD
• Circuit #2: (Not specified)
• Service Electrical Outlet: 120/60/1, 15A Maximum, 15A Max Volts
• SCCR RMS Symmetrical: 5000 AMP Maximum Volts: 208/60/3

Compressor Specifications

• Compressor #1: 208/60/3 VAC/Hz/PH, 28.3 RLA(EA), <1.0 LRA(EA)
• Compressor #3: 208/60/3 VAC/Hz/PH, 17.5 RLA(EA), 93.1 LRA(EA)

Motor Specifications

• Condenser/Outdoor Fan(s): Quantity: 2, 1 HP, 208/60/3 VAC/Hz/PH, 2 FLA
• Evaporator/Indoor Fan(s): Quantity: 1, 2.3 HP, 208/60/3 VAC/Hz/PH, 5.0 FLA

Coil Specifications

• Hot/Chilled Water Coil(s) Maximum Pressure: PSIG
• Steam Coil Maximum Pressure: 35 PSIG
• Hot Water Coil Maximum Inlet Water: 280°F at 120 PSIG
• Pression Maximale De Bobine A Vapeur: kPa: 241
• Pression Maximale De Bobine D'Eau Chaude/Froide: kPa: 137°C A 827 kPa
• Eau D'Admission Maximale De Bobine D'Eau Chaude: kPa

Physical Specifications

• Enclosure Type: NEMA Type 3R (outdoor use, non-residential)
• Maximum External Static Pressure: 2.0 in WC
• Configuration: Packaged rooftop unit
• Mounting: Factory curb-mounted design
• Cabinet Finish: Beige/tan powder-coated steel
• Suitable For: Outdoor use, non-residential installation only

Refrigeration Features

• Compressor Protection: Thermal and overcurrent protected by compressor or inverter
• Refrigerant: R410A (non-flammable gas)
• Factory Charged: Yes
• Appropriate Only For: Outdoor use, exterior non-residential use

System Overview

Why Buy as a Matched Pair?

• Matching serial numbers (FB0U200201194 & FB0U200201195) indicate same production run
• Same 309661 SO number confirms factory coordination
• Both manufactured in 2020 from same facility
• Identical electrical requirements (208V 3-phase)
• Same mounting specifications and curb requirements
• Matching control voltages and accessories
• Unified parts inventory and service procedures
• Consistent performance characteristics
• Single-source documentation package

Combined System Capacity

• Total Cooling: 22.5 Tons (270,000 BTU/HR)
• Total Electric Heat: 36 kW
• Total Connected Load: Approximately 232.8 MCA combined
• Power Requirements: 208V, 3-Phase, 60Hz for both units
• Refrigerant: R410A (both units factory charged)

Key Specifications Summary

Unit #1 (10 Ton) Quick Reference

• Model: DPS012AHHE2DW-4
• Serial: FB0U200201194
• Year: 2020
• Cooling: 10 Tons
• Heat: 18 kW Electric
• Power: 208/60/3, 108.4 MCA, 110 MROPD
• Refrigerant: R410A (factory charged)
• Compressors: 15.0 RLA + 17.5 RLA
• Fans: (2) 1 HP condenser, (1) 2.3 HP evaporator

Unit #2 (12.5 Ton) Quick Reference

• Model: DPS015AHHE2DW-6
• Serial: FB0U200201195
• Year: 2020
• Cooling: 12.5 Tons
• Heat: 18 kW Electric
• Power: 208/60/3, 124.4 MCA, 125 MROPD
• Refrigerant: R410A (factory charged)
• Compressors: 28.3 RLA + 17.5 RLA
• Fans: (2) 1 HP condenser, (1) 2.3 HP evaporator

Combined System

• Total Capacity: 22.5 Tons cooling + 36 kW heat
• Total Estimated Weight: 2,000-3,000 lbs (both units)
• Power Required: 208V 3-Phase 60Hz
• Combined MCA: 232.8 Amps minimum
• Refrigerant Type: R410A (both factory charged)
• Certification: ASHRAE 90.1-2016, AHRI Certified

Ideal Applications

Commercial Buildings

• Office buildings and business parks
• Retail stores and shopping centers
• Medical offices and clinics
• Professional service facilities
• Bank branches and credit unions
• Government buildings
• Educational facilities

Light Industrial

• Warehouse offices
• Manufacturing administrative areas
• Distribution center offices
• Light assembly facilities
• Technology and data centers
• Research facilities

Multi-Tenant Applications

• Strip malls and commercial plazas
• Multi-office complexes
• Mixed-use developments
• Business incubators
• Co-working spaces

Institutional Facilities

• Schools and daycare centers
• Community centers
• Religious facilities
• Libraries and learning centers
• Healthcare clinics

Hospitality & Service

• Restaurants and bars
• Fitness centers and gyms
• Salons and spas
• Auto dealership showrooms
• Service centers

System Benefits

Matched Pair Advantages

• Factory-coordinated equipment from same production run
• Identical installation requirements and procedures
• Simplified parts inventory and maintenance
• Consistent performance characteristics
• Unified control and monitoring systems
• Single-source technical documentation
• Matching warranty and service history
• Bundle pricing vs. separate purchase
• Simplified contractor bidding and installation

Daikin Quality Features

• 2020 USA assembly with quality components
• ASHRAE 90.1-2016 energy efficiency compliance
• AHRI certified performance ratings
• R410A environmentally-preferred refrigerant
• Factory charged and leak tested
• ETL and CSA safety certifications
• Proven Daikin commercial reliability
• Professional-grade construction
• Weather-resistant NEMA 3R enclosures

Operational Benefits

• Electric heat eliminates gas piping requirements
• Packaged design simplifies installation
• Rooftop mounting saves valuable floor space
• 208V 3-phase common commercial voltage
• Dual compressors for staging and redundancy
• Energy recovery wheels (if equipped)
• Return/exhaust air fan capability
• 2.0" external static capability for ductwork

Additional Information

• Condition: Used - 2020 Manufacture
• Manufacturer: Daikin
• Country of Origin: Assembled in USA
• Models: DPS012AHHE2DW-4 (10 Ton) & DPS015AHHE2DW-6 (12.5 Ton)
• Serial Numbers: FB0U200201194 & FB0U200201195
• Year Built: 2020
• Total Cooling Capacity: 22.5 Tons (270,000 BTU/HR combined)
• Total Electric Heat: 36 kW (combined)
• Power Requirements: 208V, 3-Phase, 60Hz
• Refrigerant: R410A (factory charged both units)
• Certification: ASHRAE 90.1-2016, AHRI Certified, ETL Listed
• Estimated Weight: 2,000-3,000 lbs (both units combined)
