Pad-Mounted Transformers - MEC 3 MVA & Sunbelt 1500 KVA - 4160V to 480Y/277V - 3-Phase (2014)

Overview

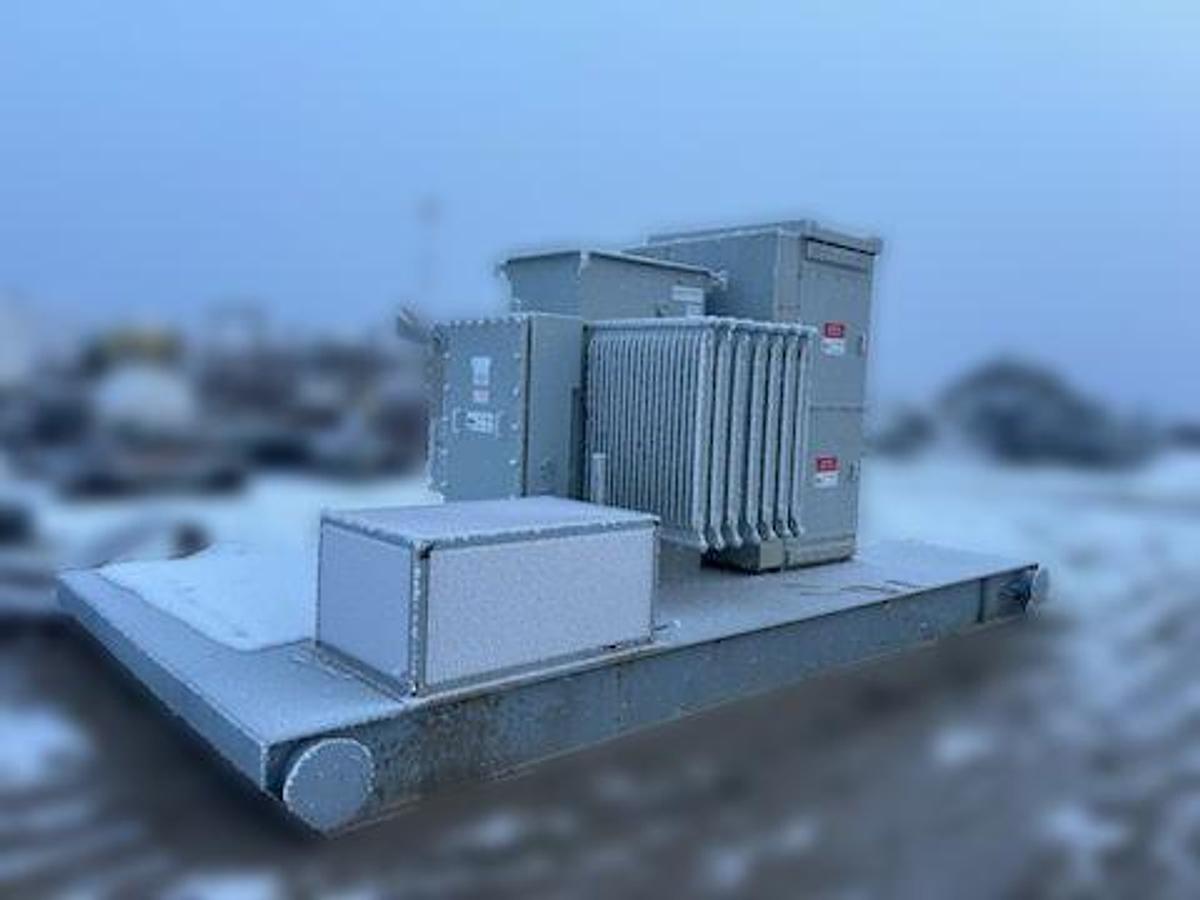

This listing includes two pad-mounted transformers manufactured in July 2014, both configured for 4160V primary to 480Y/277V secondary voltage. The package includes one MEC 3 MVA transformer and one Sunbelt Transformer Ltd. 1500 KVA transformer, both with West Coast Switchgear pad-mounted enclosures with integrated disconnect switches. Both complete systems are mounted on concrete pads and feature oil-filled construction with radiator cooling fins for outdoor installation.

Design and Performance

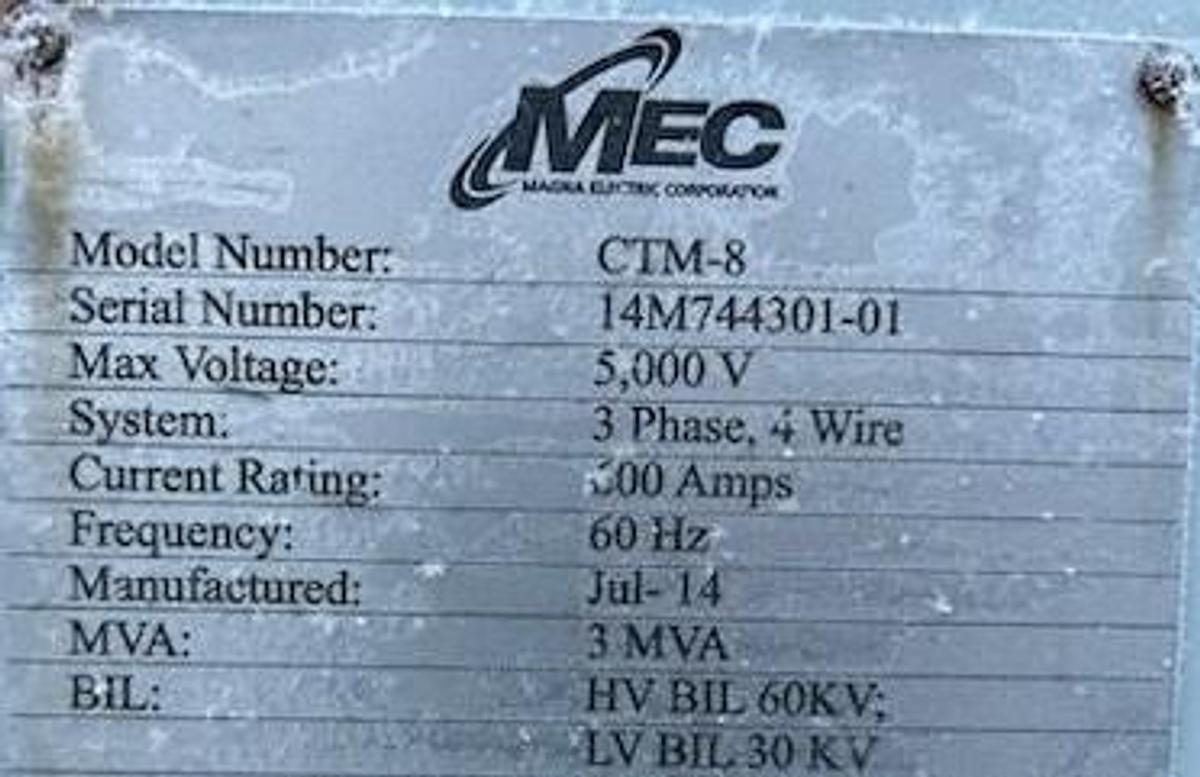

Transformer #1 - MEC CTM-8:

• Manufacturer: MEC (Magnetek Electric Corporation)
• Model: CTM-8
• Serial Number: 14M744301-01
• Manufacturing Date: July 2014 (Jul-14)
• Capacity: 3 MVA
• Primary Voltage: 4160V
• Secondary Voltage: 480Y/277V
• System: 3-Phase, 4-Wire
• Frequency: 60 Hz
• Current Rating: 600 Amps
• Maximum Voltage: 5,000V
• High Voltage BIL: 60 KV
• Low Voltage BIL: 30 KV

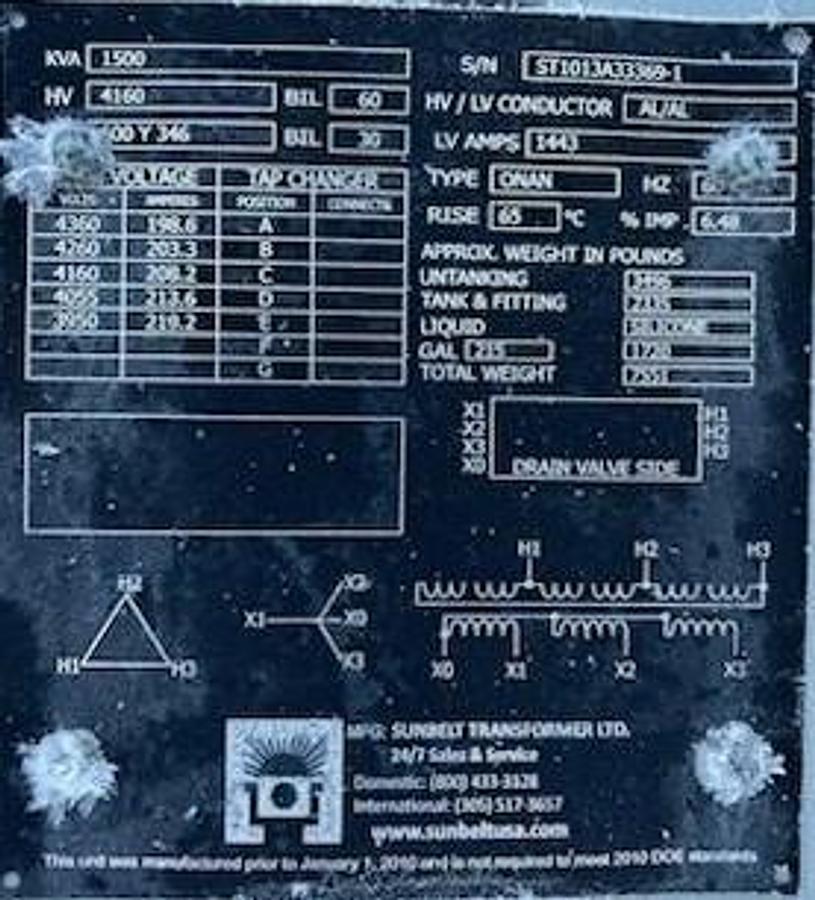

Transformer #2 - Sunbelt:

• Manufacturer: Sunbelt Transformer Ltd.
• Capacity: 1500 KVA
• Primary Voltage: 4160V
• Secondary Voltage: 480Y/277V
• System: 3-Phase, 4-Wire
• Frequency: 60 Hz
• Manufacturing Date: 2014

Switchgear Specifications:

• Manufacturer: West Coast Switchgear Inc.
• Location: Cerritos, CA 90703
• Address: 13837 Bettencourt St.

Construction:

• Type: Pad-mounted oil-filled transformers
• Enclosure: Gray steel weatherproof cabinets
• Cooling: Radiator fins with oil cooling
• Primary Compartment: High voltage section with disconnect
• Secondary Compartment: Low voltage section
• Mounting: Concrete pad bases
• Finish: Gray painted steel

System Components (Both Units):

• Oil-filled transformer cores
• West Coast Switchgear enclosures
• Primary disconnect switches
• Secondary disconnect switches
• Radiator cooling fins
• Oil-filled tanks
• Concrete mounting pads
• High voltage bushings
• Low voltage terminals
• Ground connections
• Lockable access doors

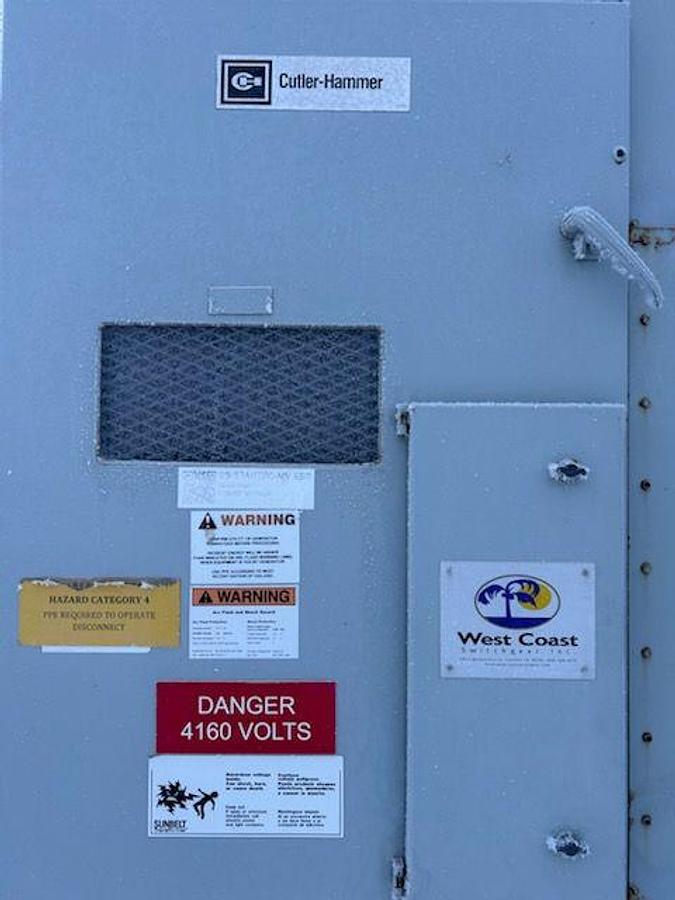

Safety Features:

• Cutler-Hammer components
• Hazard Category 4 warning labels

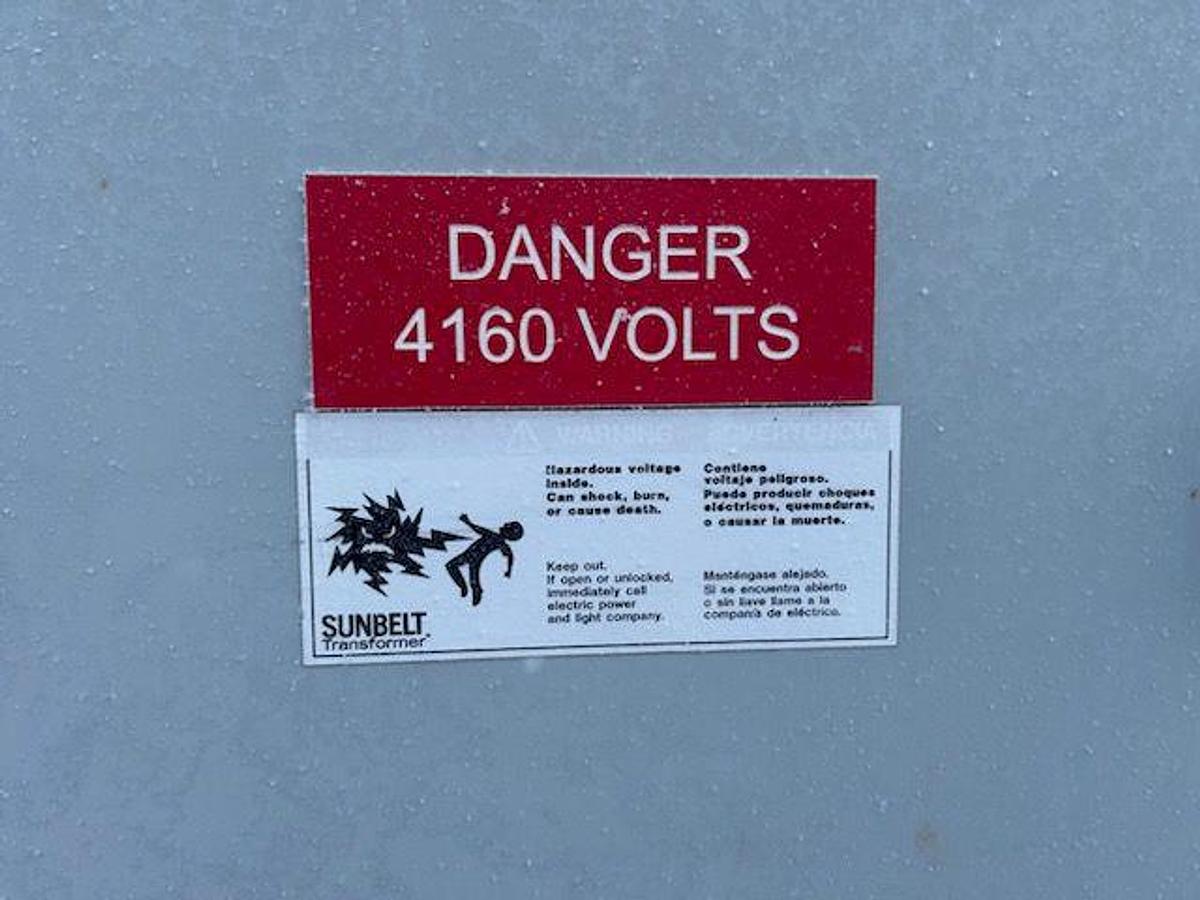

• 4160 Volts danger signage
• Lockable compartments
• Arc flash protection rated
• Ground fault protection
• Weatherproof NEMA enclosures

Key Specifications

• Condition: Used - 2014 Manufacture
• Quantity: 2 Transformers
• Equipment Type: Pad-Mounted Distribution Transformers

Transformer #1 - MEC CTM-8:

• Brand: MEC (Magnetek Electric Corporation)
• Model: CTM-8
• Serial Number: 14M744301-01
• Capacity: 3 MVA (3,000 KVA)
• Primary: 4160V
• Secondary: 480Y/277V
• Phase: 3-Phase, 4-Wire
• Frequency: 60 Hz
• Current Rating: 600 Amps
• Max Voltage: 5,000V
• HV BIL: 60 KV
• LV BIL: 30 KV

Transformer #2 - Sunbelt:

• Brand: Sunbelt Transformer Ltd.
• Capacity: 1500 KVA
• Primary: 4160V
• Secondary: 480Y/277V
• Phase: 3-Phase, 4-Wire
• Frequency: 60 Hz

Physical Specifications:

• Type: Pad-mounted oil-filled
• Enclosure: NEMA rated steel cabinets
• Color: Gray
• Cooling: Radiator fins with oil
• Mounting: Concrete pads
• Switchgear: West Coast Switchgear Inc.

Ideal Applications

• Industrial Facilities
• Manufacturing Plants
• Commercial Buildings
• Data Centers
• Distribution Substations
• Shopping Centers
• Office Complexes
• Hospitals and Healthcare
• Educational Institutions
• Municipal Utilities
• Water Treatment Plants
• Wastewater Facilities
• Large Retail Operations

Benefits

• 2014 manufacture (both units)
• Two transformer package
• Combined capacity: 4500 KVA total
• 3 MVA and 1500 KVA units
• 4160V to 480Y/277V transformation
• 3-phase power distribution
• Oil-filled cooling systems
• Radiator fin design
• Pad-mounted configuration
• Weatherproof enclosures
• Integrated switchgear
• Primary and secondary disconnects
• Lockable compartments
• Safety labeled
• Ready for outdoor installation
• Concrete pads included
• Complete systems

Additional Information

• Condition: Used - 2014 Manufacture
• Quantity: 2 Pad-Mounted Transformers
• Switchgear Manufacturer: West Coast Switchgear Inc., Cerritos, CA 90703
• Manufacturing Date: July 2014

Transformer #1 Specifications:

• Manufacturer: MEC (Magnetek Electric Corporation)
• Model: CTM-8
• Serial: 14M744301-01
• Capacity: 3 MVA
• Primary: 4160V
• Secondary: 480Y/277V
• Current: 600 Amps
• Max Voltage: 5,000V
• HV BIL: 60 KV / LV BIL: 30 KV

Transformer #2 Specifications:

• Manufacturer: Sunbelt Transformer Ltd.
• Capacity: 1500 KVA
• Primary: 4160V
• Secondary: 480Y/277V
• 3-Phase, 4-Wire, 60 Hz

Construction:

• Type: Oil-filled pad-mounted transformers
• Cooling: Radiator fins
• Enclosure: NEMA rated weatherproof steel
• Mounting: Concrete pad bases
• Components: Cutler-Hammer switchgear

Safety:

• Hazard Category 4 rated
• 4160 Volts danger signage
• Lockable access compartments
• Arc flash protection
