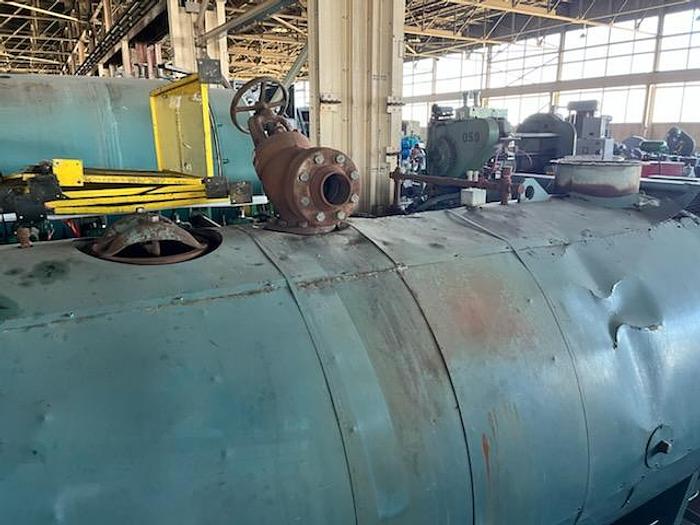

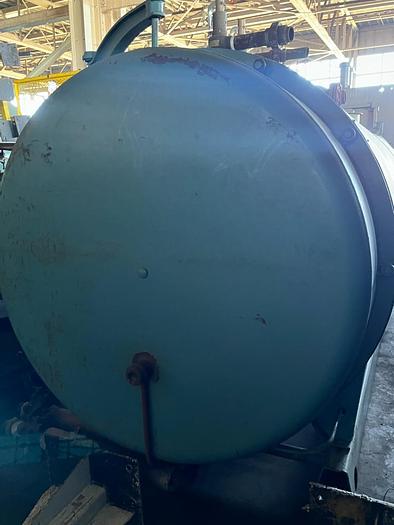

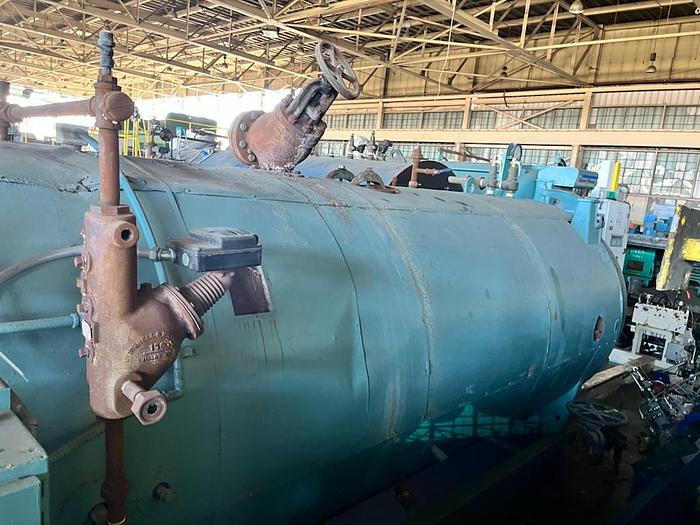

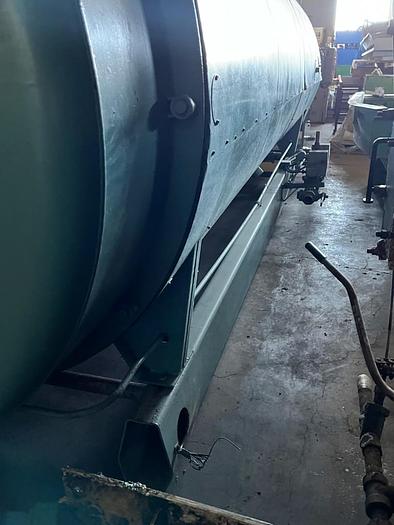

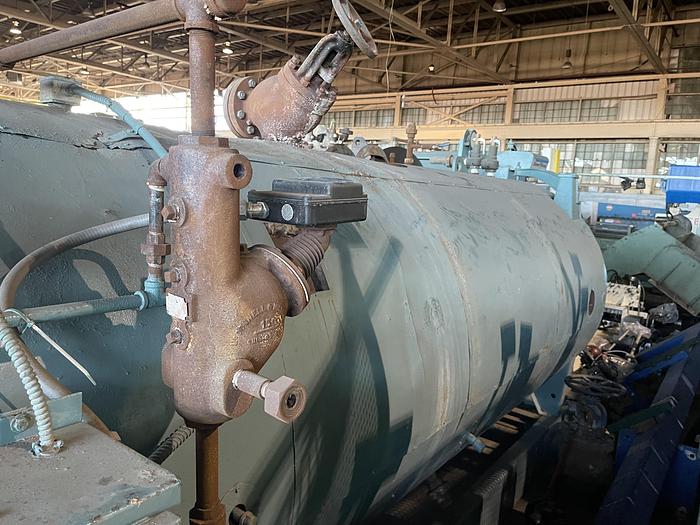

200 HP Cleaver Brooks 150 PSI Steam Boiler 1990 Model CB-200-200

200 HP Cleaver Brooks 150 PSI Steam Boiler 1990 Model CB-200-200

Contact us for price

Location:Toledo, OH

orCall 305-428-2777

Description

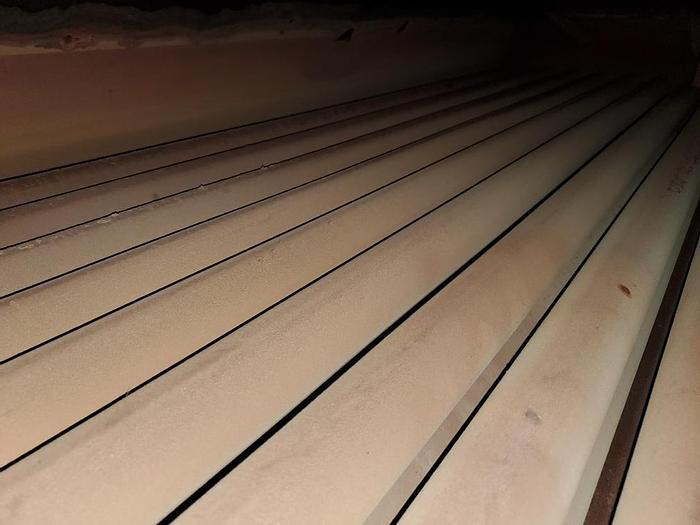

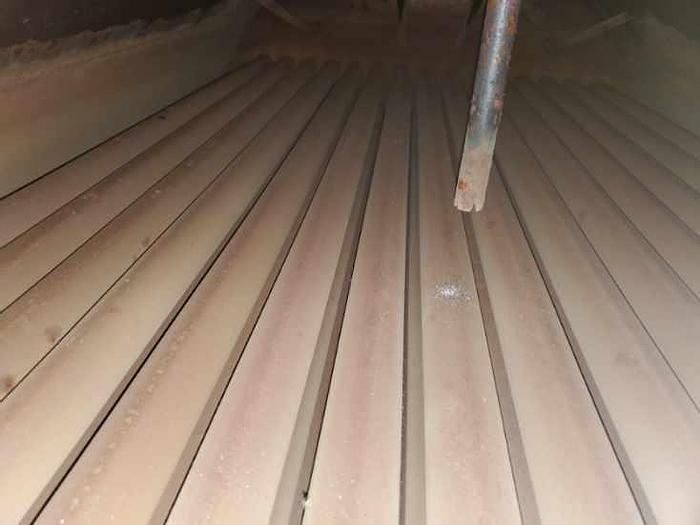

Used Cleaver Brooks Steam Boiler, Approx. 6,900 steam lbs/hr, 1,369,000 BTU/hr. Model CB 200-200, 200 HP. MAWP 200 PSI, Fuel Natural Gas Fired, Serial No L-88466, Boiler Weight 16,300 lbs. Built 1990, Clean tubes, New insulation and skin

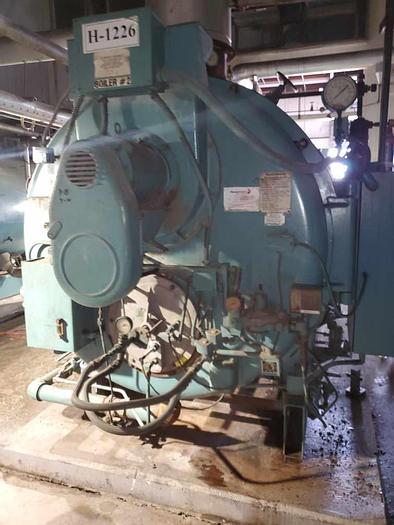

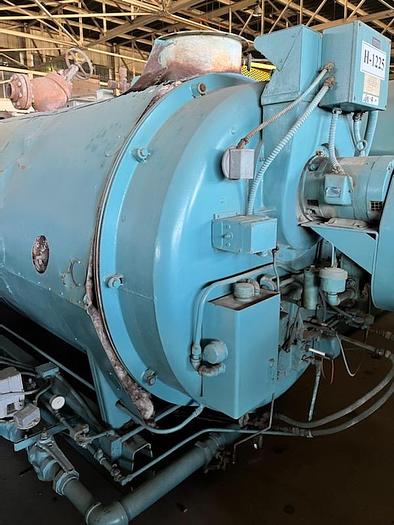

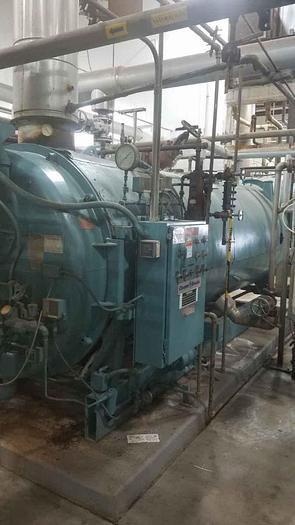

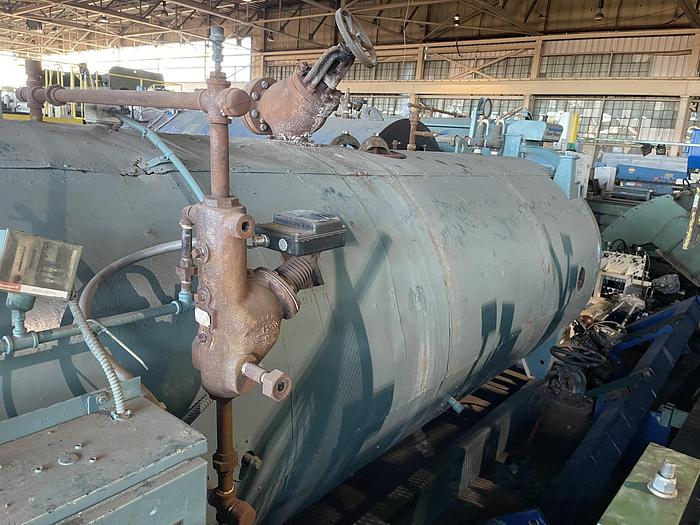

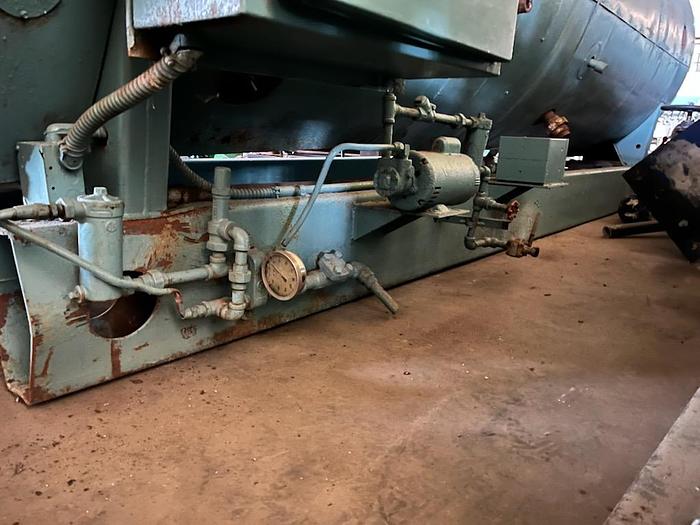

Cleaver Brooks 200 HP 200 PSI High Pressure Steam Boiler


Equipment Description


Manufacturer: Cleaver Brooks

Model: CB 200-200

Boiler Horsepower: 200 HP

Boiler Type: Steam Boiler

Fuel Type: Natural Gas/Oil or Combination

Design Pressure or Maximum Allowable Working Pressure: 200 PSI

Heating Capacity: 1,369,000 BTU/hr

Steam Capacity: 6,900 steam Lbs/hr

Year Built: 1990

Serial No: L-88466

GPH Oil: 60

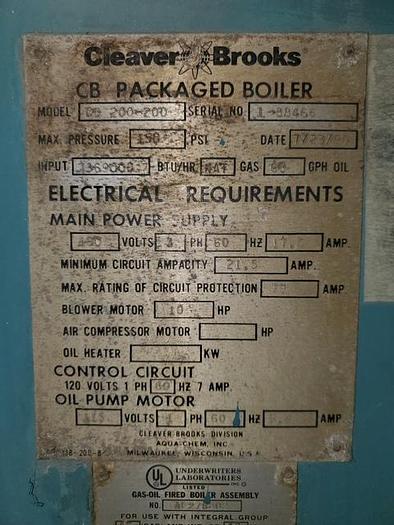

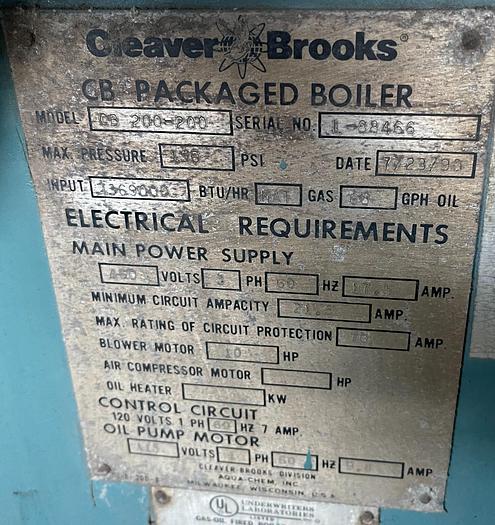

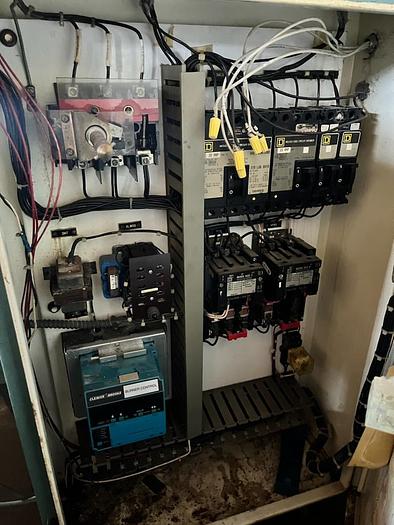

Electrical Requirements


Main Power Supply

Voltage: 460V

Phase: 3 PH

Hertz: 60Hz

Ampacity: 17.5 AMP

Minimum Circuit Ampacity: 21.5 AMP

Maximum Rating of Circuit Protection: 70 AMP

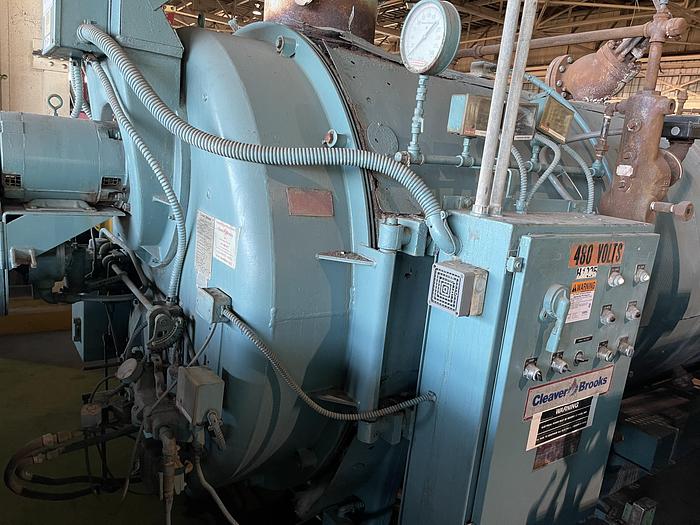

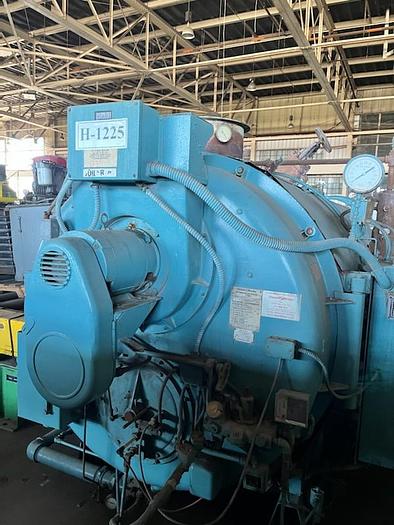

Blower Motor

Horsepower: 10 HP


Air Compressor Motor

Horsepower: N/A


Oil Heater: N/A

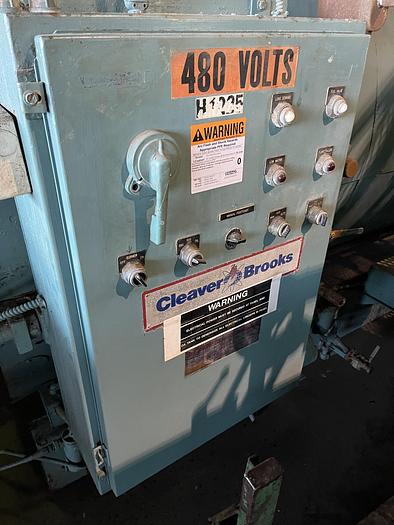

Control Circuit

Volts: 120V

Phase: 1 PH

Hertz: 60 HZ

Ampacity: 7 AMP


Oil Pump Motor

Volts: 115V

Phase: 1 PH

Hertz: 60Hz

Ampacity: 7.8 AMP


Overall Dimensions

Length: 26.58 ft

Width: 10.25 ft

Height: 10.5 ft


Boiler Weight: 16,300 lbs

Specifications

ManufacturerCleaver Brooks
ModelCB200-200
Year1990
ConditionUsed
Stock NumberW66637
