Baldor 40 HP Industrial Electric Motor - 230/460V 3-Phase 1775 RPM - Model H2539T Frame 324T

Overview

This Baldor industrial motor is a 40 horsepower three-phase electric motor manufactured by Baldor Electric Company in Fort Smith, Arkansas. Model H2539T with specification 40H005W275H1 and frame 324T, this motor operates at 1775 RPM and is rated for 230/460 volt dual voltage operation. The motor remains in protective plastic wrapping.

Design and Performance

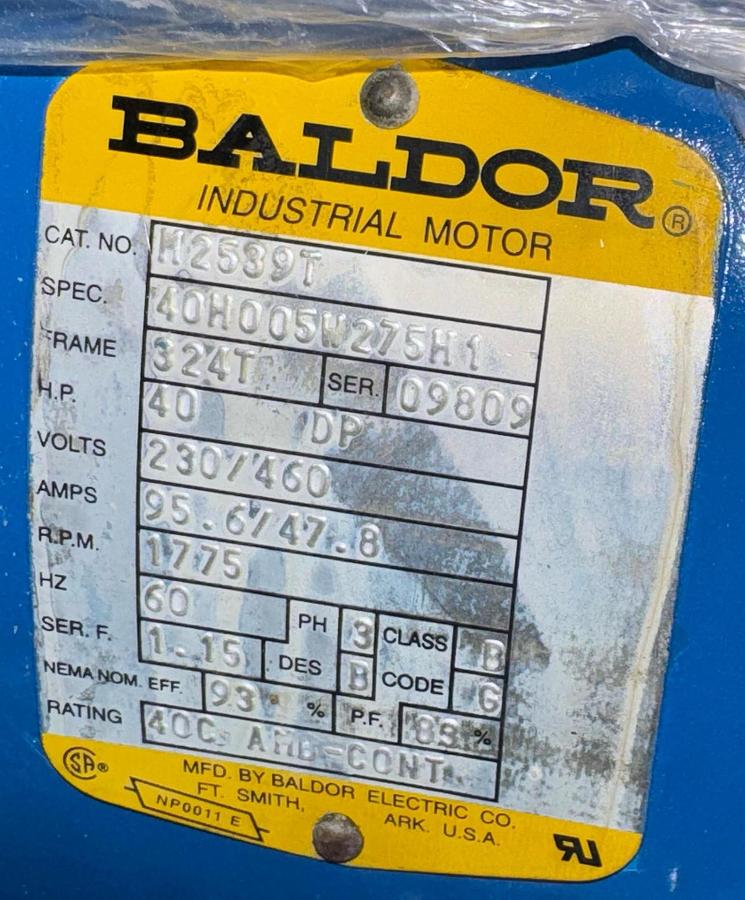

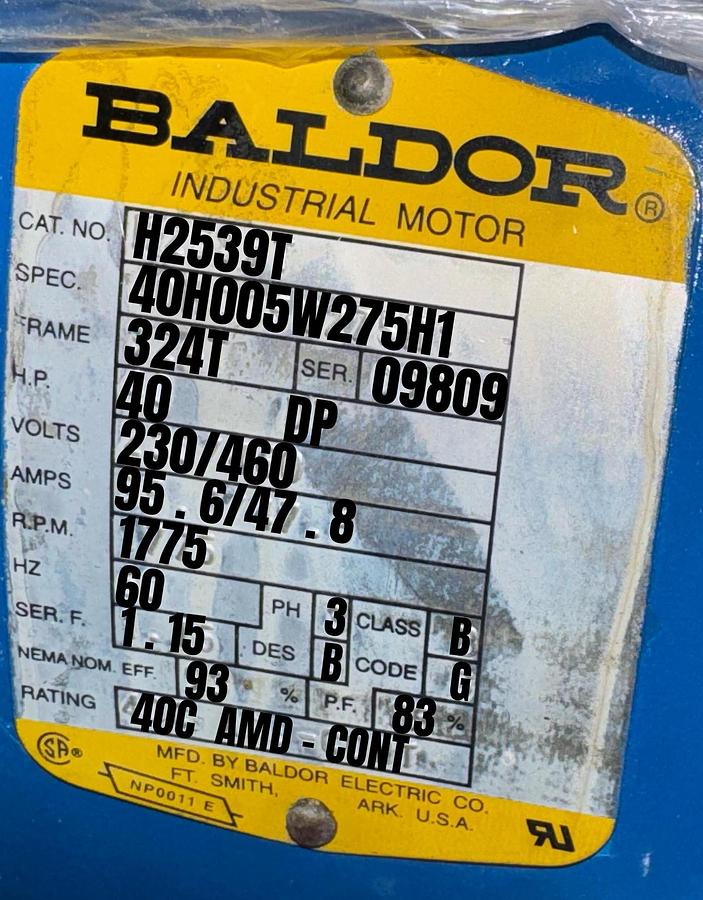

Model Specifications:

• Catalog No.: H2539T
• Specification: 40H005W275H1
• Frame: 324T
• Serial Number: 09809
• Manufacturer: Baldor Electric Company
• Made in: Fort Smith, Arkansas, USA

Performance Specifications:

• Horsepower: 40 HP
• Voltage: 230/460V
• RPM: 1775
• Frequency: 60 Hz
• Amps: 95.6/47.8
• Phase: 3
• Service Factor: 1.15
• Design: B
• Class: B
• Code: G
• NEMA Nominal Efficiency: 93%
• Power Factor: 83%
• Rating: 40°C AMD - CONT

Construction:

• Blue painted steel frame
• Frame type: 324T
• Foot mount configuration
• Protective plastic wrapping

Electrical Specifications:

• Voltage: 230/460V (3-phase)
• Full Load Amps: 95.6A at 230V / 47.8A at 460V
• Frequency: 60 Hz
• Phase: 3
• Service Factor: 1.15
• Design Code: B
• Insulation Class: B
• NEMA Code: G

Performance Data:

• Speed: 1775 RPM
• NEMA Nominal Efficiency: 93%
• Power Factor: 83%
• Duty Rating: 40°C AMD - CONT

Safety & Certifications:

• UL Listed
• CSA Certified

Key Specifications

• Condition: Protective Wrapping
• Brand: Baldor
• Model: H2539T
• Specification: 40H005W275H1
• Serial Number: 09809
• Equipment Type: Three-Phase Industrial Electric Motor

Performance Data:

• Horsepower: 40 HP
• Speed: 1775 RPM
• Voltage: 230/460V
• Frequency: 60 Hz
• Phase: 3-Phase
• Full Load Amps: 95.6A @ 230V / 47.8A @ 460V

Physical Specifications:

• Frame Size: 324T
• Finish: Blue painted steel
• Mounting: Foot mounted

Electrical Ratings:

• Service Factor: 1.15
• NEMA Efficiency: 93%
• Power Factor: 83%
• Insulation Class: B
• Design Code: B
• NEMA Code: G
• Rating: 40°C AMD - CONT

Ideal Applications

• Pumps and Compressors
• Conveyors and Material Handling
• Machine Tools
• Fans and Blowers
• Industrial Processing Equipment
• Manufacturing Machinery
• HVAC Systems
• Food Processing Equipment
• Packaging Machinery
• Woodworking Equipment
• Metal Working Machines
• General Industrial Applications

Benefits

• Baldor manufacturing
• 40 HP power
• Dual voltage (230/460V)
• 93% NEMA nominal efficiency
• 1.15 service factor
• Class B insulation
• Continuous duty rated
• UL and CSA certified
• Made in USA
• Protective wrapping

Additional Information

• Condition: In Protective Wrapping
• Manufacturer: Baldor Electric Company
• Made In: Fort Smith, Arkansas, USA
• Catalog No.: H2539T
• Specification: 40H005W275H1
• Serial Number: 09809
• Frame: 324T
• Horsepower: 40 HP
• Speed: 1775 RPM
• Voltage: 230/460V
• Frequency: 60 Hz
• Phase: 3-Phase
• Full Load Amps: 95.6A @ 230V / 47.8A @ 460V
• Service Factor: 1.15
• NEMA Efficiency: 93%
• Power Factor: 83%
• Insulation Class: B
• Design Code: B
• NEMA Code: G
• Duty Rating: 40°C AMD - CONT
• Finish: Blue painted steel
• Certifications: UL Listed, CSA Certified
