CST Storage Industrial Silo System 4-Tank 16,560 Cu Ft Total Capacity 2021

Overview

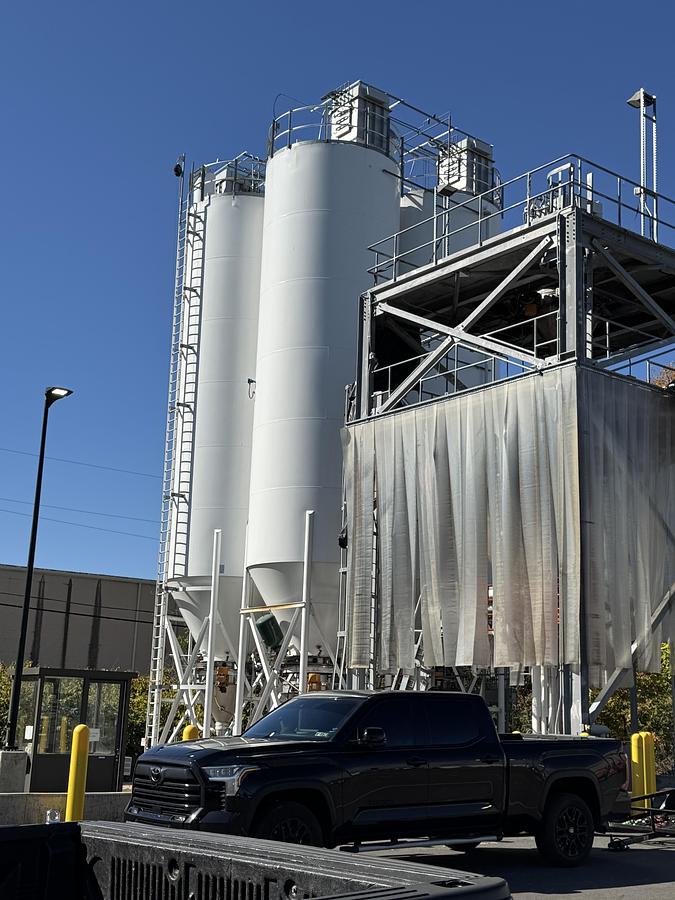

This CST Storage industrial silo system consists of four vertical storage tanks manufactured in August 2021. Each silo measures 11'-11" in diameter and stands 52'-7" tall, providing 4,140 cubic feet of nominal capacity. Designed for finished product storage with fluidized flow loads, these silos feature access ladders, top-mounted equipment, and cone-bottom discharge with support structures.

Design and Performance

Tank Specifications:

• Date: 08/2021
• Project I.D.: USP003777_005
• S.O. #: 21-7766
• Diameter: 11'-11"
• Height: 52'-7"
• Nominal Capacity: 4,140 Cu. Ft. (per tank)
• Manufacturer: CST Storage

Design Data:

• Product: Finished Product
• Compacted Density: 30 PCF
• Designed For: Fluidized Flow Loads
• Max Operating Pressure: Do Not Exceed
• Pressure: 8.09 oz/sq in
• Vacuum: 1.01 oz/sq in

Construction:

• Vertical cylindrical tanks
• Cone-bottom design
• External ladder access
• Top-mounted equipment
• Safety railings
• Support leg structures
• Corrugated panel sections visible
• Discharge hopper support structures

System Components:

• Four vertical storage silos
• Access ladders with cages
• Top-mounted equipment
• Platforms and railings
• Cone-bottom discharge hoppers
• Support leg structures
• Corrugated metal panels
• Structural steel support framework

Safety Features:

• Roof Concentrated Load: 500 lbs. per 10 sq. ft.
• Ladder safety cages
• Platform railings
• Pressure and vacuum specifications
• Warning labels

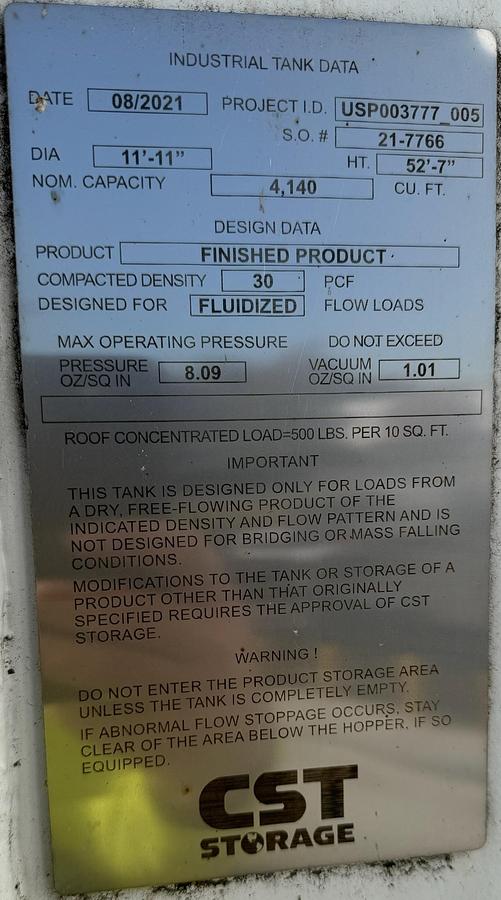

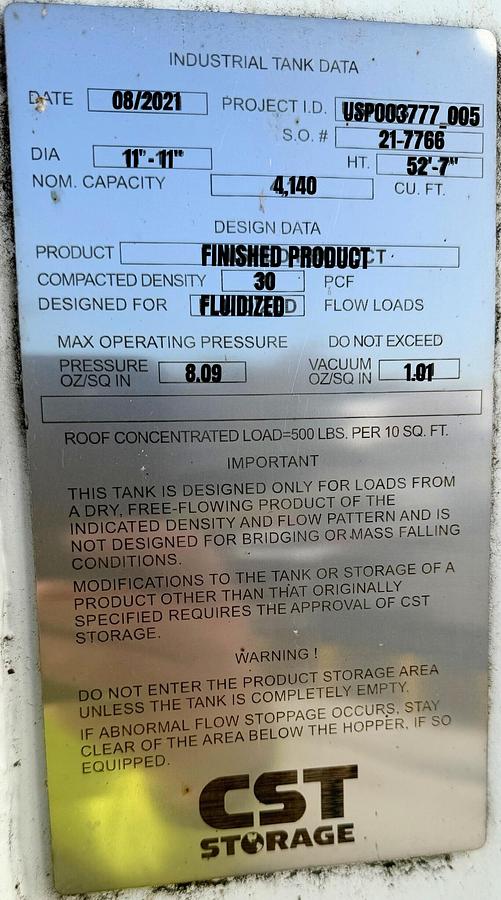

Important Design Limitations (per nameplate):

• Tank designed only for loads from dry, free-flowing product of indicated density and flow pattern
• Not designed for bridging or mass falling conditions
• Modifications to tank or storage of products other than originally specified requires CST Storage approval
• Do not enter product storage area unless tank is completely empty
• If abnormal flow stoppage occurs, stay clear of area below hopper

Key Specifications

• Condition: Used - 2021 Build
• Brand: CST Storage
• Date Built: 08/2021
• Equipment Type: Industrial Vertical Storage Silos
• Quantity: 4 Silos
• Diameter: 11'-11"
• Height: 52'-7"
• Nominal Capacity: 4,140 Cu. Ft. per tank
• Total System Capacity: 16,560 Cu. Ft.

Design Specifications:

• Product Type: Finished Product
• Compacted Density: 30 PCF
• Flow Type: Fluidized Flow Loads
• Maximum Pressure: 8.09 oz/sq in
• Maximum Vacuum: 1.01 oz/sq in
• Roof Load Rating: 500 lbs. per 10 sq. ft.

Physical Specifications:

• Tank Configuration: Vertical cylindrical with cone bottom
• Access: Ladder with safety cage
• Top Equipment: Mounted equipment visible
• Bottom Discharge: Cone hopper with support legs
• Safety Features: Railings, platforms, warning labels

Ideal Applications

• Cement and Concrete Plants
• Aggregate and Sand Storage
• Food Processing Facilities
• Grain and Feed Mills
• Plastic Pellet Storage
• Chemical Powder Storage
• Pharmaceutical Manufacturing
• Industrial Mineral Storage
• Construction Material Storage
• Manufacturing Facilities
• Batch Plant Operations
• Dry Bulk Material Handling

Benefits

• 2021 manufacture
• Four-tank silo system
• 16,560 total cubic feet capacity
• Fluidized flow design
• Complete access systems
• Cone-bottom discharge
• Safety-compliant design
• Heavy-duty construction
• Professional installation ready

Additional Information

• Condition: Used - 2021 Manufacture
• Manufacturer: CST Storage
• Date Built: 08/2021
• Project I.D.: USP003777_005
• S.O. Number: 21-7766
• Quantity: 4 Silos
• Diameter: 11'-11"
• Height: 52'-7"
• Capacity Per Tank: 4,140 Cu. Ft.
• Total System Capacity: 16,560 Cu. Ft.
• Product Design: Finished Product
• Density: 30 PCF
• Flow Type: Fluidized Flow Loads
• Max Pressure: 8.09 oz/sq in
• Max Vacuum: 1.01 oz/sq in
• Roof Load Rating: 500 lbs. per 10 sq. ft.
• Configuration: Vertical with cone-bottom discharge
