Toromont CIMCO Industrial Refrigeration System - 300 Ton Capacity with Heat Exchangers (2010)

Overview

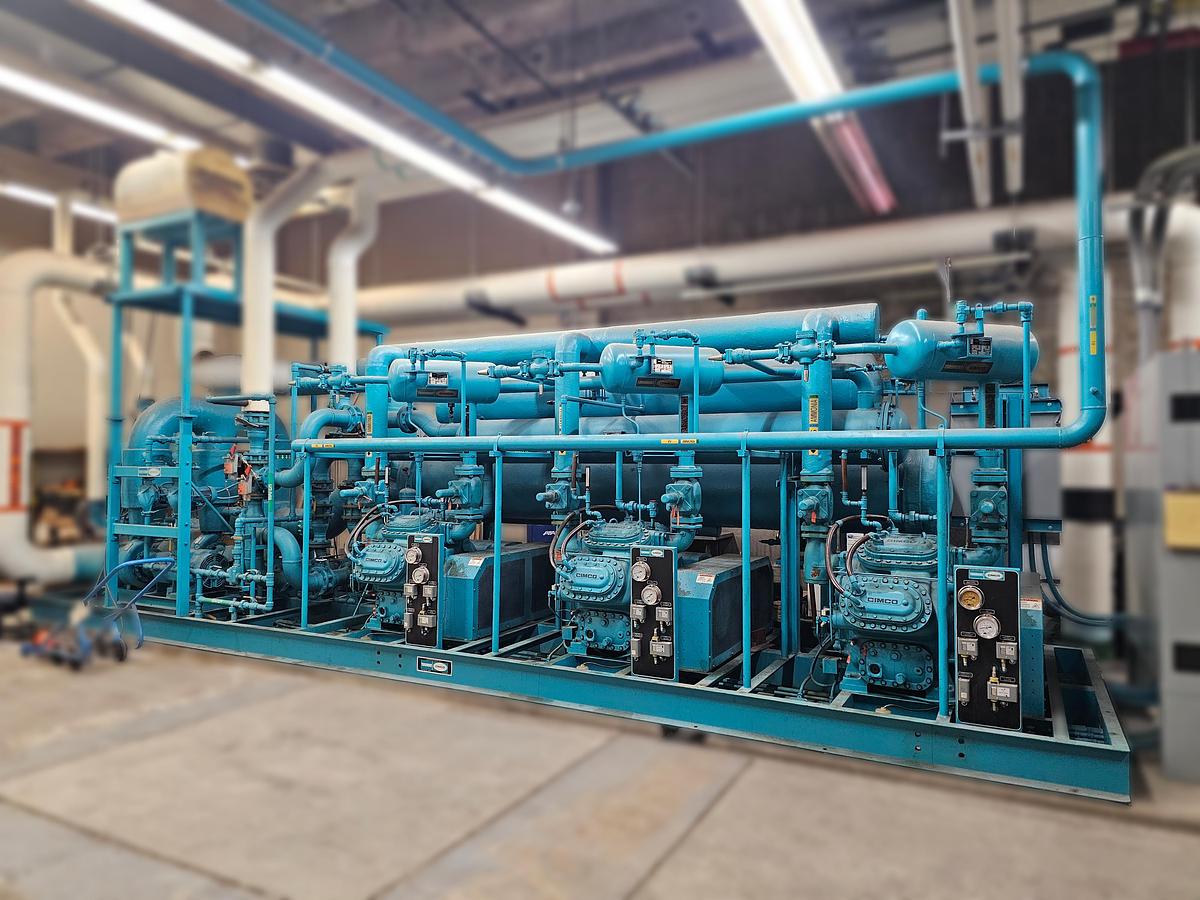

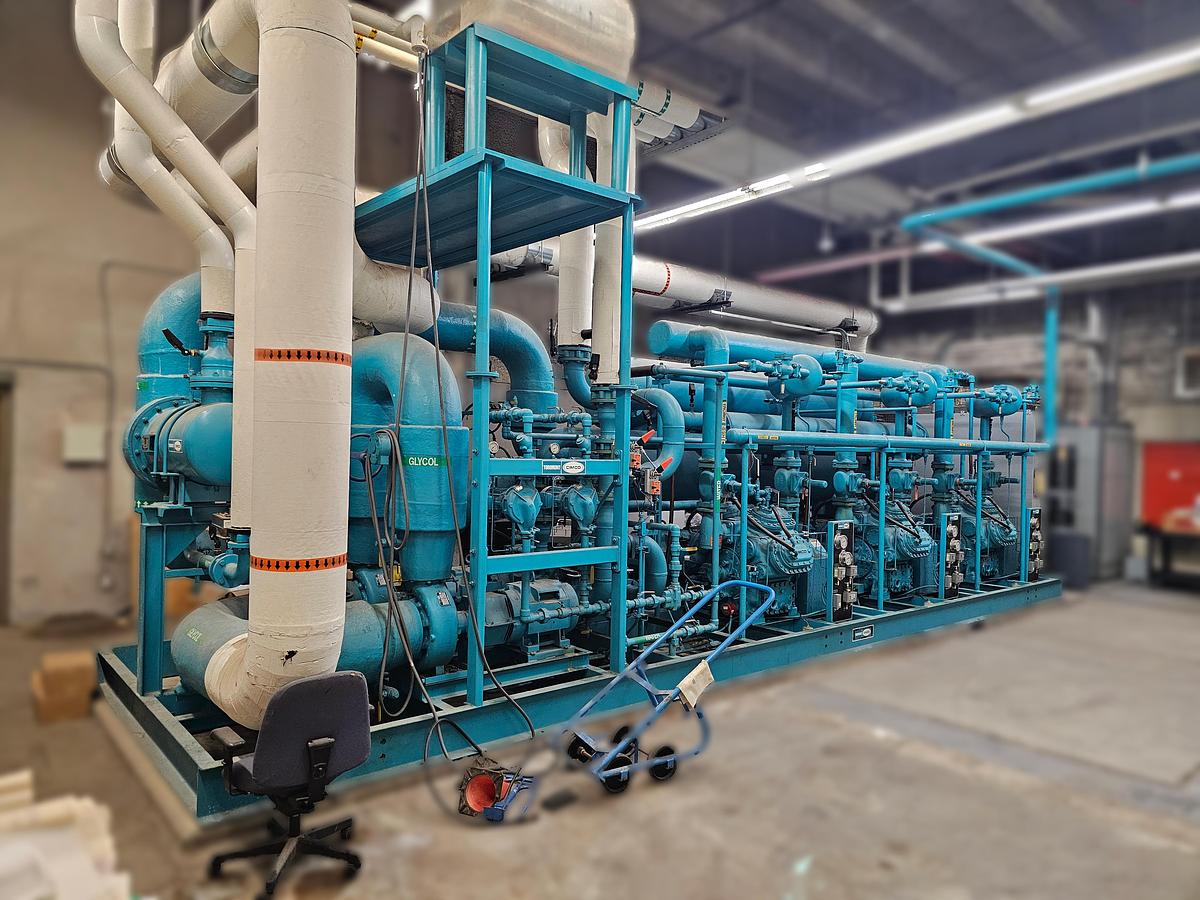

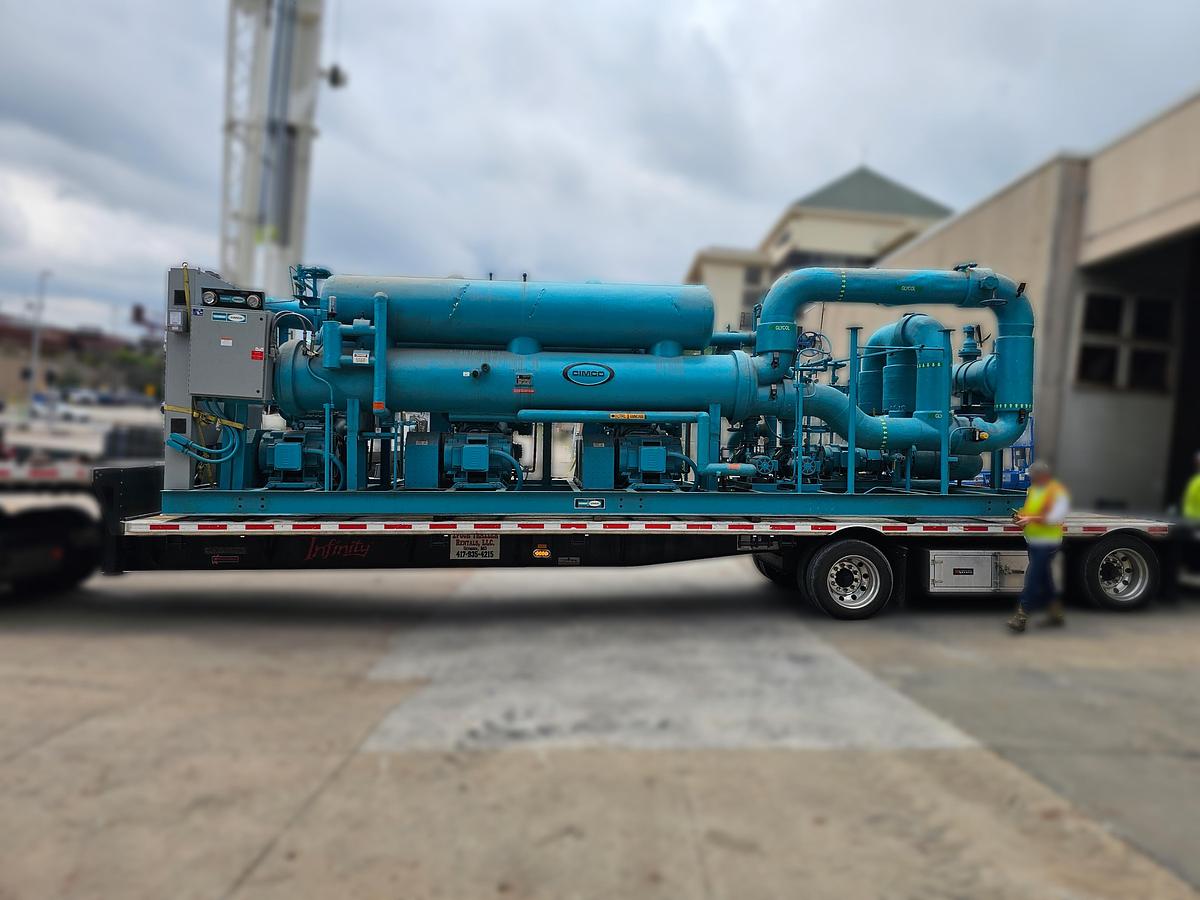

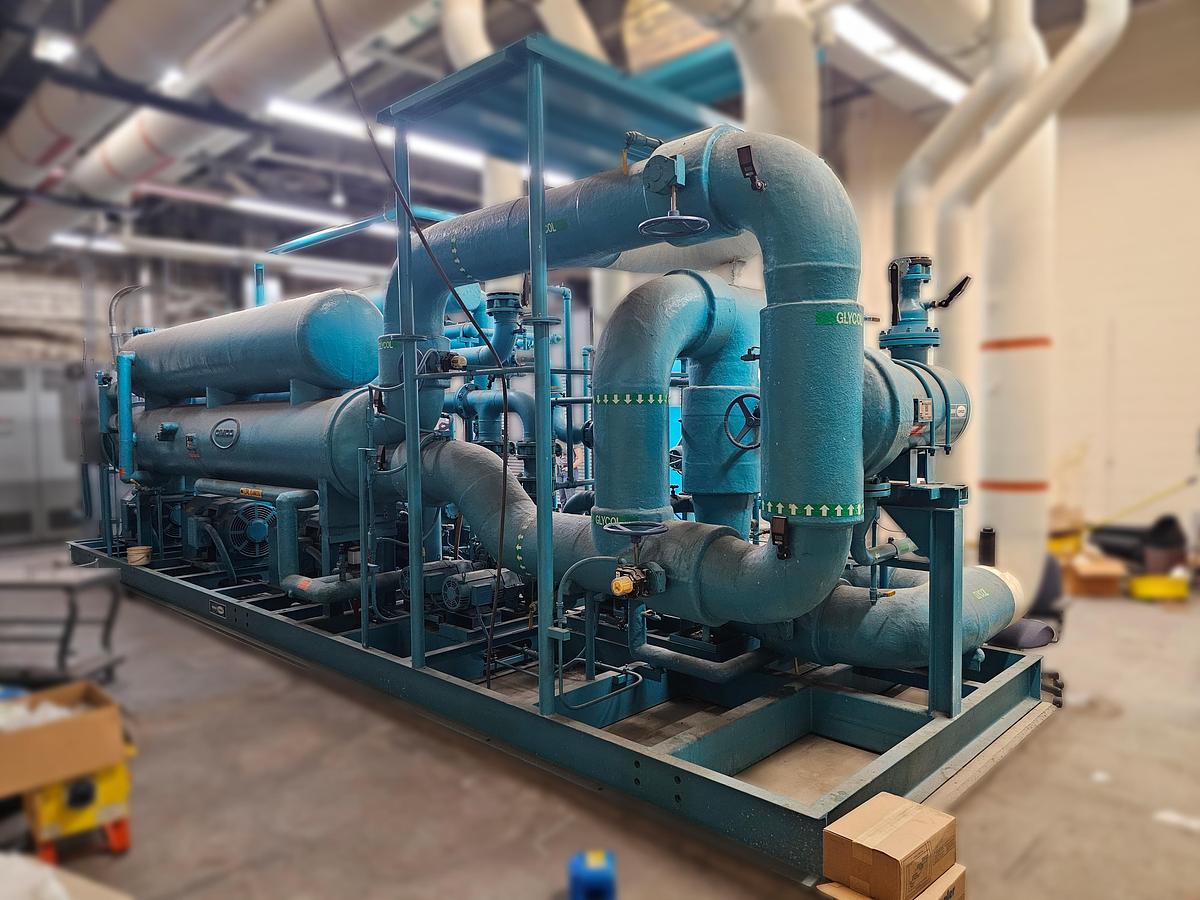

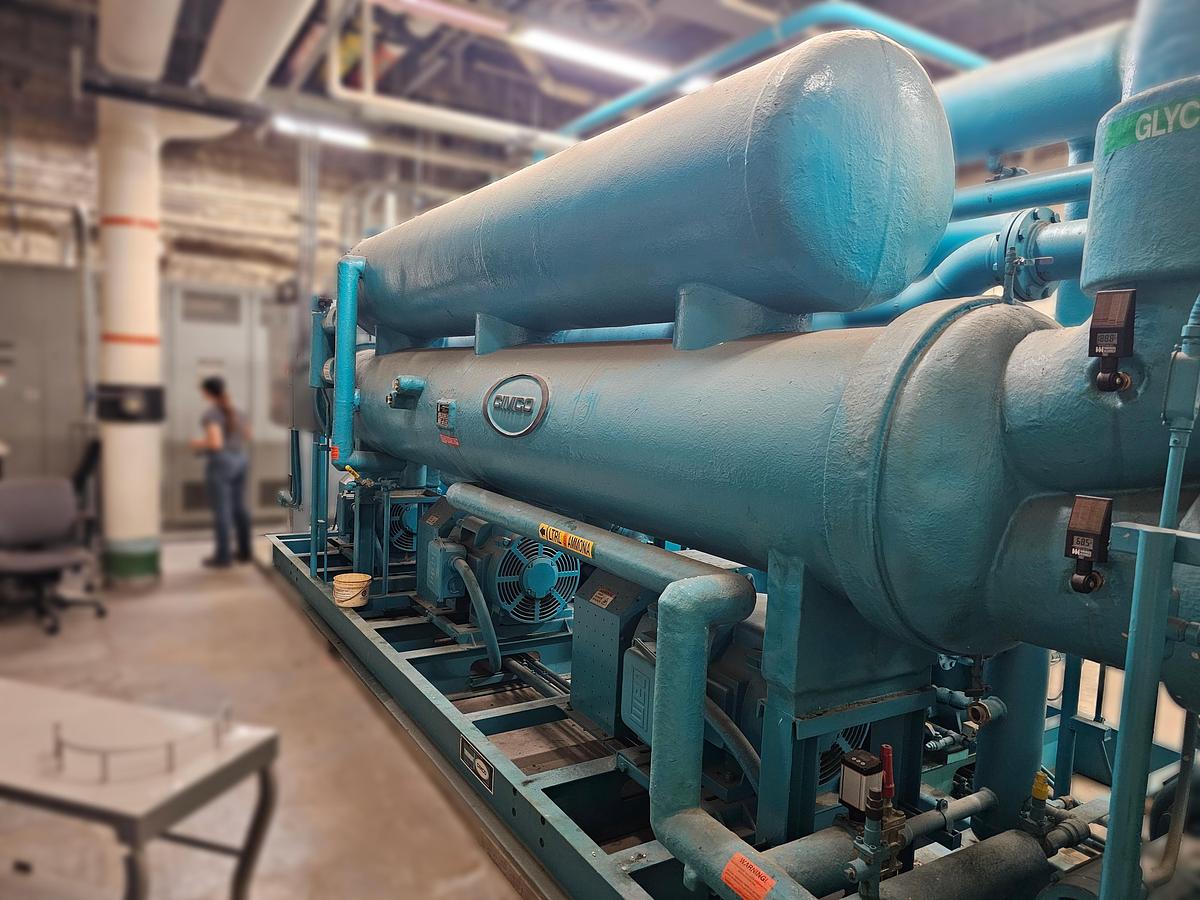

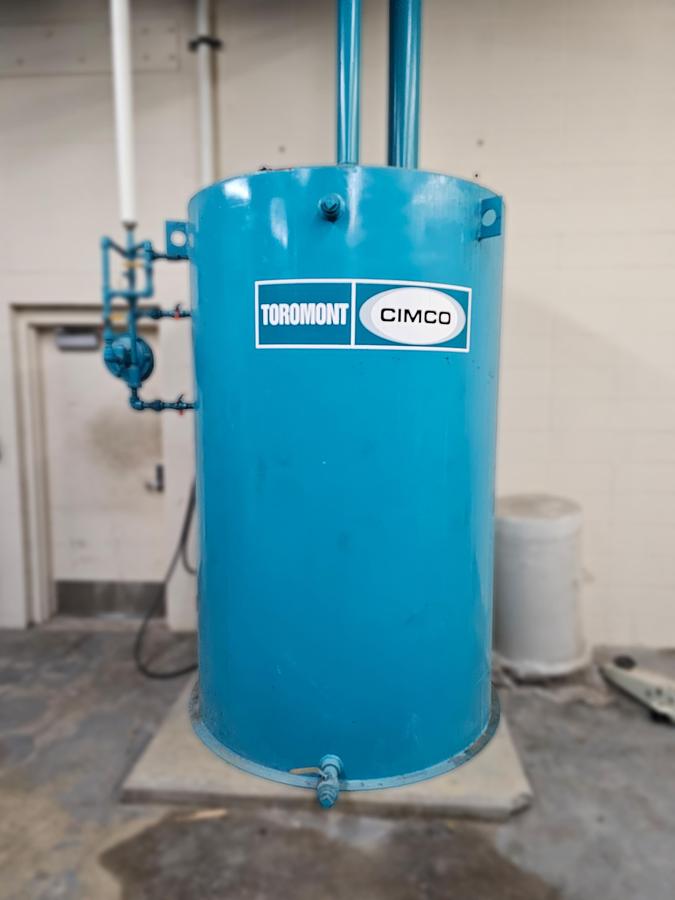

This Toromont CIMCO industrial refrigeration system is a complete skid-mounted chiller package built in 2010. Manufactured in Canada by CIMCO, a division of Toromont Industries Ltd., this system features multiple C6-W08AHE compressors with 300-ton refrigeration capacity, utilizing R-717 (ammonia) refrigerant. The package includes heat exchangers, Armstrong shell and tube units, integrated controls, and a comprehensive piping system, all mounted on a heavy-duty steel frame with turquoise finish.

Design and Performance

Model Components:

• Compressor Units: C6-W08AHE (Serial Numbers visible: 10301, 10302, 10303)
• Additional Compressor: C6-W08A (Serial 10303)
• Auxiliary Unit: MAP 300 (Serial 8014191)
• Heat Exchanger: Armstrong Model WD-183-212-2 (Serial 645592)
• Year Built: 2010
• Manufacturer: CIMCO - Division of Toromont Industries Ltd., Toronto, Ontario, Canada

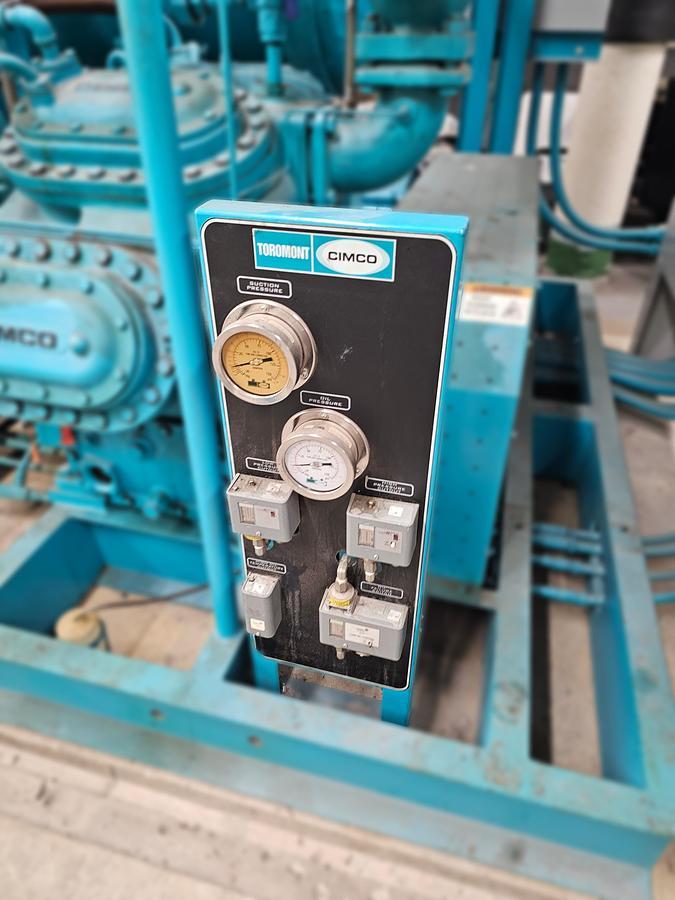

Control Features:

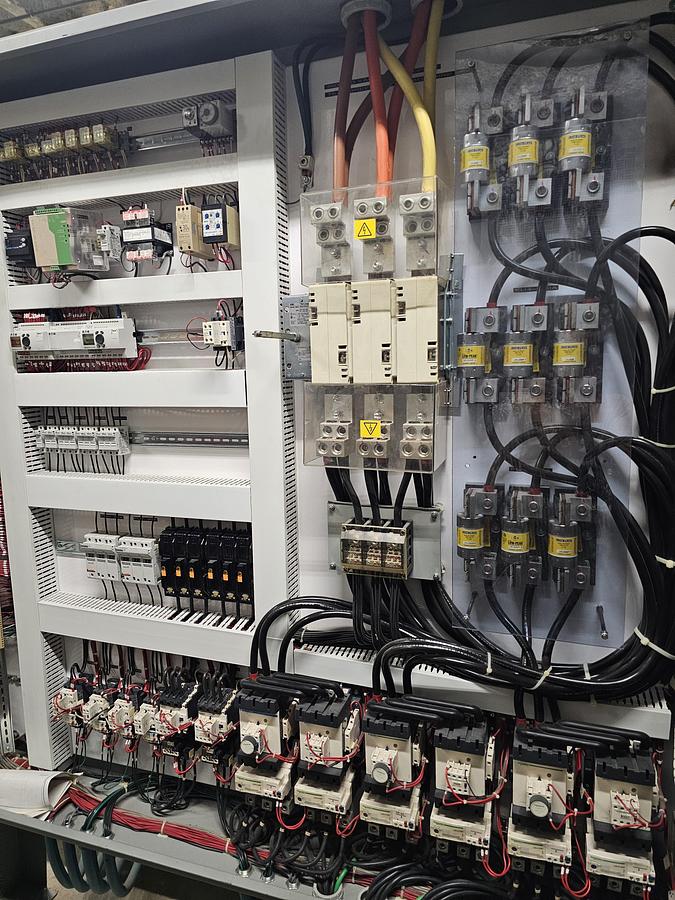

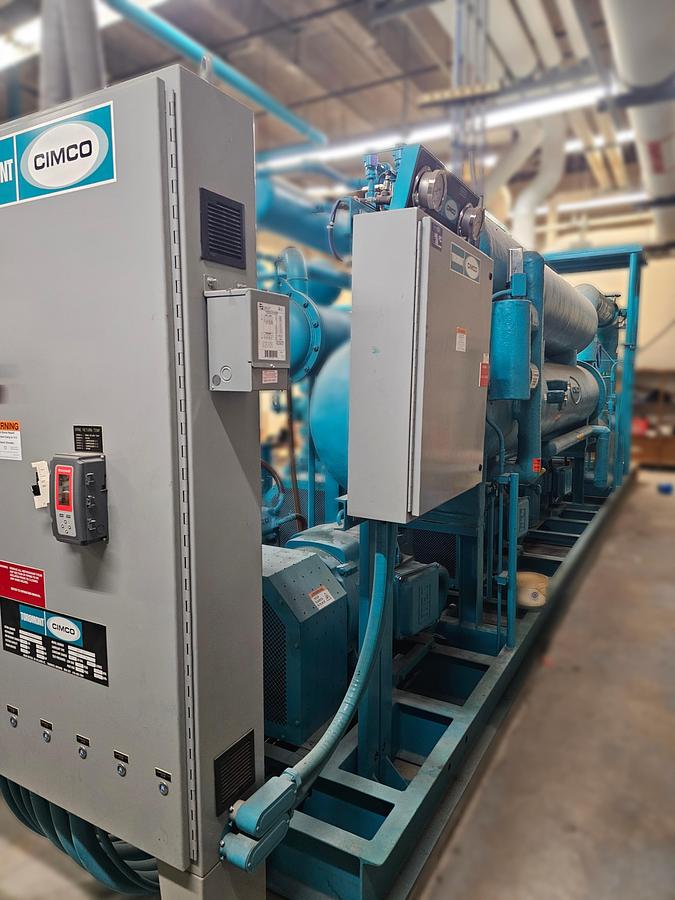

• Electrical control panel with CIMCO branding
• Individual compressor control stations
• Pressure gauges and indicators
• Safety switches
• Control buttons and switches
• Toromont CIMCO control interfaces

Construction:

• Heavy-duty steel skid-mounted frame
• Turquoise painted finish
• Multiple pressure vessel components
• Piping throughout system
• Industrial valves and fittings
• Safety relief valves

System Components:

• Multiple C6-W08AHE compressor units
• MAP 300 auxiliary unit
• Armstrong WD-183-212-2 heat exchanger
• Pressure vessels
• Refrigerant piping network
• Control electrical panel
• Pressure monitoring gauges
• Interconnecting piping manifolds
• Steel mounting skid

Safety Features:

• Pressure relief valves
• Pressure monitoring gauges
• Safety control systems

Key Specifications

• Condition: Used - 2010 Build
• Brand: CIMCO (Toromont Industries)
• Primary Model: C6-W08AHE Compressor System
• Auxiliary Model: MAP 300
• Heat Exchanger: Armstrong WD-183-212-2
• Year Built: 2010
• Equipment Type: Industrial Ammonia Refrigeration System
• Refrigeration Capacity: 300 Tons (1055 kW)
• Refrigerant Type: R-717 (Ammonia)
• Refrigerant Charge: 800 lbs (364 kg)
• Prime Movers: 3 x 150 HP (3 x 112 kW)

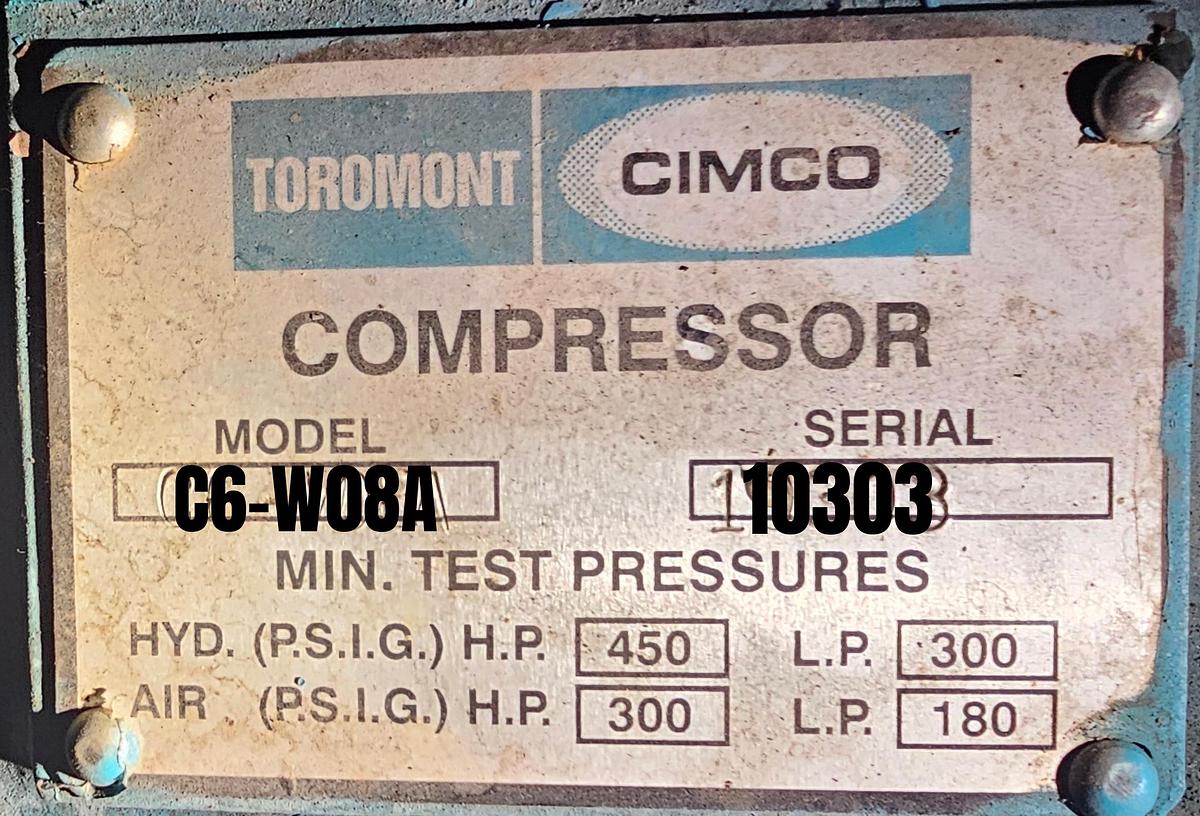

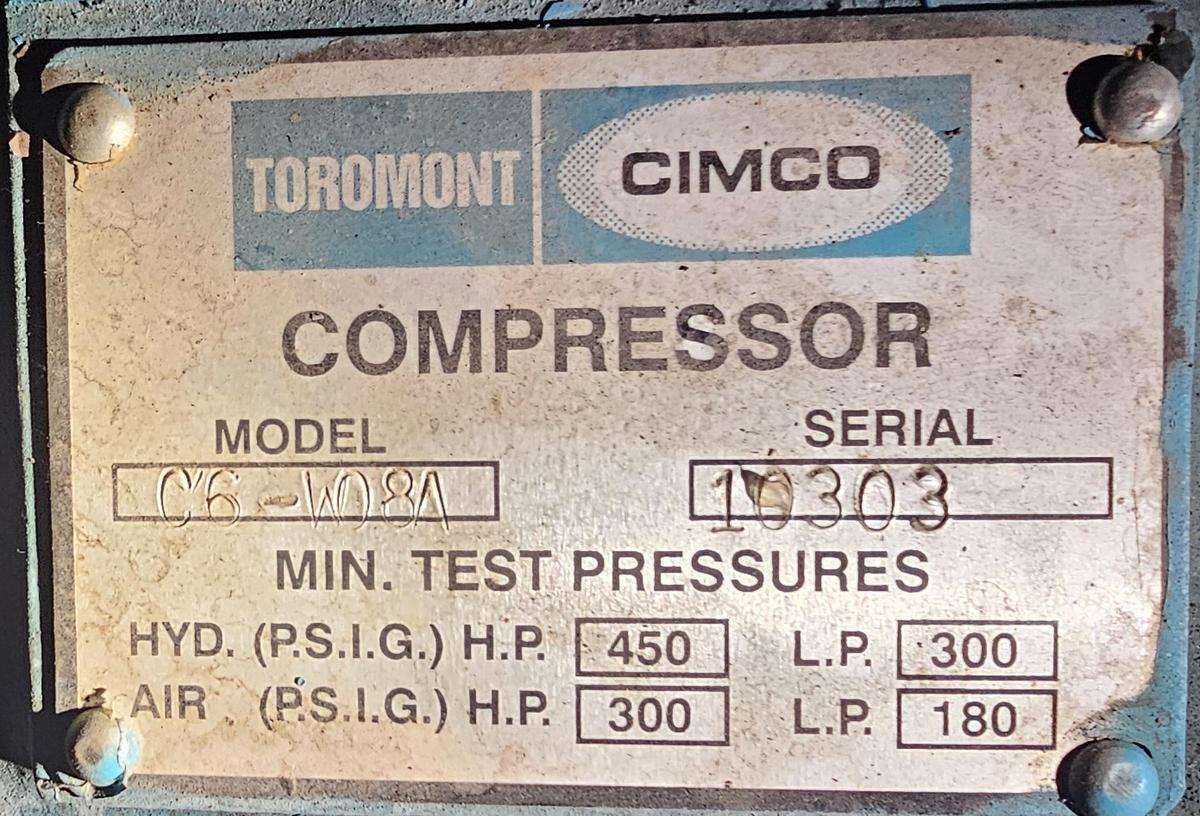

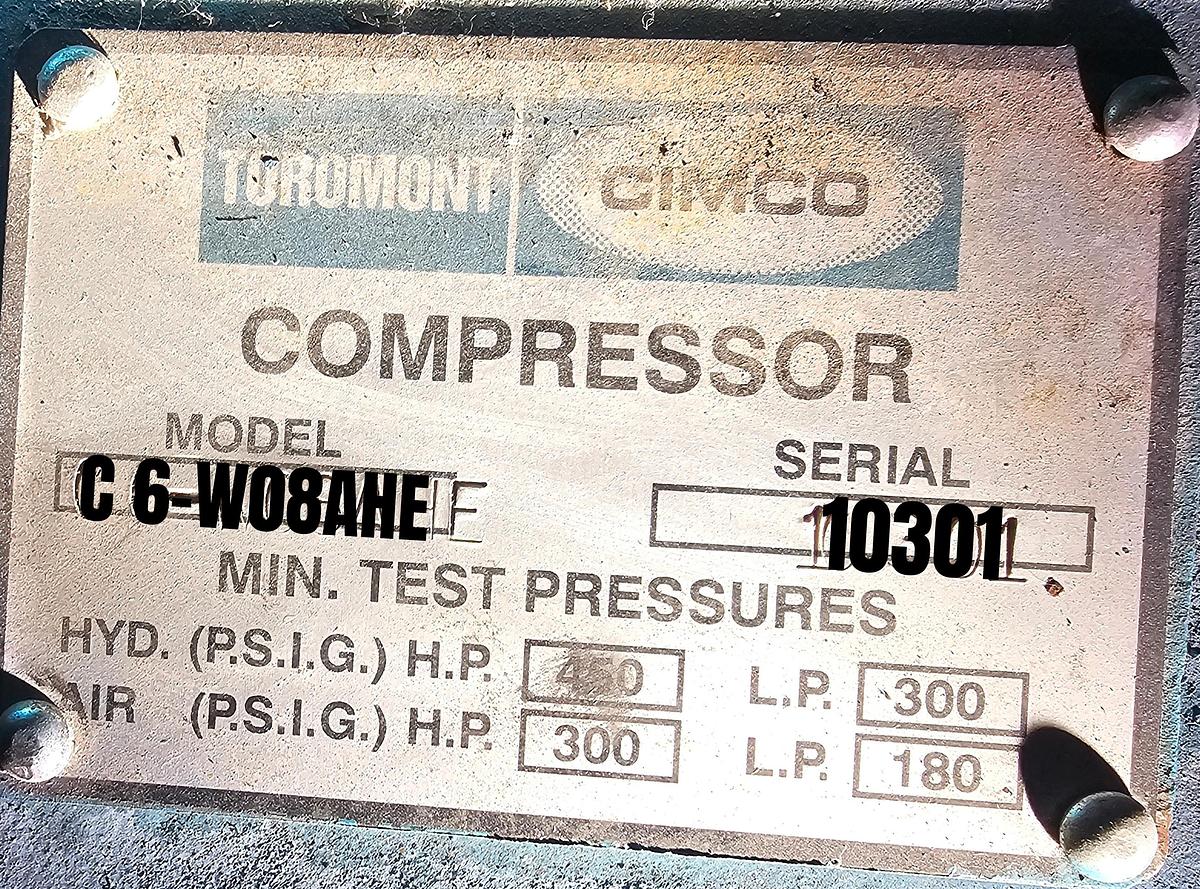

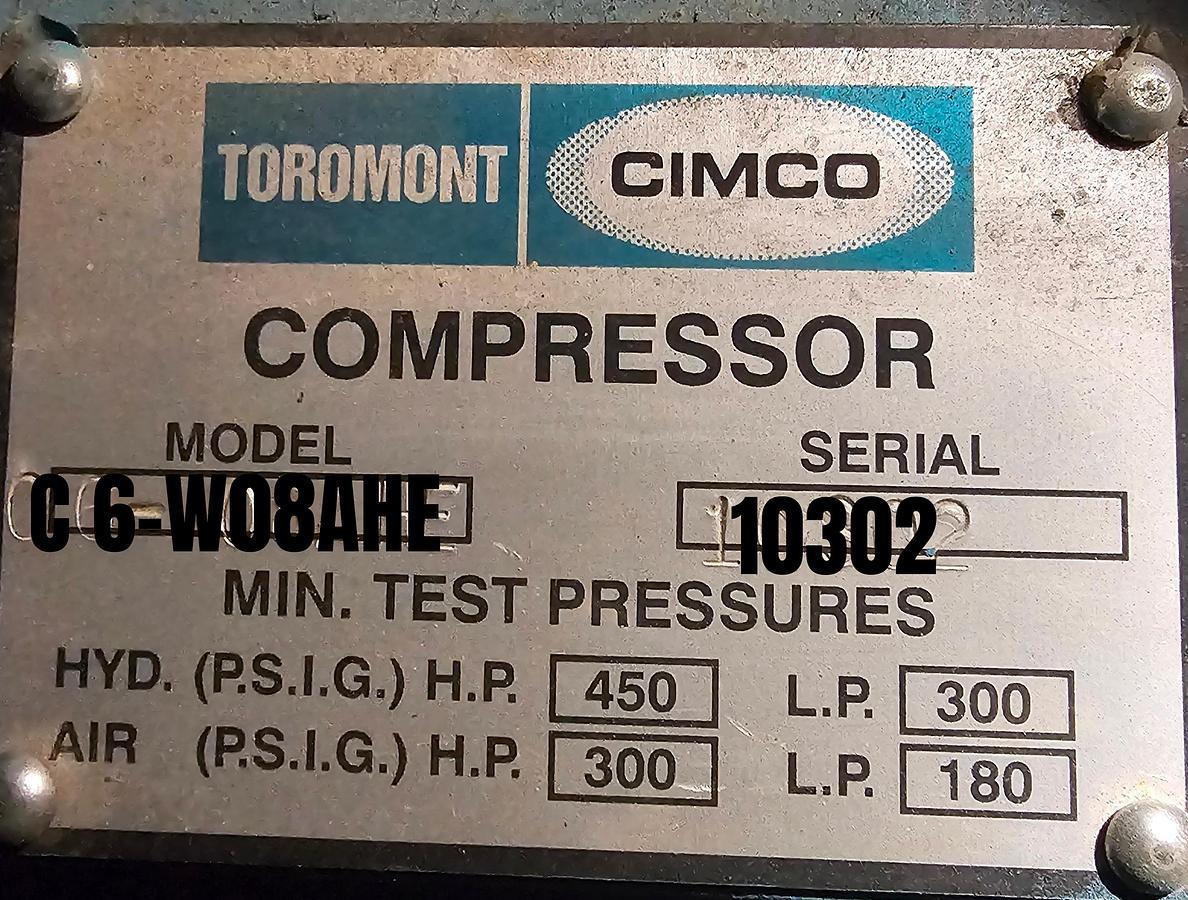

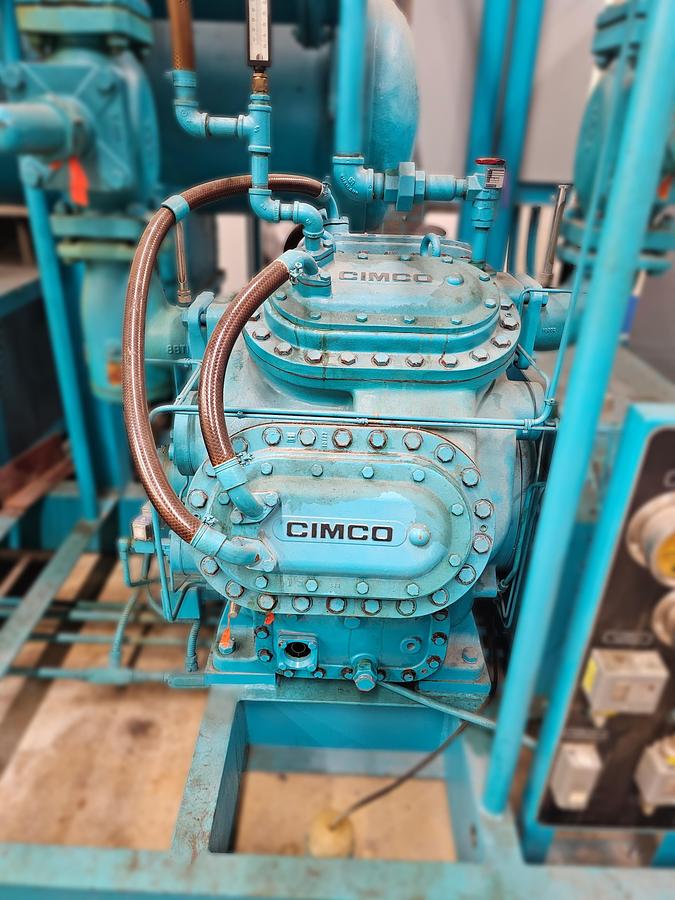

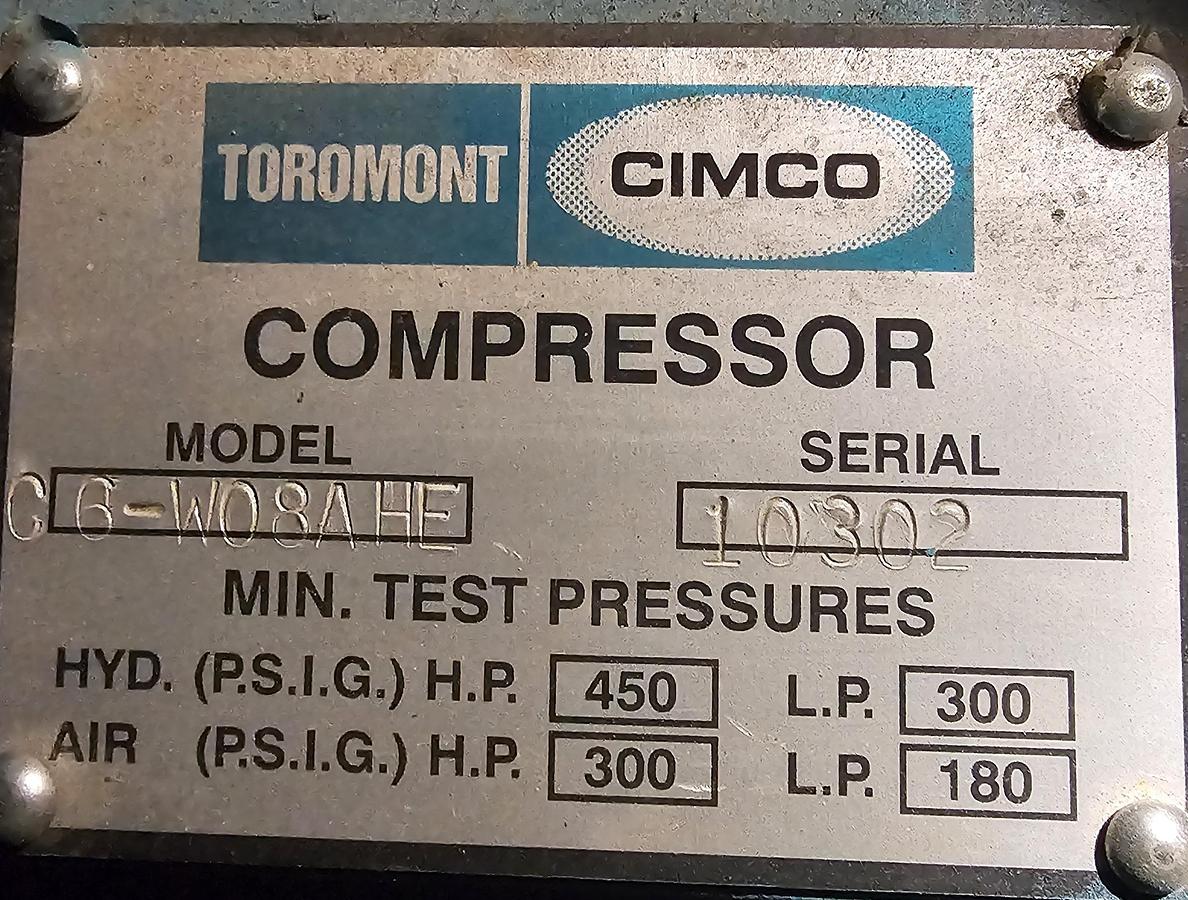

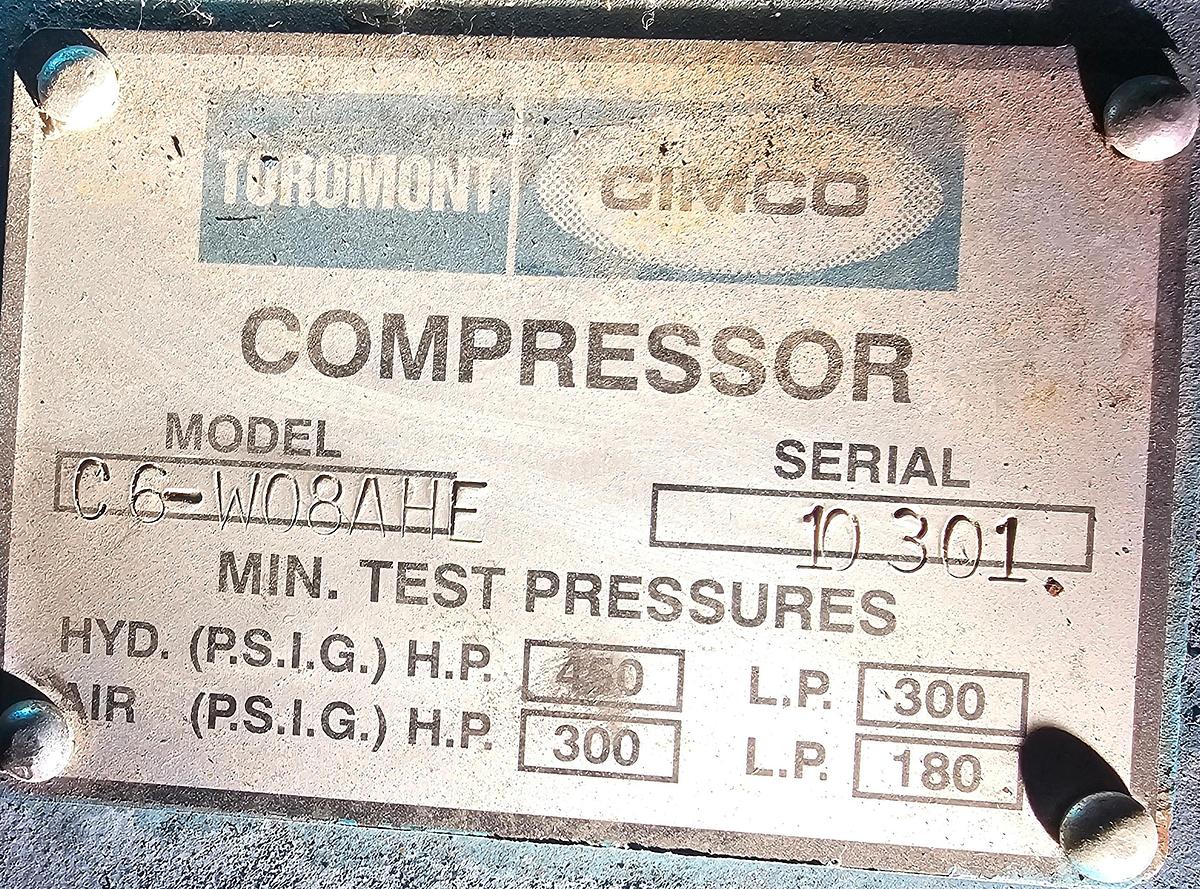

Compressor Specifications (C6-W08AHE Units):

• Minimum Test Pressures:
• Hydraulic (P.S.I.G.) H.P.: 450 (High Pressure), 300 (Low Pressure)
• Air (P.S.I.G.) H.P.: 300 (High Pressure), 180 (Low Pressure)
• Serial numbers visible: 10301, 10302, 10303

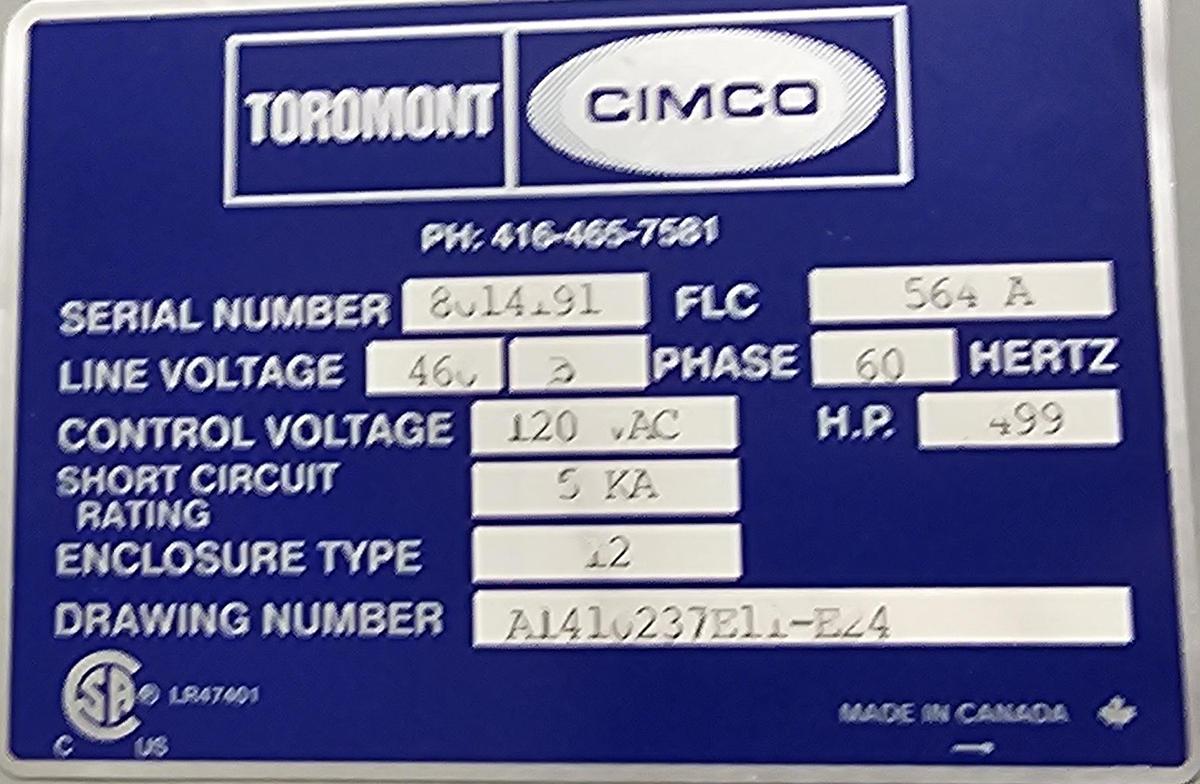

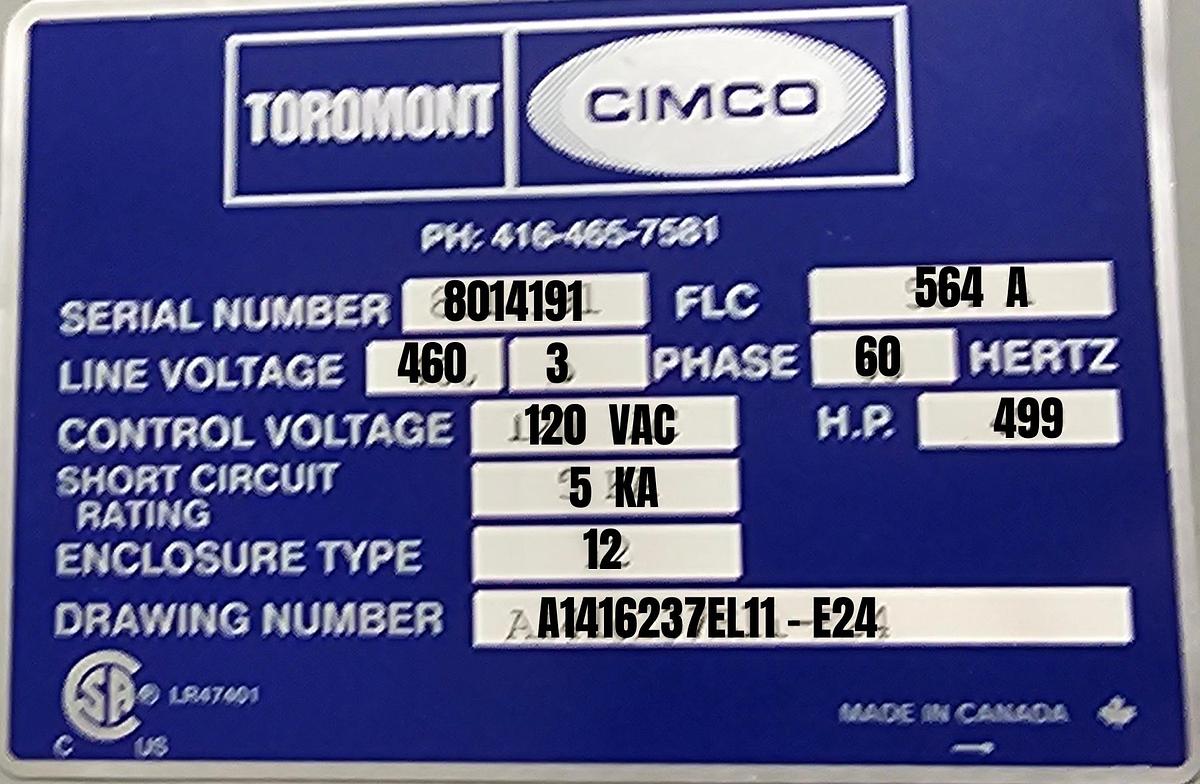

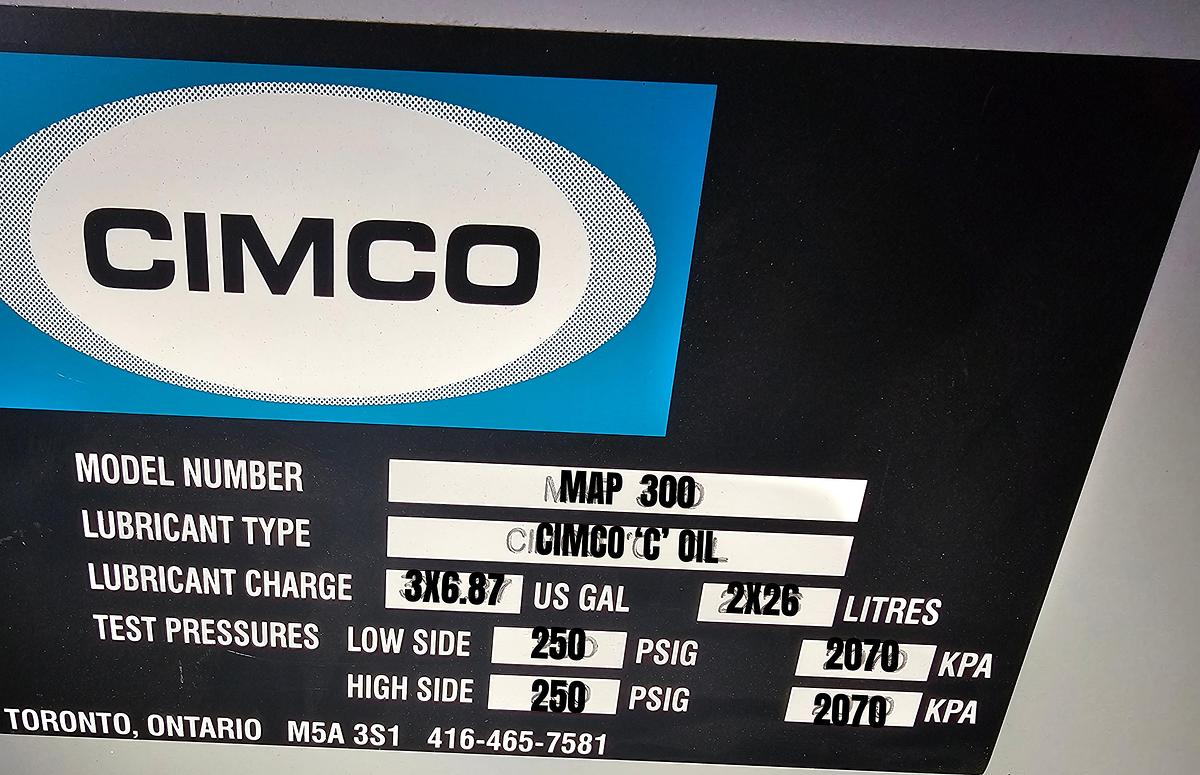

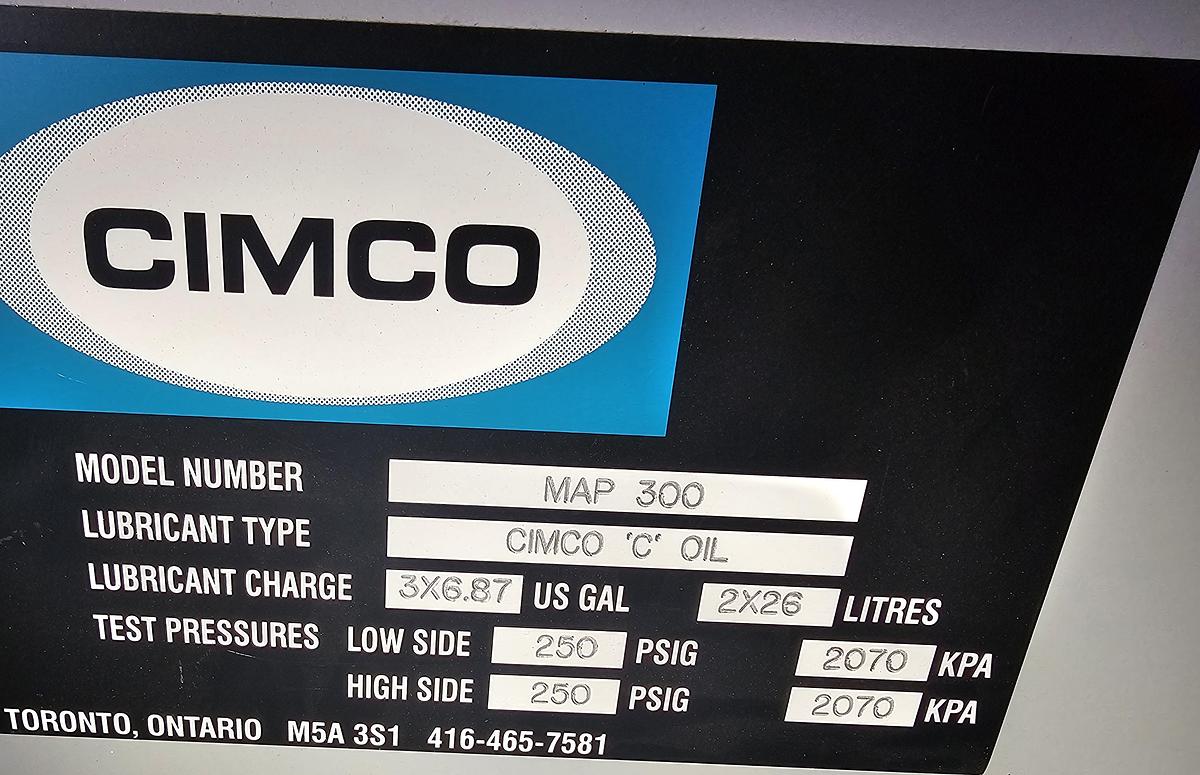

MAP 300 Unit Specifications:

• Model Number: MAP 300
• Serial: 8014191
• FLC: 564 A
• Line Voltage: 460V, 3-Phase, 60 Hertz
• Control Voltage: 120 VAC
• H.P.: 499
• Short Circuit Rating: 5 KA
• Enclosure Type: 12
• Drawing Number: A1416237EL11-E24
• Lubricant Type: CIMCO C OIL
• Lubricant Charge: 3 x 6.67 US GAL (2126 Litres)
• Test Pressures Low Side: 250 PSIG (2070 KPA)
• Test Pressures High Side: 250 PSIG (2070 KPA)

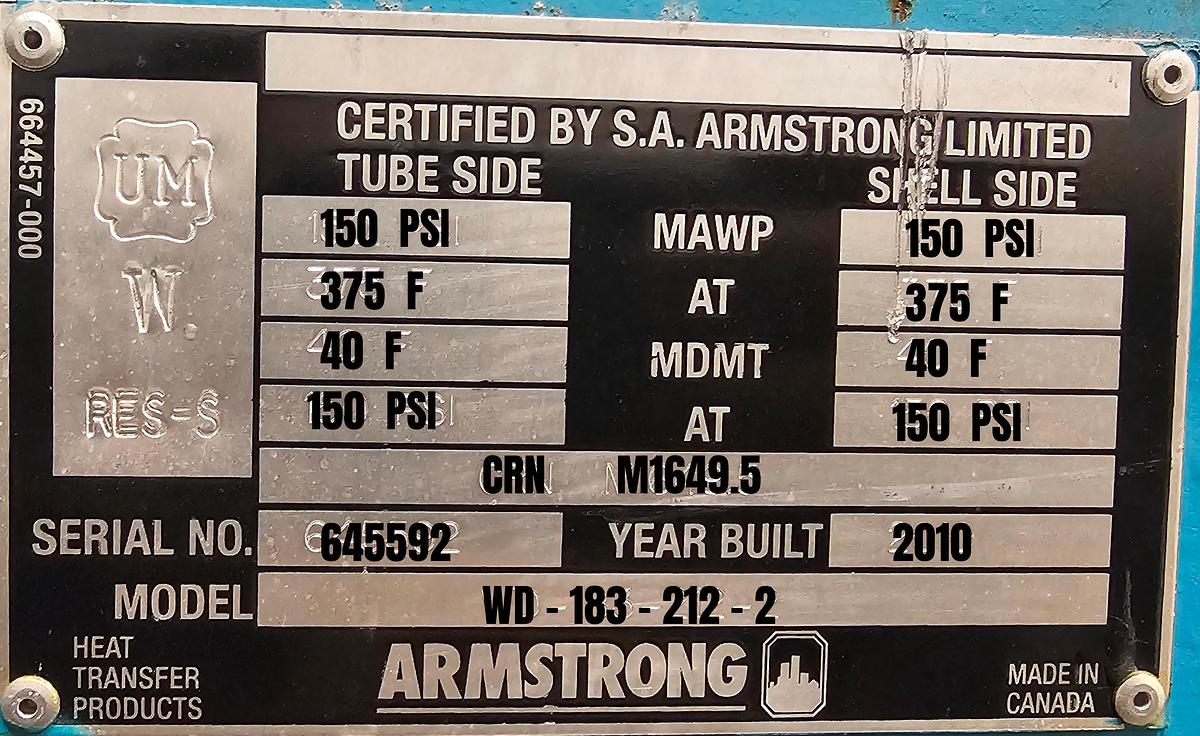

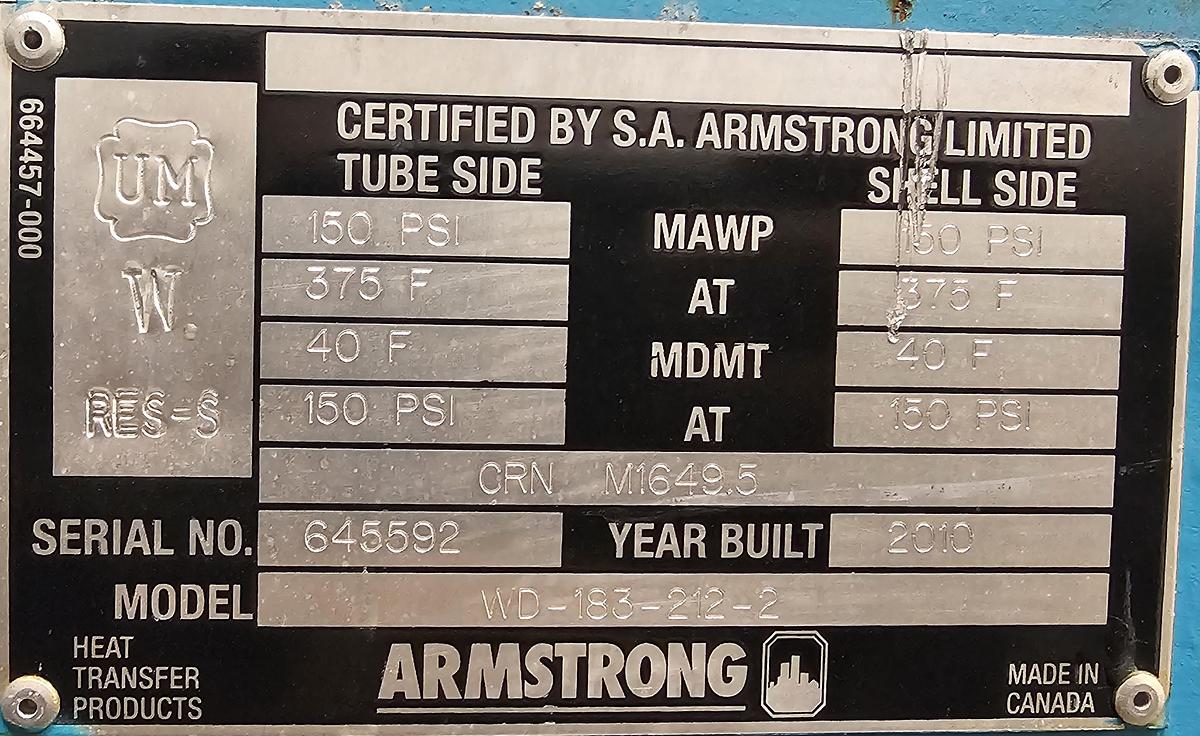

Armstrong Heat Exchanger Specifications:

• Manufacturer: S.A. Armstrong Limited
• Model: WD-183-212-2
• Serial No.: 645592
• Year Built: 2010
• CRN: M1649.5
• Tube Side: 150 PSI at 375°F, MDMT 40°F at 150 PSI
• Shell Side: MAWP 150 PSI at 375°F, MDMT 40°F at 150 PSI
• ASME U-stamp certified
• Made in Canada

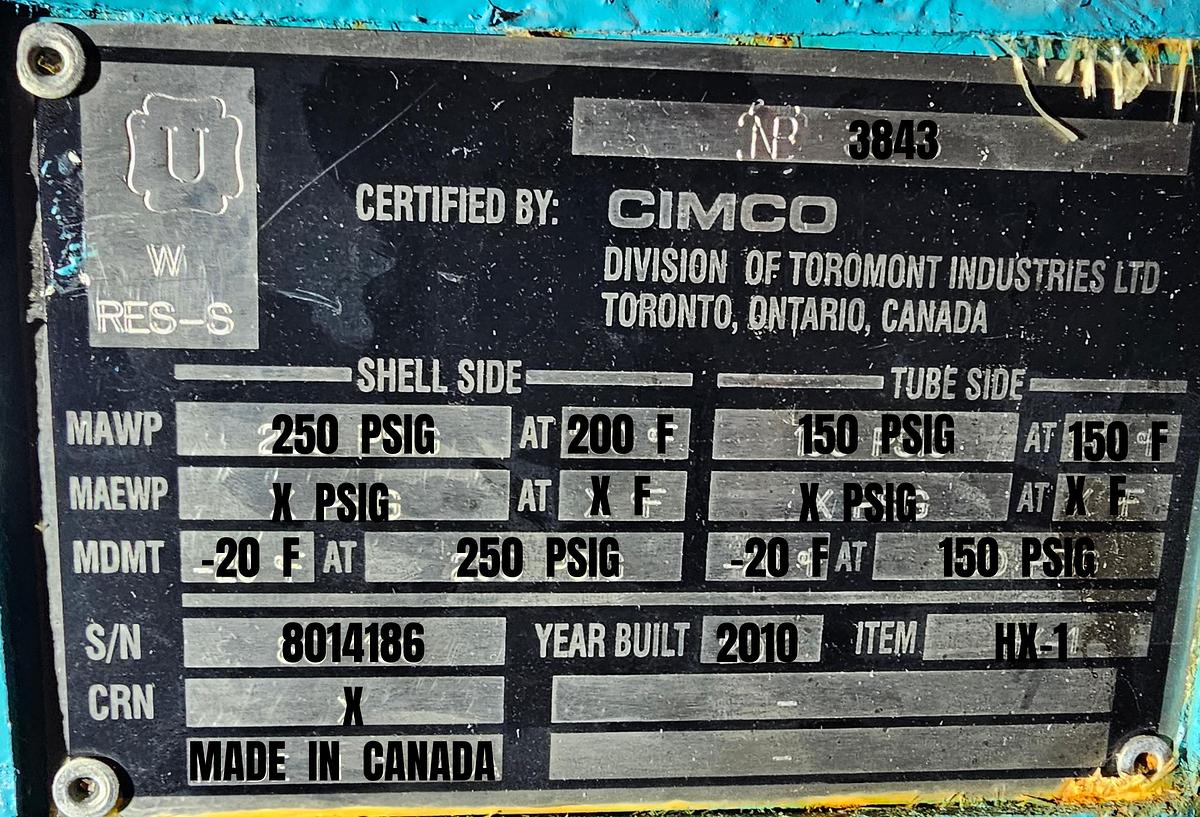

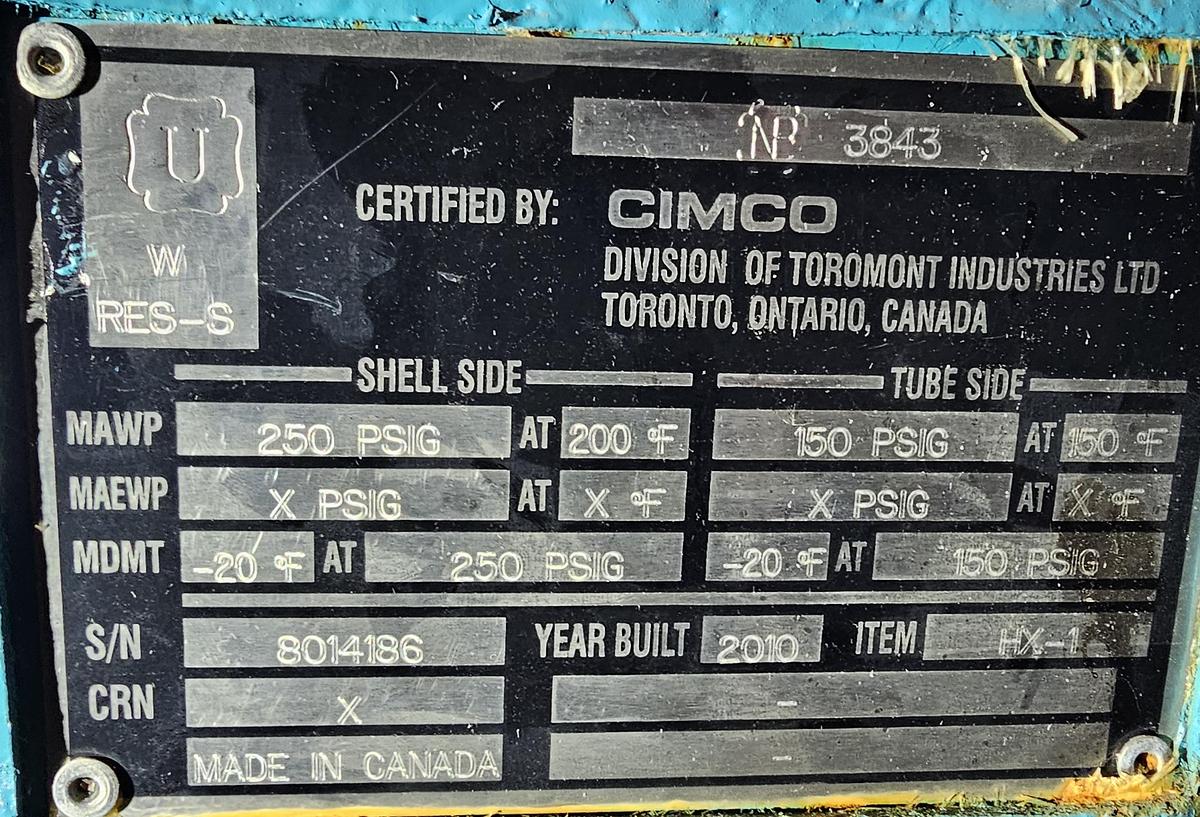

CIMCO Pressure Vessel Data:

• National Board No.: 3843
• MAWP Shell Side: 250 PSIG at 200°F
• MAWP Tube Side: 150 PSIG at 150°F
• MDMT: -20°F at 250 PSIG (Shell), -20°F at 150 PSIG (Tube)
• Serial No.: 8014186
• Year Built: 2010
• Item: HX-1
• Made in Canada
• Certified by: CIMCO Division of Toromont Industries Ltd., Toronto, Ontario, Canada

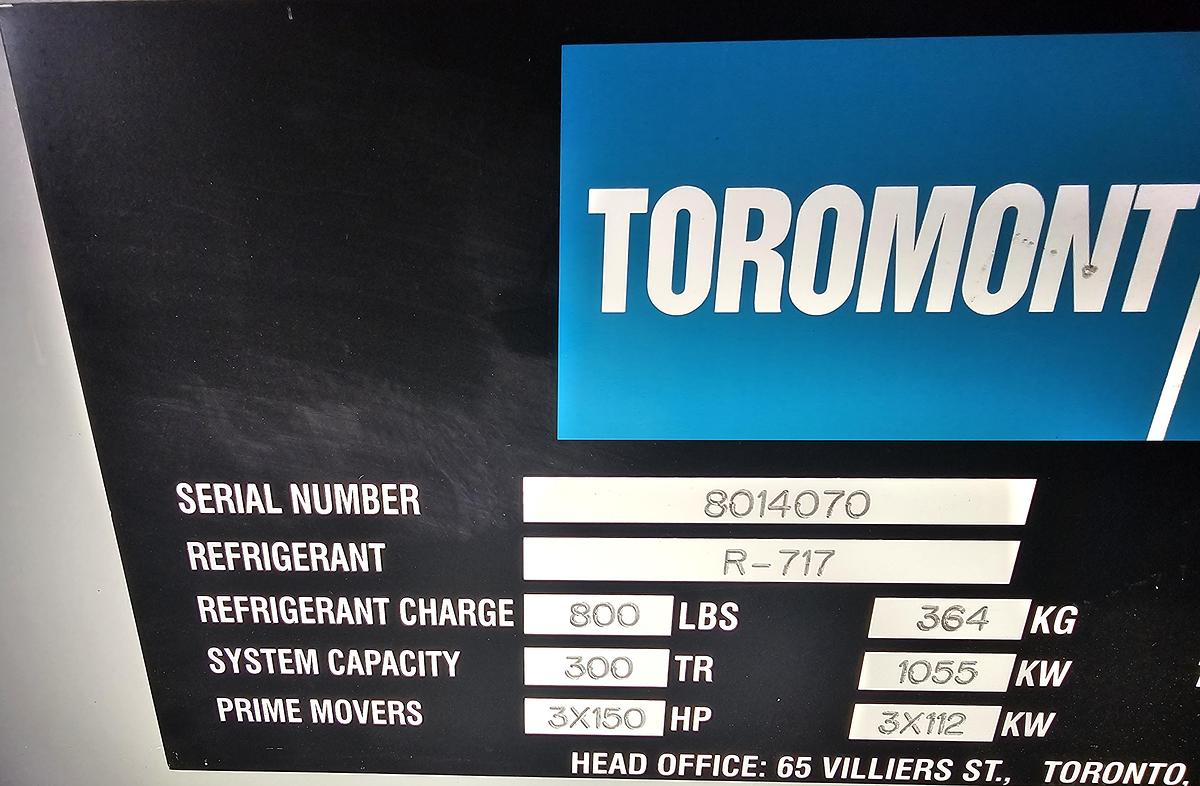

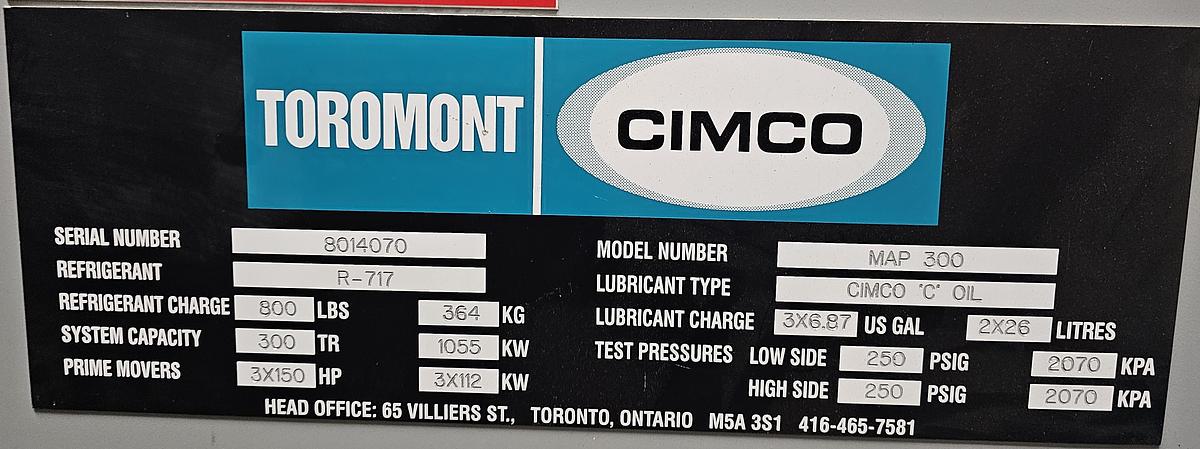

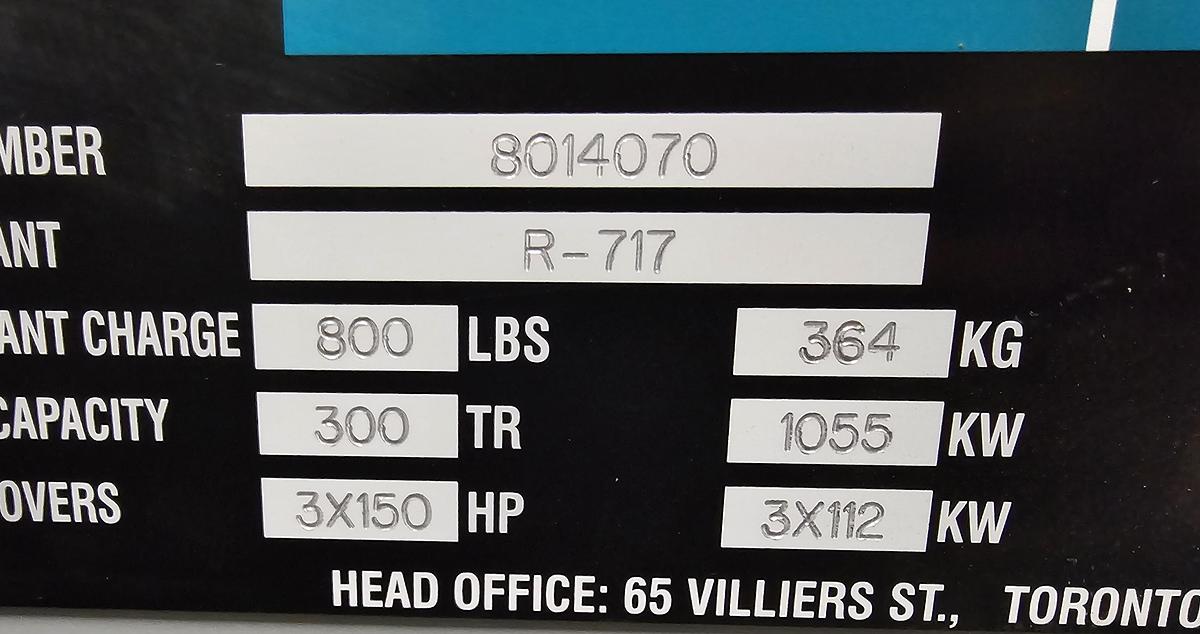

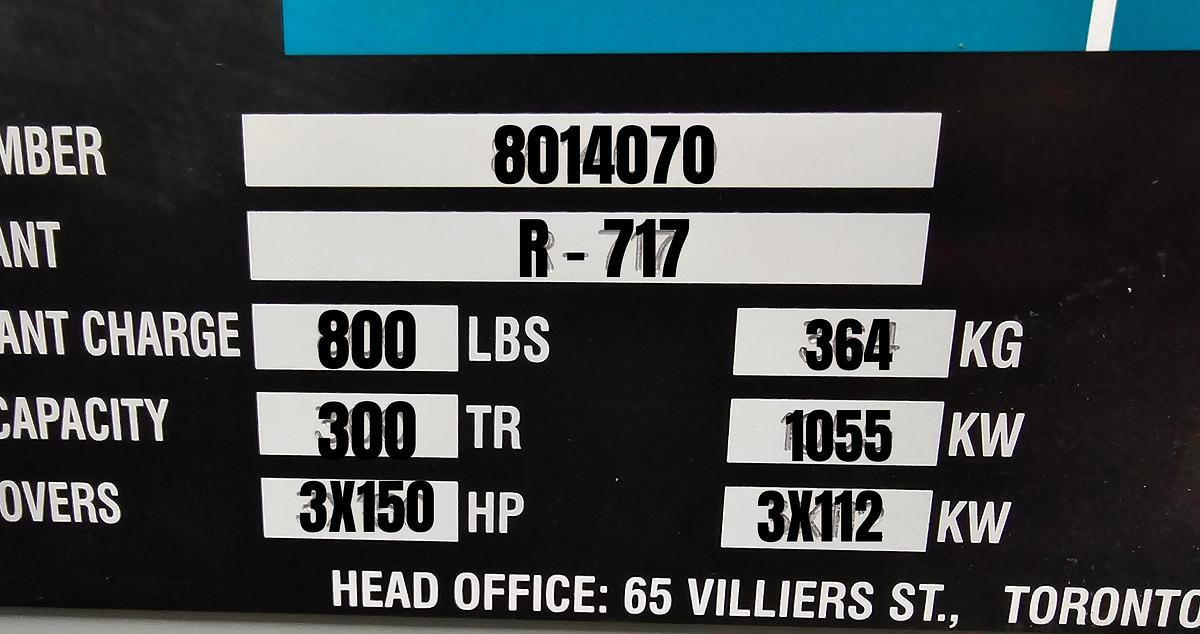

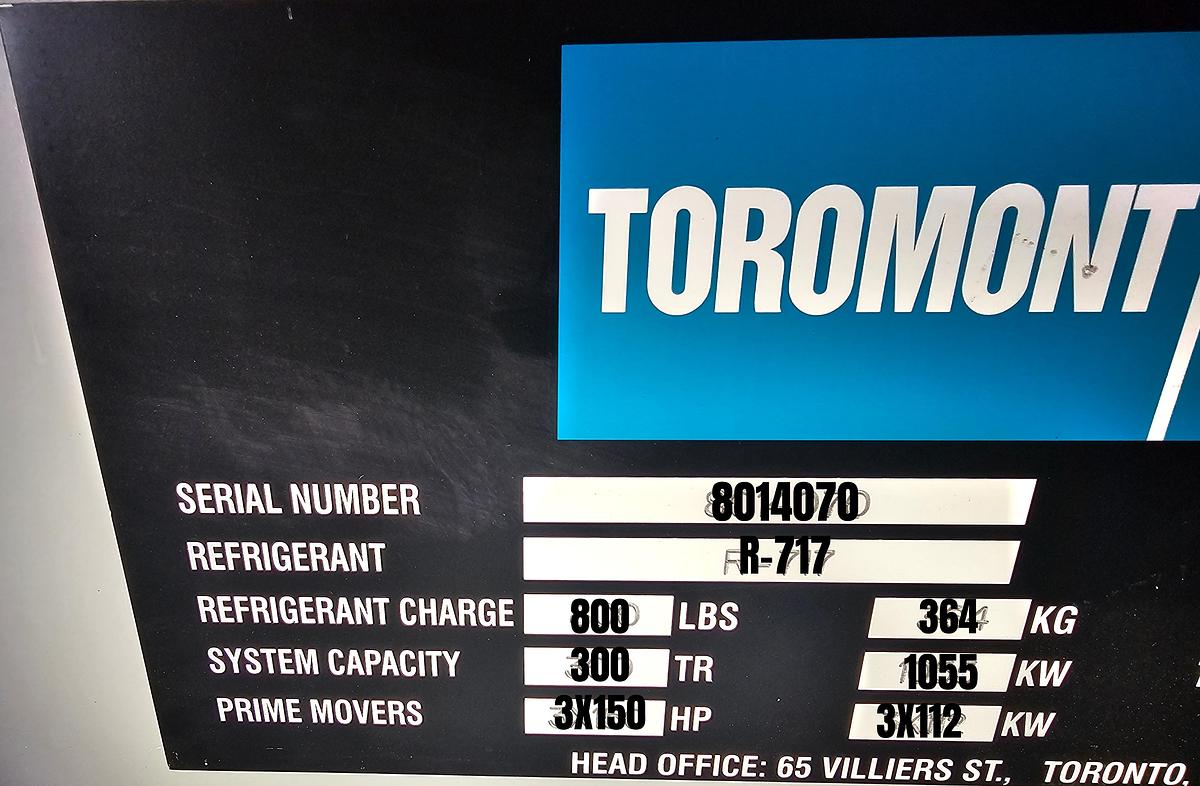

Chiller System Data (Toromont):

• Serial Number: 8014070
• Refrigerant: R-717
• Refrigerant Charge: 800 LBS (364 KG)
• System Capacity: 300 TR (1055 KW)
• Prime Movers: 3 x 150 HP (3 x 112 KW)

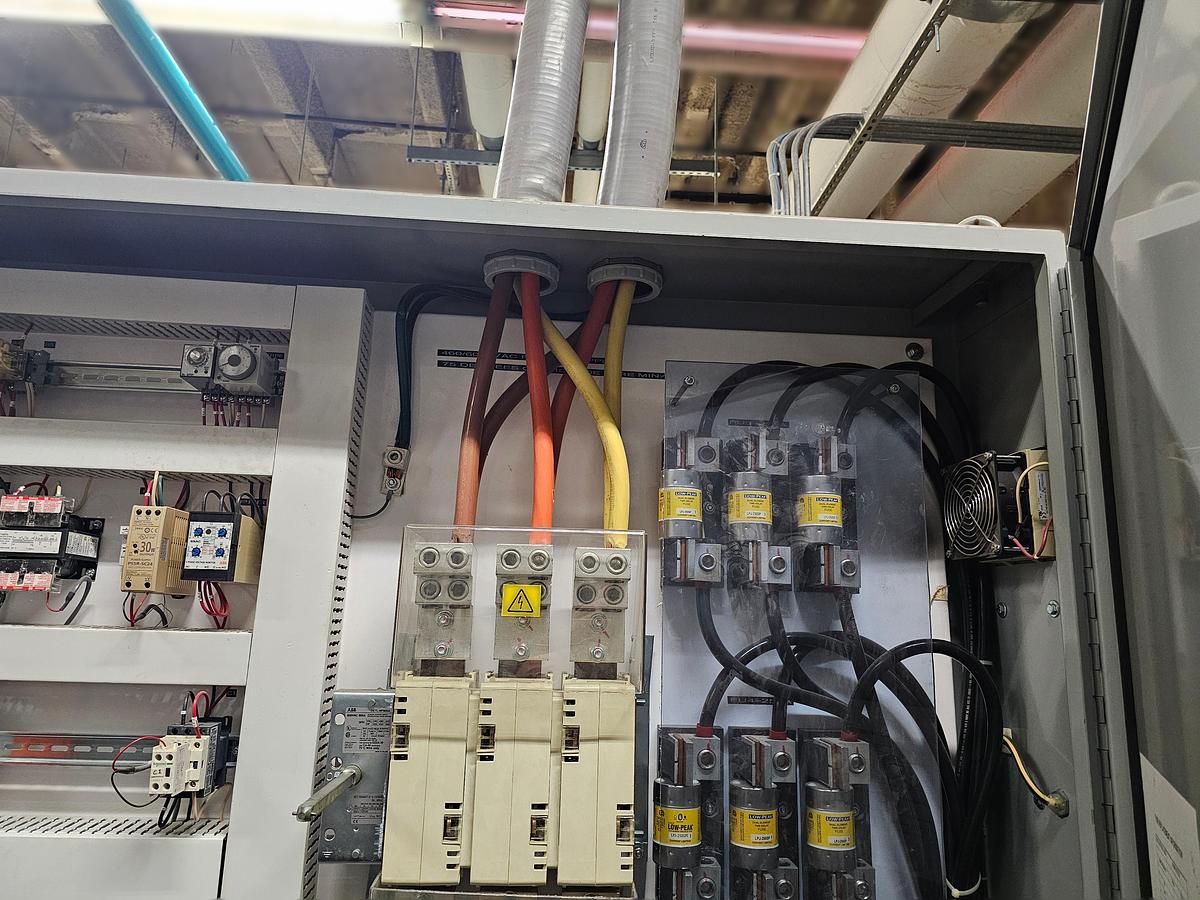

Electrical Specifications:

• System Voltage: 460V, 3-Phase, 60Hz
• Control Voltage: 120 VAC
• FLC (MAP 300): 564 A
• Short Circuit Rating: 5 KA

Physical Specifications:

• Skid-mounted industrial configuration
• Turquoise painted steel framework
• Multiple compressor arrangement
• Integrated piping manifolds
• Control panel mounted on frame
• Heavy-duty steel base construction

Ideal Applications

• Large-Scale Food Processing
• Cold Storage Warehouses
• Ice Rink Facilities
• Industrial Process Cooling
• Chemical Processing Plants
• Brewery Operations
• Pharmaceutical Manufacturing
• Large Commercial Buildings
• Data Center Cooling
• Manufacturing Process Cooling
• District Cooling Systems
• Food Distribution Centers

Benefits

• 2010 Canadian manufacture
• 300-ton refrigeration capacity
• Ammonia (R-717) refrigeration system
• Multiple compressor configuration
• Complete skid-mounted package
• Armstrong heat exchanger included
• ASME certified
• Heavy-duty industrial construction
• Integrated control systems
• Ready for installation
• Proven Toromont CIMCO design
• Canadian-built quality

Additional Information

• Condition: Used - 2010 Manufacture
• Manufacturer: CIMCO - Division of Toromont Industries Ltd.
• Location: Toronto, Ontario, Canada
• Model Numbers: C6-W08AHE, MAP 300, WD-183-212-2
• Serial Numbers: 10301, 10302, 10303, 8014191, 8014186, 645592, 8014070
• National Board Number: 3843
• Pressure Rating: 150-250 PSI depending on component
• Refrigerant: R-717 (Ammonia)
• Refrigerant Charge: 800 lbs (364 kg)
• Capacity: 300 Tons (1055 kW)
• Total Horsepower: 499 HP (MAP 300 unit)
• Prime Movers: 3 x 150 HP (3 x 112 kW)
• Installation Type: Skid-mounted industrial package
• Finish: Turquoise painted steel
• Control System: Integrated 460V 3-phase with 120V controls
• Certification: ASME U-stamp, CRN M1649.5
• Made In: Canada
