2021 Cleaver Brooks SD-45-1105/1200-2X2G

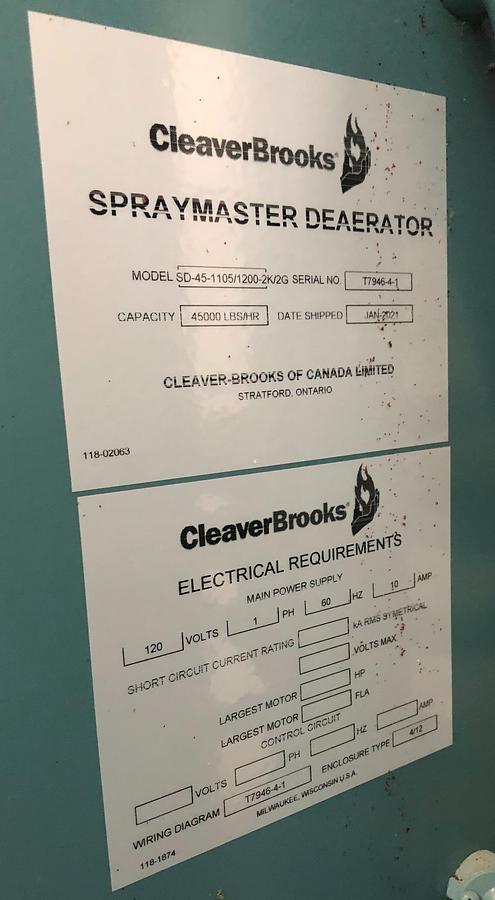

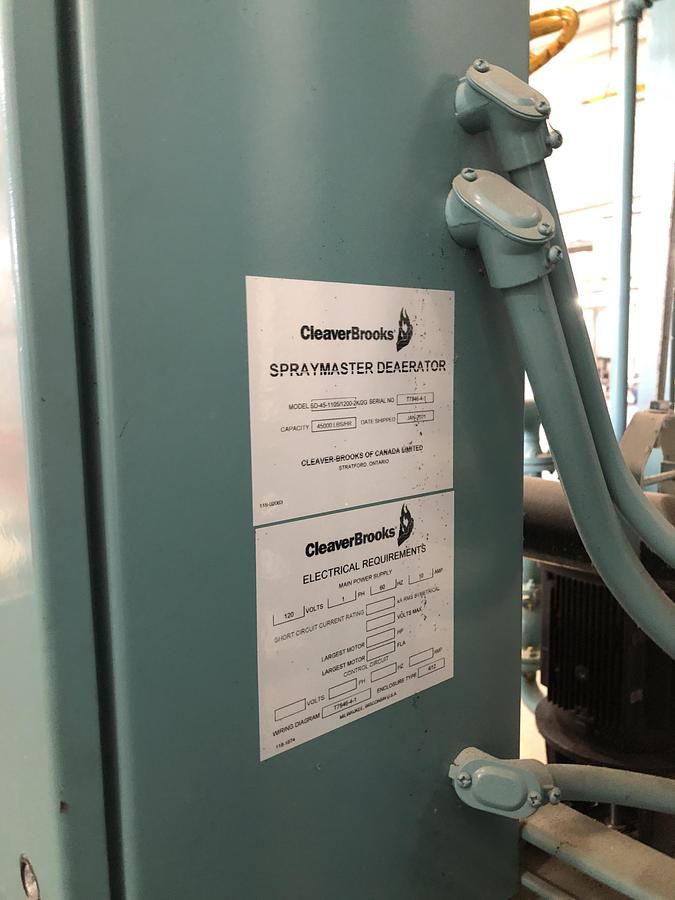

• Manufacturer: Cleaver-Brooks of Canada Limited (Stratford, Ontario)
• Equipment: SPRAYMASTER DEAERATOR
• Model: SD-45-1105/1200-2X2G
• Serial No.: T7946-1
• Capacity: 45,000 lbs/hr
• Date Shipped: Jan/2001
• Top plate doc/code: 118-02063

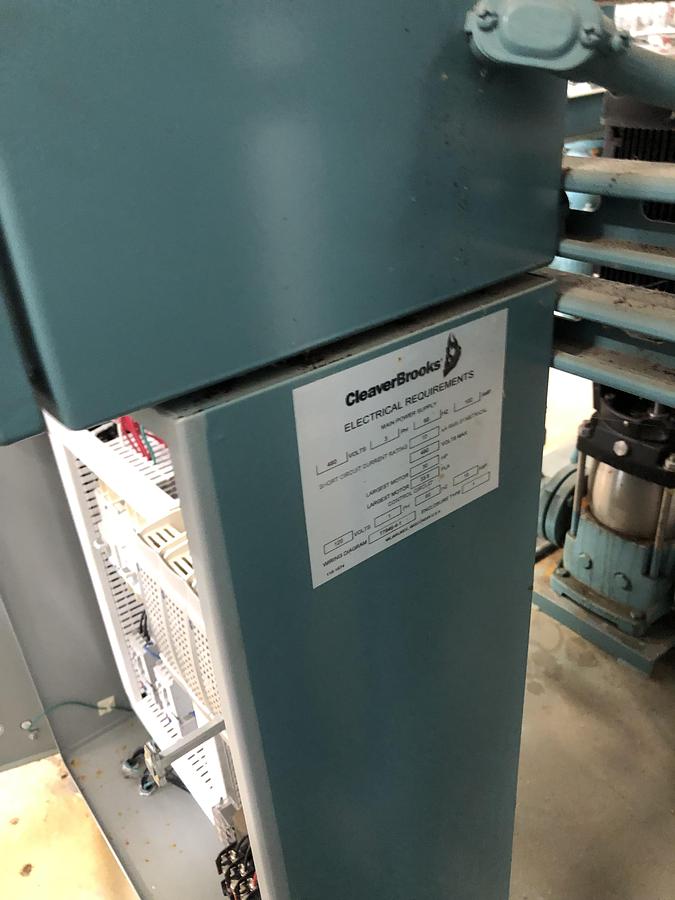

Electrical Requirements (lower plate):

• Main Power Supply: 120 V, 1-phase, 60 Hz, 10 A
• Short-circuit current rating: (boxes blank on the tag)
• Largest motor – HP / FLA: (blank)
• Largest motor control circuit (V / PH / Hz): (blank)
• Enclosure type: 4/12
• Wiring diagram: 118-1874

Capacity: Your tag shows 45,000 lb/hr — that’s the maximum feedwater throughput it can deaerate.

Removes gases: By heating the incoming makeup/condensate to (about) saturation temperature with steam, it drives off dissolved O₂ to low ppb levels and CO₂ from bicarbonates.

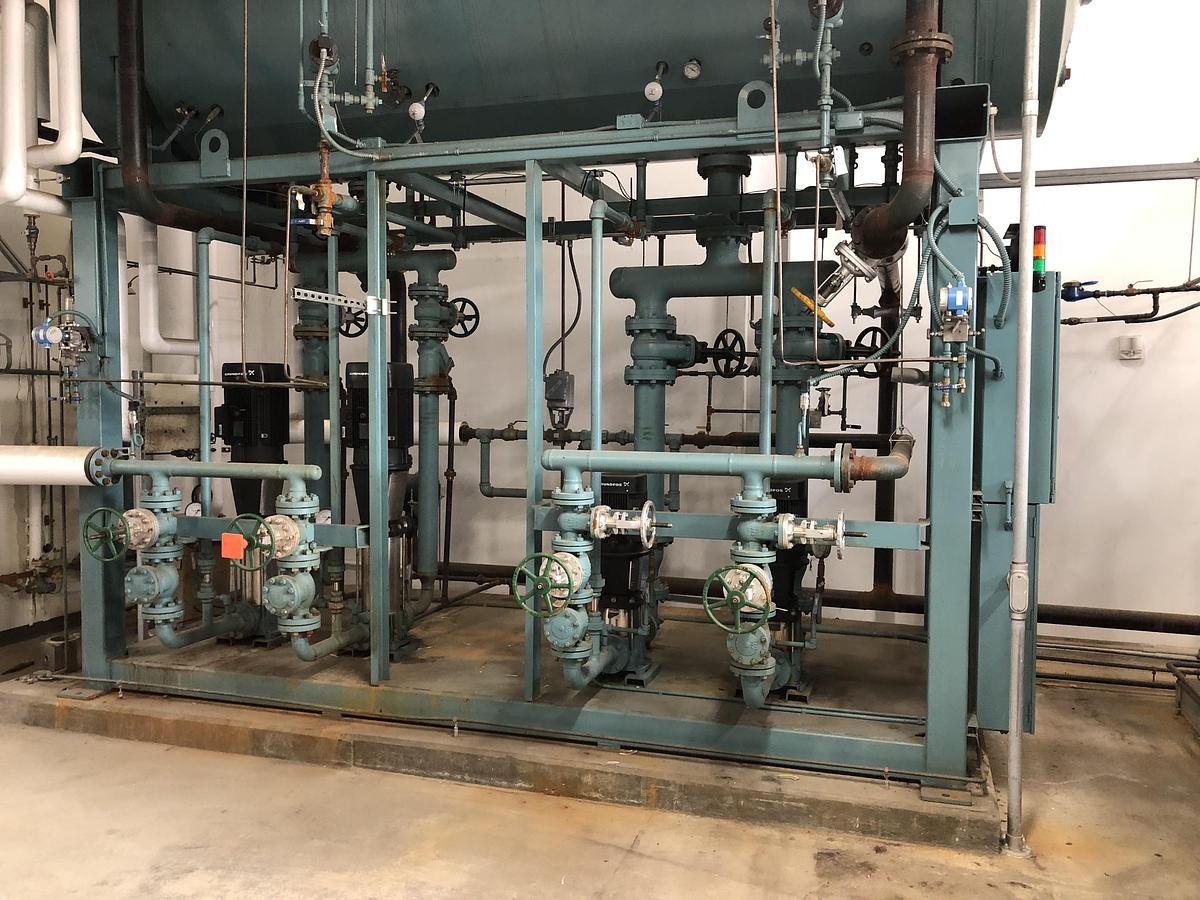

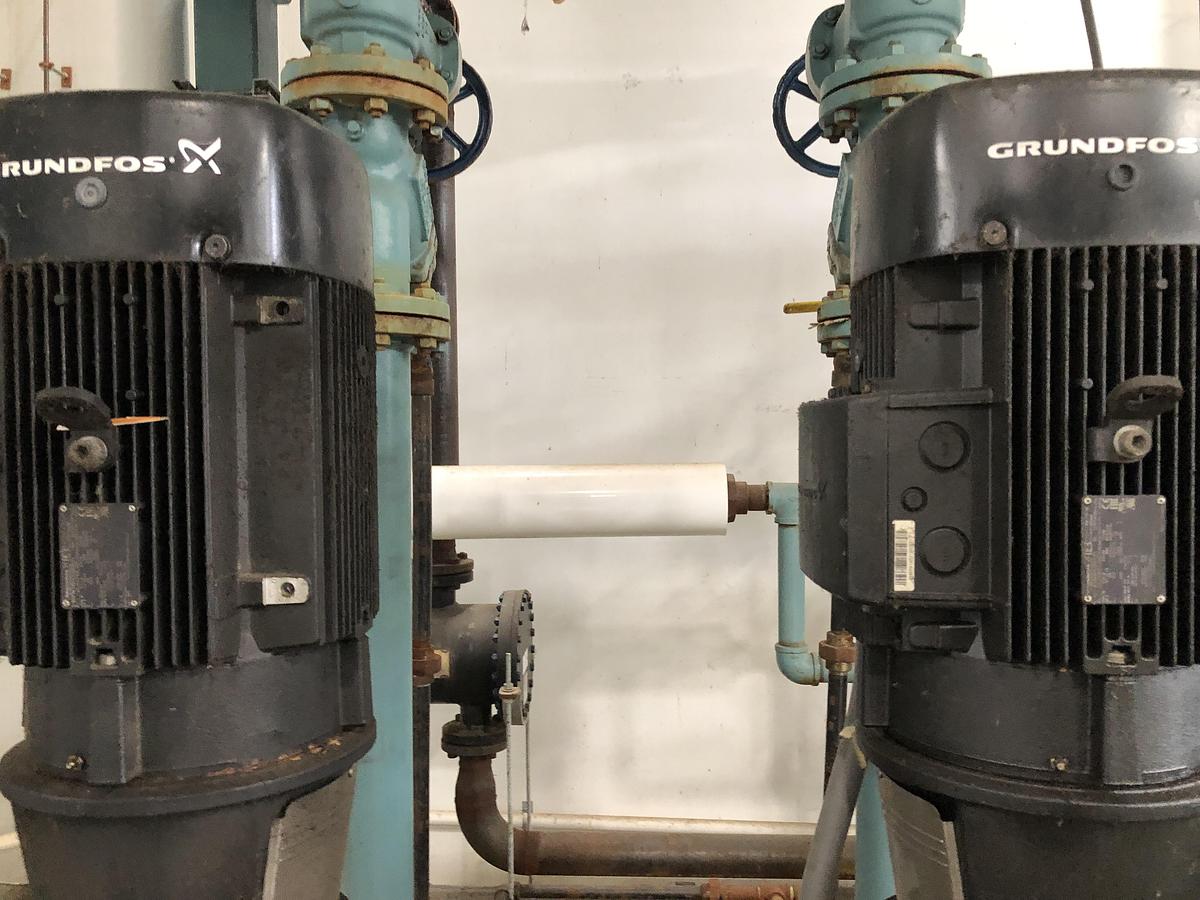

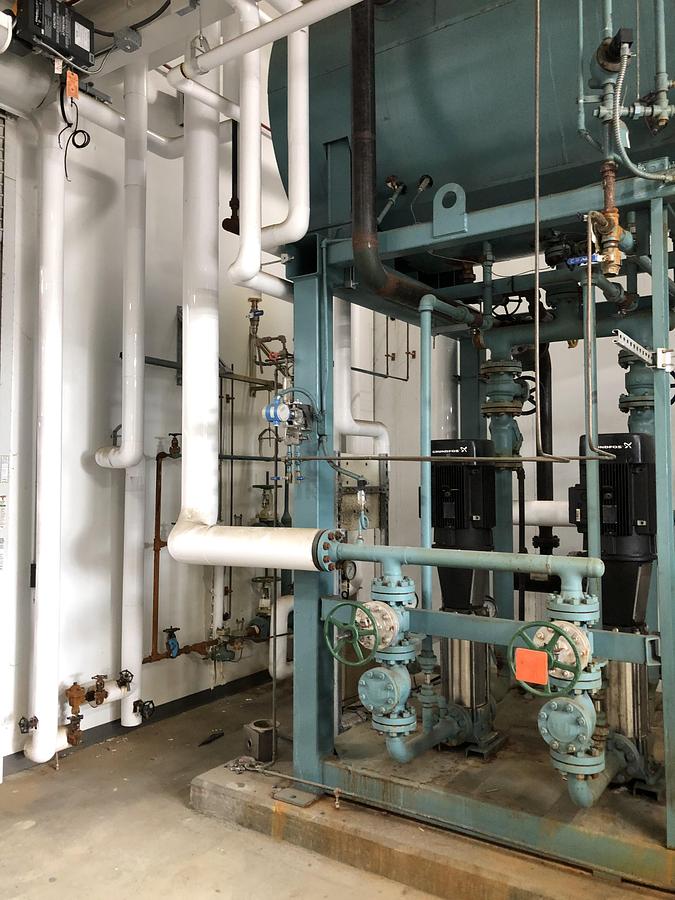

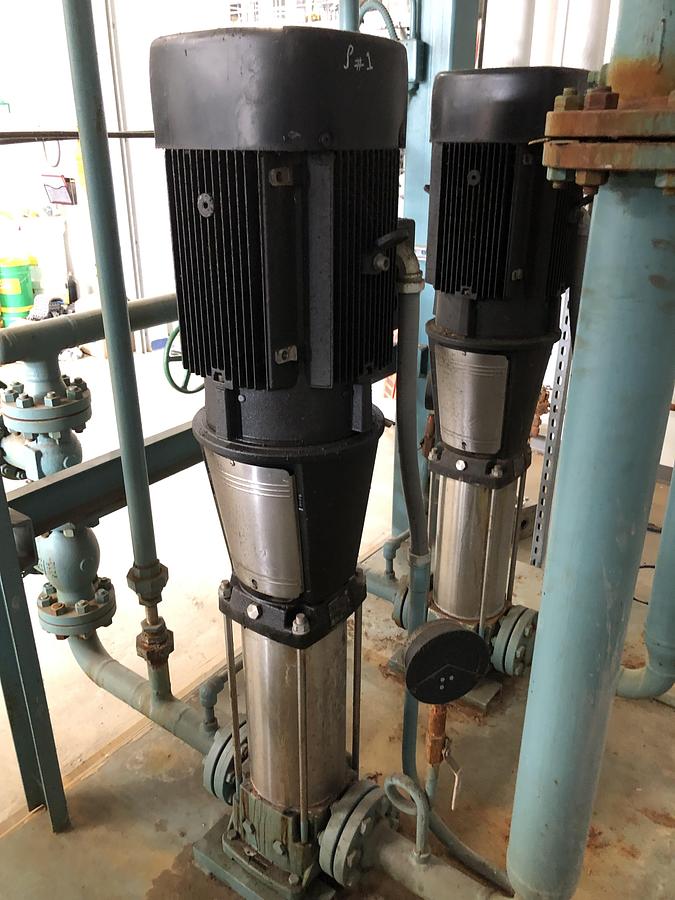

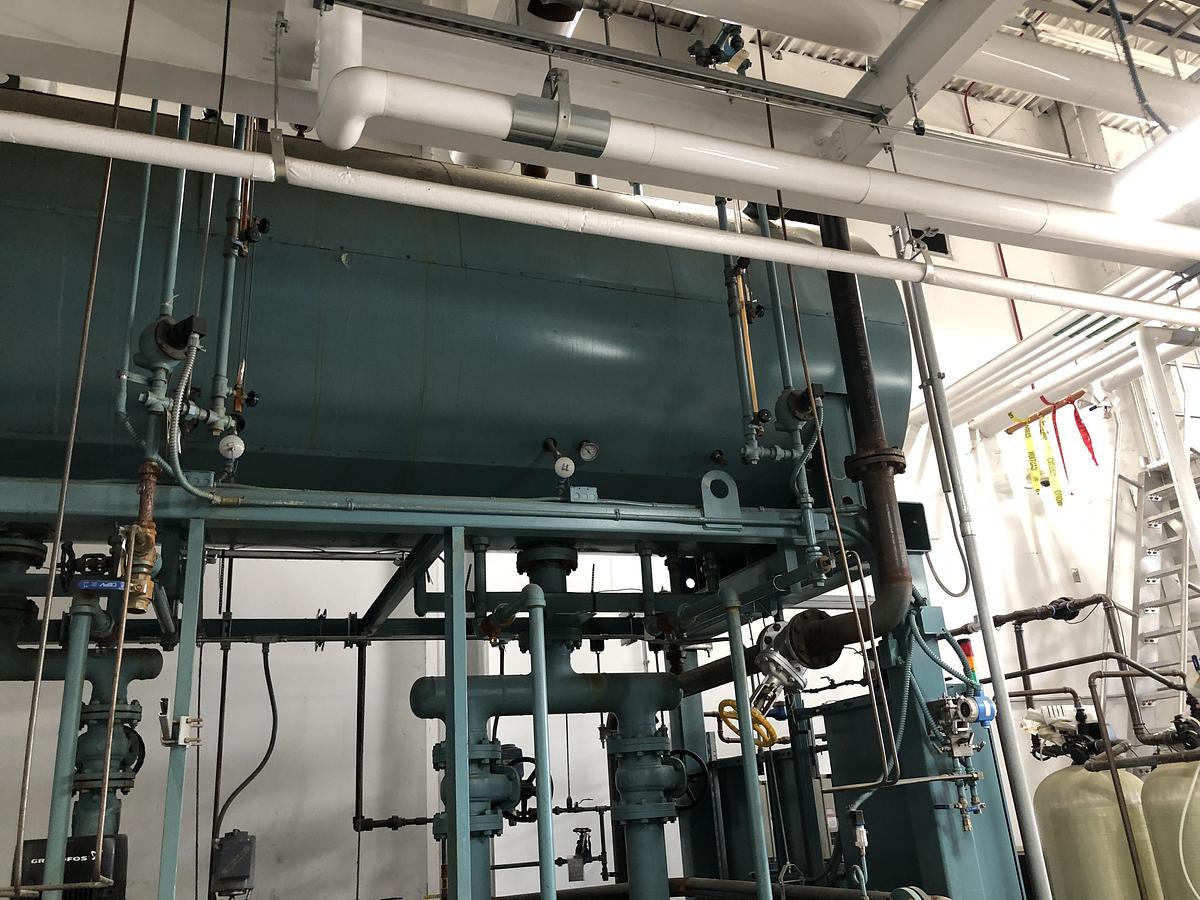

Provides hot storage: Deaerated water falls into the storage section so the boiler feed pumps have steady, hot water with good NPSH.

Vents for non-condensables: A small continuous vent allows the released gases to escape (never cap this).

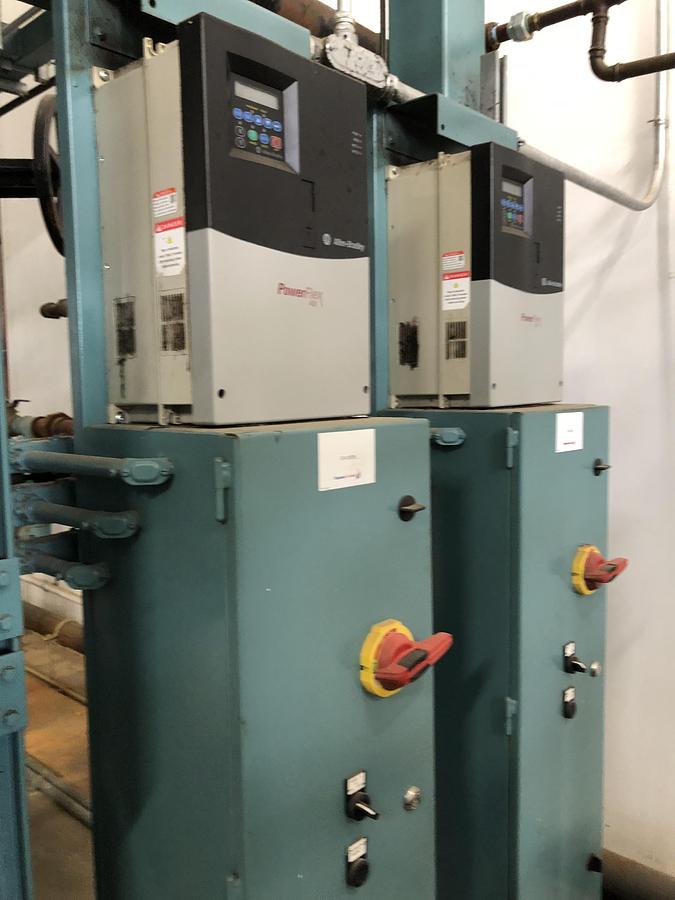

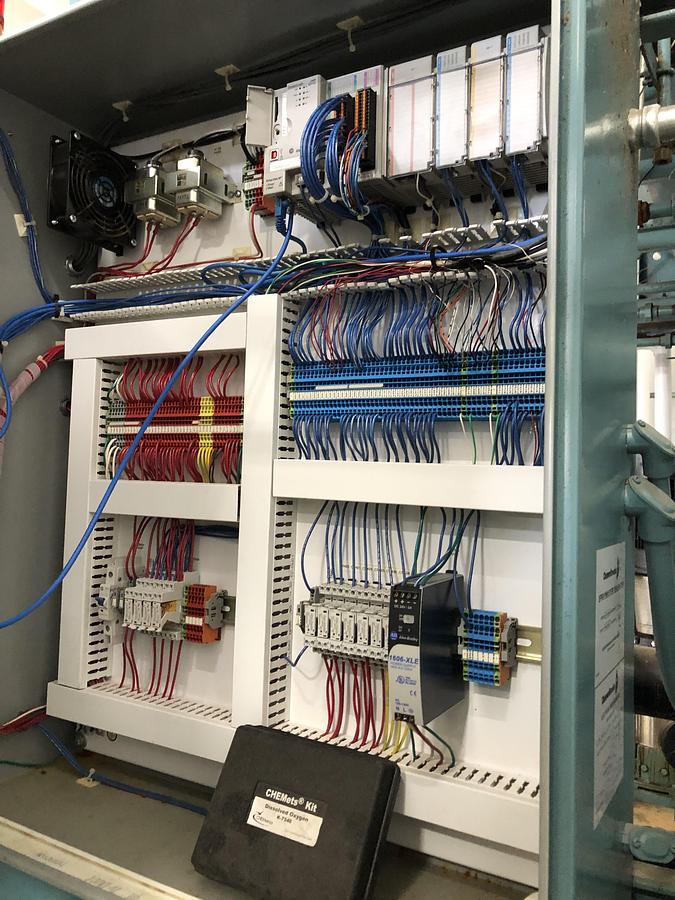

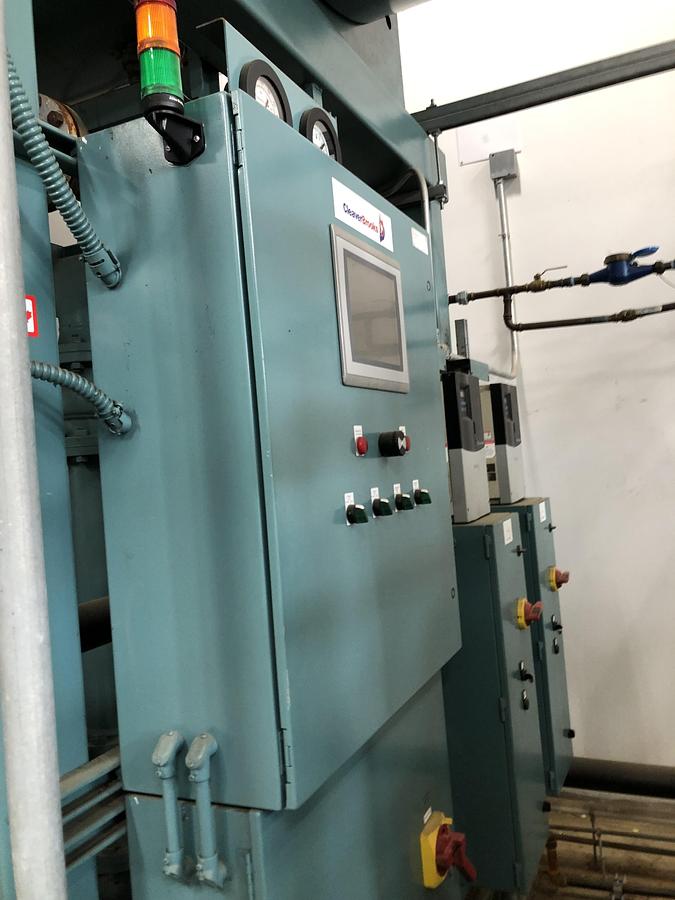

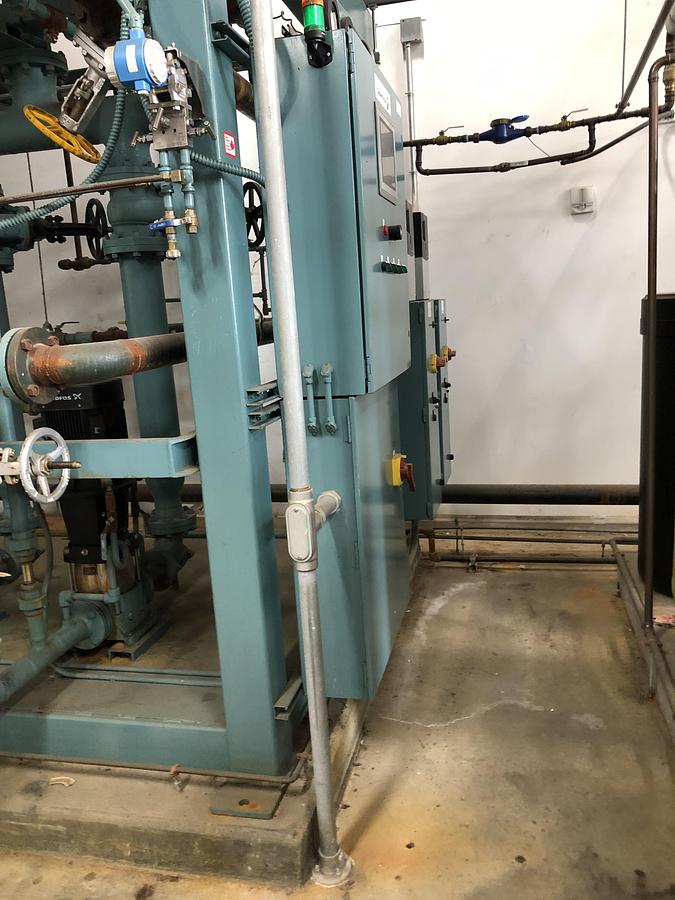

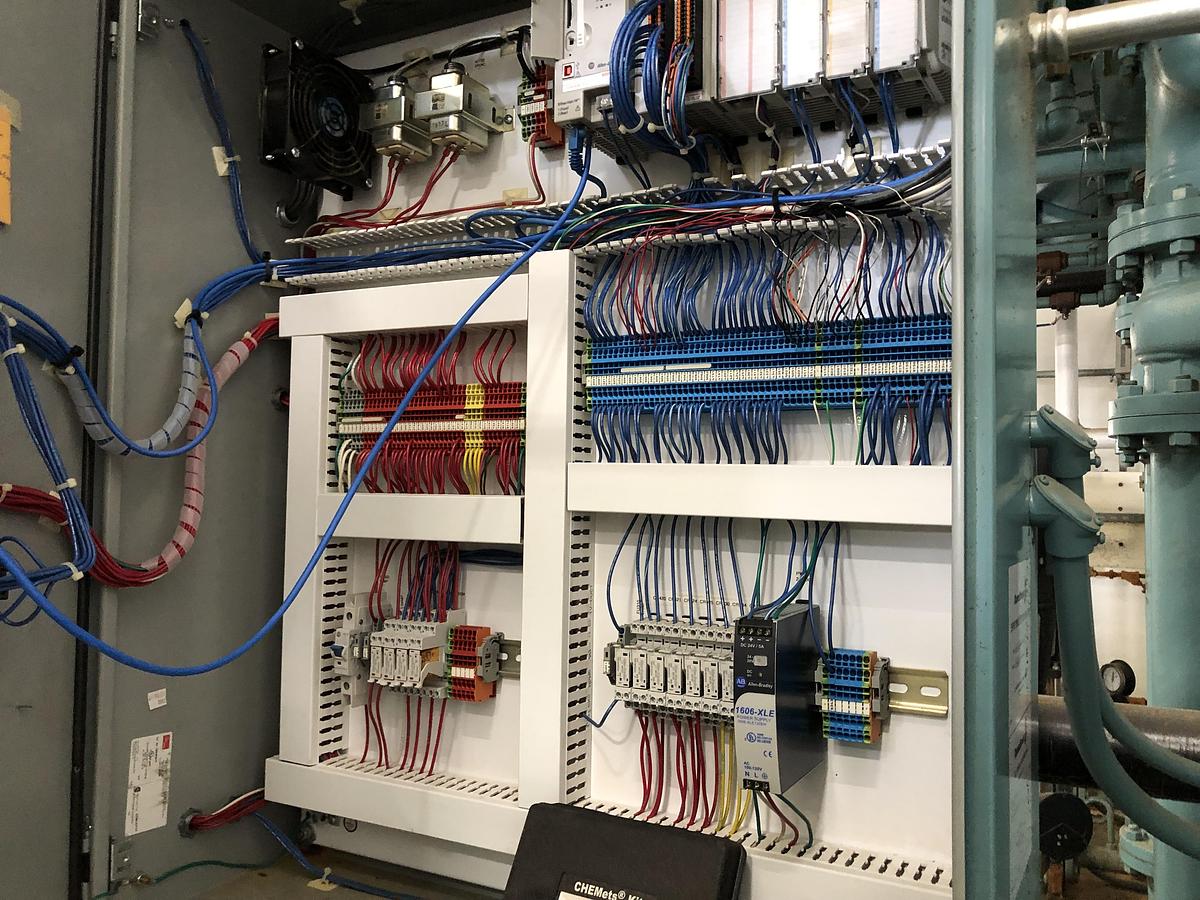

Controls & power: The control panel/valves/level instruments run on 120 V, 1-phase, 60 Hz (per the lower tag).
