Caterpillar SR-4B Diesel Generator Set 1330-1663 kW 480-600V 3-Phase 2000A Switchgear S/N 93FN00666

Overview

This Caterpillar SR-4B Diesel Generator is a heavy-duty industrial power generation system designed for mission-critical applications requiring reliable standby or prime power. Manufactured by Caterpillar Inc., this sound-attenuated generator set features robust construction and professional-grade components for demanding commercial and industrial environments. With model designation SR-4B, serial number 93FN00666, and arrangement number 9Y-0160, this unit includes integrated SBS2020 electrical switchgear rated for 2000 amps maximum with multi-voltage capability. Based on the switchgear capacity, this generator provides an estimated 1,330-1,663 kW output depending on voltage configuration, making it suitable for large-scale industrial and commercial power applications.

Design and Performance

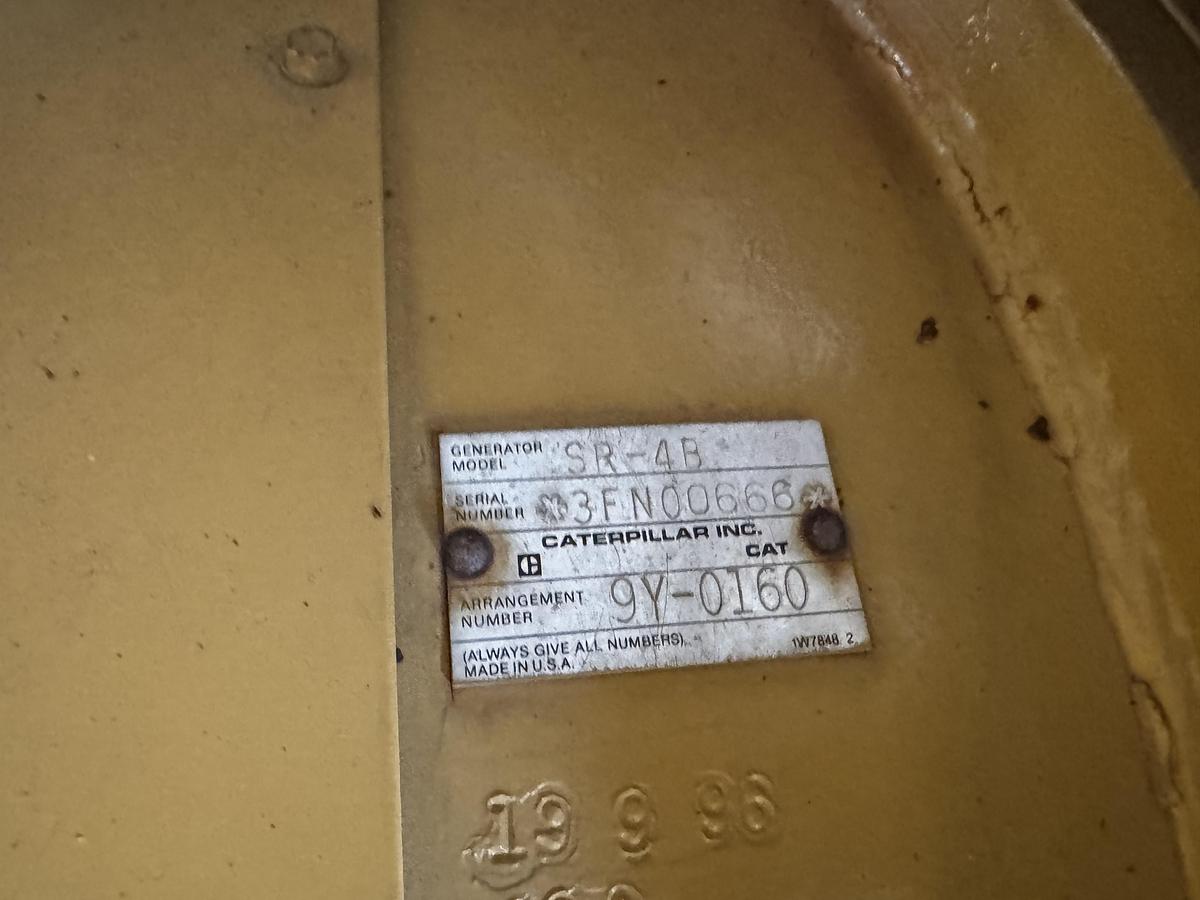

• Model: SR-4B

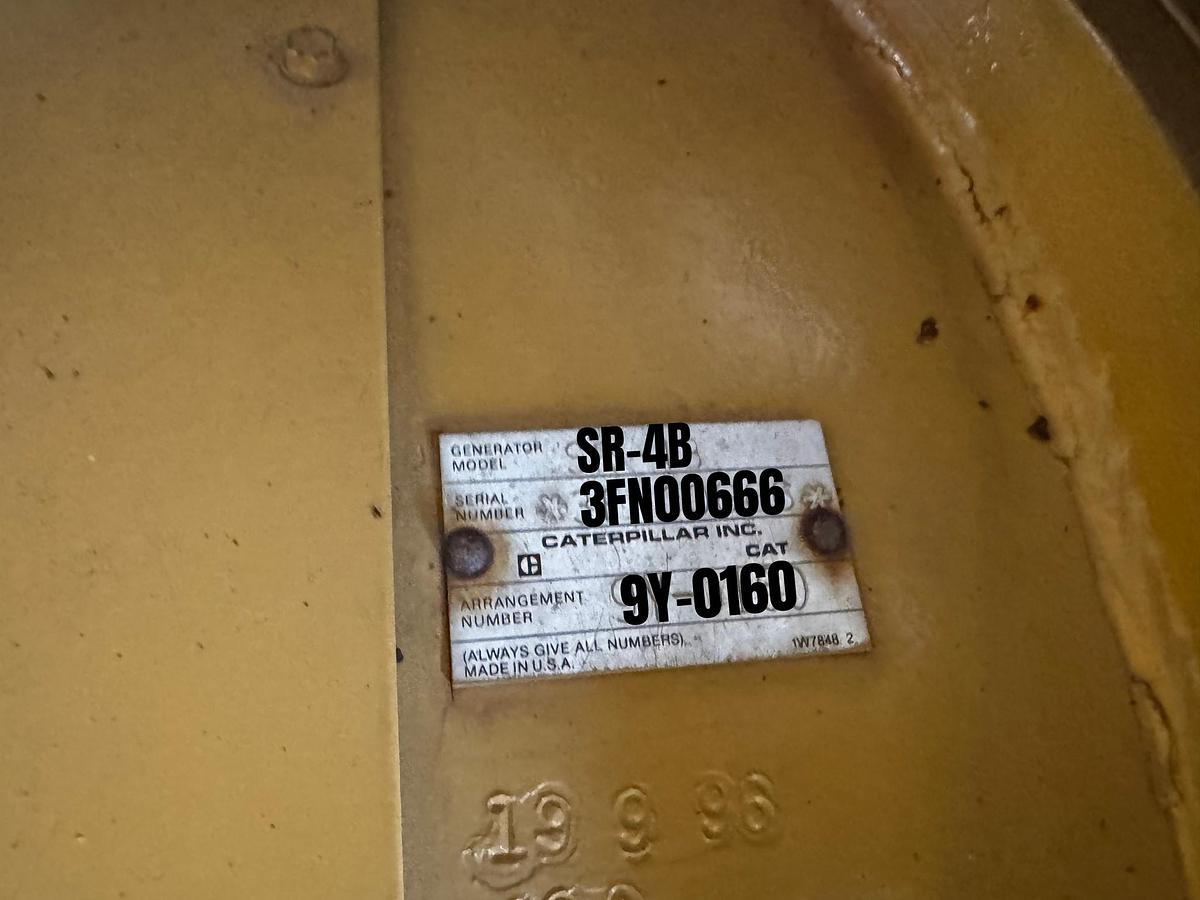

• Serial Number: 93FN00666
• Arrangement Number: 9Y-0160
• Type: Diesel Generator Set
• Manufacturer: Caterpillar Inc.
• Calculated Power Output: 1,330-1,663 kW (based on switchgear capacity)
• Electrical Configuration: Three-phase power generation
• Year of Manufacture: 1996
•


Power Output Calculations

Based on the 2000-amp maximum switchgear capacity at various voltages:

• At 480V, 3-phase: 2000A × 480V × √3 × 0.8 PF = approximately 1,330 kW
• At 600V, 3-phase: 2000A × 600V × √3 × 0.8 PF = approximately 1,663 kW

Note: Calculations assume 0.8 power factor (typical for industrial generators). These are calculated maximum capacities based on the electrical distribution system. Actual generator nameplate rating should be verified from factory documentation for precise specifications.

Electrical Specifications

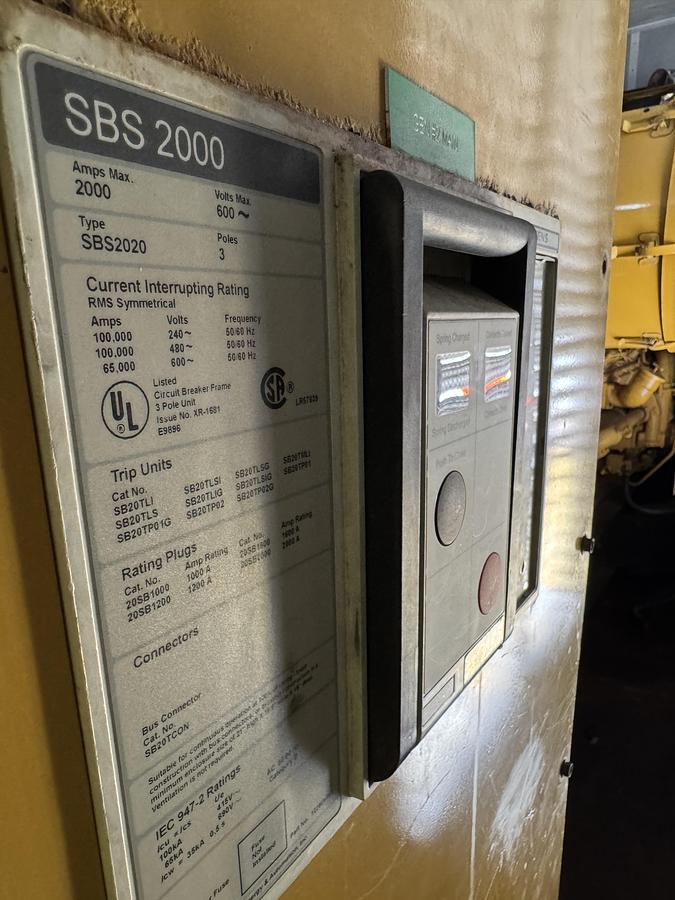

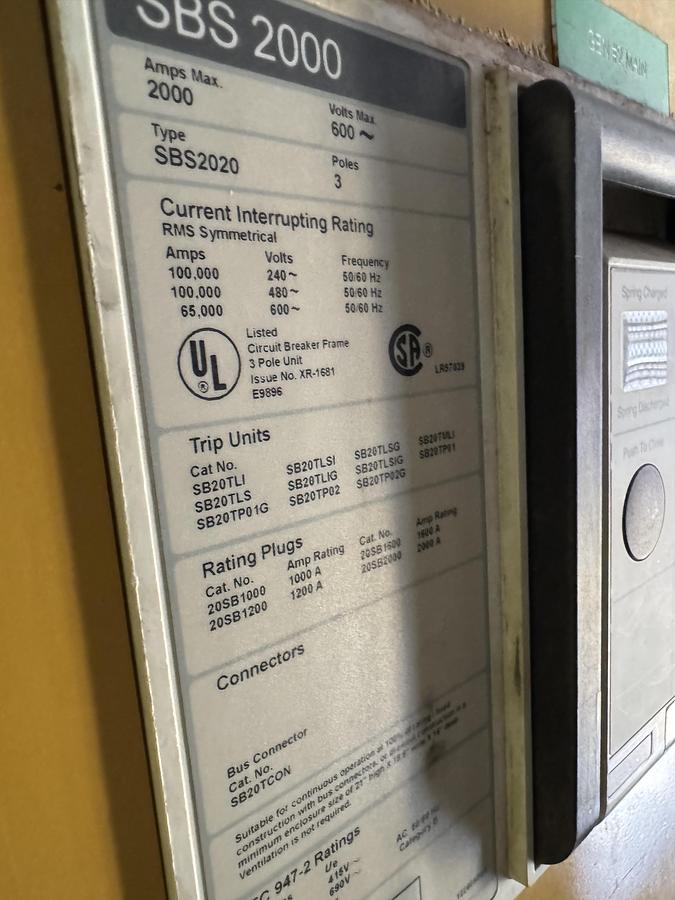

Integrated SBS2020 Switchgear:

• Maximum current rating: 2000 amps
• Voltage configurations: 240V, 480V, and 600V AC
• Three-pole circuit breaker system
• 50/60 Hz frequency operation
• UL Listed and CSA certified (Issue No. XR-1981, E9696)

RMS Symmetrical Current Interrupting Ratings:

• 100,000 amps at 240V, 50/60 Hz
• 100,000 amps at 480V, 50/60 Hz
• 65,000 amps at 600V, 50/60 Hz

Compatible Trip Units: SB20TLI, SB20TLS, SB20TP01G Rating Plugs Available: 1000A and 1200A options

Construction Features

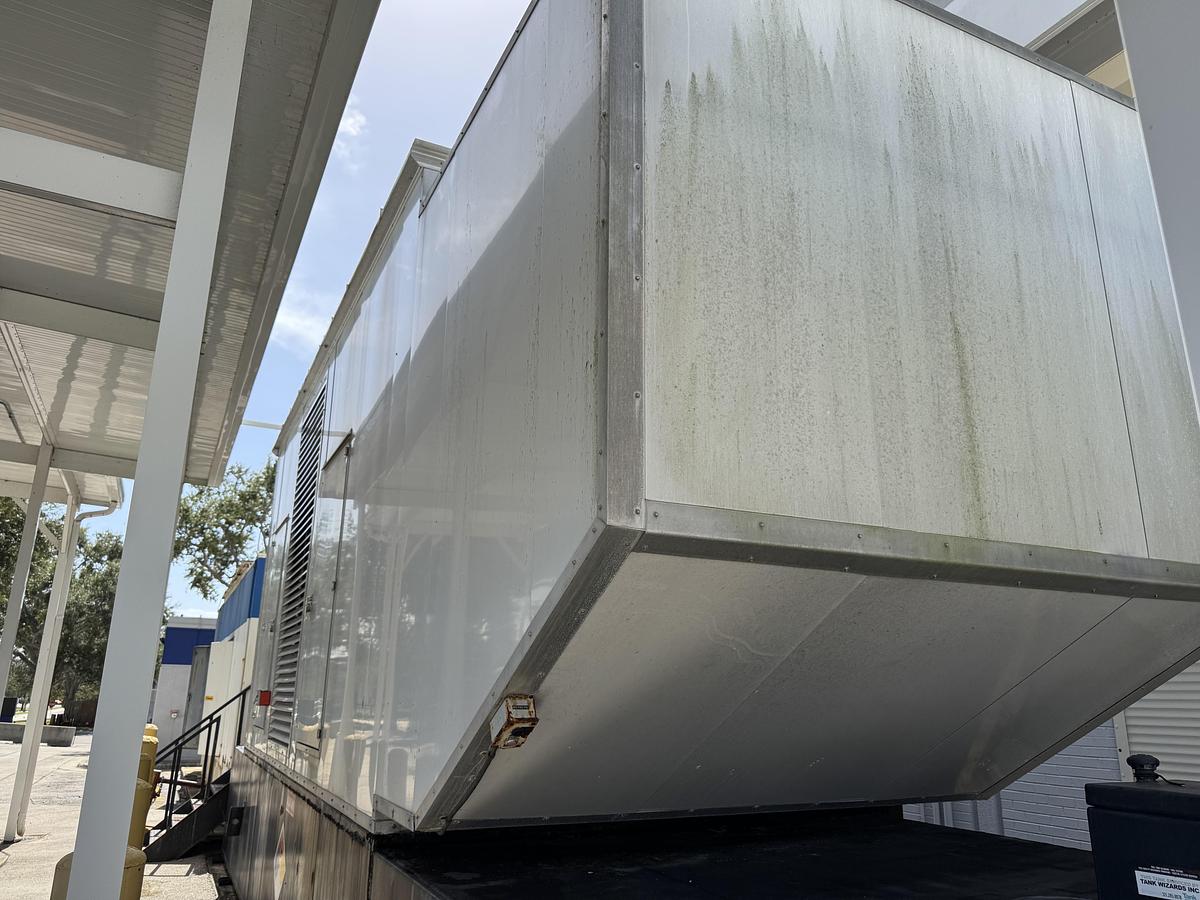

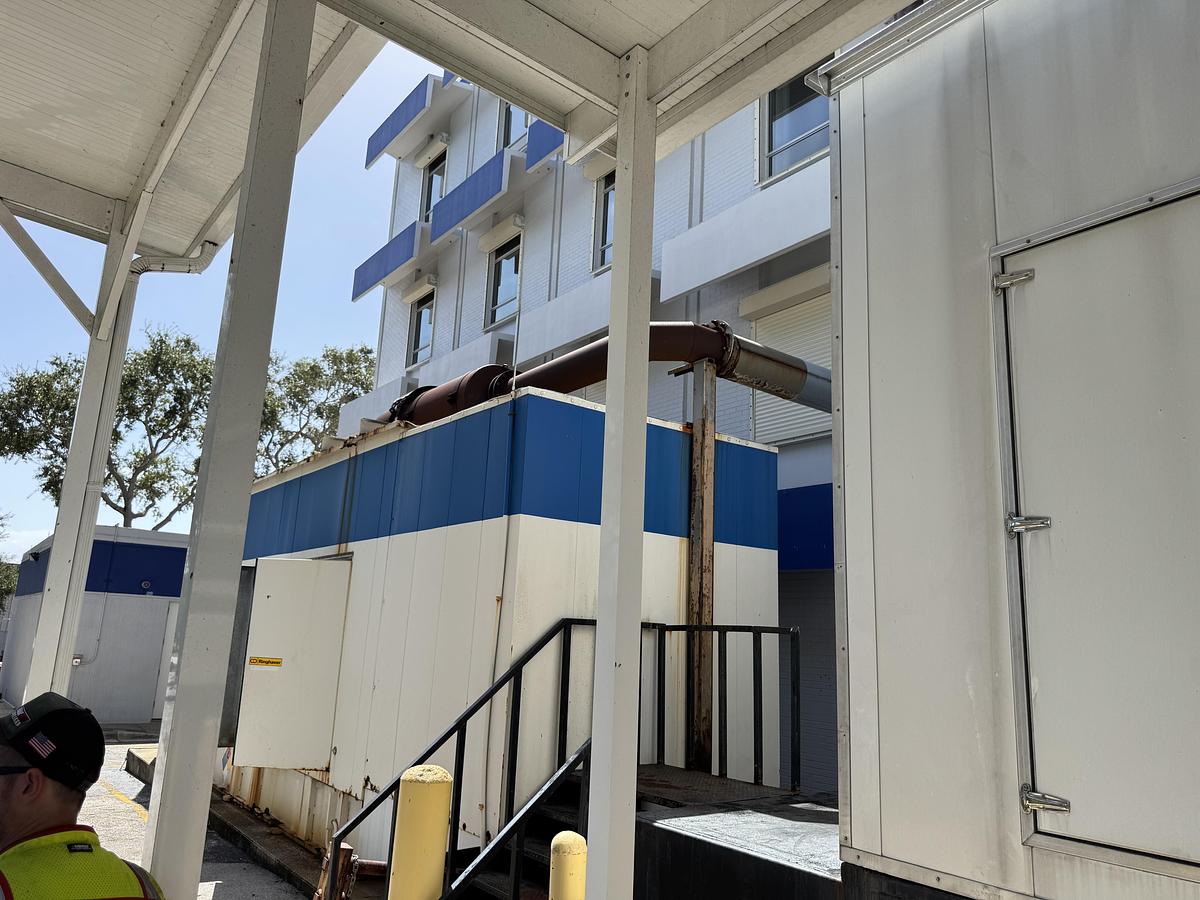

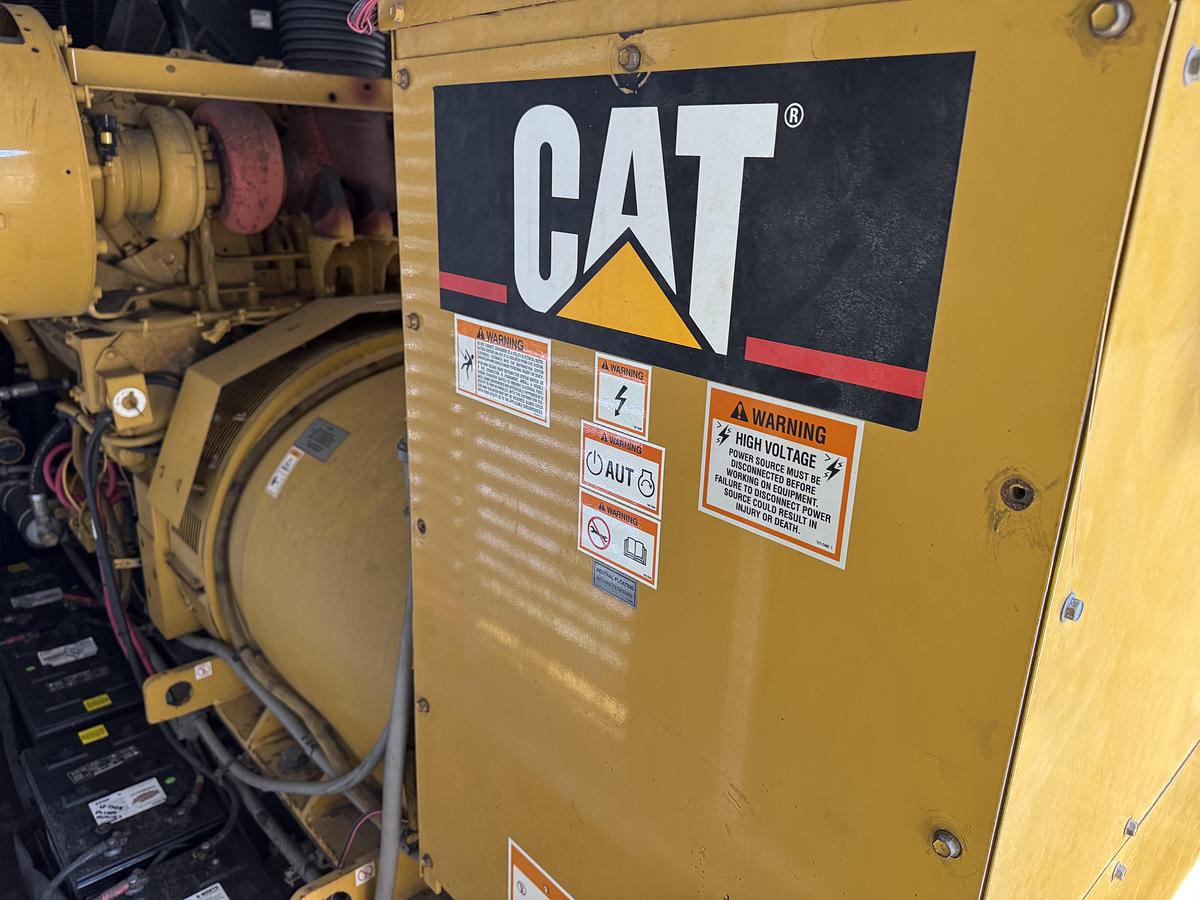

• Sound-attenuated weather-resistant enclosure
• Caterpillar yellow industrial finish
• Acoustic insulation for reduced noise emissions

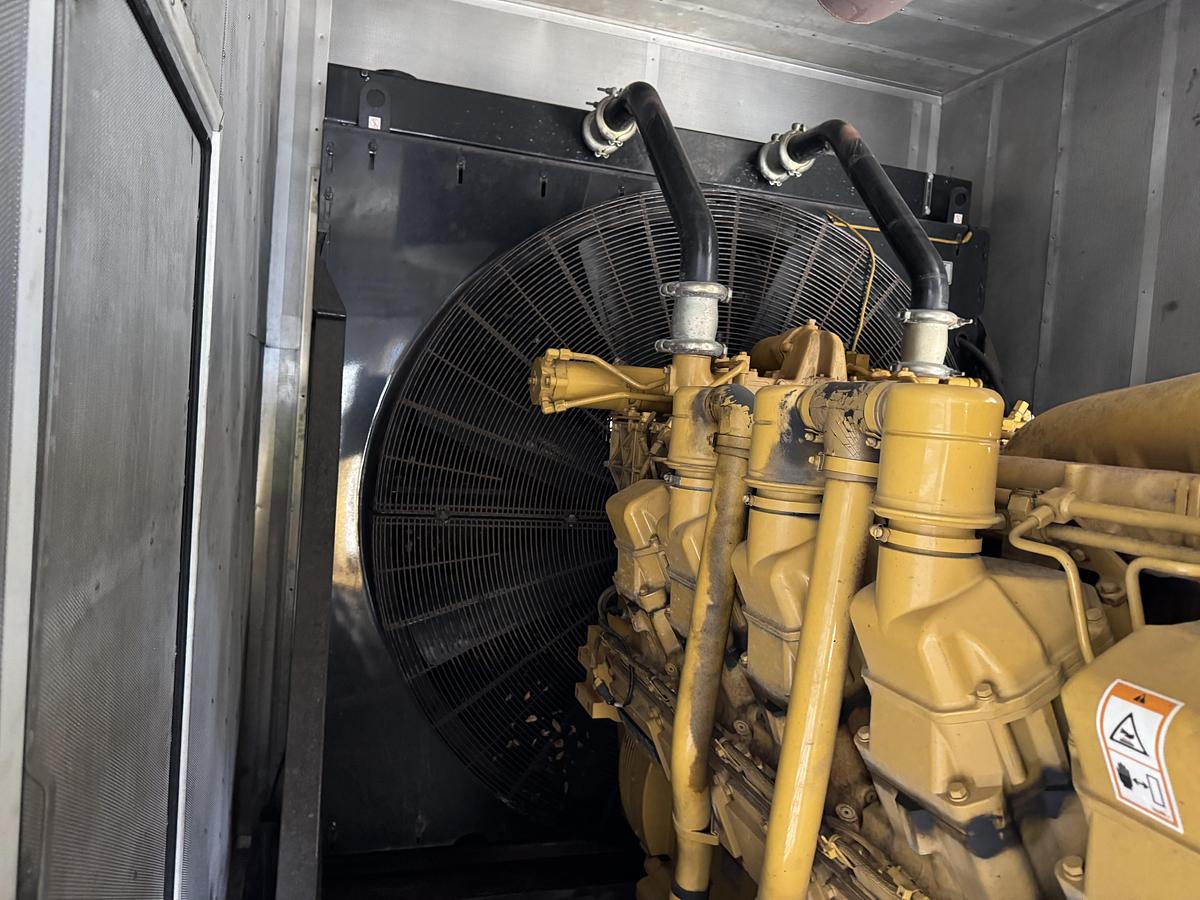

• Large-capacity radiator with heavy-duty cooling fan
• Industrial exhaust system with flexible connections
• Multiple access panels for service and maintenance
• Robust steel frame mounting structure
• Weather-sealed electrical compartments
• Professional cable management systems

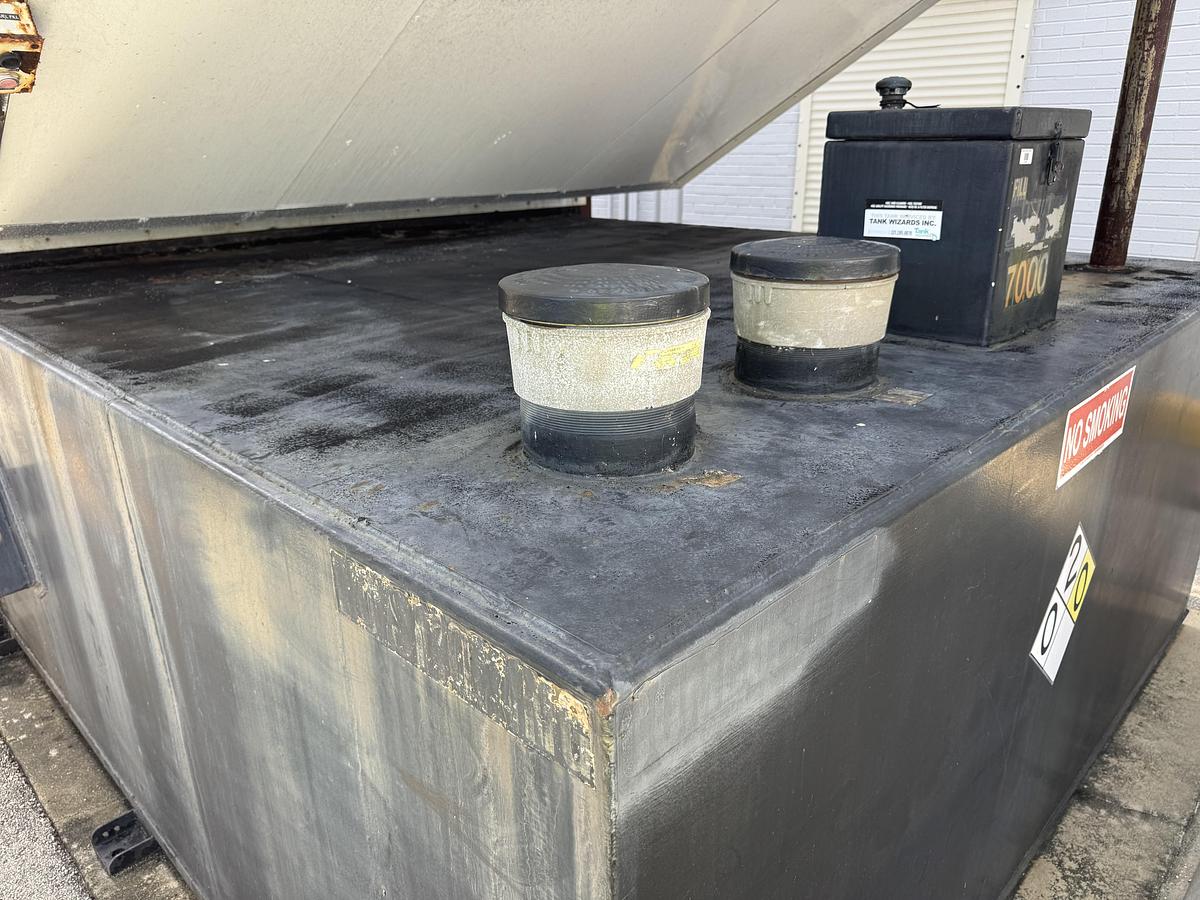

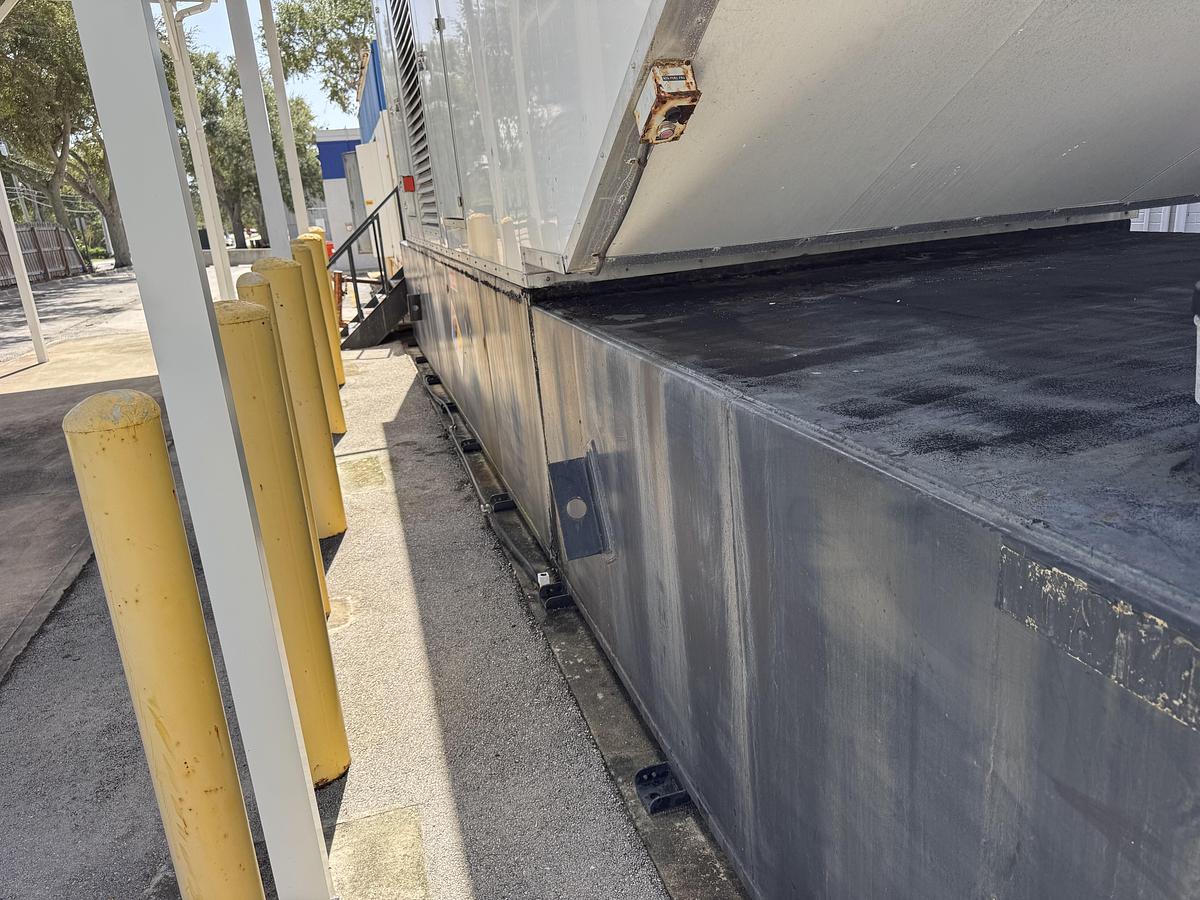

• Integrated fuel tank with dual-stage fuel filtration

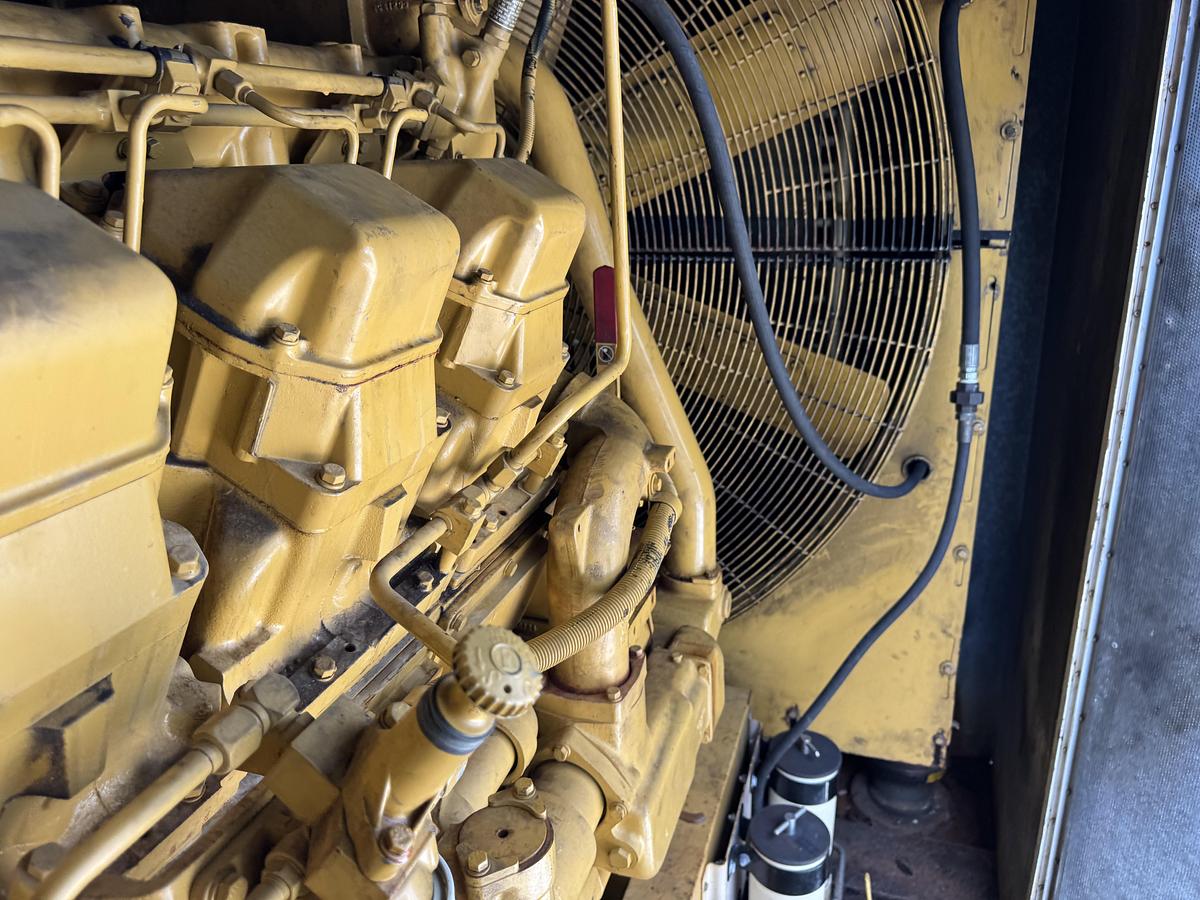

Engine and Cooling System

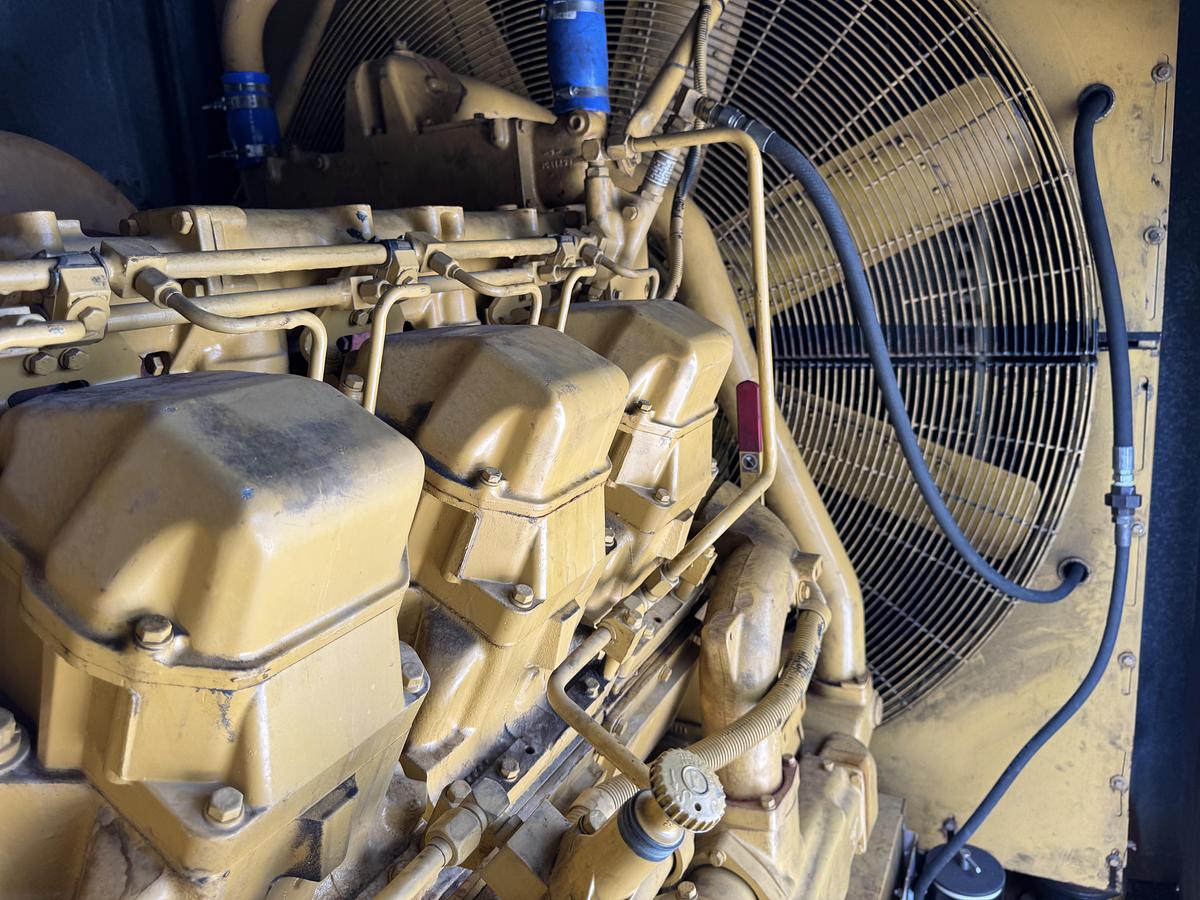

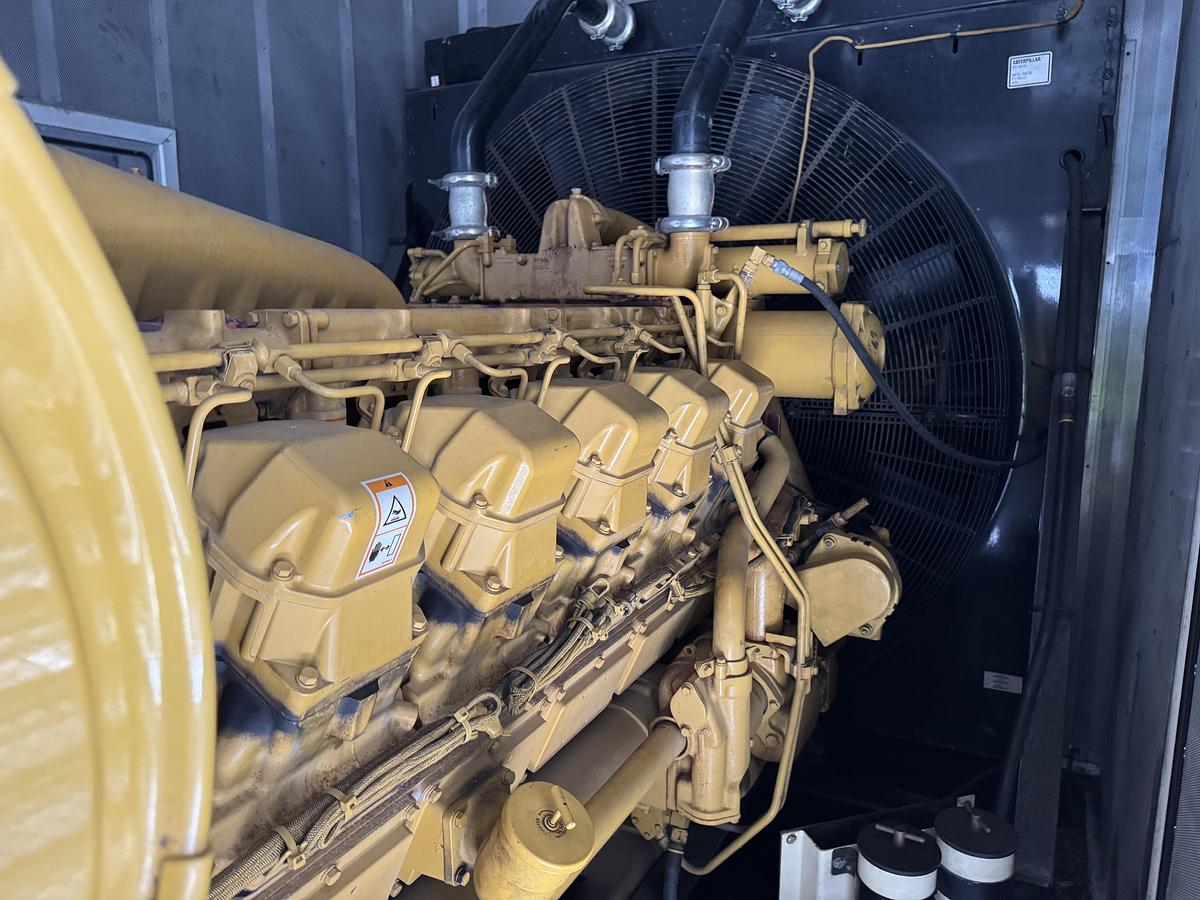

• Heavy-duty Caterpillar diesel engine
• High-capacity radiator cooling system
• Large diameter cooling fan assembly
• Integrated cooling system plumbing

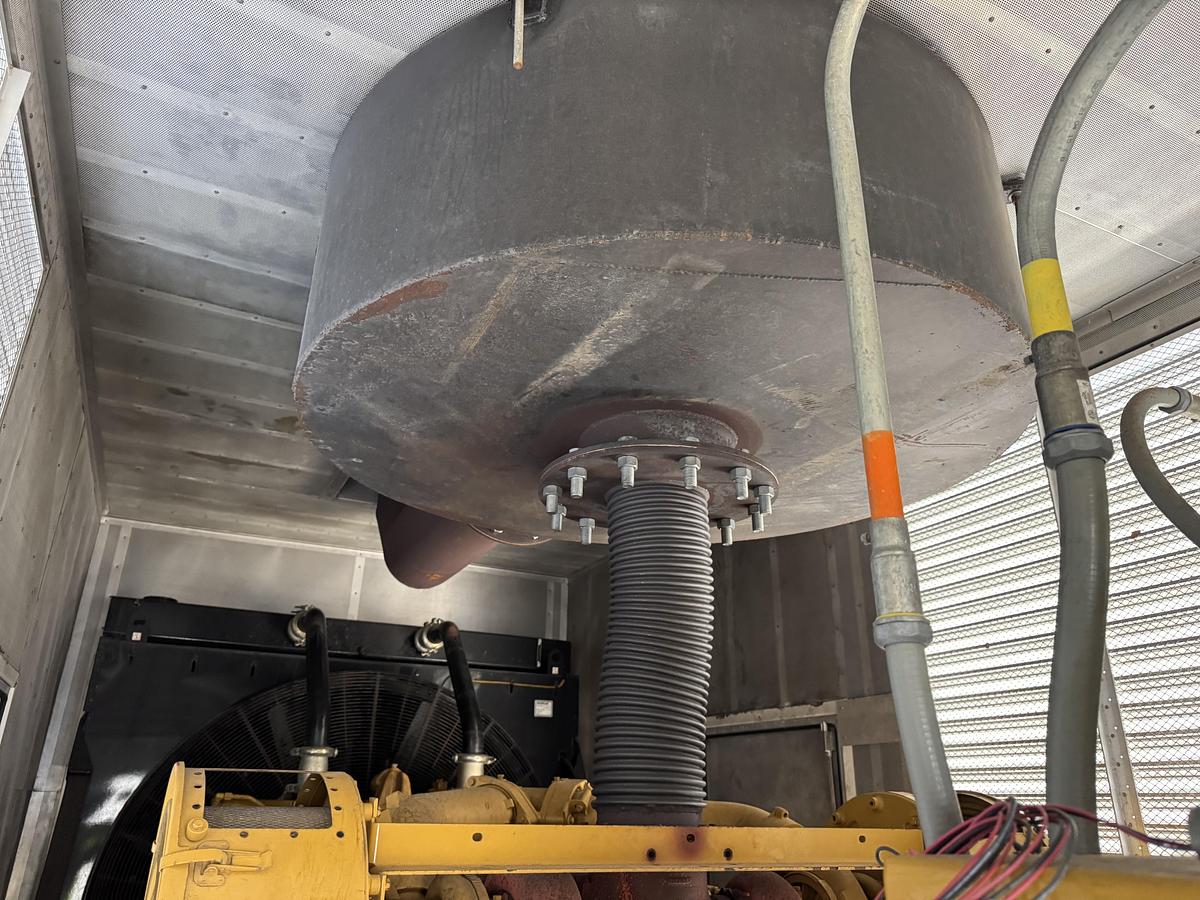

• Engine exhaust routing and muffler system
• Advanced lubrication systems with specified maintenance intervals

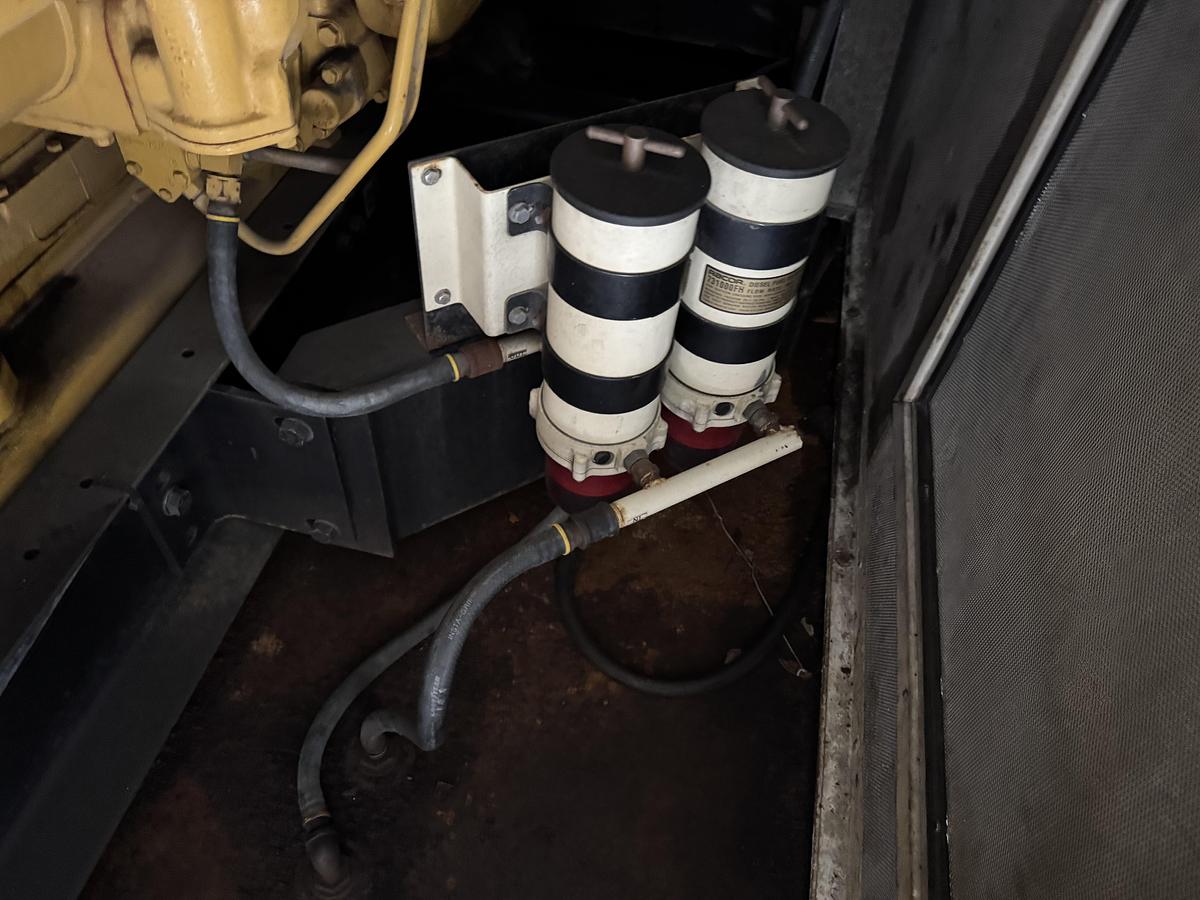

• Fuel system with dual filtration stages

Control and Safety Features

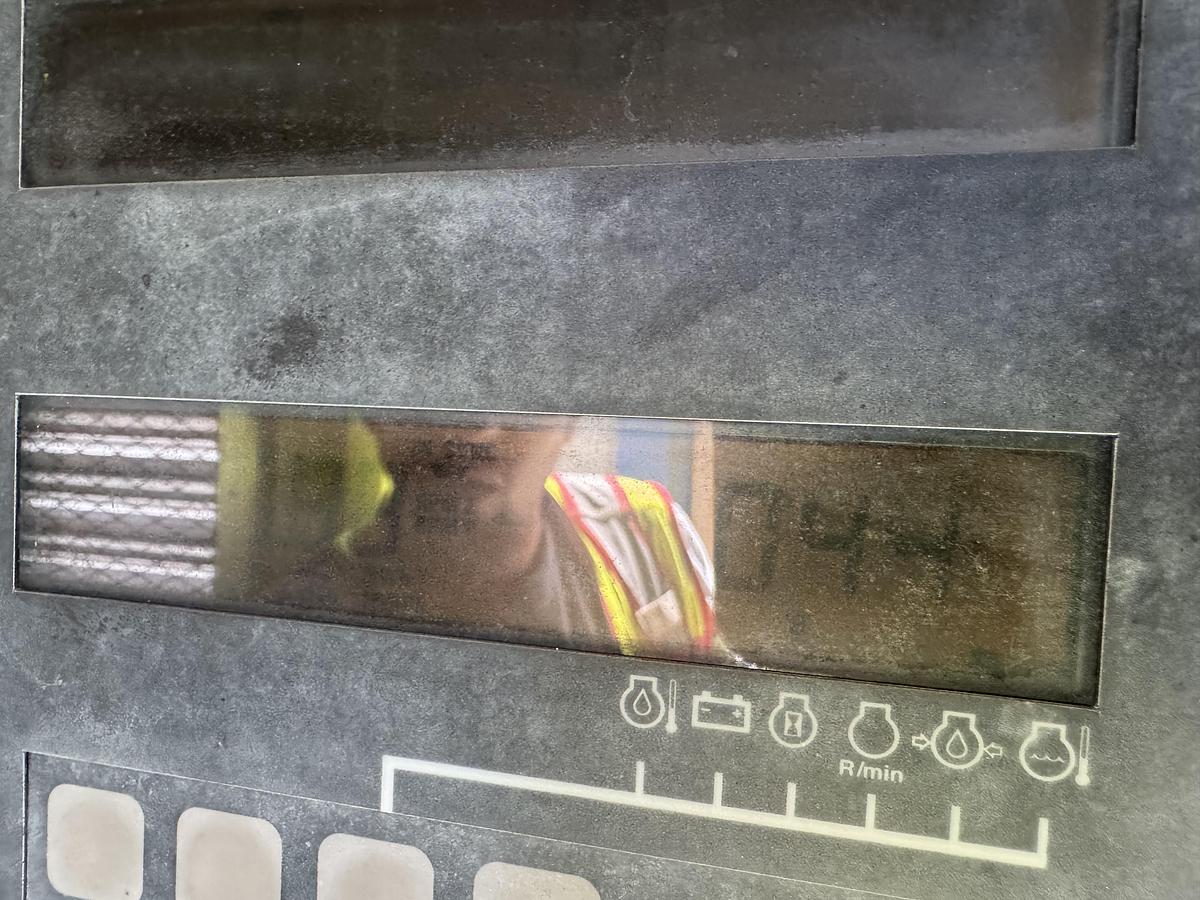

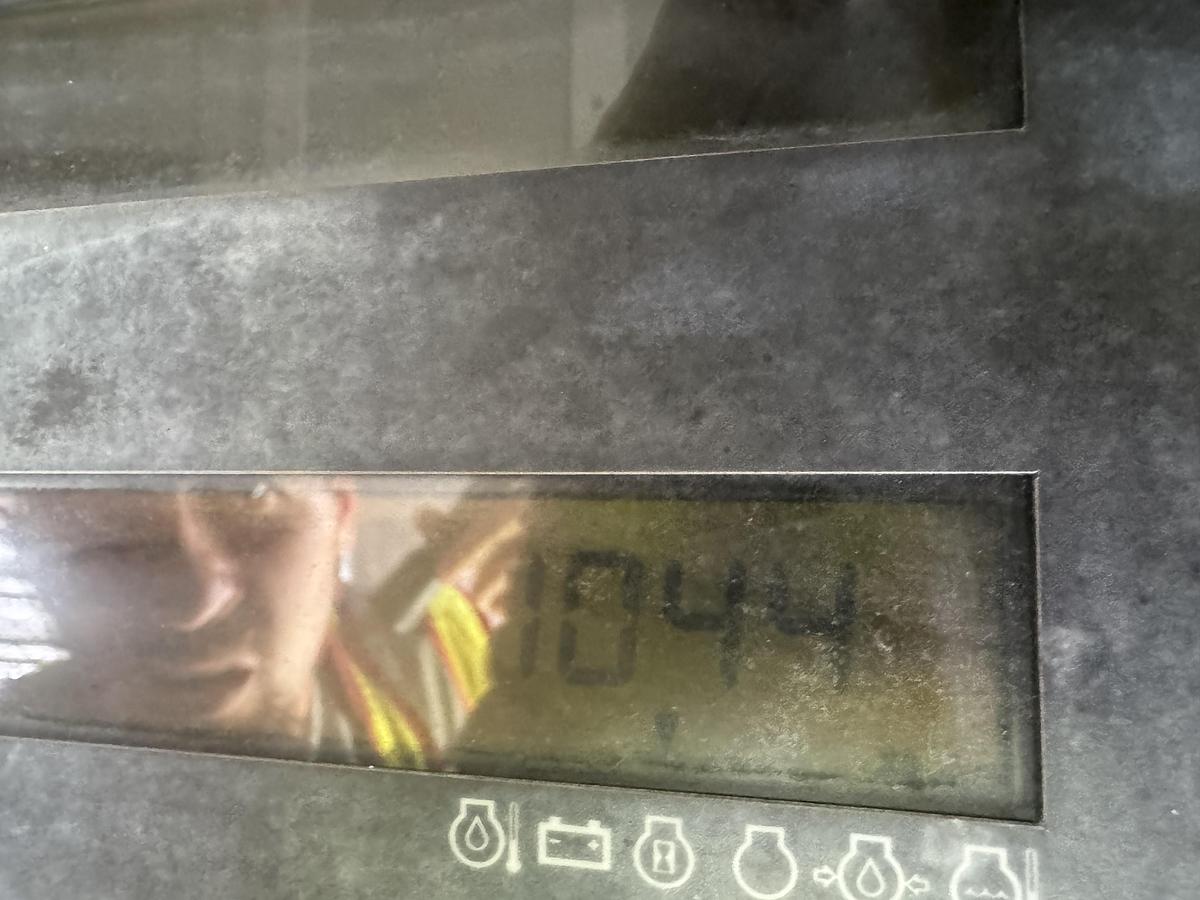

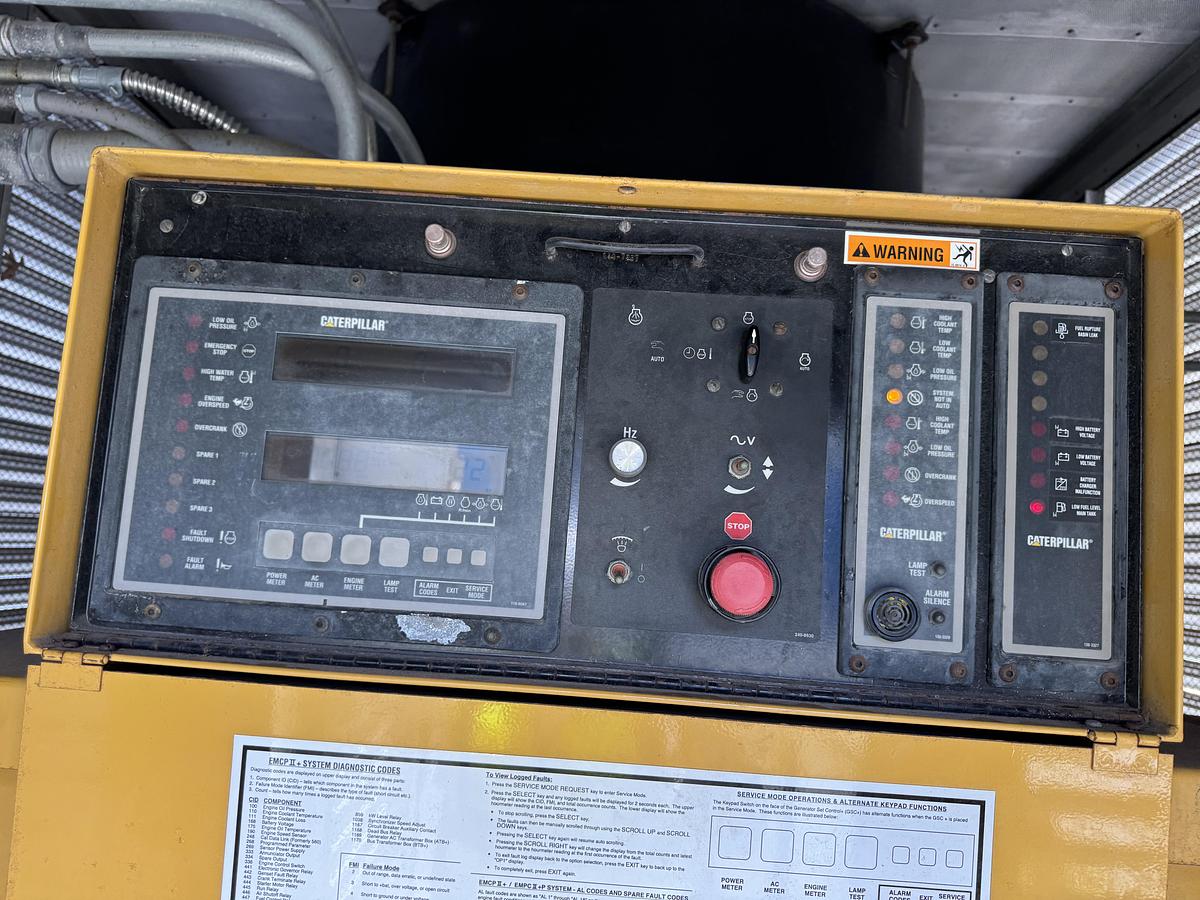

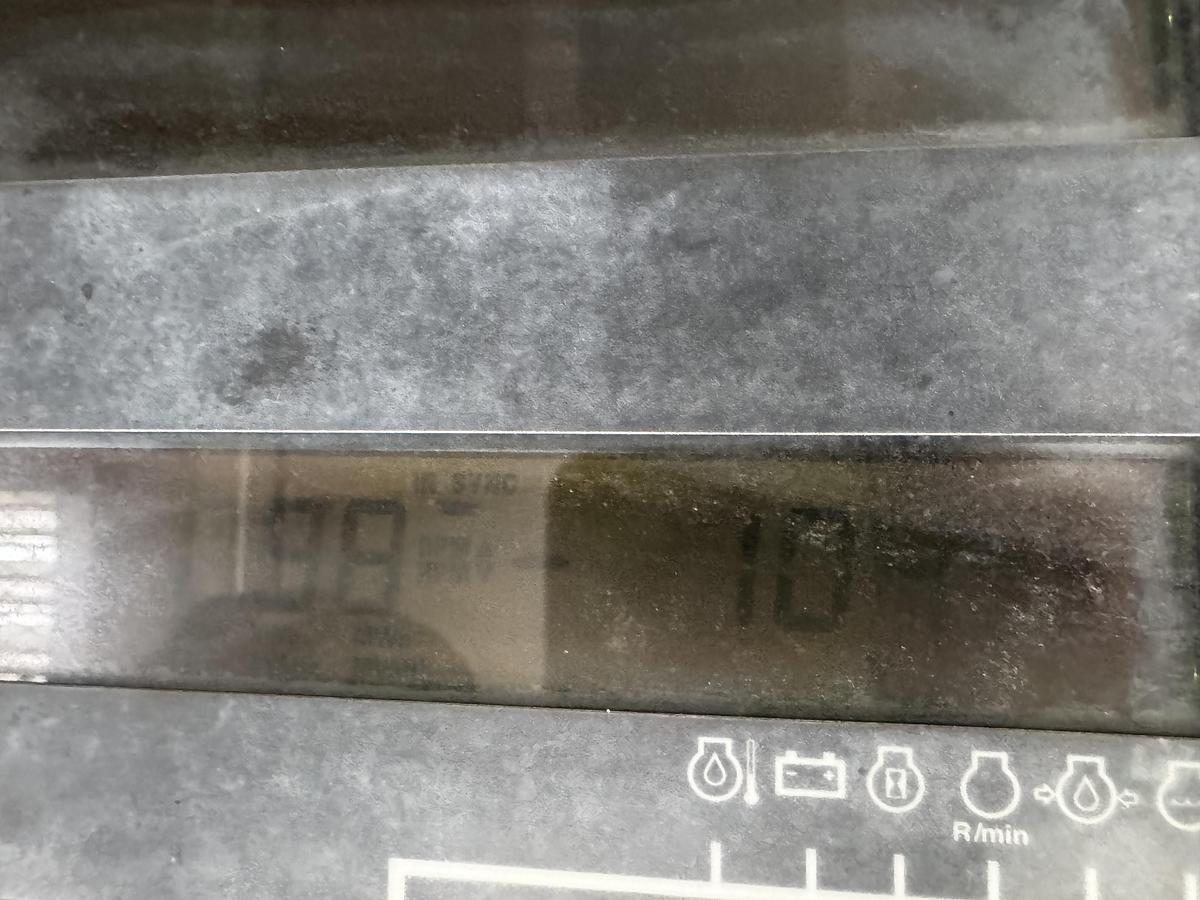

• Advanced Caterpillar generator control panel with digital display
• Comprehensive monitoring system with fault diagnostics
• Automatic voltage regulation
• Engine management controls with Hz and voltage adjustment
• Emergency stop button (large red button)

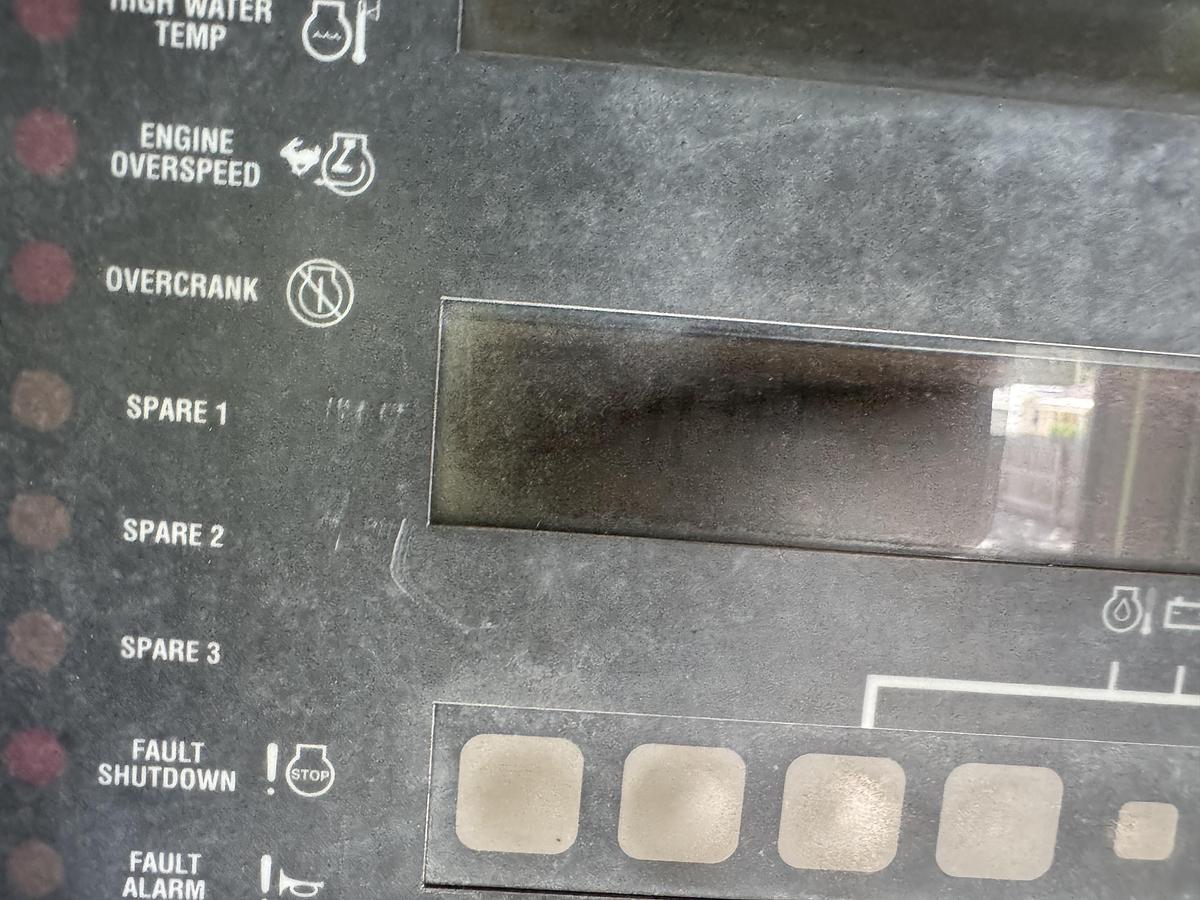

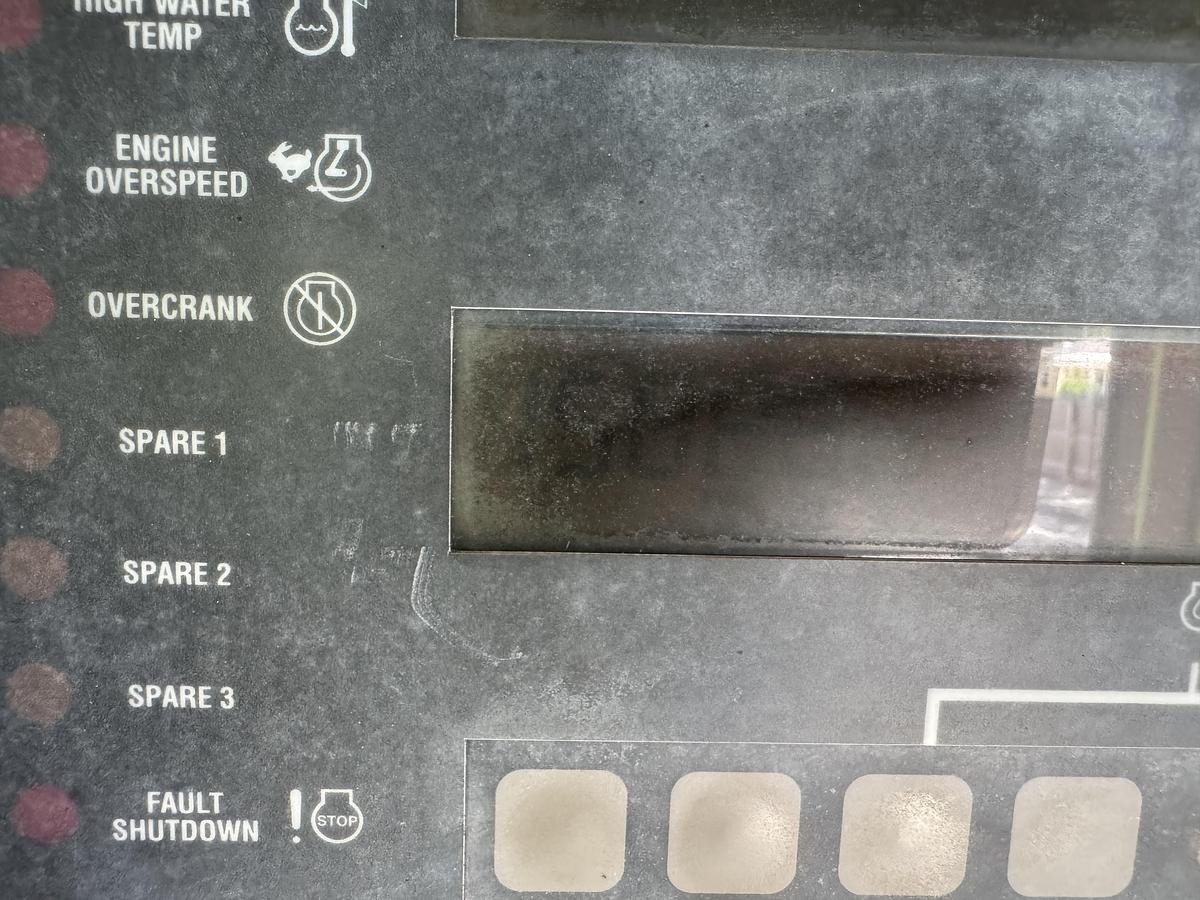

• Multiple alarm indicators:
• Low Oil Pressure
• High Coolant Temperature
• Engine Overspeed
• Overcrank
• Fault Shutdown
• Fault Alarm
• Spare indicator positions for custom monitoring
• Circuit breaker protection with adjustable trip settings
• Overcurrent and fault protection

Maintenance Specifications

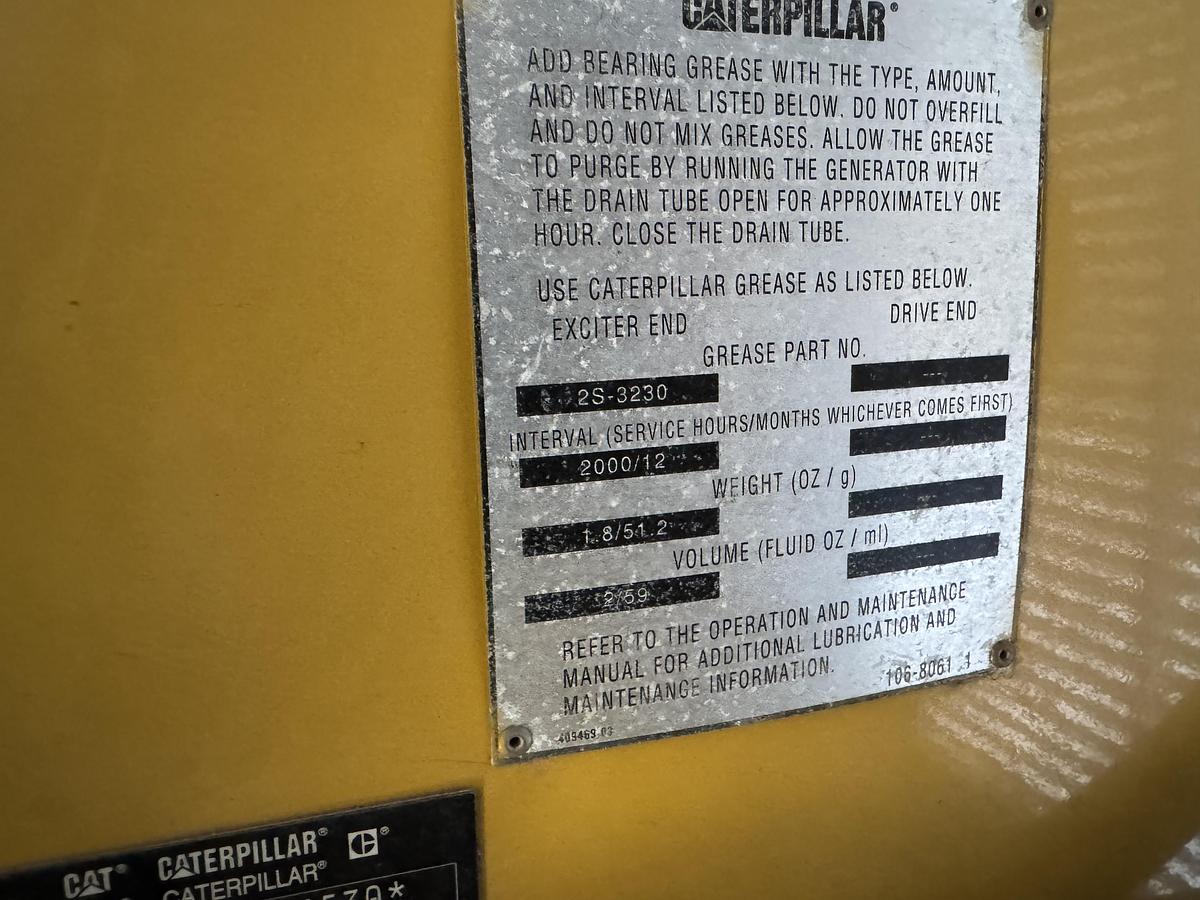

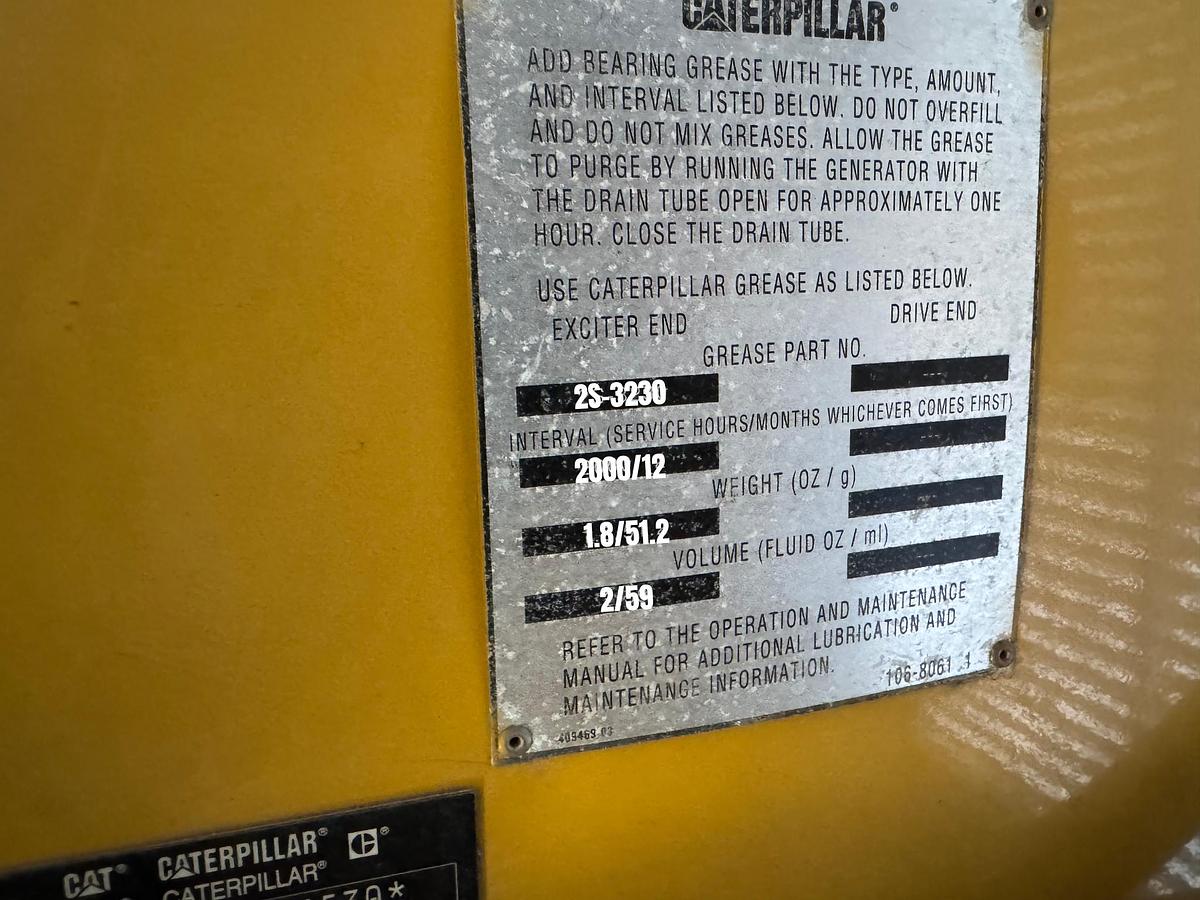

Lubrication System:

• Grease Part No.: 2S-3230 (Caterpillar specification)
• Service Interval: 2000 hours or 12 months (whichever comes first)
• Exciter End and Drive End bearing maintenance specified
• Drain tube purging procedure included

Key Specifications

• Condition: Used - Industrial Grade
• Brand: Caterpillar (CAT)
• Model: SR-4B Generator
• Serial Number: 93FN00666
• Arrangement: 9Y-0160
• Equipment Type: Diesel Generator Set
• Estimated Power Output: 1,330-1,663 kW (calculated from switchgear capacity)
• Switchgear: SBS2020 Type, 2000A Maximum
• Voltage Options: 240V / 480V / 600V AC
• Frequency: 50/60 Hz
• Phases: Three-phase
• Installation Type: Sound-attenuated weather enclosure
• Country of Origin: Made in USA

Physical Specifications

• Industrial Caterpillar yellow finish
• Weather-resistant sound enclosure
• Heavy-duty steel construction
• Skid-mounted transportable design
• Acoustic insulation package
• Professional-grade components
• Multiple service access points

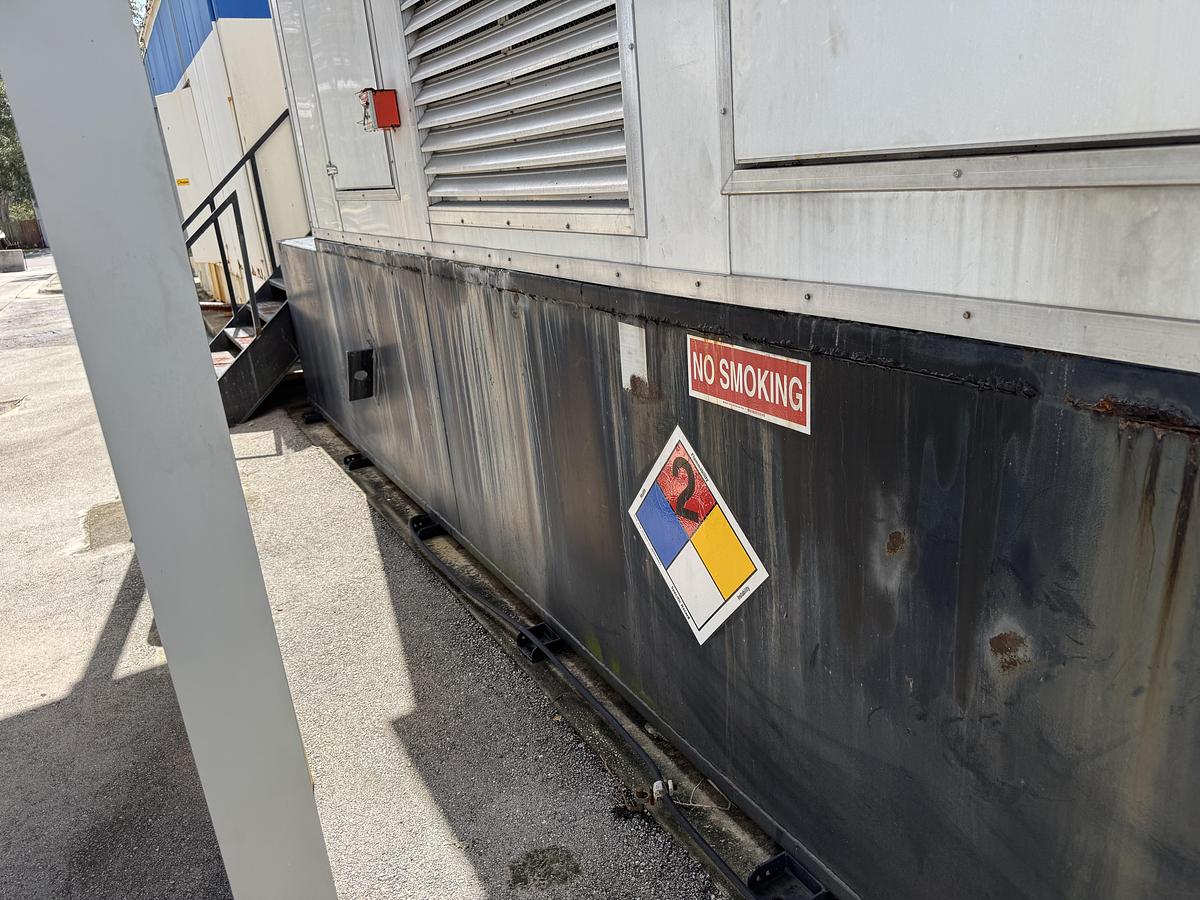

• Large integrated fuel tank with "No Smoking" safety labeling

Ideal Applications

• Hospital and Healthcare Emergency Power
• Data Center Backup Power Systems
• Manufacturing Facility Prime Power
• University and Campus Emergency Power
• Commercial Building Standby Systems
• Industrial Process Critical Power
• Telecommunications Infrastructure
• Government and Military Facilities
• Water Treatment Plants
• Food Processing Facilities
• Distribution Centers and Warehouses
• Large-Scale Construction Projects
• Mining Operations Power Supply
• Oil and Gas Field Operations
• Large Commercial Buildings
• Critical Infrastructure Applications

Benefits

• High-capacity power generation (1,330-1,663 kW range) for large facilities
• Made in USA Caterpillar quality and engineering
• Sound-attenuated design for noise-sensitive applications
• Weather-resistant enclosure for outdoor installation
• Integrated 2000-amp switchgear for complete power distribution
• Multi-voltage capability (240V/480V/600V) for flexible installation
• UL and CSA certified electrical components
• Heavy-duty construction for continuous operation
• Advanced monitoring and control systems with diagnostic capabilities
• Comprehensive safety and protection features
• Professional maintenance accessibility with multiple access panels
• Proven Caterpillar reliability and durability
• Substantial cost savings versus new equipment
• Ready for critical power applications
• Original operation and maintenance documentation included
• Suitable for prime or standby power applications

Additional Information

• Condition: Used - Ready for Service
• Manufacturer: Caterpillar Inc. (CAT)
• Generator Model: SR-4B
• Serial Number: 93FN00666
• Arrangement Number: 9Y-0160
• Country of Origin: Made in USA
• Estimated Power Range: 1,330-1,663 kW (based on 2000A switchgear capacity)
• Switchgear Type: SBS2020, 2000 Amps Max
• Circuit Breaker: Three-pole, high interrupting capacity
• Installation: Sound-attenuated weather enclosure
• Color: Caterpillar Yellow
• Cooling System: Radiator with large cooling fan
• Lubrication: Caterpillar grease specification 2S-3230
• Service Interval: 2000 hours/12 months

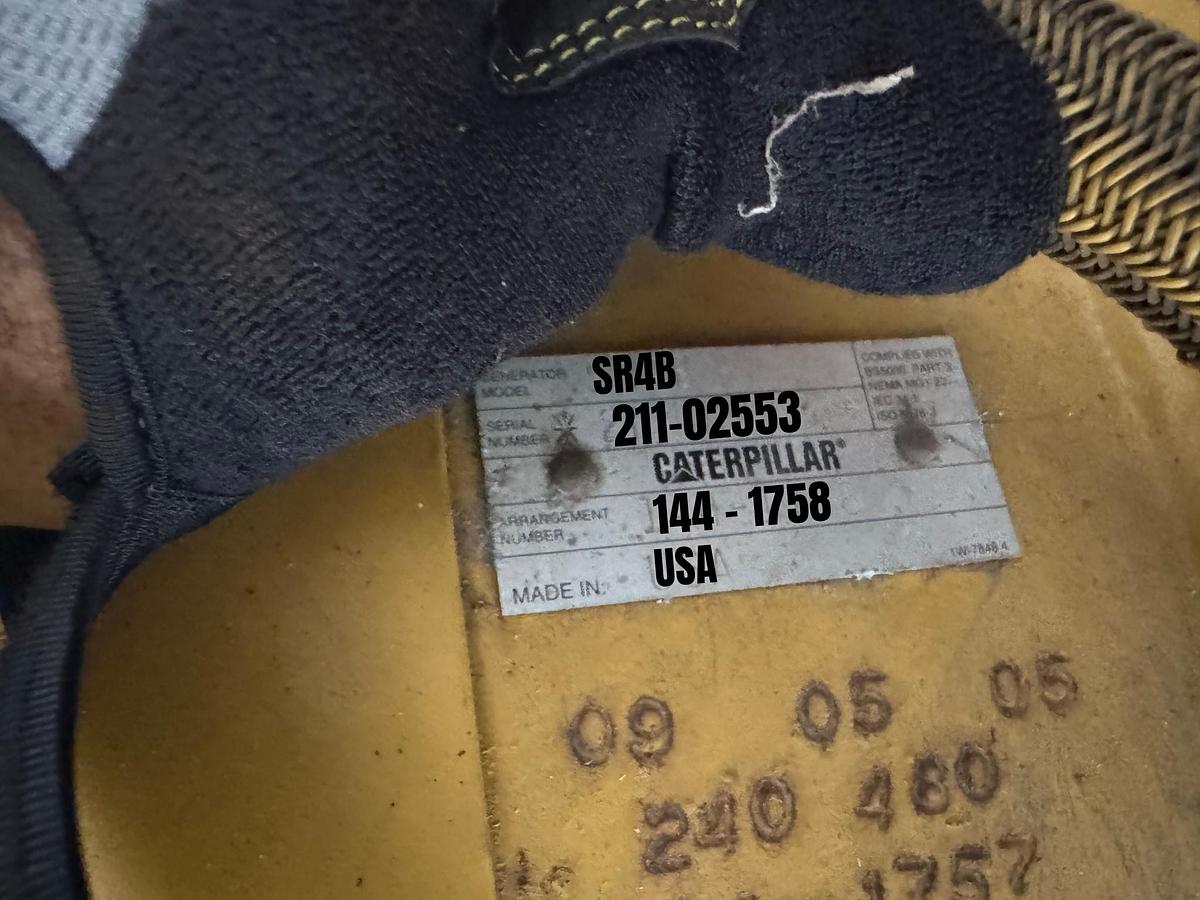

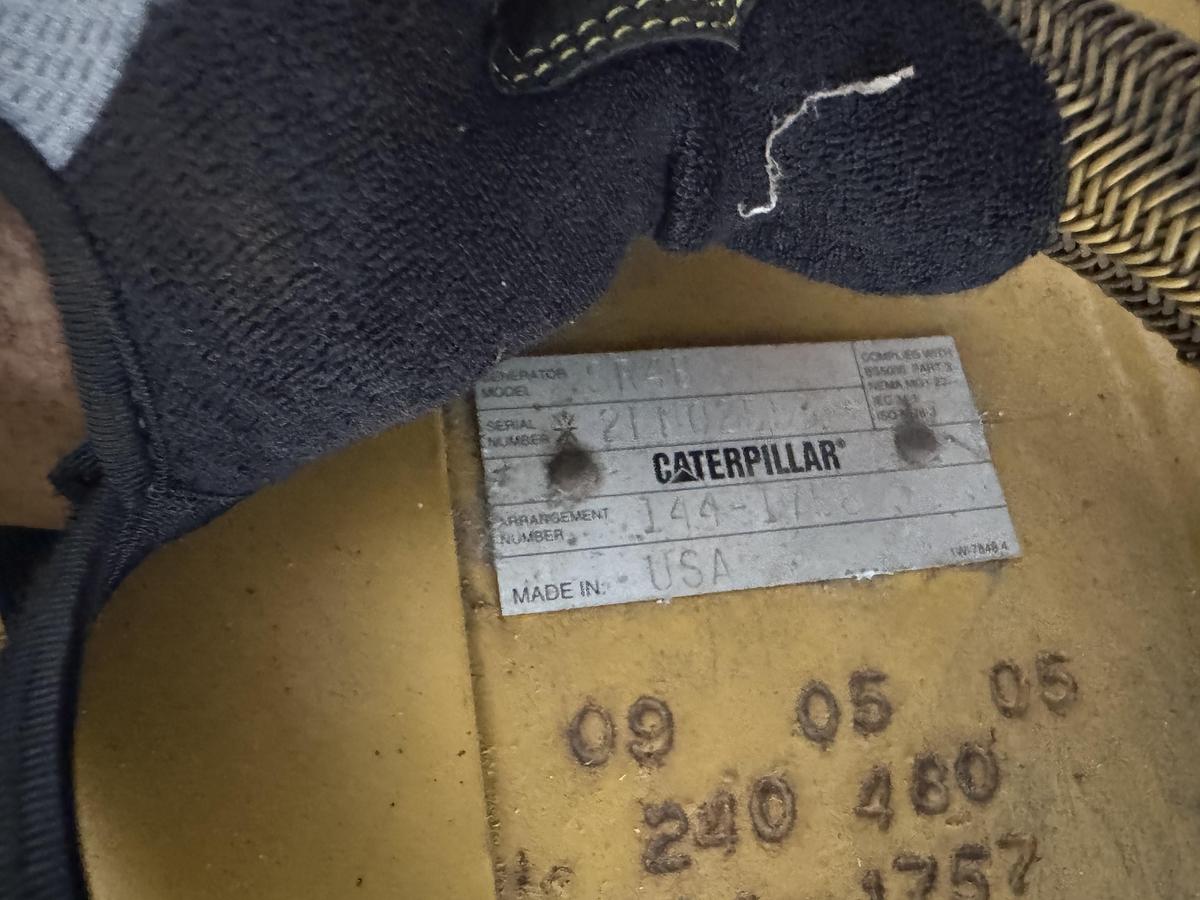

• Documentation: Original nameplates intact, operation manuals included
• Certifications: UL Listed, CSA Certified
