Fulton 25 HP 150 PSI Vertical Fire-Tube Boiler - PV-190-SS (2020)

Overview

This Fulton PV Series Vertical Fire-Tube Boiler is a compact, high-efficiency steam generation system designed for commercial and light industrial applications. Manufactured by Fulton Boiler Works in Pulaski, New York, USA, this natural gas-fired boiler features the proven vertical fire-tube design with advanced combustion controls for reliable steam production. With National Board number 125414 and built in 2020, this unit delivers efficient steam generation in a space-saving vertical configuration ideal for facilities with limited floor space.

Design and Performance

• Model: PV-190-SS
• National Board: 125414
• CBN: 863
• Type: Vertical Fire-Tube Steam Boiler
• Manufacturer: Fulton Boiler Works

Control Features:

• Classic Fulton digital control panel
• Advanced combustion management system
• Digital temperature and pressure monitoring
• Multiple safety interlocks and alarms
• Automated startup/shutdown sequences
• Flame safeguard protection
• Modulating gas valve operation

Construction:

• Vertical fire-tube design for compact footprint
• Heavy-duty steel pressure vessel construction
• ASME Section I certified
• Insulated steel jacket
• High-efficiency heat transfer surfaces
• Easy access maintenance doors
• Corrosion-resistant materials

Safety Features:

• Multiple safety relief valves
• Low water cutoff protection
• High limit pressure controls
• Flame failure safeguard
• Gas train safety shutoffs
• Emergency stop capabilities
• ASME/National Board certified construction

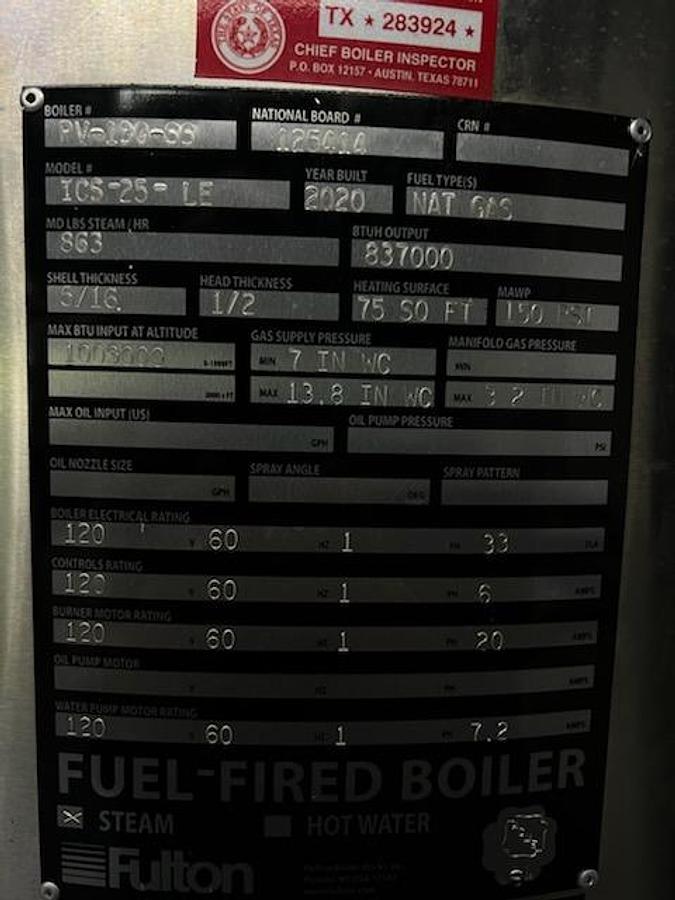

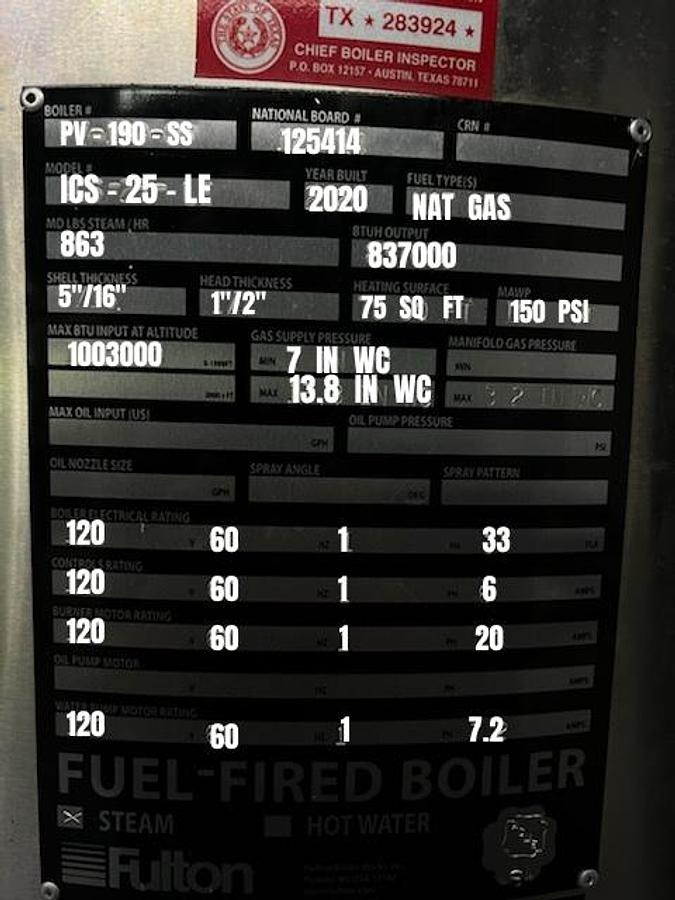

Key Specifications

• Condition: Used - Industrial Grade
• Brand: Fulton Boiler Works
• Model: PV-190-SS
• National Board: 125414
• CBN: 863
• Date Built: 2020
• Equipment Type: Vertical Fire-Tube Steam Boiler

Performance Ratings:

• Boiler Horsepower: 25 HP
• Steam Output: 863 lbs/hr
• Heating Surface: 75 sq ft
• Working Pressure: 150 PSI maximum
• Max Input: 1,003,000 BTU/HR
• Gas Supply Pressure: 7" WC minimum, 13.8" WC maximum

Physical Specifications:

• Shell Thickness: 5/16"
• Head Thickness: 1/2"
• Configuration: Vertical Fire-Tube
• Fuel Type: Natural Gas
• Burner Type: Atmospheric/Power

Electrical Requirements:

• Control Voltage: 120V, 60Hz, 1-phase
• Control Rating: Multiple circuits at different amperages
• Safety Controls: 120V, 60Hz rated components

Ideal Applications

• Small Manufacturing Facilities
• Commercial Laundries
• Food Processing Operations
• Healthcare Facilities
• Educational Institutions
• Apartment Complexes
• Small Hotels and Restaurants
• Dry Cleaning Operations
• Laboratory Sterilization
• Process Steam Applications
• Building Heating Systems
• Humidification Systems

Benefits

• Compact vertical design saves valuable floor space
• High-efficiency fire-tube heat transfer
• Made in USA quality and reliability
• Advanced Fulton Classic control system
• 150 PSI working pressure for versatile applications
• Quick steam generation with vertical configuration
• Easy maintenance access with removable panels
• ASME Section I certified pressure vessel
• National Board registered for insurance compliance
• Proven atmospheric burner technology
• Multiple redundant safety systems
• Energy-efficient combustion management

Additional Information

• Condition: Used - Ready for Operation
• Manufacturer: Fulton Boiler Works
• Manufacturing Location: Pulaski, New York, USA
• Model: PV-190-SS
• National Board Number: 125414
• CBN (Customer Build Number): 863
• Year Built: 2020
• ASME Certification: Section I Power Boiler
• Inspection Status: Current Texas inspection (Inspector #283924)
• Burner Configuration: Atmospheric natural gas
• Control System: Fulton Classic digital panel
• Gas Train: Complete with safety shutoffs and regulators
• Installation: Suitable for indoor installation
• Documentation: National Board data report available
• Warranty: As-is, where-is condition
