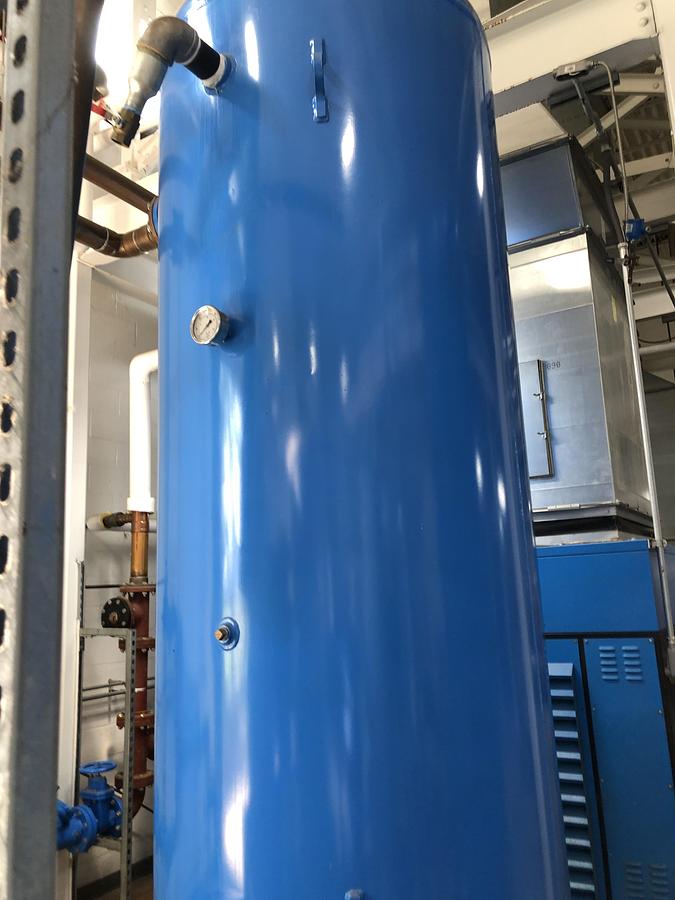

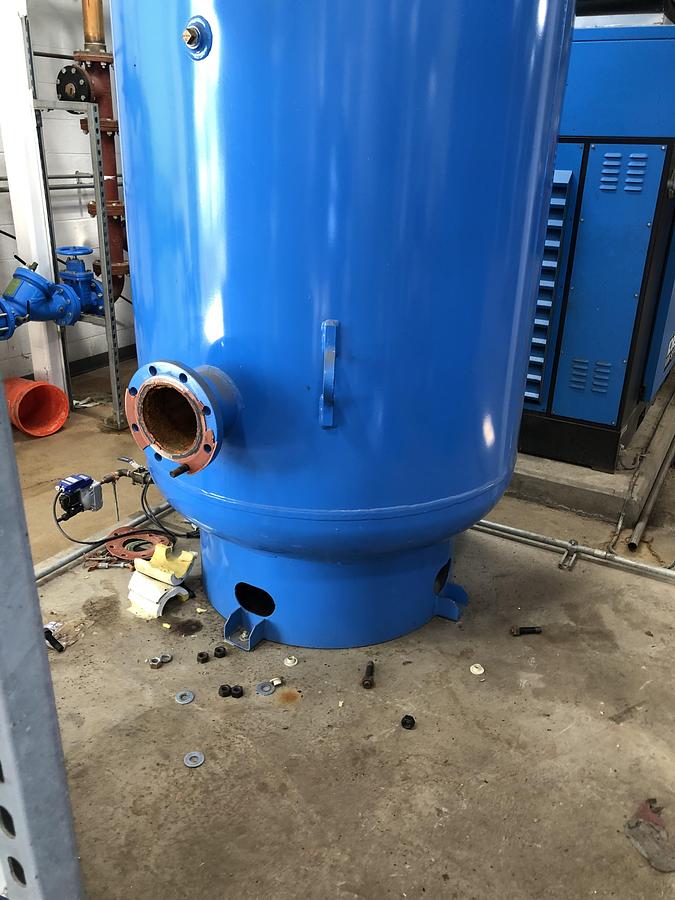

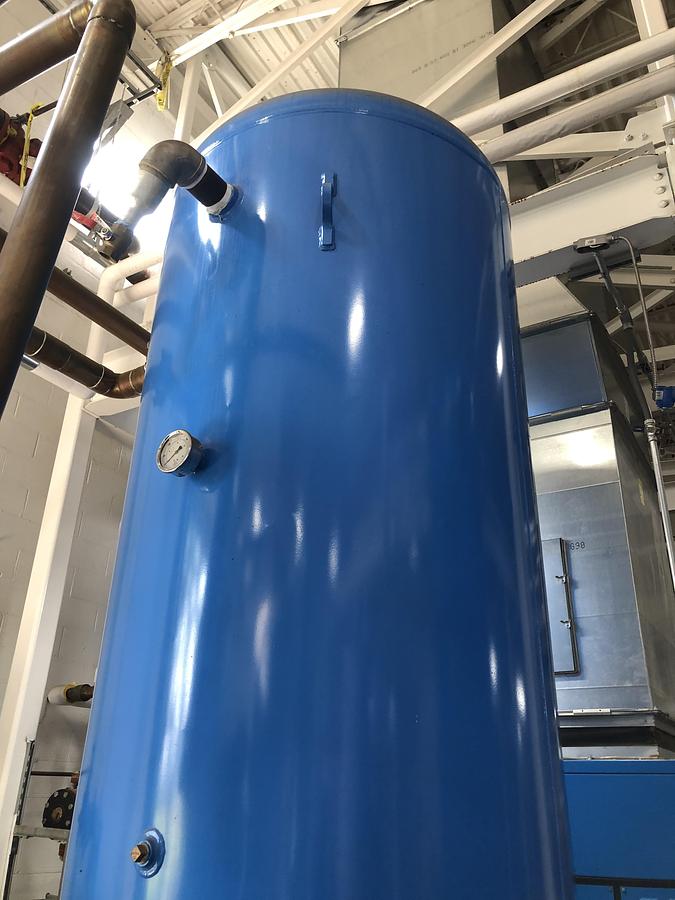

Samuel Pressure Vessel Air Receiver Tank AR-8201

Overview

This Samuel Pressure Vessel is a commercial-grade compressed air receiver tank designed for reliable air storage in industrial compressed air systems. Manufactured by Samuel Pressure Vessel Group, this ASME-certified tank features robust construction with a bright blue powder-coated finish and is rated for 155 PSI operation. This is a complete air receiver tank ready for installation.

Design and Performance

• Manufacturer: Samuel Pressure Vessel Group
• Location: Lebanon, VA, USA 27770
• Model: AR-8201
• Certification Number: 969581
• Type: Vertical Air Receiver Tank
• Construction: ASME-certified steel pressure vessel
• Finish: Blue powder-coated exterior

Key Specifications

• Condition: Used - Commercial Grade

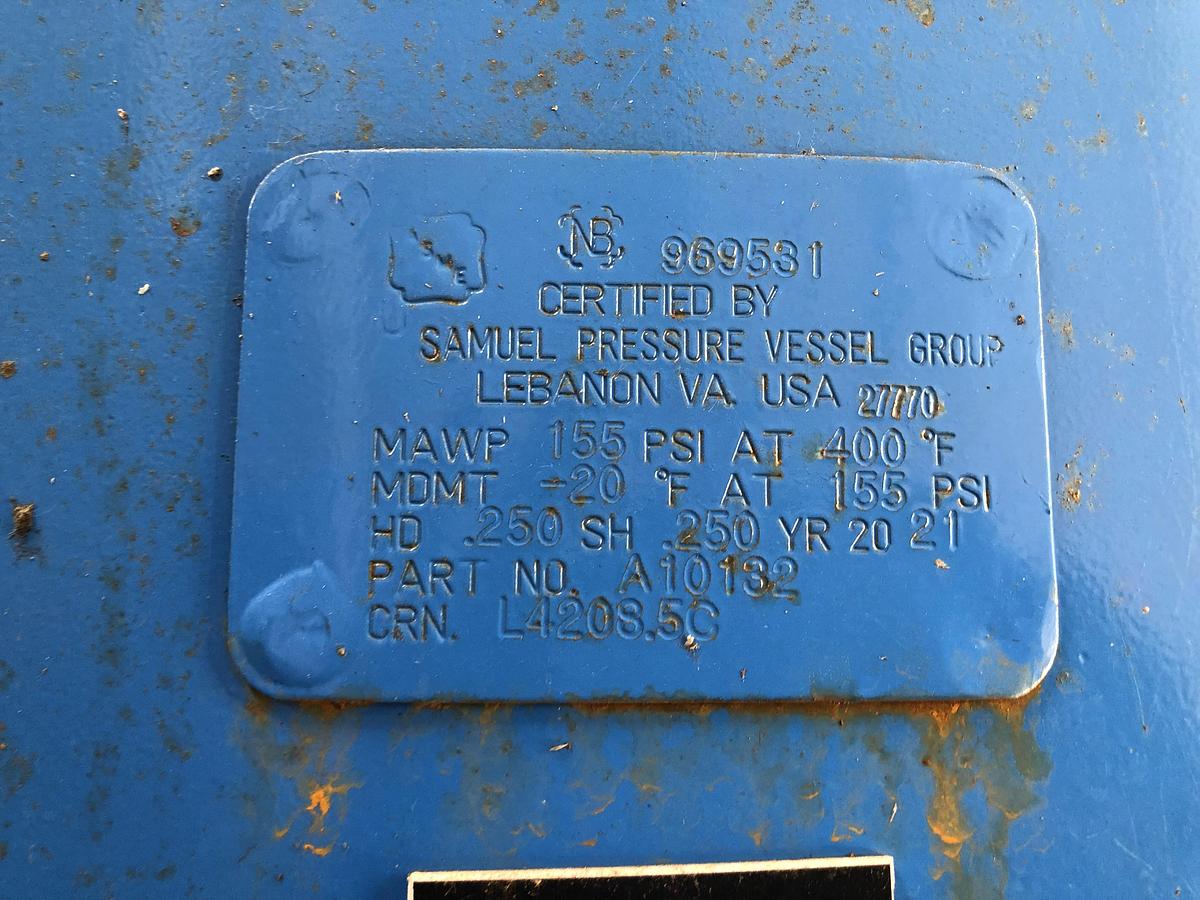

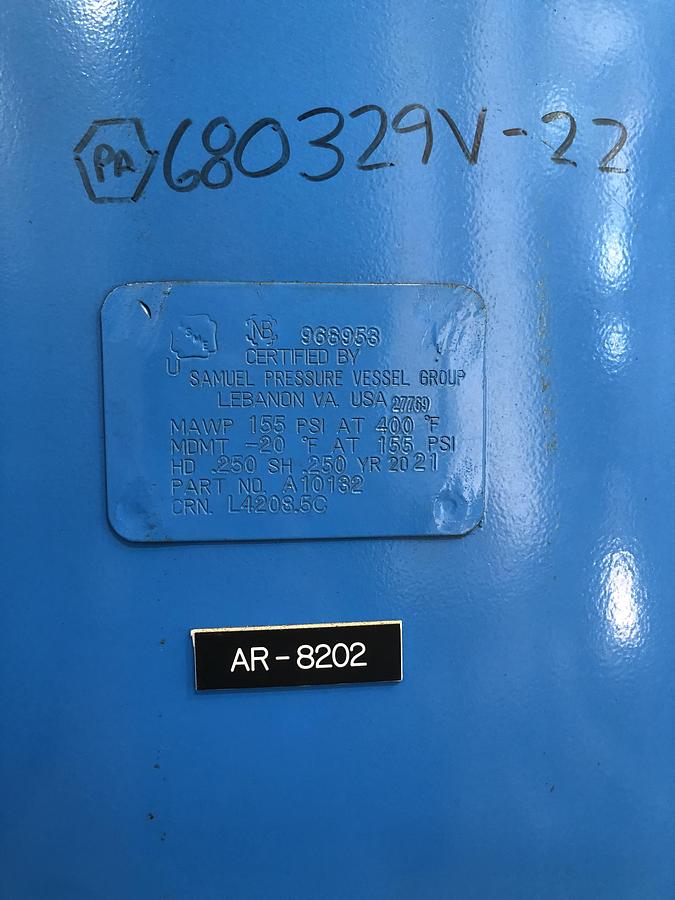

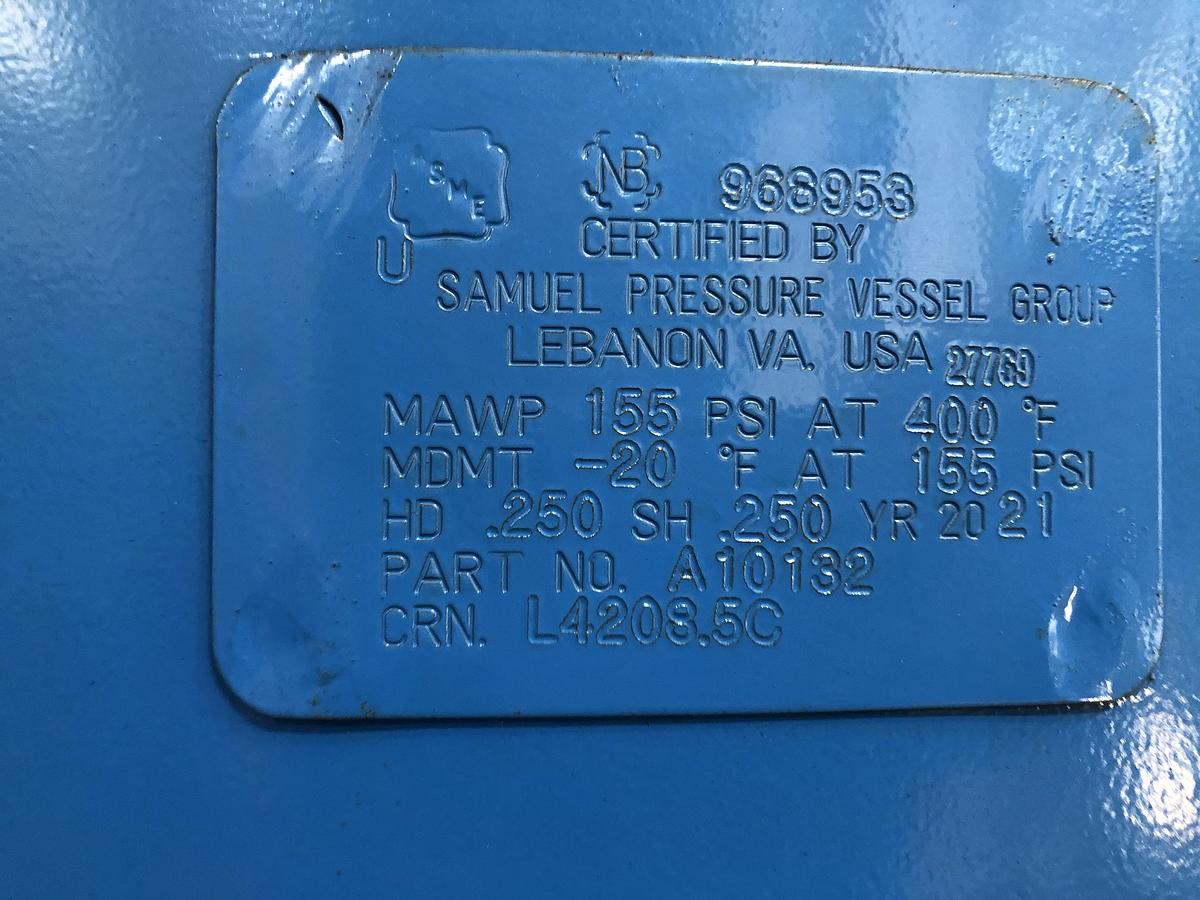

• Pressure Ratings:MAWP (Maximum Allowable Working Pressure): 155 PSI @ 400°F
• MDMT (Minimum Design Metal Temperature): -20°F @ 155 PSI
• Vessel Details:Part Number: A10182
• CRN: L420856
• Year: 2021 (YR 20 21)
• HD: .250 SH .250

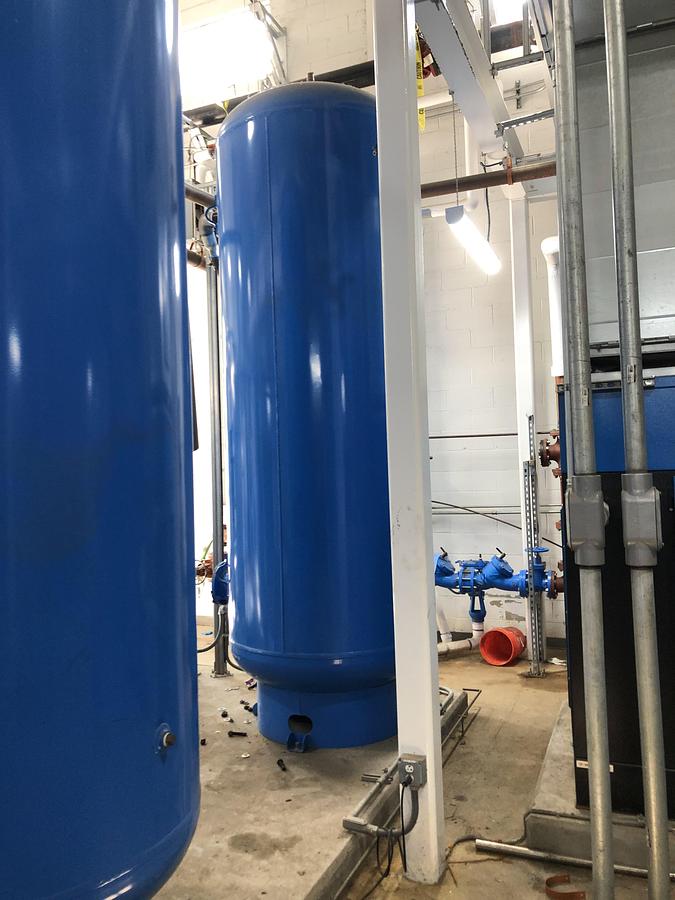

• Physical Specifications:Configuration: Vertical with legs
• Multiple connection ports

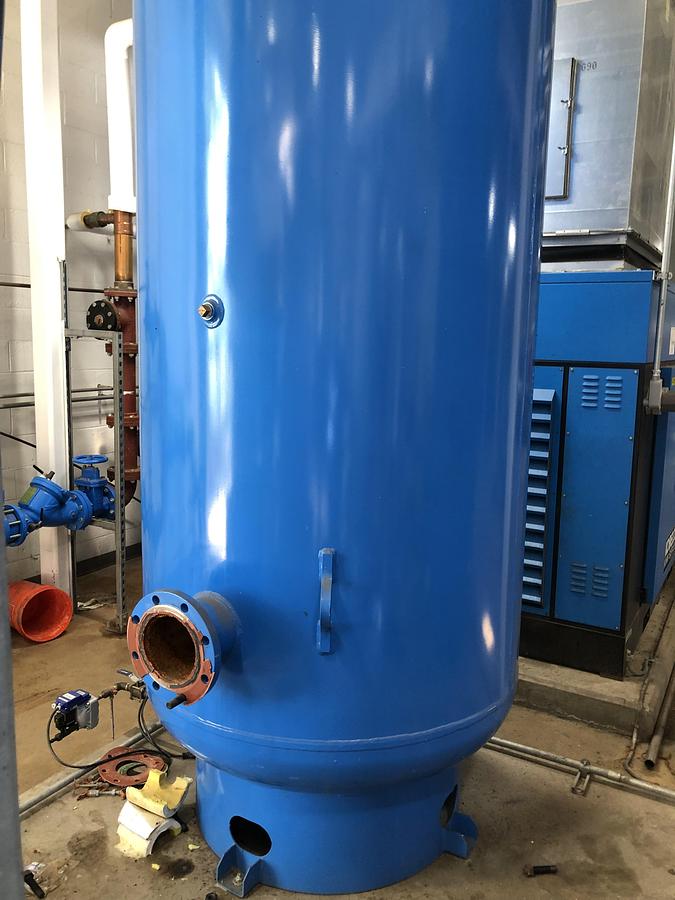

• Large flanged openings

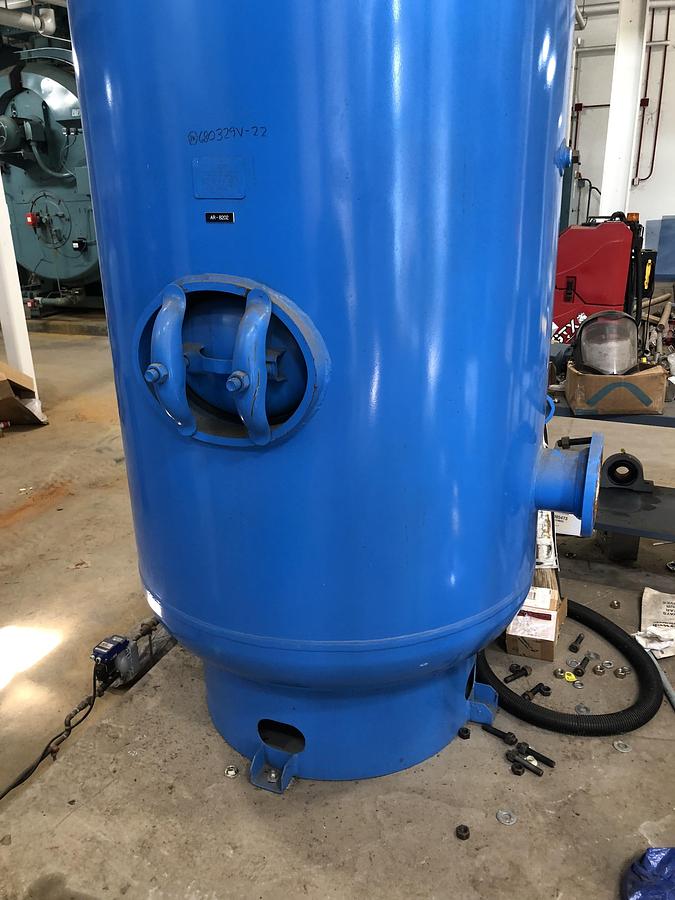

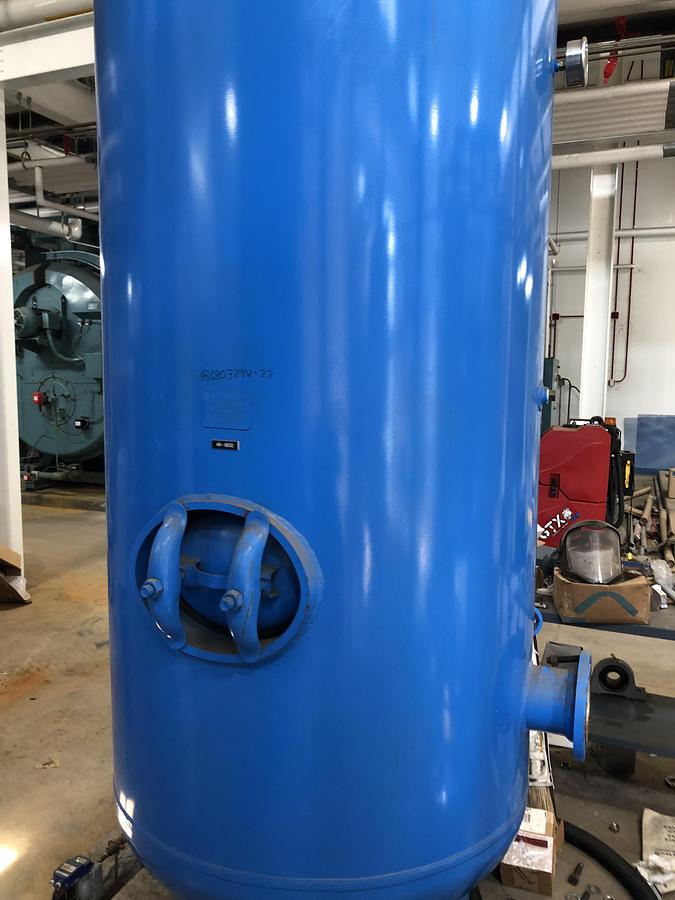

• Inspection manway

Safety Features

• ASME Section VIII certified construction
• Samuel Pressure Vessel Group certification
• Pressure relief valve connections
• Multiple pressure gauge ports
• Inspection access port
• Safety factor built into design
• Certified pressure testing completed

System Components

• Tank Features:Heavy-duty steel construction
• Multiple inlet/outlet connections
• Flanged connection ports
• Bottom drain valve

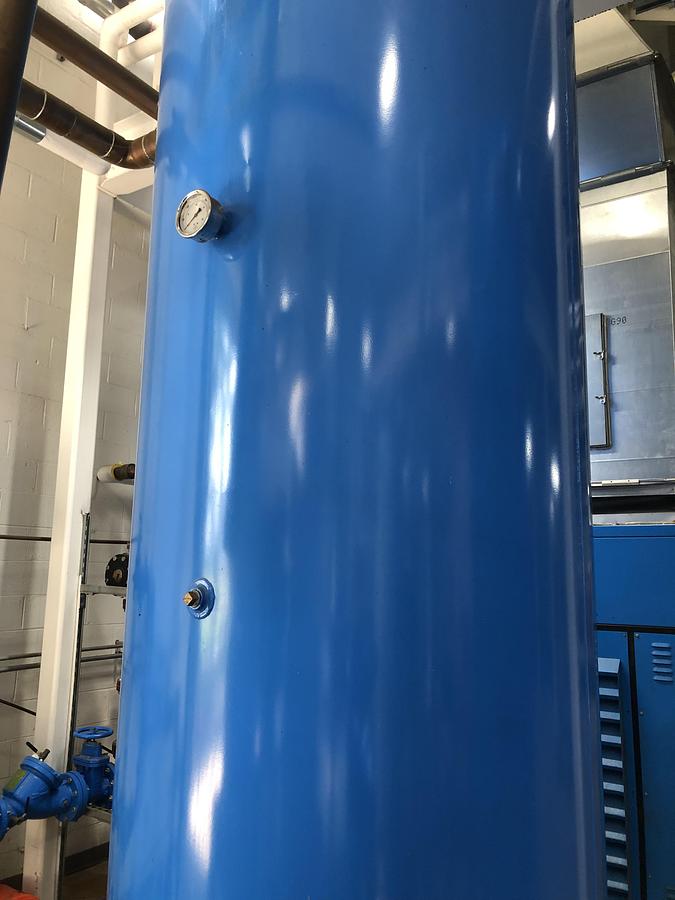

• Pressure gauge connections
• Safety valve ports
• Included Connections:Top mounted connections for system integration
• Side-mounted flanged ports

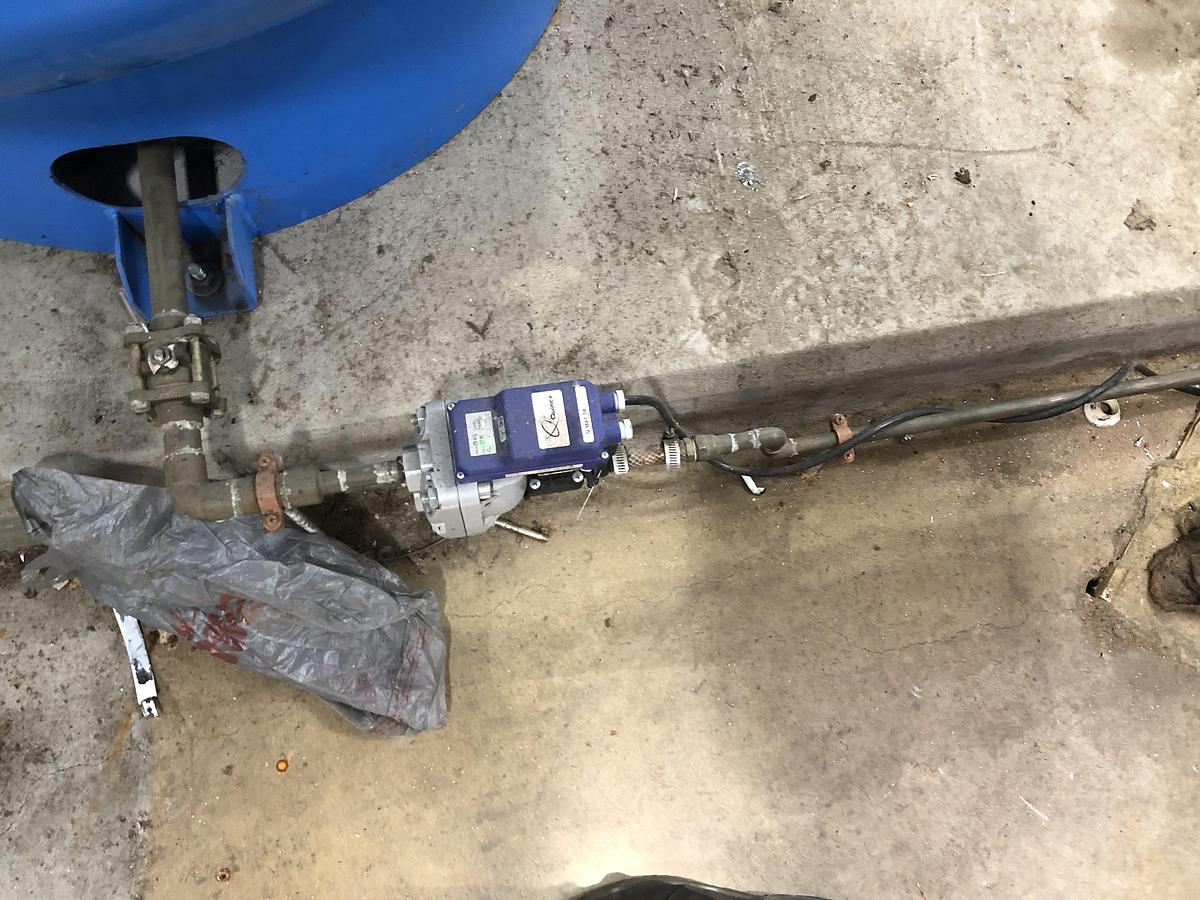

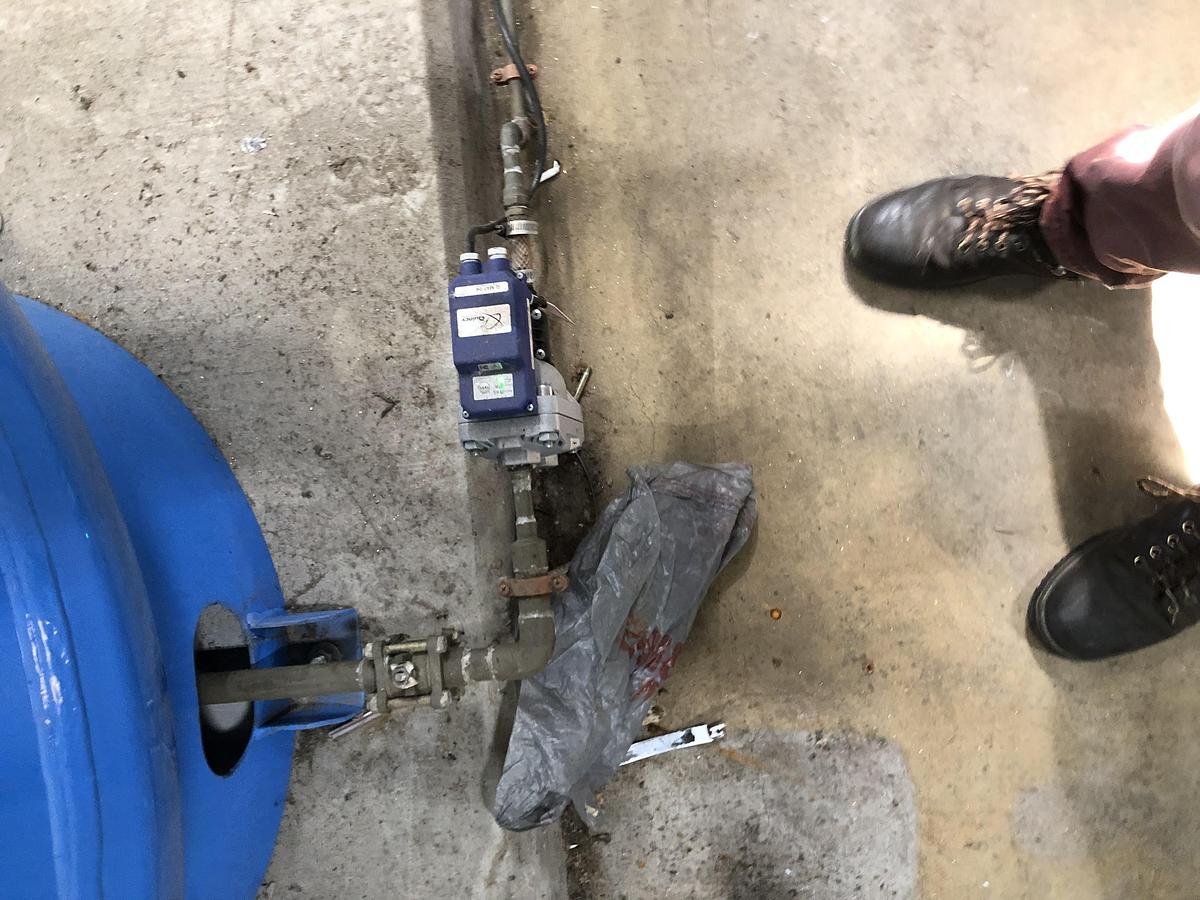

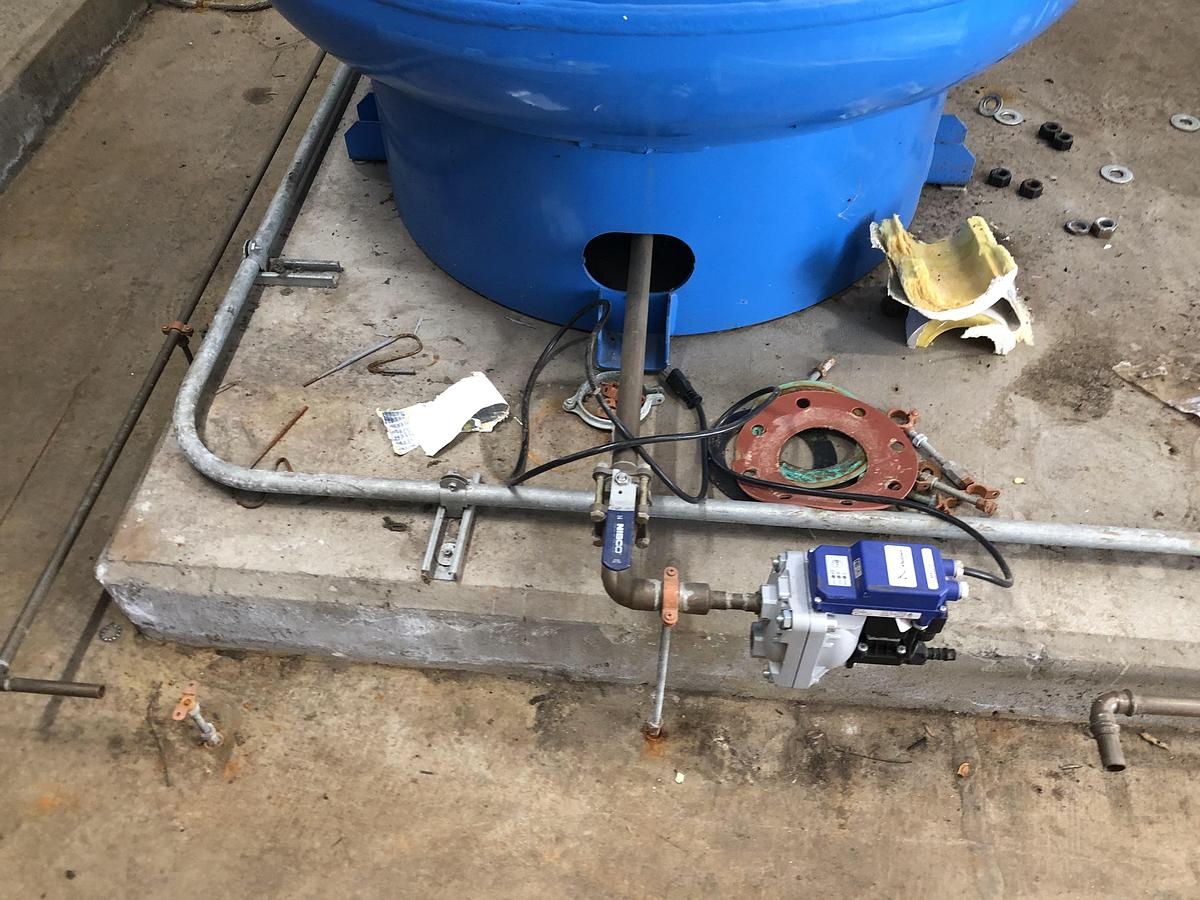

• Bottom drain with valve

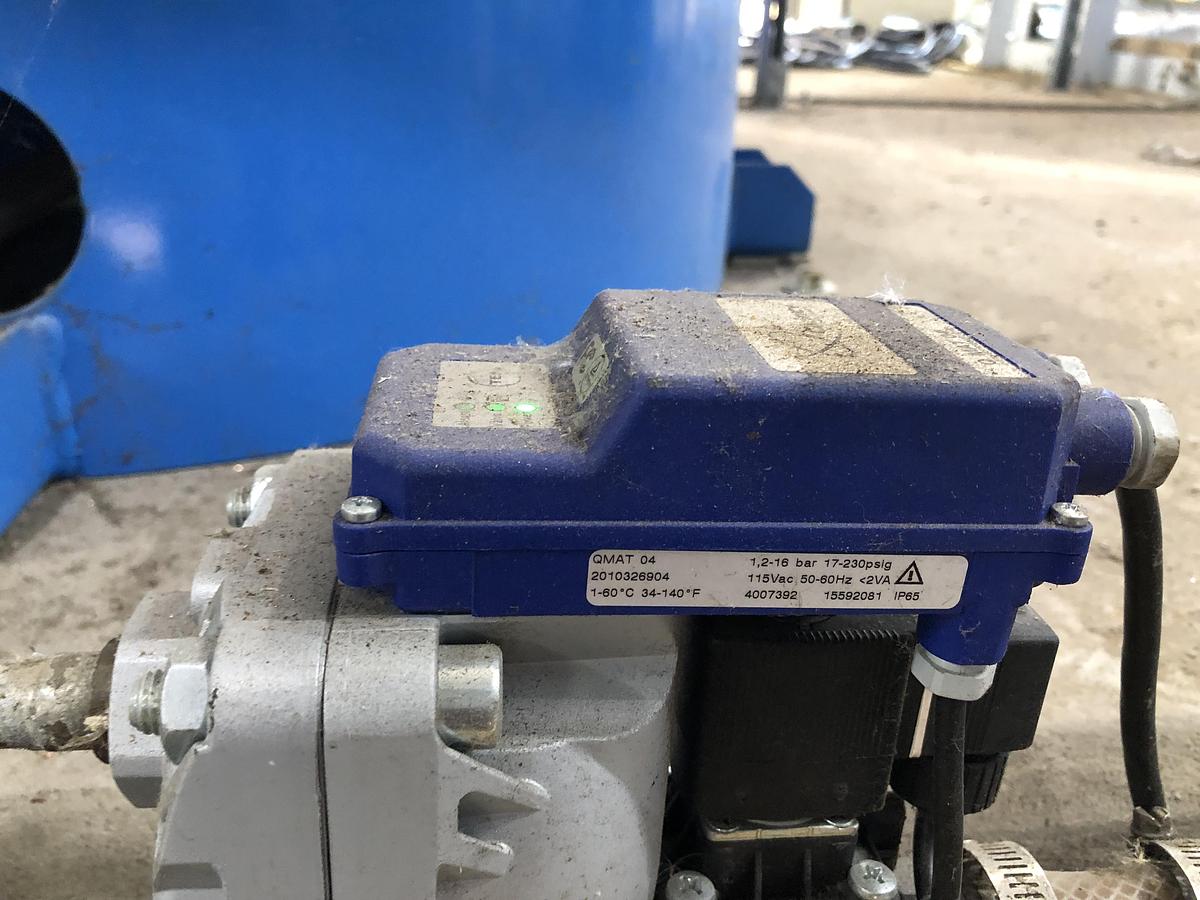

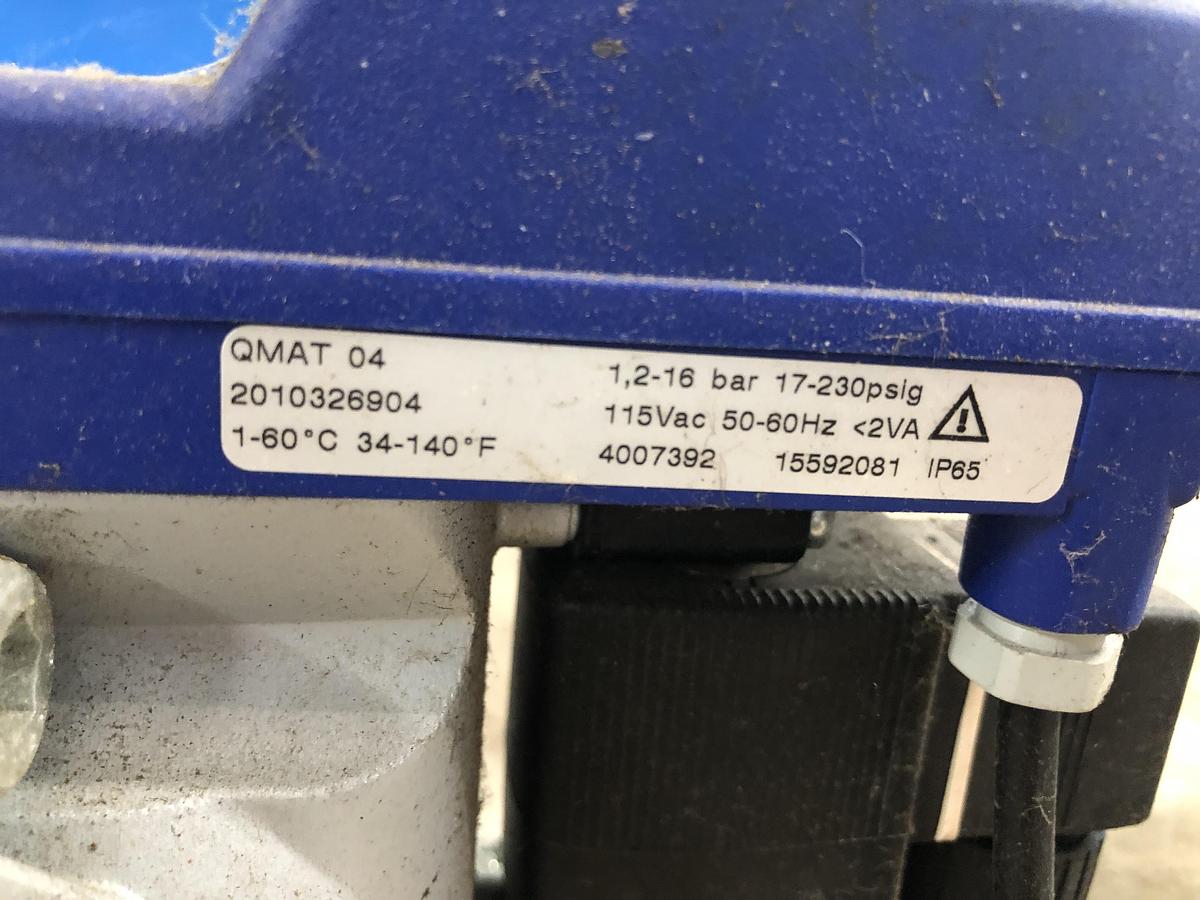

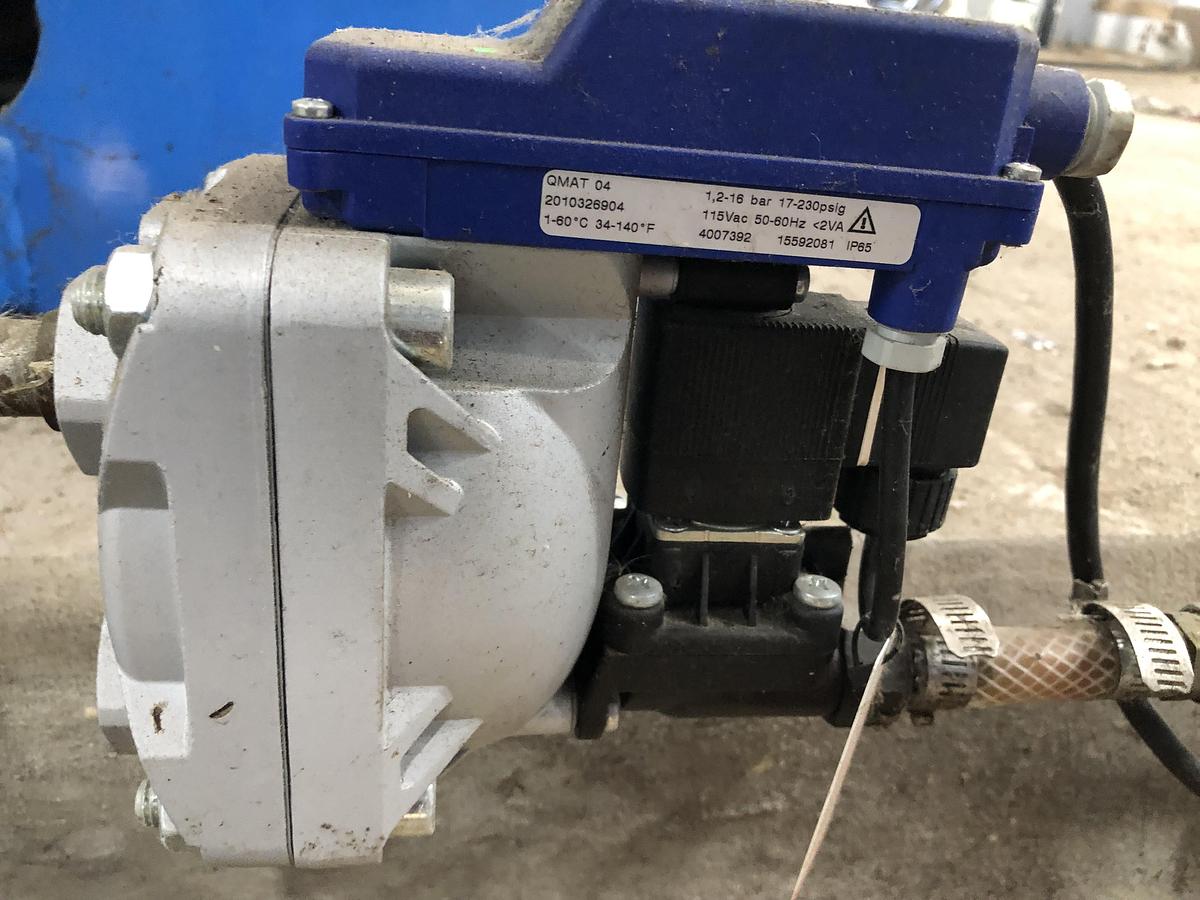

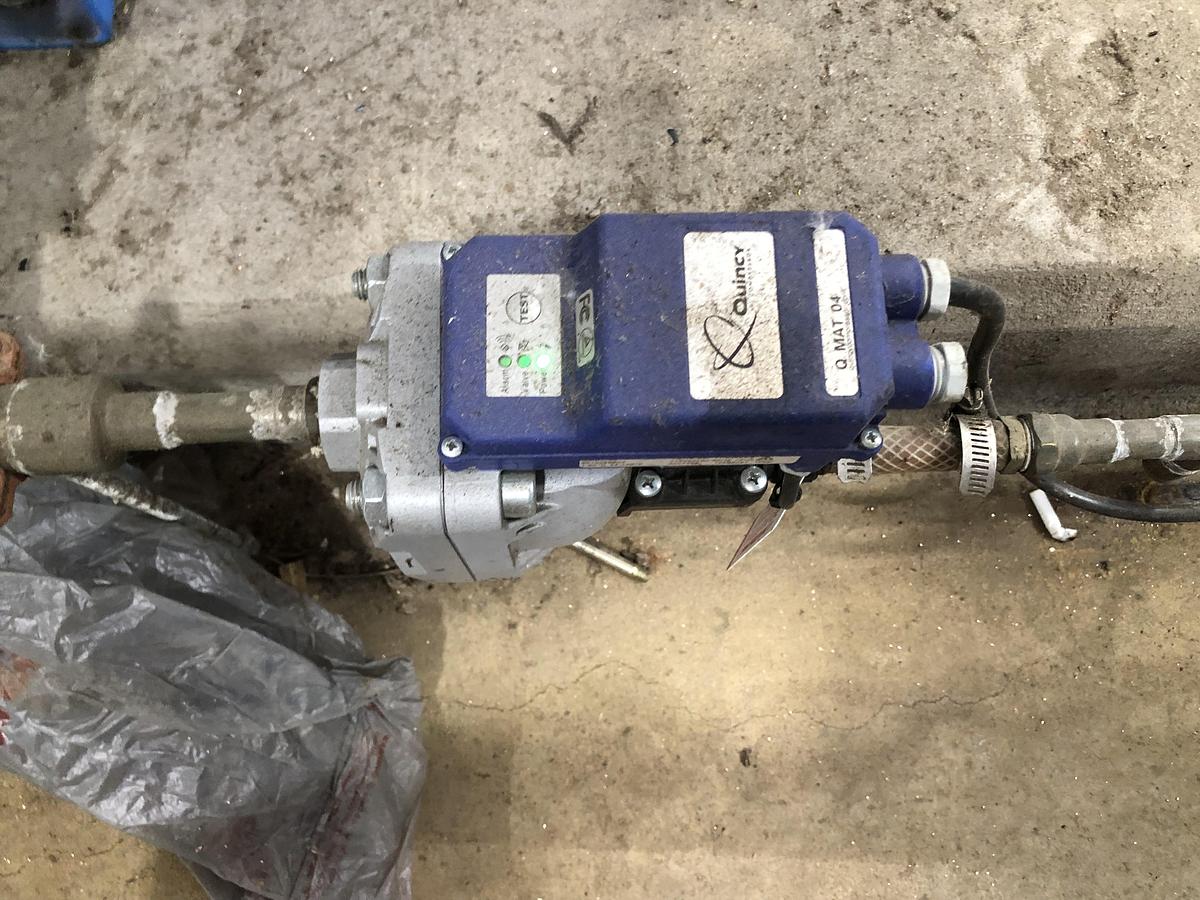

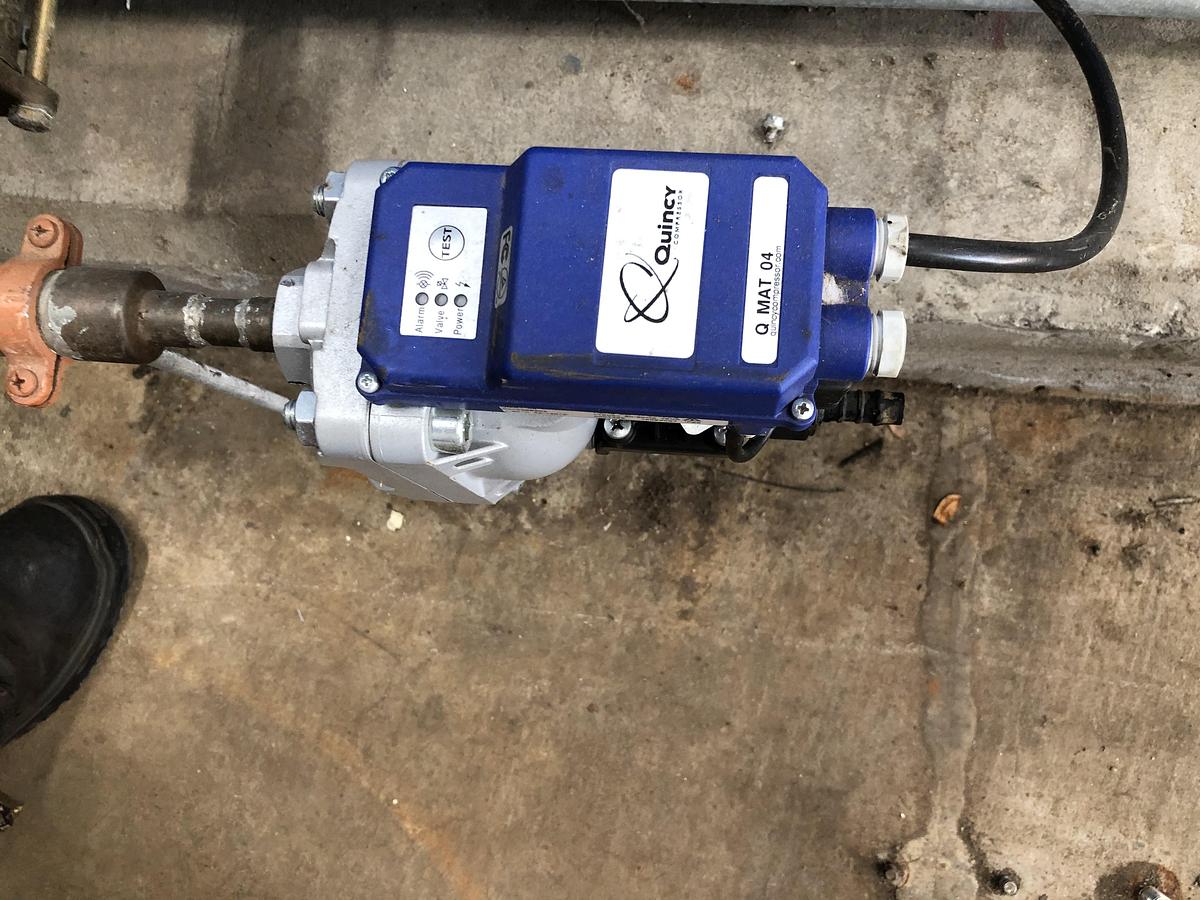

• Electronic monitoring capability (blue control box visible)

Ideal Applications

• Compressed Air Systems
• Manufacturing Plants
• Industrial Facilities
• Machine Shops
• Automotive Service Centers
• Assembly Lines
• Pneumatic Tool Systems
• Process Air Storage
• Backup Air Supply
• Peak Demand Air Storage

Benefits

• ASME certified construction
• High pressure rating (155 PSI)
• Temperature versatility (-20°F to 400°F)
• Multiple connection options
• Durable powder-coated finish
• Recent manufacture (2021)
• Professional certification
• Easy integration
• Low maintenance design

Additional Information

• Construction Features:ASME code stamped
• Heavy-wall steel construction
• Professional blue powder coating
• Reinforced mounting legs
• Multiple port configurations
• Corrosion-resistant finish
• Certification Details:Samuel Pressure Vessel Group certified
• ASME Section VIII compliance
• CRN registration for Canada
• Full traceability documentation
• Pressure test certification
• Installation Features:Stable leg-mounted design
• Multiple connection options
• Standard flanged connections
• Accessible drain valve
• Clear identification labeling

Maintenance Requirements

• Annual Inspection: Visual inspection of vessel exterior
• Pressure Relief Valve: Test annually per code requirements
• Drain Valve: Open monthly to remove condensate
• Internal Inspection: Per ASME requirements
• Pressure Testing: As required by local codes

Technical Details

• Model: AR-8201
• MAWP: 155 PSI @ 400°F
• MDMT: -20°F @ 155 PSI
• Part Number: A10182
• CRN: L420856
• Year: 2021
• Certification: 969581

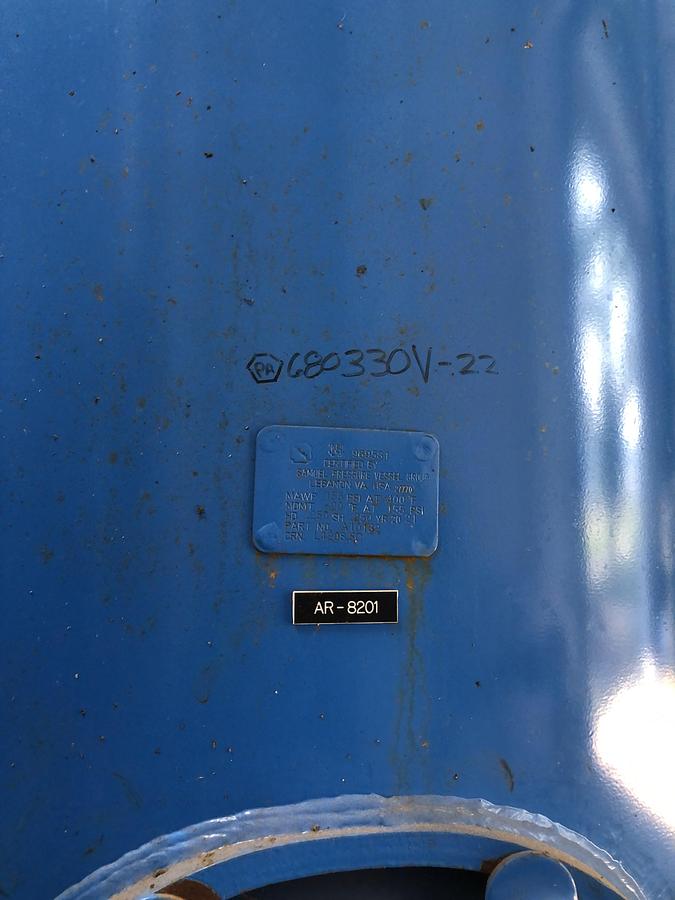

• Location Marking: 480330V-22

Compliance & Standards

• ASME Section VIII, Division 1
• CRN registered for Canadian provinces
• Samuel Pressure Vessel Group standards
• National Board registered
• Full material traceability

Tank Specifications

• Operating Pressure: Up to 155 PSI
• Temperature Range: -20°F to 400°F
• Shell Thickness: 0.250"
• Head Thickness: 0.250"
• Multiple Ports: Various sizes for system flexibility
