Skyjack Electric Scissor Lift SJ3226

Overview

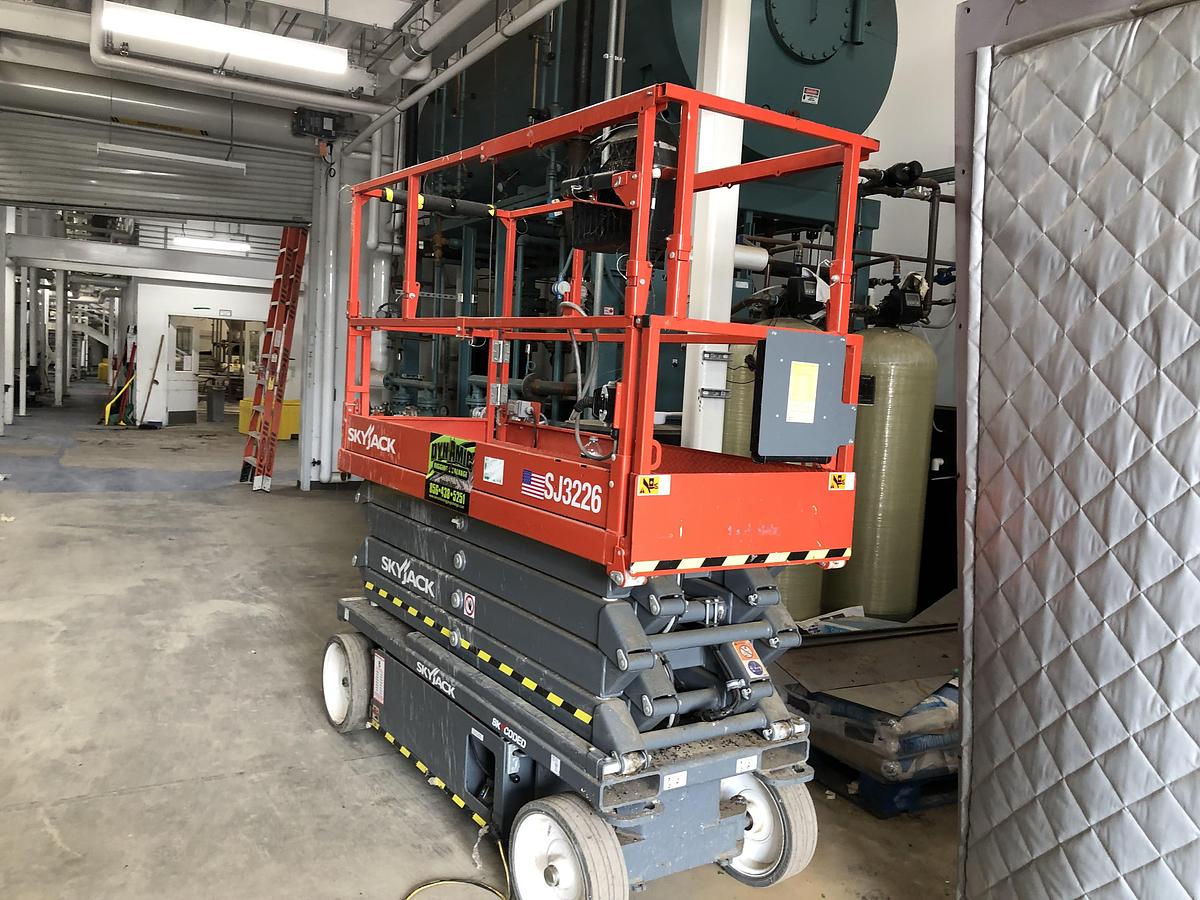

This Skyjack SJ3226 is a commercial-grade electric scissor lift designed for safe and efficient aerial work platform operations in industrial and commercial applications. This compact scissor lift features a 26-foot working height with a 32-inch narrow chassis width, making it ideal for working in tight spaces. This is a complete electric scissor lift ready for immediate use.

Design and Performance

• Manufacturer: Skyjack Inc.
• Location: Guelph, Ontario, Canada
• Model: SJ3226
• Serial Number: A101006852
• Type: Electric Scissor Lift
• Year: 2022
• Construction: Heavy-duty steel scissor mechanism with powder-coated finish
• Power System: 24V DC electric drive system

Key Specifications

• Condition: Used - Commercial Grade
• Performance Specifications:Working Height: 32 feet (9.75 m)
• Platform Height: 26 feet (7.79 m)
• Platform Dimensions: Compact design for tight spaces
• Machine Weight: 1900 kg (4,190 lb)
• System Pressure: 224 bar (3250 psi)
• Capacity Ratings:Indoor Use: 227 kg (500 lb) - 2 persons + equipment
• Outdoor Use: 227 kg (500 lb) - 1 person + equipment
• Drive Performance:Max Drive Height: 7.79 m (25 ft 7 in)
• Max Wind Speed: 0 m/s (0 mph)
• Max Manual Force Indoor: 400 N (90 lbf)
• Max Manual Force Outdoor: 200 N (45 lbf)

Safety Features

• ANSI/SAIA A92.20:2018 compliant
• CAN/CSA-B354.6:17 certified
• Emergency lowering system
• Tilt sensor protection
• Overload protection system
• Non-marking tires
• Safety railings with locking gate
• Emergency stop buttons
• Warning decals and safety labels

Control Features

• Platform Controls: Full proportional controls for smooth operation
• Ground Controls: Emergency override controls
• Display Panel: Digital diagnostic display
• Safety Systems: Multiple safety interlocks

Ideal Applications

• Warehouse Operations
• Retail Store Maintenance
• Manufacturing Facilities
• Convention Centers
• Office Buildings
• Educational Institutions
• Healthcare Facilities
• Indoor Construction
• Facility Maintenance

Benefits

• Compact 32" width for narrow aisles
• Zero inside turning radius
• Non-marking tires protect floors
• Electric operation for zero emissions
• Quiet operation for noise-sensitive environments
• Low maintenance design
• Proven Skyjack reliability
• Easy to transport
• Simple operation

Additional Information

• Construction Features:Durable steel construction
• Powder-coated finish
• Scissor stack with maintenance locks
• Solid rubber non-marking tires
• Integrated charger
• Battery condition indicator
• Included Components:Complete scissor lift assembly
• Platform with safety rails
• Control box with diagnostics
• 24V battery system
• Built-in battery charger
• Operating manual holder
• Safety decals and placards
• Platform Features:Steel deck with slip-resistant surface
• Folding guardrails with chain gate
• Control box protection
• Lanyard attachment points
• Manual descent valve
• Service Features:Accessible components
• Diagnostic display system
• Standard maintenance points
• QR code for technical information
• Clear model identification

Maintenance Requirements

• Daily Inspection: Pre-operation safety check
• Battery: Check water levels and charge status
• Hydraulic System: Check for leaks and fluid levels
• Function Test: Test all controls and safety systems
• Periodic Service: Follow manufacturer's maintenance schedule

Technical Details

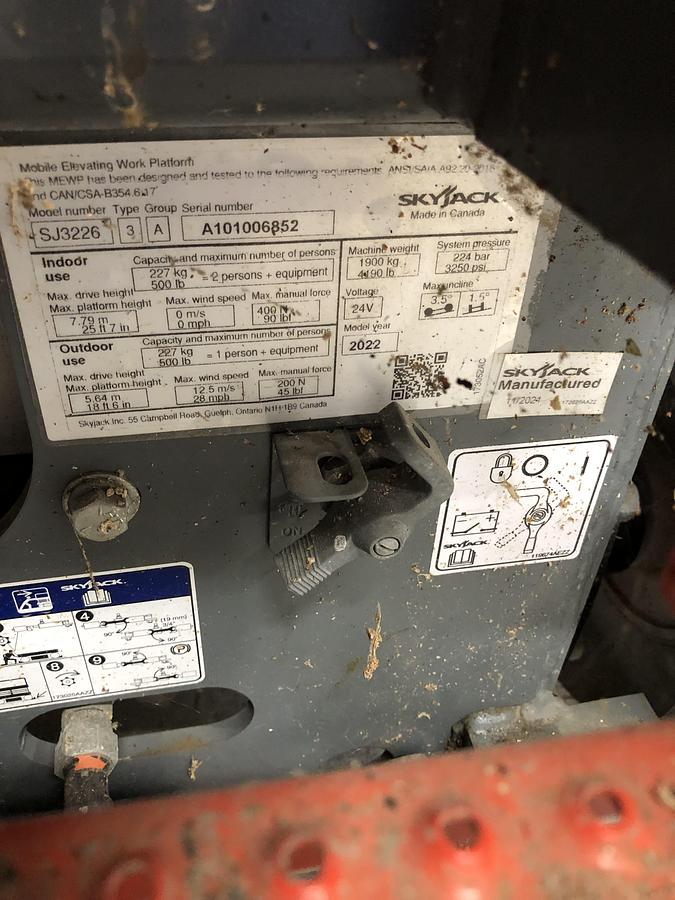

• Model: SJ3226
• Group: 3A
• Serial: A101006852
• Voltage: 24V DC
• Year: 2022
• Platform Height: 26 ft (7.79 m)
• Compliance: ANSI/SAIA A92.20:2018
• Service Company: Eastern Lift Truck Co., Inc. (Dynamic Rigging & Salvage)

Service Support

• Rental Company: Dynamic Rigging & Salvage
• Phone: 856-438-5291
• Service Locations: Multiple branches including Maple Shade, NJ and locations in DE, MD, PA

Warnings

• Maximum platform capacity must not be exceeded
• Not for use in windy conditions when elevated
• Indoor/outdoor capacity ratings differ
• Proper training required before operation
• Regular inspections mandatory
• Follow all safety placards and warnings
