SPX Marley Cooling Tower CT-9201

Overview

This used SPX Marley Cooling Tower is a commercial-grade evaporative cooling system designed for efficient heat rejection in HVAC and industrial process applications. Manufactured by SPX Cooling Technologies (formerly Marley), this unit combines proven crossflow design with durable construction for reliable performance. This is a complete cooling tower system ready for installation.

Design and Performance

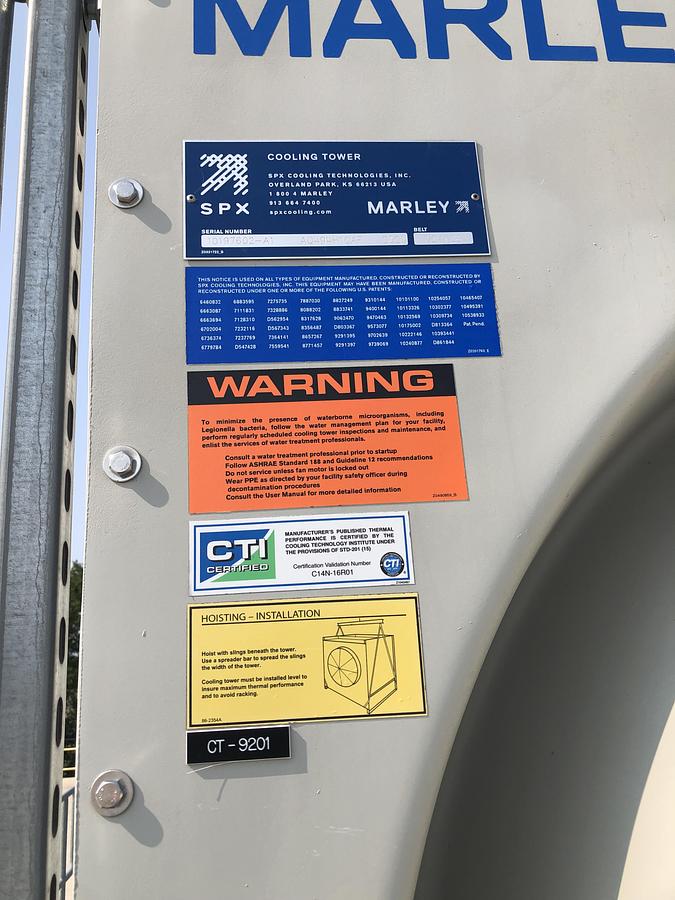

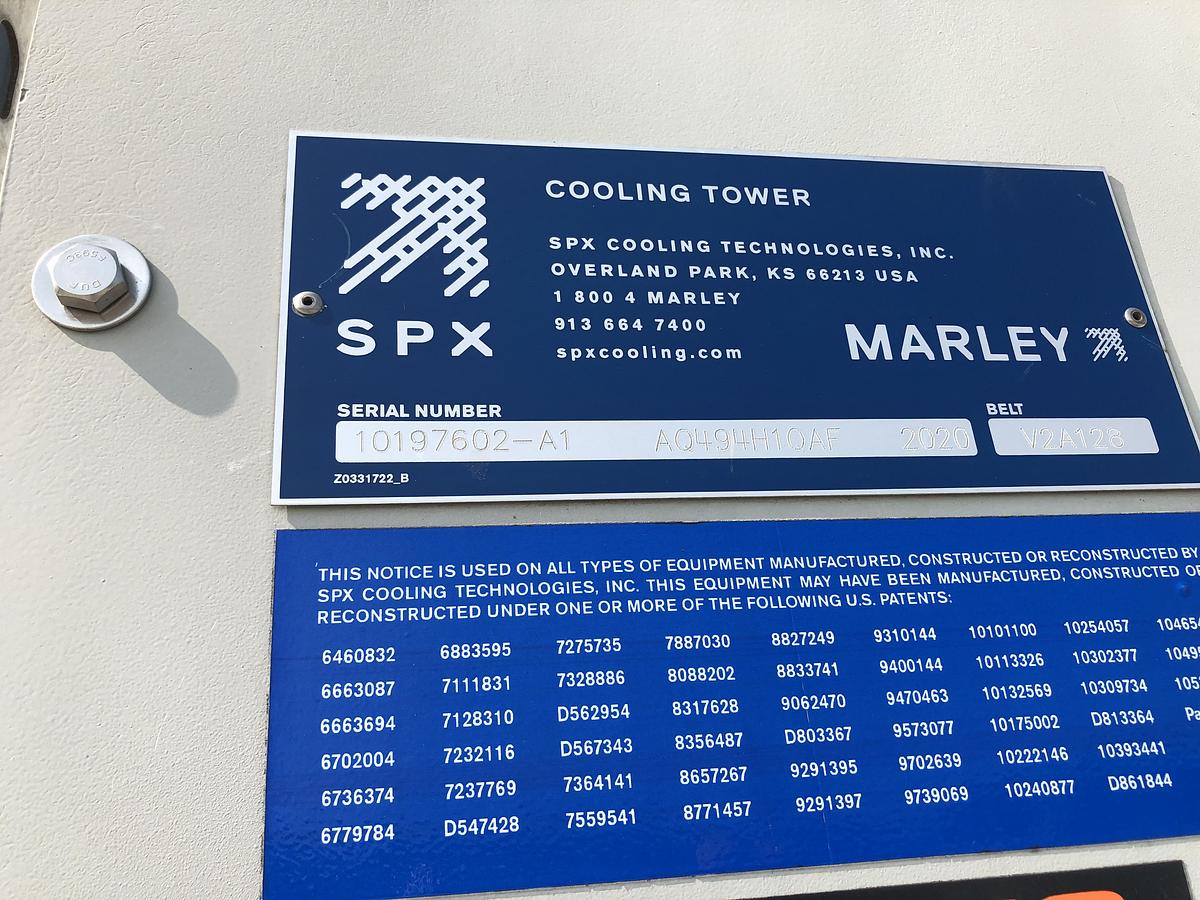

• Manufacturer: SPX Cooling Technologies, Inc. / Marley
• Model: CT-9201
• Serial Number: 10197602-A1
• Belt Number: A0494H40AF
• Type: Crossflow Cooling Tower
• Origin: Overland Park, KS 66213 USA
• Construction: Heavy-duty fiberglass and steel construction
• Patent Protected: Multiple US Patents

Key Specifications

• Condition: Used - Commercial Grade
• Performance Data:Model Configuration: 2590 Y9A9B3
• CTI Certified: C140-16R01
• Certification Validation Number: C140-16R01

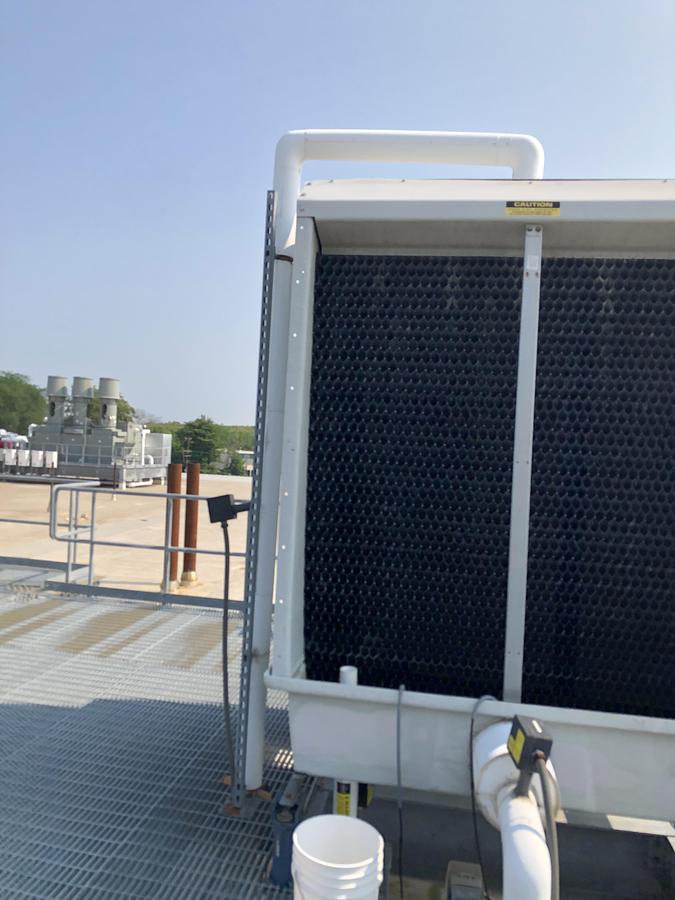

• System Components:Crossflow fill media
• Drift eliminators
• Distribution system with nozzles

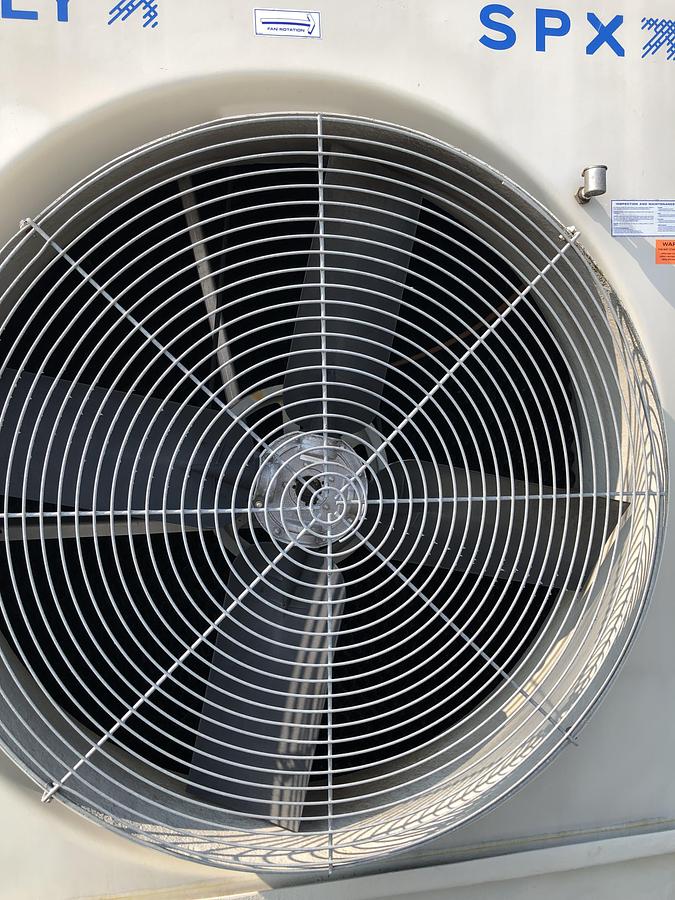

• Fan assembly with motor
• Fiberglass casing
• Steel structural framework
• Water collection basin

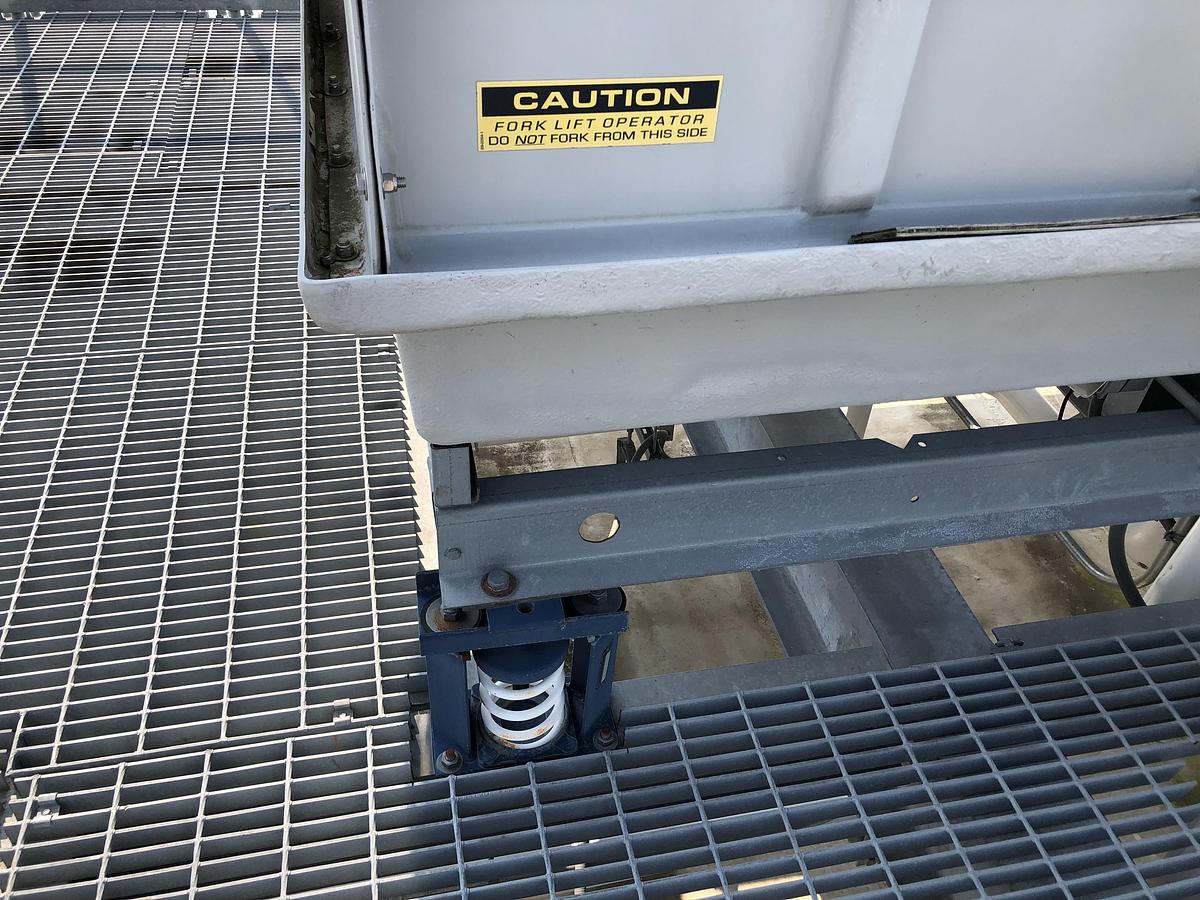

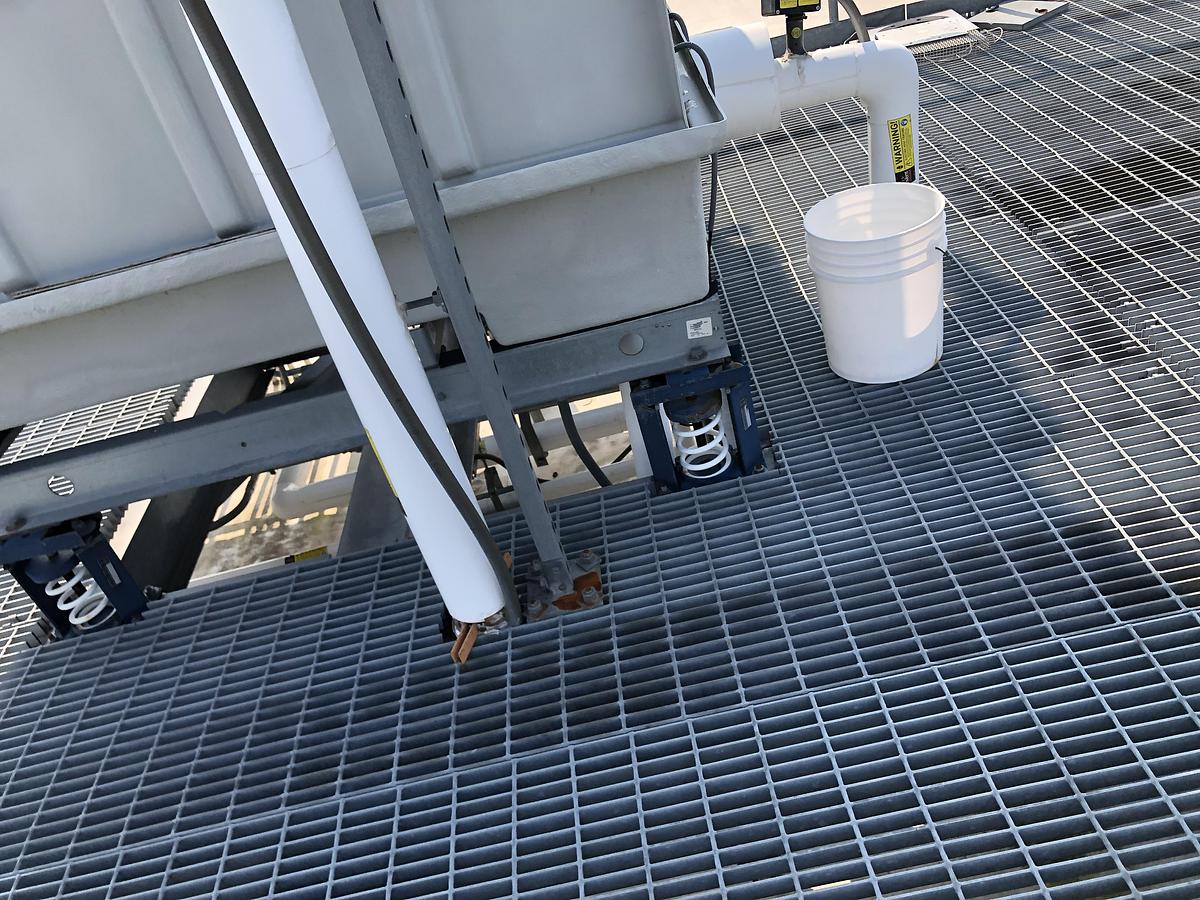

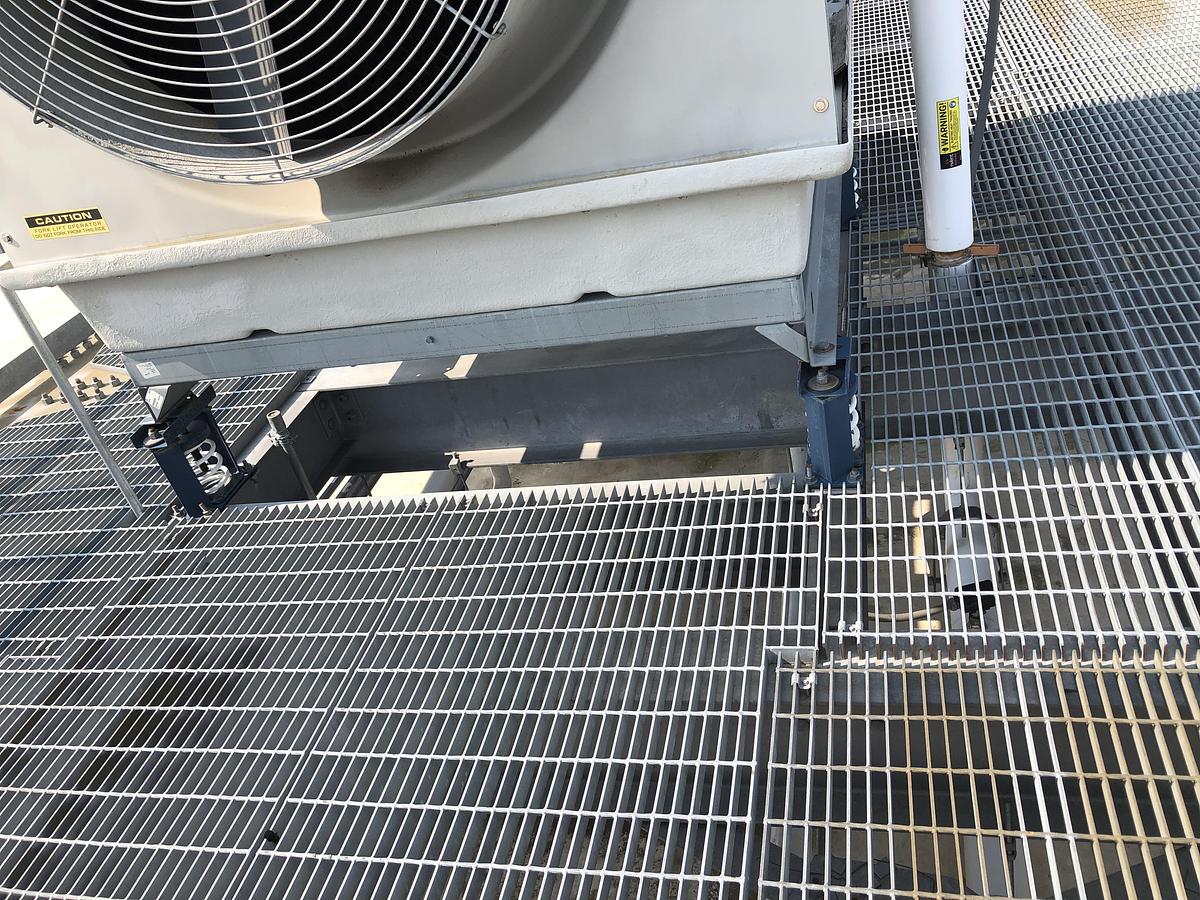

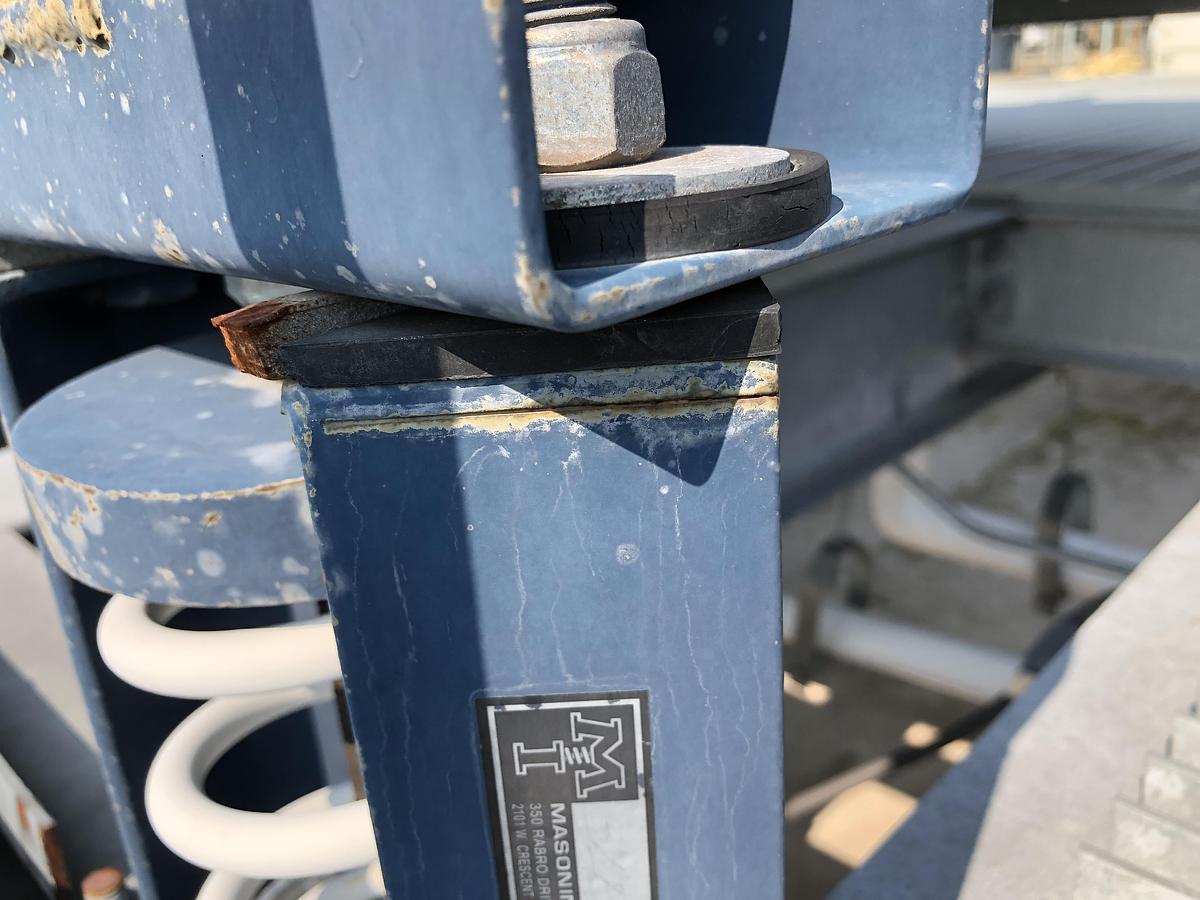

• Spring Isolator: Mason Industries isolation mounting

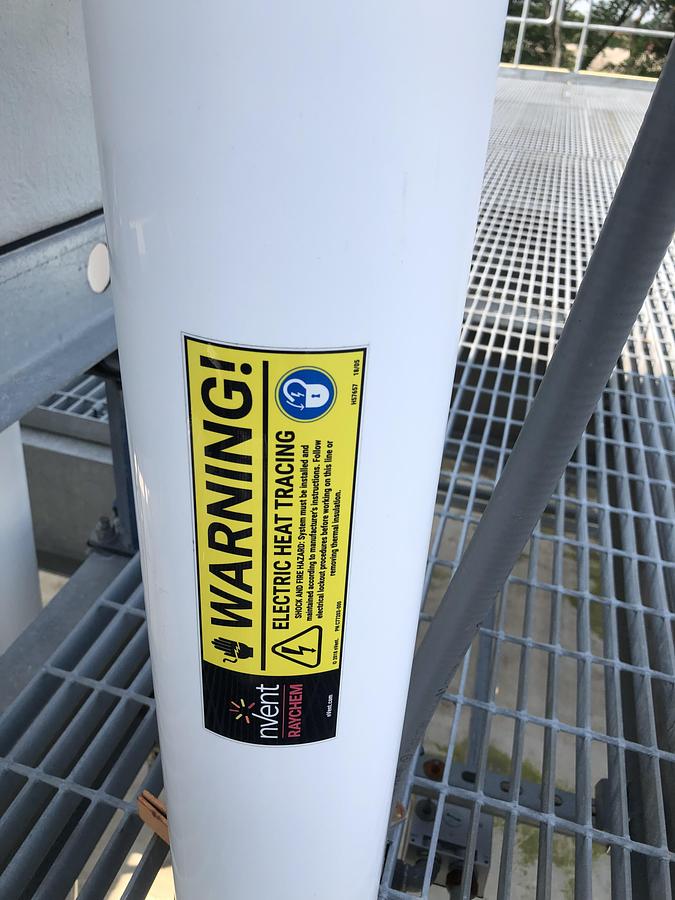

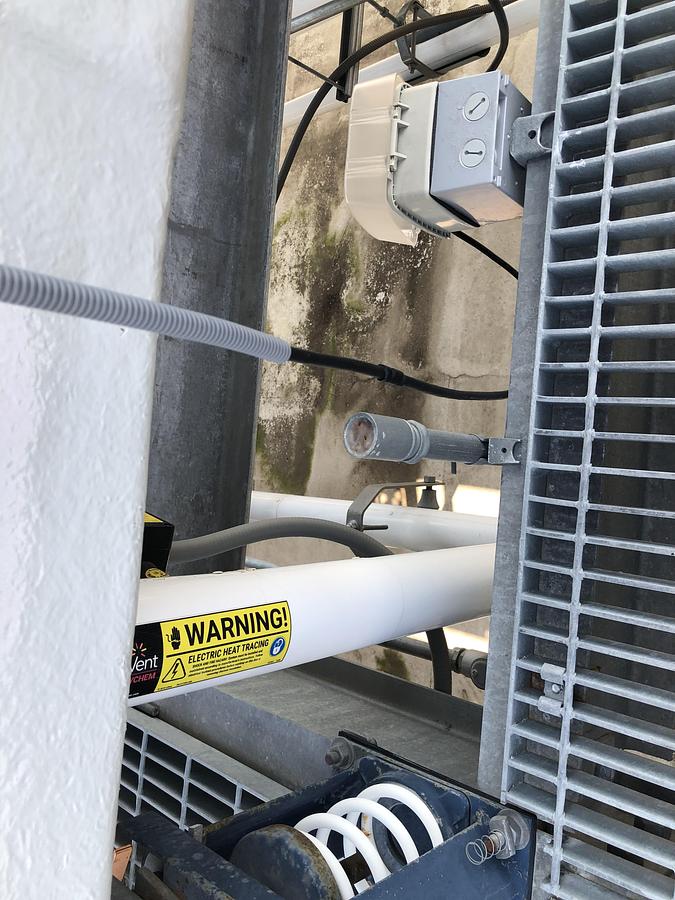

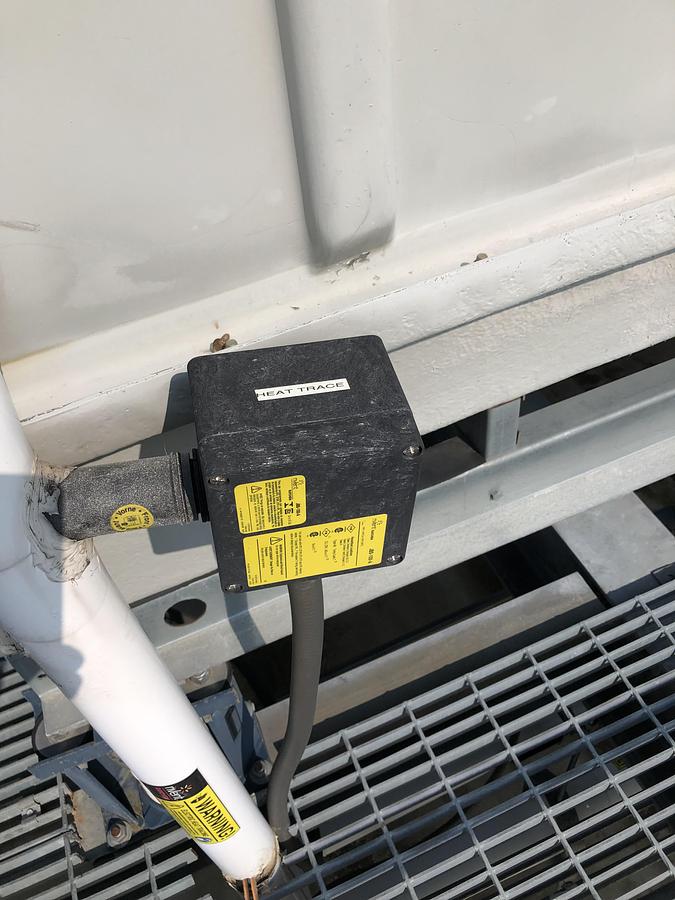

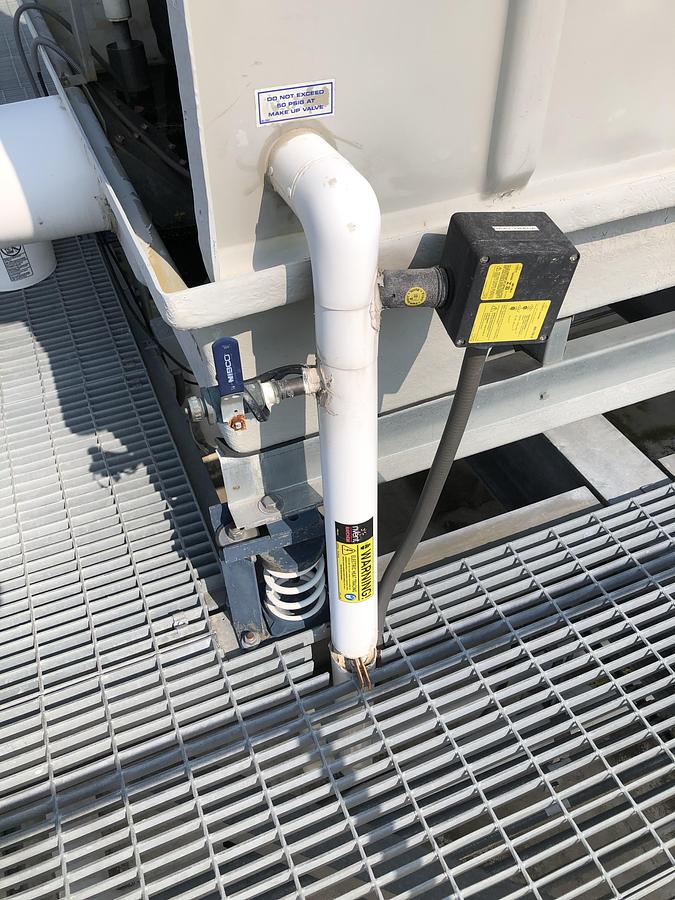

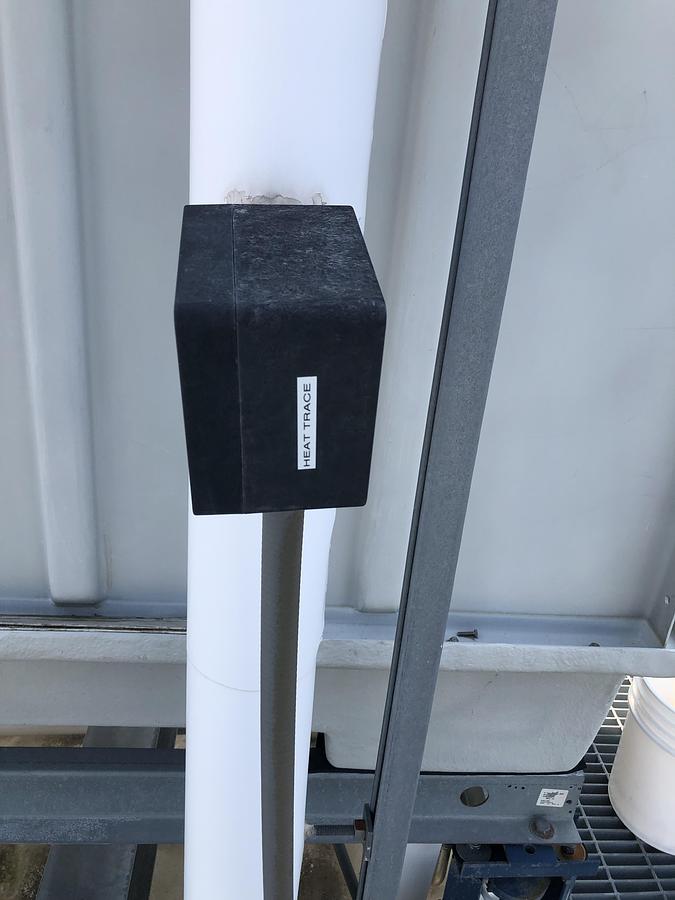

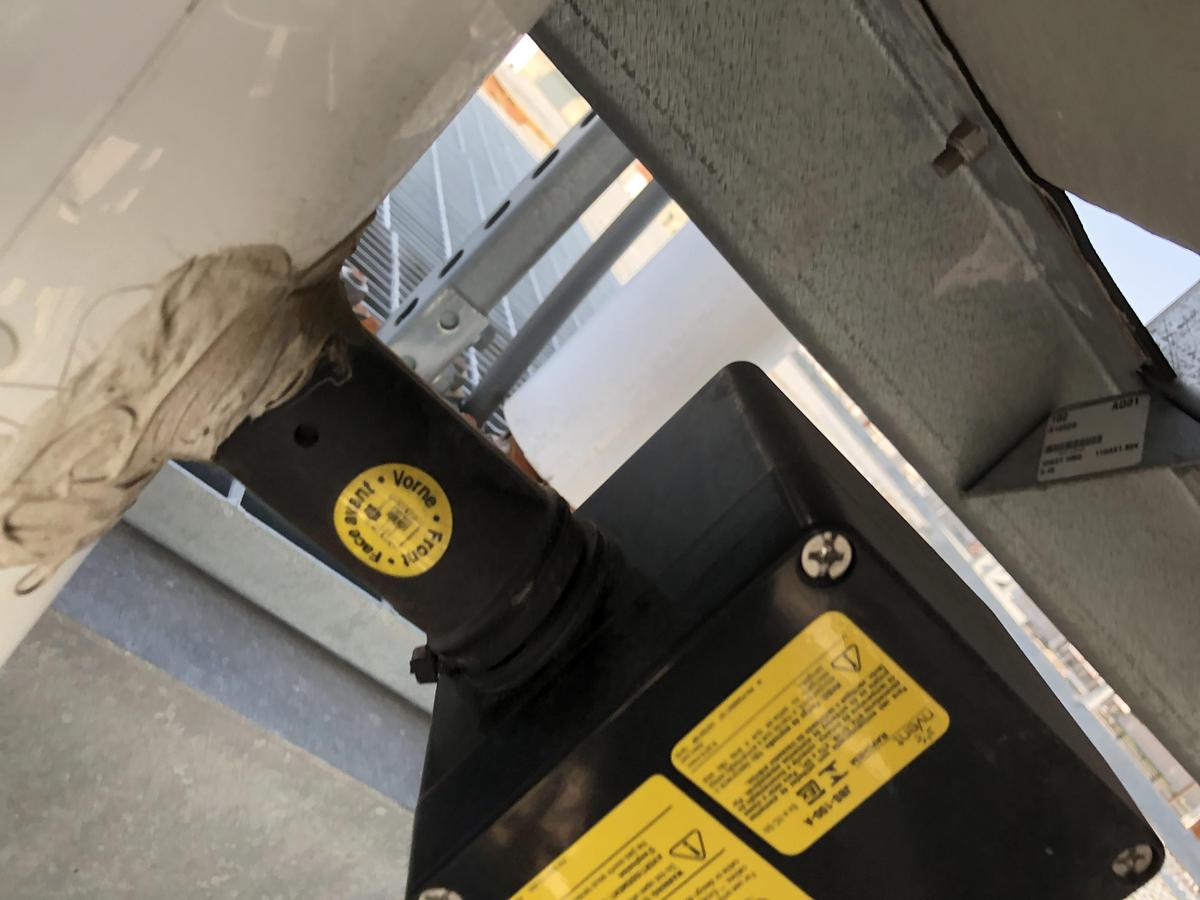

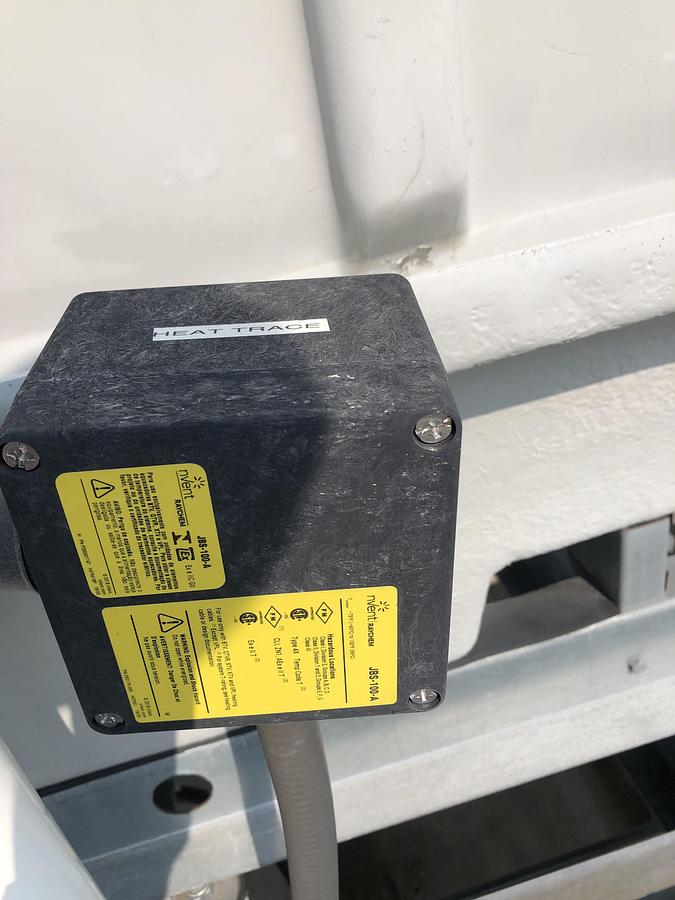

• Heat Trace System: nVent RAYCHEM JBS-100-A included

Safety Features

• CTI (Cooling Technology Institute) certified

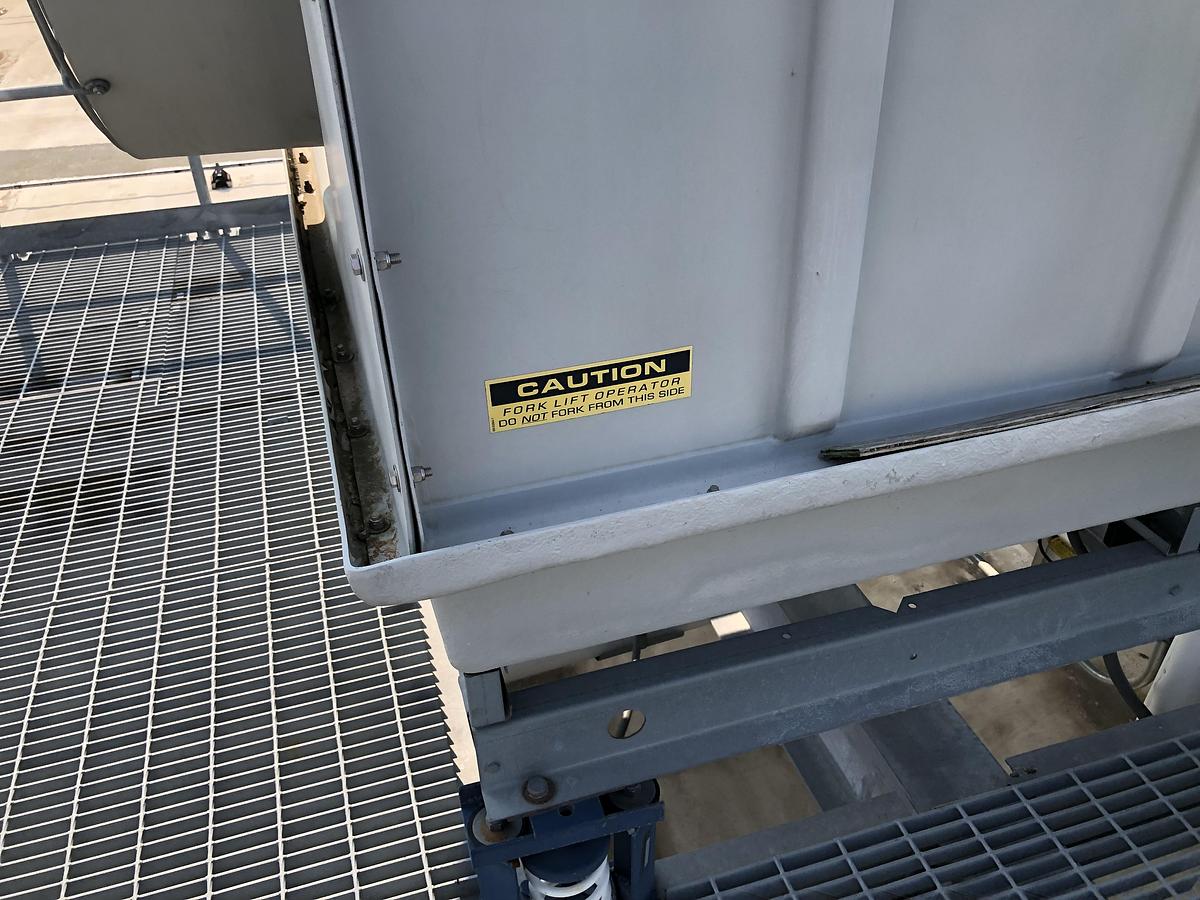

• Multiple safety warnings and labels
• Fan automatic start warning system
• Lockout/tagout provisions
• Water treatment recommendations
• Comprehensive maintenance schedule
• Patent protected design

Ideal Applications

• Commercial HVAC Systems
• Industrial Process Cooling
• Data Center Cooling
• Manufacturing Facilities
• Hospitals and Healthcare
• Office Buildings
• Hotels and Hospitality
• Power Generation
• Chemical Processing

Benefits

• Complete cooling tower package
• CTI certified performance
• SPX/Marley reliability
• Crossflow design efficiency
• Integrated heat trace system
• Spring isolation mounting
• Comprehensive safety labeling
• Low maintenance design
• Water treatment compatible

Additional Information

• Construction Features:
• Fiberglass reinforced plastic (FRP) casing
• Galvanized steel framework
• PVC fill media
• Drift eliminators
• Spring vibration isolators
• Access ladder and platforms
• Distribution piping with nozzles
• Included Components:
• Complete cooling tower assembly
• Fan and motor assembly
• Distribution system
• Drift eliminators
• Fill media
• Collection basin
• Mason spring isolators
• nVent RAYCHEM heat trace system

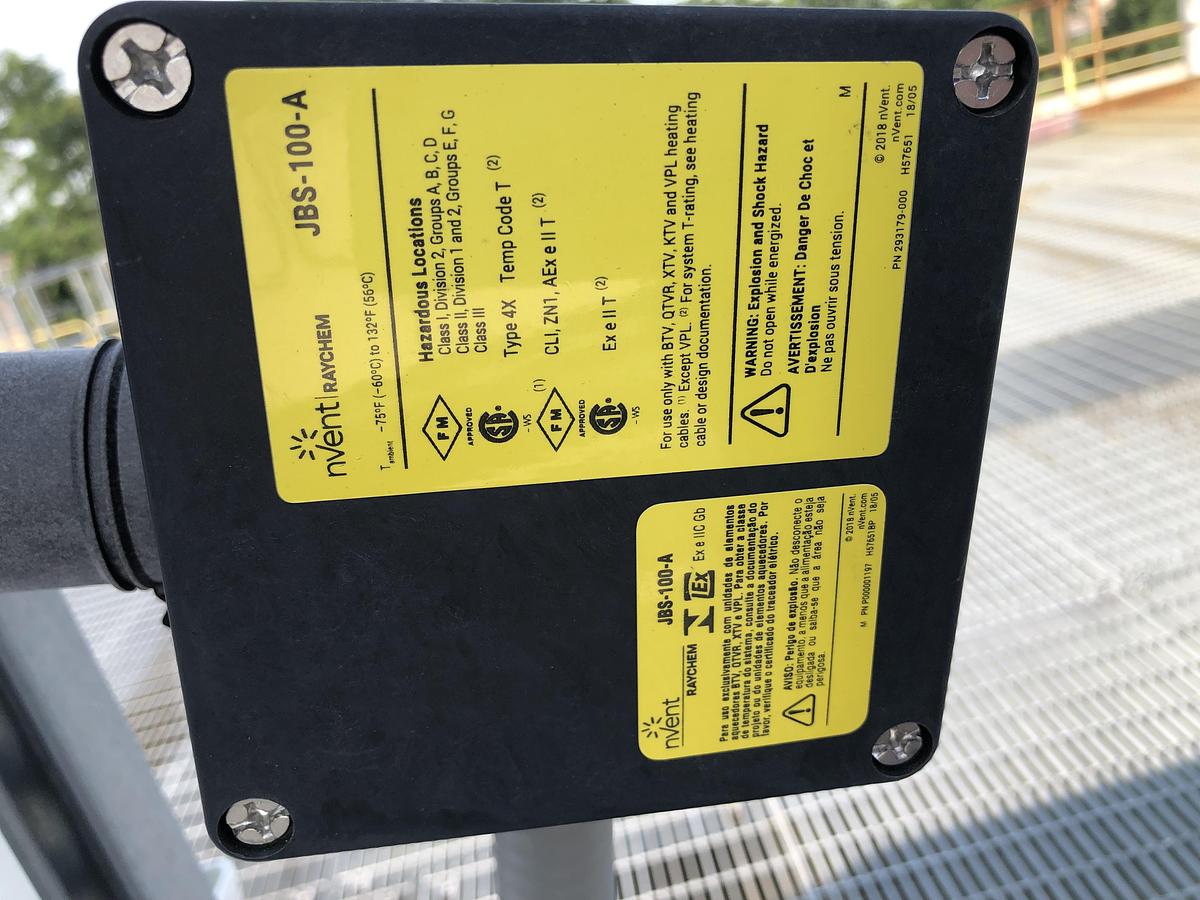

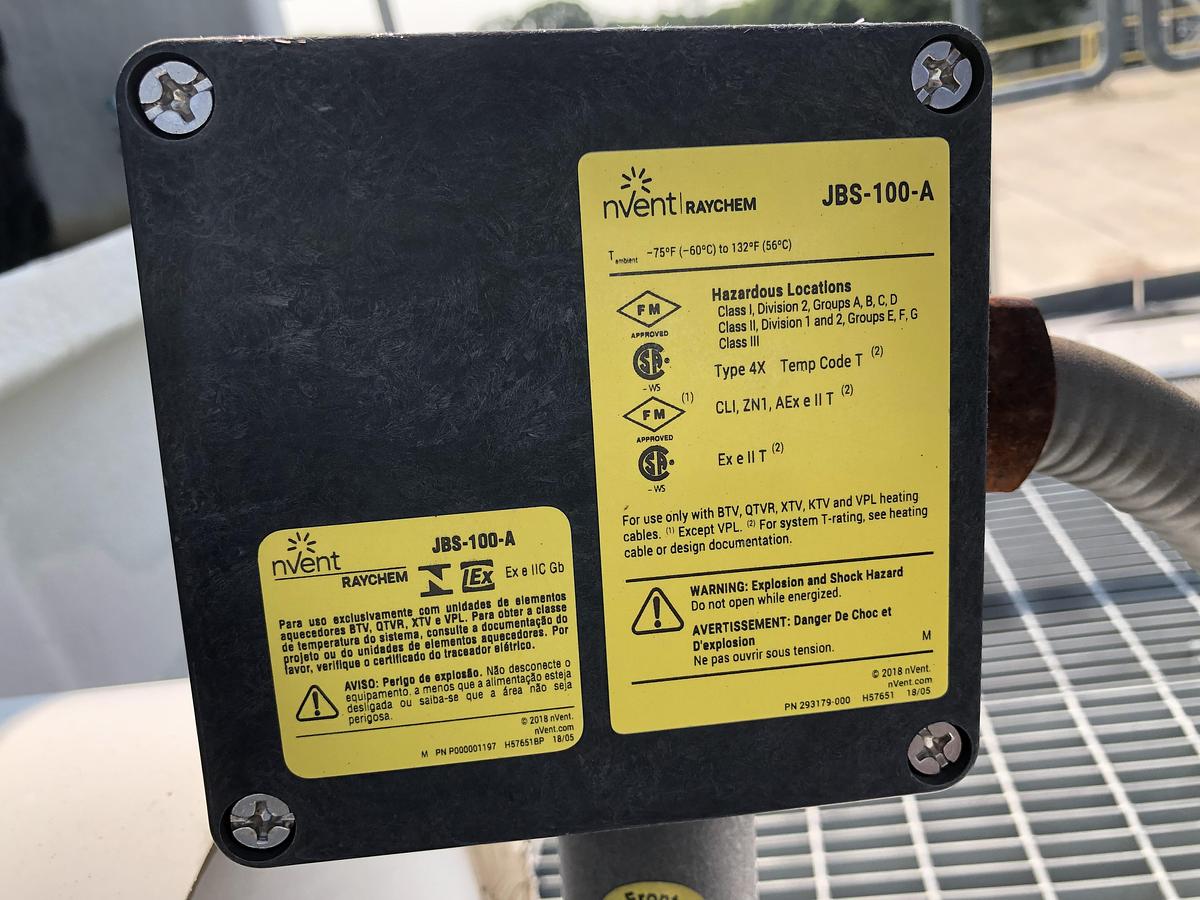

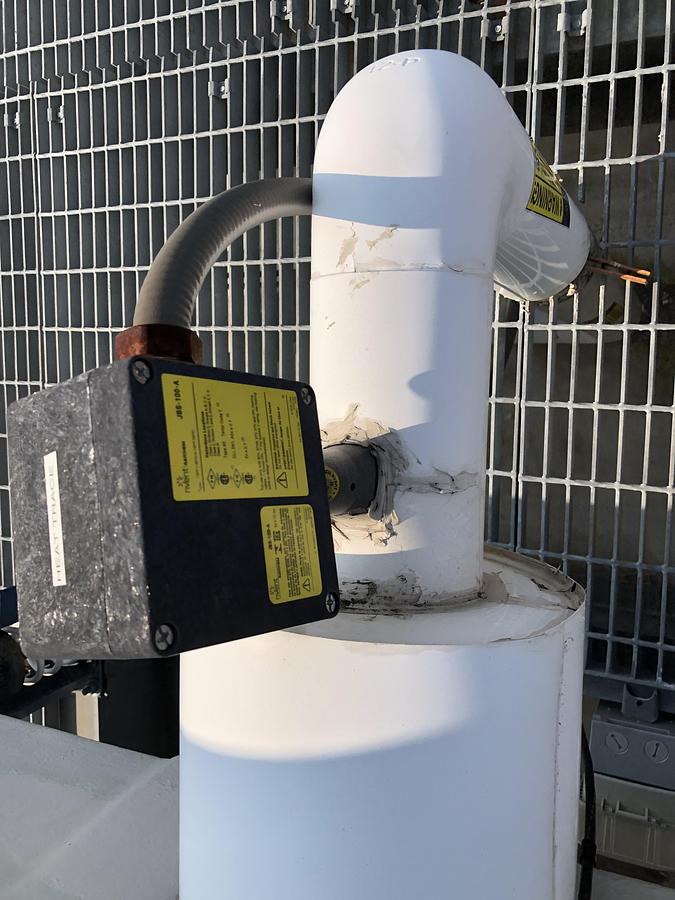

• Heat Trace Features:
• Model: JBS-100-A
• Temperature Range: -75°F (-60°C) to 132°F (56°C)
• Type: 4X, Temp Code T
• Hazardous Location Ratings: Class I Division 2 Groups A,B,C,D; Class II Division 1 and 2 Groups E,F,G; Class III
• FM, cUL, Ex e II T approved
• Suitable for BTV, QTVR, XTV, KTV and VPL heating cables
• Service Features:
• Clear model identification
• CTI certification for verified performance
• Comprehensive maintenance schedule
• Water treatment guidelines
• Fan shaft bearing lubrication points
• Oil change recommendations

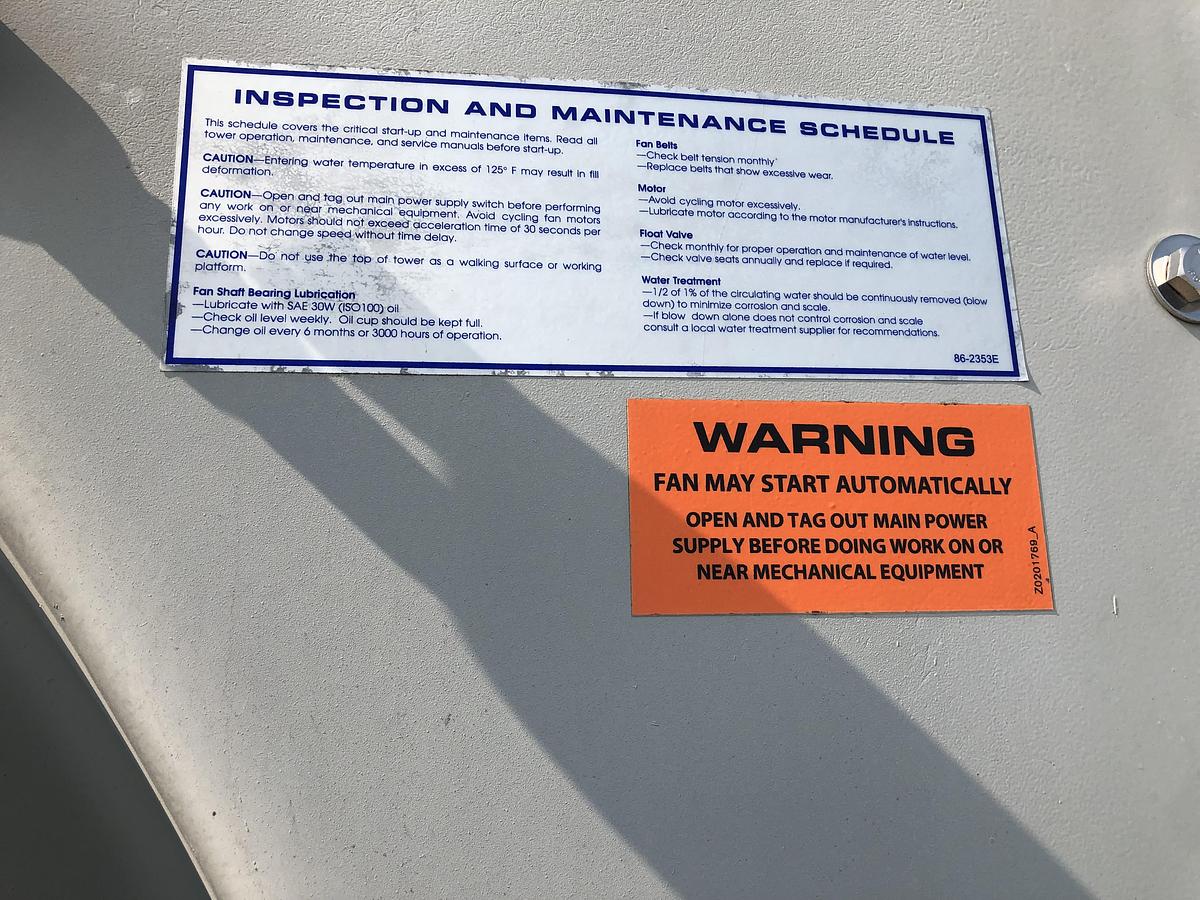

Maintenance Requirements

• Fan Belt: Check tension monthly, replace belts showing excessive wear
• Motor: Avoid cycling motor excessively, lubricate per manufacturer instructions
• Float Valve: Check monthly for proper operation and water level
• Water Treatment: 1/2 of 1% of circulating water should be continuously removed to minimize corrosion and scale
• Temperature: Water temperature exceeding 125°F may result in fill deformation

Technical Details

• Model: CT-9201
• Serial: 10197602-A1
• Configuration: Crossflow design
• Mounting: Spring isolation system
• Heat Trace: nVent RAYCHEM JBS-100-A
• Installation: Rooftop mounting
• Compliance: CTI Certified, FM Approved
