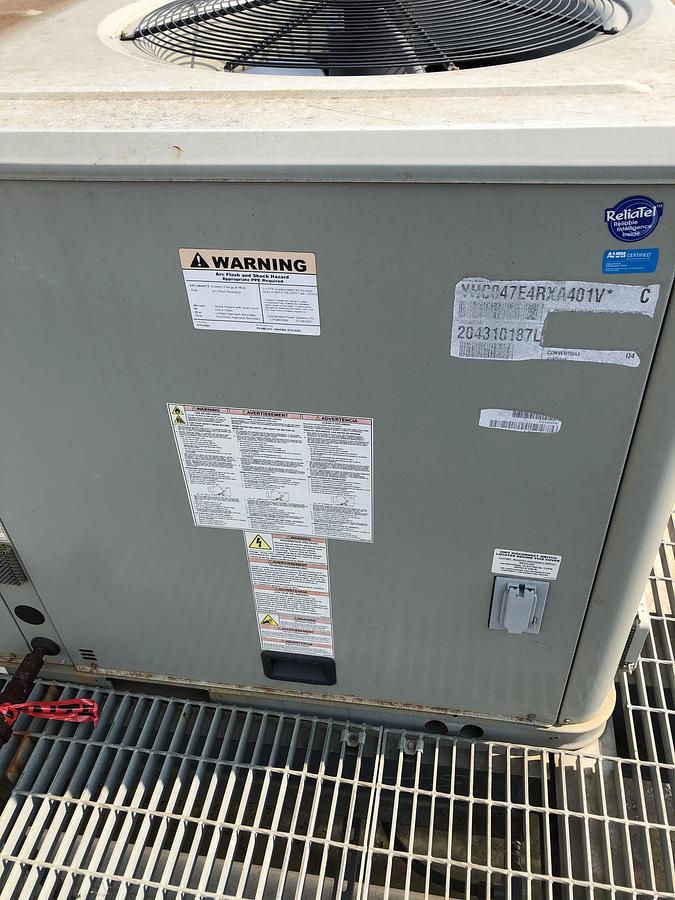

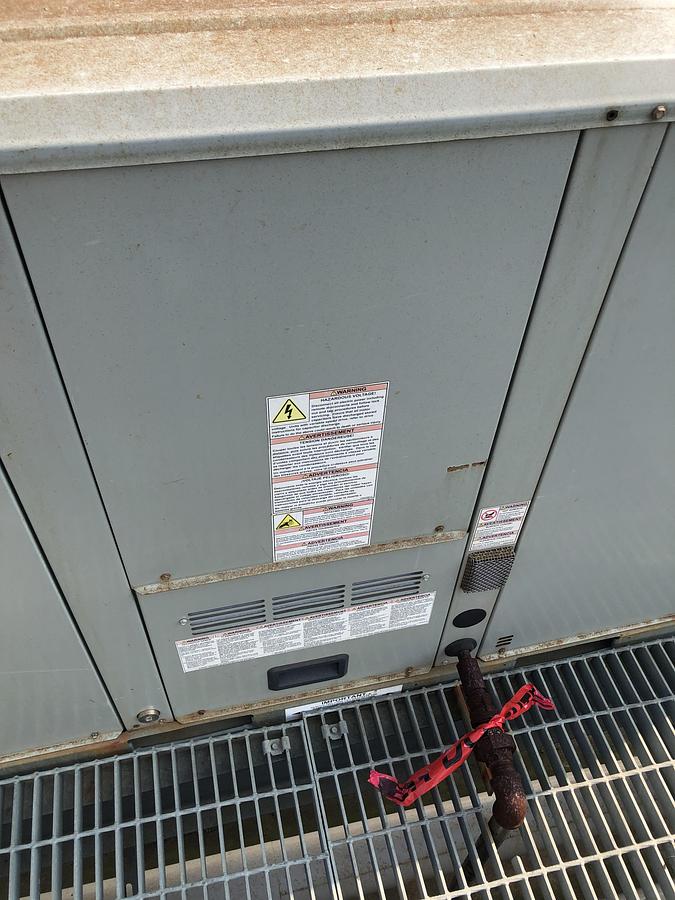

Trane Precedent 4-Ton Rooftop HVAC Unit RTU-9202 (2020)

Overview

This used Trane Precedent rooftop HVAC unit is a commercial-grade heating and cooling system designed for efficient climate control in commercial and industrial applications. Manufactured by Trane (Ingersoll Rand), this 4-ton unit combines proven reliability with energy-efficient operation. This is a complete packaged rooftop unit ready for installation.

Design and Performance

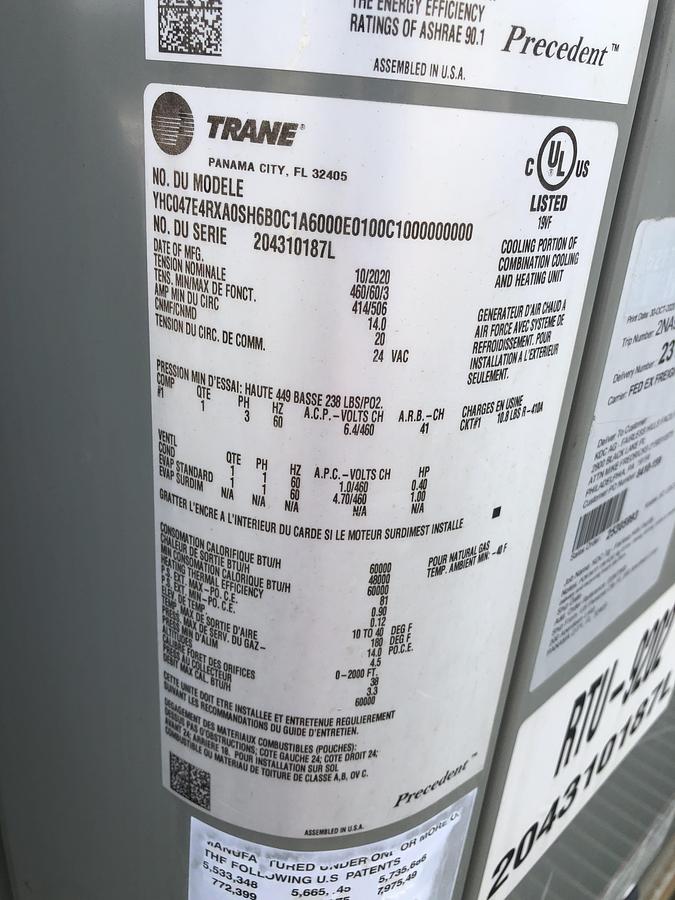

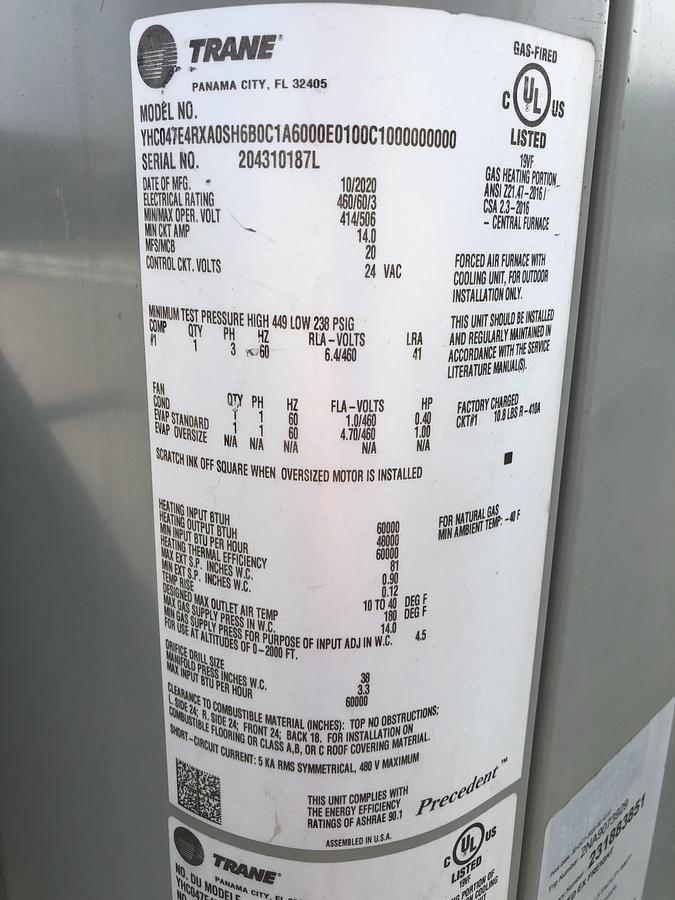

• Manufacturer: Trane (Ingersoll Rand)

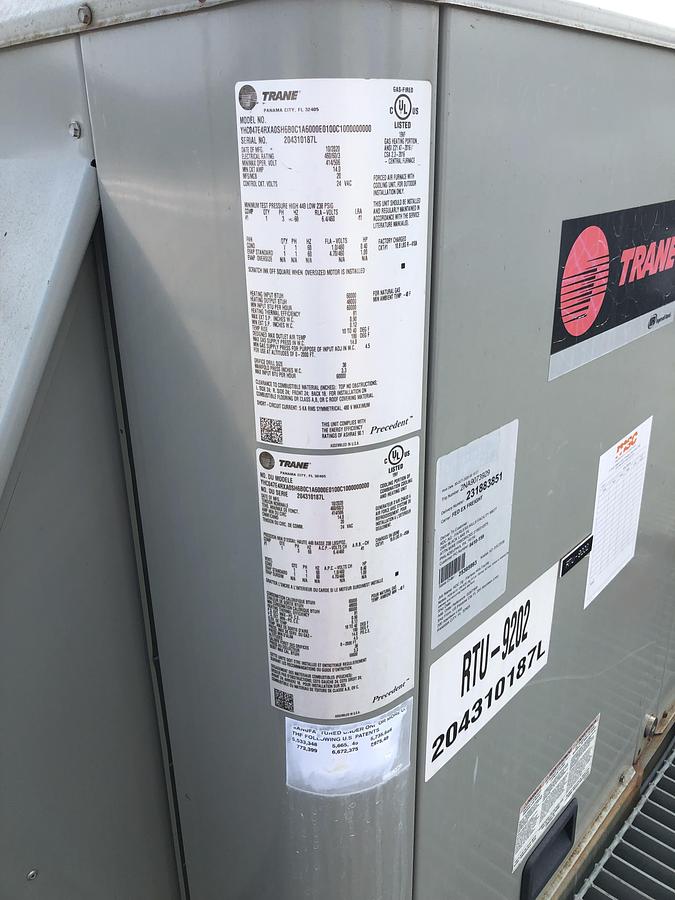

• Model: YHC047E4RXA0SH6B0C1A6000E0100C1000000000
• Serial Number: 204310187L

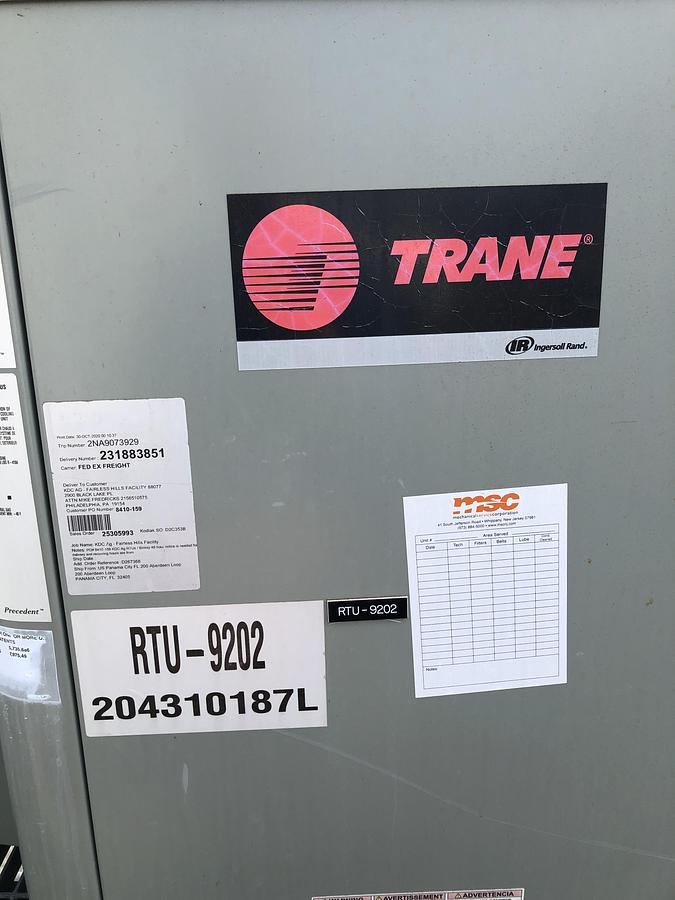

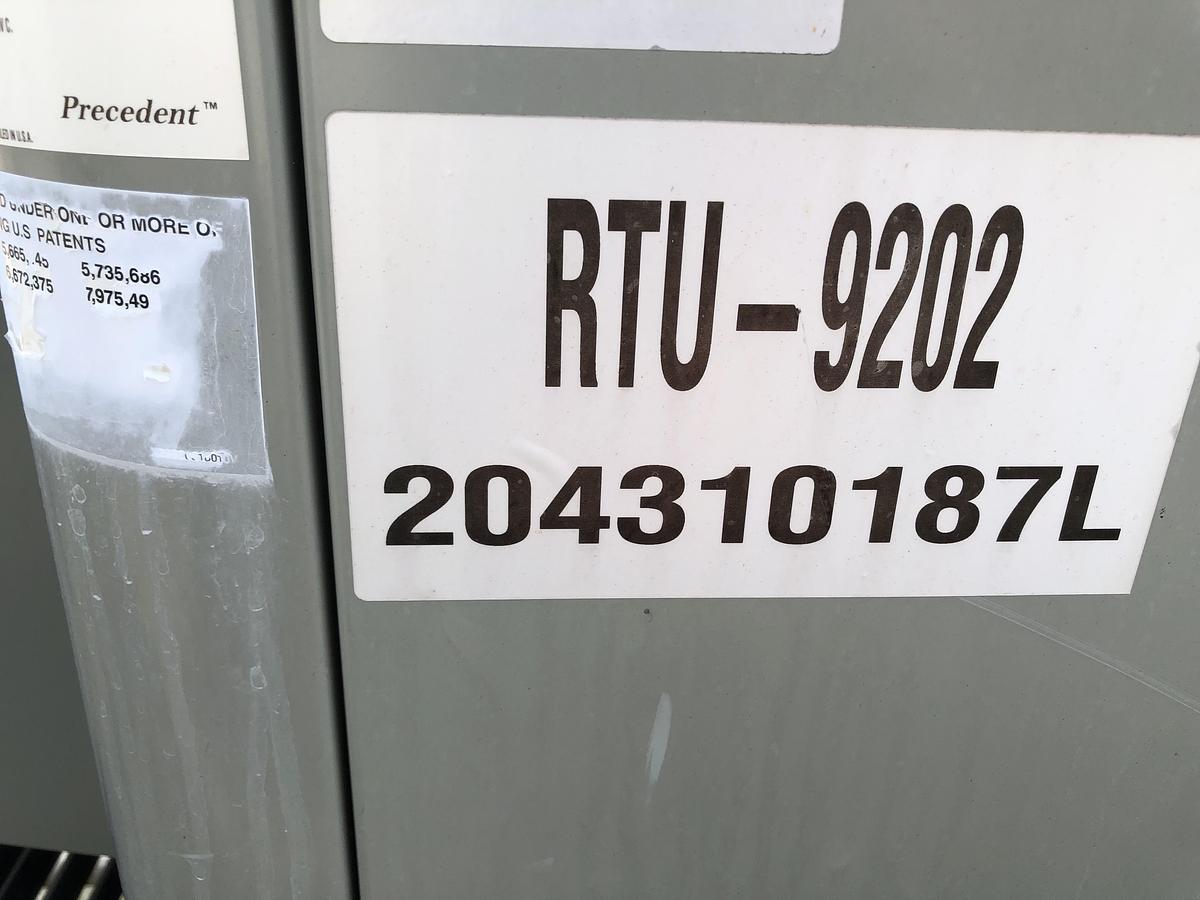

• Unit Number: RTU-9202
• Date of Manufacture: October 2020
• Type: Packaged Rooftop Unit (RTU)
• Origin: Panama City, FL 32405
• Construction: Heavy-duty galvanized steel cabinet
• Configuration: Gas heating/Electric cooling combination unit

Key Specifications

• Condition: Used - Commercial Grade
• Cooling Capacity:Nominal: 4 Tons (48,000 BTU/hr)
• AHRI Rated: 48,000 BTU/hr
• EER: 10.8 (AHRI/ISO/ASHRAE 127-2016)
• Heating Capacity:Input: 60,000 BTU/hr
• Output: 48,000 BTU/hr
• Efficiency: 80%
• Electrical Specifications:Voltage: 460/60/3
• MCA (Minimum Circuit Ampacity): 14.0
• MOCP (Maximum Overcurrent Protection): 20A
• Control Circuit: 24 VAC
• Refrigerant: R-410A
• Test Pressures:High Side: 449 PSI
• Low Side: 238 PSI
• Operating Conditions:Maximum Ambient Temperature: 115°F (46°C)
• Minimum Ambient Temperature (Gas): -40°F (-40°C)
• Maximum Altitude: 2000 ft
• Physical Specifications:Orifice Drill Size: 38
• Manifold Pressure: 3.5" W.C.
• Inlet Gas Supply Pressure: 10-14" W.C.
• Clearances Required:Top: 60"
• Front: 24"
• Back: 18"
• Left Side: 24" (with combustible material)
• Right Side: 24" (with combustible material)

Safety Features

• UL Listed for USA and Canada
• Multiple safety warnings and labels
• High/low pressure switches
• Overcurrent protection
• Gas valve safety controls
• Weatherproof construction
• ASHRAE 90.1 compliant

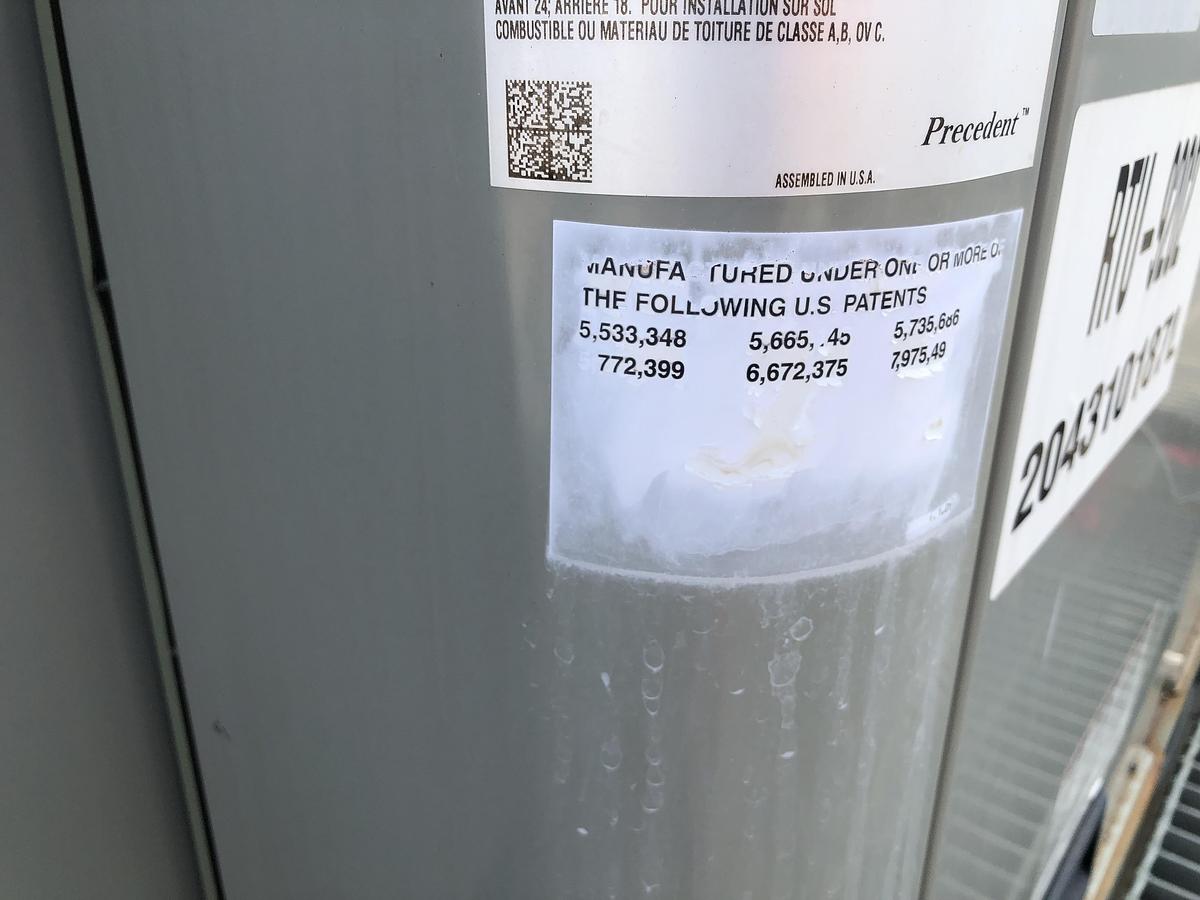

• Patent protected design (US Patents: 5,533,348; 5,665,45; 5,735,666; 772,399; 6,672,375; 7,975,49)

Ideal Applications

• Commercial Buildings
• Retail Spaces
• Office Buildings
• Light Industrial Facilities
• Schools and Institutions
• Restaurants
• Multi-purpose Facilities
• Warehouse Climate Control

Benefits

• Complete packaged rooftop unit
• 4-ton cooling capacity
• Gas heating/electric cooling combination
• Energy efficient operation (10.8 EER)
• Recent manufacture (2020)
• Heavy-duty construction
• Factory charged with R-410A
• UL Listed for safety
• Ingersoll Rand reliability
• Precedent series proven design

Additional Information

• Construction Features:
• Galvanized steel cabinet
• Weather-resistant finish
• Insulated panels
• Top-discharge fan design
• Integrated control box
• Service access panels
• Lifting provisions included
• Included Components:
• Complete packaged RTU
• Gas heating section
• DX cooling coil
• Supply fan assembly
• Control system
• Electrical disconnect provisions
• Base rail/curb adapter compatible
• Service Features:
• Accessible service panels
• Clear labeling and identification
• Standard electrical connections
• Filter access door
• QR code for technical support
• Comprehensive safety labeling
• Energy Features:
• 10.8 EER rating
• 80% heating efficiency
• Optimized fan design
• Insulated cabinet construction

Technical Details

• Model: YHC047E4RXA0SH6B0C1A6000E0100C1000000000
• Serial: 204310187L
• Unit ID: RTU-9202
• Tonnage: 4 Tons
• Electrical: 460/60/3
• Gas/Electric: Combination heating/cooling
• Year: 2020 (October)
• Configuration: Packaged rooftop unit
• Installation: Rooftop mounting on curb
• Compliance: UL Listed, ASHRAE 90.1
