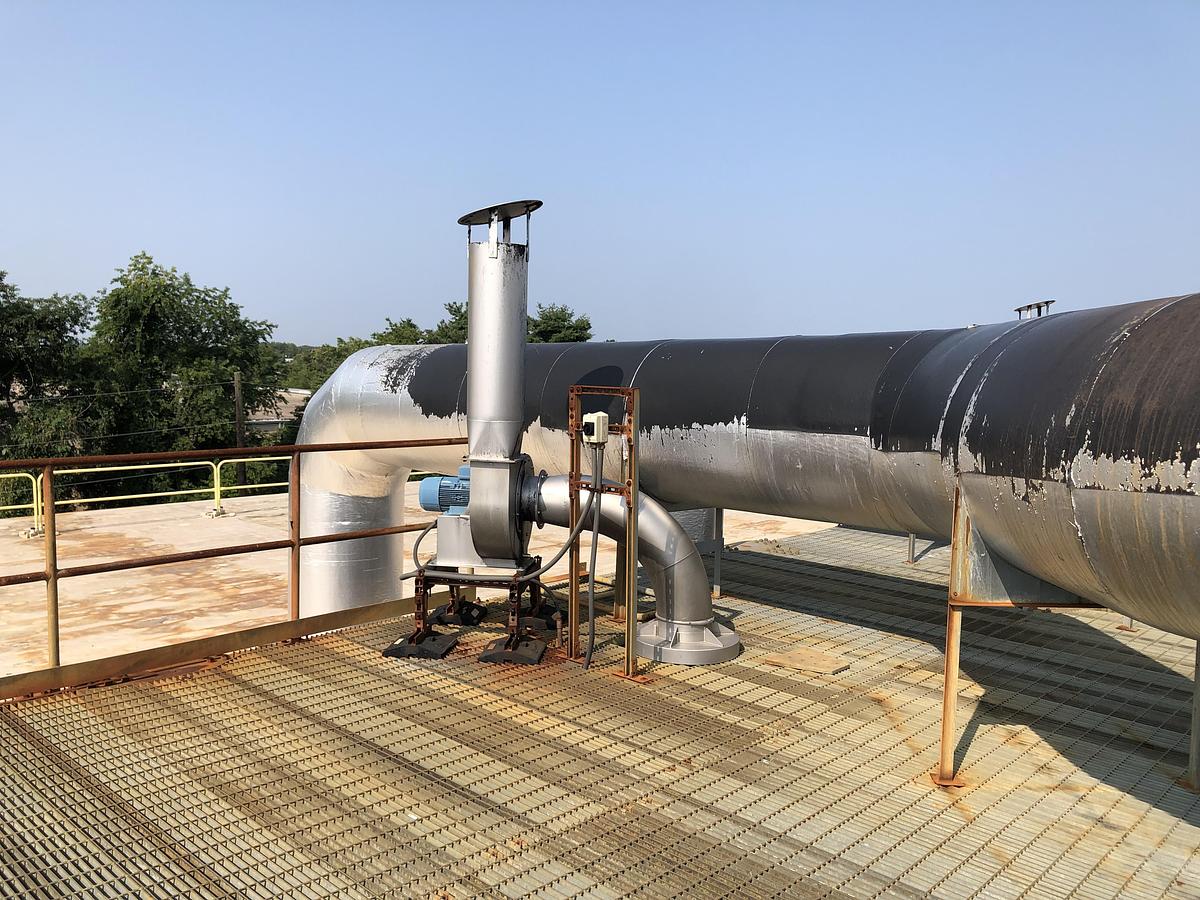

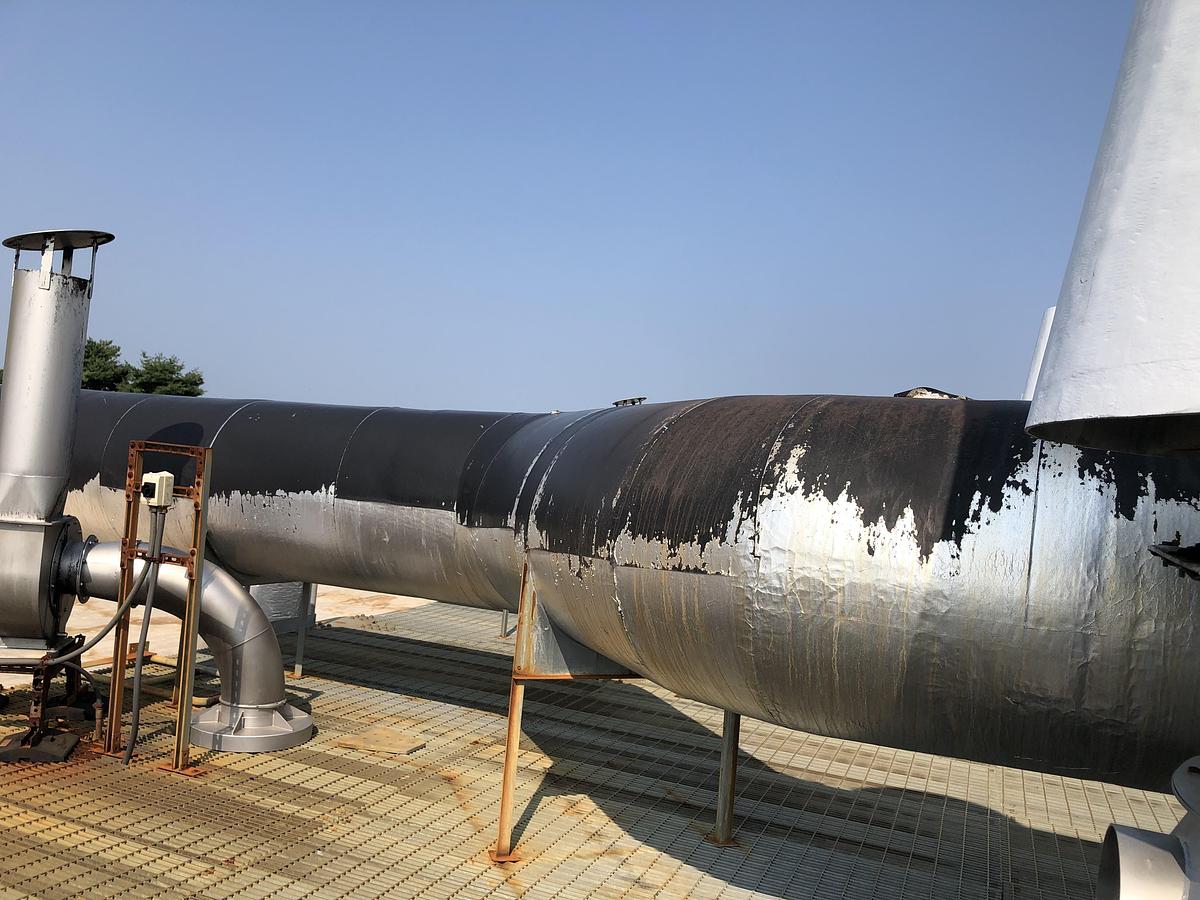

Rotodyne CV-250/400-P16K30 Centrifugal Fan with Vertical Discharge System (2021)

Overview

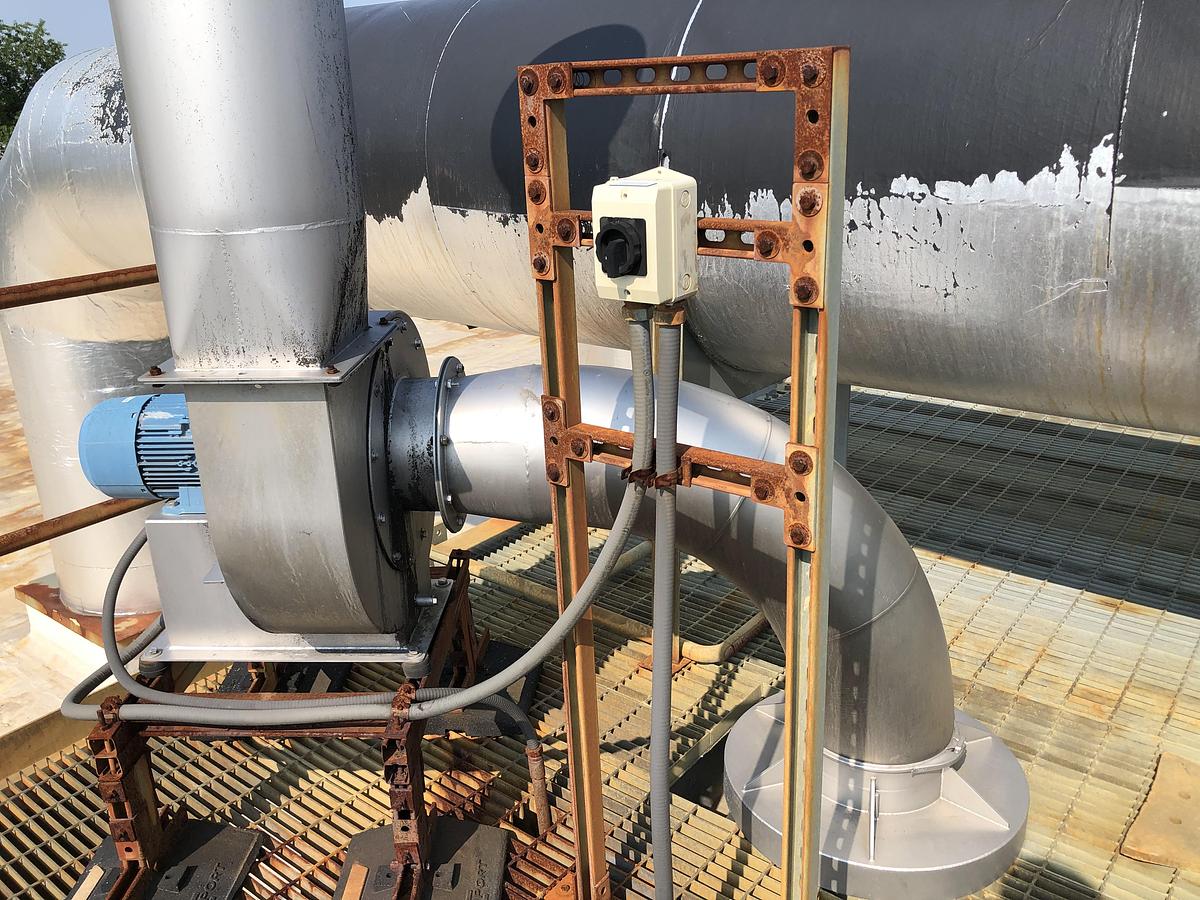

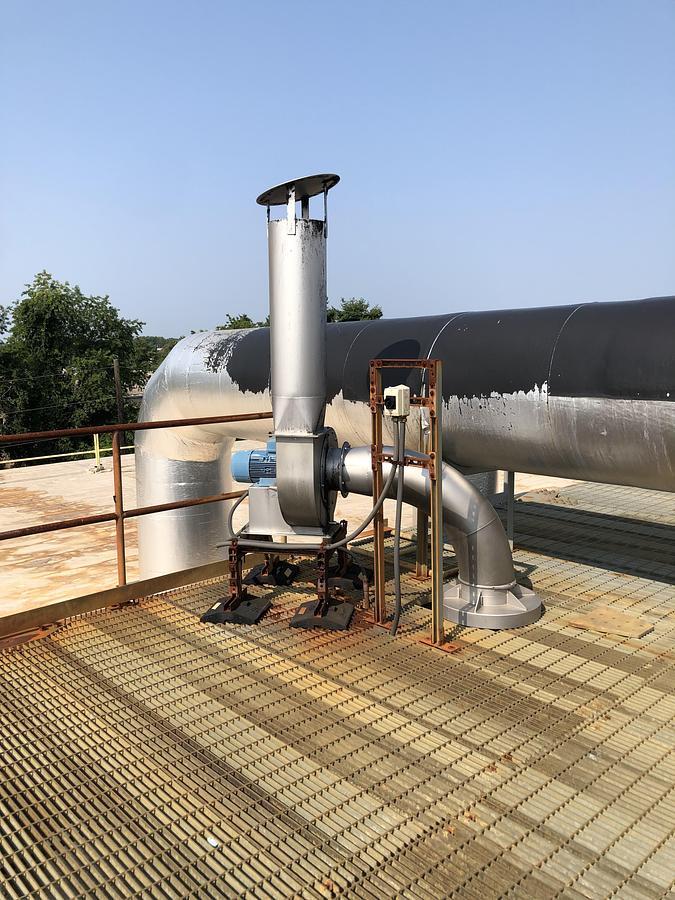

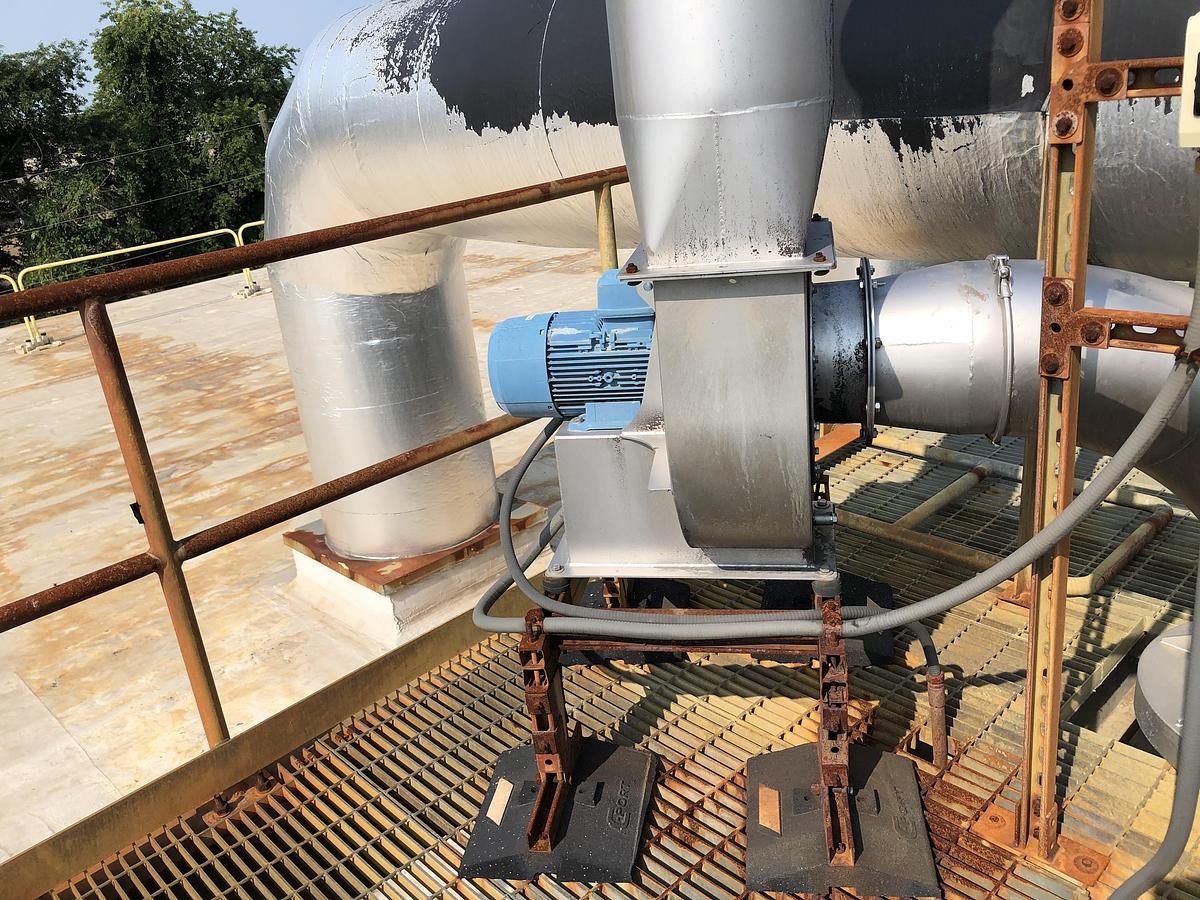

This used Rotodyne CV-250/400-P16K30 is a heavy-duty industrial centrifugal fan featuring a complete exhaust system with vertical discharge stack. Manufactured in the Netherlands by Rotodyne/Asselbergs, this unit combines European engineering excellence with robust construction for demanding industrial applications. This is a complete system including fan, motor, vertical discharge stack, and mounting framework.

Design and Performance

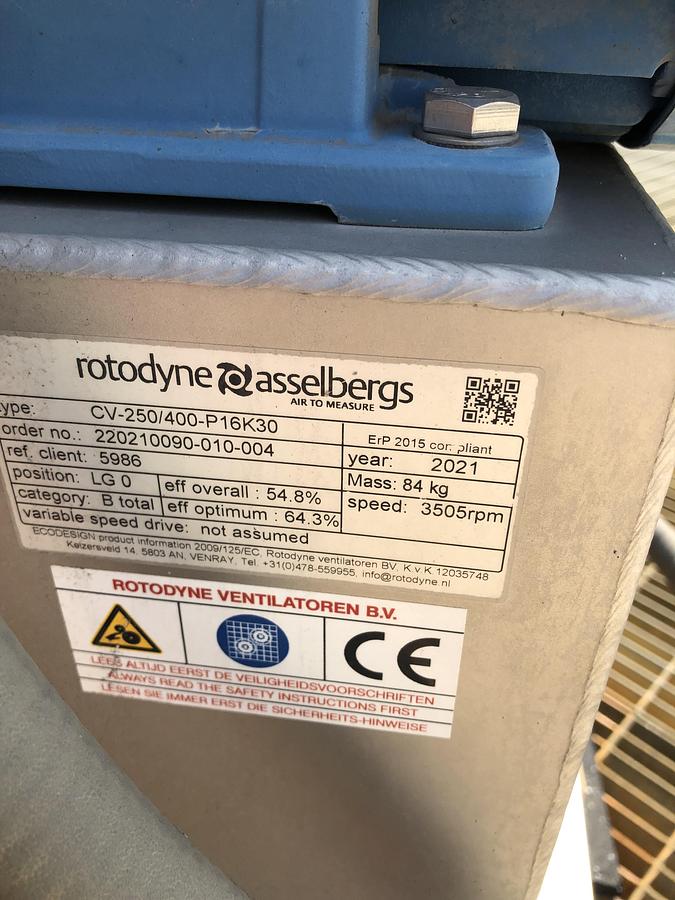

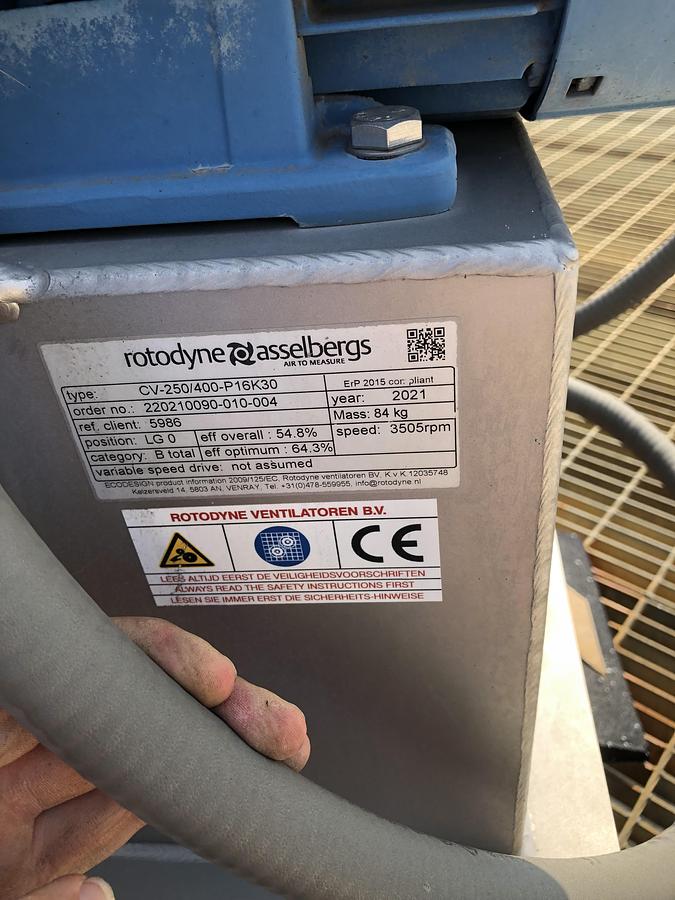

• Manufacturer: Rotodyne Ventilatoren B.V. / Asselbergs
• Model: CV-250/400-P16K30
• Order Number: 220210090-010-004
• Year: 2021
• Type: Centrifugal Fan with Vertical Discharge
• Origin: Netherlands (Venray)

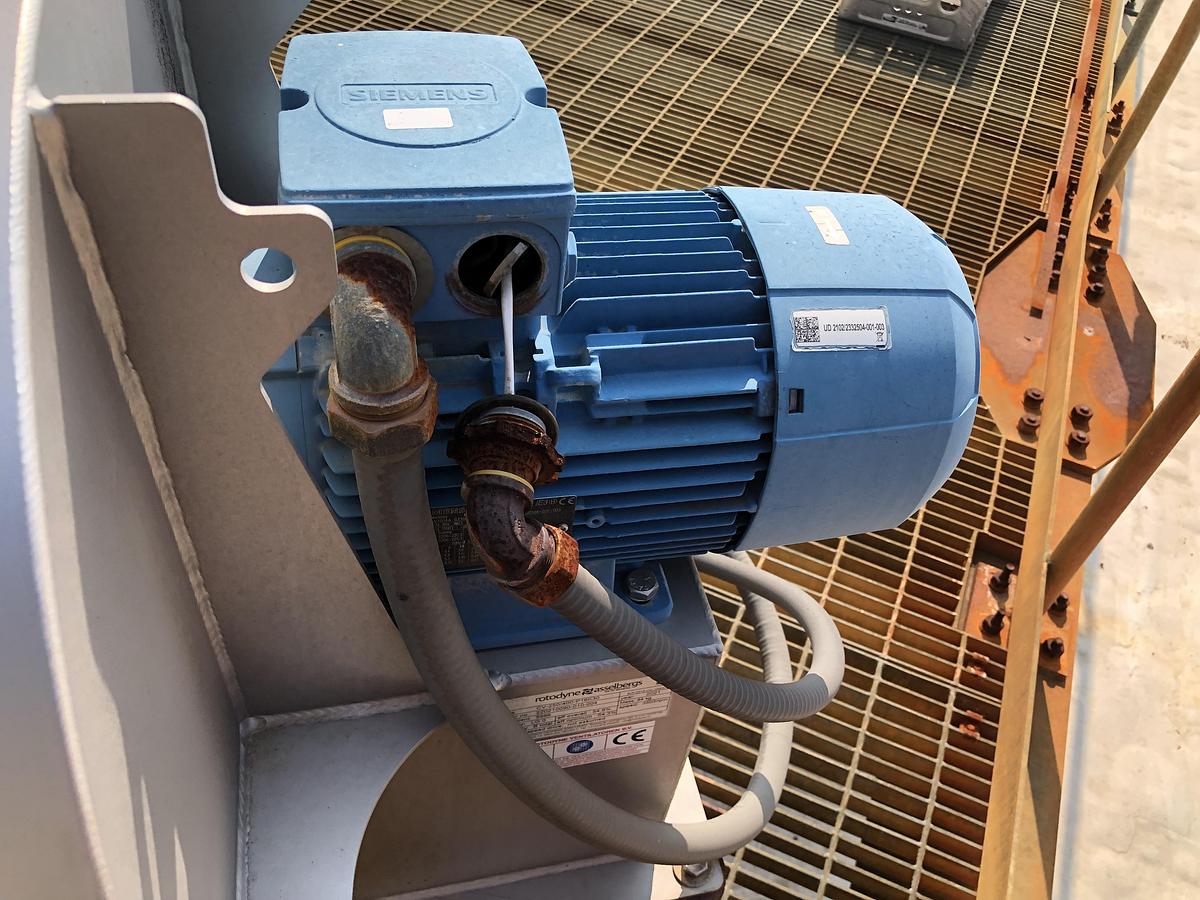

• Motor: Siemens Blue Industrial Motor
• Construction: Heavy-duty steel with integrated exhaust stack
• ErP 2015 Compliant: Yes

Key Specifications

• Condition: Used - Commercial Grade
• Performance Data:Speed: 3505 RPM
• Overall Efficiency: 54.8%
• Optimum Efficiency: 64.3%
• Mass: 84 kg (185 lbs) - fan unit only
• Category: B total
• Position: LG 0

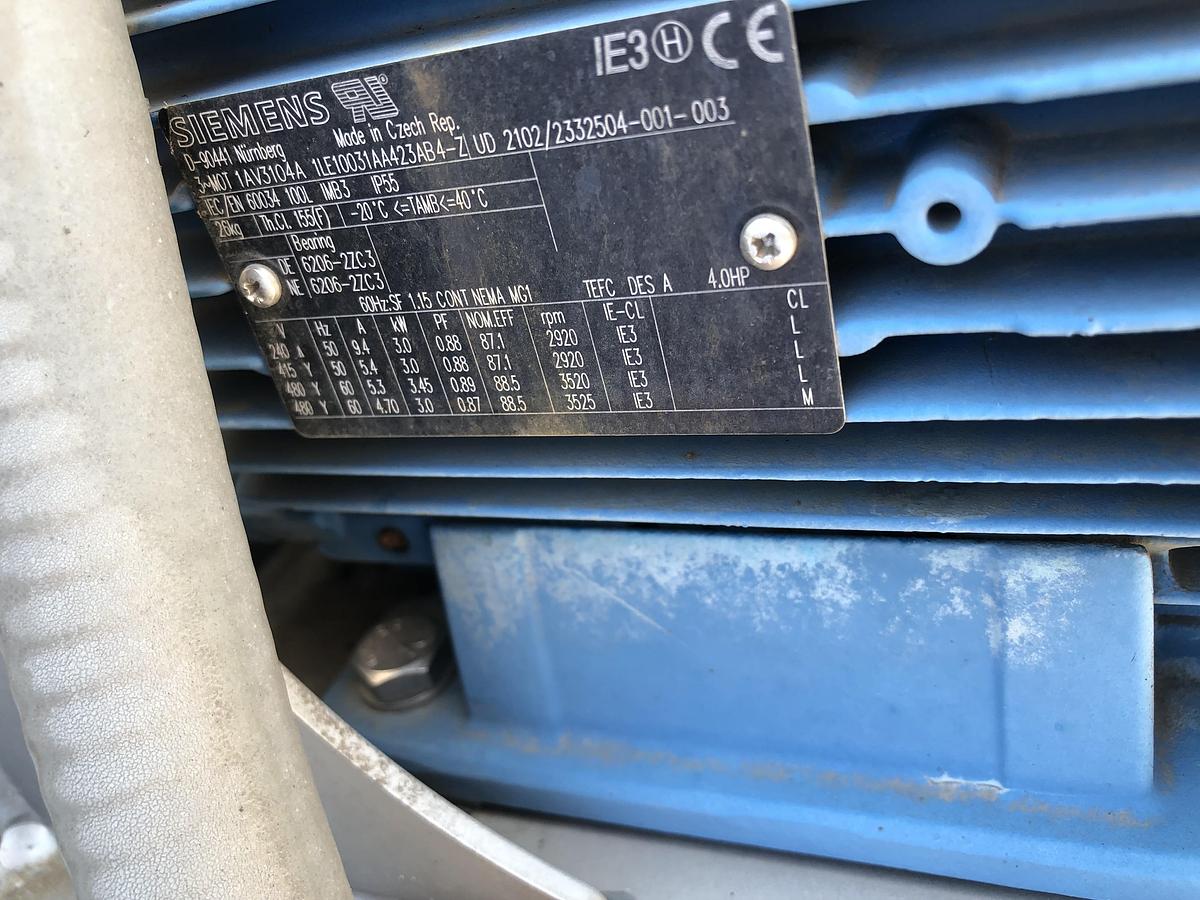

• Motor Specifications:Manufacturer: Siemens
• Model: 1LE10031AA423ABA4-ZJJ1 UD 2102/2332504-001-003
• Power: 4.0HP
• Voltage: 230/460V
• Frequency: 50/60 Hz
• RPM: 3520/3525
• Efficiency: IE3
• IP Rating: IP55
• Temperature Rise: 40°C
• System Components:Centrifugal fan housing
• Siemens IE3 industrial motor (blue)
• Vertical discharge stack with rain cap
• Heavy-duty mounting framework
• Vibration isolation supports
• Variable Speed Drive: Not assumed
• Client Reference: 5986

Safety Features

• CE certification for European safety standards
• Multilingual safety warnings (Dutch, English, German)
• Rotating machinery hazard warnings
• Weather-protected vertical discharge
• Industrial-grade construction
• ECODESIGN 2009/125/EC compliant
• IP55 motor protection rating

Ideal Applications

• Industrial Process Exhaust
• Chemical Fume Extraction
• Manufacturing Facility Ventilation
• Vertical Plume Discharge Requirements
• High-Temperature Exhaust Systems
• Odor Control Applications
• Laboratory Exhaust Systems
• Paint Booth Exhaust
• Applications Requiring Stack Effect

Benefits

• Complete exhaust system ready for installation
• Vertical discharge for optimal air dispersion
• European quality construction (Rotodyne)
• High efficiency design (64.3% optimum)
• ErP 2015 energy efficiency compliant
• Recent manufacture (2021)
• Weather-resistant vertical stack design
• Reduced ground-level concentration
• CE certified for safety
• Siemens IE3 motor reliability
• QR code for digital documentation access

Additional Information

• Construction Features:
• Steel housing construction
• Tall vertical discharge stack
• Rain cap protection
• Heavy-duty structural framework with rust patina

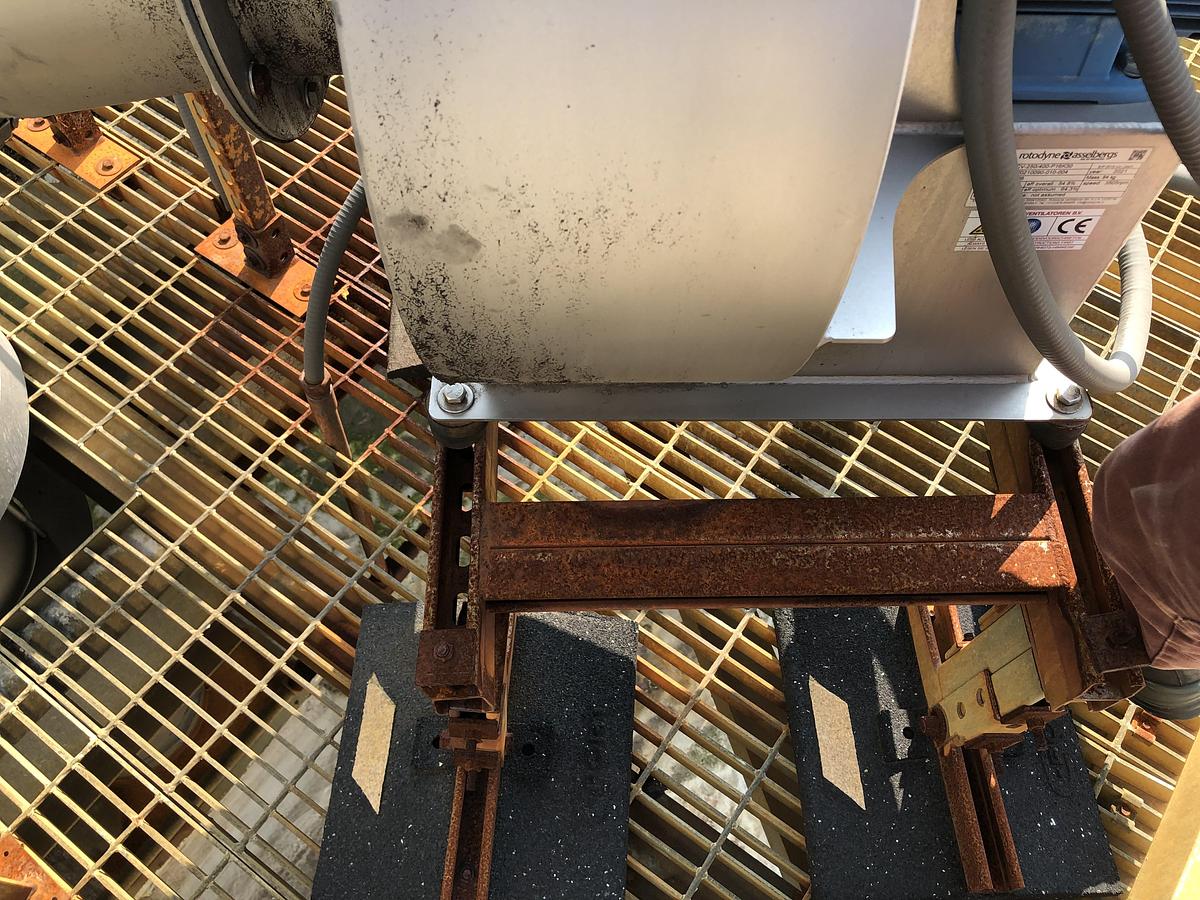

• Vibration isolation mounting pads
• Integrated motor support frame
• Included Components:
• Rotodyne CV-250/400-P16K30 fan
• Siemens IE3 industrial motor
• Complete vertical exhaust stack
• Rain cap/weather protection
• Mounting framework
• All visible connecting pieces
• Rubber vibration isolation pads
• Stack Features:
• Vertical discharge design
• Weather-resistant construction
• Integrated support structure
• Optimized for plume dispersion
• Service Features:
• Clear model identification
• Accessible motor location
• Standard electrical connections
• Modular design for maintenance

Technical Details

• Model: CV-250/400-P16K30
• Order: 220210090-010-004
• Motor: Siemens IE3 (visible blue housing)
• Motor Power: 4.0HP
• Speed: 3505 RPM
• Efficiency: 54.8% overall, 64.3% optimum
• Year: 2021
• Configuration: Centrifugal fan with vertical discharge
• Installation: Rooftop exhaust system with isolation mounting
• Compliance: CE, ErP 2015
