Skyplume EF-1 G1-ELLV-30 Exhaust Fan with Vertical Discharge Stack

Overview

This used Skyplume EF-1 is a complete industrial exhaust system featuring a heavy-duty centrifugal fan with integrated vertical discharge stack. Manufactured by Plasticair Inc. using patented Skyplume Technologies, this unit combines North American engineering with a complete airway system for optimal exhaust dispersion. This is a complete system including fan, motor, vertical stack, and connecting ductwork.

Design and Performance

• Manufacturer: Plasticair Inc. / Skyplume Technologies
• Model: EF-1 G1-ELLV-30
• Serial Number: 0214551
• Tag Number: Visible on unit
• Type: Centrifugal Fan with Vertical Discharge
• Origin: Canada (Paris, ON)
• Motor: Rotor NL Industrial Motor (Blue)
• Construction: Heavy-duty galvanized steel with integrated exhaust stack
• Patent Protected: Canadian Patents 2365932, 2456249; US Patents 6676503 B2, 7241214

Key Specifications

• Condition: Used - Commercial Grade
• Performance Data:Motor Speed: 3505 RPM
• Power: 240V
• Category: B
• Position: LG 0
• Mass: 37/86 kg
• Order Number: 220210175-011-001
• Year: 2021
• System Components:Centrifugal fan housing

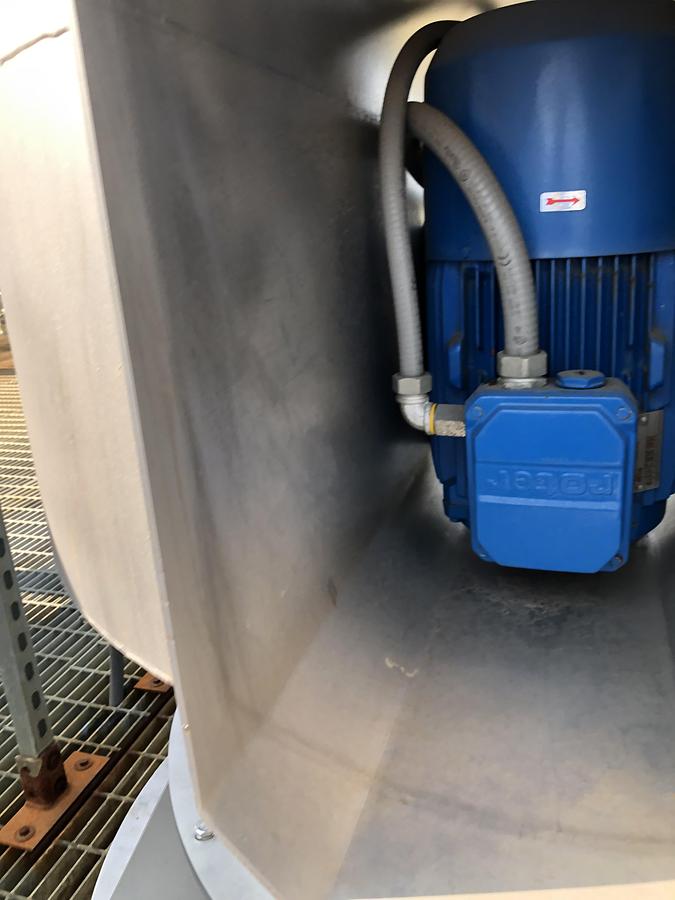

• Rotor NL industrial motor (blue)

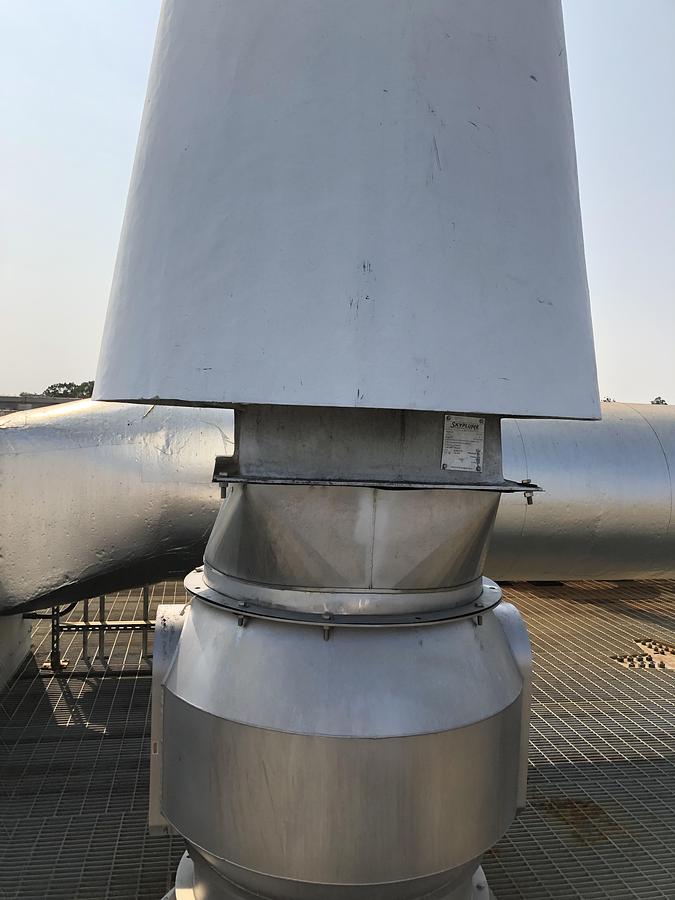

• Vertical discharge stack with conical rain cap
• Horizontal inlet ductwork
• Complete mounting framework
• Electrical junction box
• Variable Speed Drive: Not included
• CE Certified: Yes

Safety Features

• CE certification for European safety standards
• Multilingual safety warnings
• Rotating machinery hazard warnings
• Weather-protected vertical discharge
• Industrial-grade construction
• Complete with safety guarding
• Electrical disconnect included

Ideal Applications

• Industrial Process Exhaust
• Chemical Fume Extraction
• Manufacturing Facility Ventilation
• Vertical Plume Discharge Requirements
• High-Temperature Exhaust Systems
• Odor Control Applications
• Laboratory Exhaust Systems
• Paint Booth Exhaust
• Rooftop Applications Requiring Stack Effect

Benefits

• Complete exhaust system ready for installation
• Vertical discharge for optimal air dispersion
• North American quality construction (Skyplume)
• Patented technology for enhanced performance
• Recent manufacture (2021)
• Weather-resistant vertical stack design
• Reduced ground-level concentration
• CE certified for safety
• Proven industrial motor reliability

Additional Information

• Construction Features:
• Galvanized steel housing construction
• Tall vertical discharge stack (conical design)
• Weather-resistant rain cap protection
• Heavy-duty structural framework
• Flanged connections throughout
• Insulated duct sections
• Vibration isolation mounting
• Grated platform access
• Included Components:
• Skyplume EF-1 G1-ELLV-30 fan unit
• Rotor NL industrial motor

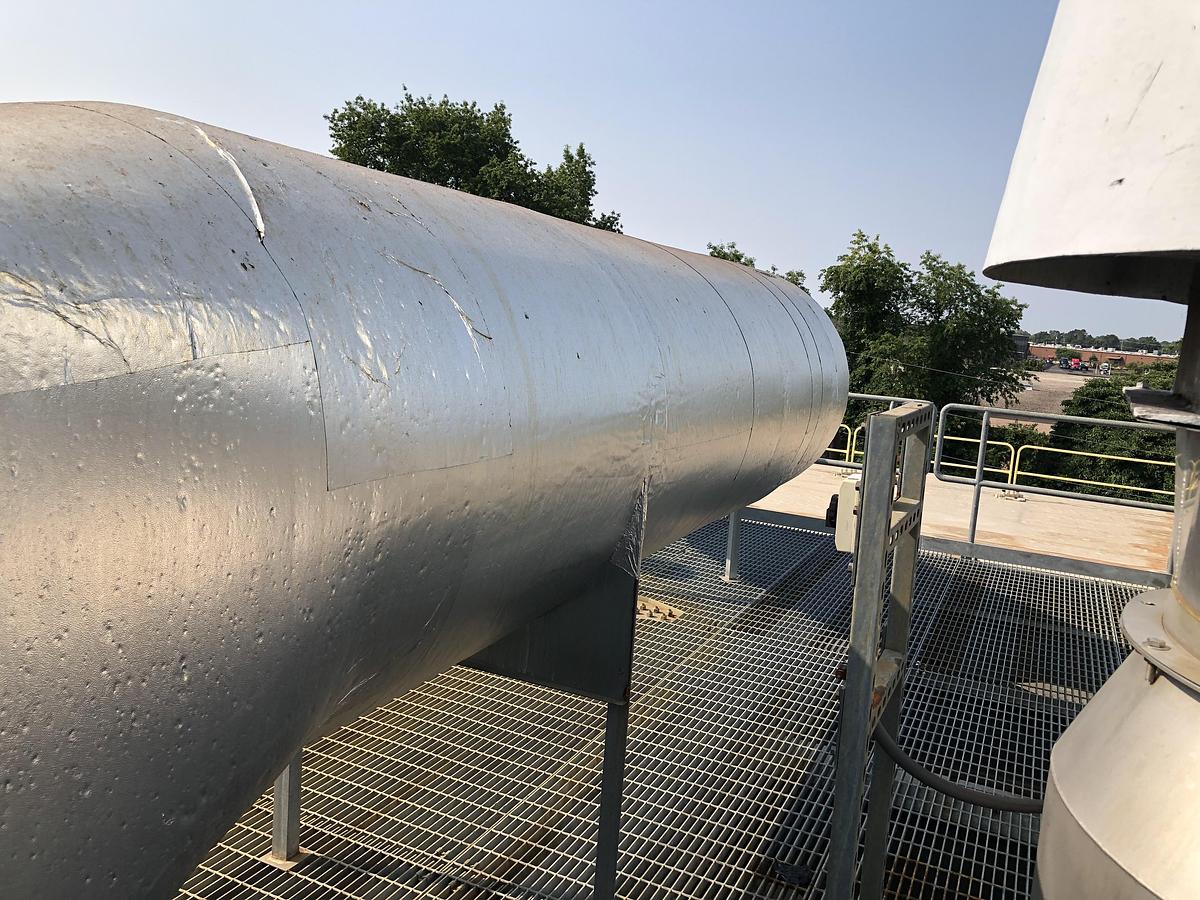

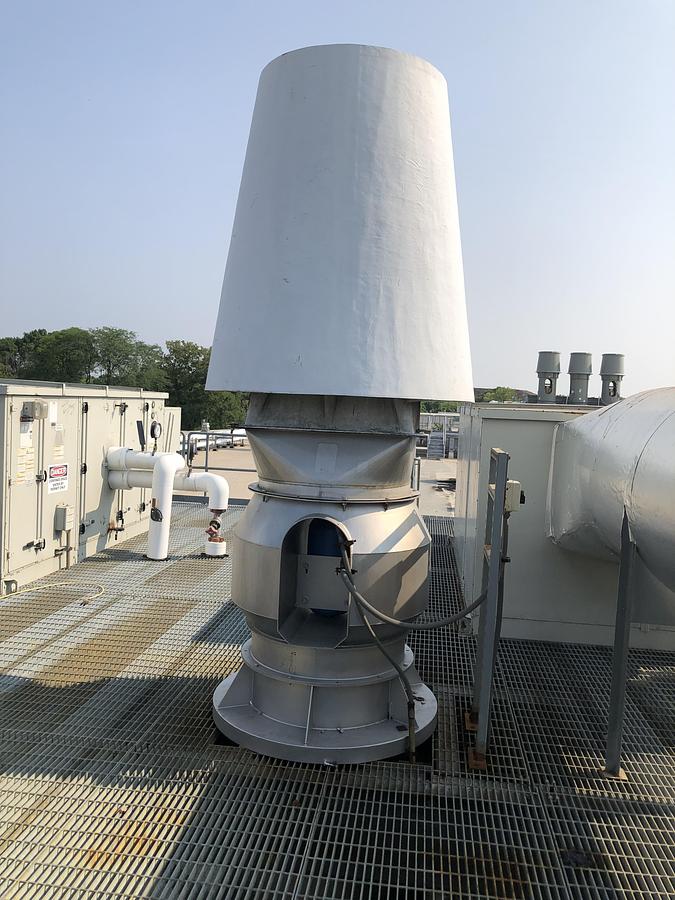

• Complete vertical exhaust stack
• Conical rain cap/weather protection
• Horizontal inlet ductwork
• All visible connecting pieces
• Mounting framework
• Electrical disconnect box

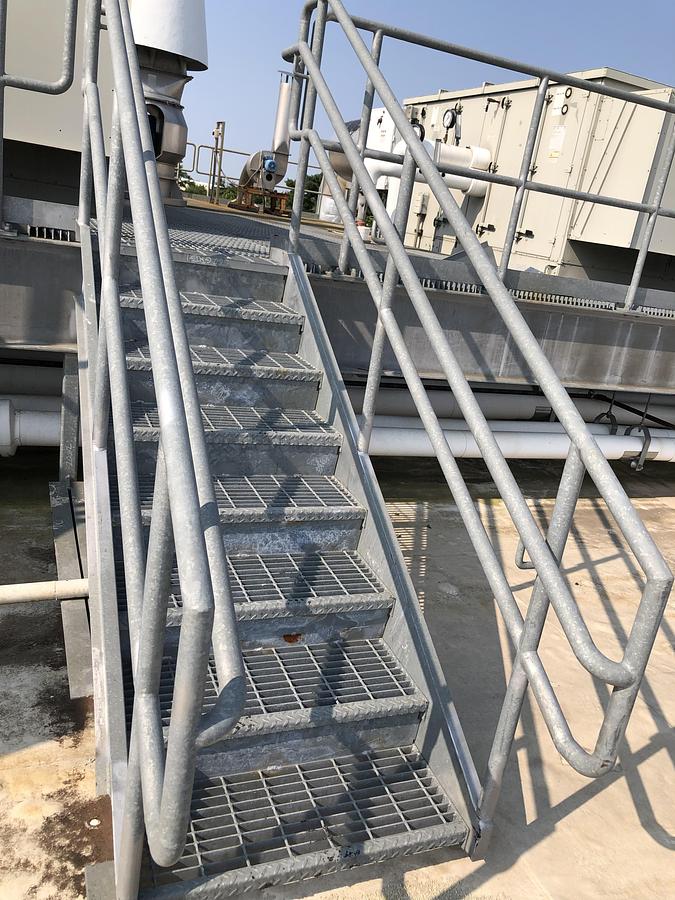

• Access platform with safety railings
• Stack Features:
• Vertical discharge design
• Weather-resistant construction
• Flanged sections for maintenance
• Integrated support structure
• Optimized for plume dispersion
• Conical rain cap design
• Service Features:

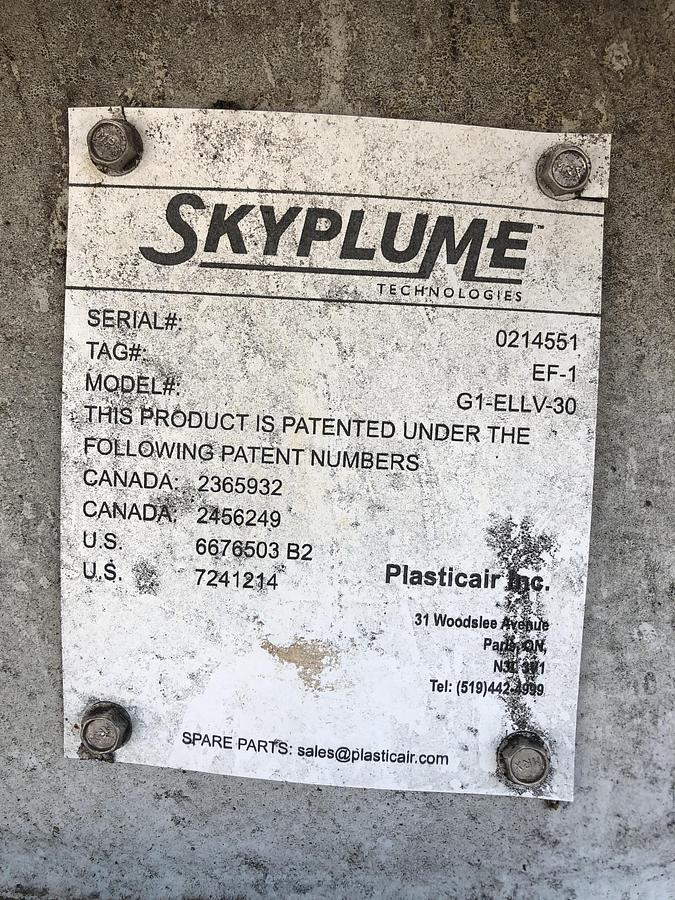

• Clear model identification plate
• Accessible motor location
• Standard flanged connections
• Modular stack sections
• Platform access for maintenance

Technical Details from Images

• Model: EF-1 G1-ELLV-30
• Serial: 0214551

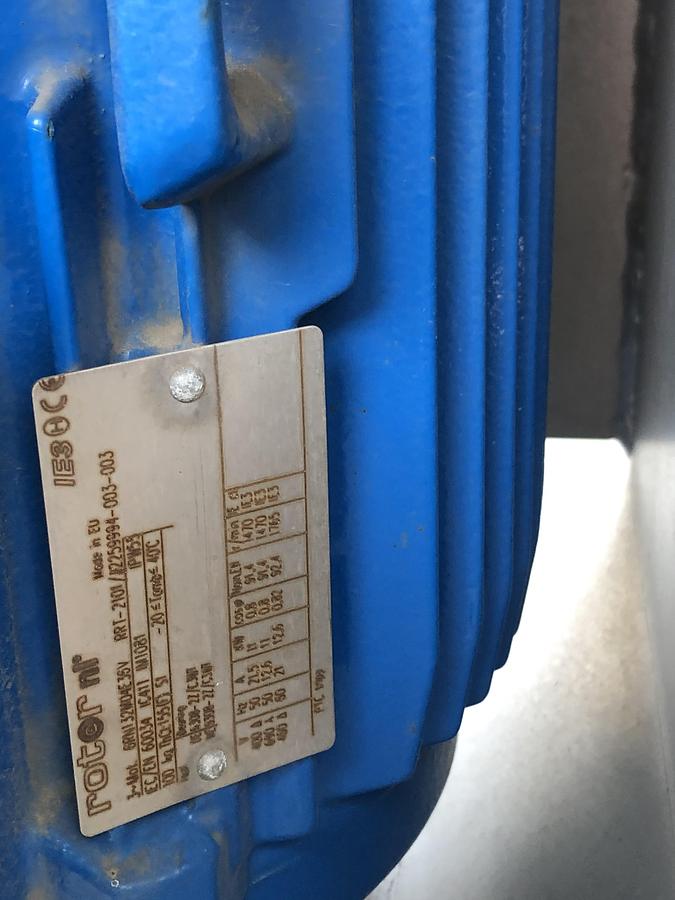

• Motor: Rotor NL (visible blue housing)
• Motor Details:RPM: 3505
• Voltage: 240V
• Configuration: IE3C
• Year: 2021
• Configuration: Horizontal inlet, vertical discharge

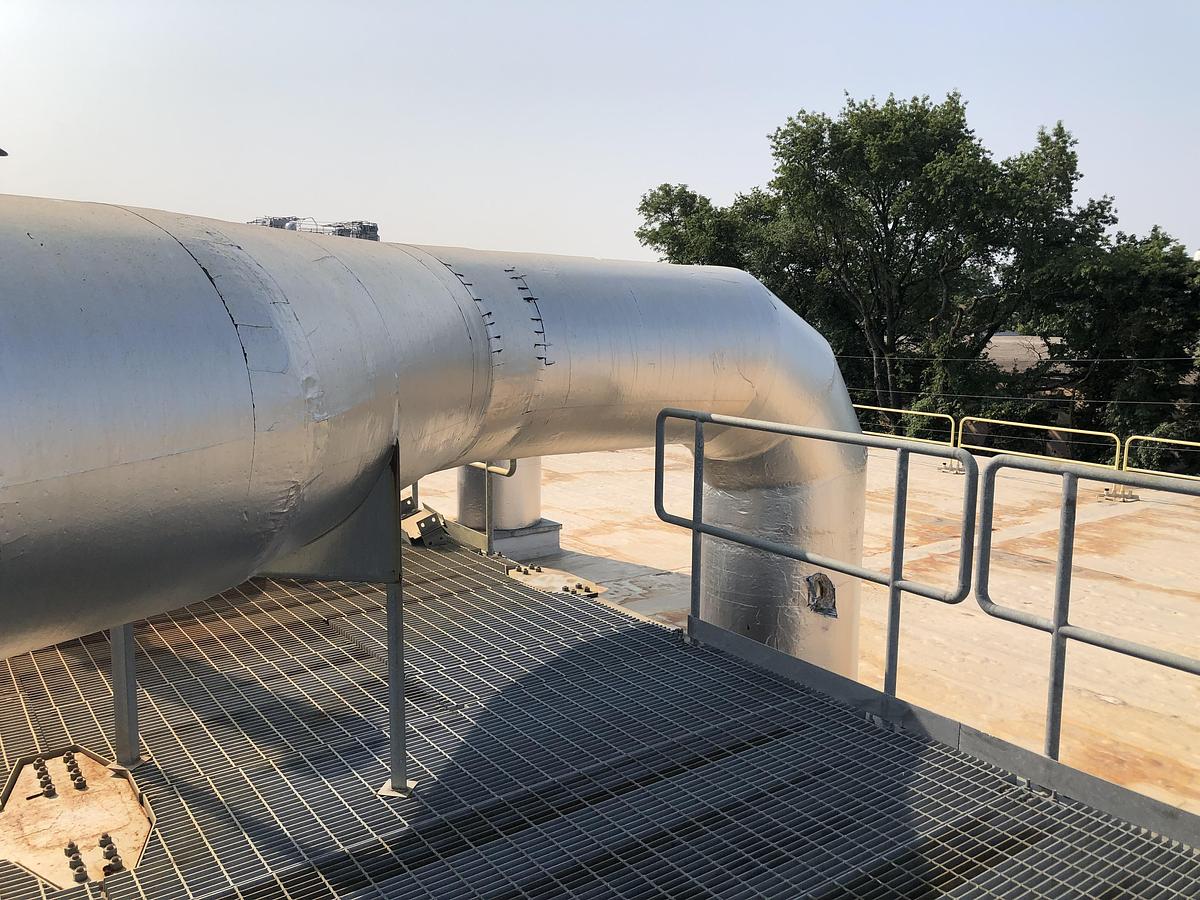

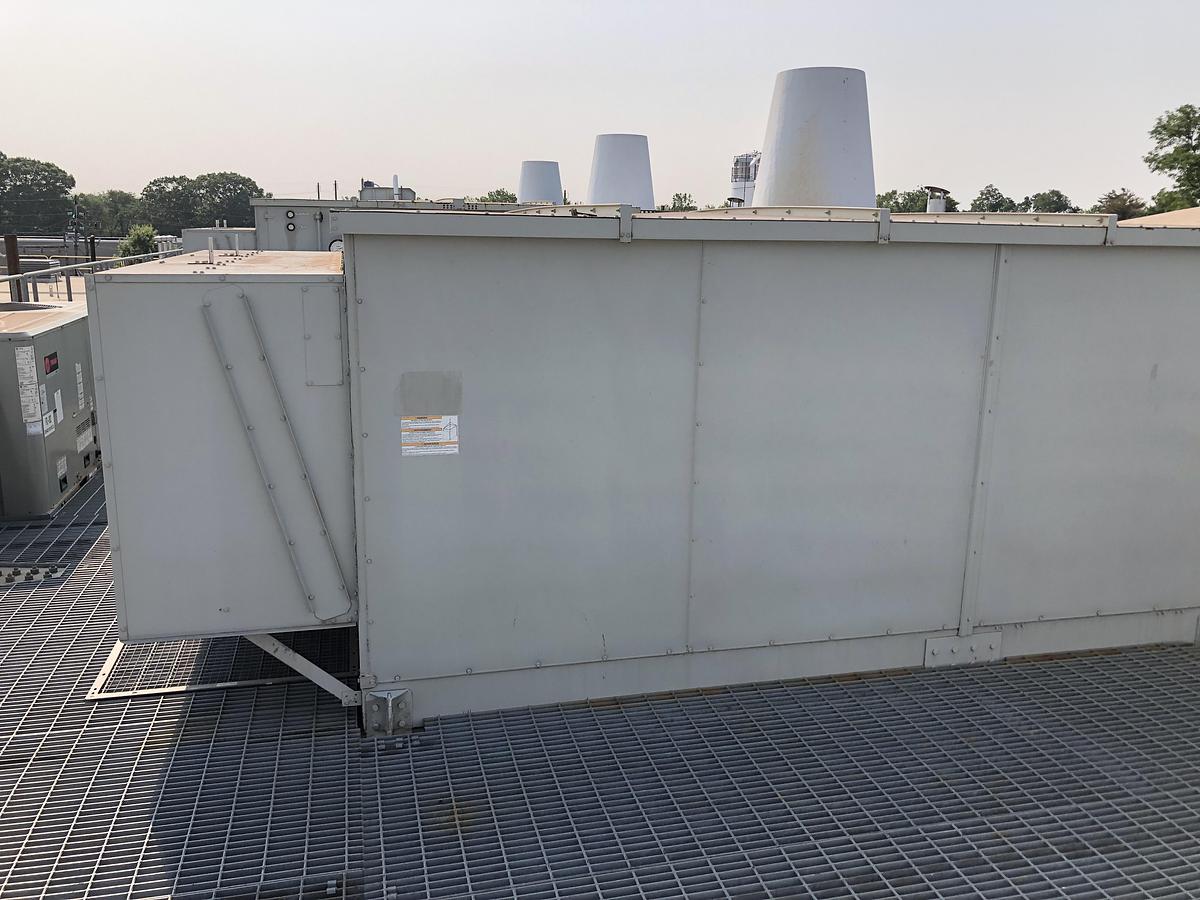

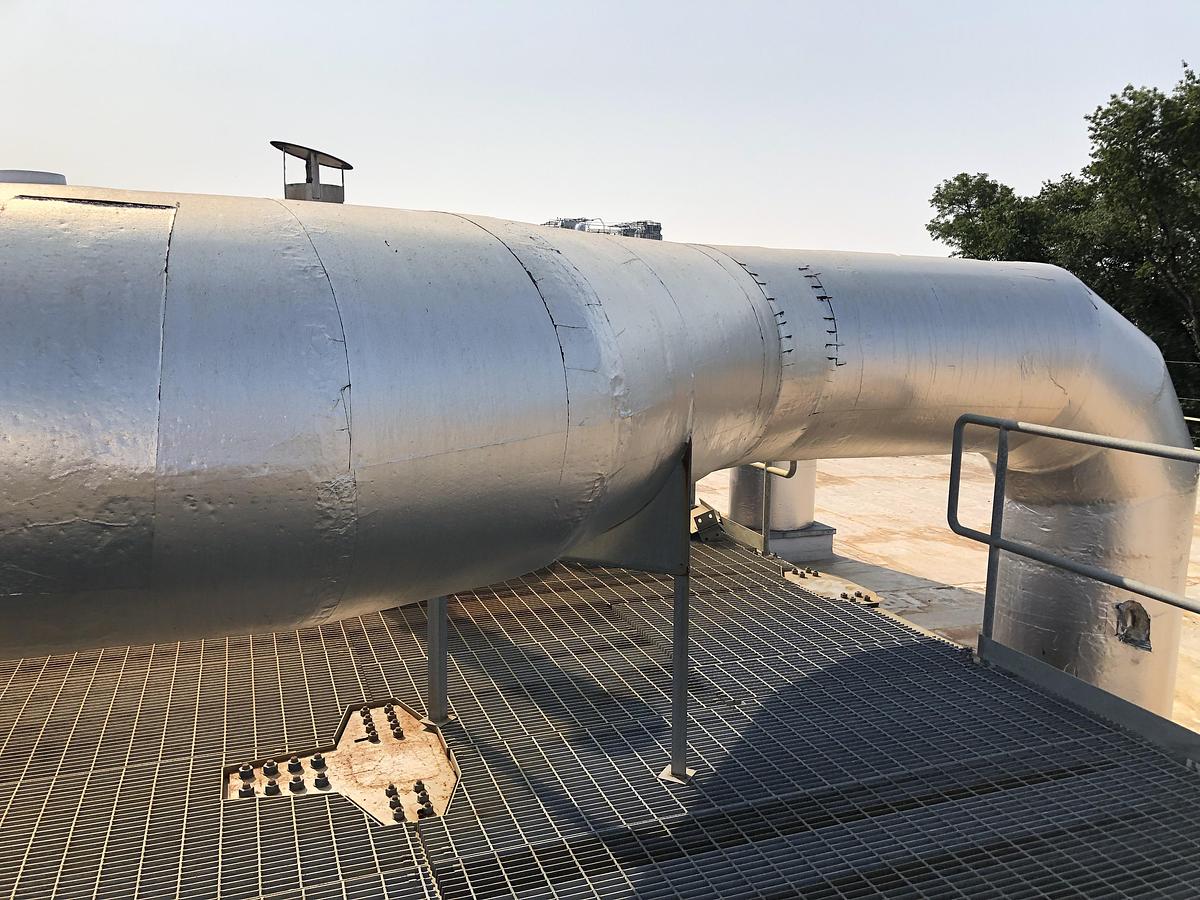

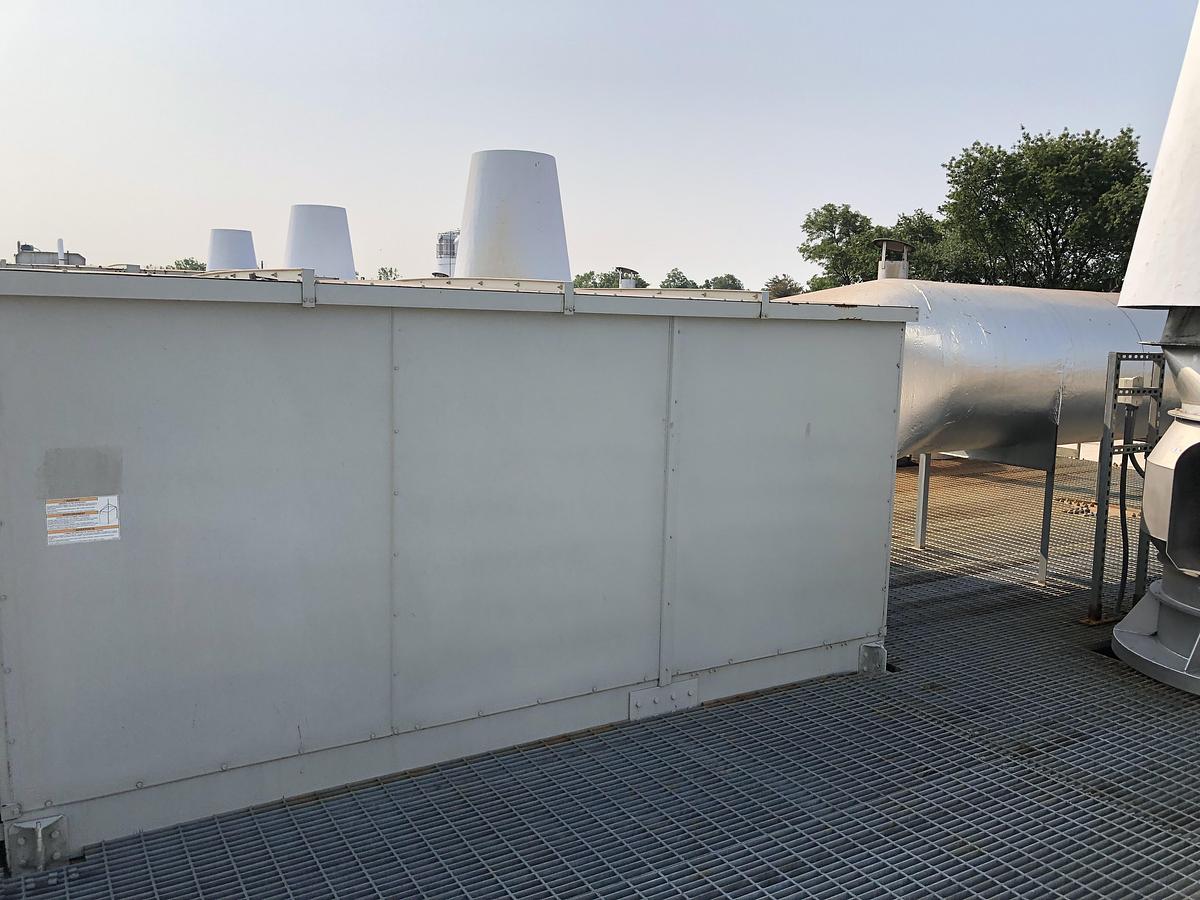

• Installation: Complete rooftop exhaust system with platform
• Compliance: CE certified, Patent protected
