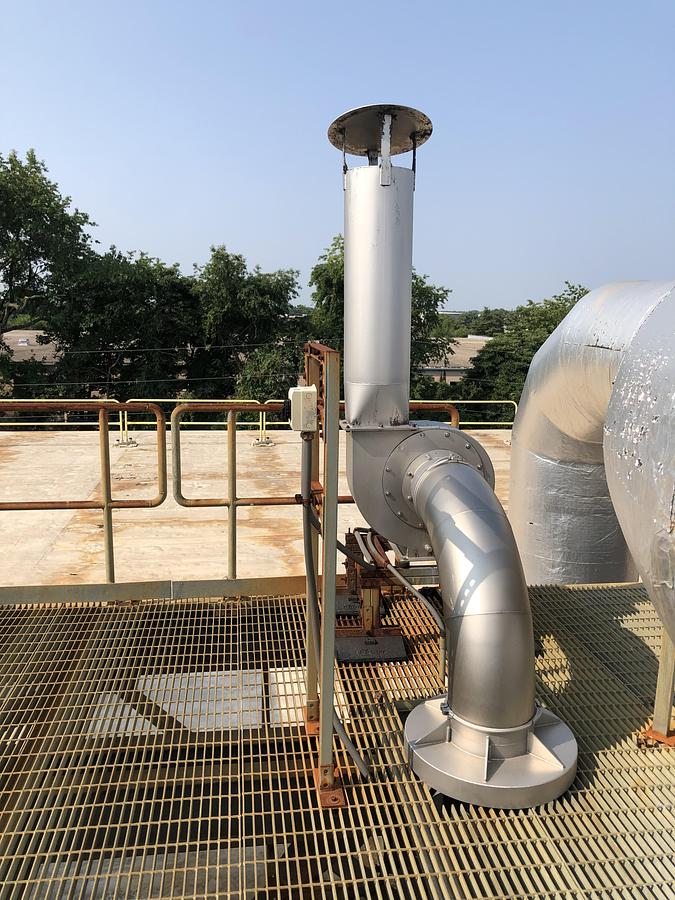

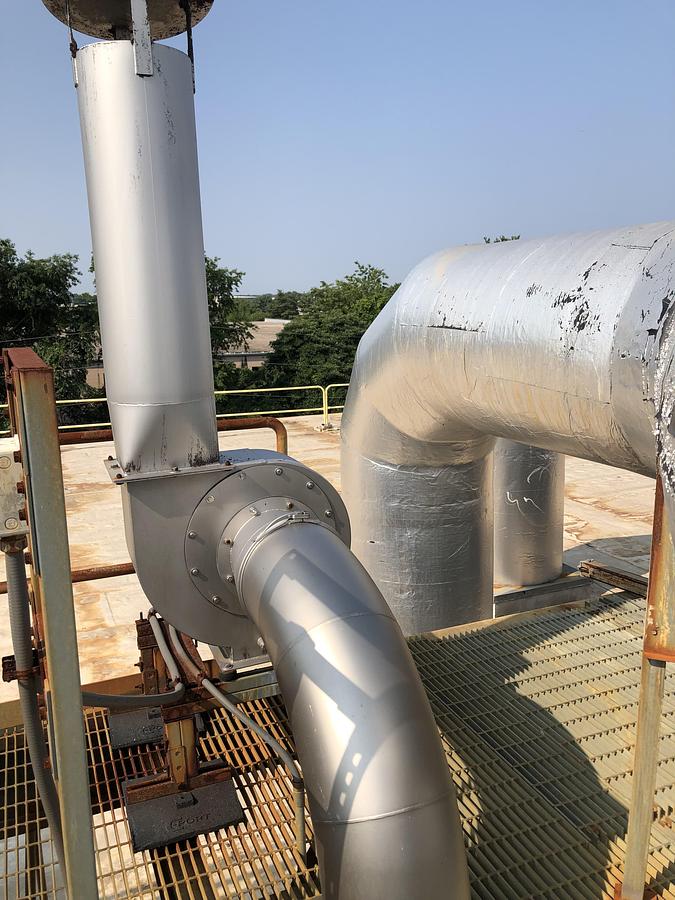

Rotodyne Ventilation Fan CV-250/400-P16K30 with Vertical Discharge System

Overview

This used Rotodyne Ventilation Fan is a complete industrial exhaust system featuring a heavy-duty centrifugal fan with integrated vertical discharge stack and ductwork. Manufactured in the Netherlands by Rotodyne/Asselbergs, this unit combines European engineering with a complete airway system for optimal exhaust dispersion. This is a complete system including fan, motor, vertical stack, and connecting ductwork.

Design and Performance

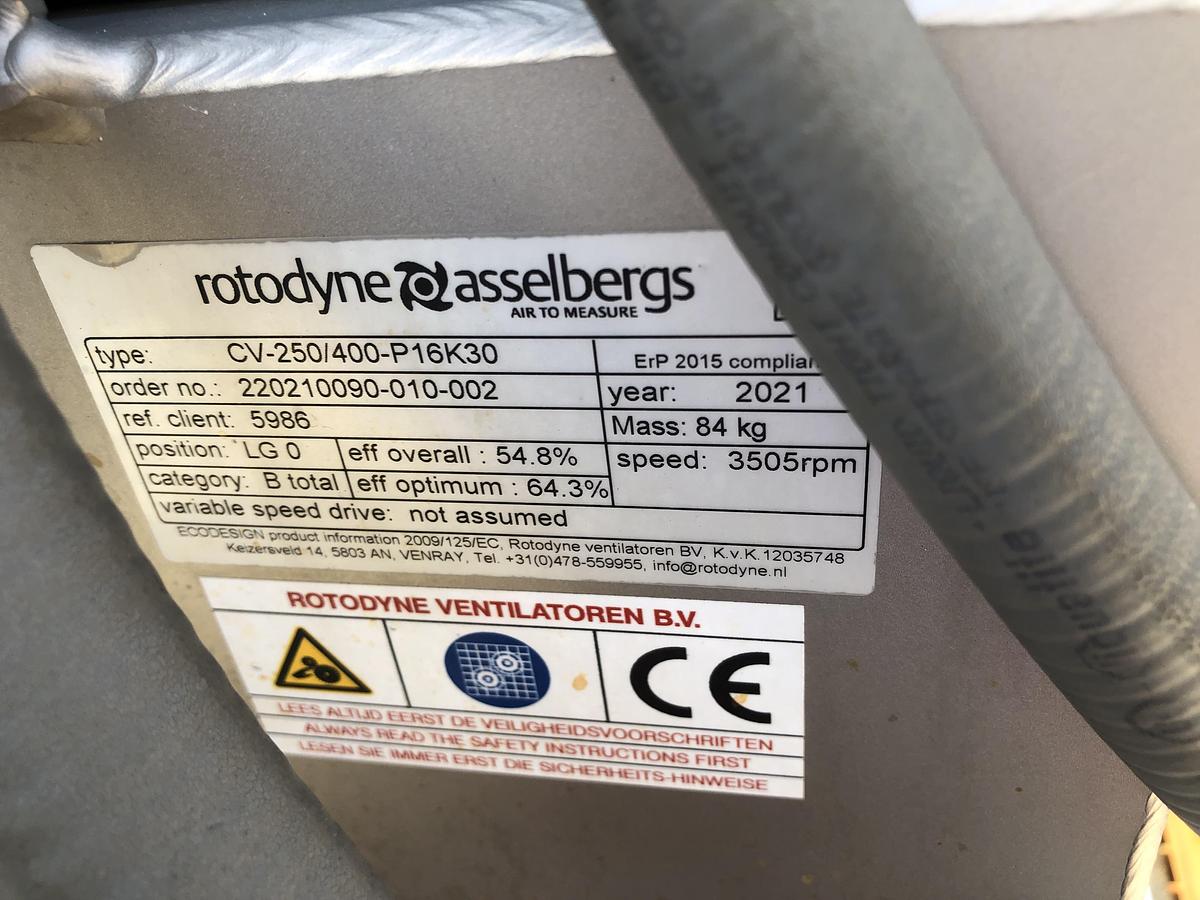

• Manufacturer: Rotodyne Ventilatoren B.V. / Asselbergs
• Model: CV-250/400-P16K30
• Order Number: 220210090-010-002
• Year: 2021
• Type: Centrifugal Fan with Vertical Discharge
• Origin: Netherlands (Venray)

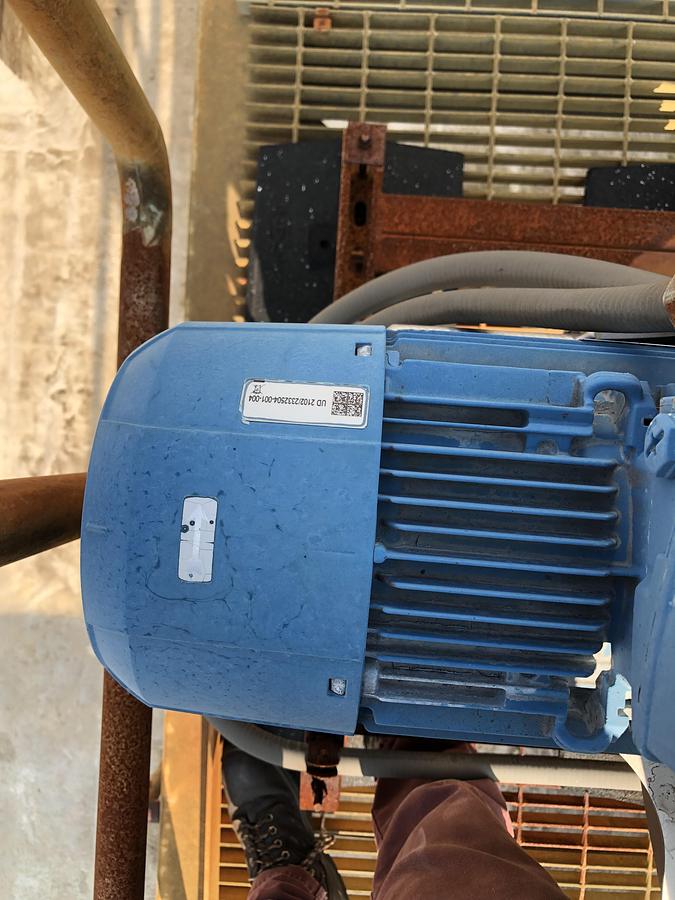

• Motor: Siemens Blue Industrial Motor
• Construction: Heavy-duty steel with integrated exhaust stack
• ErP 2015 Compliant: Yes

Key Specifications

• Condition: Used - Commercial Grade
• Performance Data:Speed: 3505 RPM
• Overall Efficiency: 54.8%
• Optimum Efficiency: 64.3%
• Mass: 84 kg (185 lbs) - fan unit only
• Category: B total
• Position: LG 0
• System Components:Centrifugal fan housing

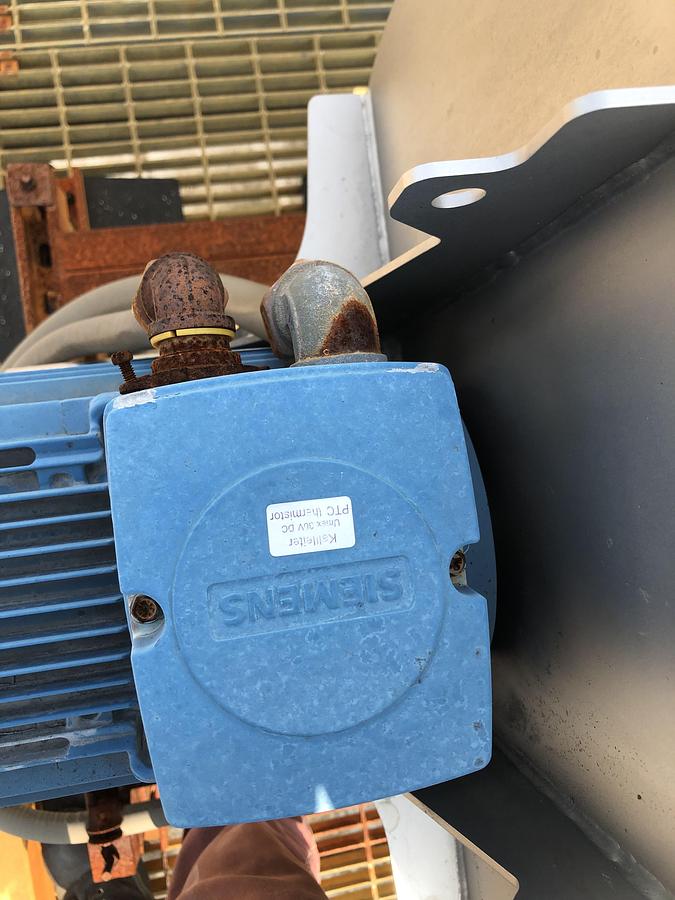

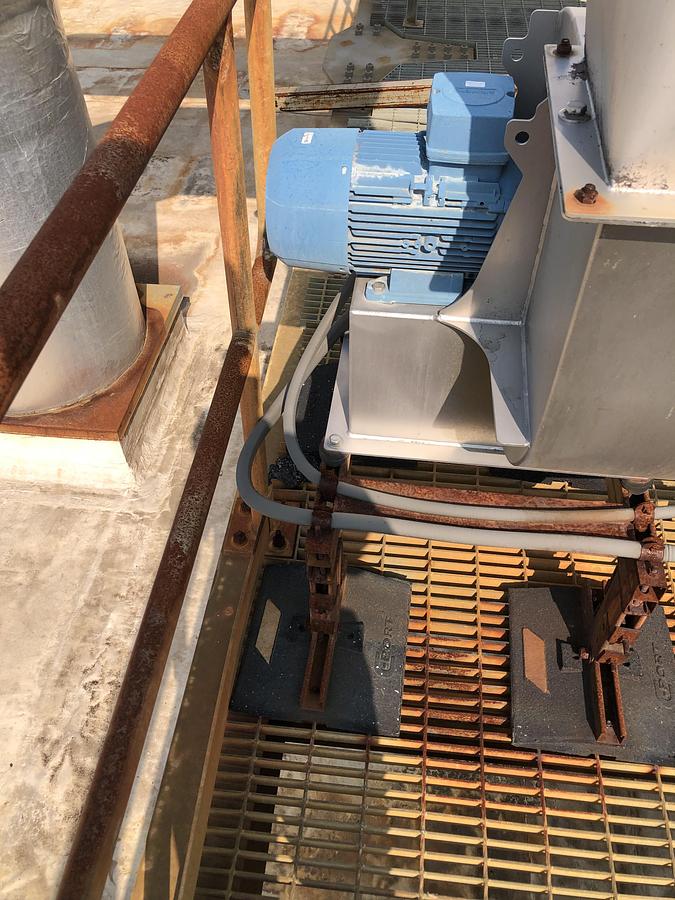

• Siemens industrial motor (blue)

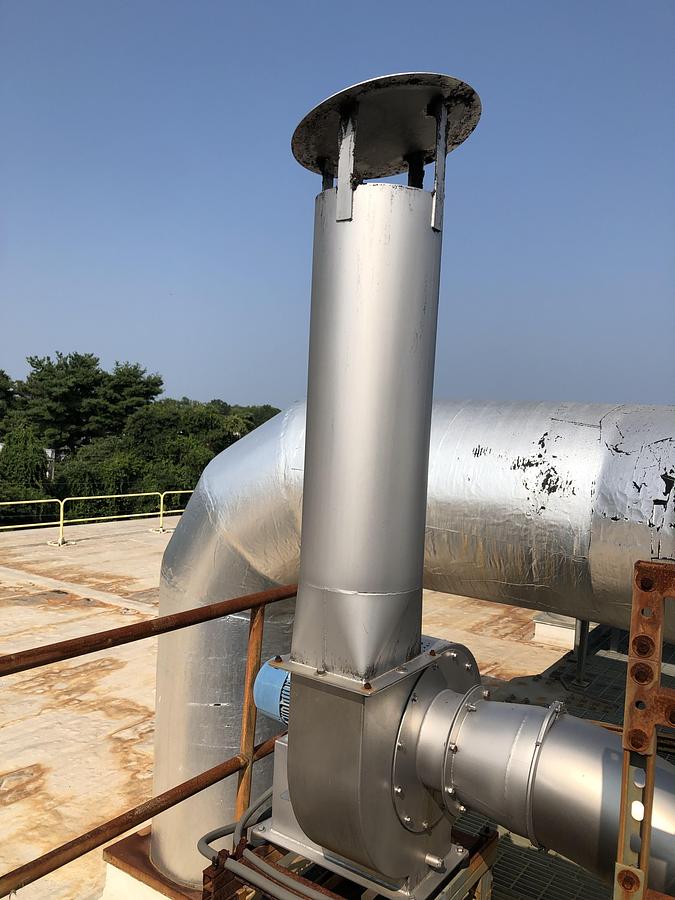

• Vertical discharge stack with rain cap
• Horizontal inlet ductwork
• Complete mounting framework
• Client Reference: 5986
• Variable Speed Drive: Not assumed

Safety Features

• CE certification for European safety standards
• Multilingual safety warnings (Dutch, English, German)
• Rotating machinery hazard warnings
• Weather-protected vertical discharge
• Industrial-grade construction
• ECODESIGN 2009/125/EC compliant
• Complete with safety guarding

Ideal Applications

• Industrial Process Exhaust
• Chemical Fume Extraction
• Manufacturing Facility Ventilation
• Vertical Plume Discharge Requirements
• High-Temperature Exhaust Systems
• Odor Control Applications
• Laboratory Exhaust Systems
• Paint Booth Exhaust
• Applications Requiring Stack Effect

Benefits

• Complete exhaust system ready for installation
• Vertical discharge for optimal air dispersion
• European quality construction (Rotodyne)
• High efficiency design (64.3% optimum)
• ErP 2015 energy efficiency compliant
• Recent manufacture (2021)
• Weather-resistant vertical stack design
• Reduced ground-level concentration
• CE certified for safety
• Siemens motor reliability

Additional Information

• Construction Features:Steel housing construction
• Tall vertical discharge stack
• Conical rain cap protection
• Heavy-duty structural framework
• Flanged connections throughout

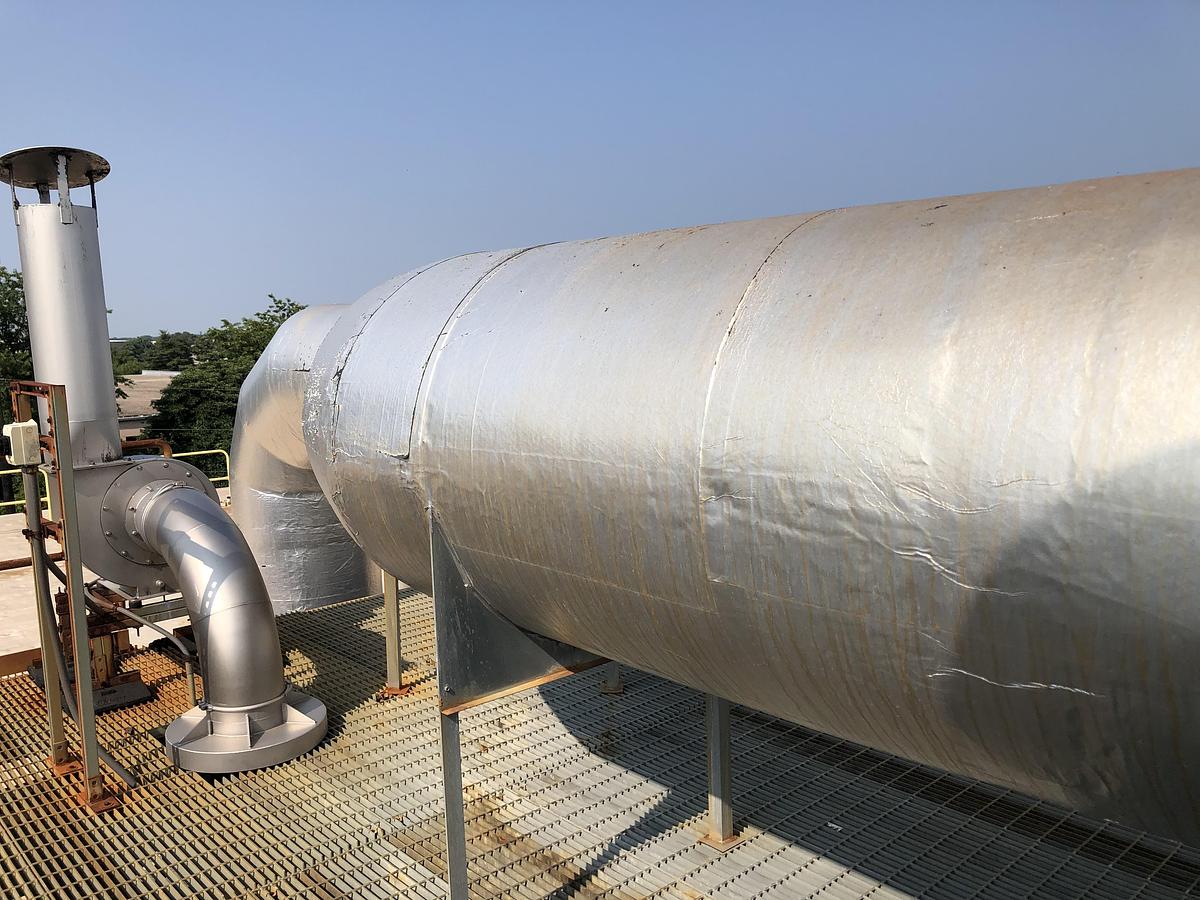

• Insulated duct sections

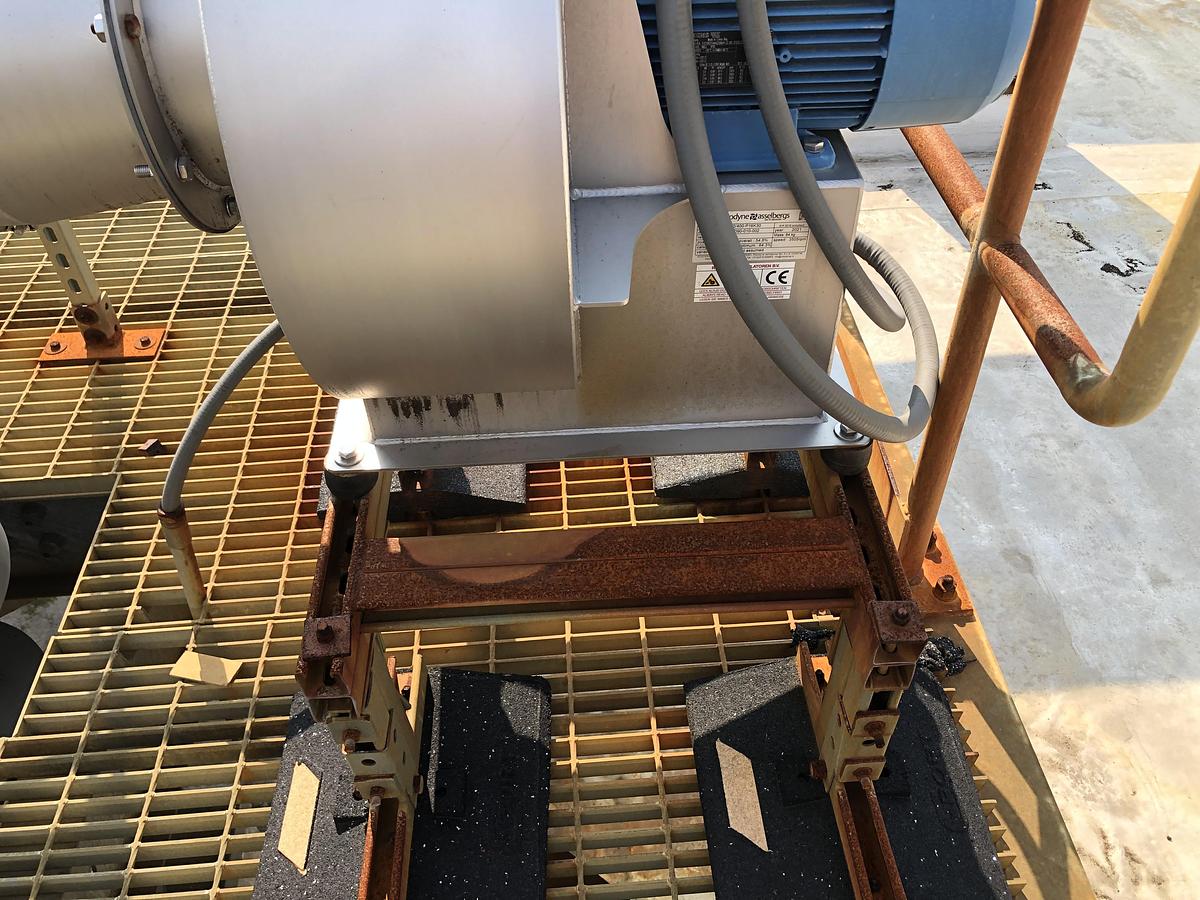

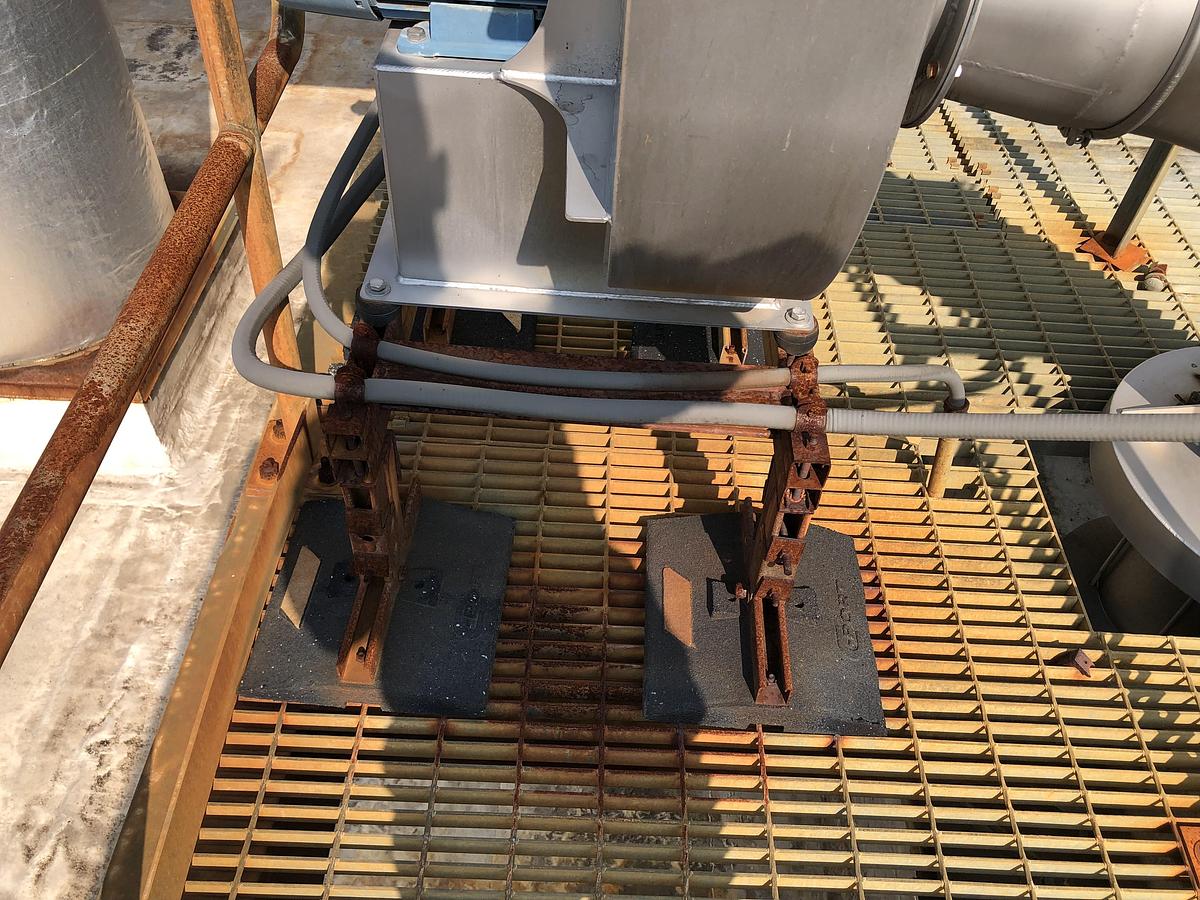

• Vibration isolation mounting
• Included Components:Rotodyne CV-250/400-P16K30 fan
• Siemens industrial motor
• Complete vertical exhaust stack
• Rain cap/weather protection
• Horizontal inlet ductwork
• All visible connecting pieces
• Mounting framework

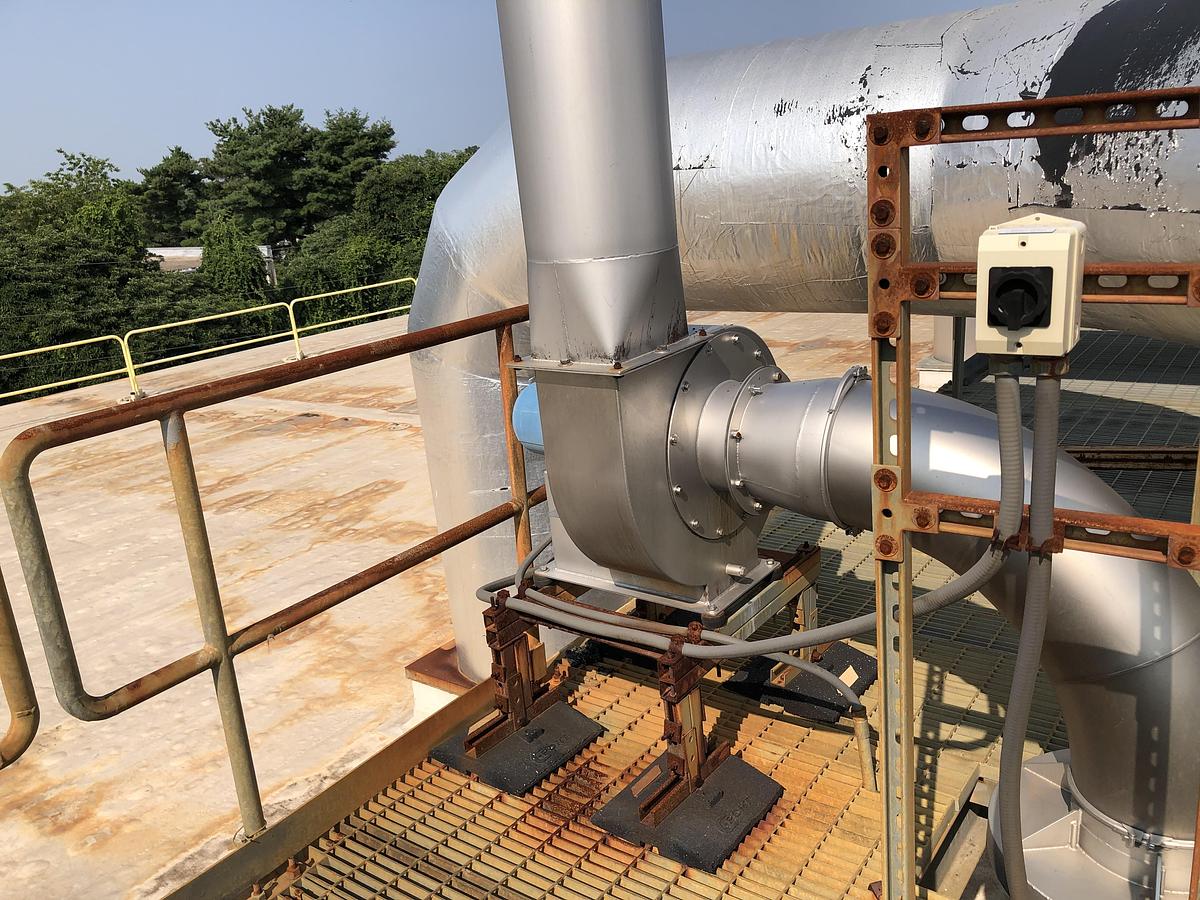

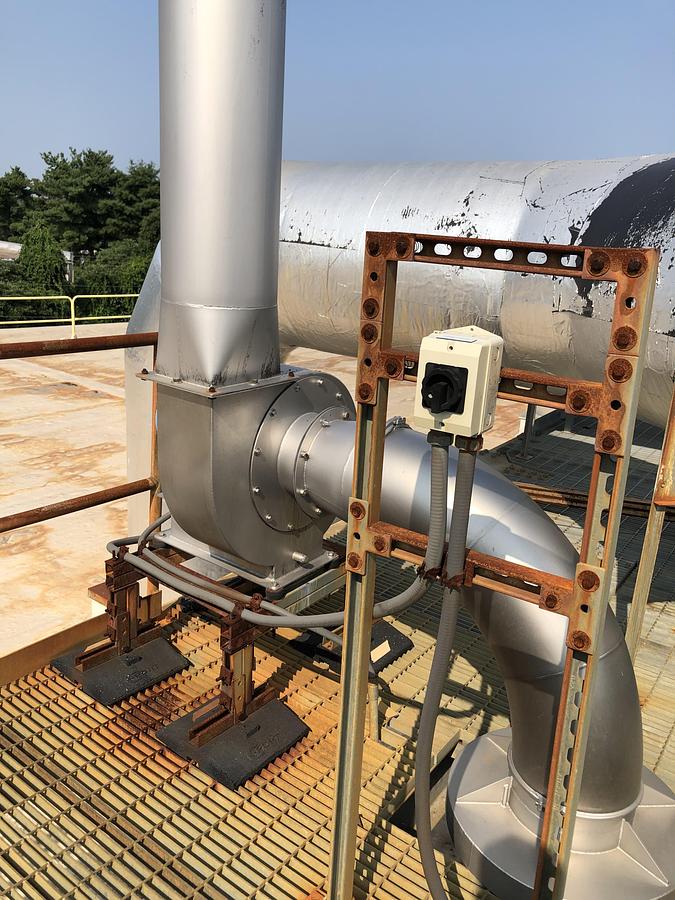

• Electrical disconnect box
• Stack Features:Vertical discharge design
• Weather-resistant construction
• Flanged sections for maintenance
• Integrated support structure
• Optimized for plume dispersion
• Service Features:QR code for parts access
• Clear model identification
• Accessible motor location
• Standard flanged connections
• Modular stack sections

Technical Details

• Model: CV-250/400-P16K30
• Order: 220210090-010-002
• Motor: Siemens (visible blue housing)
• Speed: 3505 RPM
• Efficiency: 54.8% overall, 64.3% optimum
• Year: 2021
• Configuration: Horizontal inlet, vertical discharge
• Installation: Complete rooftop exhaust system
• Compliance: CE, ErP 2015
