General Electric Substation System for Diesel Generator Integration

Overview

This professional-grade General Electric substation system features dual power distribution panels with integrated PowerLogic digital metering, designed for seamless diesel generator integration in critical power applications. The system includes both hot (314A) and standard power sections with comprehensive electrical monitoring capabilities, making it ideal for facilities requiring reliable backup power distribution. With detailed single-line diagrams, proper safety labeling, and professional installation, this substation provides code-compliant power distribution for commercial and industrial facilities requiring emergency generator connectivity.

Design and Performance

Panel Configuration

Manufacturer: General Electric

Type: Industrial Substation Panels

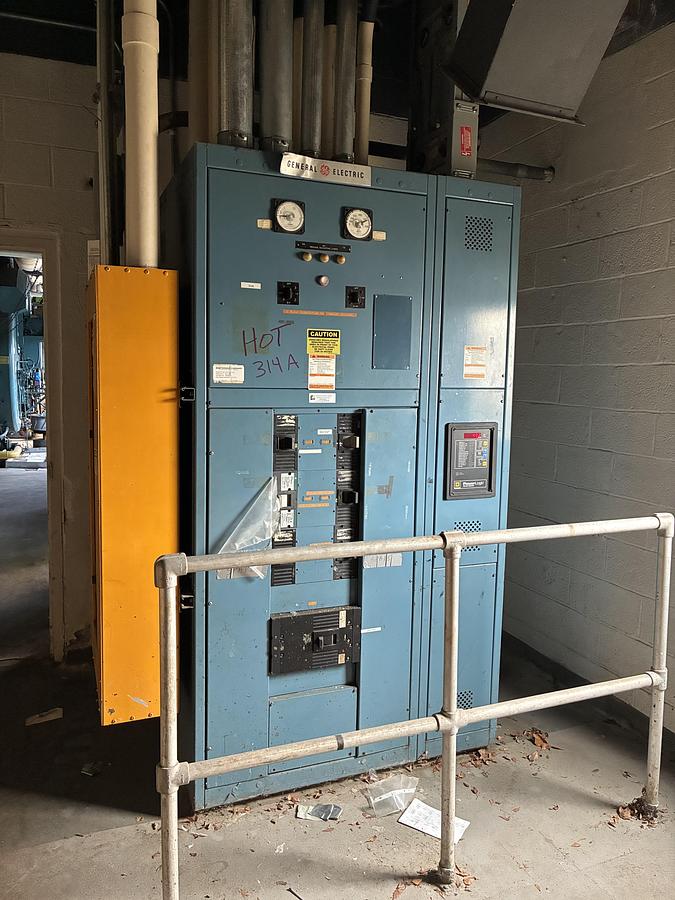

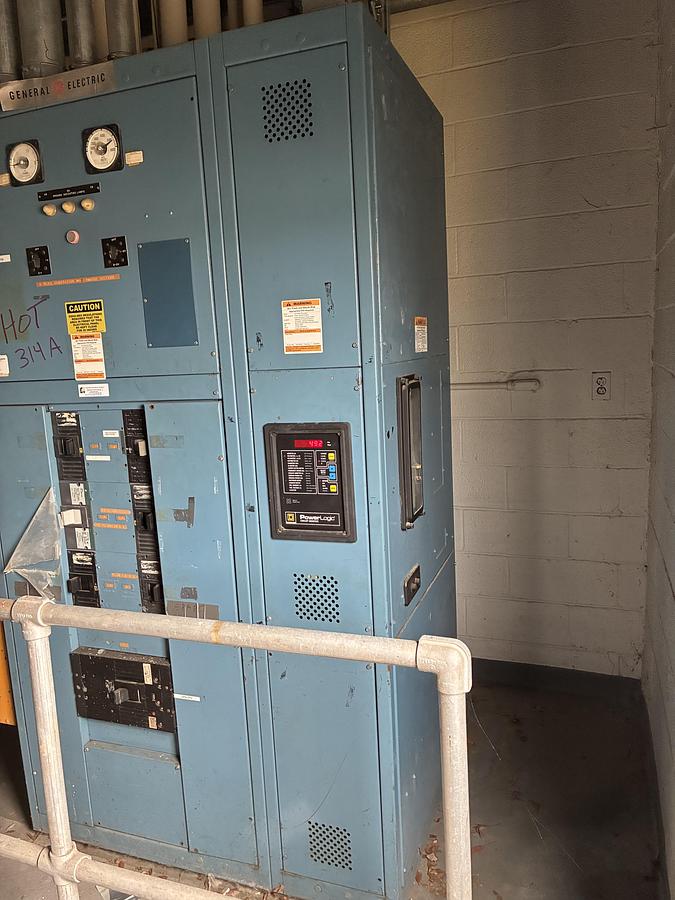

Configuration: Dual Panel System

Enclosure Color: Safety Orange/Blue

Installation: Wall-mounted

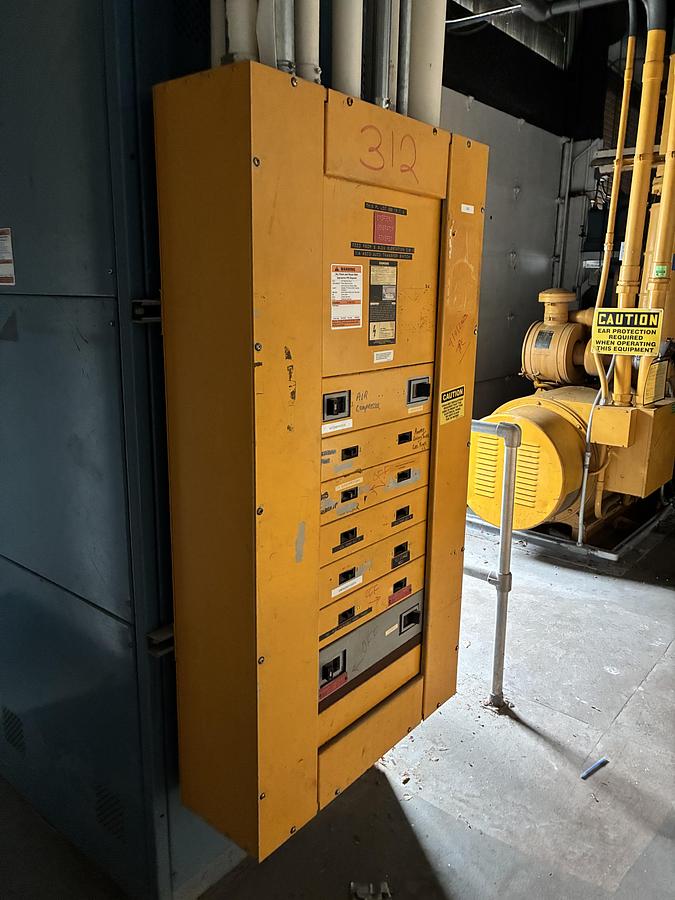

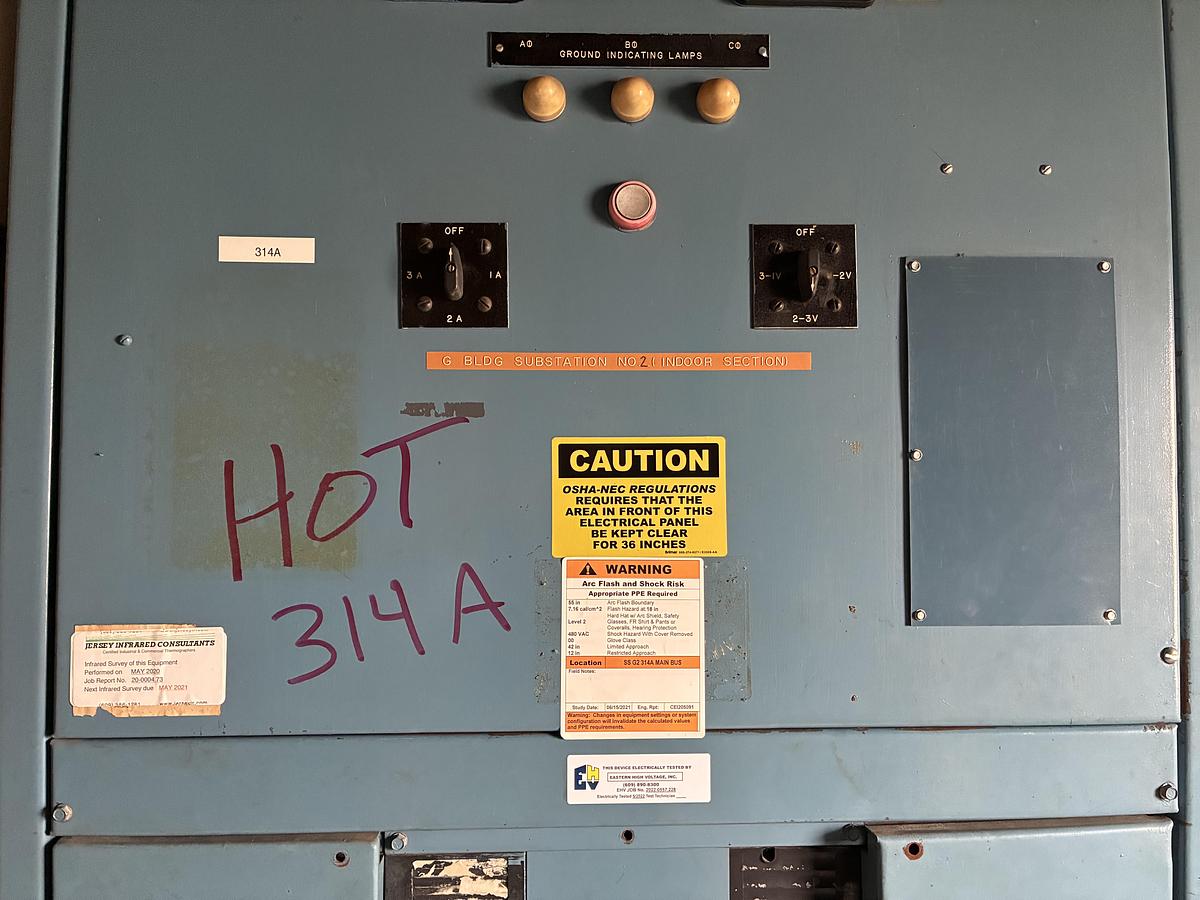

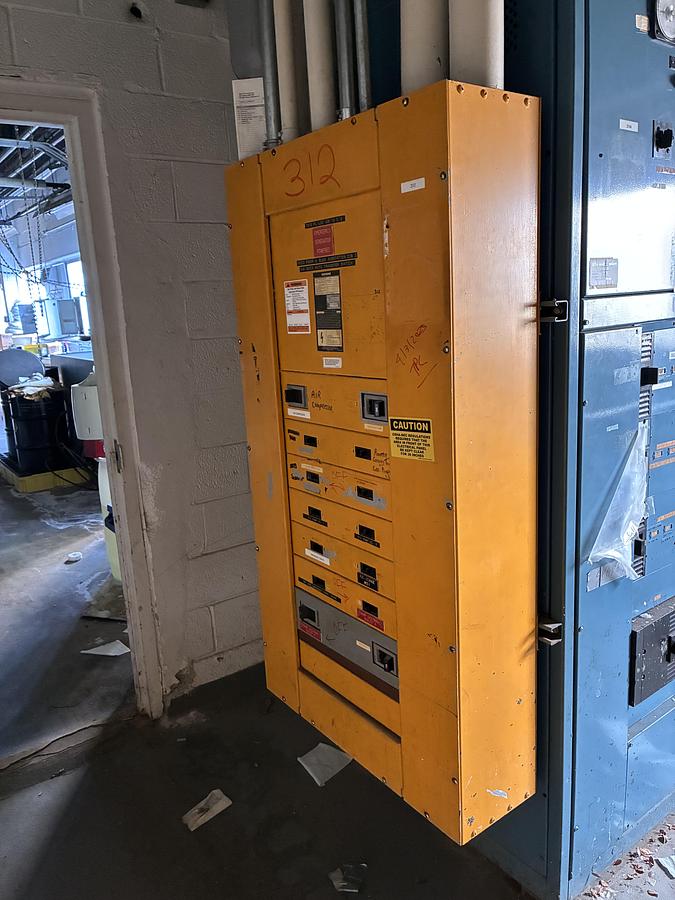

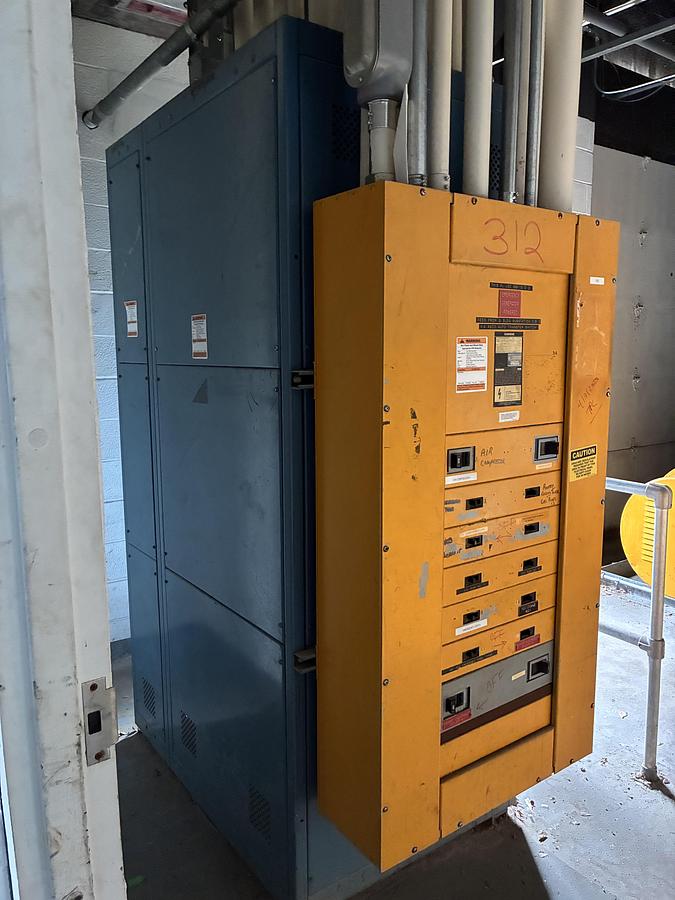

Panel Markings: "312" and "314A" (HOT)

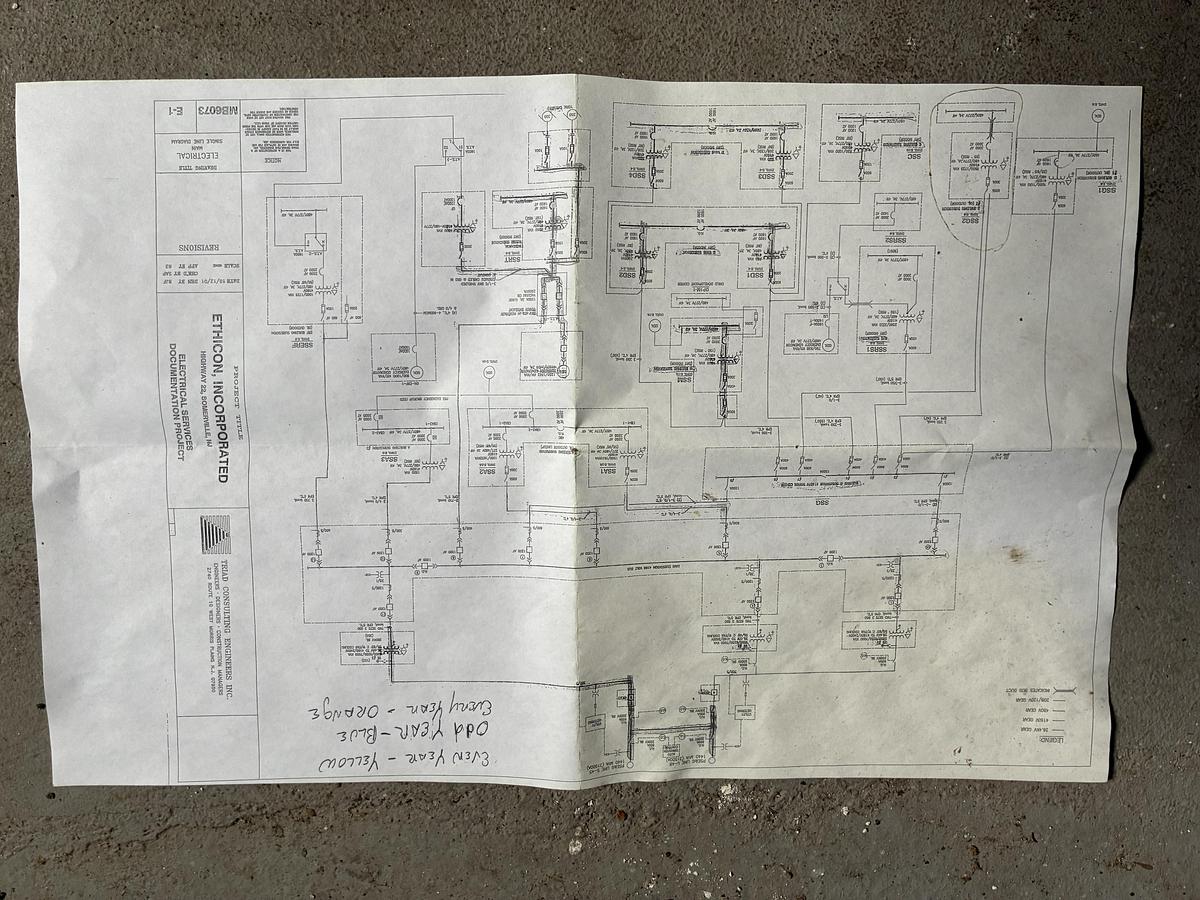

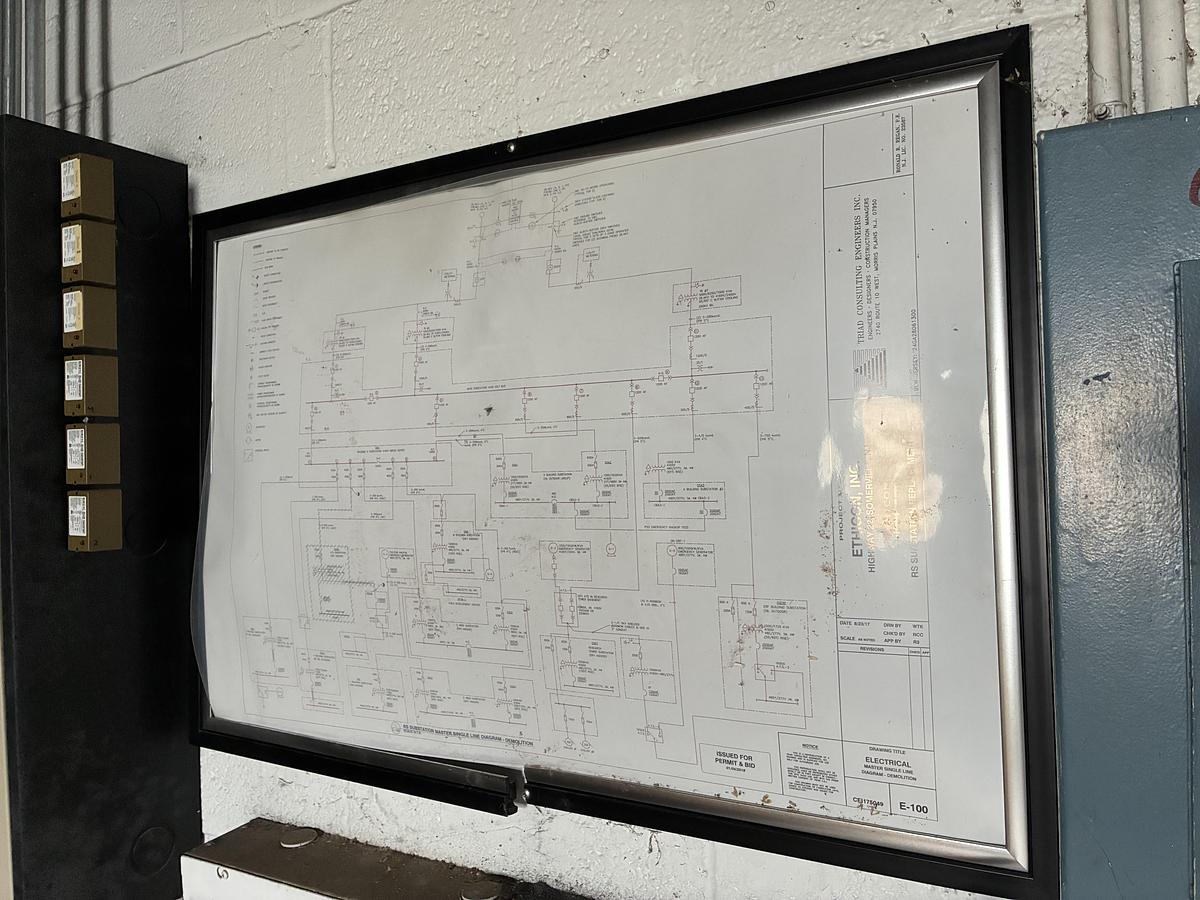

Documentation: Single-line diagrams displayed

Electrical Specifications

Voltage: 480V/277V 3-Phase

Configuration: 3-Phase, 4-Wire

Frequency: 60 Hz

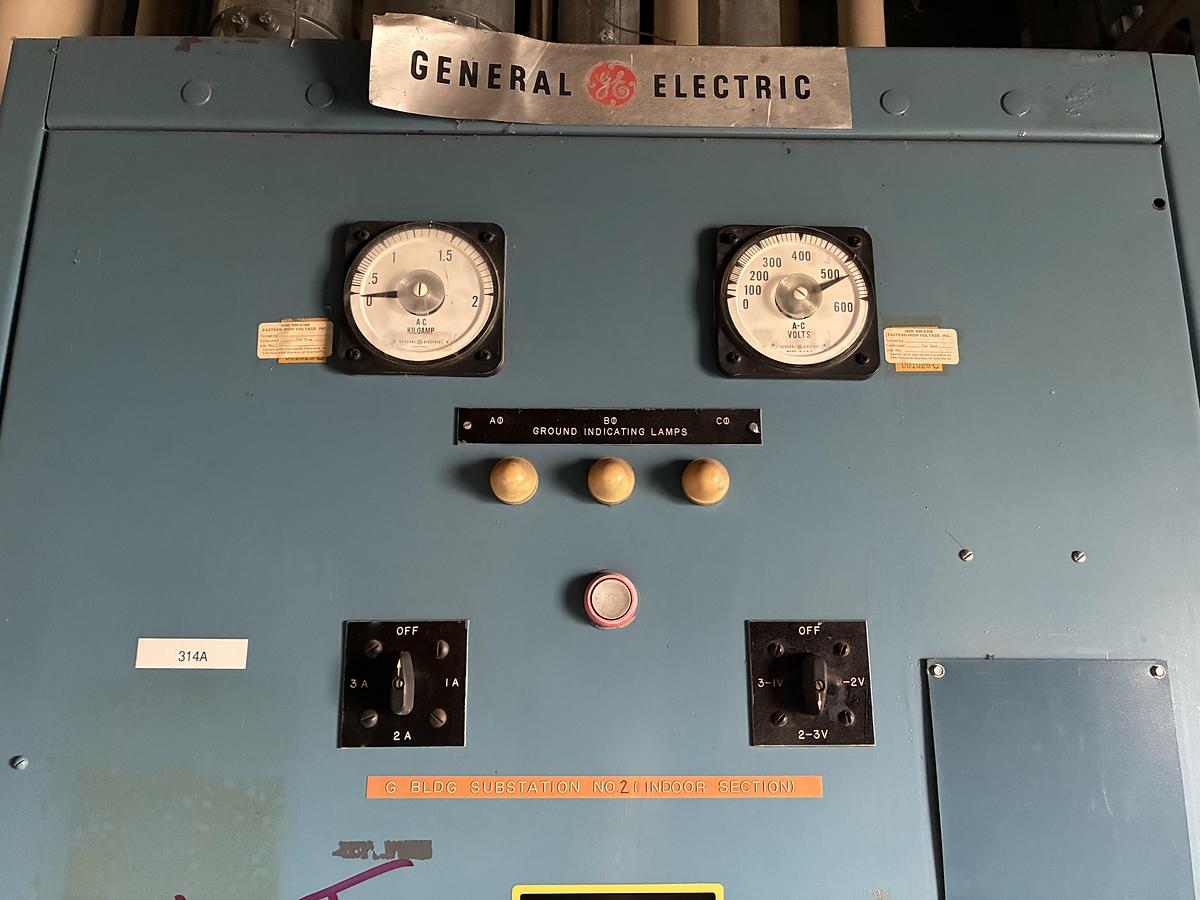

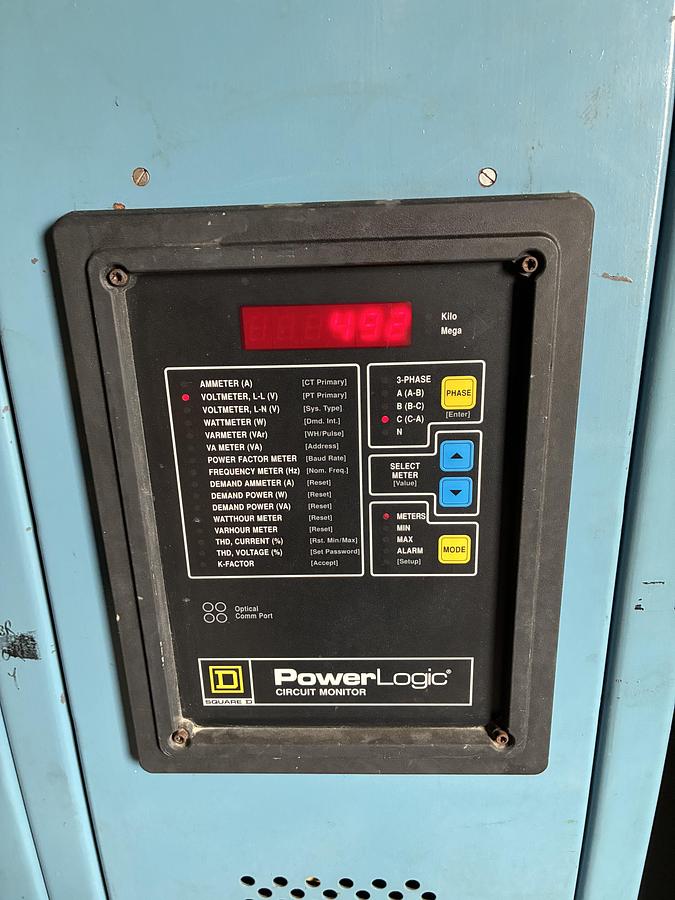

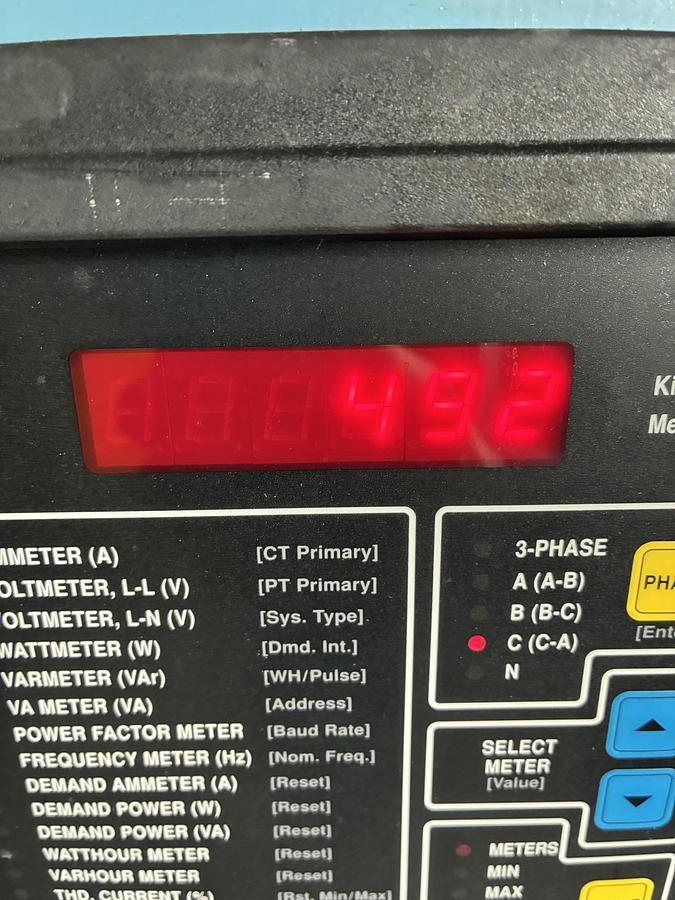

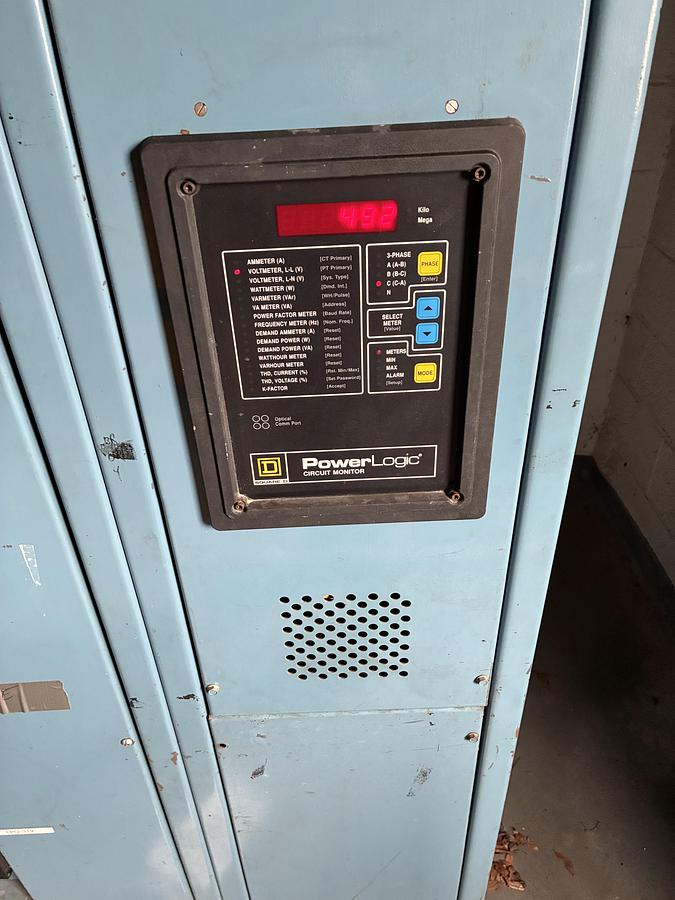

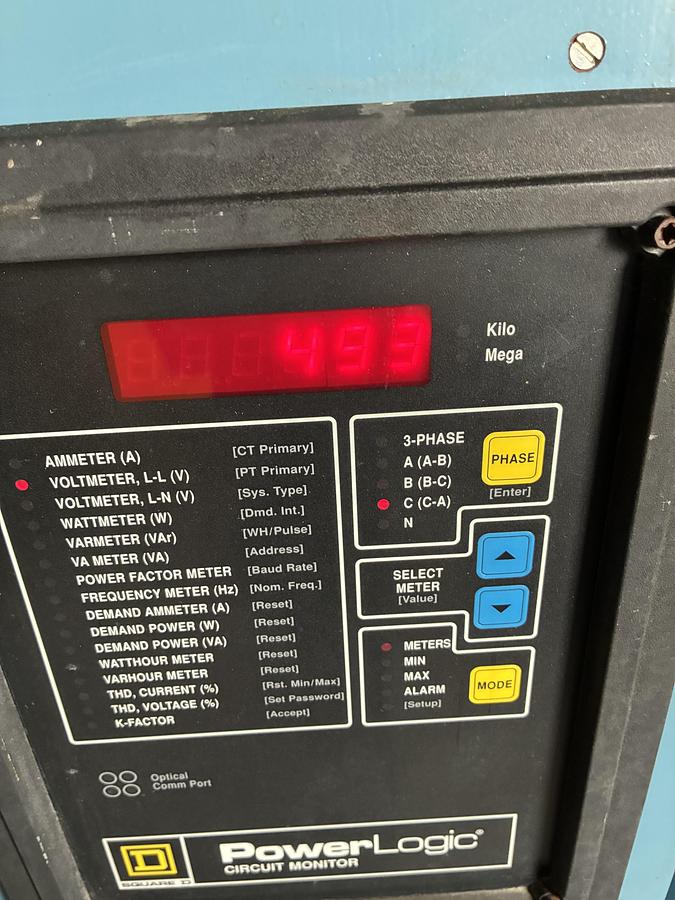

Metering: PowerLogic Digital Display

Connection: Generator-ready

Grounding: NEC compliant

Complete System Package

Main Components

• Two (2) GE distribution panels
• PowerLogic digital metering system

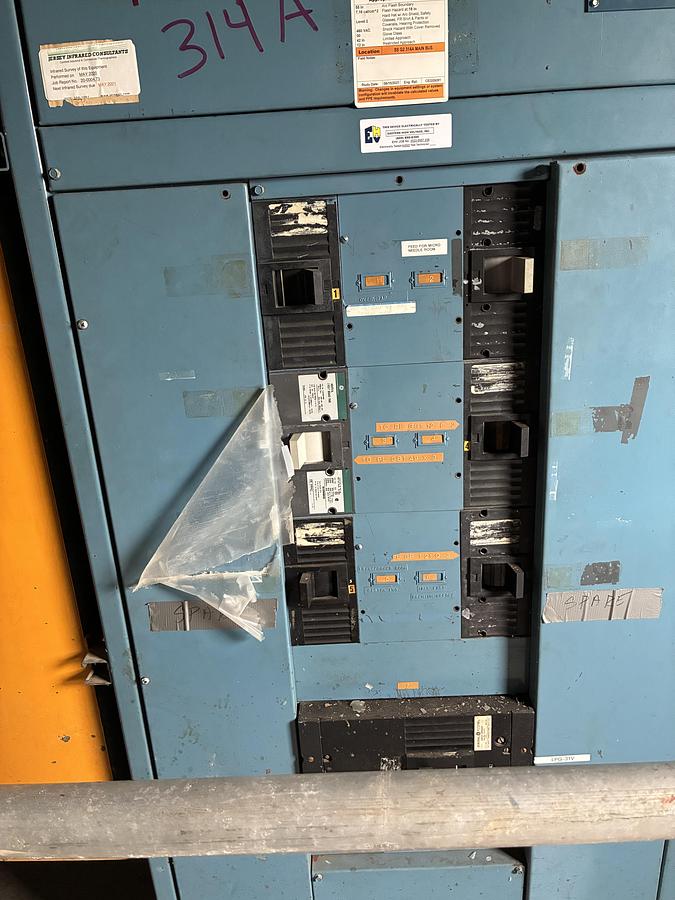

• Circuit breaker panels

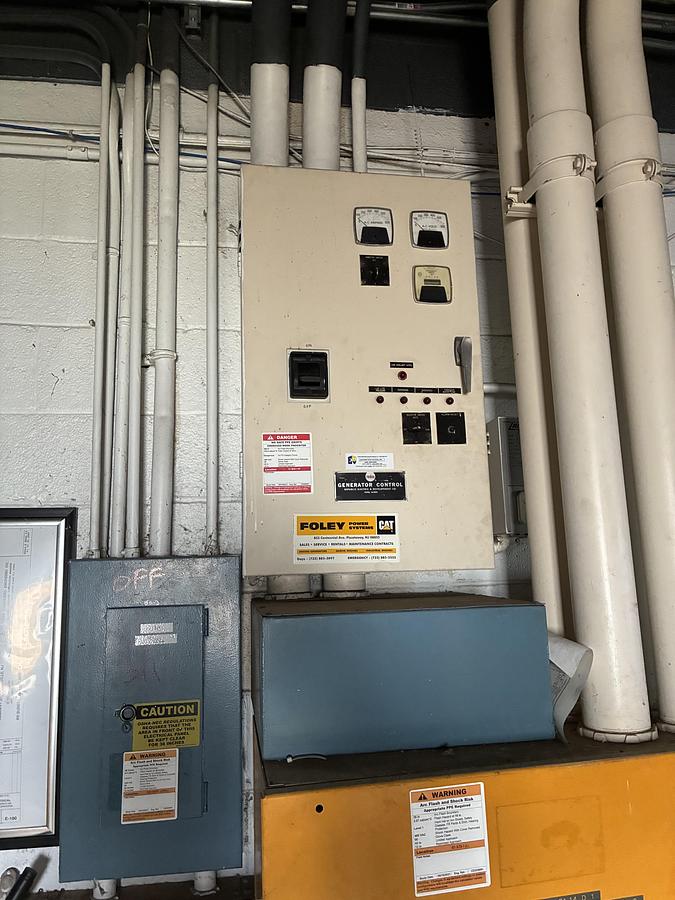

• Generator interface connections
• Emergency power circuits
• Normal power circuits
• Comprehensive labeling system
• Single-line diagram displays

Metering Capabilities

PowerLogic Features:

• Digital ammeter (A)
• Voltmeter L-L (V)
• Voltmeter L-N (V)
• Wattmeter (W)
• VAR meter (VAr)
• Power factor meter
• Frequency meter (Hz)
• Demand monitoring

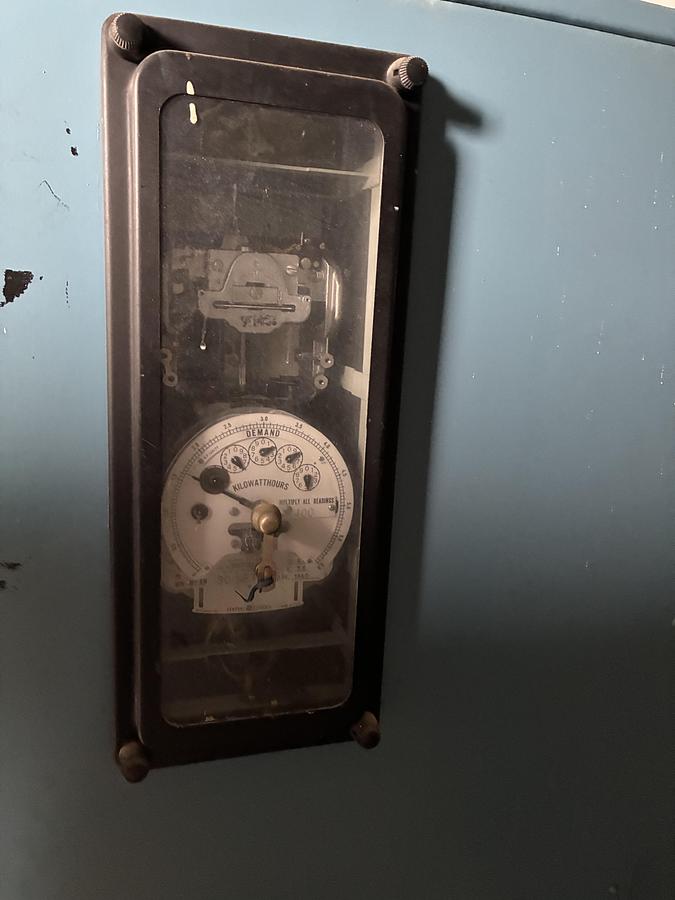

• Energy metering (kWh)

Key Features

Generator Integration

• Dedicated generator connections
• Automatic transfer capability
• Emergency/normal power separation
• Load management systems
• Priority circuit designation
• Seamless switchover design

Safety Features

• "HOT" panel identification
• Caution labels installed
• Arc flash warnings
• Proper phase marking
• Safety barriers
• Lockout/tagout provisions

System Specifications

Distribution Details

Panel Ratings: Per nameplate

Bus Configuration: Copper bus bars

Neutral: Full-rated neutral

Ground Bus: Equipment grounding

Breaker Types: Molded case

Wire Terminations: Mechanical lugs

Monitoring System

Display Type: LED digital readout

Parameters Monitored:

• Phase currents (A, B, C)
• Line voltages
• Power consumption
• Power quality metrics
• Energy usage
• System diagnostics

Ideal Applications

• Healthcare Facilities
• Data Centers
• Industrial Plants
• Commercial Buildings
• Critical Infrastructure
• Emergency Services
• Telecommunications
• Water Treatment Plants
• Manufacturing Facilities
• Any facility with diesel generators

Installation Features

Professional Elements

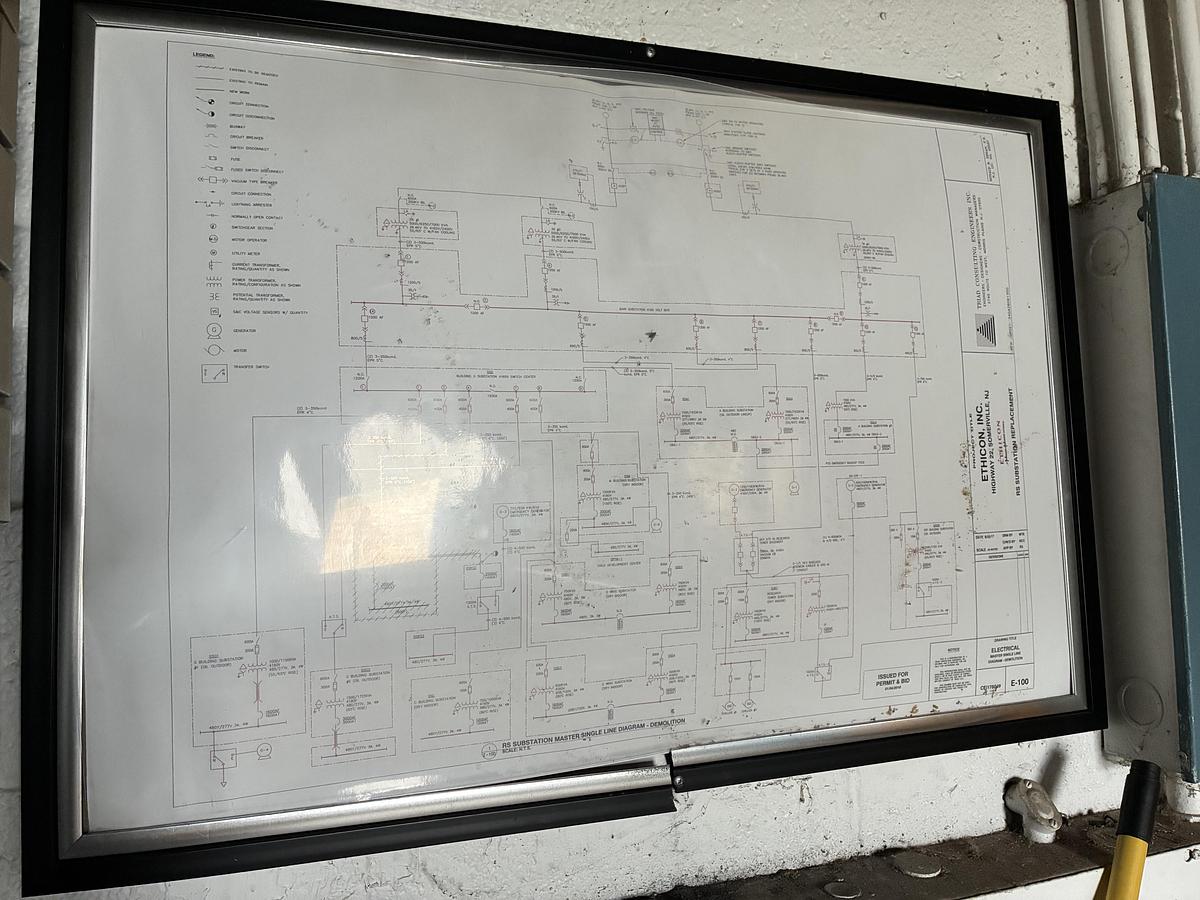

• Framed single-line diagrams
• Color-coded panels
• Clear circuit identification
• Professional wire management
• Adequate working clearance
• Code-compliant installation

Generator Connectivity

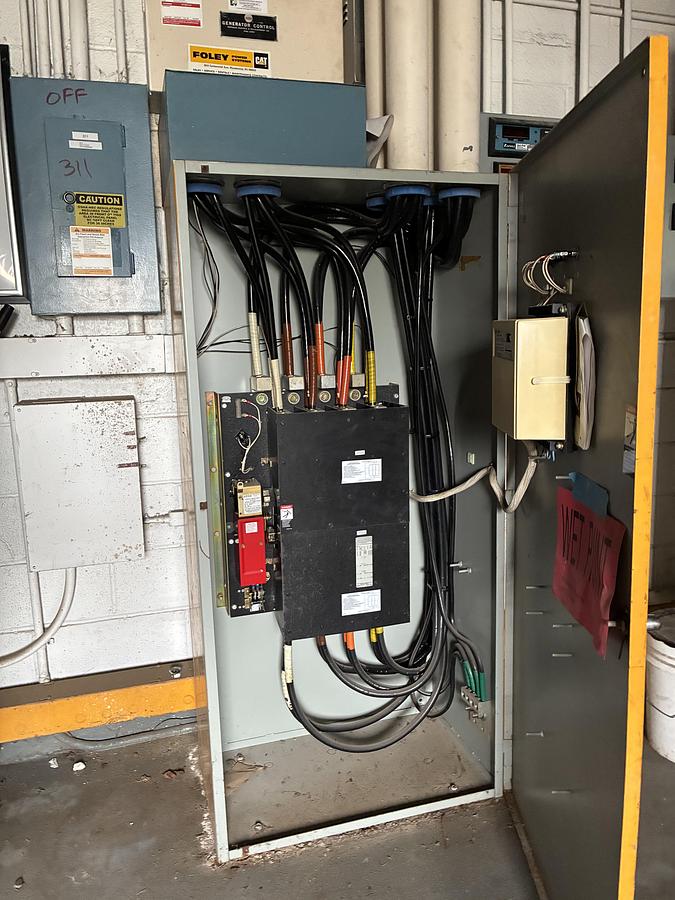

• Pre-wired for generators
• Transfer switch ready
• Load bank connections
• Emergency circuit separation
• Normal power isolation
• Automatic operation capable

Operational Advantages

System Benefits

• Comprehensive power monitoring
• Generator integration ready
• Real-time electrical data
• Energy management capability
• Power quality analysis
• Demand monitoring

Emergency Power Features

• Quick generator connection
• Automatic transfer ready
• Critical load prioritization
• Isolated emergency circuits
• Reliable switchover
• Extended runtime capability

Technical Details

PowerLogic Specifications

Measurement Accuracy: ±0.5%

Update Rate: Real-time

Communication: RS-485/Ethernet ready

Memory: Non-volatile

Display: Multi-parameter LED

Programming: Front panel access

Electrical Ratings

Short Circuit Rating: Fully rated

Temperature Rating: 40°C ambient

Altitude: Up to 6,000 feet

Enclosure: NEMA rated

Wiring: THHN/THWN copper

Maintenance Requirements

Routine Inspection

• Monthly visual checks
• Quarterly meter verification
• Semi-annual thermography
• Annual torque checks
• Generator exercise testing
• Transfer switch testing

Documentation

• Single-line diagrams posted
• Operation procedures
• Emergency contacts
• Maintenance logs
• Test records
• As-built drawings

Safety & Compliance

Code Compliance

• NEC Article 700/701
• NFPA 110 standards
• Local electrical codes
• OSHA requirements
• Joint Commission ready
• Insurance compliance

Safety Systems

• Warning labels visible
• Arc flash analysis
• PPE requirements posted
• Emergency procedures
• Lockout/tagout program
• Qualified personnel only

Package Includes

✓ Complete substation assembly

✓ GE distribution panels

✓ PowerLogic metering system

✓ Circuit breakers installed

✓ Generator connections

✓ Professional installation

✓ Single-line diagrams

✓ Safety labeling

✓ Test documentation

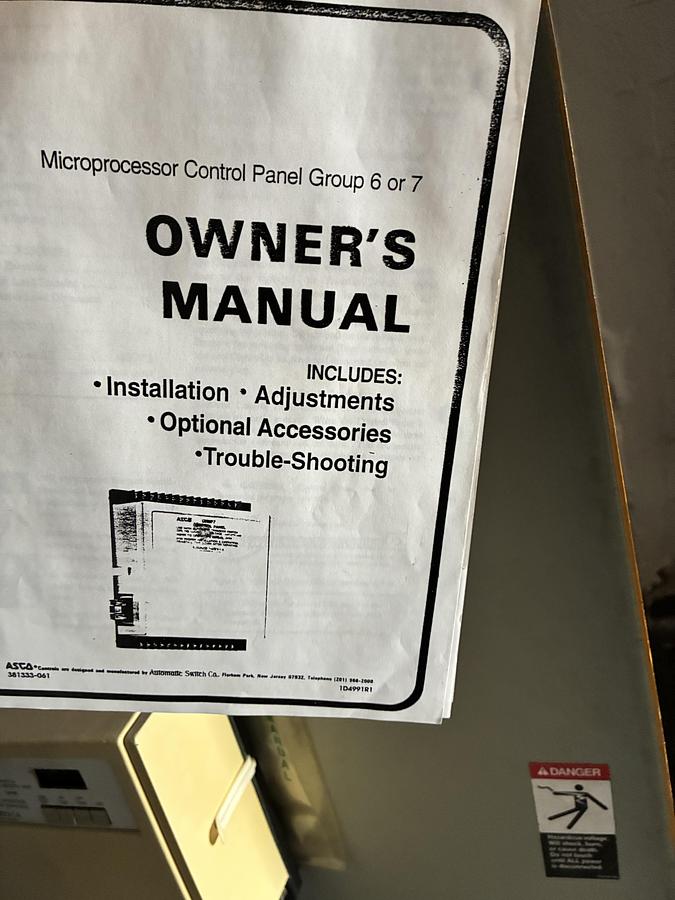

✓ Operation manual

Generator Compatibility

• Diesel generators
• Natural gas generators
• Portable connections
• Permanent installations
• Multiple sizes supported
• Automatic synchronization
• Load management
• Parallel operation capable
