Cleaver Brooks CB 350 HP 15 PSI Steam Boiler – 2002

Overview

This 2002 Cleaver Brooks CB 350 HP Steam Boiler delivers reliable steam generation with dual fuel capability and fresh professional service in 2025. Operating at 15 PSI steam pressure with 14,288,000 BTU/hr input, this boiler features natural gas and No. 2 oil firing options. Recently repaired by Miller & Chitty Co. in February 2025, the unit includes emission reduction equipment and complete electrical controls. Wired for 460/3/60 volt operation with comprehensive safety systems and UL certification.

Design and Performance

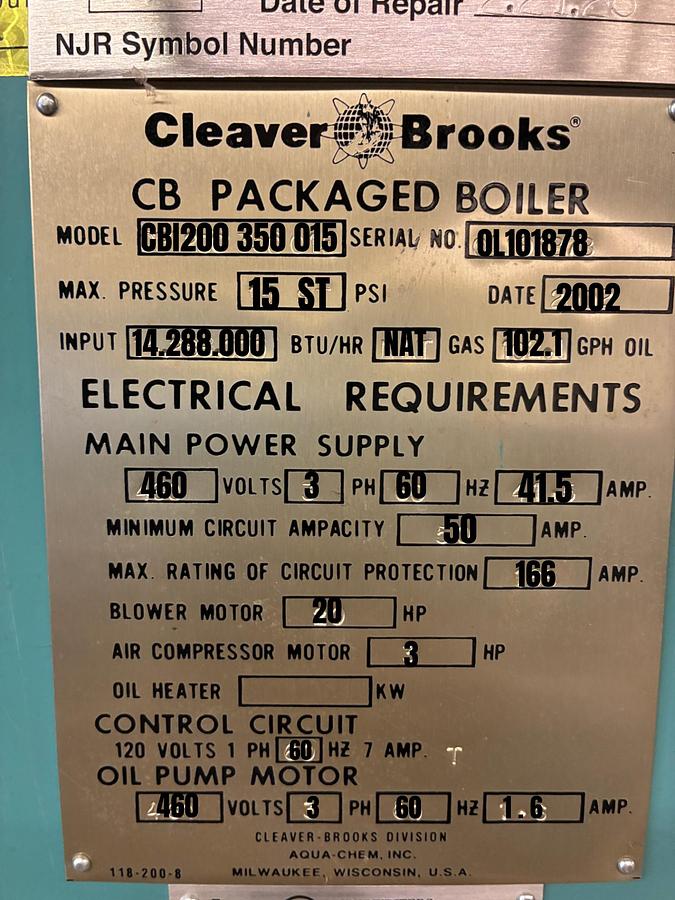

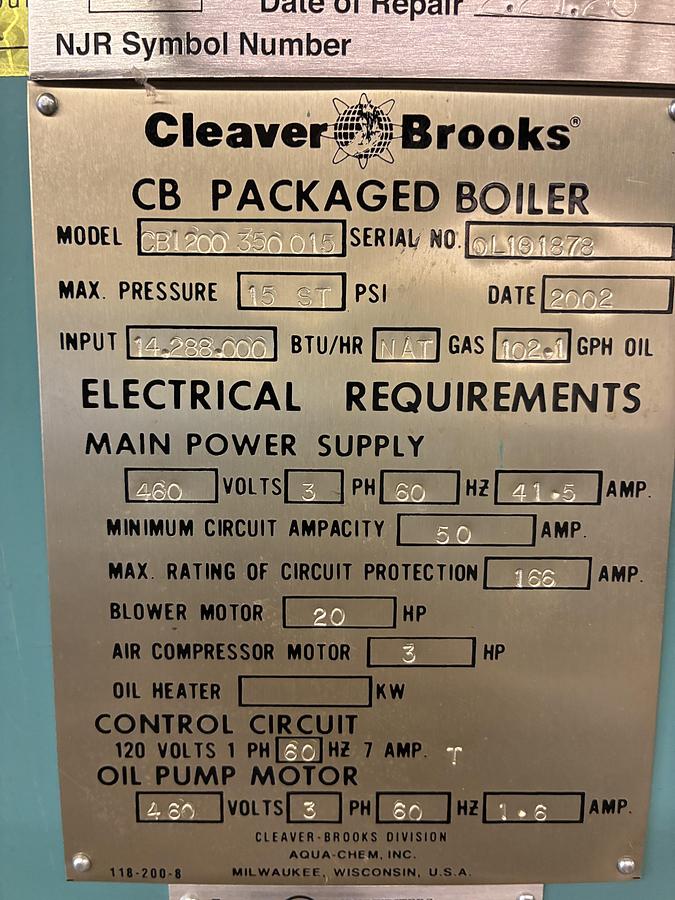

• Model: CBI200-350-015
• Serial Number: 0L101878
• Year Built: 2002
• Horsepower: 350 HP
• Design Pressure: 15 PSI Steam
• Input Capacity: 14,288,000 BTU/hr
• Fuel Type: Dual Fuel - Natural Gas / No. 2 Oil
• Gas Capacity: 102.1 GPH Oil
• Electrical: 460/3/60 Volt, 41.5 Amp
• Emission Control: Integrated reduction equipment (AR292138)
• Stock Number: 246397

Recent Professional Service

Repair History

• Service Provider: Miller & Chitty Co. Inc., Kenilworth NJ
• Repair Date: February 21, 2025 (2.21.25)
• Job Number: 4314
• NJR Symbol Number: Listed
• Service Location: 135-139 Market St., Kenilworth NJ 07033

Certifications & Testing

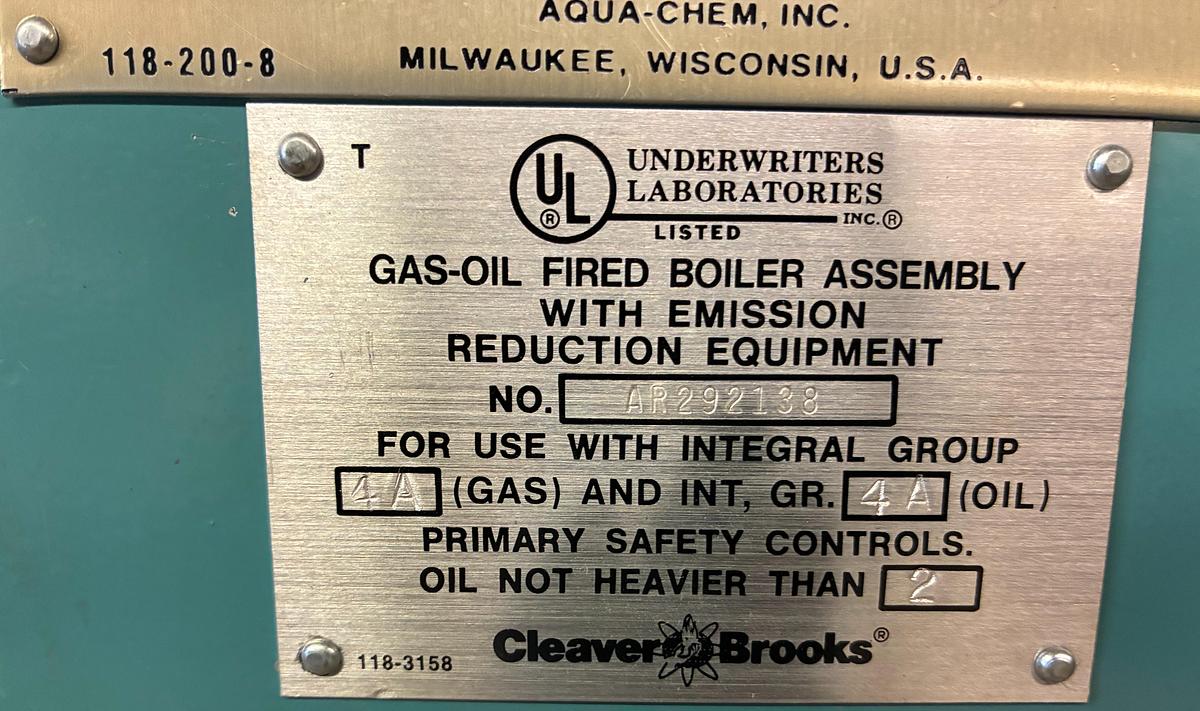

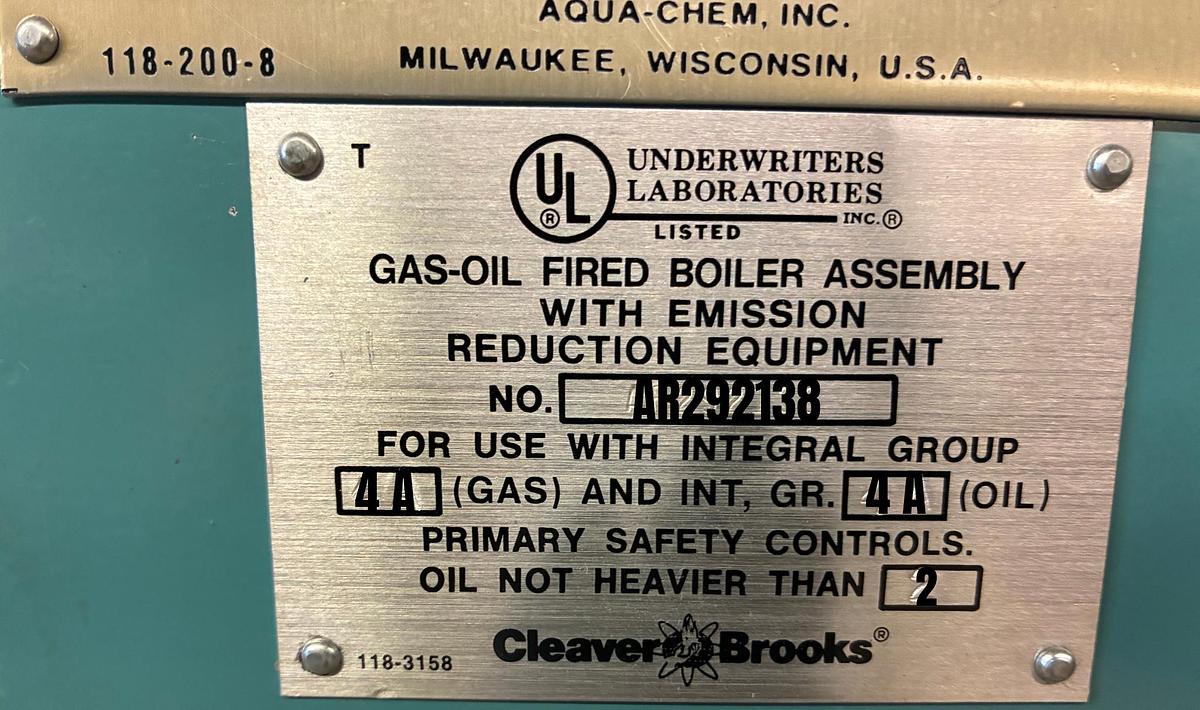

• UL Listed for Gas-Oil Fired Boiler Assembly
• Emission Reduction Equipment Certified
• ASME Code compliance
• Underwriters Laboratories approval
• Fresh service certification (2025)

Complete Equipment Package

Primary Components

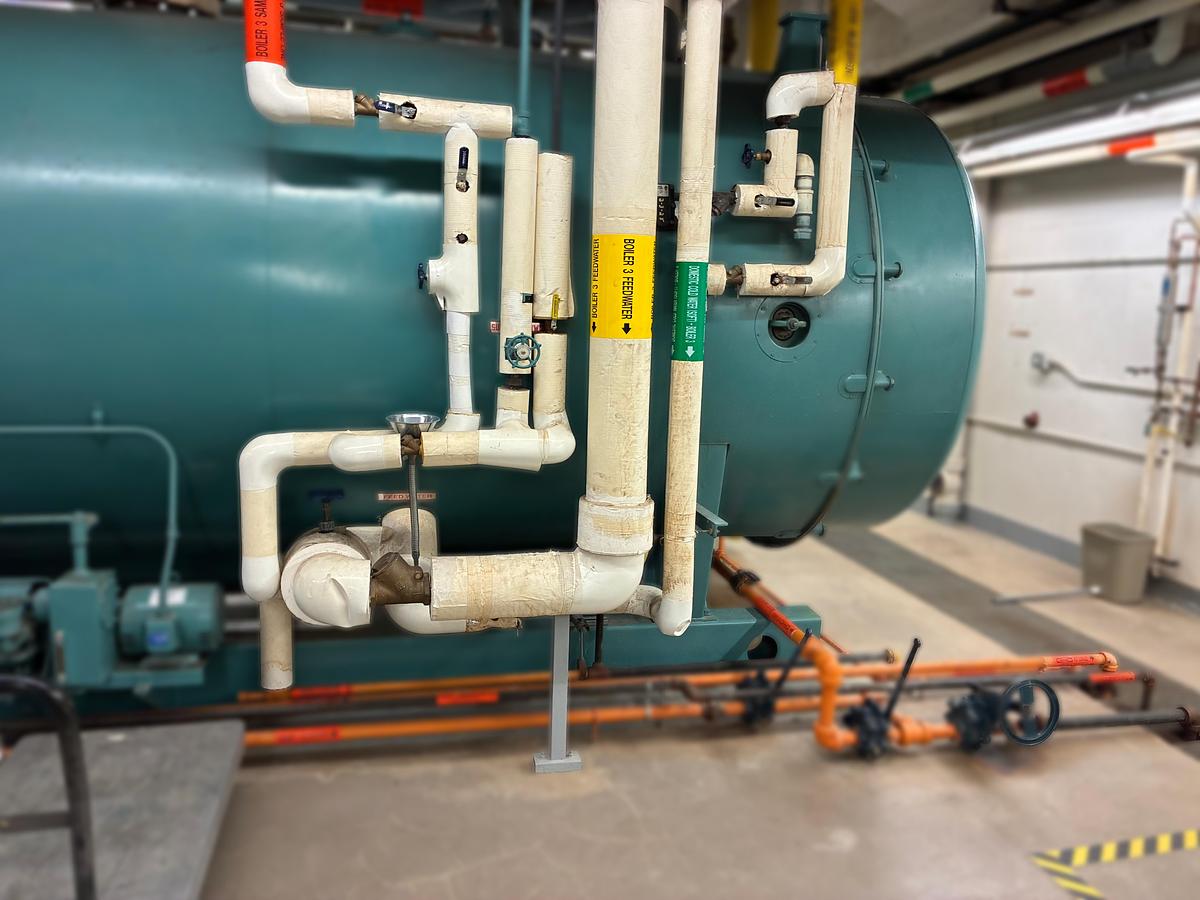

• Cleaver Brooks pressure vessel

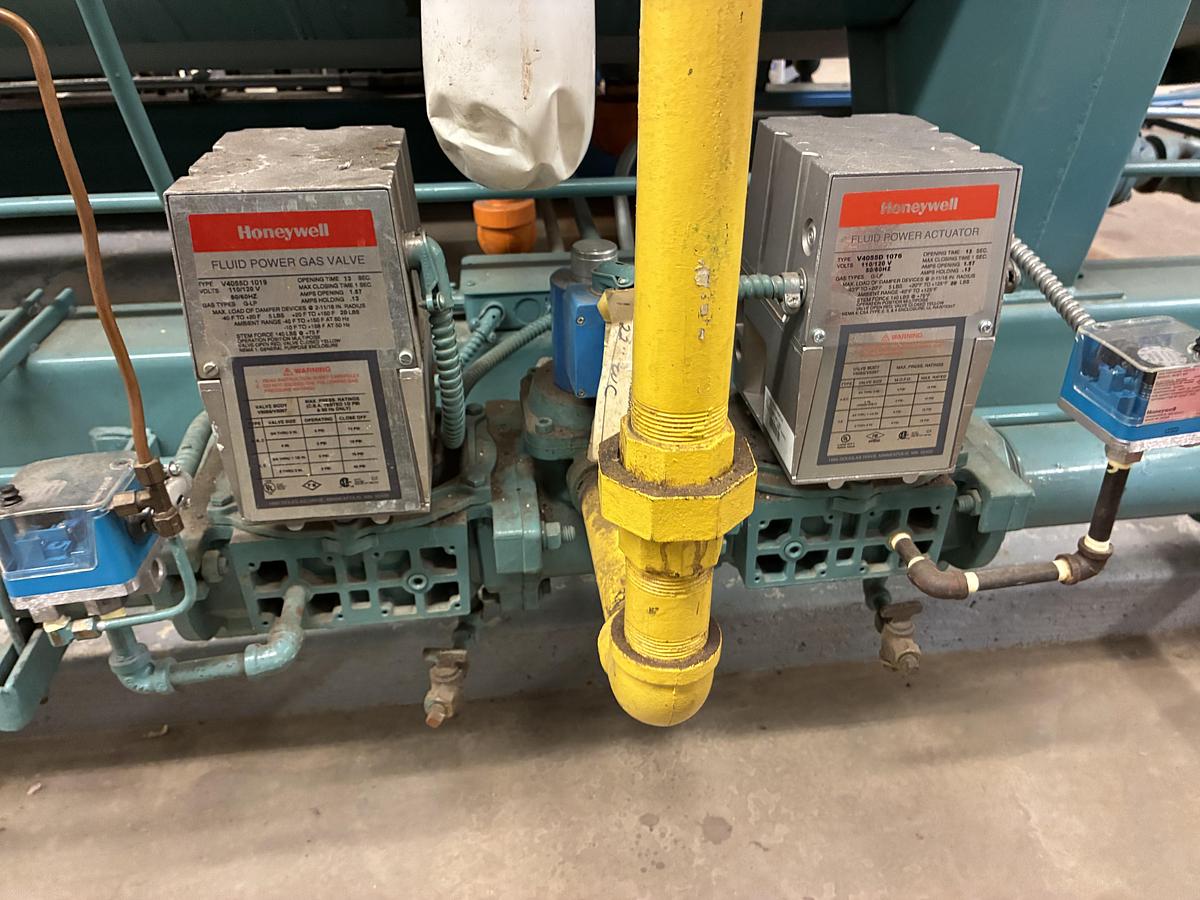

• Dual fuel burner system (gas/oil)
• Emission reduction equipment

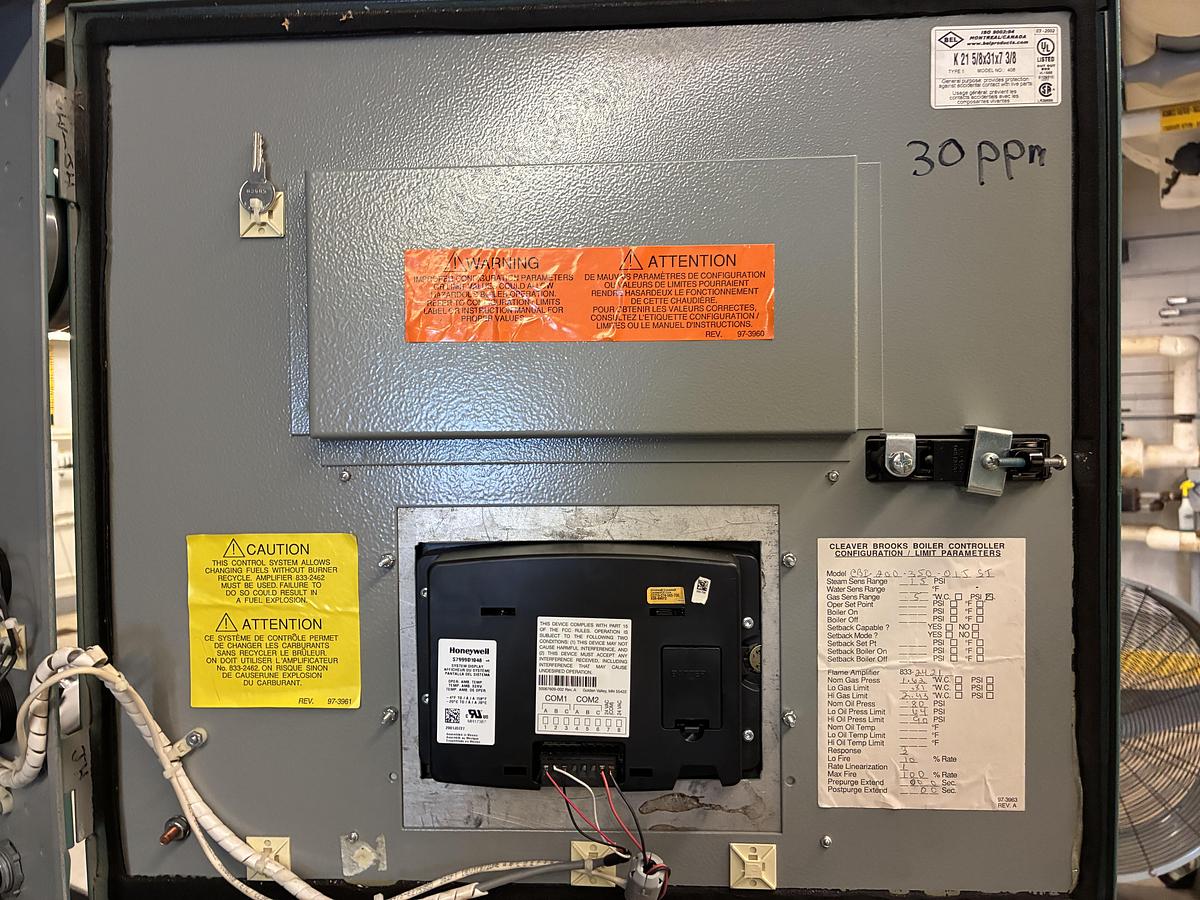

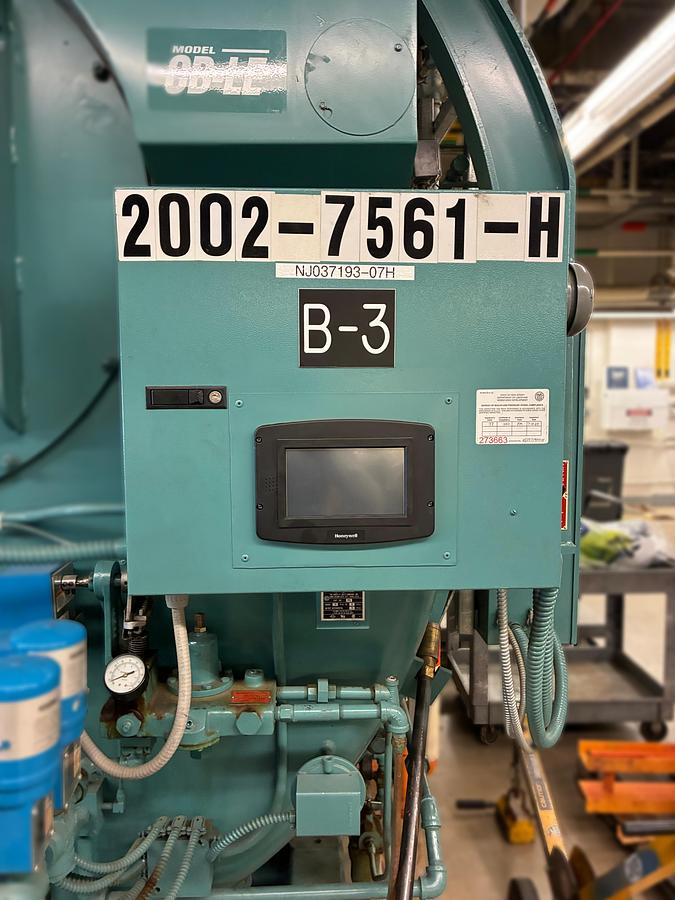

• Complete control panel
• Electrical distribution system

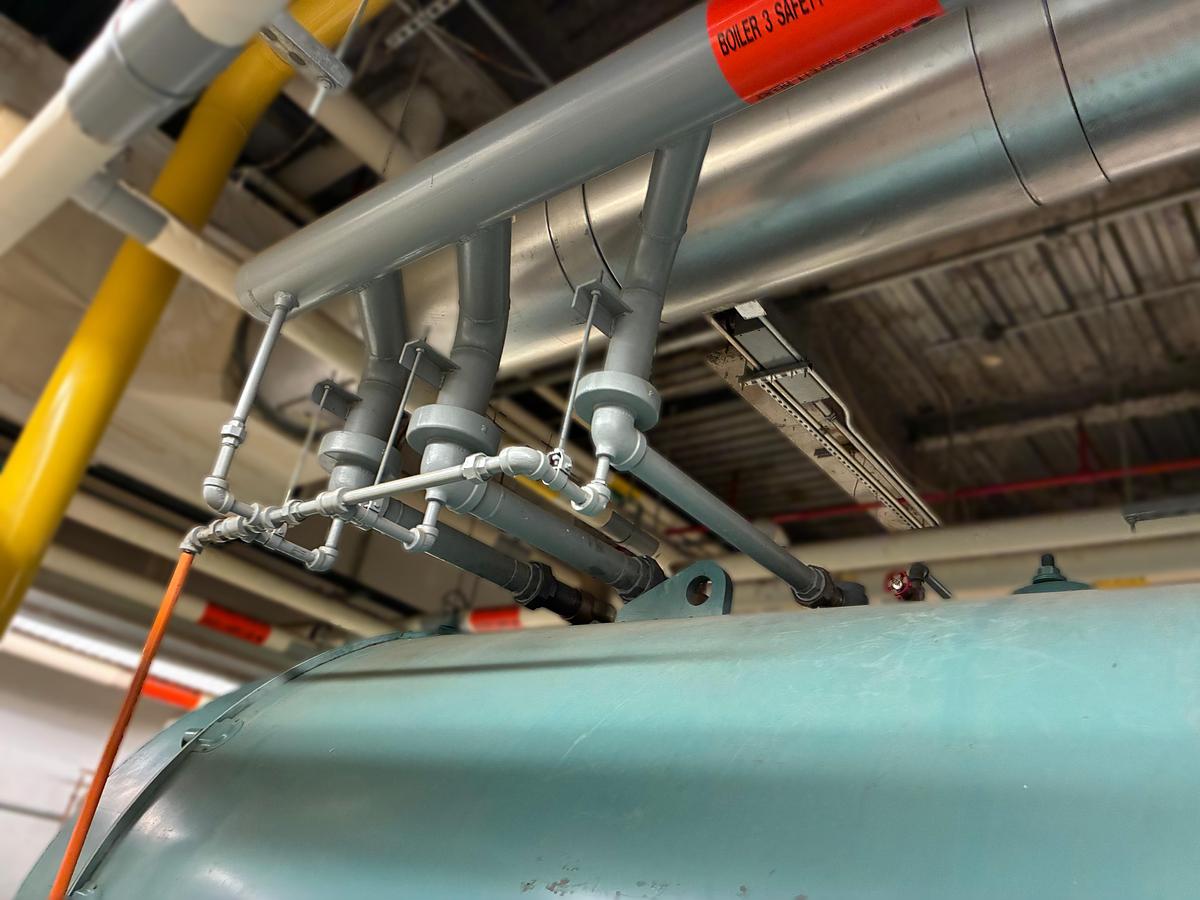

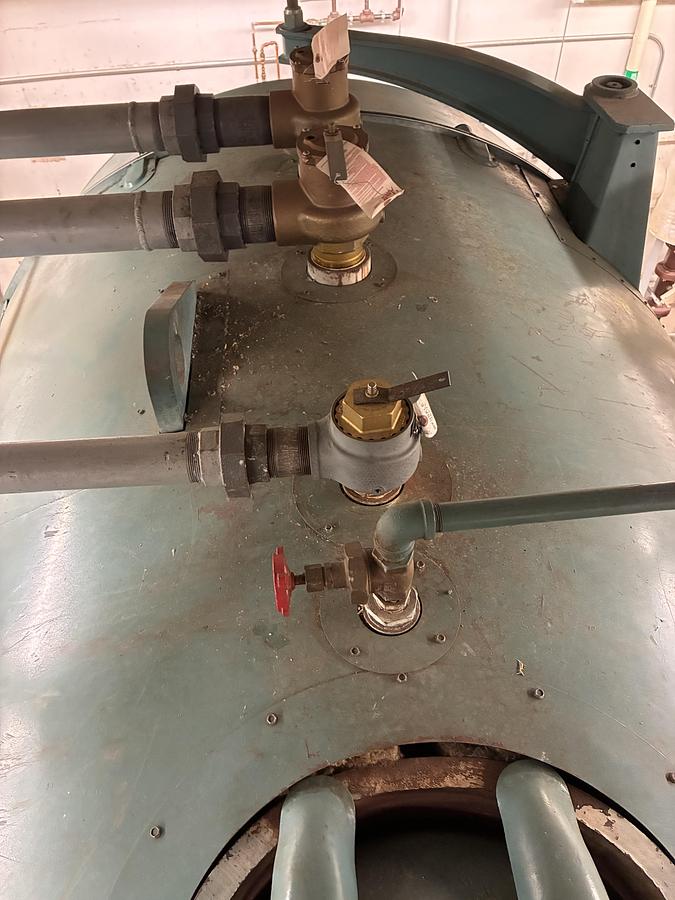

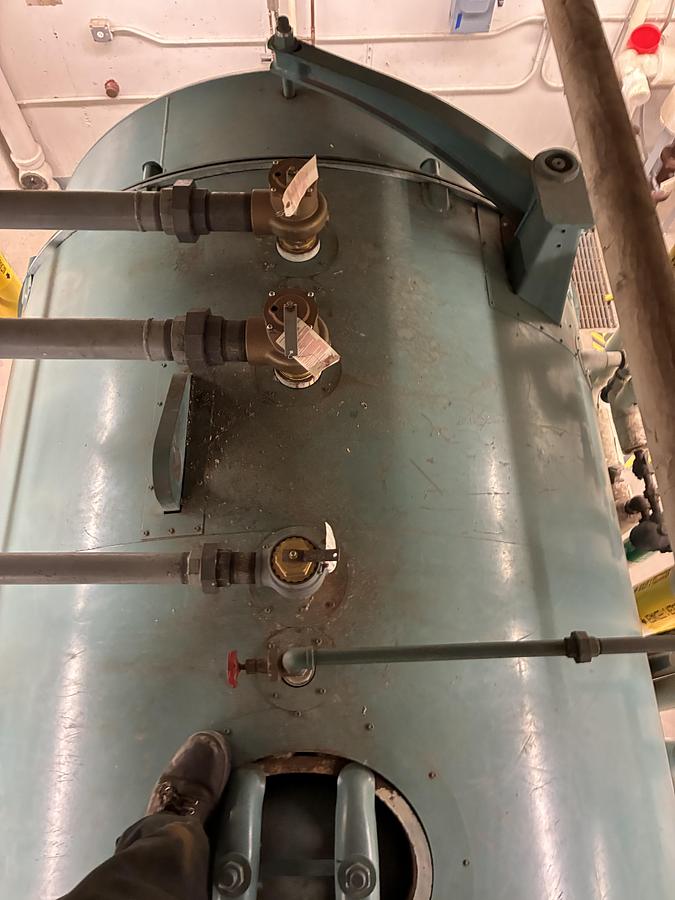

• Safety valve systems
• Fuel changeover system

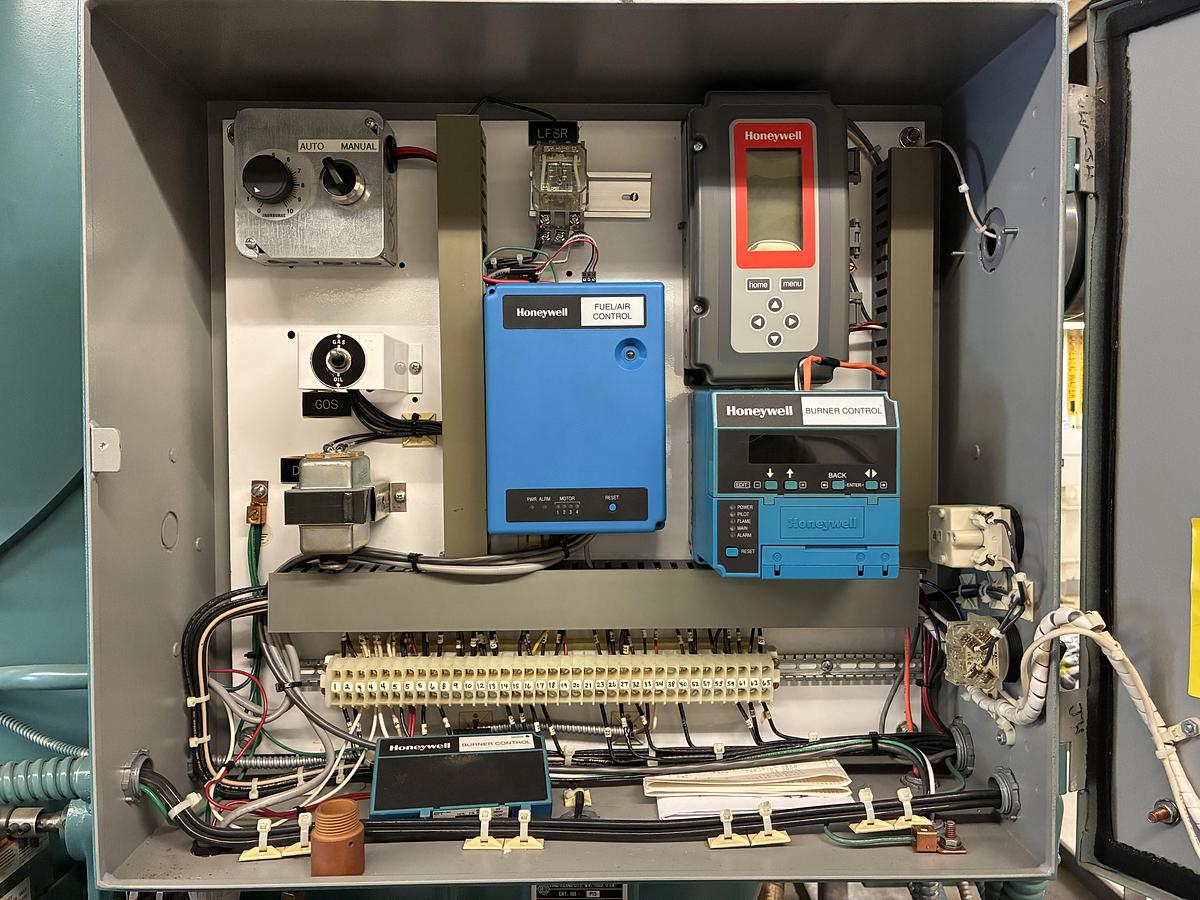

Control Components

• Safety Controls: Integral Group 4A (Gas) and 4A (Oil)
• Emission Equipment: AR292138
• Oil Type: Not heavier than No. 2
• Control Panel: Factory configured
• Safety Systems: UL Listed assembly

Motor Specifications

• Blower Motor: 20 HP
• Air Compressor Motor: 3 HP
• Oil Pump Motor: 460V/3-phase/60Hz, 1.6 Amp
• Control Circuit: 120V/1-phase/60Hz, 7 Amp

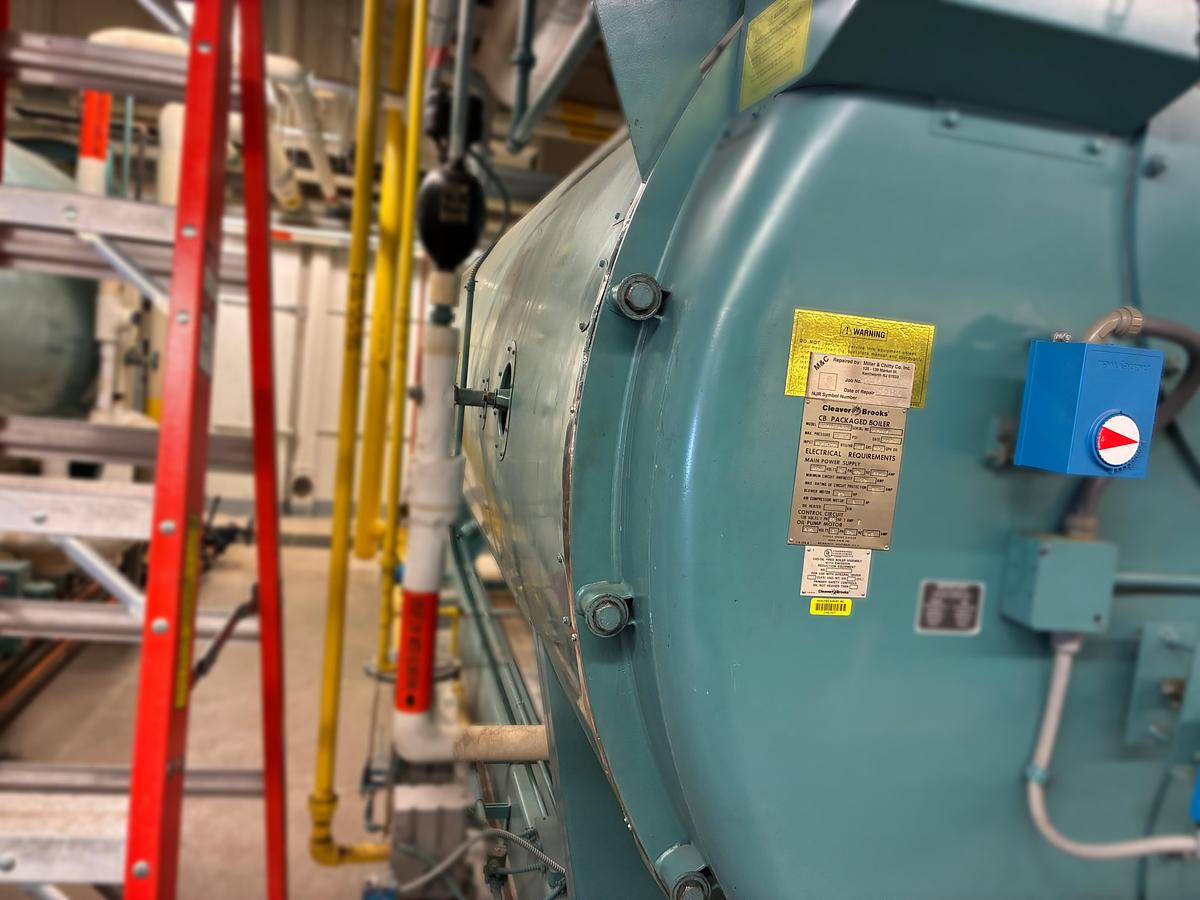

Electrical Requirements

• Main Power Supply: 460V/3-phase/60Hz
• Full Load Amps: 41.5
• Minimum Circuit Ampacity: 50 Amp
• Maximum Circuit Protection: 166 Amp
• Control Voltage: 120V single phase, 7 Amp
• Installation: Professional electrical connection required

Key Specifications

• Boiler Type: CB Packaged Firetube Steam
• Operating Pressure: 15 PSI Steam
• Capacity: 350 HP
• BTU Input: 14,288,000 BTU/hr
• Fuel Options: Natural Gas and No. 2 Oil
• Recent Service: February 2025
• Emission Equipment: Factory integrated
• Safety Compliance: UL Listed

Ideal Applications

• Light Industrial Steam
• Commercial Buildings
• Process Steam Applications
• Heating Systems
• Manufacturing Facilities
• Institutional Buildings
• Warehouse Heating
• Food Processing
• Any facility requiring 350 HP/15 PSI steam

Benefits

• Just Serviced: Professional repair February 2025
• Dual Fuel: Natural gas and oil flexibility
• Low Pressure: 15 PSI for safe operation
• Emission Compliant: Integrated reduction equipment
• High Capacity: 350 HP/14.3 million BTU/hr
• UL Listed: Safety certified
• Professional Service: Miller & Chitty certified repair
• Ready to Install: Complete with controls

Additional Information

• Condition: Recently Serviced (February 2025)
• Service Provider: Miller & Chitty Co. Inc.
• Documentation: Service records available
• Safety Equipment: Full complement installed
• Fuel Switching: Dual fuel capability
• Installation: 460V connection required
• Warranty: Per service provider terms
• Facility Survey Tag: 246397

Safety & Compliance

• UL Listed assembly
• ASME Code compliance
• Emission reduction certified (AR292138)
• National Board requirements met

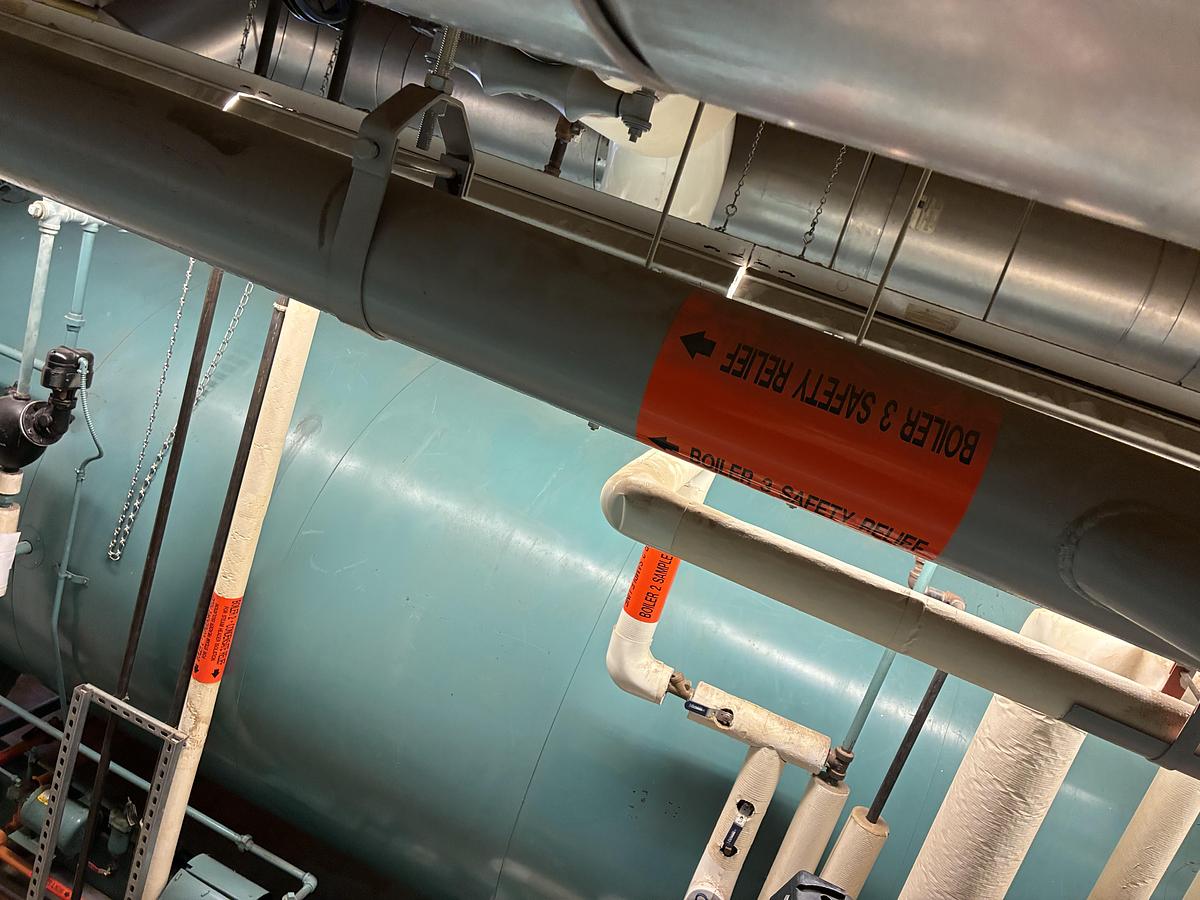

• Complete safety valve system
• Fresh service certification (2025)
• Warning labels intact
• Operator manual reference required

Service Details

This boiler has just been professionally serviced in February 2025 by Miller & Chitty Co., a certified boiler repair company. The recent service ensures:

• All safety systems tested and operational
• Controls calibrated to specifications

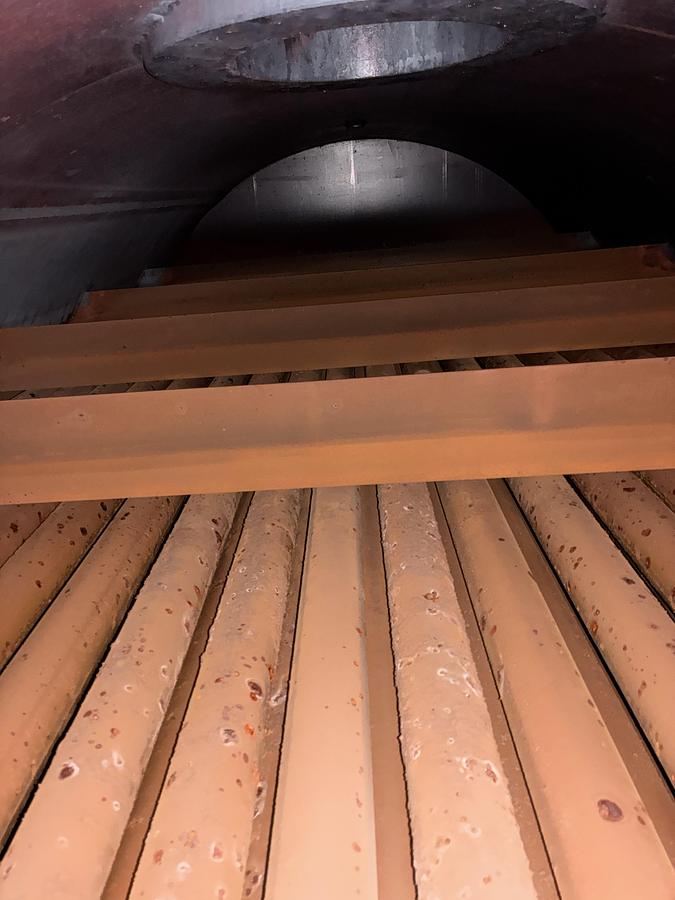

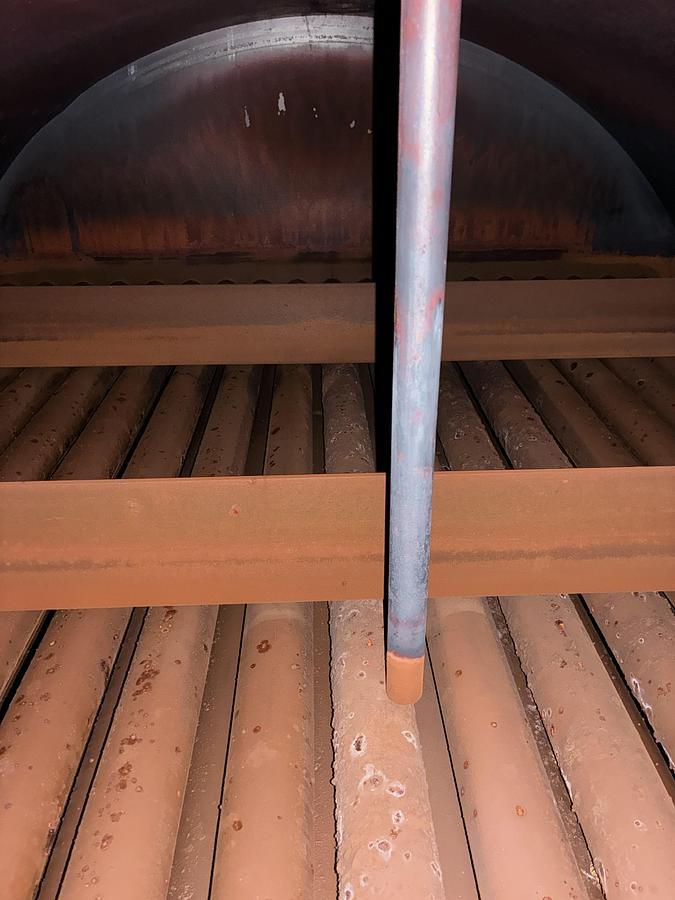

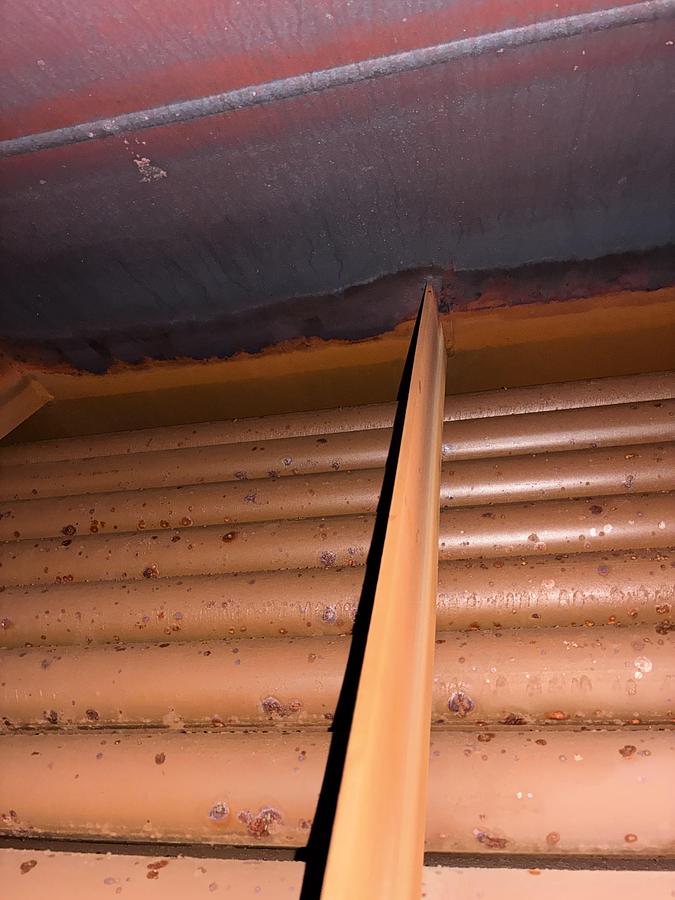

• Pressure vessel integrity verified
• Combustion system optimized
• Ready for immediate installation and operation

With identical specifications to its sister unit but with fresh 2025 service, this boiler offers proven Cleaver Brooks reliability with the confidence of recent professional maintenance.
