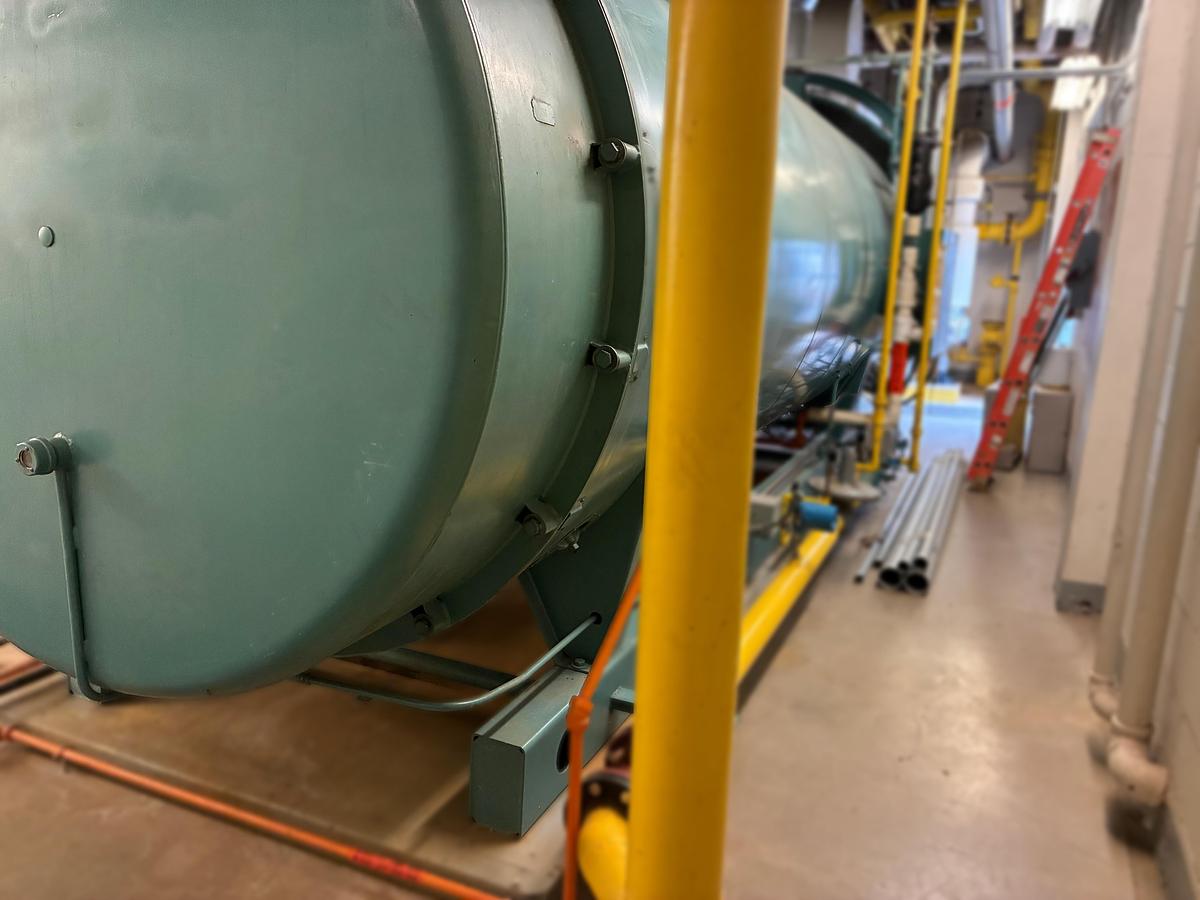

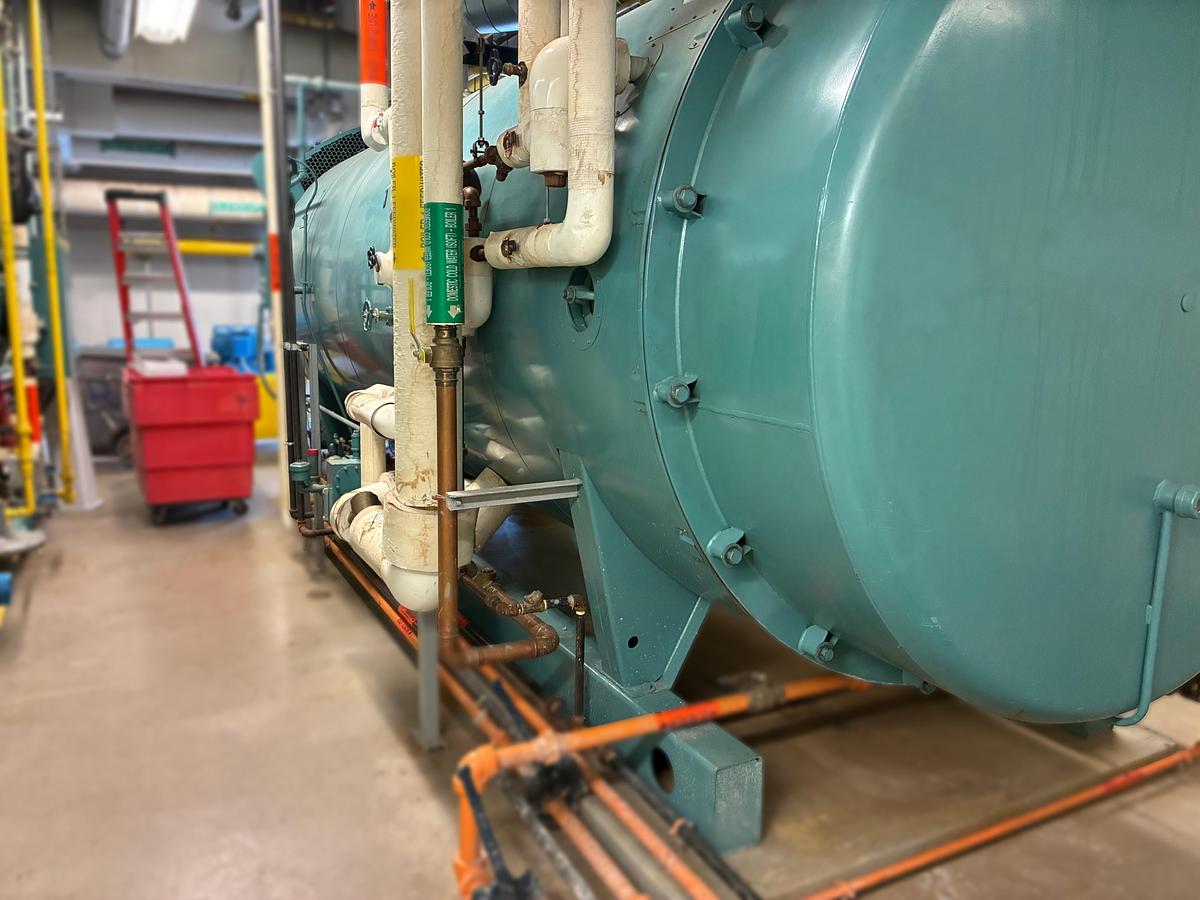

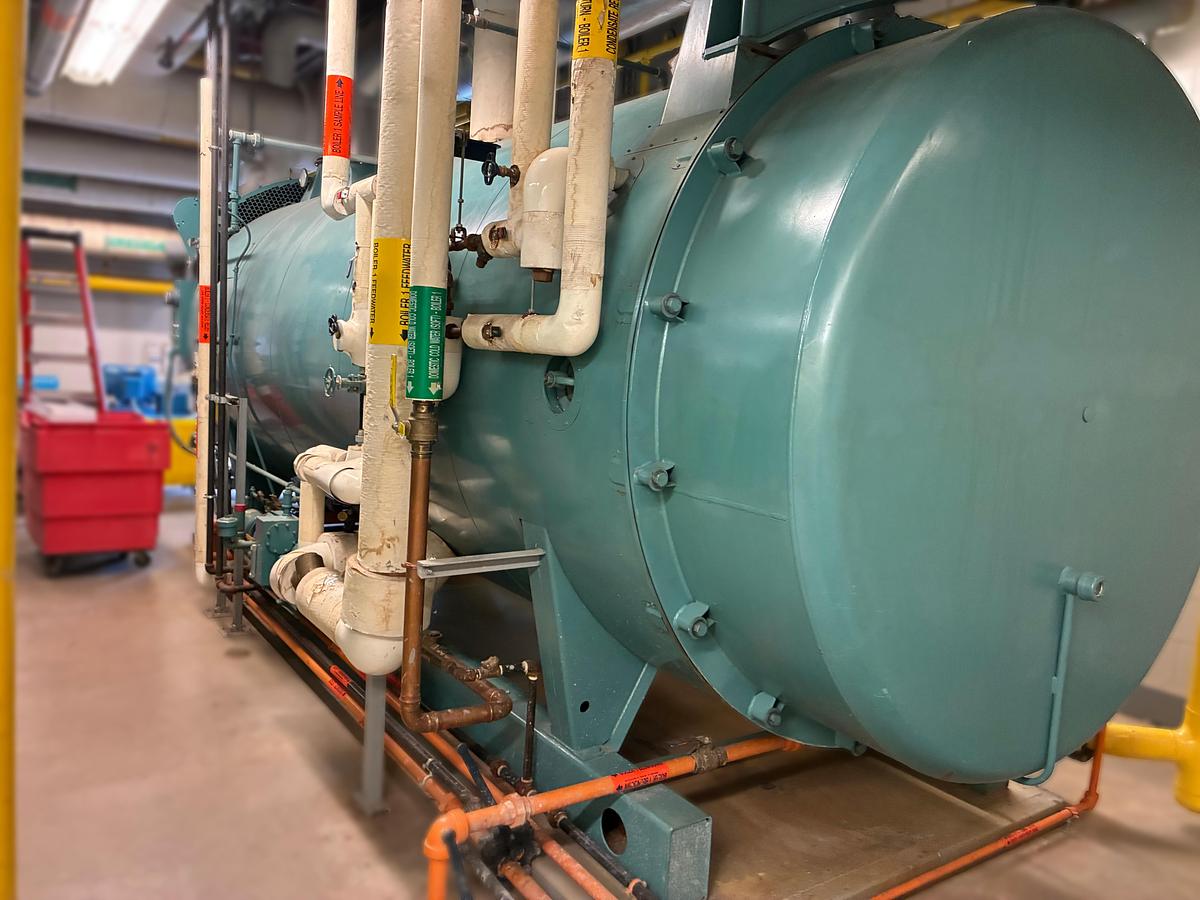

2002 Cleaver Brooks CB 350 HP Steam Boiler – 15 PSI

Overview

This 2002 Cleaver Brooks CB 350 HP Steam Boiler delivers reliable steam generation with dual fuel capability and recent professional service. Operating at 15 PSI steam pressure with 14,288,000 BTU/hr input, this steam boiler features natural gas and No. 2 oil firing options. Recently repaired by Miller & Chitty Co. in November 2021, the unit includes emission reduction equipment and complete electrical controls. Wired for 460/3/60 volt operation with comprehensive safety systems and UL certification.

Design and Performance

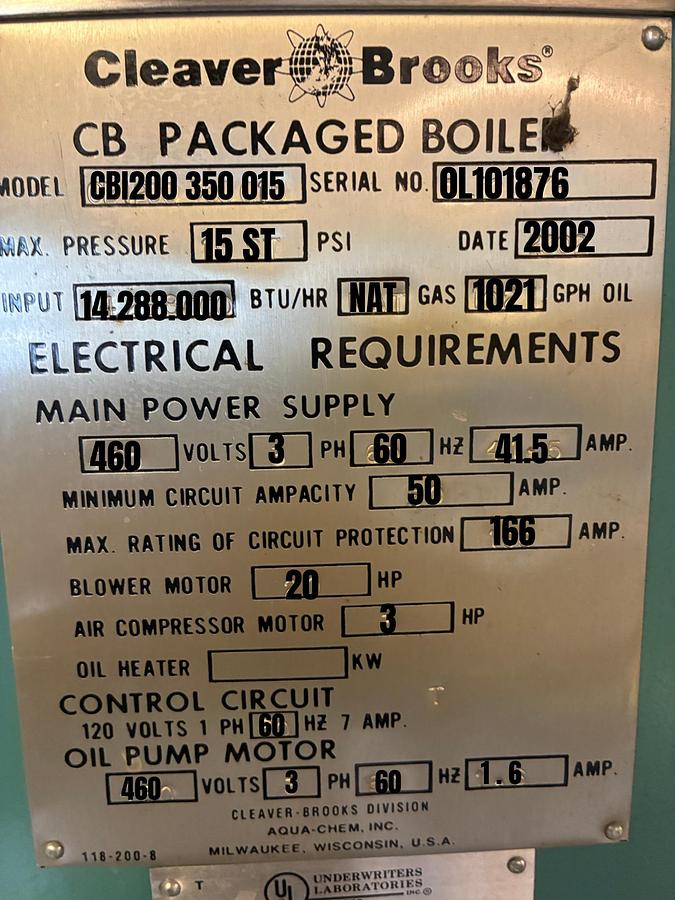

• Model: CBI200-350-015
• Serial Number: 0L101876
• Year Built: 2002
• Design Pressure: 15 PSI Steam
• Input Capacity: 14,288,000 BTU/hr
• Fuel Type: Dual Fuel - Natural Gas / No. 2 Oil
• Gas Capacity: 102 GPH Oil
• Electrical: 460/3/60 Volt, 21.5 Amp
• Emission Control: Integrated reduction equipment
• Stock Number: 246399

Recent Professional Service

Repair History

• Service Provider: Miller & Chitty Co. Inc., Kenilworth NJ
• Repair Date: November 18, 2021 (11.18.21)
• Job Number: 3613
• NJR Symbol Number: Listed
• Service Location: 135-139 Market St., Kenilworth NJ 07033

Certifications & Testing

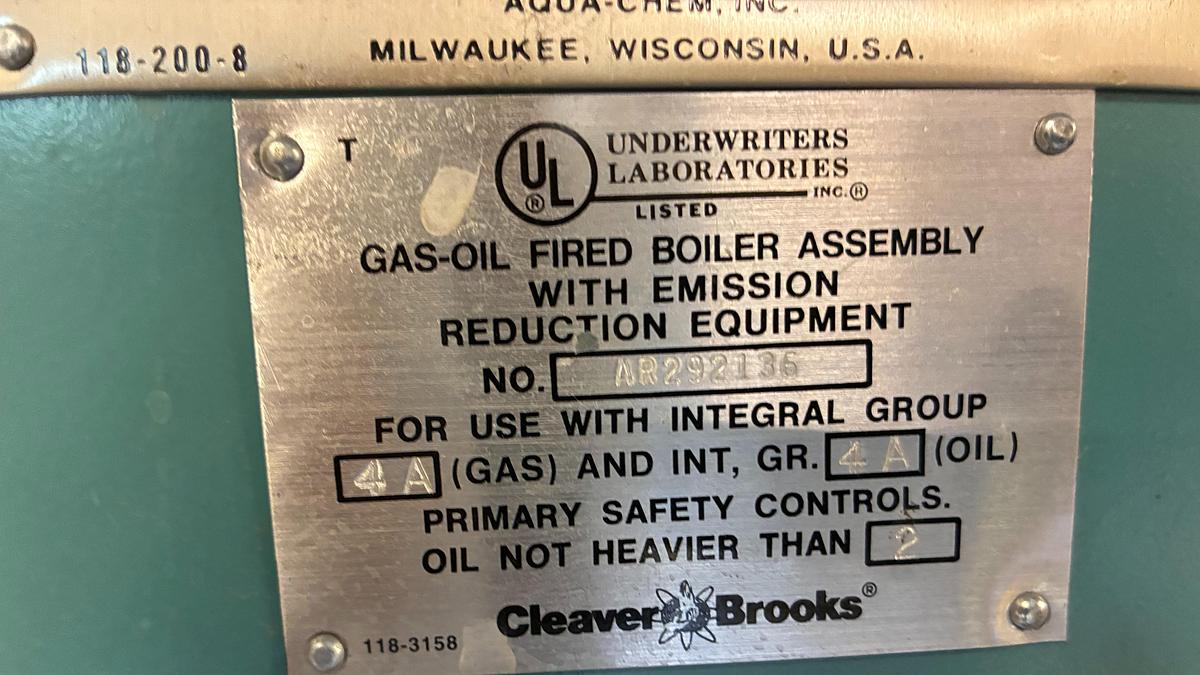

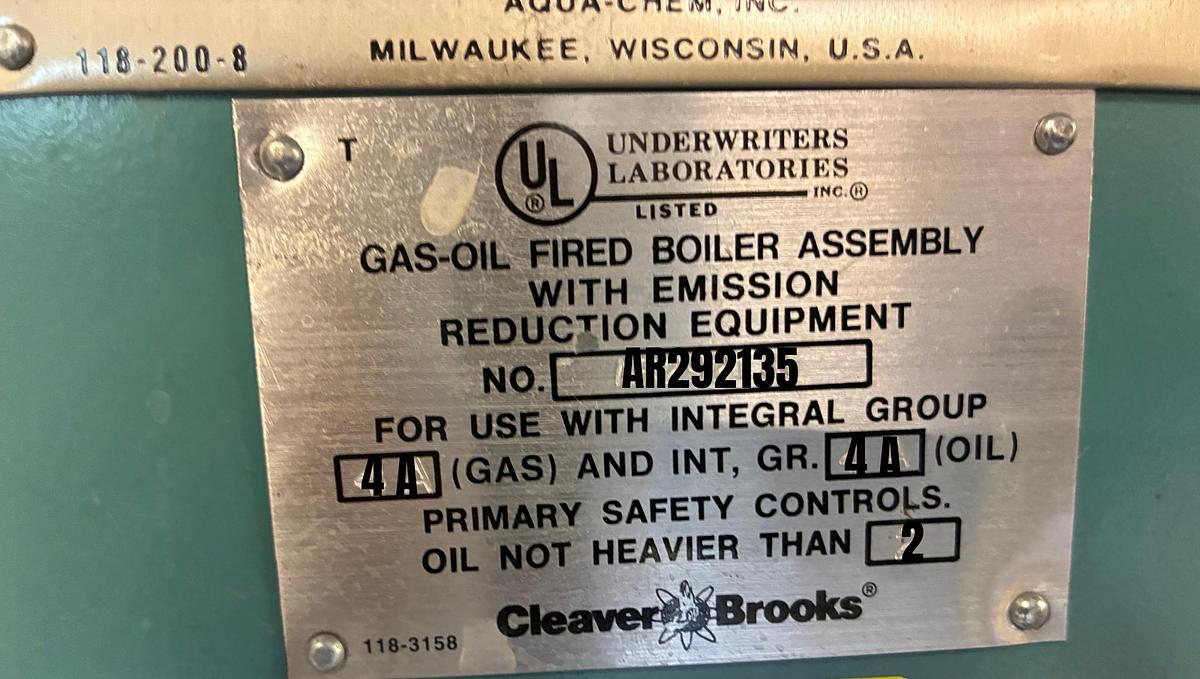

• UL Listed for Gas-Oil Fired Boiler Assembly
• Emission Reduction Equipment Certified
• ASME Code compliance
• Underwriters Laboratories approval

Complete Equipment Package

Primary Components

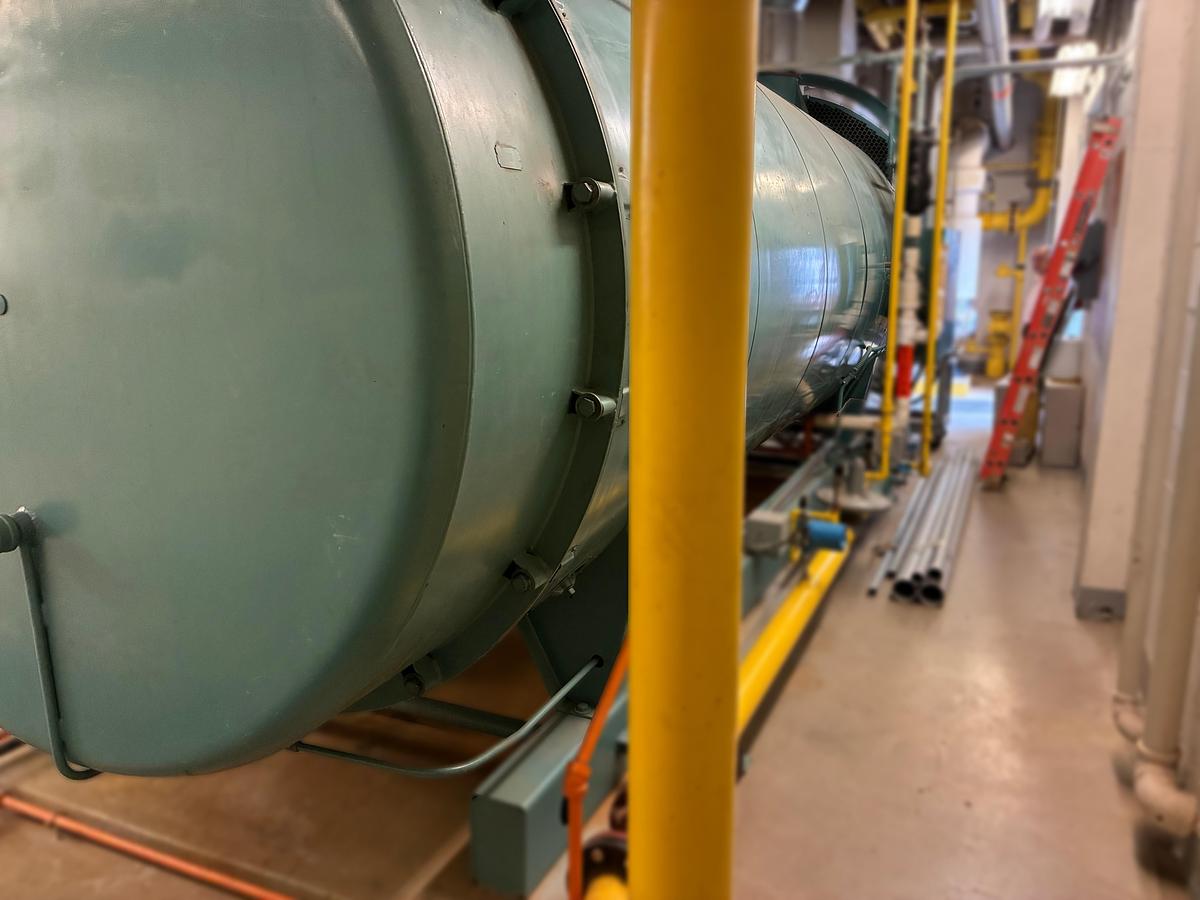

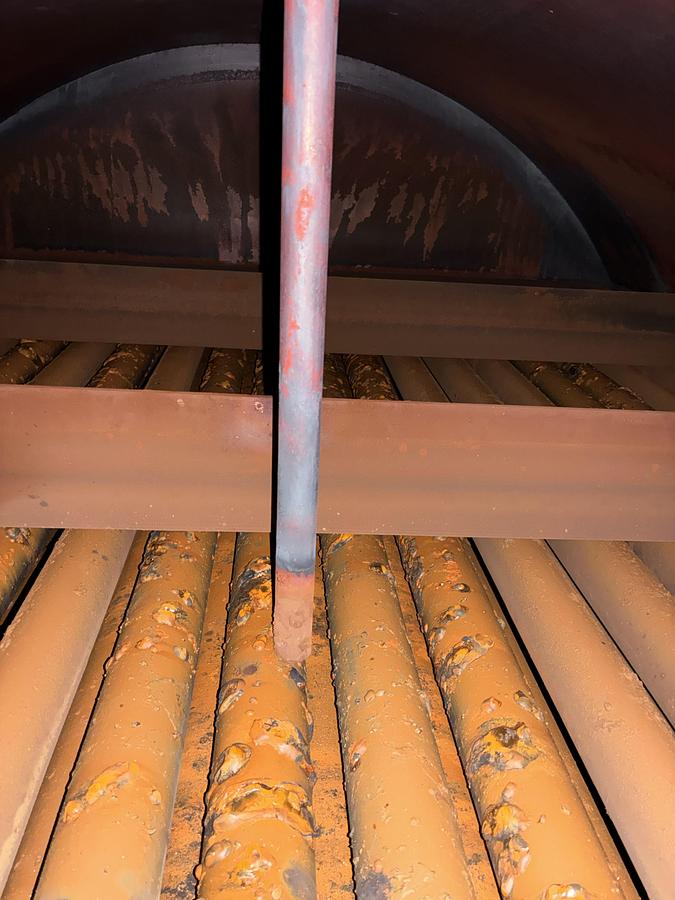

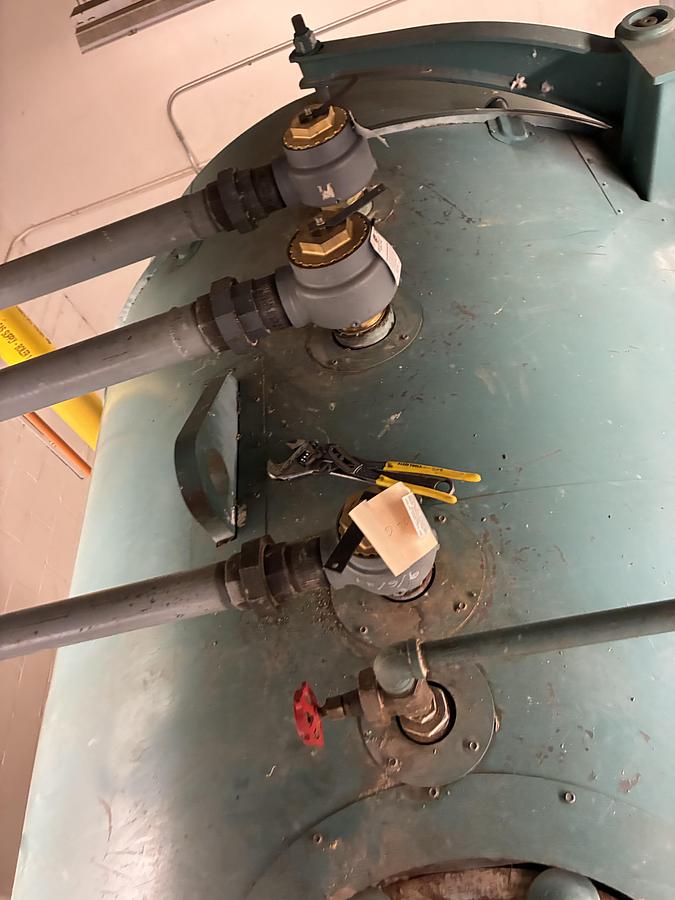

• Cleaver Brooks pressure vessel
• Dual fuel burner system (gas/oil)
• Emission reduction equipment

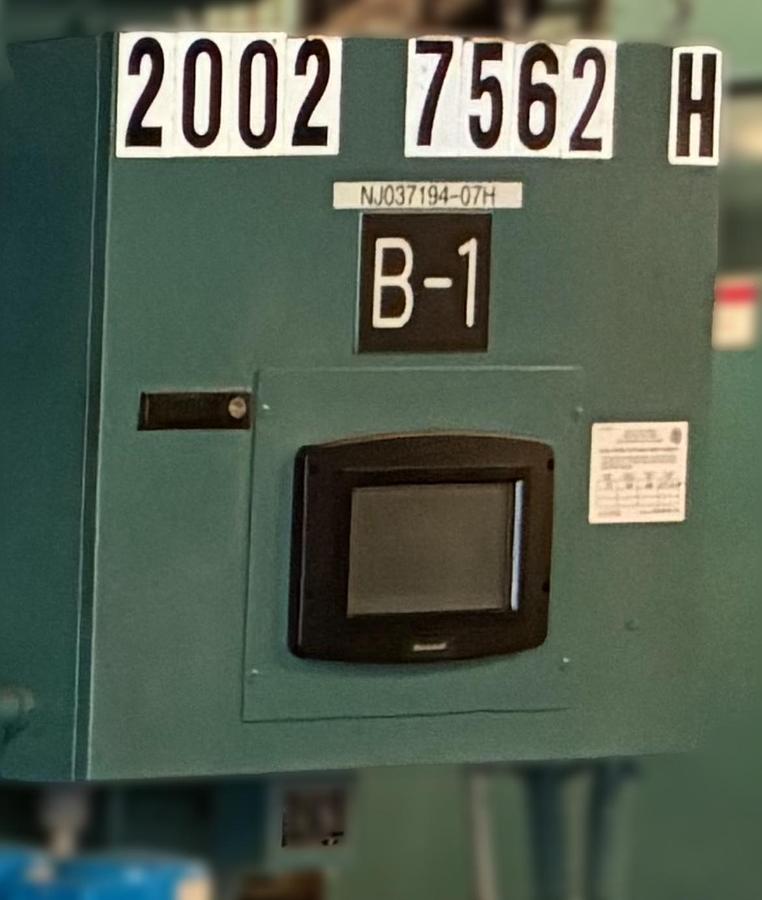

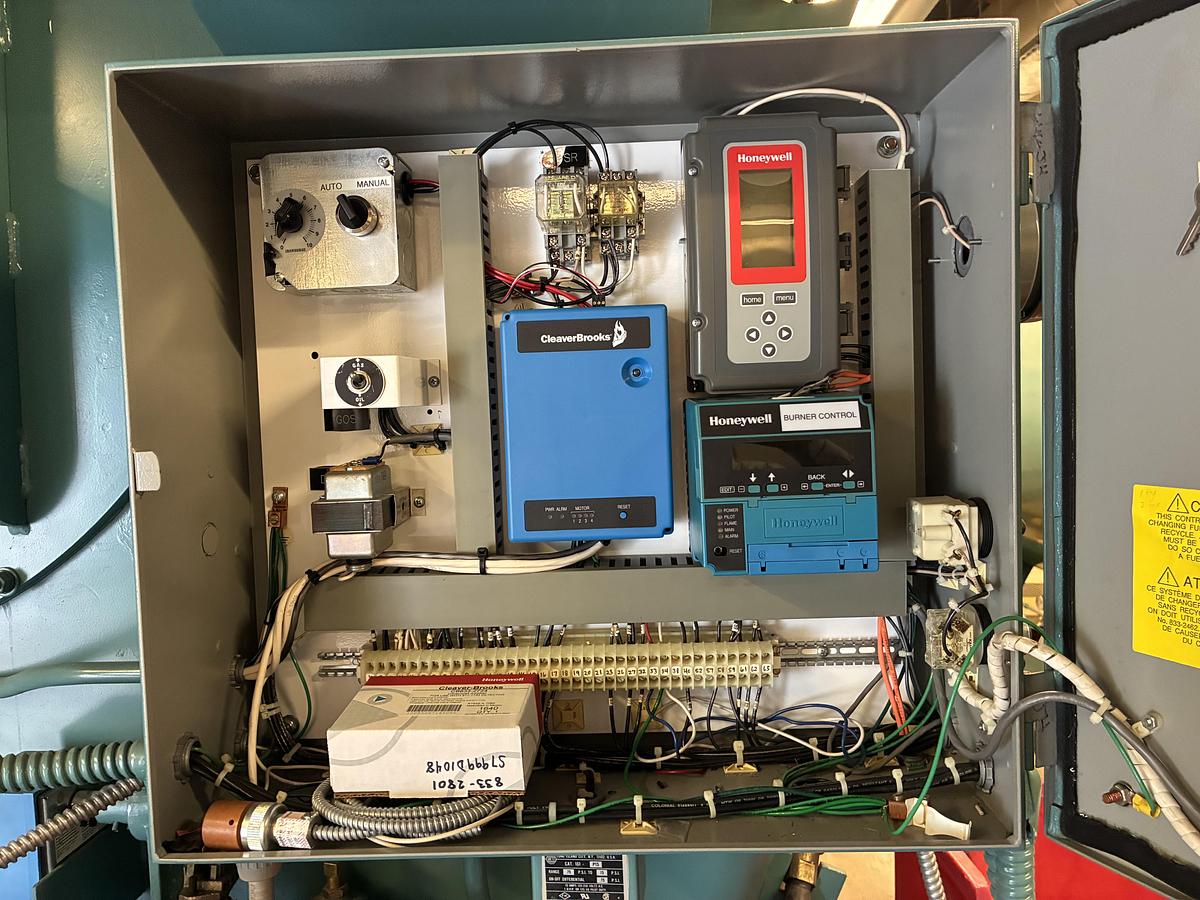

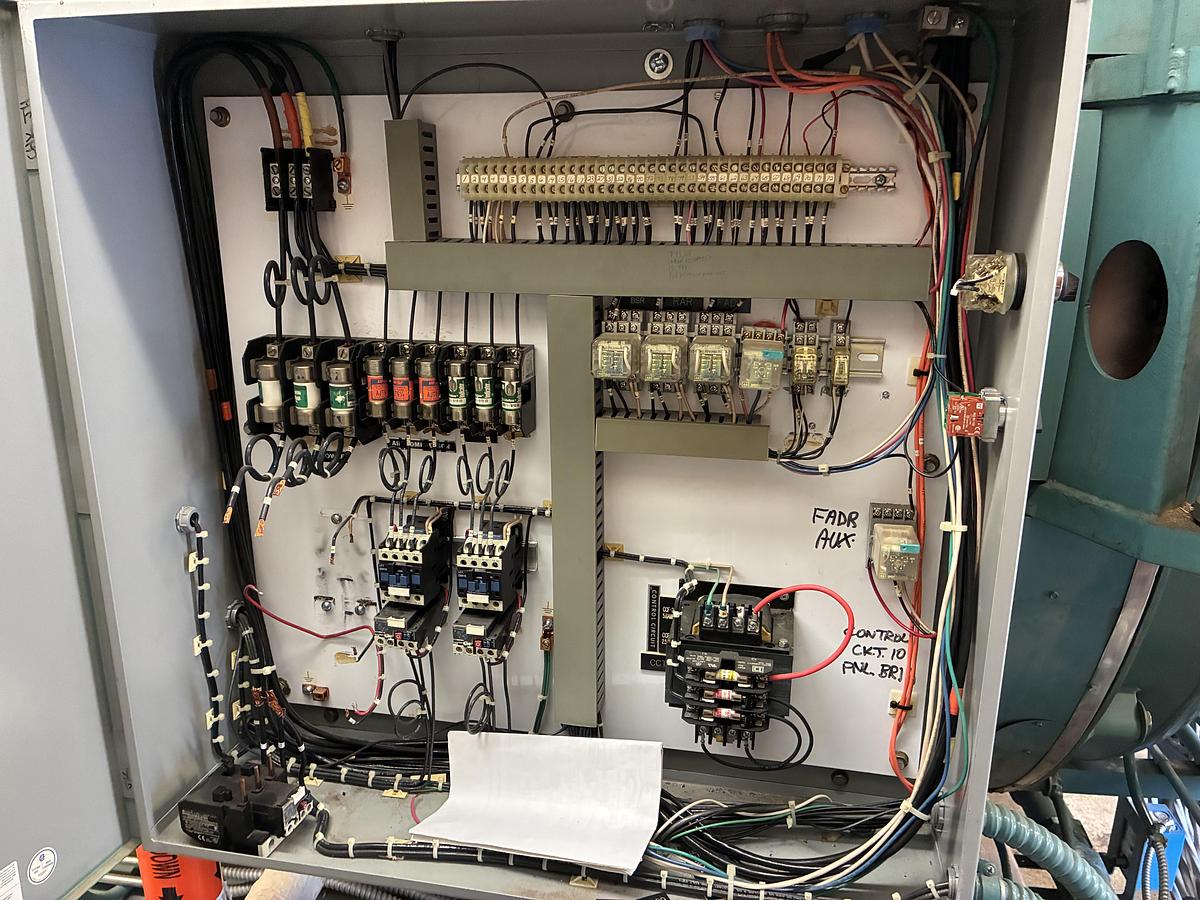

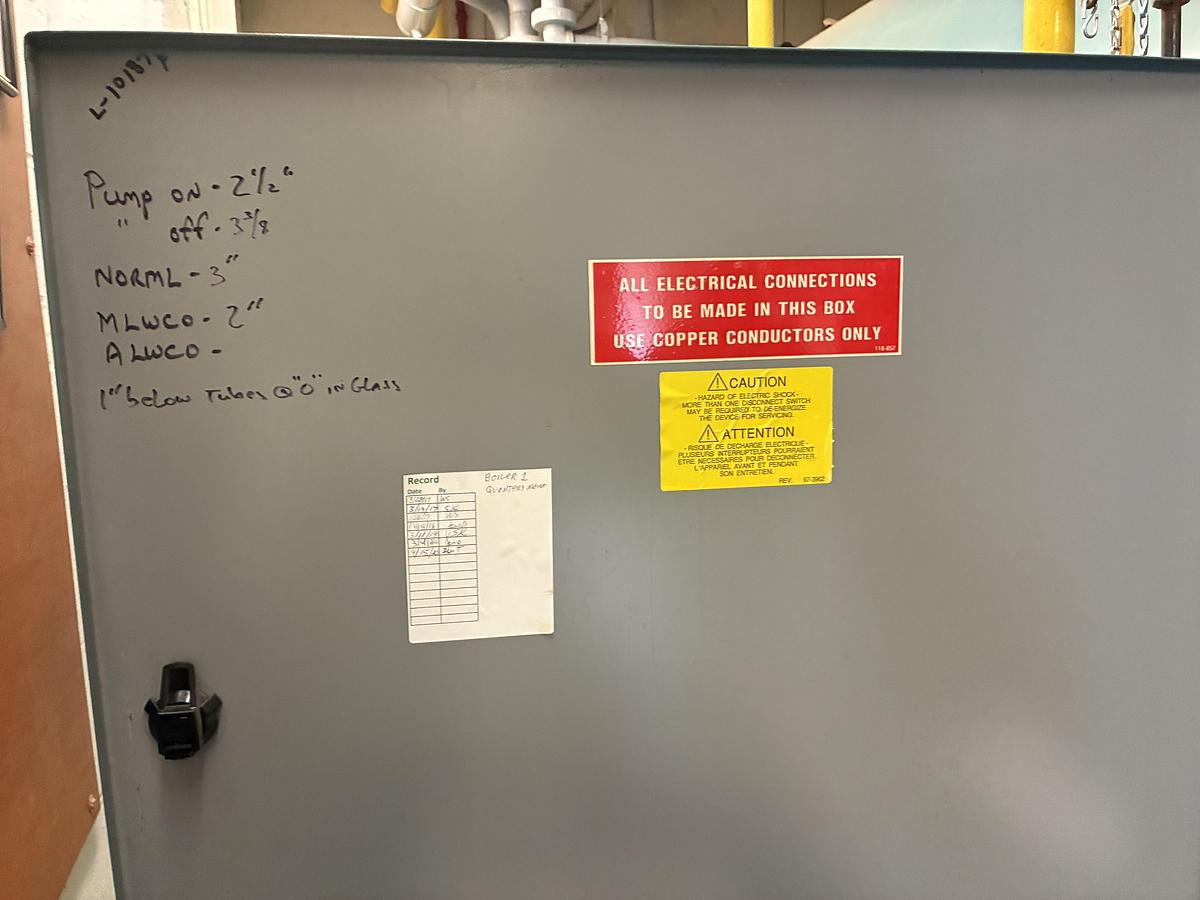

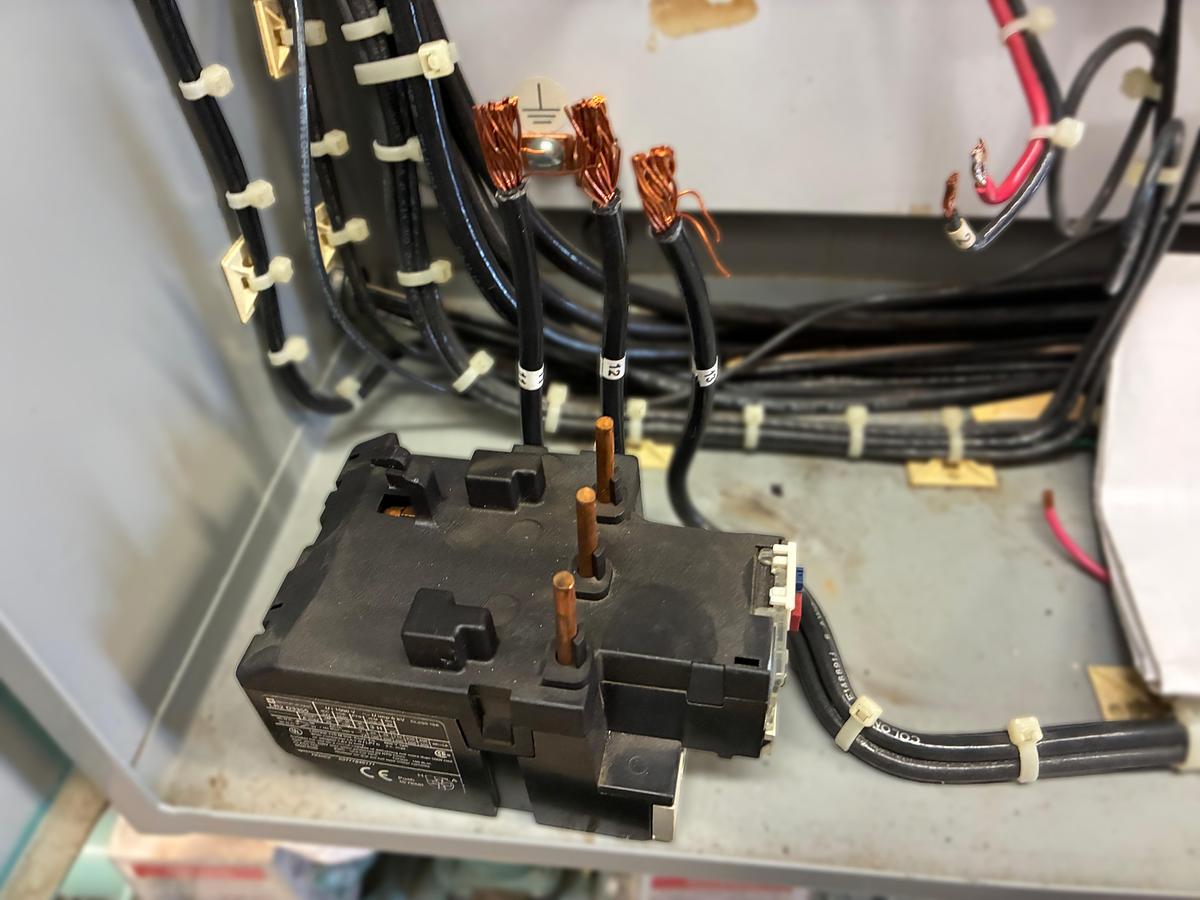

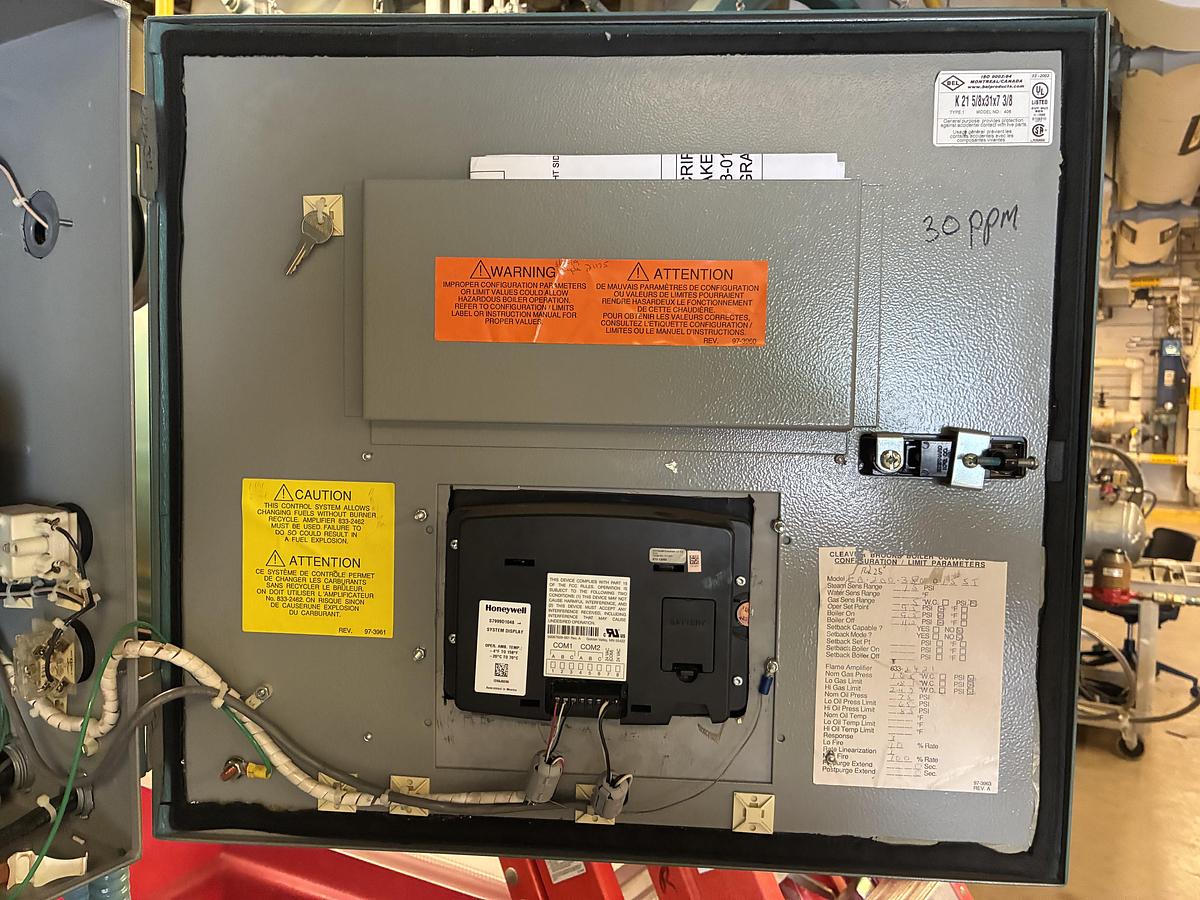

• Complete control panel

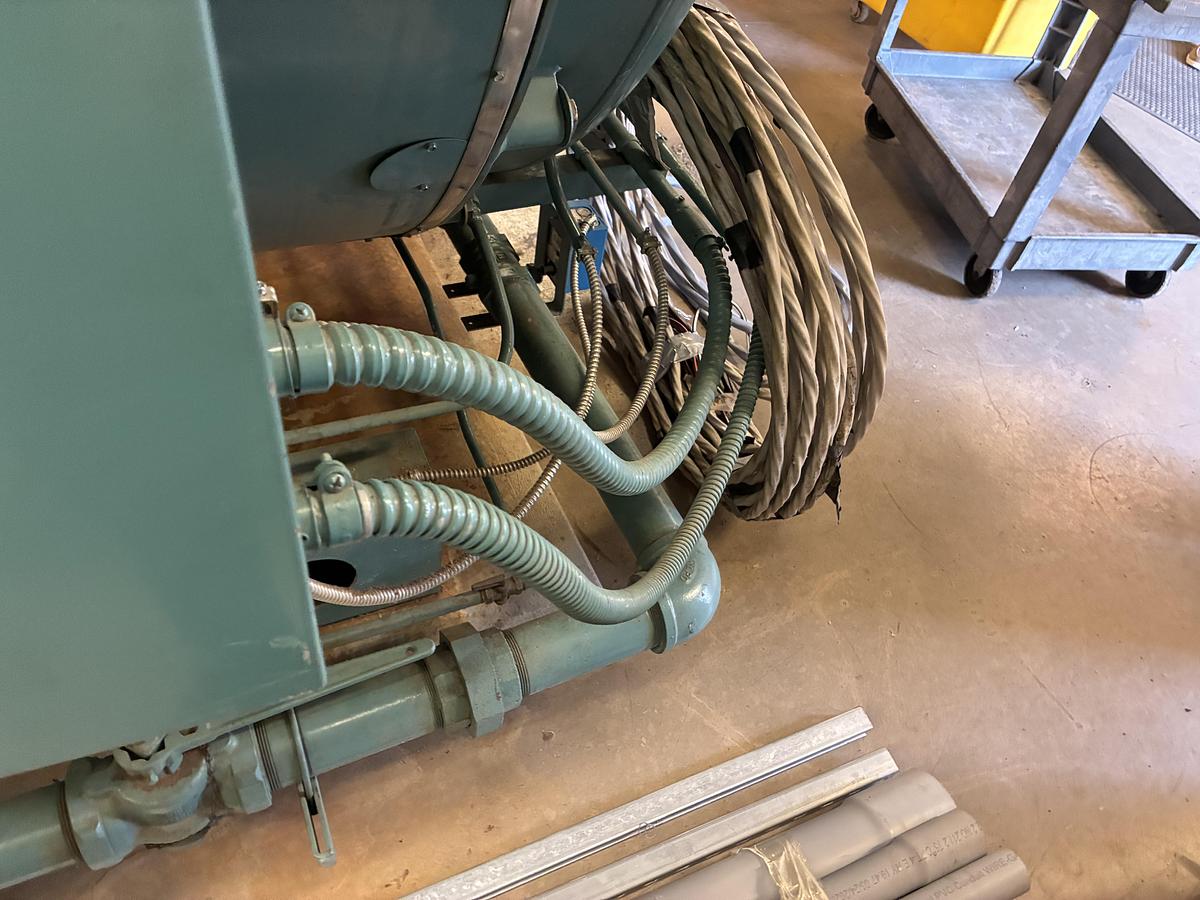

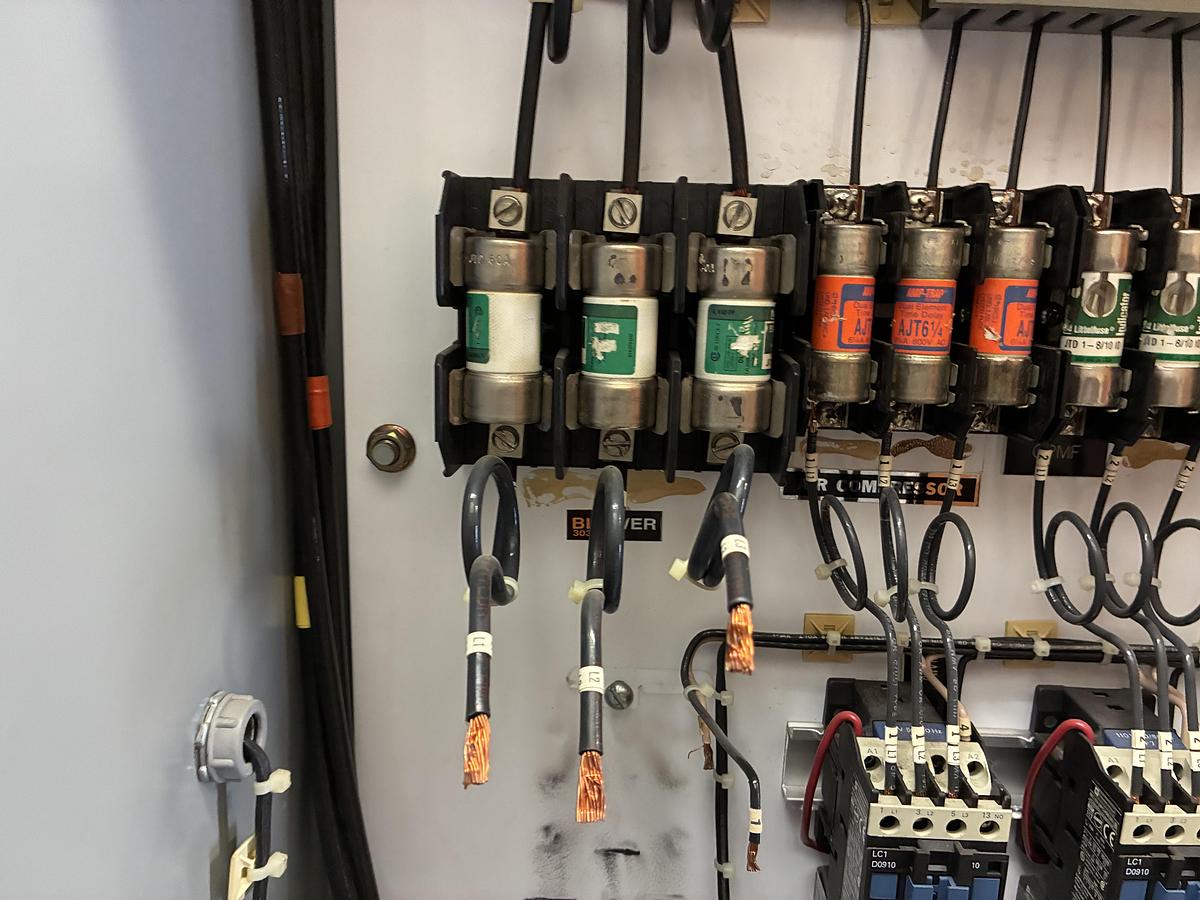

• Electrical distribution system

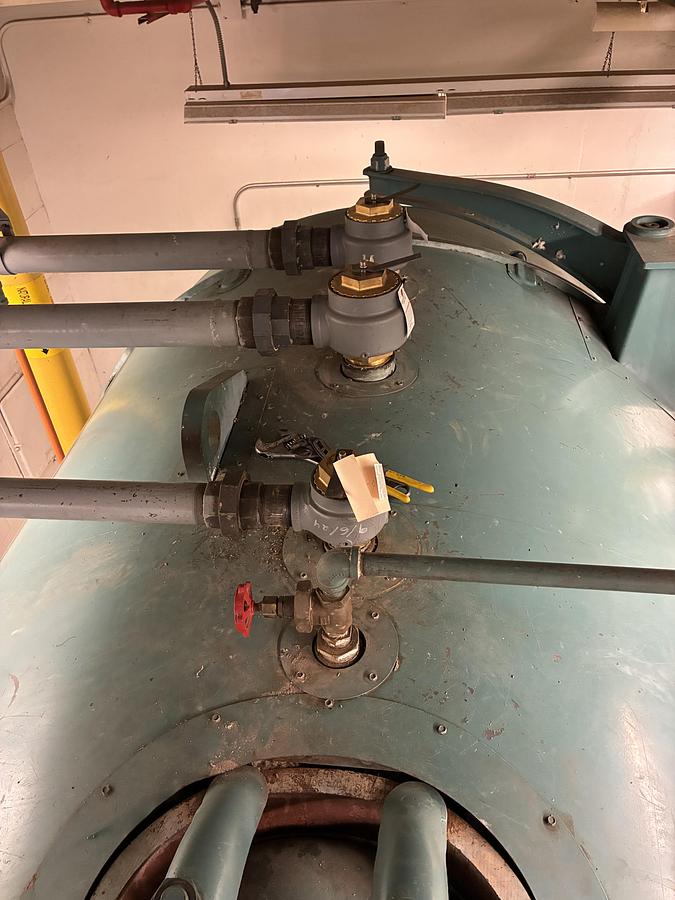

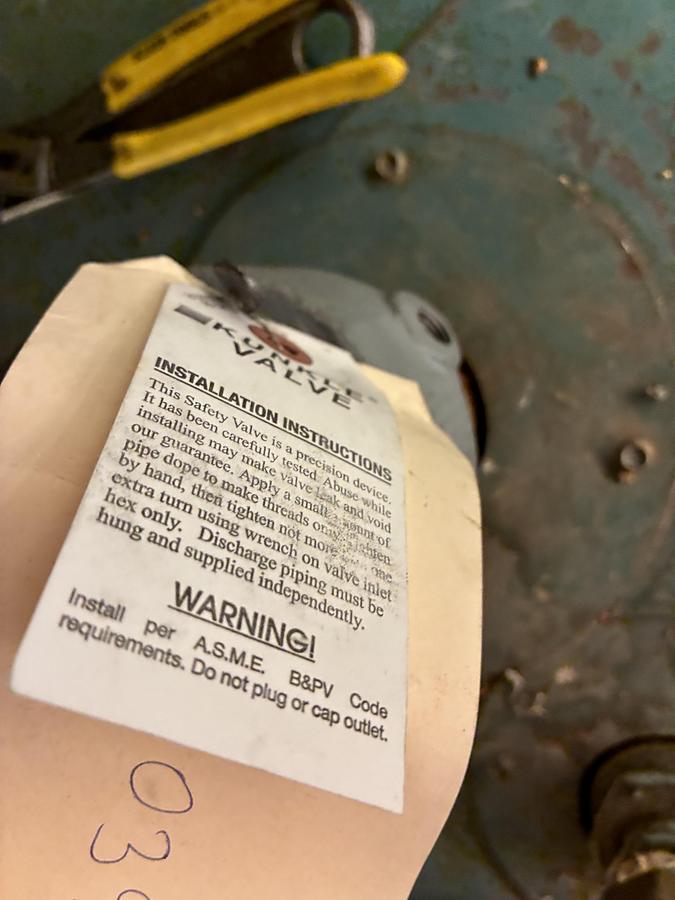

• Safety valve systems
• Fuel changeover linkage system

Control Components

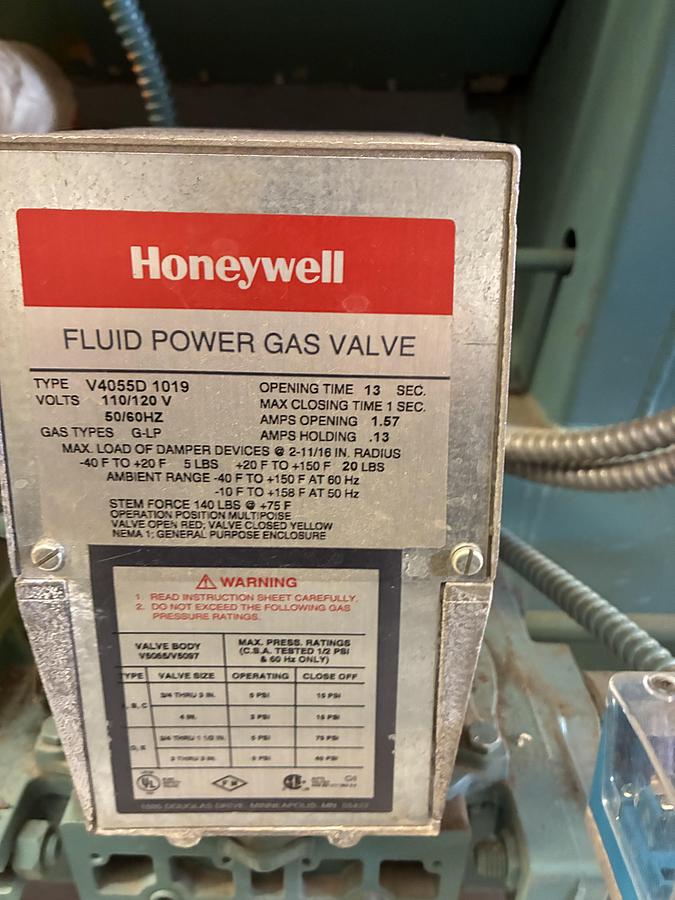

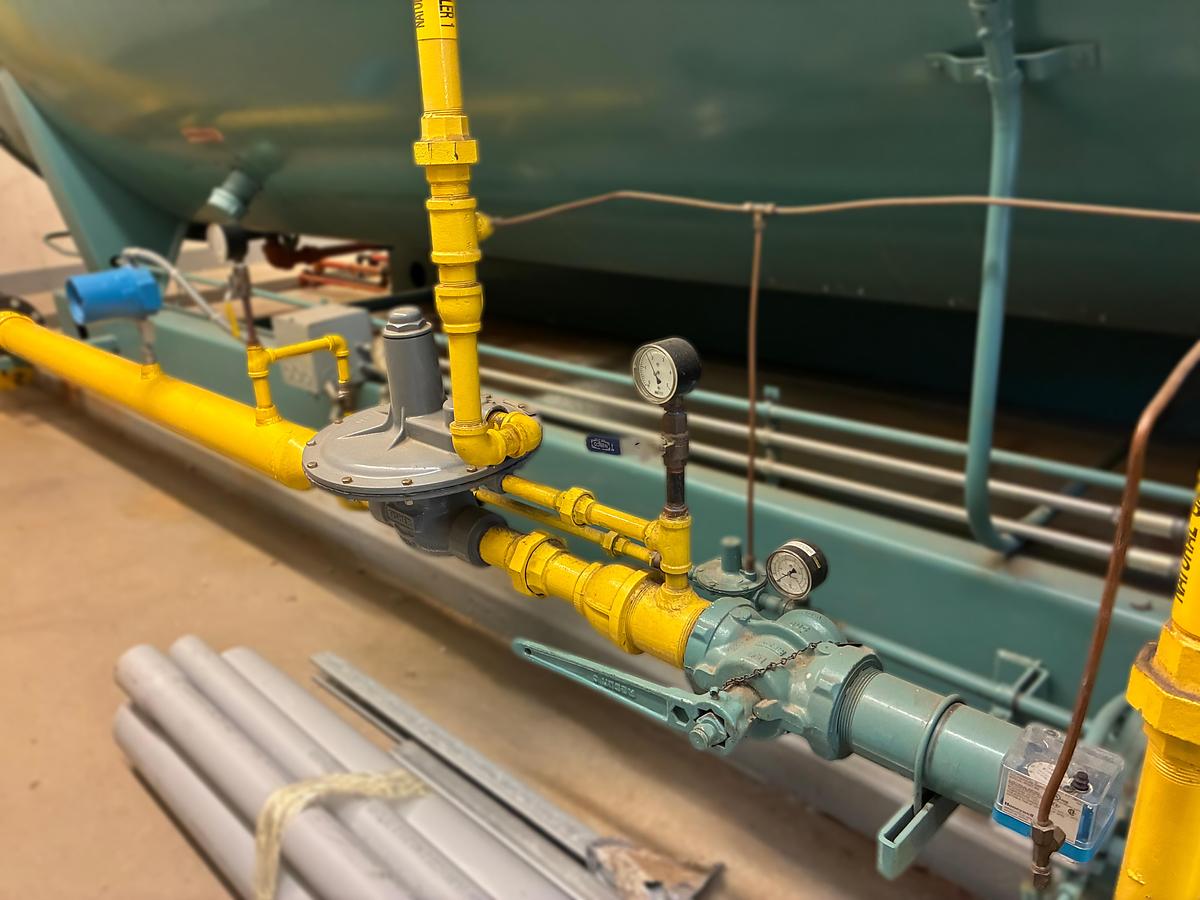

• Gas Valve: Honeywell V4055D 1019 Fluid Power
• 110/120V, 50/60Hz operation
• 13 second opening time
• 1 second max closing time

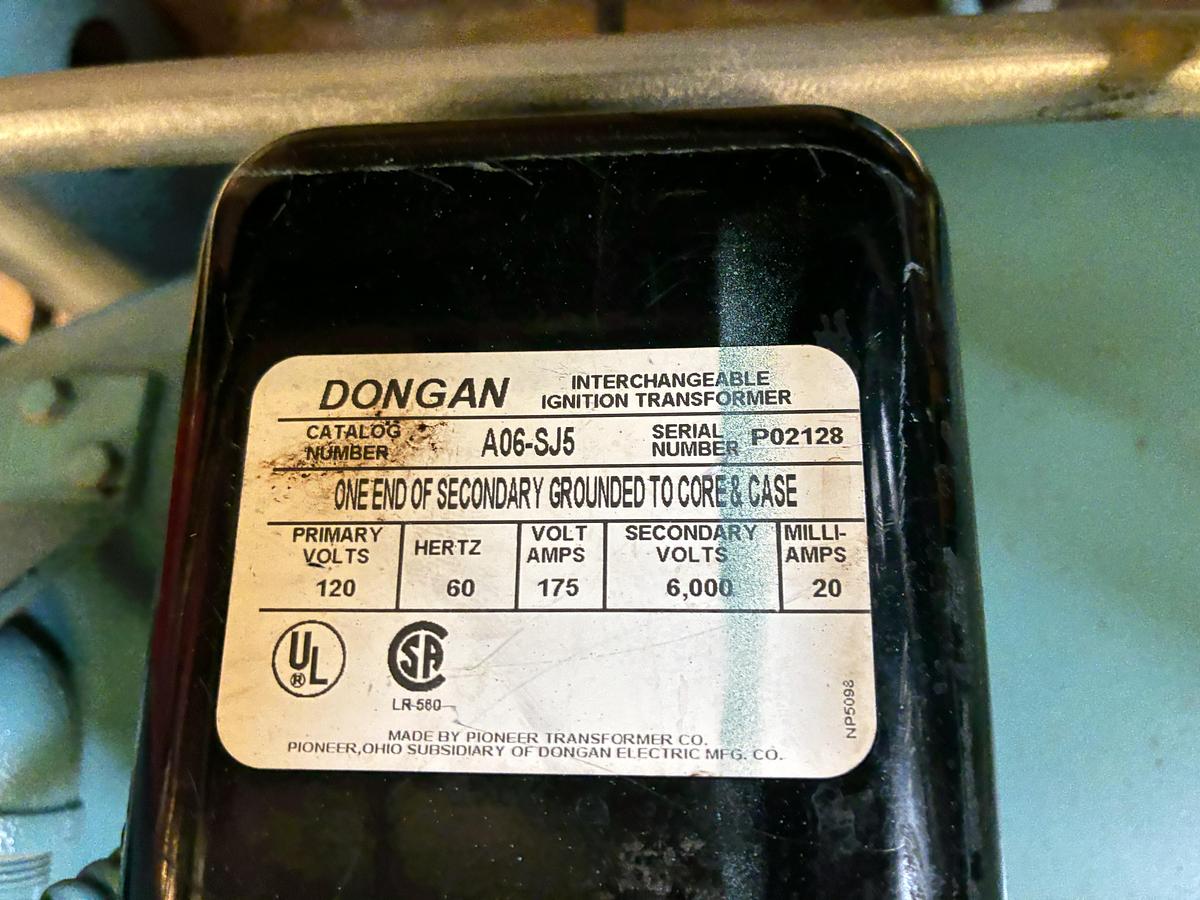

• Ignition System: Dongan A06-SJ5 transformer
• 120V primary, 6,000V secondary
• 175 Amp primary, 20 mA secondary

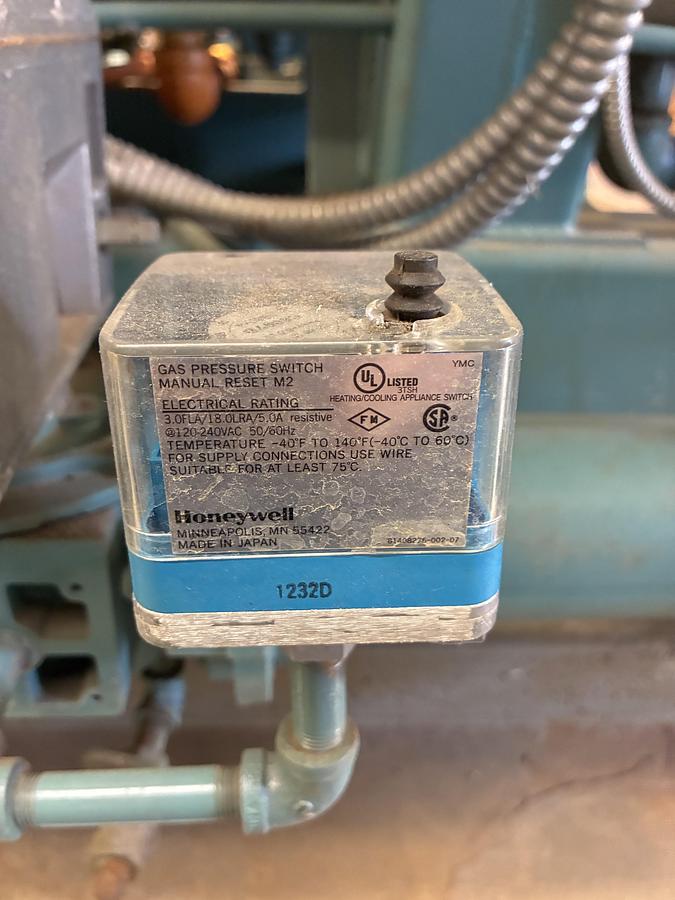

• Safety Controls: Integral Group 4A (Gas) and 2A (Oil)

Motor Specifications

• Blower Motor: 20 HP
•

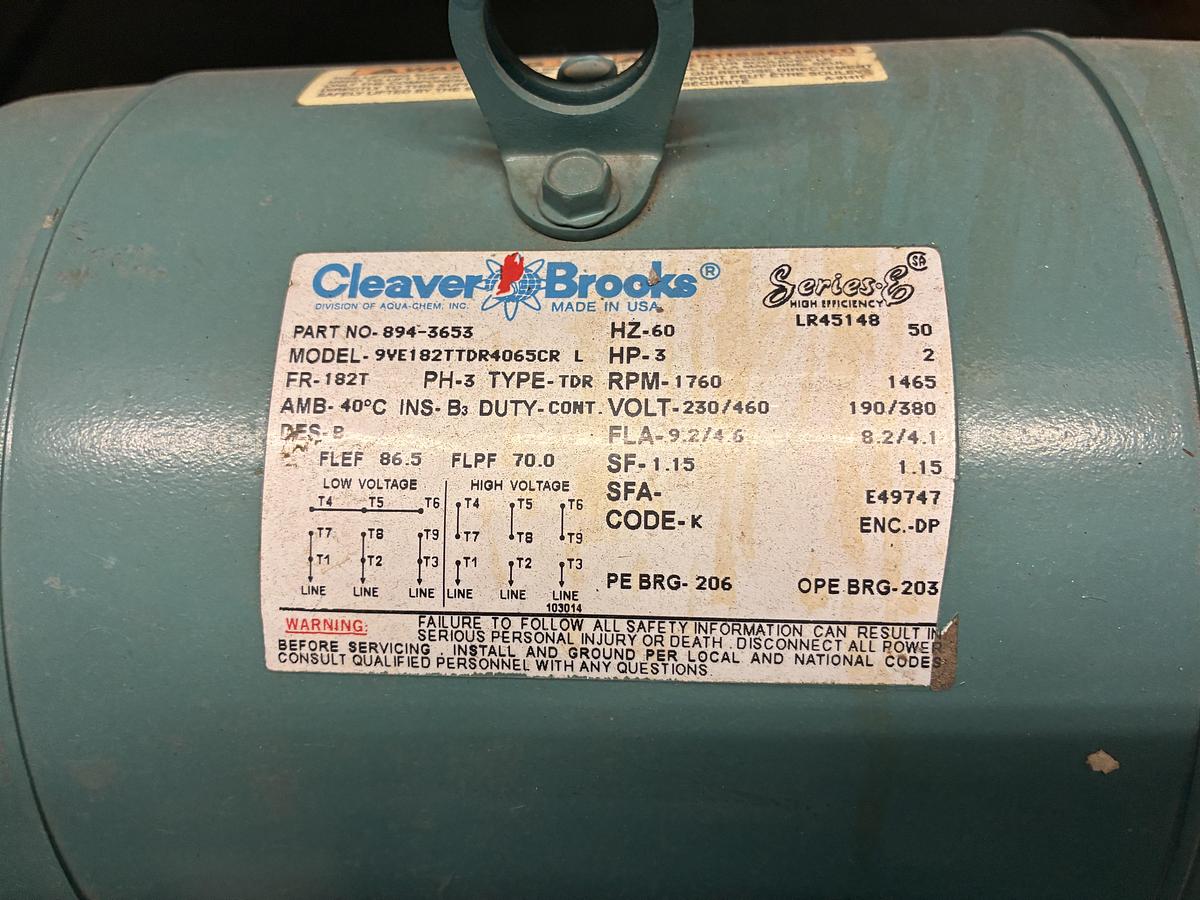

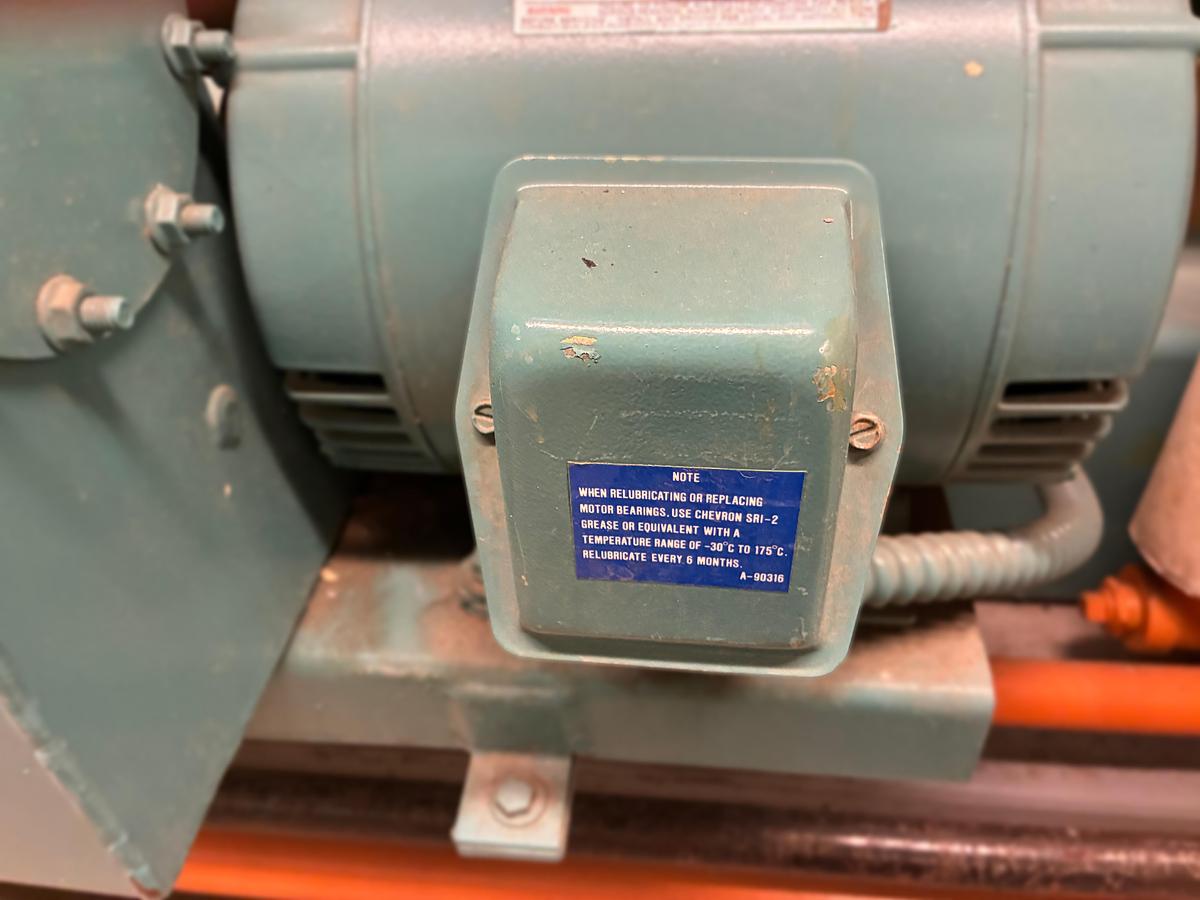

• Air Compressor Motor: 3 HP (Cleaver Brooks 9VE182TTDR4065CR)
• 3 HP, 1760 RPM
• 230/460V, 3-phase
• TEFC enclosure

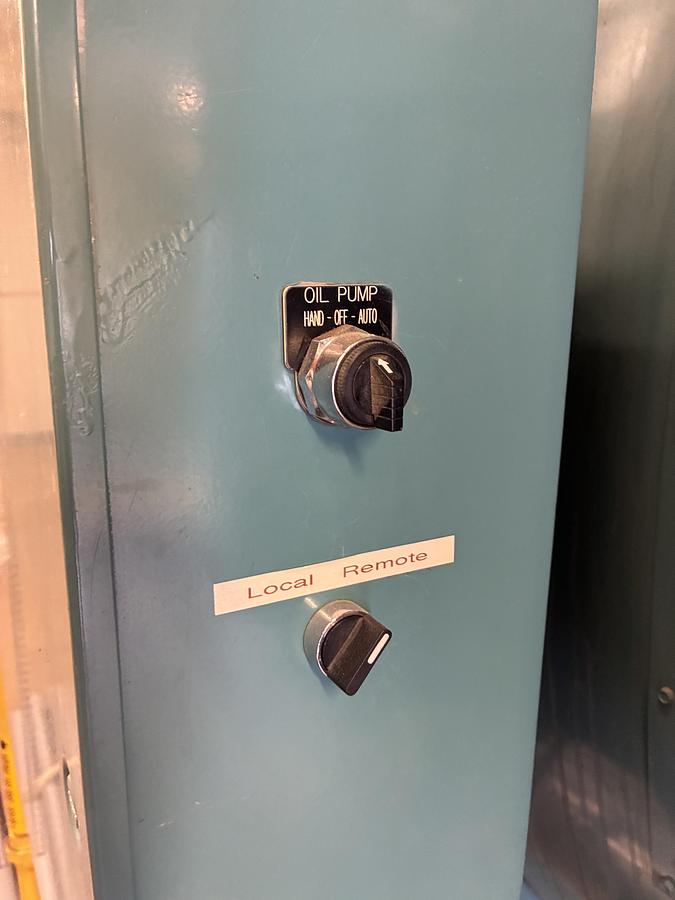

• Oil Pump Motor: 460V/3-phase/60Hz

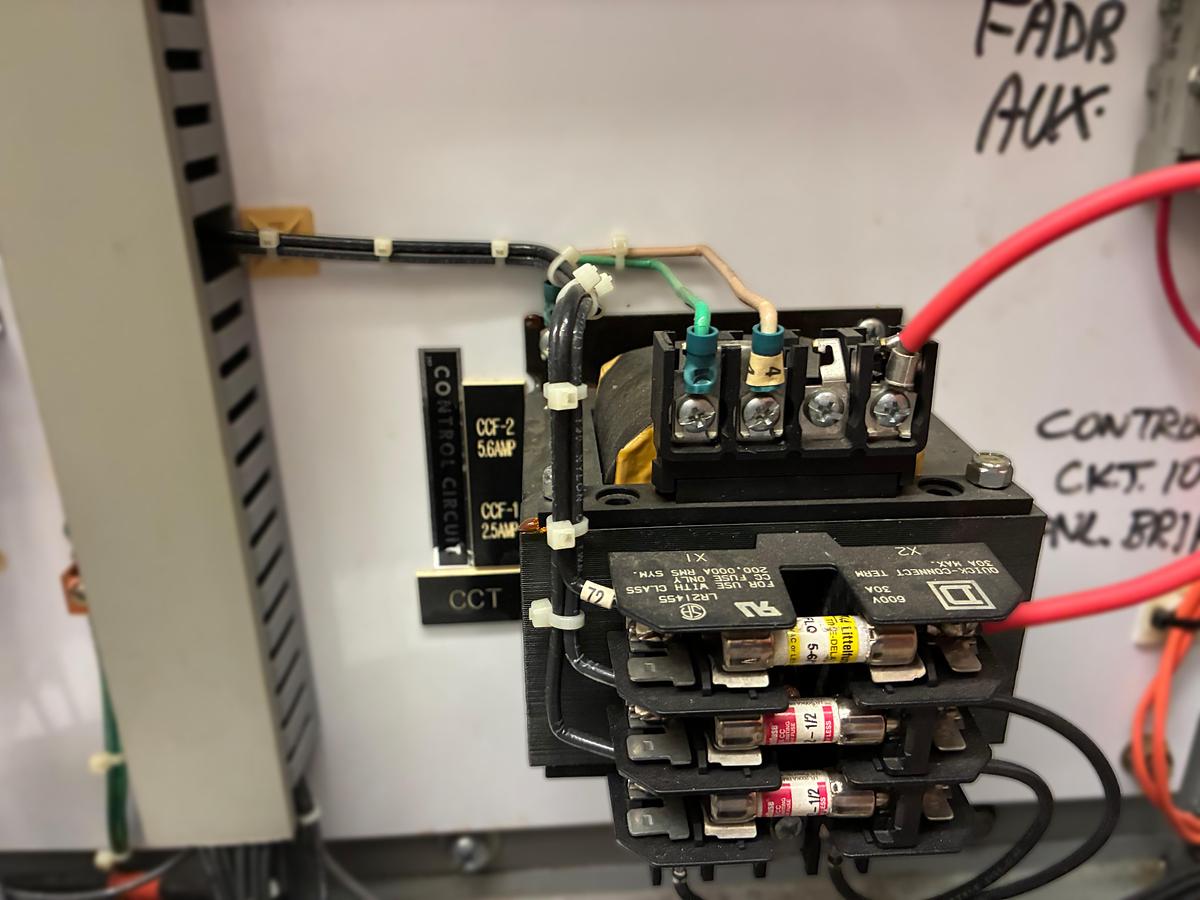

• Control Circuit: 120V/1-phase/60Hz, 7 Amp

Electrical Requirements

• Main Power Supply: 460V/3-phase/60Hz
• Full Load Amps: 21.5
• Minimum Circuit Ampacity: 50 Amp
• Maximum Circuit Protection: 100 Amp
• Control Voltage: 120V single phase
• Wiring: Complete with panel schematic (March 2013)

Key Specifications

• Boiler Type: CB Packaged Firetube
• Operating Pressure: 15 PSI Steam
• BTU Input: 14,288,000 BTU/hr
• Fuel Options: Natural Gas and No. 2 Oil
• Oil Type: Not heavier than No. 2
• Voltage: 460/3/60 (as wired)
• Recent Service: November 2021
• Emission Equipment: Factory integrated

Ideal Applications

• Light Industrial Steam
• Commercial Buildings
• Process Steam Applications
• Heating Systems
• Small Manufacturing
• Institutional Facilities
• Warehouse Heating
• Any facility requiring 15 PSI steam

Benefits

• Recent professional service (2021)
• Dual fuel flexibility provides backup
• Low pressure steam for safety
• Emission reduction equipment included
• UL Listed for safety compliance
• Complete electrical package
• Professional wiring diagram included
• Proven Cleaver Brooks reliability
• 14.3 million BTU/hr capacity
• Ready for installation

Additional Information

• Condition: Recently Serviced (2021)
• Included: Complete boiler package with controls
• Documentation: Wiring diagram dated 3-13-13
• Safety Equipment: Full complement installed

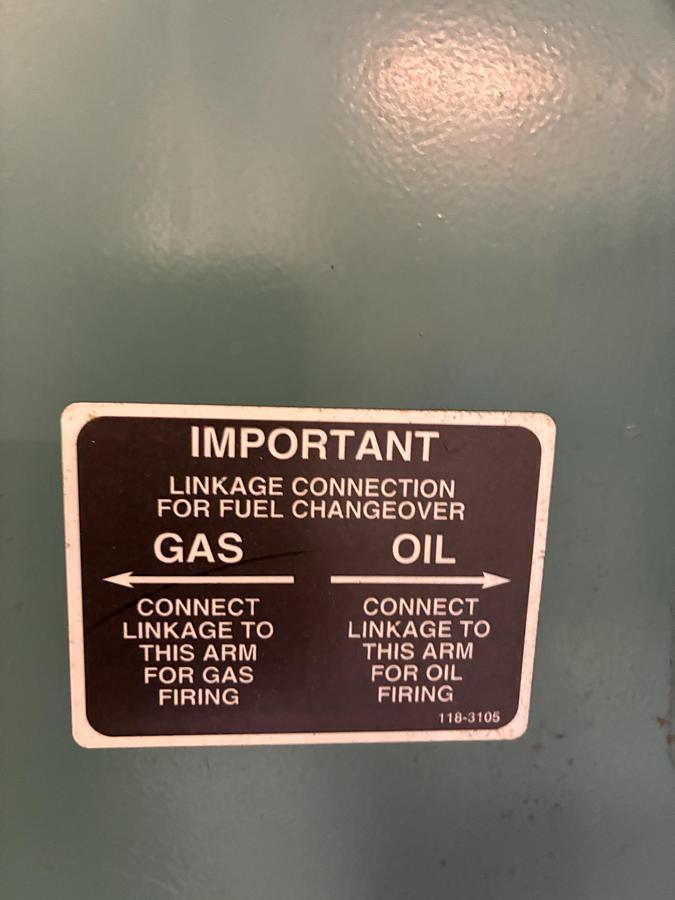

• Fuel Switching: Manual linkage changeover
• Installation: 460V connection required
• Service Records: Available from 2021

Safety & Compliance

• UL Listed assembly
• ASME Code compliance
• Emission reduction certified
• National Board requirements met
• Complete safety valve system
• Professional service documentation

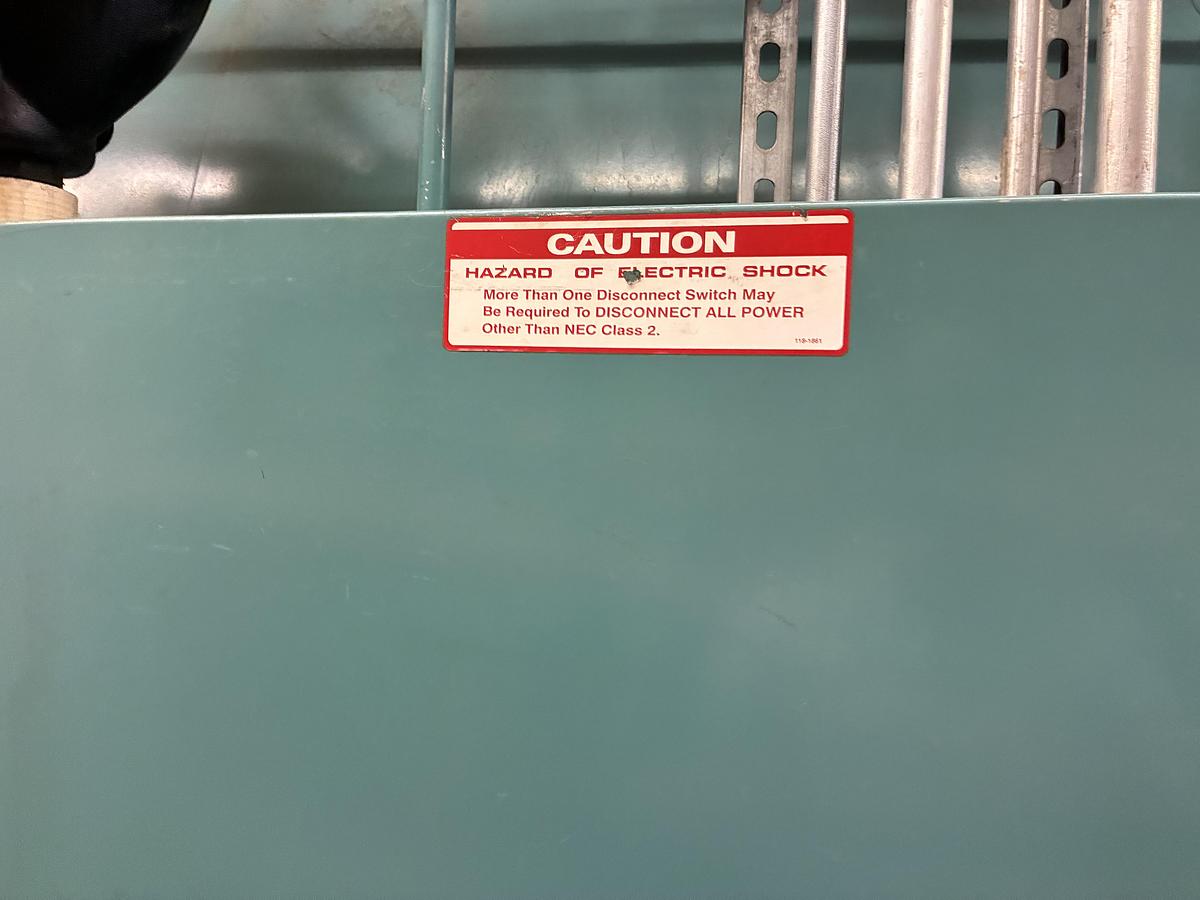

• Warning labels intact
• Operator manual reference required
