Trane CenTraVac Water Chiller 1450 Tons – CVHF1470

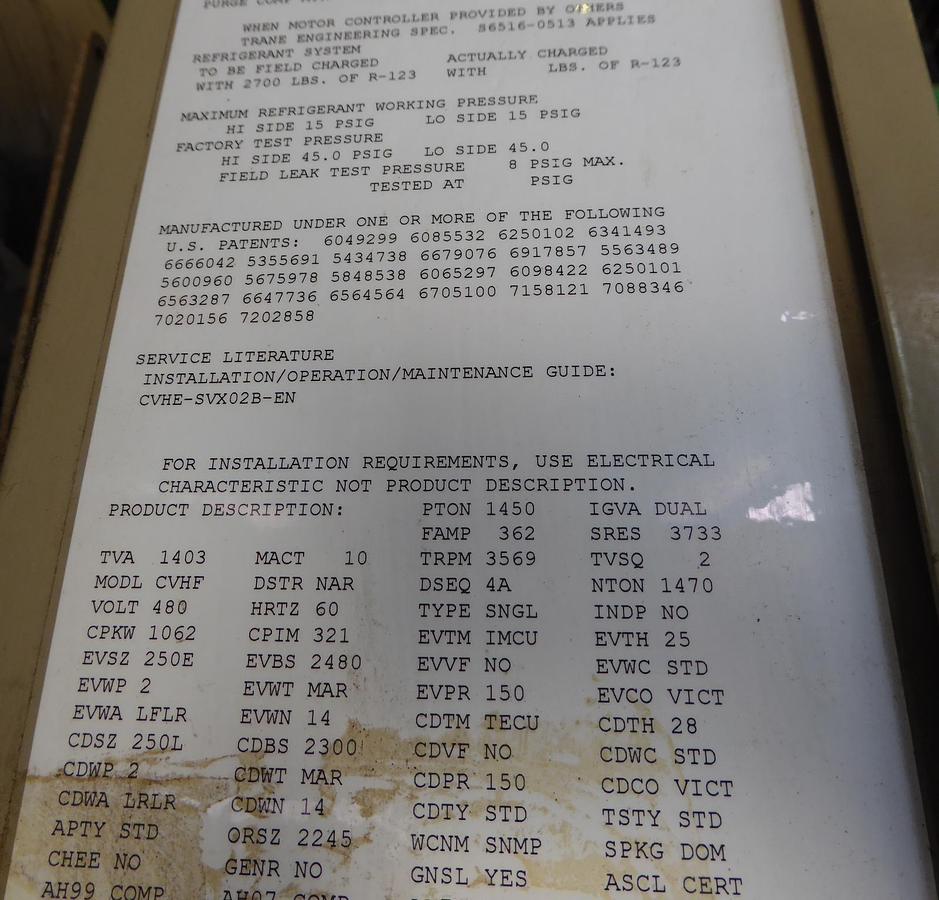

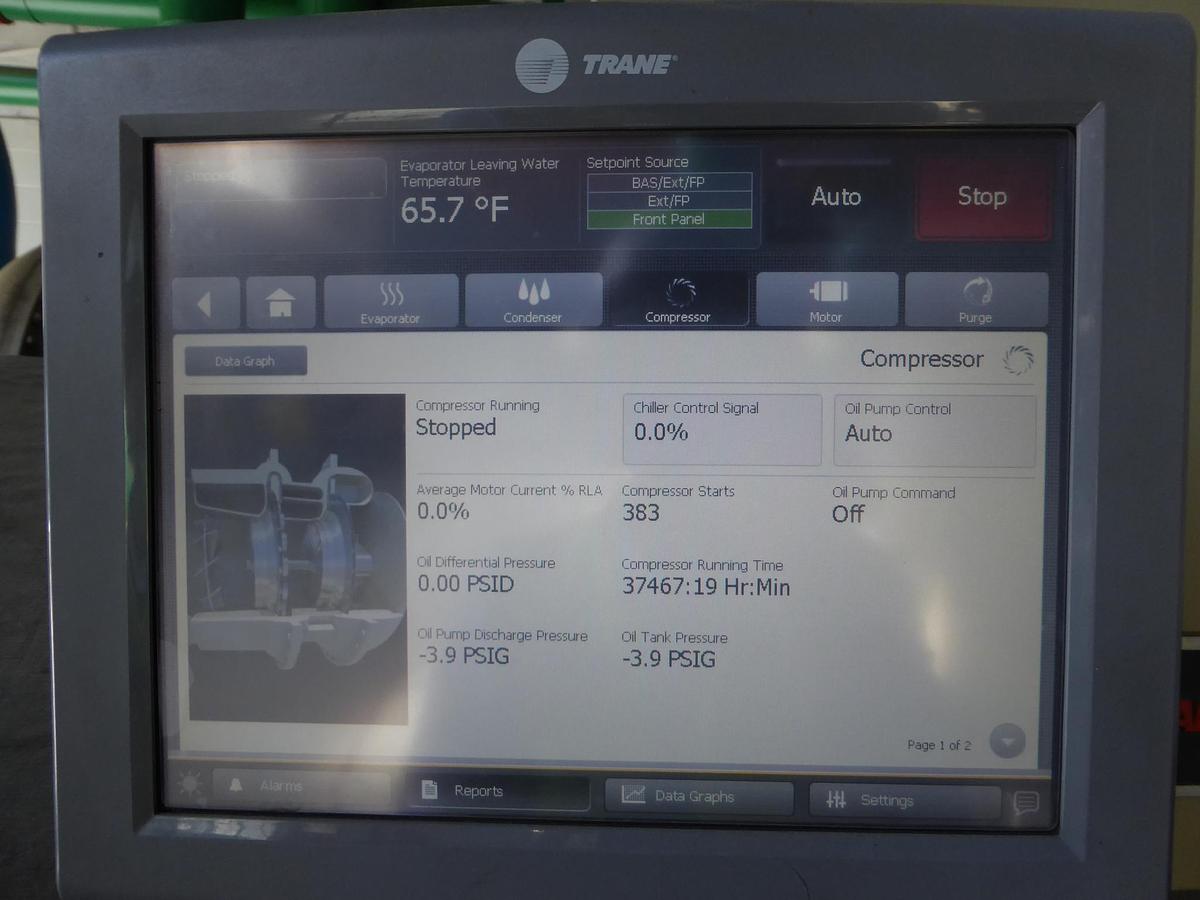

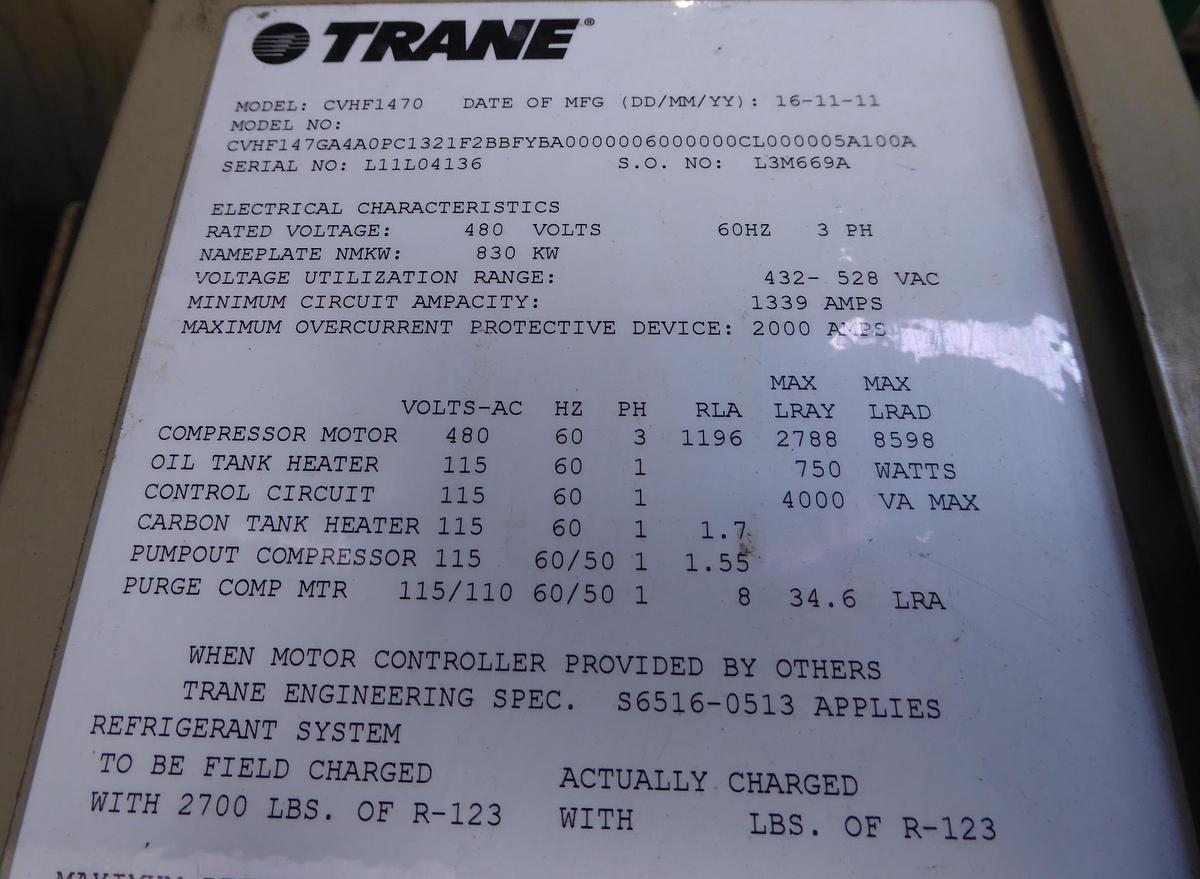

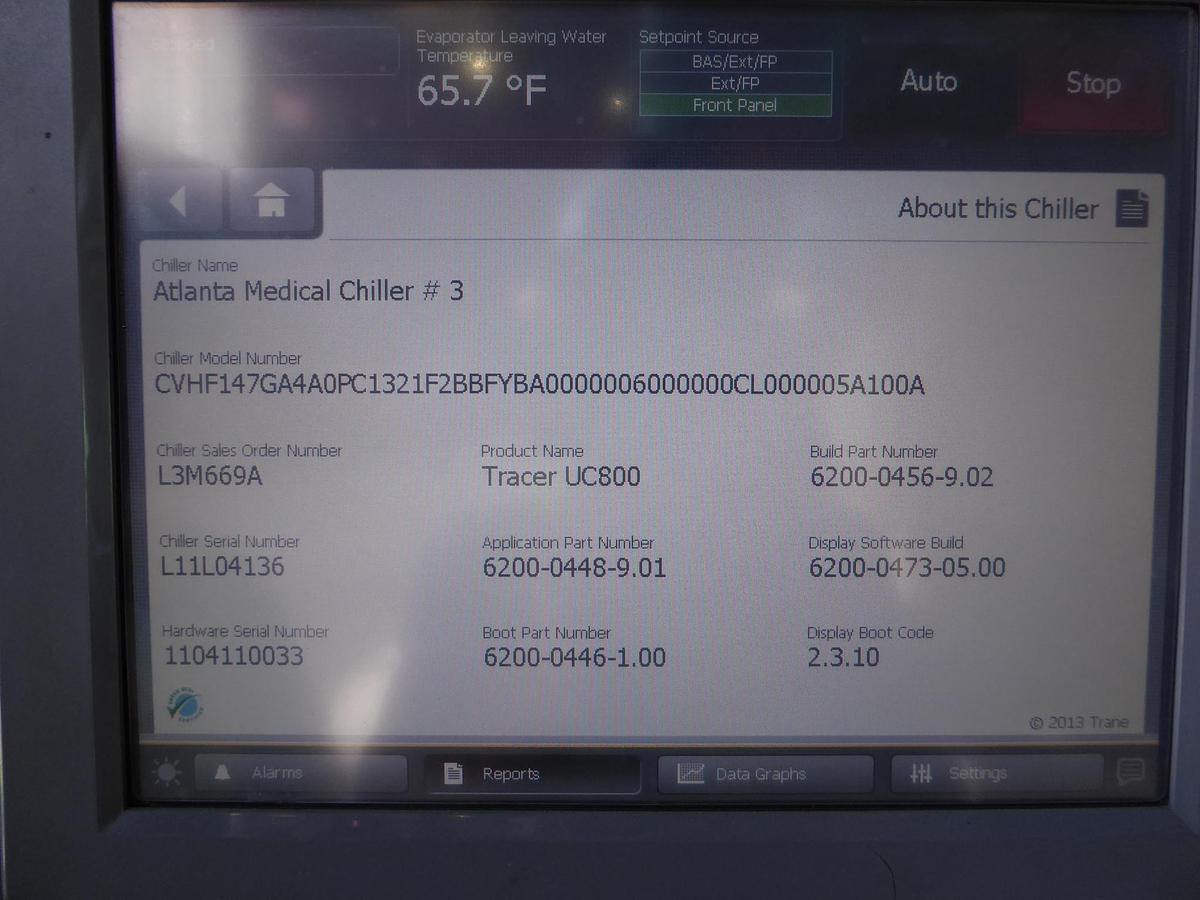

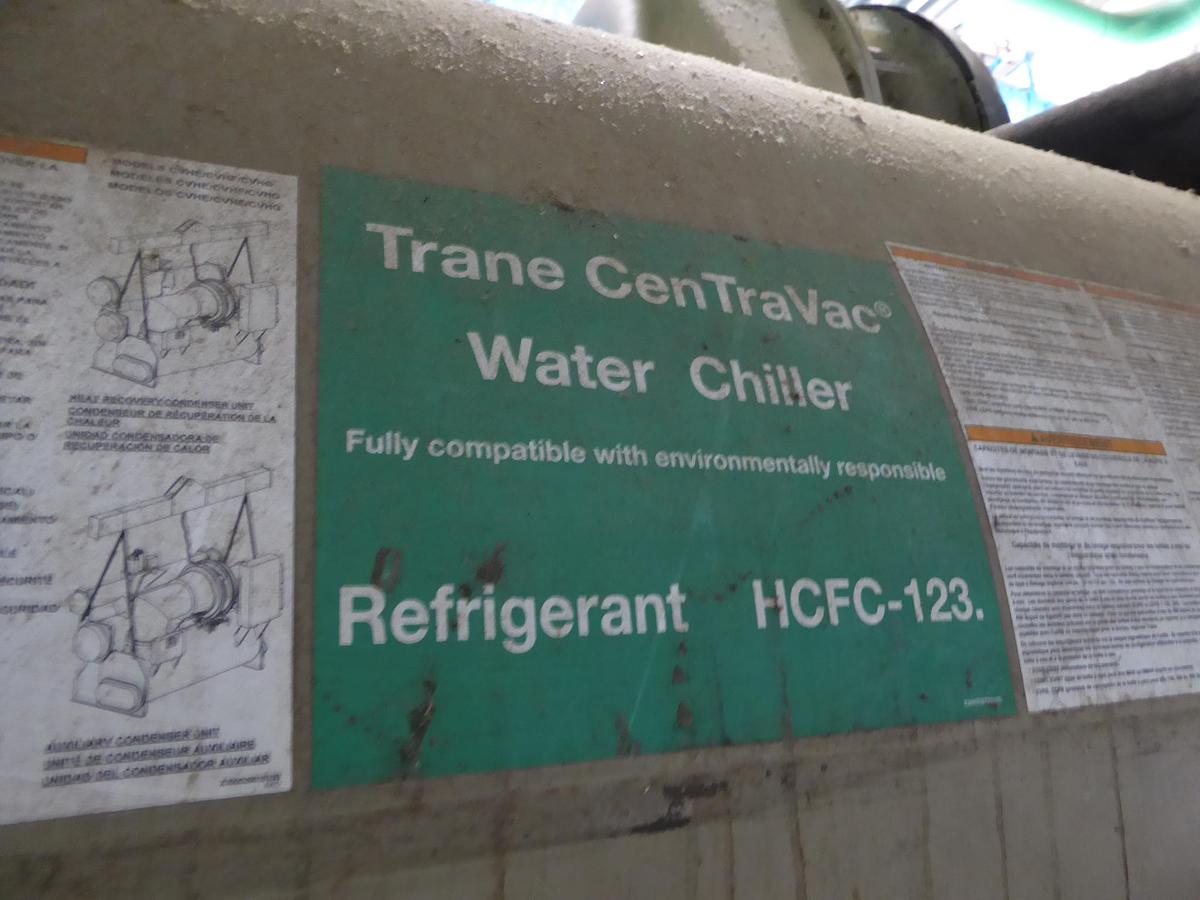

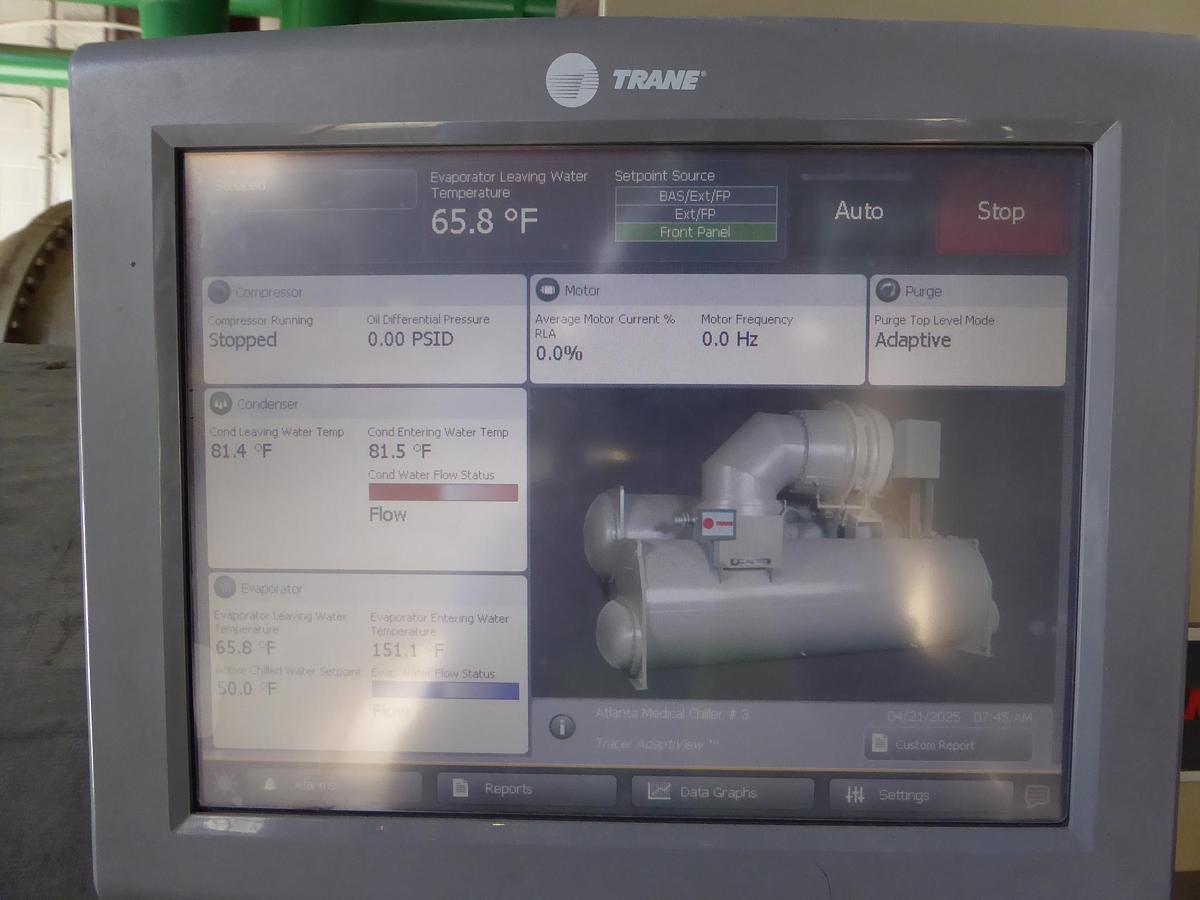

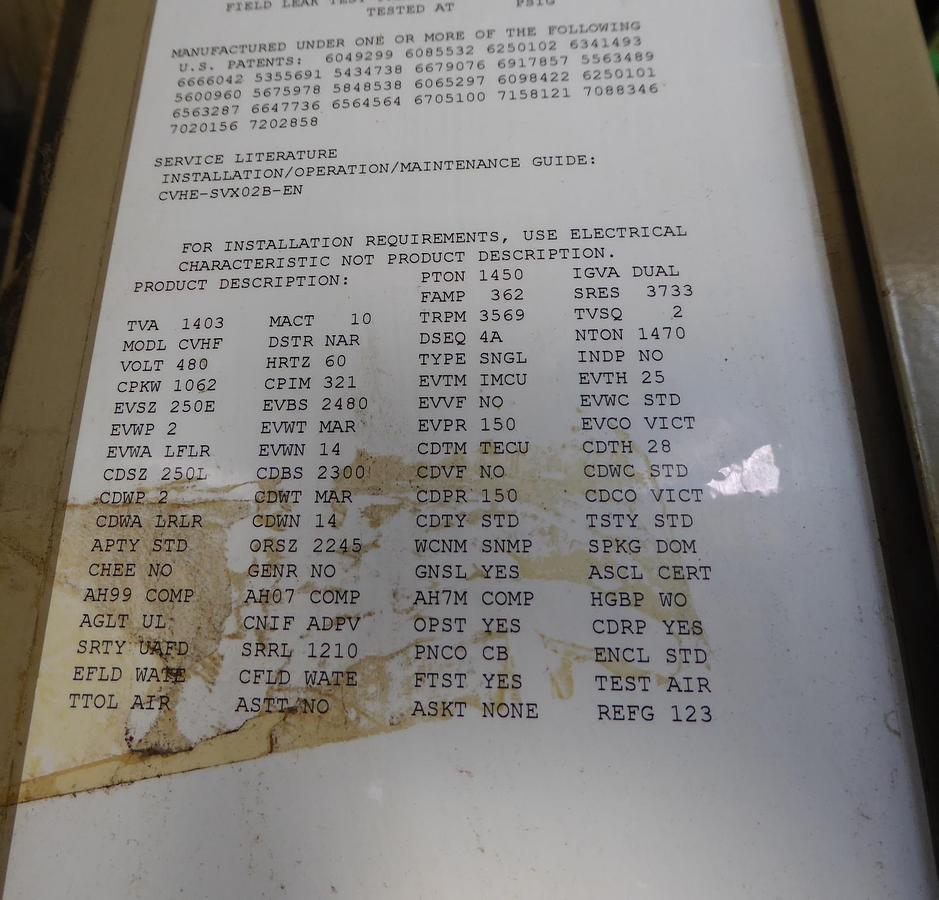

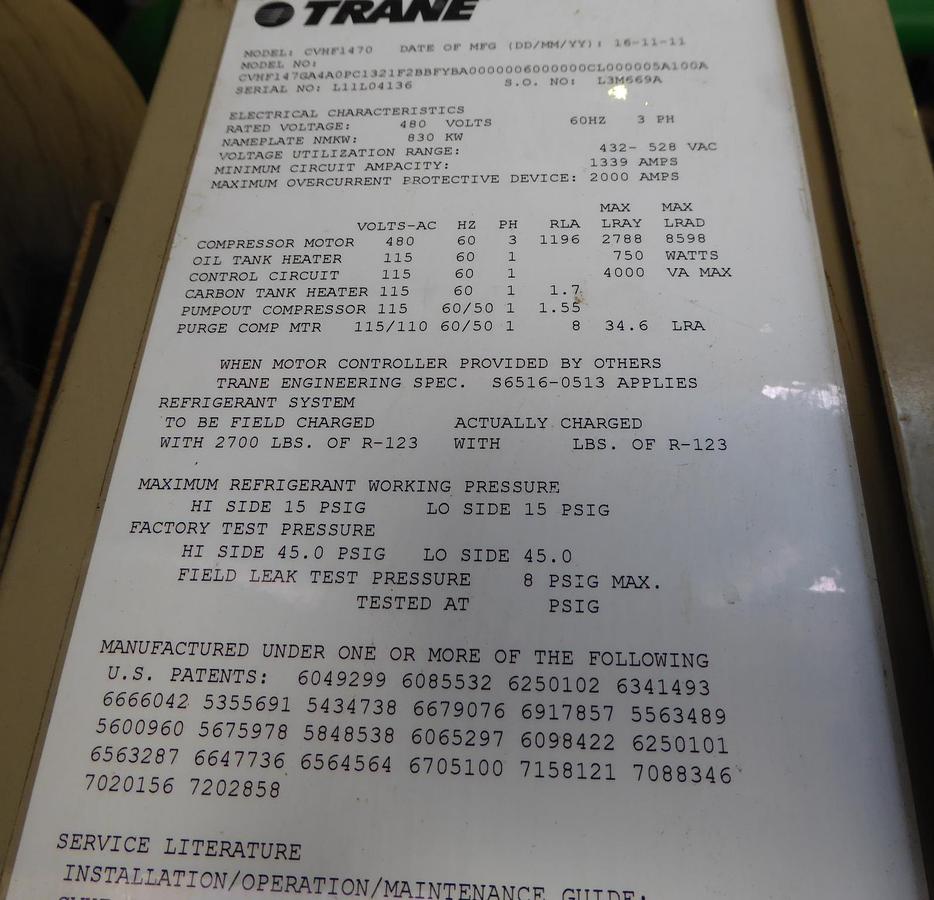

Overview This Trane CenTraVac CVHF1470 Water-Cooled Centrifugal Chiller is designed for critical cooling applications in medical facilities and large-scale commercial buildings requiring reliable, high-capacity chilled water production. This unit delivers exceptional cooling performance with proven Trane centrifugal compressor technology and advanced Tracer UC800 control systems. Manufactured in 2011, this chiller provides efficient operation for facilities requiring substantial cooling capacity with environmentally responsible HCFC-123 refrigerant and state-of-the-art digital controls. Design and Performance Cooling Capacity: 1450 Tons (Nominal) Model: CVHF1470 Model Number: CVHF147GA4A0PC1321F2BBFYBA0000006000000CL000005A100A Serial Number: L11L04136 Sales Order: L3M669A Voltage: 480 Volts Electrical Characteristics: 3 Phase, 60Hz Full Load Amps (RLA): 1196 Amps Refrigerant Type: HCFC-123 (Environmentally Responsible) Control System: Tracer UC800 Digital Interface Compressor Type: High-Efficiency Centrifugal Minimum Circuit Ampacity: 1339 Amps Maximum Overcurrent Protective Device: 2000 Amps Running Hours: 37,467 Hours Compressor Starts: 383 Operating Parameters Evaporator Leaving Water Temperature: 65.7-65.8°F Evaporator Entering Water Temperature: 151.1°F Condenser Leaving Water Temperature: 81.4°F Condenser Entering Water Temperature: 81.5°F Chiller Control Signal: 0.0% (Currently Stopped) Average Motor Current (% RLA): 0.0% Oil Differential Pressure: 0.00 PSID Oil Pump Discharge Pressure: -3.9 PSIG Compressor Running Time: 37,467:19 Hr:Min Current Status: Stopped (Available for Immediate Startup) Pump Mode: Adaptive Key Specifications Condition: Used - Operational (Medical Facility Grade) Manufacturer: Trane (Industry Leader in HVAC) Chiller Type: Water-Cooled Centrifugal Nominal Capacity: 1450 Tons Date of Manufacture: 16-11-11 (November 16, 2011) Nameplate kW: 830 kW Control Circuit: 115V, 60Hz, 1 Phase Oil Tank Heater: 115V, 750 Watts Carbon Tank Heater: 115V, 60Hz Purge Compressor: 115/110V, 60/50Hz Maximum LRAY: 2788 Amps Maximum LRAD: 8598 Amps Electrical Specifications Main Power Requirements: 480V, 3 Phase, 60Hz Full Load Amps (RLA): 1196A Voltage Utilization Range: 432-528 VAC Control Power: 115V Single Phase, 4000 VA Max Motor Type: High-Efficiency Centrifugal Compressor Motor Starting Method: Soft Start/VFD Compatible Ideal Applications Medical Facilities and Hospitals (Current Application) Large Healthcare Complexes Critical Care Centers Data Centers Requiring Redundant Cooling Pharmaceutical Manufacturing Research Laboratories Large Commercial Office Complexes University Medical Centers District Cooling Plants Industrial Process Cooling Benefits Massive 1450-ton capacity - one of the largest in the CenTraVac line Medical facility grade - maintained to highest standards Advanced Tracer UC800 control system with intuitive interface Low operating hours relative to capacity (37,467 hours) Minimal starts (383) indicating stable operation Environmentally responsible HCFC-123 refrigerant Variable capacity control for efficient part-load operation Factory-tested and certified performance Proven reliability in critical medical applications Adaptive pump control for optimized system efficiency Additional Information Condition: Used - Fully Operational (Medical Facility Maintained) Current Location: Atlanta Medical Facility Operating Hours: 37,467 Hours (Professionally Maintained) Designation: Atlanta Medical Chiller #3 Refrigerant Charge: HCFC-123 (2700 lbs design capacity) Control Interface: Tracer UC800 Touch Screen Display Maintenance Status: Medical facility maintenance standards Safety Features: Multiple pressure and temperature safeties Field Leak Test Pressure: 8 PSIG Maximum Service Documentation: CVHE-SVX02B-EN Manual
