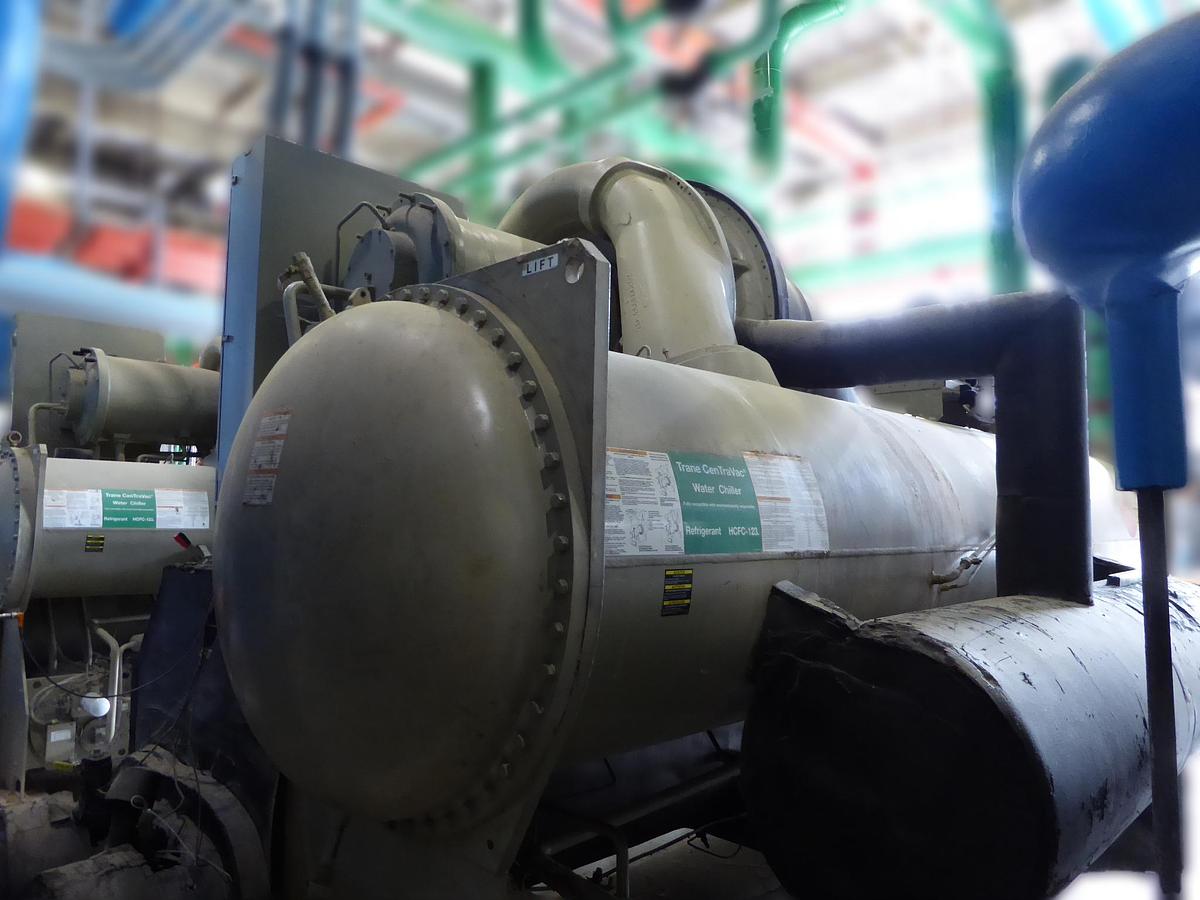

Trane CenTraVac Water Chiller 800 Tons – CVHF1300

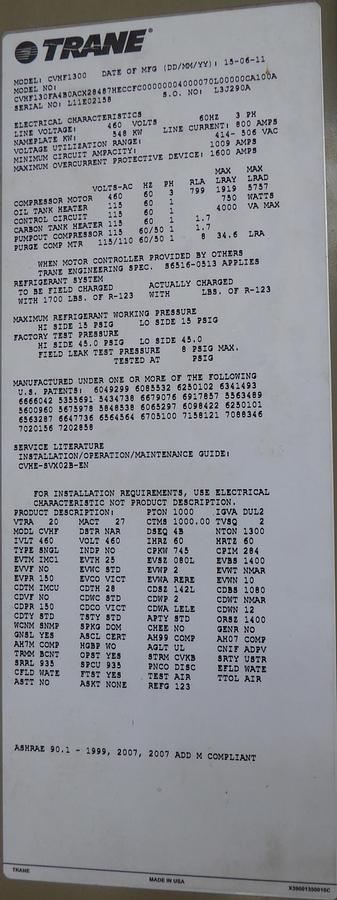

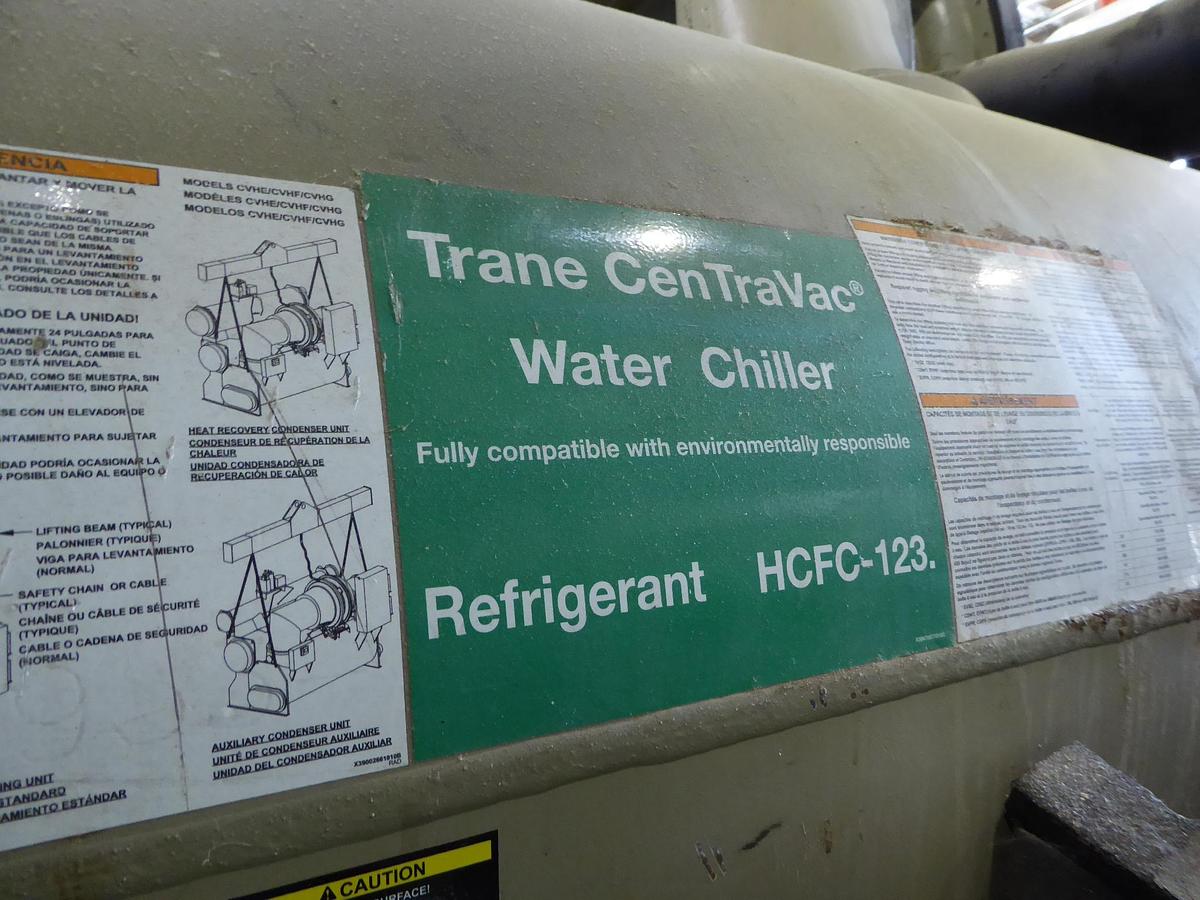

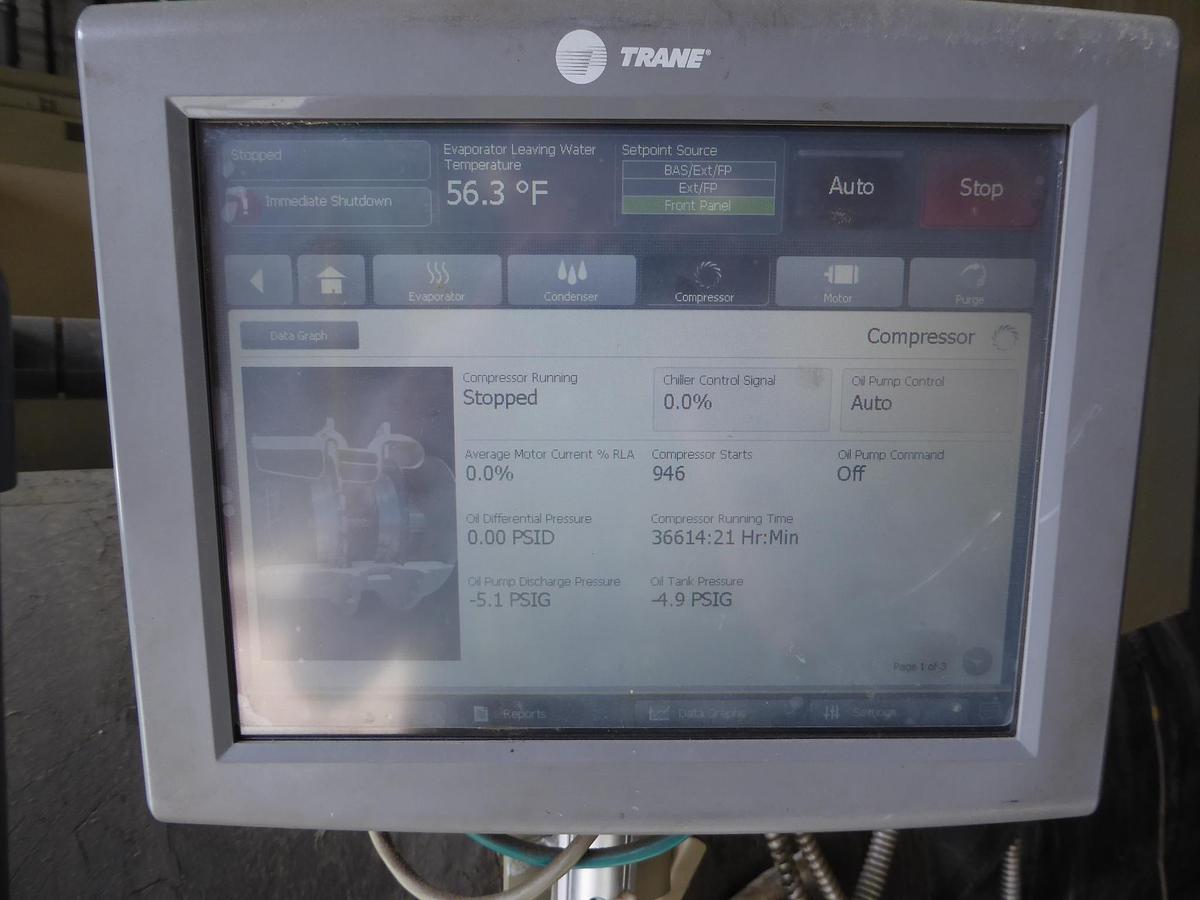

Overview This Trane CenTraVac CVHF1300 Water-Cooled Centrifugal Chiller is designed for large-scale commercial and industrial cooling applications requiring reliable, high-capacity chilled water production. This unit delivers exceptional cooling performance with proven Trane centrifugal compressor technology and advanced control systems. Manufactured in 2011, this chiller provides efficient operation for facilities requiring substantial cooling capacity with environmentally responsible HCFC-123 refrigerant and modern digital controls. Design and Performance Cooling Capacity: 800 Tons (Nominal) Model: CVHF1300 Serial Number: L13K03158 Voltage: 460 Volts Electrical Characteristics: 3 Phase, 60Hz Full Load Amps (FLA): 799 Amps Refrigerant Type: HCFC-123 (Environmentally Responsible) Control System: Trane Digital Touch Screen Interface Compressor Type: Centrifugal Minimum Circuit Ampacity: 1000 Amps Maximum Overcurrent Protective Device: 1600 Amps Running Hours: 36,614 Hours Compressor Starts: 946 Operating Parameters Evaporator Leaving Water Temperature: 56.3°F Chiller Control Signal: 0.0% (Currently Stopped) Average Motor Current (% RLA): 0.0% Oil Differential Pressure: 0.00 PSID Oil Pump Discharge Pressure: -5.1 PSIG Oil Tank Pressure: -4.9 PSIG Compressor Running Time: 36,614:21 Hr:Min Current Status: Stopped (Available for Immediate Startup) Key Specifications Condition: Used - Operational Manufacturer: Trane (Industry Leader in HVAC) Chiller Type: Water-Cooled Centrifugal Nominal Capacity: 800 Tons Date of Manufacture: 15-06-11 (June 15, 2011) Maximum Motor Current: 875 Amps Control Circuit: 115V, 60Hz, 1 Phase Oil Tank Heater: 115V Carbon Tank Heater: 115/110V, 60/50Hz Purge Compressor: 115/110V, 60/50Hz Electrical Specifications Main Power Requirements: 460V, 3 Phase, 60Hz Full Load Amps: 799A Maximum Amps: 875A Control Power: 115V Single Phase Motor Type: High-Efficiency Centrifugal Compressor Motor Line Current: 414-506 VAC Nameplate kW: 546 kW Ideal Applications Large Commercial Office Buildings Hospital and Healthcare Facilities Data Centers and Technology Parks Industrial Process Cooling District Cooling Plants University Campus Cooling Systems Manufacturing Facilities Pharmaceutical Production Convention Centers and Hotels Airport Terminal Buildings Benefits High-capacity 800-ton rating for large-scale cooling applications Environmentally responsible HCFC-123 refrigerant Advanced digital control system with touch screen interface Proven reliability with 36,614 operational hours Variable capacity control for efficient part-load operation Factory-tested and certified performance Recent shutdown indicates well-maintained unit Trane's industry-leading service and support network Compact footprint relative to cooling capacity Additional Information Condition: Used - Fully Operational (Currently in Standby) Current Location: Industrial Facility Operating Hours: 36,614 Hours (Well-Maintained) Refrigerant Charge: HCFC-123 (Full Charge) Control Interface: Modern Touch Screen Display Maintenance Status: Recently Serviced (Clean Shutdown) Safety Features: Multiple pressure and temperature safeties Certifications: ASHRAE 90.1 Compliant (2007 Add M)
