Trane CenTraVac Water Chiller 600 Tons – CVHF570

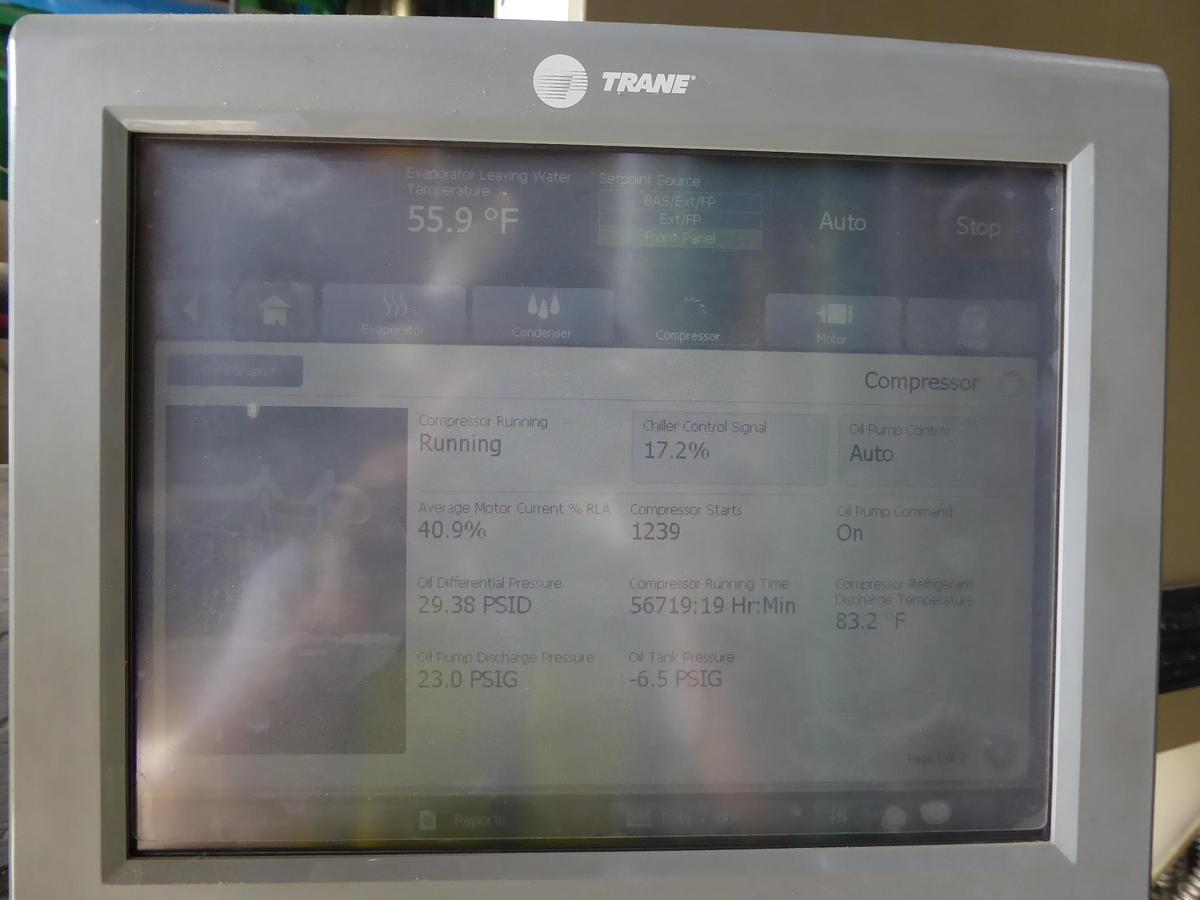

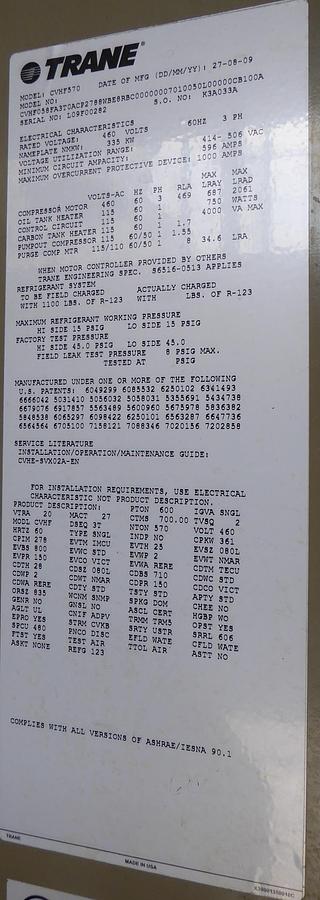

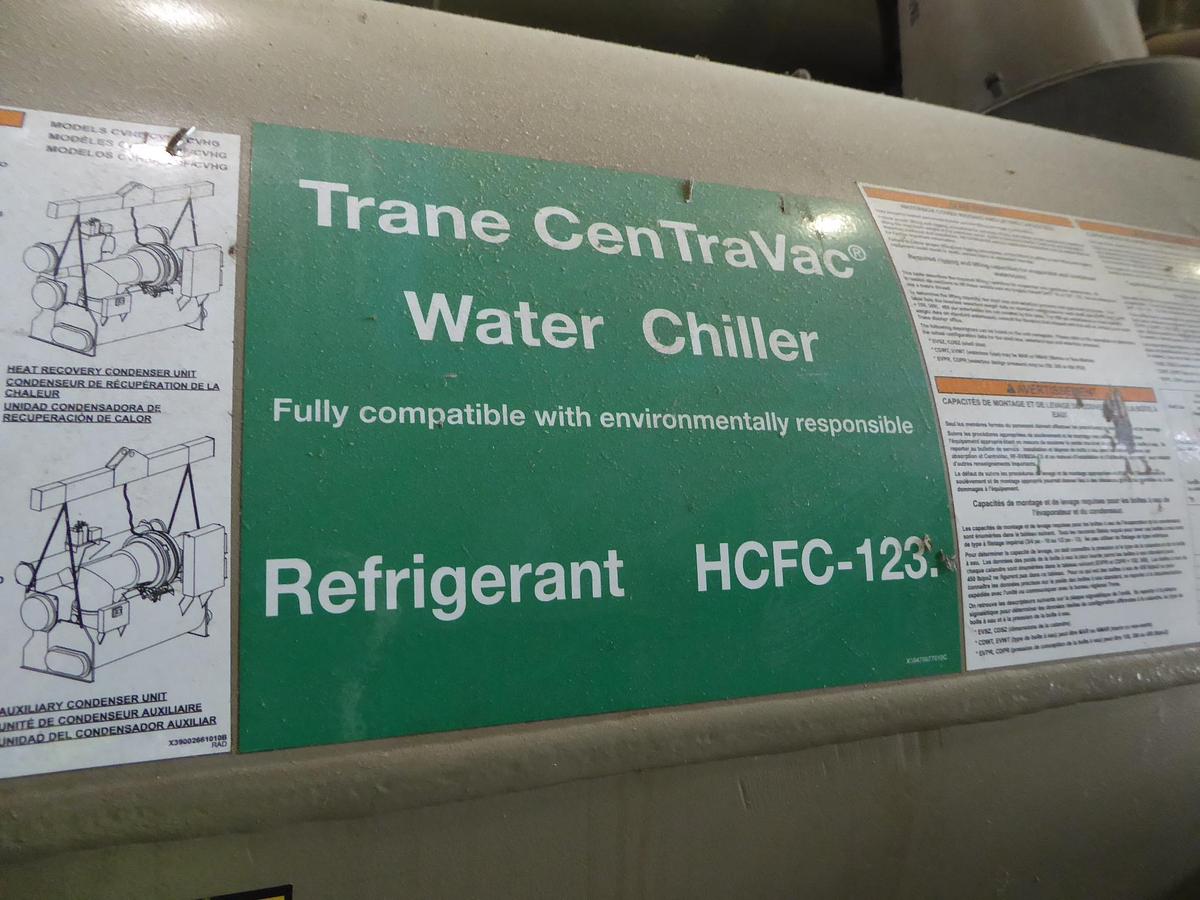

Overview This Trane CenTraVac CVHF570 Water-Cooled Centrifugal Chiller is designed for large-scale commercial and industrial cooling applications requiring reliable, high-capacity chilled water production. This unit delivers exceptional cooling performance with proven Trane centrifugal compressor technology and advanced control systems. This chiller provides efficient operation for facilities requiring substantial cooling capacity with environmentally responsible HCFC-123 refrigerant and modern digital controls. Design and Performance Cooling Capacity: 600 Tons (Nominal) Model: CVHF570 Serial Number: CDRF00282 Voltage: 460 Volts Electrical Characteristics: 3 Phase, 60Hz Full Load Amps (FLA): 687 Amps Refrigerant Type: HCFC-123 (Environmentally Responsible) Control System: Trane Digital Touch Screen Interface Compressor Type: Centrifugal Surge Protection: Integrated IGV (Inlet Guide Vane) Control Running Hours: 56,719 Hours Compressor Starts: 1,239 Operating Parameters Evaporator Leaving Water Temperature: 55.9°F Chiller Control Signal: 17.2% Average Motor Current (% RLA): 40.9% Oil Differential Pressure: 29.38 PSID Oil Pump Discharge Pressure: 23.0 PSIG Oil Tank Pressure: -0.5 PSIG Compressor Running Time: 56,719:19 Hr:Min Compressor Inlet Temperature: 83.2°F Key Specifications Condition: Used - Operational Manufacturer: Trane (Industry Leader in HVAC) Chiller Type: Water-Cooled Centrifugal Nominal Capacity: 600 Tons Date of Manufacture: 27-08-09 Maximum Motor Current: 750 Amps Control Circuit: 115V, 60Hz, 1 Phase Oil Tank Heater: 115V Purge Compressor: 115/110V, 60/50Hz Electrical Specifications Main Power Requirements: 460V, 3 Phase, 60Hz Full Load Amps: 687A Maximum Amps: 750A Control Power: 115V Single Phase Motor Type: High-Efficiency Centrifugal Compressor Motor Starting Method: Soft Start/VFD Compatible Ideal Applications Large Commercial Office Buildings Hospital and Healthcare Facilities Data Centers and Technology Parks Industrial Process Cooling District Cooling Plants University Campus Cooling Systems Manufacturing Facilities Pharmaceutical Production Convention Centers and Hotels Benefits High-efficiency centrifugal compressor technology 600-ton capacity for large-scale cooling applications Environmentally responsible HCFC-123 refrigerant Advanced digital control system with touch screen interface Proven reliability with 56,719 operational hours Integrated surge protection for stable operation Variable capacity control through IGV modulation Factory-tested and certified performance Trane's industry-leading service and support network Additional Information Condition: Used - Fully Operational Current Location: Industrial Facility Operating Hours: 56,719 Hours (Well-Maintained) Refrigerant Charge: HCFC-123 (Full Charge) Control Interface: Modern Touch Screen Display Maintenance History: Regular Service Intervals Safety Features: Multiple pressure and temperature safeties Certifications: Complies with ASHRAE/ASME standards
