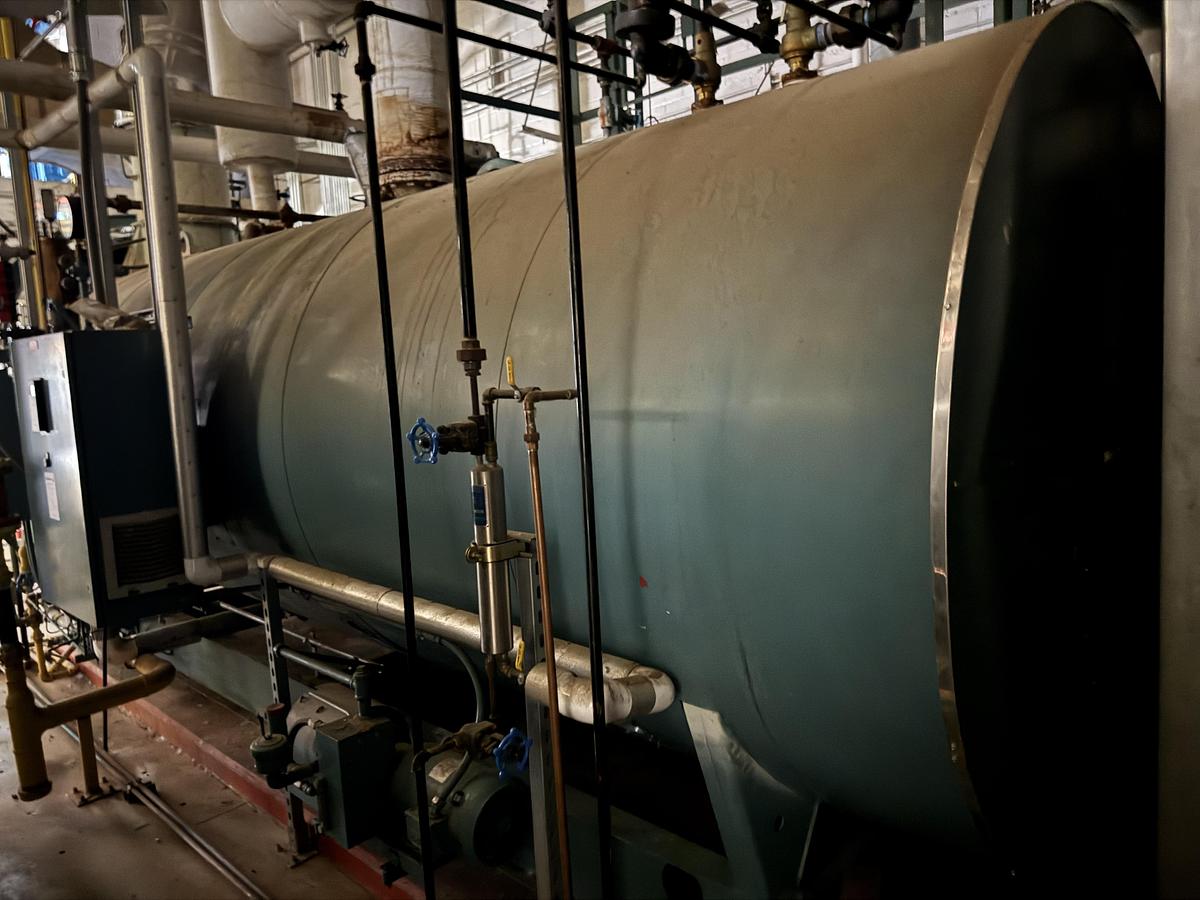

Cleaver Brooks 300 HP High Pressure Steam Boiler – CBLX E 200 300-150ST (2017)

Overview

This 300 HP Cleaver Brooks CBLX E 200 300-150ST Packaged High Pressure Steam Boiler is designed for large-scale industrial steam applications requiring substantial steam generation capacity. This unit delivers exceptional steam production with proven Cleaver Brooks design and construction. Manufactured in 2017, this boiler provides reliable performance for facilities requiring high-capacity steam production with a maximum input of 12,247,000 BTU/hr.

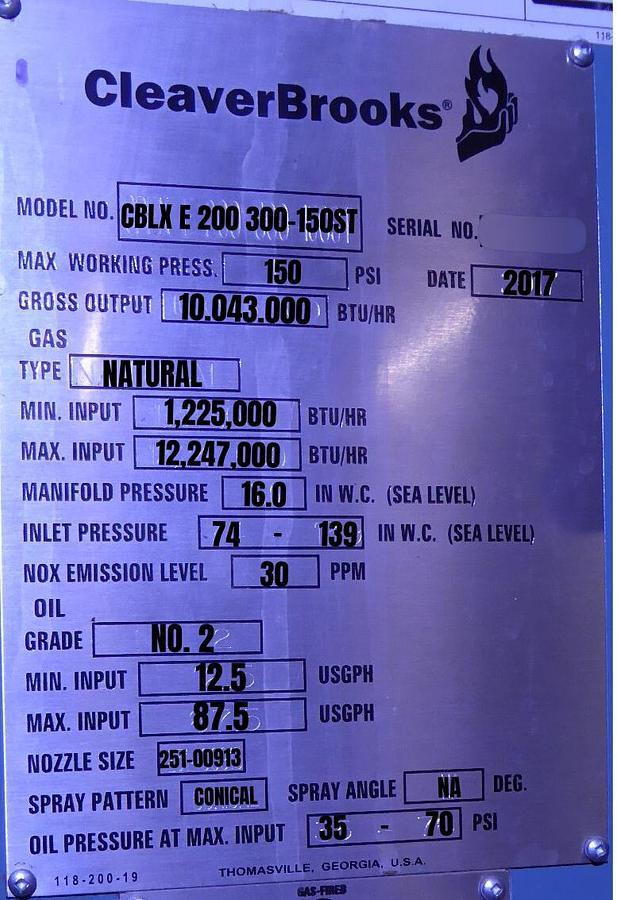

Design and Performance

• Horsepower: 300 HP
• Model: CBLX E 200 300-150ST
• Gross Output: 10,043,000 BTU/hr
• Min Input Capacity: 1,225,000 BTU/hr
• Max Input Capacity: 12,247,000 BTU/hr
• Fuel Type: Natural Gas / Dual Fuel (Gas-Oil)
• Max Working Pressure: 150 PSI Steam
• Year Built: 2017
• Manifold Pressure: 16.0 IN. W.C. (Sea Level)
• Inlet Pressure: 74-139 IN. W.C. (Sea Level)
• NOx Emission Level: 30 PPM

Oil Firing Specifications

• Oil Grade: No. 2
• Min. Input: 12.5 USGPH
• Max. Input: 87.5 USGPH
• Nozzle Size: 251-00913
• Spray Pattern: Conical
• Spray Angle: NA degrees
• Oil Pressure at Max. Input: 35-70 PSI

Key Specifications

• Condition: Used - Industrial Grade
• Manufacturer: Cleaver Brooks (Thomasville, Georgia, USA)
• Model: CBLX E 200 300-150ST
• Boiler Type: Packaged High Pressure Steam Boiler
• Pressure Rating: 150 PSI Steam
• Dual Fuel Capability: Natural Gas and No. 2 Oil
• Low NOx Design: 30 PPM emissions

Ideal Applications

• Large Manufacturing Plants
• Industrial Processing Facilities
• Chemical Processing Operations
• Food Processing Plants
• Hospital and Healthcare Complexes
• University Campus Heating Systems
• Industrial Laundries
• Pharmaceutical Manufacturing
• Paper Mills
• Textile Manufacturing

Benefits

• High-capacity 300 HP rating for large industrial operations
• Dual-fuel flexibility with natural gas and oil capabilities
• Low NOx emissions (30 PPM) for environmental compliance
• Wide turndown ratio (10:1) for efficient part-load operation
• Recent 2017 manufacture date ensures modern controls and efficiency
• Packaged design for simplified installation and maintenance
• Heavy-duty construction for continuous 24/7 operation
• Proven Cleaver Brooks reliability and performance
• Compact footprint relative to steam output capacity

Additional Information

• Condition: Used - Ready for Installation
• Manufacturing Location: Thomasville, Georgia, USA
• Year of Manufacture: 2017
• BTU Output Range: 1.2 - 12.2 Million BTU/hr
• Pressure Rating: 150 PSI Steam
• Emissions Compliant: Low NOx design at 30 PPM
• Control System: Modern digital controls (2017 vintage)
• Safety Features: UL Listed components with emission reduction equipment
