Alfa Laval 7,572 sq ft Plate & Frame Heat Exchanger – Model MX25-BFG (2006)

Overview

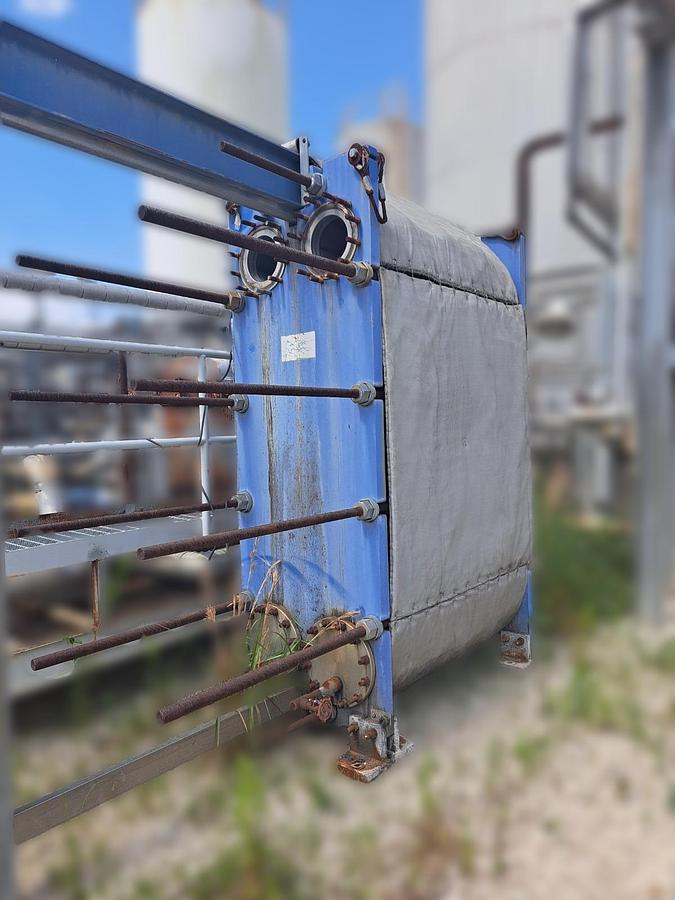

This used Alfa Laval MX25-BFG Plate & Frame Heat Exchanger offers an impressive 7,572 square feet of heat transfer surface area, making it ideal for large-scale industrial thermal management applications. Certified by Alfa Laval in Richmond, VA, and manufactured in 2006, this unit provides efficient heat transfer capabilities for demanding industrial processes with a maximum working pressure of 150 PSI at 300°F.

Design and Performance

• Model: MX25-BFG
• Heat Transfer Area: 7,572.00 sq ft
• Frame Dimensions: 1474MM w/ 481 x 0.50MM plates
• Maximum Working Pressure: 150 PSI at 300°F
• Minimum Design Metal Temperature: -20°F at 150 PSI
• Year Built: 2006
• Serial Number: 30110-67351
• Order Number: 643161

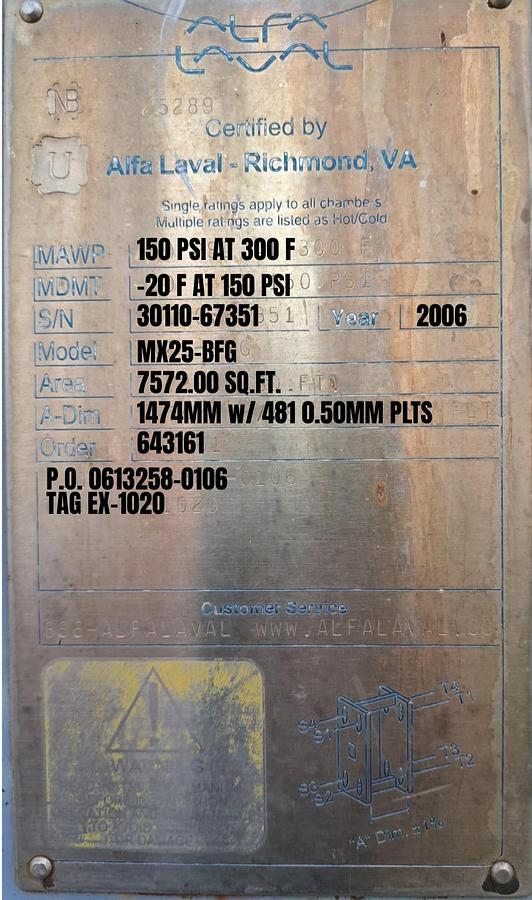

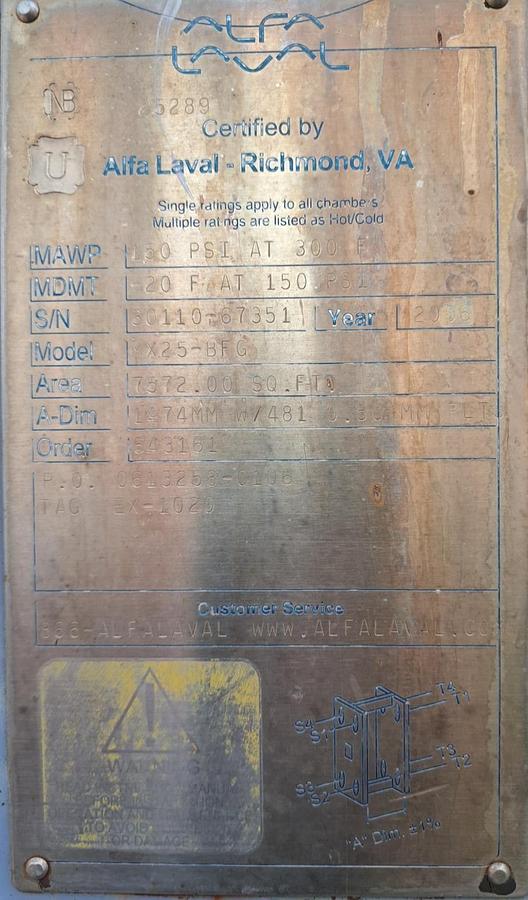

• Certification: Alfa Laval - Richmond, VA

Key Specifications

• Condition: Used - Industrial Grade
• Manufacturer: Alfa Laval
• Model: MX25-BFG
• Serial Number: 30110-67351
• Type: Plate & Frame Heat Exchanger
• Total Surface Area: 7,572 sq ft
• Number of Plates: 481 plates
• Plate Thickness: 0.50MM
• Frame Width: 1474MM (approximately 58 inches)
• ASME/NB Certified: Yes (NB stamp visible)
• Single/Multiple Ratings: Listed as Hot/Cold capable

Ideal Applications

• Large Industrial Process Cooling/Heating
• Chemical Processing Plants
• Petroleum Refineries
• Power Generation Facilities
• District Heating/Cooling Systems
• Large HVAC Systems
• Food & Beverage Processing
• Pharmaceutical Manufacturing
• Pulp & Paper Mills
• Marine Applications
• Waste Heat Recovery Systems
• Industrial Refrigeration

Benefits

• Massive 7,572 sq ft heat transfer area for high-capacity applications
• Plate & frame design allows for easy maintenance and cleaning
• Expandable capacity by adding or removing plates
• High efficiency heat transfer with minimal footprint
• 150 PSI pressure rating suitable for most industrial applications
• Wide temperature range from -20°F to 300°F
• ASME certified construction for safety and reliability
• Proven Alfa Laval quality and engineering
• Gaskets can be replaced without special tools
• Counter-current flow for maximum thermal efficiency

Additional Information

• Purchase Order: 0613258-0106

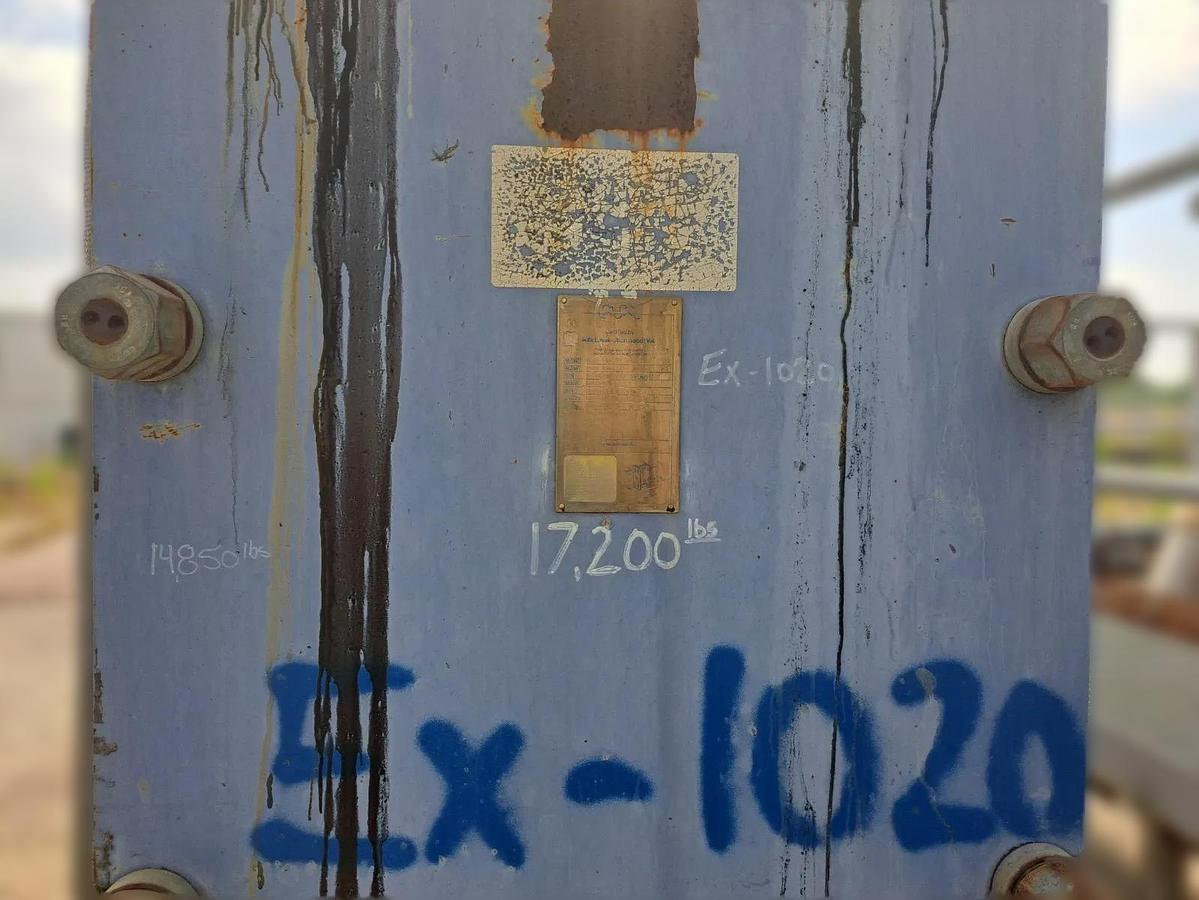

• Tag Number: EX-1020
• Certification Body: Alfa Laval - Richmond, VA
• ASME Certification: NB stamped
• Frame Material: Industrial grade construction
• Plate Material: Typically stainless steel (verify specific material)
• Temperature Range: -20°F to 300°F operating range
• Pressure Rating: 150 PSI maximum working pressure
• Maintenance: Plates can be removed for cleaning or replacement
• Flexibility: Capacity can be modified by changing plate configuration
