Palmer 30,000 Gallon Water Recovery Surge Tank – Model 2-TK-2015 (2007)

Overview

This used 30,000 Gallon Water Recovery Surge Tank manufactured by Palmer MFG & Tank Inc. is designed for industrial water recovery and surge capacity applications. Built in 2007, this atmospheric pressure tank provides substantial storage capacity for water/acid recovery systems with corrosion-resistant construction suitable for mildly acidic conditions.

Design and Performance

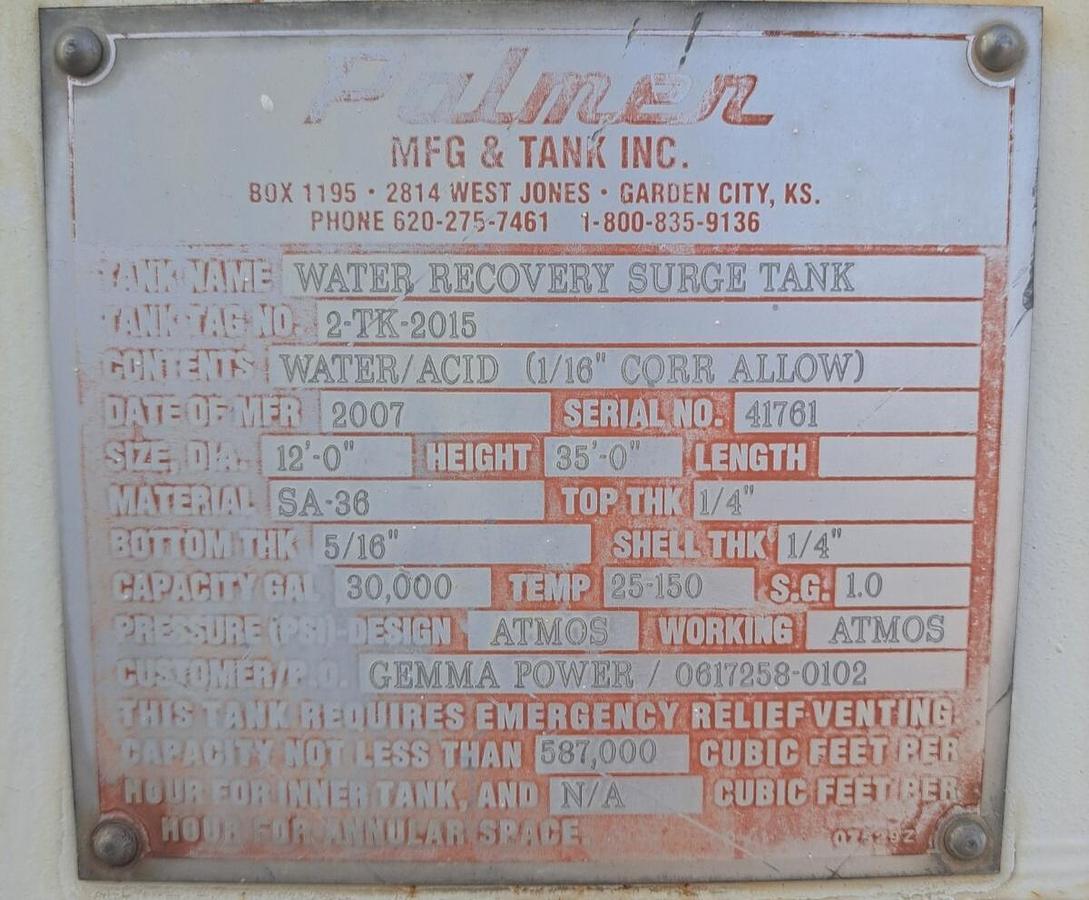

• Tank Name: Water Recovery Surge Tank
• Tank Tag Number: 2-TK-2015
• Capacity: 30,000 Gallons
• Diameter: 12'-0"
• Height: 35'-0"
• Year Built: 2007
• Serial Number: 41761
• Operating Temperature: 25-150°F
• Design/Working Pressure: Atmospheric
• Specific Gravity: 1.0

Key Specifications

• Condition: Used - Industrial Grade
• Manufacturer: Palmer MFG & Tank Inc. (Garden City, KS)
• Material: SA-36 Carbon Steel
• Shell Thickness: 1/4"
• Top Thickness: 1/4"
• Bottom Thickness: 5/16"
• Contents: Water/Acid (1/16" Corrosion Allowance)
• Customer: Gemma Power
• Customer Reference: 0617258-0102

Construction Details

• Shell Material: SA-36 Carbon Steel
• Corrosion Allowance: 1/16" for acid service
• Shell Plate Thickness: 1/4" (6.35mm)
• Bottom Plate Thickness: 5/16" (7.94mm)
• Top Plate Thickness: 1/4" (6.35mm)
• Emergency Relief Venting: 587,000 cubic feet per hour minimum
• Annular Space Venting: N/A cubic feet per hour

Ideal Applications

• Industrial Water Recovery Systems
• Process Water Surge Capacity
• Wastewater Treatment Plants
• Chemical Processing Facilities
• Mining Operations Water Management
• Industrial Cooling Water Systems
• Plant Utility Water Storage
• Emergency Water Supply
• Process Water Buffer Storage
• Acid Dilution Systems
• Industrial Wash Water Recovery
• Manufacturing Process Water Storage

Benefits

• Large 30,000-gallon capacity for substantial surge protection
• Corrosion allowance designed for mildly acidic water service
• Atmospheric pressure design for simple operation
• SA-36 carbon steel construction for durability
• Thicker bottom plate (5/16") for extended service life
• Emergency relief venting for safety compliance
• Proven design from established tank manufacturer
• Suitable for wide temperature range (25-150°F)
• Standard dimensions allow for easy site planning

Additional Information

• Manufacturer: Palmer MFG & Tank Inc.
• Location: Box 1195, 2814 West Jones, Garden City, KS
• Phone: 620-275-7461, 1-800-835-9136
• Tank Type: Vertical Atmospheric Storage Tank
• Service: Water Recovery with Acid Compatibility
• Design Code: Atmospheric tank design
• Inspection Requirements: Regular inspection recommended for corrosion monitoring
• Maintenance: Periodic thickness testing recommended due to acid service
• Foundation: Requires appropriate concrete pad for 30,000-gallon load
