Fulton Classic 60 HP ICS-60 Steam with F-75 Expansion Tank (2022)

Overview

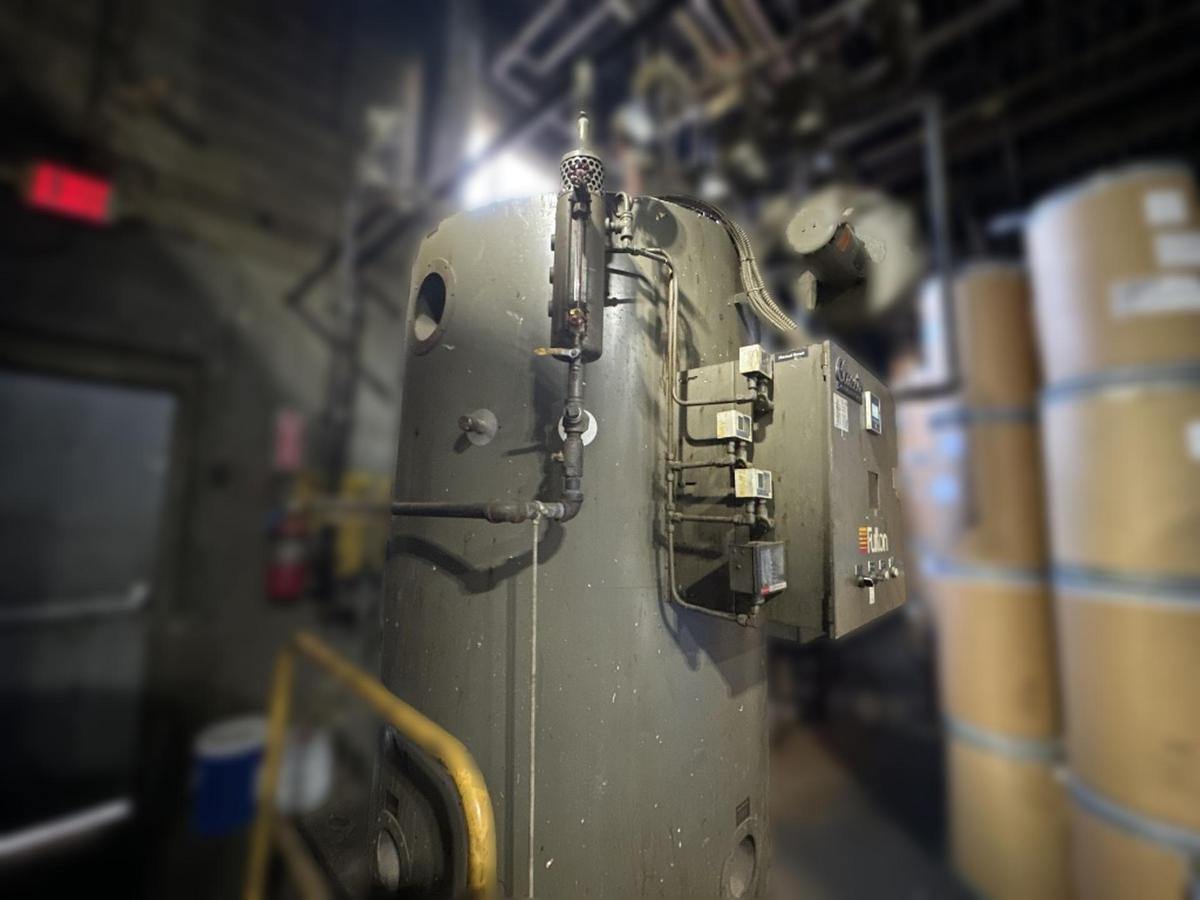

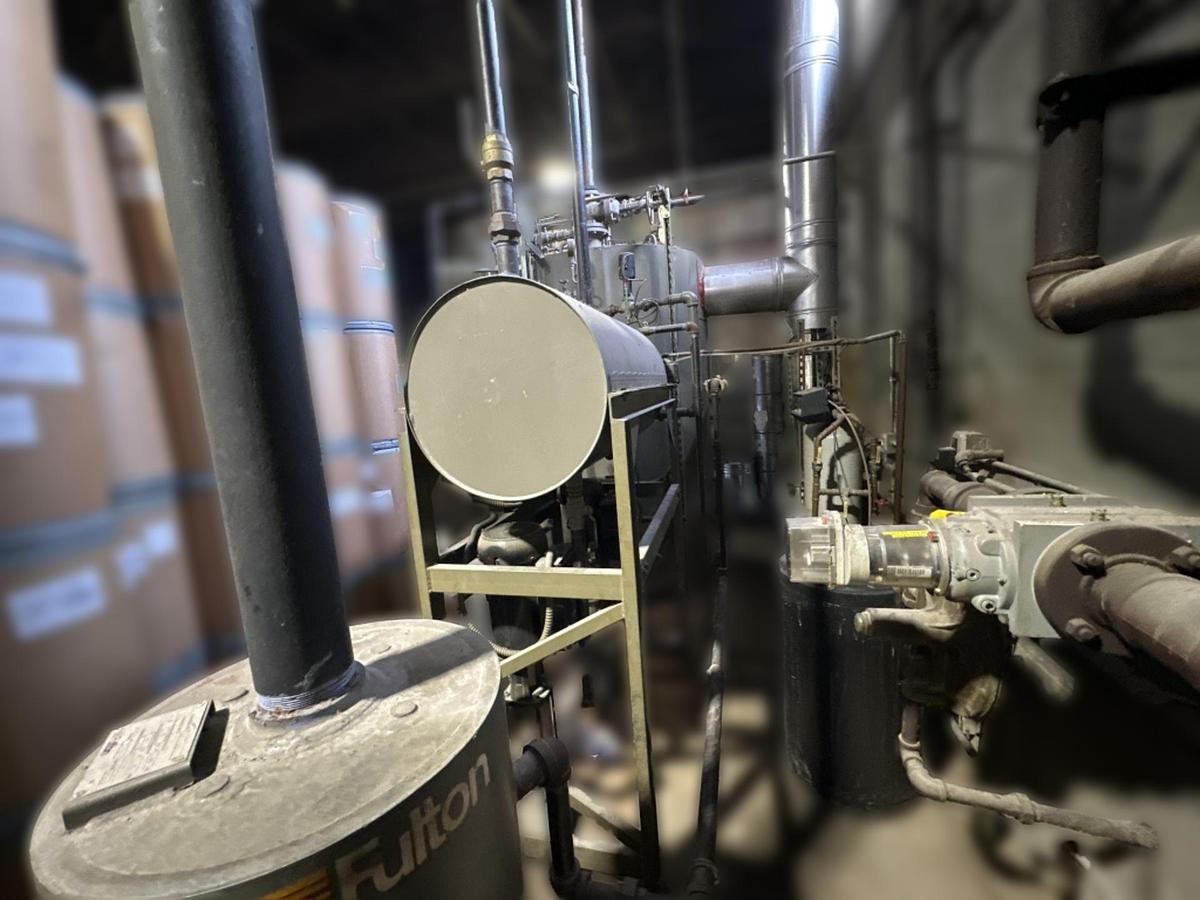

This 2022 Fulton Classic 60 HP ICS-60 Steam/Hot Water Boiler represents state-of-the-art heating technology for commercial and institutional applications 2070 lb/hr steam capacity with 2,009,000 BTU/hr output, making it ideal for medium-scale heating systems requiring reliable steam or hot water production. The unit includes an integrated F-75 expansion tank with 75 PSI working pressure, providing a complete heating solution.

Design and Performance

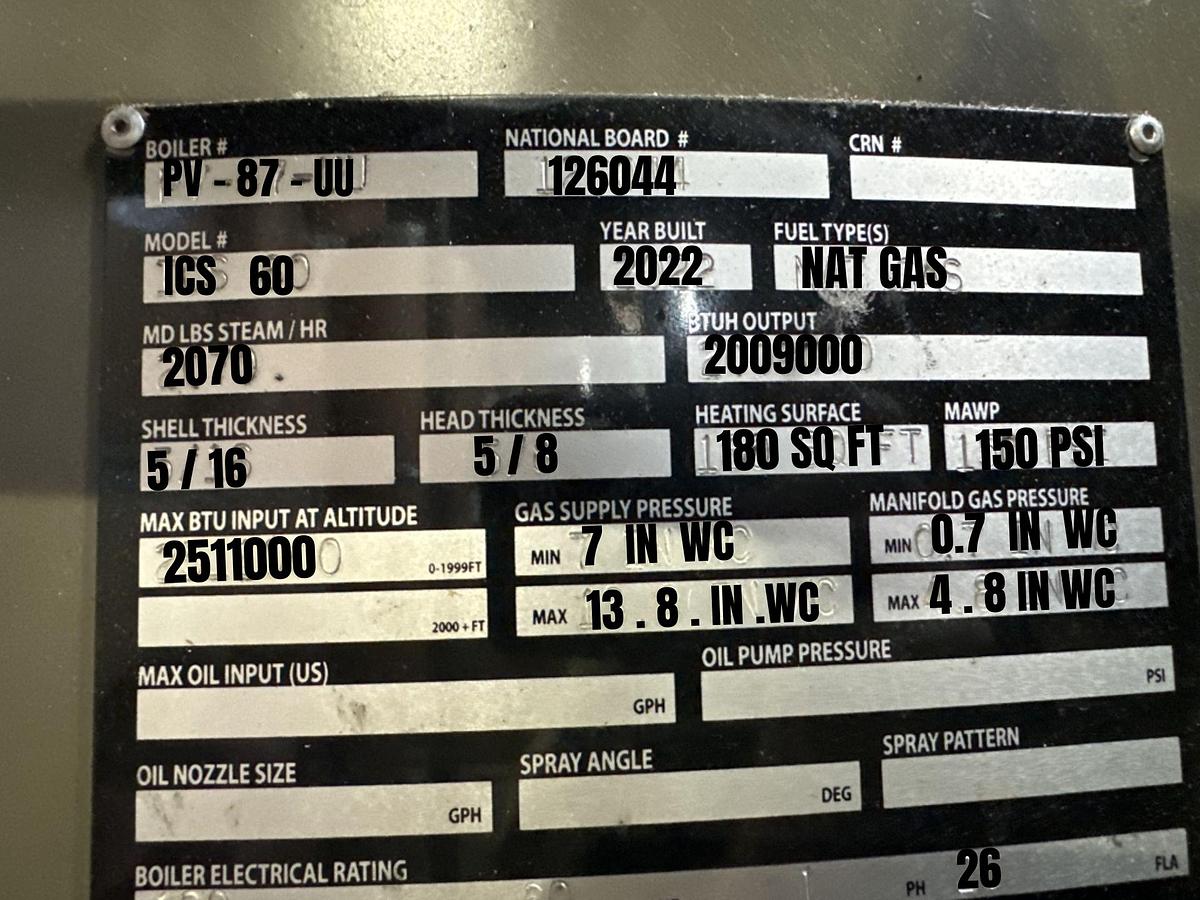

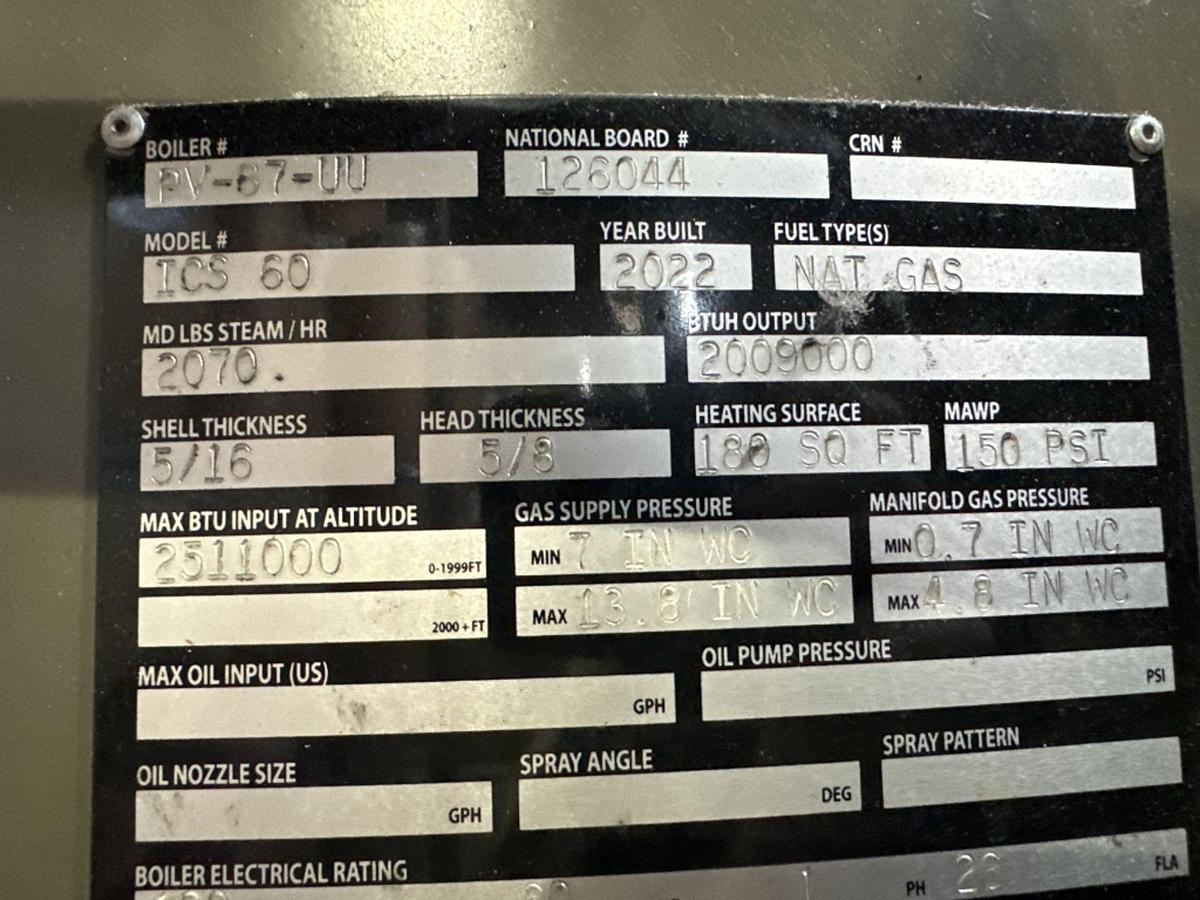

Boiler Specifications:

• Horsepower: 60 HP
• Boiler Number: PV-87-UU
• Model: ICS-60 (Integrated Classic Series)
• National Board Number: 126044
• Year Built: 2022
• Steam Output: 2070 lbs/hr
• BTU Output: 2,009,000 BTU/hr
• Max BTU Input (Altitude): 2,511,000 BTU/hr
• Fuel Type: Natural Gas (Dual-fuel capable)
• Max Working Pressure: 150 PSI
• Shell Thickness: 5/16"
• Head Thickness: 5/8"
• Heating Surface: 180 sq ft

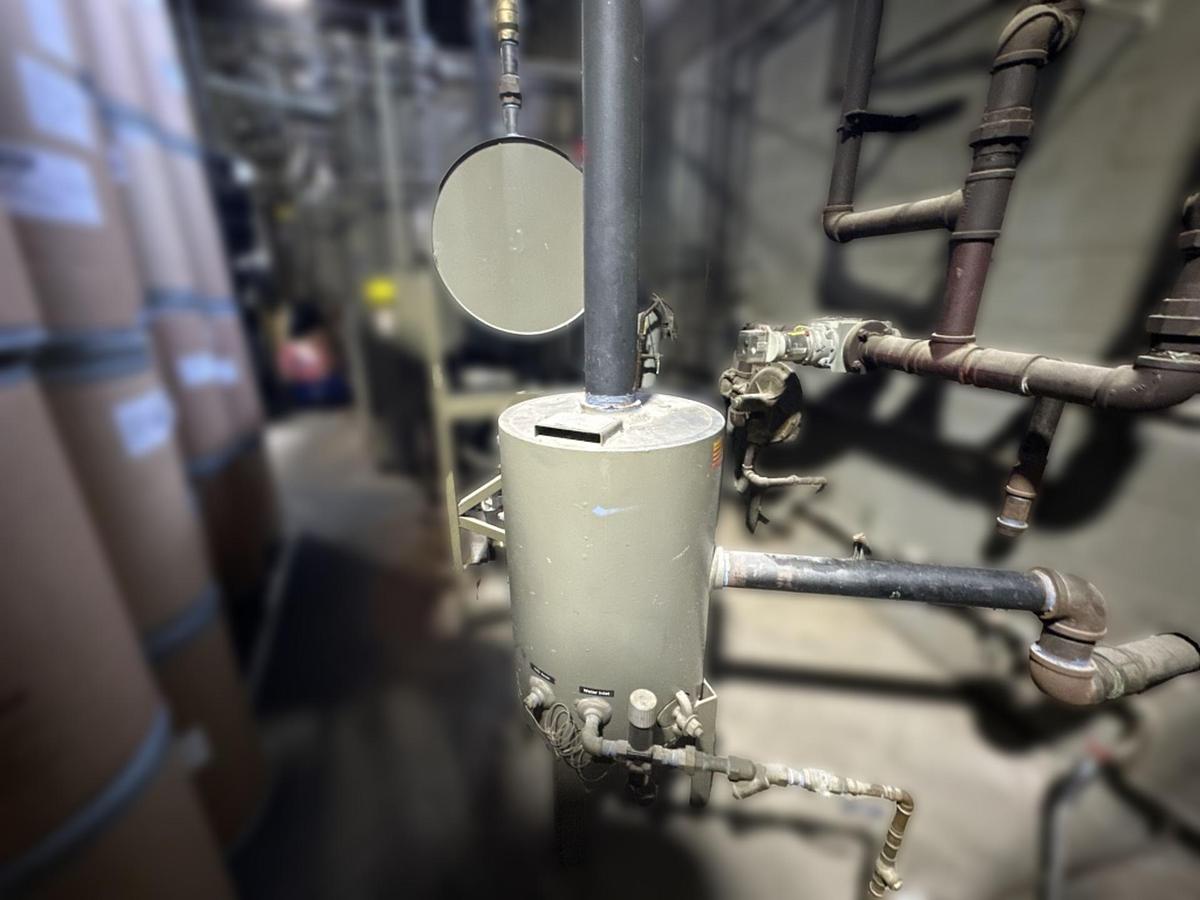

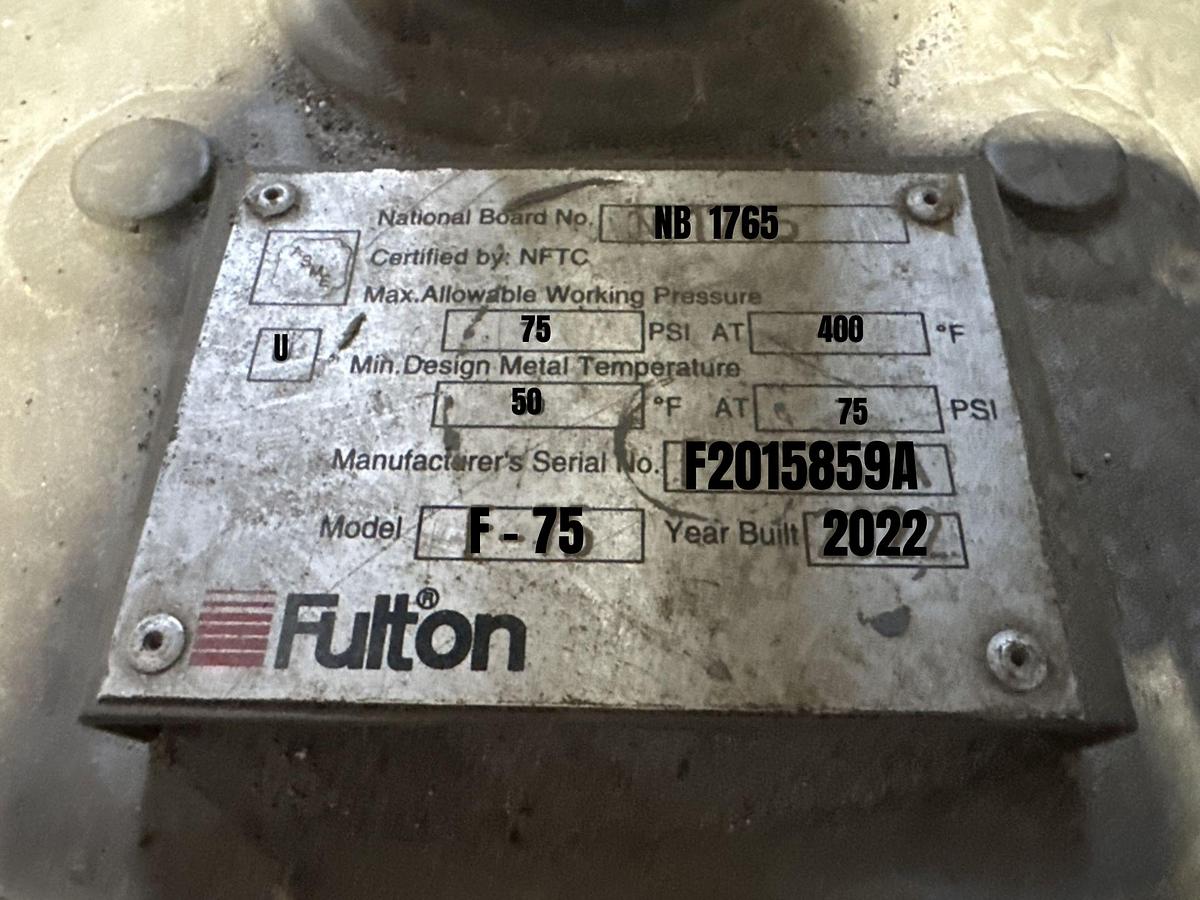

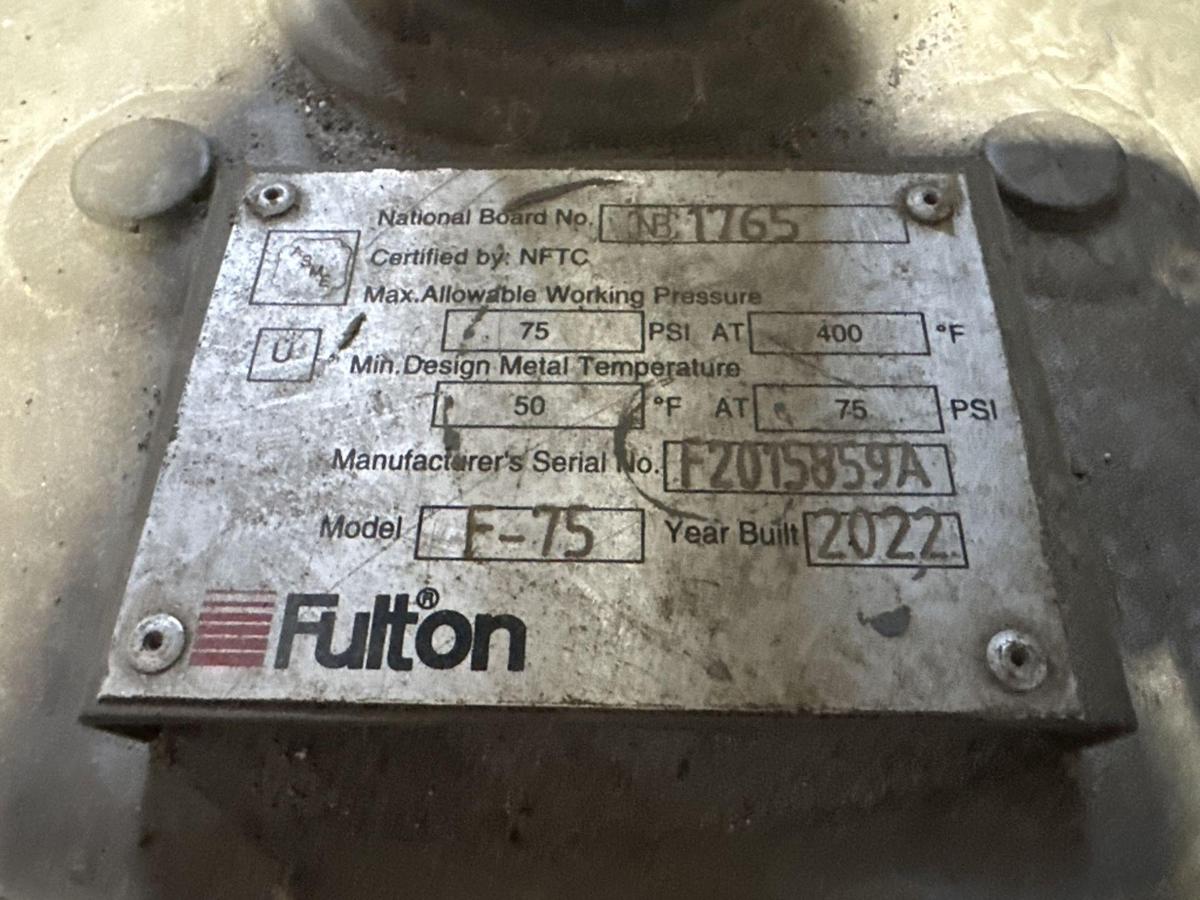

Expansion Tank Specifications:

• Model: F-75
• Serial Number: F2015859A
• National Board Number: NB 1765
• Max Allowable Working Pressure: 75 PSI at 400°F
• Min Design Metal Temperature: 50°F at 75 PSI
• Year Built: 2022
• Manufacturing Location: Pulaski, NY, USA
• NFTC Certified

Gas Supply and Controls

Gas System:

• Gas Supply Pressure: Min 7" W.C., Max 13.8" W.C.
• Manifold Gas Pressure: Min 0.7" W.C., Max 4.8" W.C.
• Oil Pump Pressure: Max 13.8" W.C., Max 4.8" W.C.
• Boiler Type: Fuel-Fired Steam/Hot Water Boiler

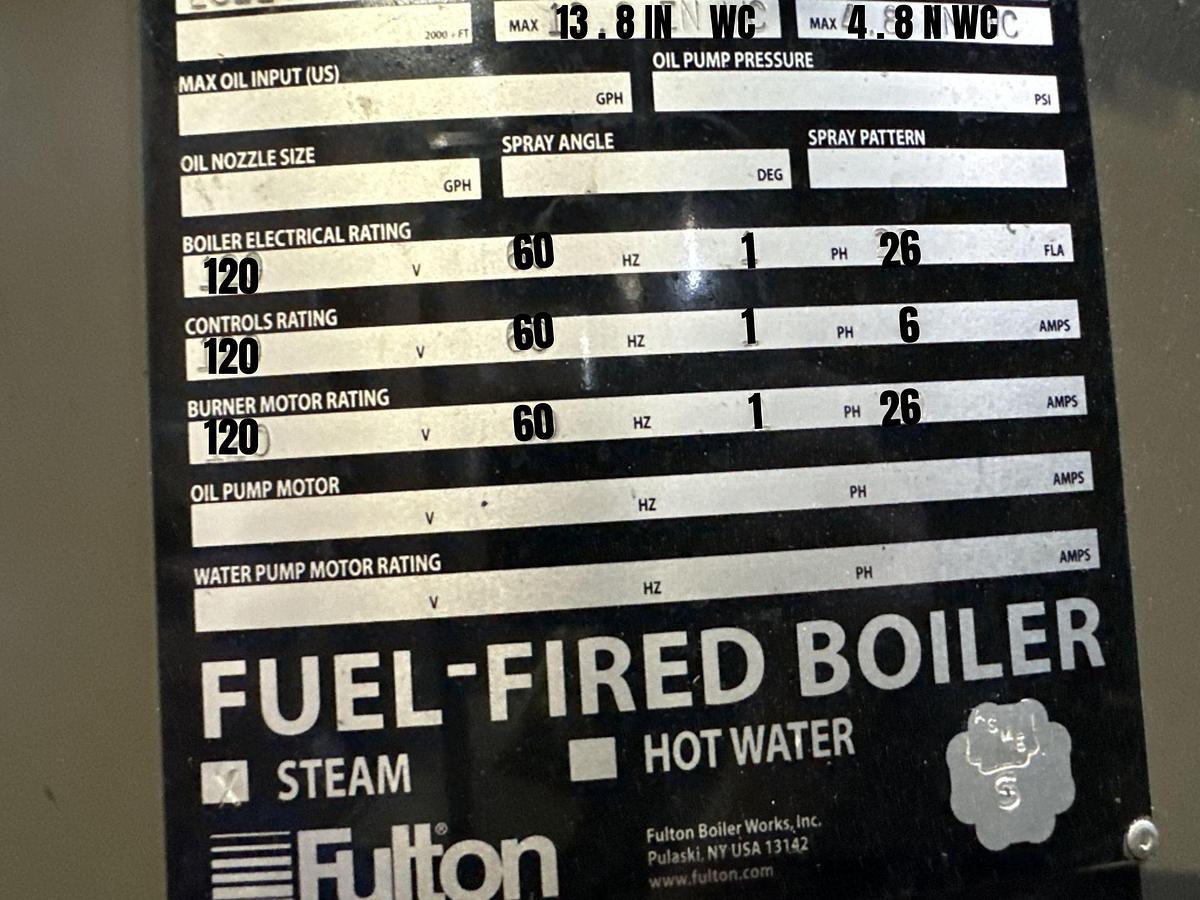

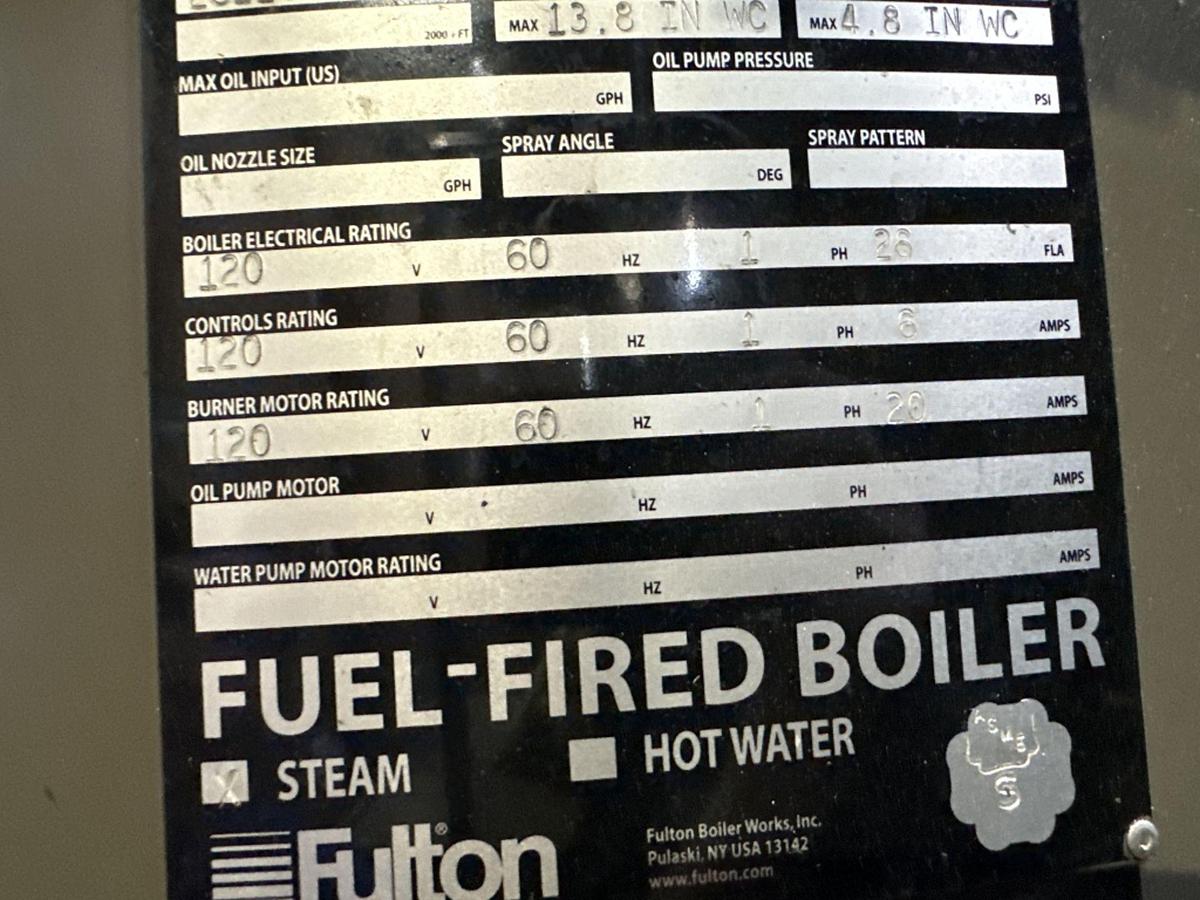

Electrical Specifications:

• Boiler Electrical Rating: 120V, 60Hz, 1Ph, 26 FLA
• Controls Rating: 120V, 60Hz, 1Ph, 6 Amps
• Burner Motor Rating: 120V, 60Hz, 1Ph, 26 Amps

Key Features & Capabilities

• Integrated Classic Series design for superior efficiency and reliability
• Dual-fuel capability (Natural Gas primary, Oil backup ready)
• 2070 lbs/hr steam production capacity with flexible steam/hot water operation

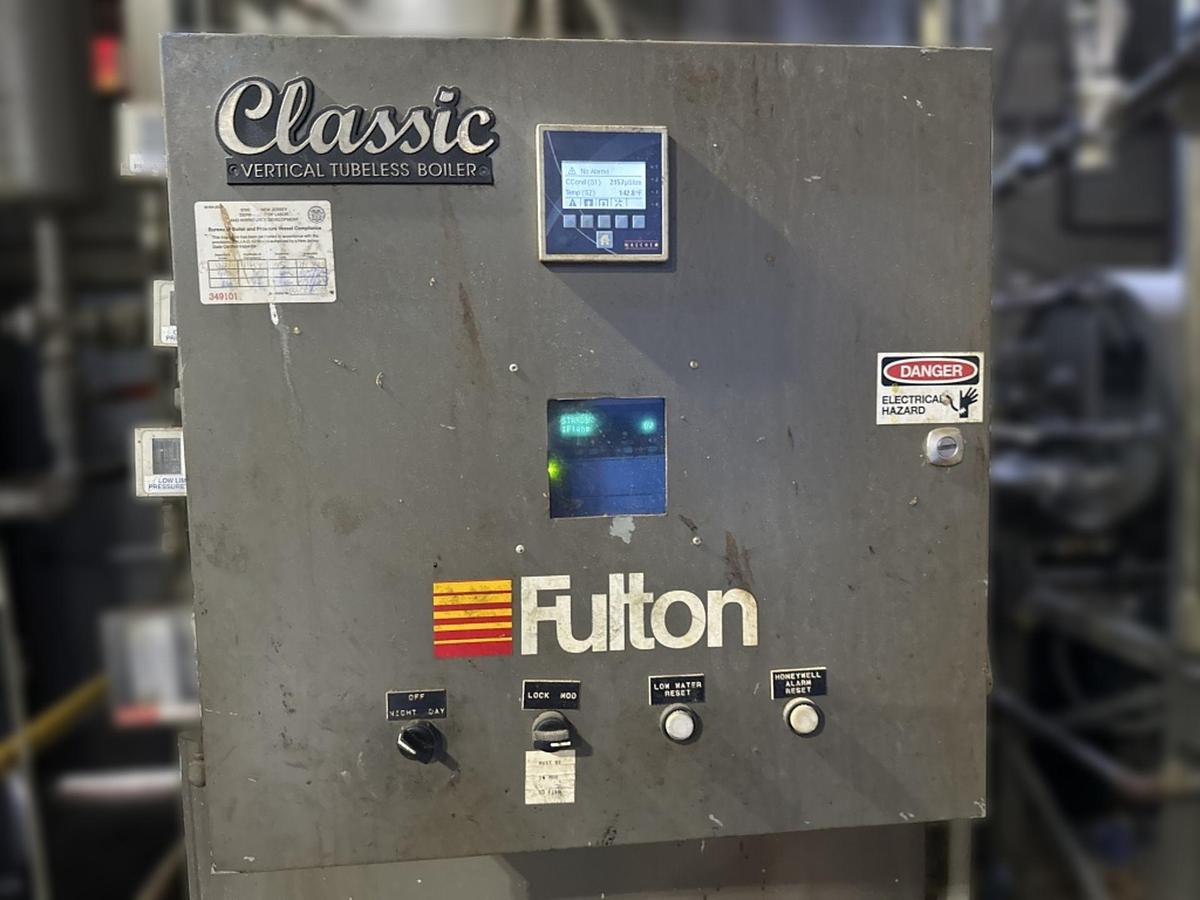

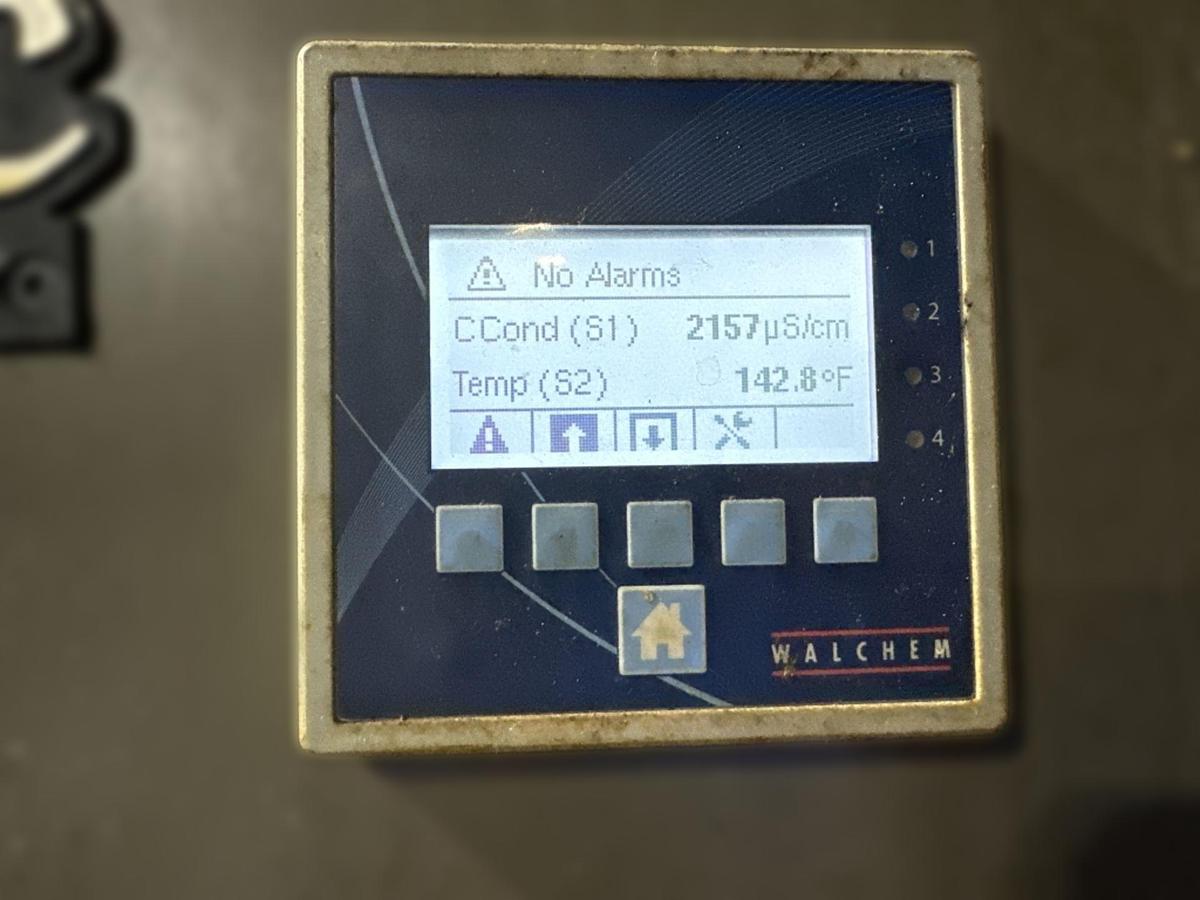

• Advanced Fulton Classic control system with digital display
• Heavy-duty construction with 5/16" shell and 5/8" head thickness
• 180 sq ft heating surface for optimal heat transfer
• NFTC certified and National Board registered
• Integrated F-75 expansion tank eliminates separate tank installation
• Built-in safety systems and modern burner management controls
• American manufacturing - built in Pulaski, New York

Ideal Applications

• Commercial office buildings and complexes
• Healthcare facilities and hospitals
• Educational institutions and school districts
• Industrial process steam and hot water requirements
• Municipal and institutional heating systems
• Multi-building campus heating applications
• District heating systems requiring reliable steam production
• Manufacturing facilities requiring process steam
• Food service and laundry operations

Benefits

✓ Latest 2022 Fulton engineering with proven Classic series reliability

✓ Dual-fuel capability provides operational flexibility and backup fuel option

✓ High-efficiency design reduces operating costs and emissions

✓ Integrated expansion tank simplifies installation and reduces footprint

✓ Digital controls and monitoring for optimal performance and diagnostics

✓ Heavy-duty construction ensures long service life

✓ NFTC certification and National Board registration for code compliance

✓ American-built quality from Fulton's Pulaski, NY facility

✓ Comprehensive safety systems and modern burner management

Additional Information

Condition: Used - Currently Installed

Manufacturer: Fulton Boiler Works, Inc.

Manufacturing Location: Pulaski, NY, USA

Model: ICS-60 with F-75 Expansion Tank

Expansion Tank Serial Number: F2015859A

Equipment Type: Integrated Steam/Hot Water Boiler System

Year Built: 2022

National Board Numbers: 126044 (Boiler), NB 1765 (Tank)
