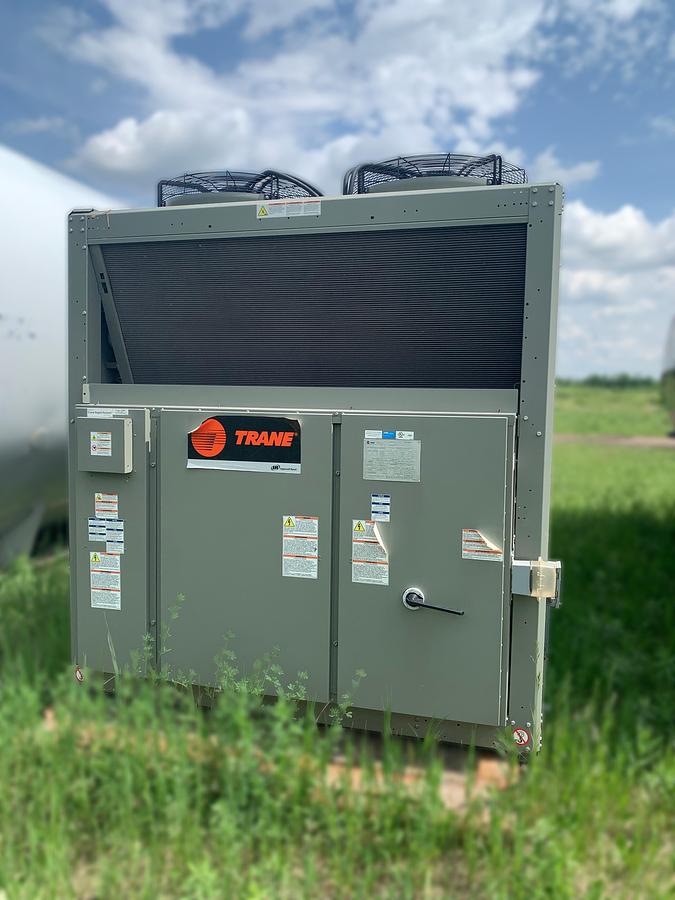

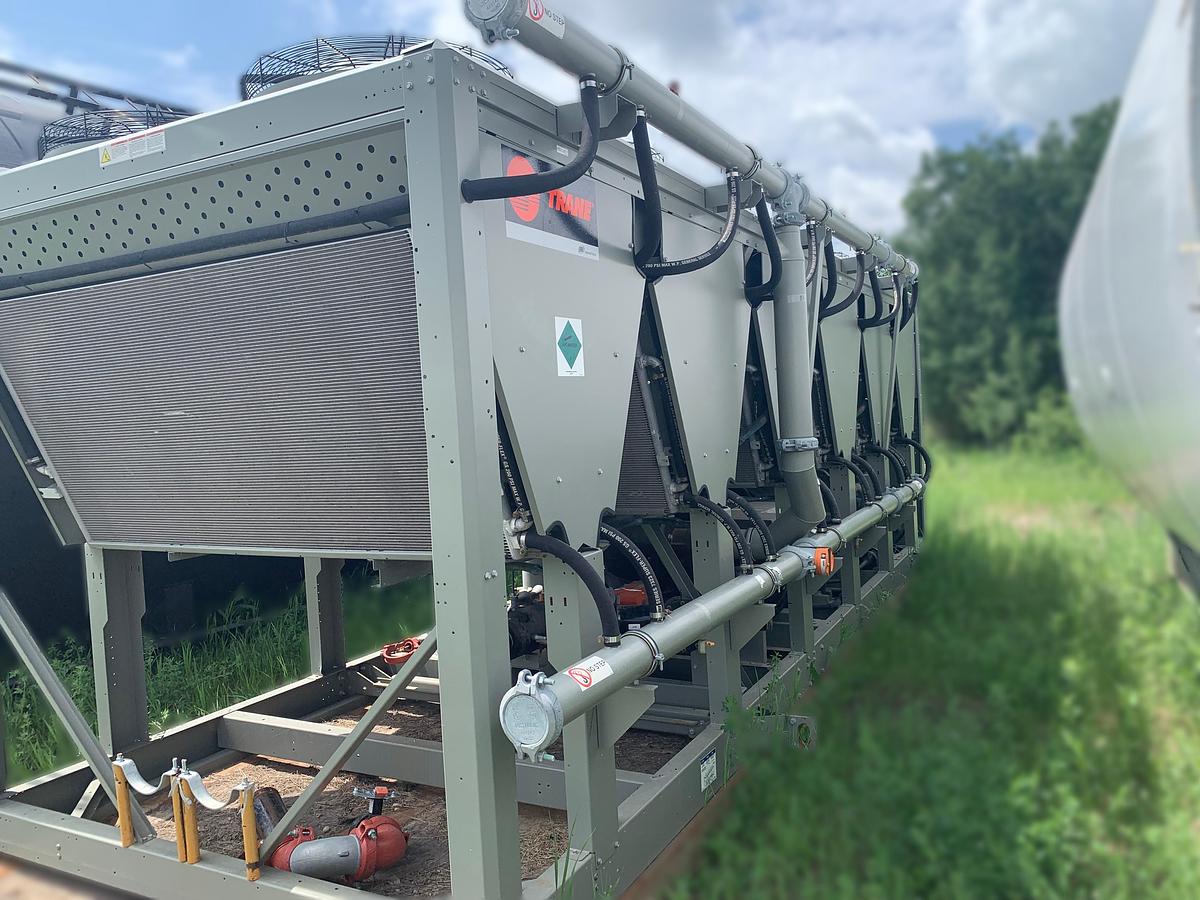

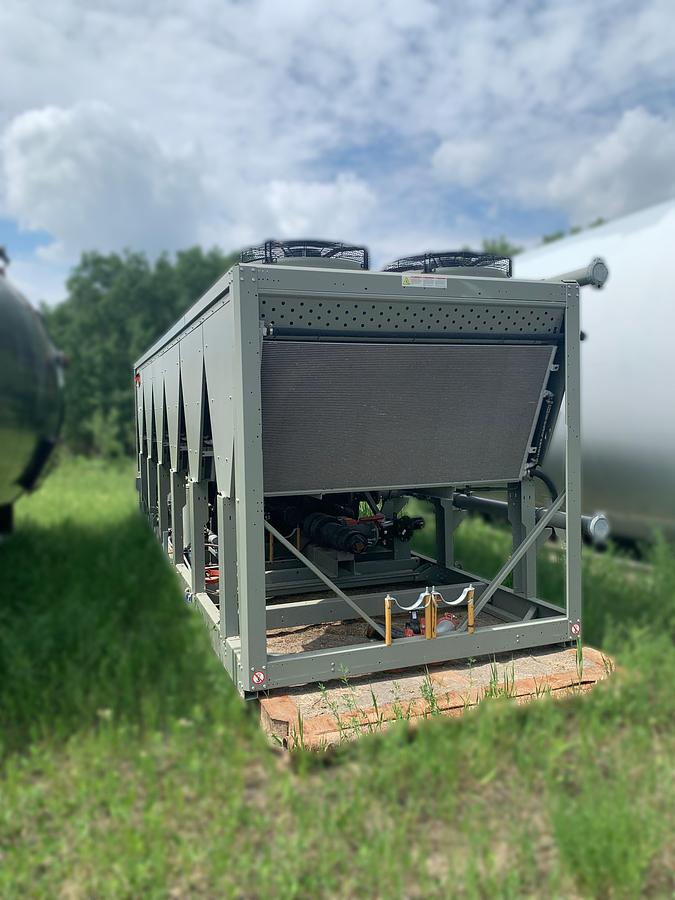

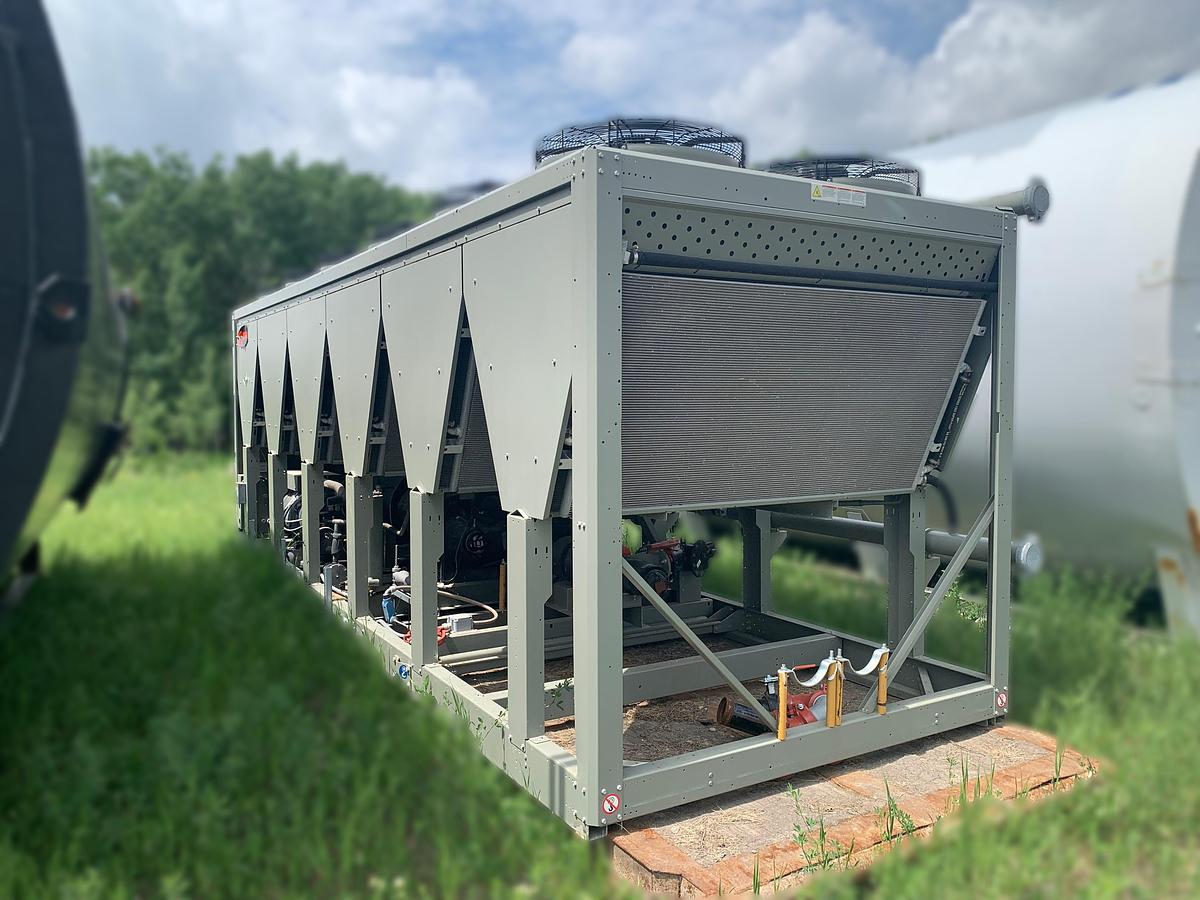

Trane 170 Ton Air-Cooled Chiller – RTAF 170E (2021)

Overview

This Used Trane RTAF 170E 170 Ton Air-Cooled Chiller is engineered for high-efficiency cooling in large commercial and industrial environments. Built in 2021, this model is AHRI Certified and UL Listed, delivering dependable performance with low operating hours—only 2,300 hours of run time. With its durable outdoor-rated design and R-134a refrigerant, this chiller is ideal for critical cooling loads in data centers, manufacturing facilities, and process cooling applications.

Design and Performance

• Cooling Capacity: 170 Tons
• Model: RTAF 170E UAHH XUA2 N24W 1NLN CCV1 CAXB XXXA X1XX XF0
• Refrigerant Type: R-134a
• Refrigerant Charge (Factory): 111 lbs (Circuit 1), 99 lbs (Circuit 2)
• Oil Type: OIL315
• Oil Charge (Factory): 1.6 gal per circuit
• Voltage: 460V / 3 Phase / 60 Hz
• Maximum Fuse/Breaker: 450 A
• Compressor Motor RLA: 136 (MTR 1A), 115 (MTR 2A)
• VFD Input (HP): 12.3 HP
• VFD Input (FLA): 2.8 A
• Design Pressures:
• High Side: 350 PSIG
• Low Side: 200 PSIG

Ideal Applications

• Industrial Process Cooling
• Data Centers
• Pharmaceutical Facilities
• Large Office Buildings
• Hospitals and Healthcare Facilities
• District Cooling Systems

Benefits

✓ Only 2,300 operating hours – excellent condition

✓ AHRI Certified for energy efficiency and performance

✓ UL Listed – meets North American safety standards

✓ Designed for outdoor installation – durable and weather-resistant

✓ Advanced Trane engineering – known for reliability and long lifespan

✓ Uses R-134a refrigerant – environmentally compliant

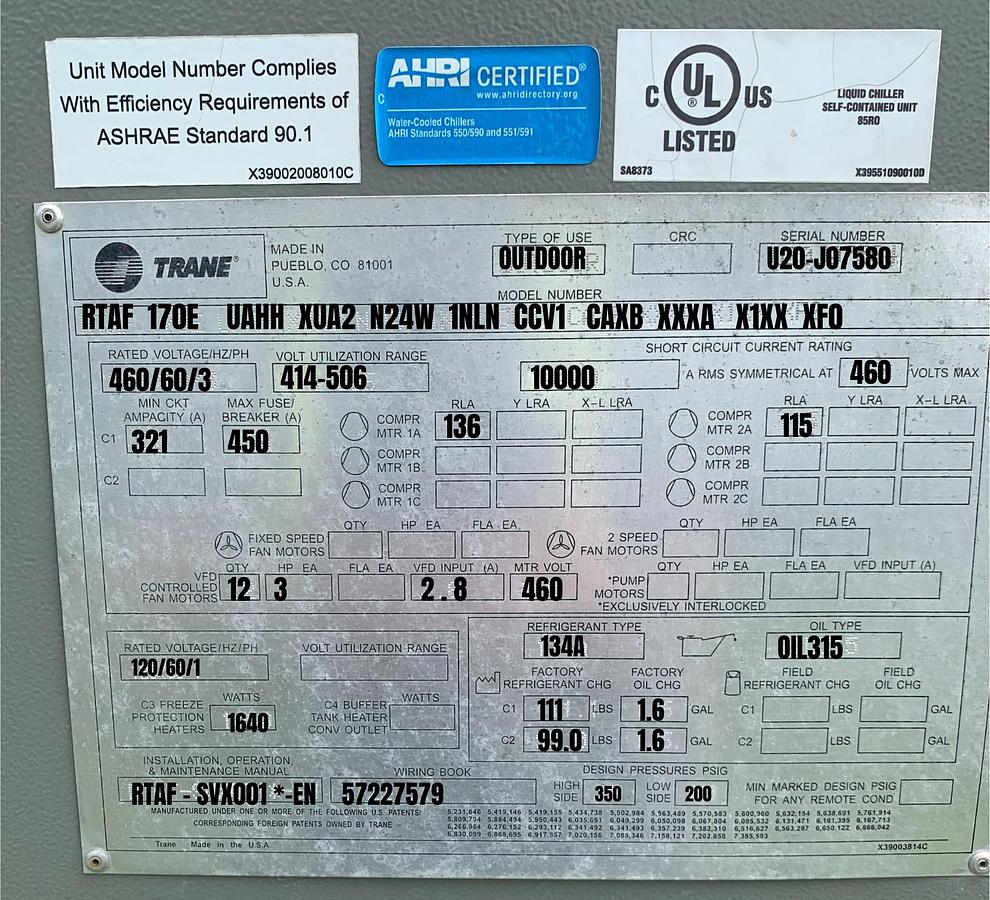

Additional Information

• Condition: Used
• Manufacturer: Trane
• Model Number: RTAF 170E UAHH XUA2 N24W 1NLN CCV1 CAXB XXXA X1XX XF0
• Serial Number: U20J07580
• Location Built: Pueblo, Colorado, USA
• Year Built: 2021
• Unit Type: Air-Cooled Liquid Chiller, Outdoor
