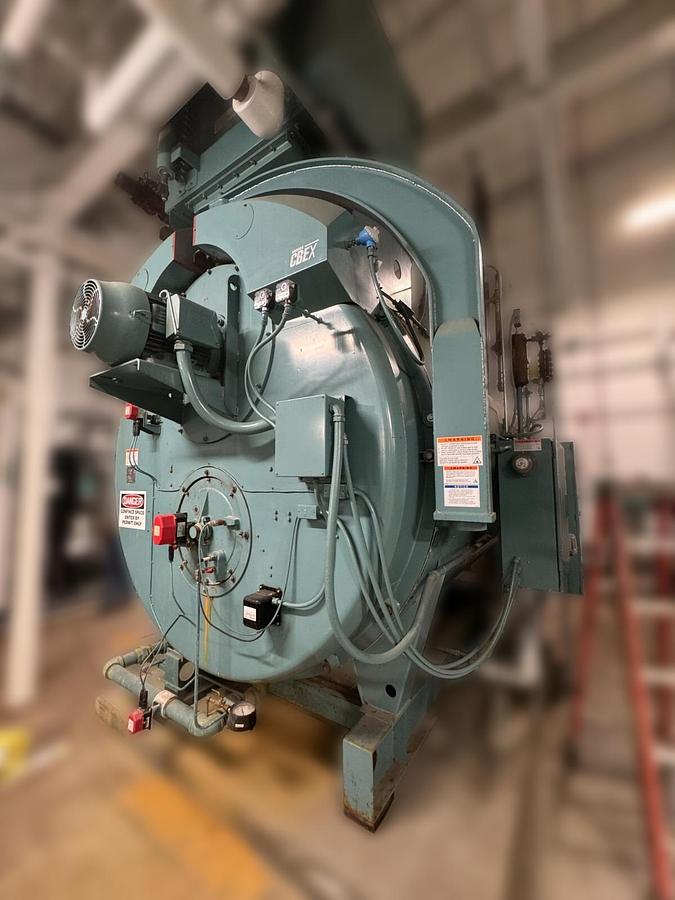

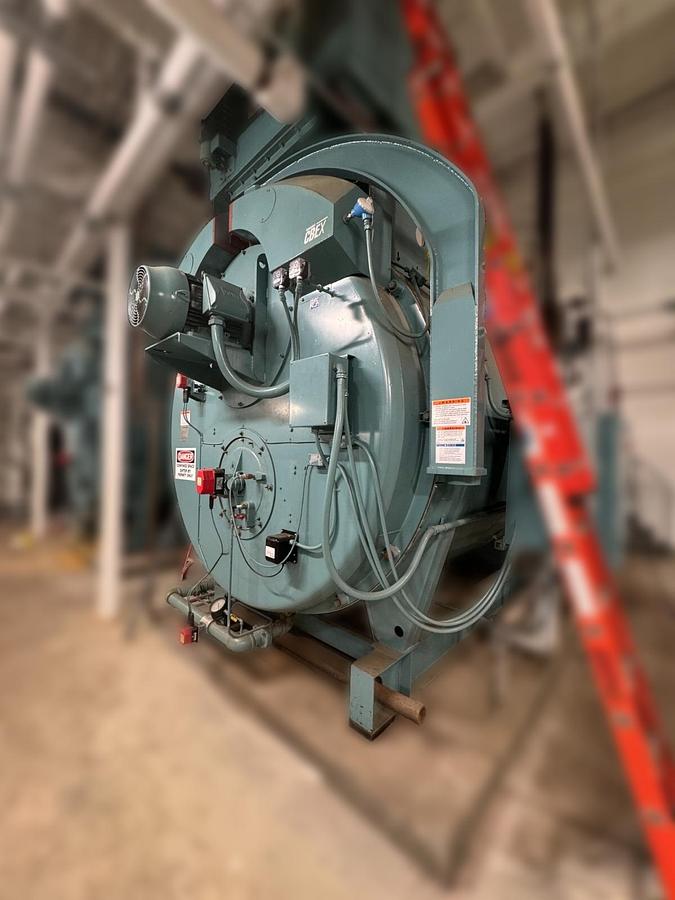

Cleaver Brooks 700 HP High Pressure Steam Boiler – CBEX-E700-700-150ST (2020)

Overview

This used 700 HP Cleaver Brooks CBEX-E700-700-150ST Packaged High Pressure Steam Boiler is built for heavy-duty, high-demand steam applications in large industrial facilities. Featuring Cleaver Brooks' cutting-edge CBEX Elite design, this unit offers unmatched efficiency and performance for processes that require consistent, reliable steam generation. Manufactured in 2020, this boiler represents one of the latest in the CBEX series with a high gross output of 23,533,000 BTU/hr, ideal for rigorous industrial use.

Design and Performance

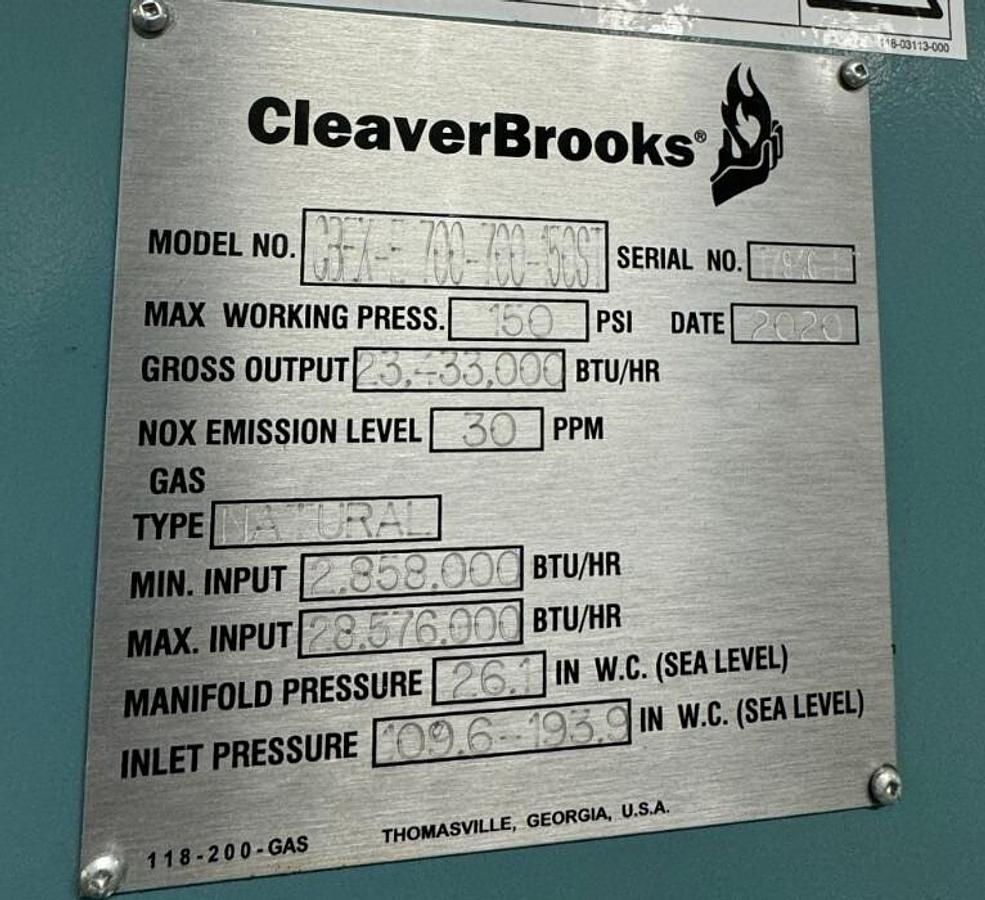

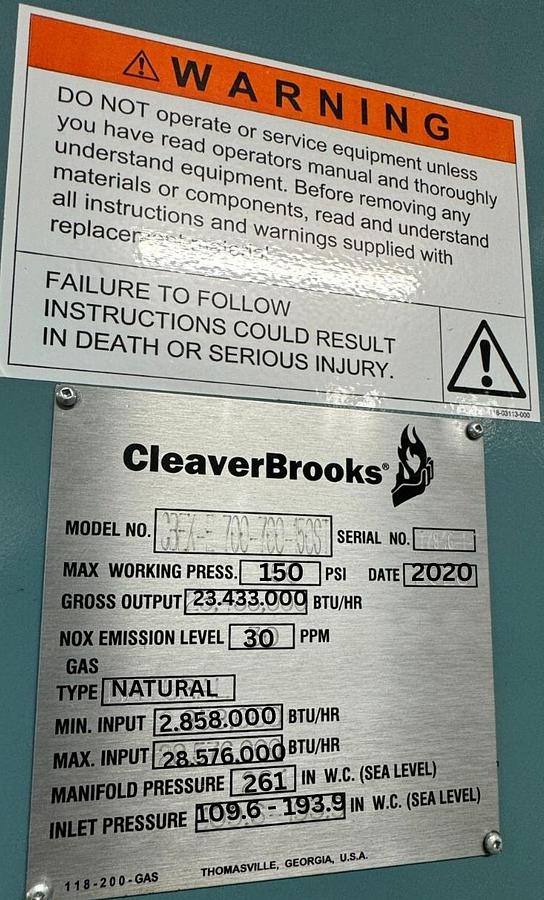

• Horsepower: 700 HP
• Model: CBEX-E700-700-150ST
• Gross Output: 23,533,000 BTU/hr
• Fuel Type: Natural Gas
• NOx Emission Level: 30 PPM (Low NOx emissions)
• Max Input Capacity: 28,576,000 BTU/hr
• Min Input Capacity: 2,858,000 BTU/hr
• Max Working Pressure: 150 PSI
• Manifold Pressure: 26.1 in. W.C. (Sea Level)
• Inlet Pressure: 10.9 - 19.3 in. W.C. (Sea Level)
• Year Built: 2020
• Serial Number: L87763
• Certification: UL Listed Gas-Fired Boiler Assembly

Ideal Applications

• Large Manufacturing Plants
• Petrochemical Facilities
• Food and Beverage Processing Plants
• Pharmaceutical Manufacturing
• Institutional District Heating Systems
• Pulp and Paper Mills
• Large-Scale Process Steam Requirements

Benefits

✓ High-capacity steam production for demanding industrial applications

✓ Ultra-low NOx emissions for environmental compliance

✓ Advanced Cleaver Brooks CBEX Elite technology for maximum efficiency

✓ Packaged design for easier transport and installation

✓ Natural gas operation for clean, cost-effective fuel usage

✓ Manufactured in Thomasville, Georgia, USA for top build quality

Additional Information

• Condition: Used
• Manufacturer: Cleaver Brooks
• Manufacturing Location: Thomasville, Georgia, USA
• Model: CBEX-E700-700-150ST
• Serial Number: L87763
• Boiler Type: Packaged High Pressure Steam Boiler
