Miura 50HP 1,725 lb/hr High-Pressure Steam Boiler – 2022 EX-200-SGO

Overview

This premium Used Miura LX-50 Gas-Fired Steam Boiler represents industrial-grade steam generation technology at its finest. Manufactured in 2022 by Miura Canada Co., Ltd. and certified to the highest North American standards, this compact powerhouse delivers exceptional performance with proven reliability. The unit produces up to 1,725 lb/hr of high-pressure steam and features Miura's renowned modular design for space-efficient installation in demanding commercial and industrial environments.

Built to Canadian electrical standards and UL Listed for safety compliance, this boiler includes integral primary safety controls and is engineered for dependable, long-term operation across diverse applications.

Key Specifications

Performance Data

• Model: LX-50
• Maximum Designed Steam Capacity: 1,725 lb/hr
• Maximum Allowable Working Pressure (MAWP): 170 PSI
• Design Temperature: 400°F
• Heating Surface Area: 192 sq. ft
• Year Built: 2022
• Fuel Type: Natural Gas

Fuel Input Specifications

• Maximum Input: 1,970,000 BTU/Hr (578 kW)
• Minimum Input: 492,000 BTU/Hr (145 kW)
• Maximum Manifold Pressure: 8 W.C. (2.0 kPa)
• Gas Inlet Pressure Range: Min. 3 psig (20 kPa) / Max. 5 psig (35 kPa)

Electrical Specifications

• Electrical Supply: 3 Phase, 60 Hz, 575V
• Electrical Rating: 8A
• Total Motor Current: 7A
• Minimum Circuit Ampacity: 9A

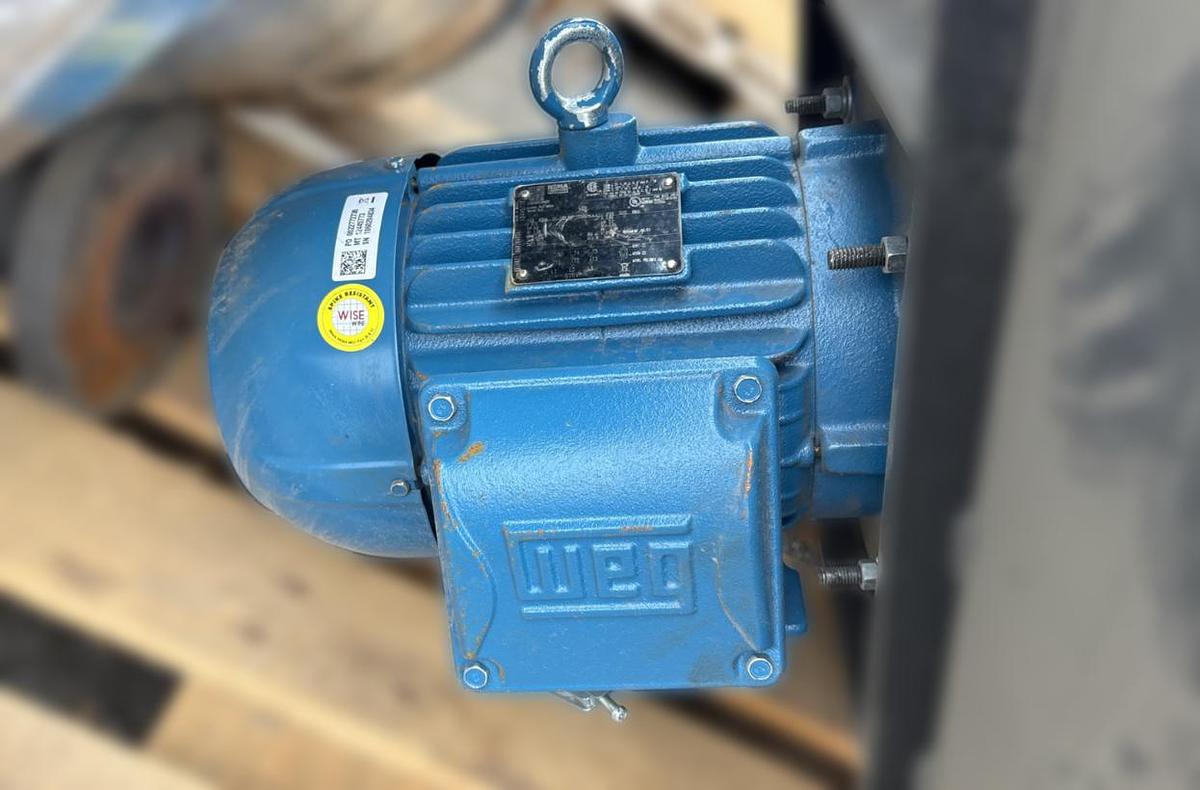

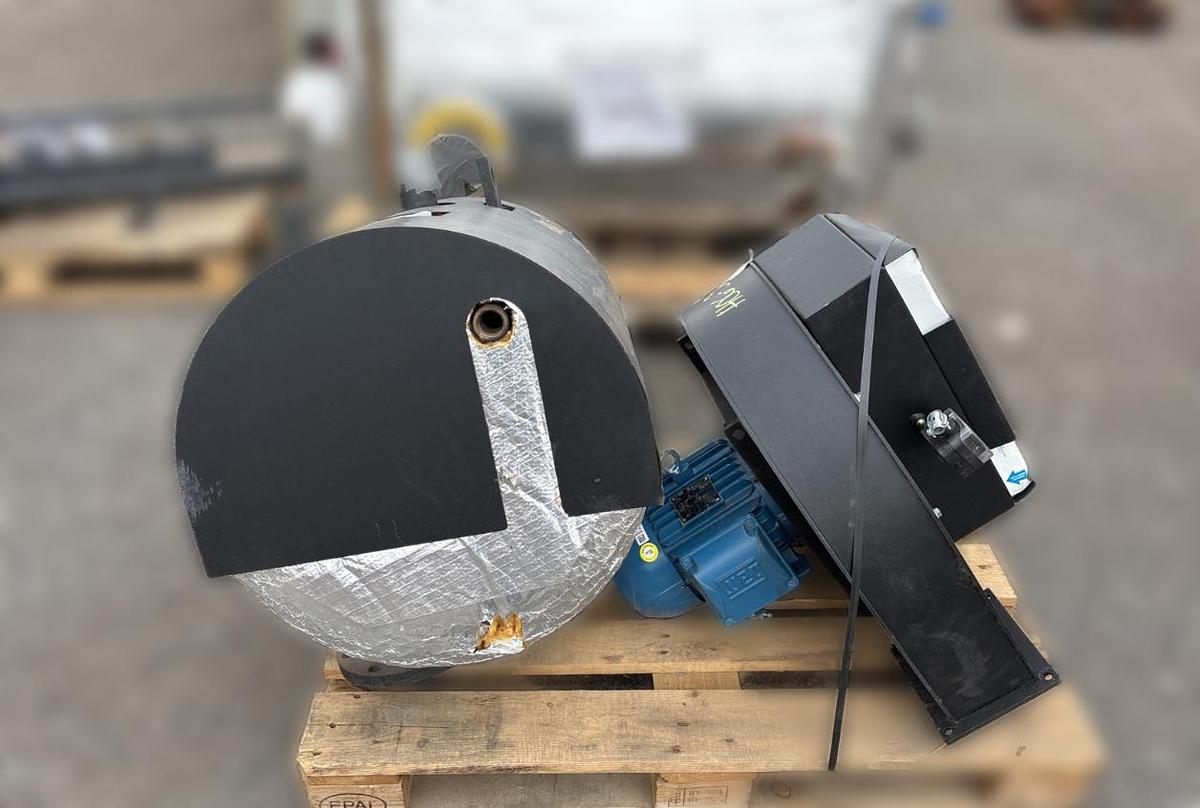

• Combustion Fan: 3 HP
• Feed Water Pump: 2 HP
• Circuit Protection: 15A Time Delay Fuse

Safety Clearances

For non-combustible floors, indoor installation only:

• Top: 18" (460 mm)
• Rear: 18" (460 mm)
• Sides: 18" (460 mm)
• Flue Pipe: 18" (460 mm)
• Front: 48" (1220 mm)
• Electrical Panels: 48" (1220 mm)
• Note: Boilers may be installed side-by-side with 0" clearance

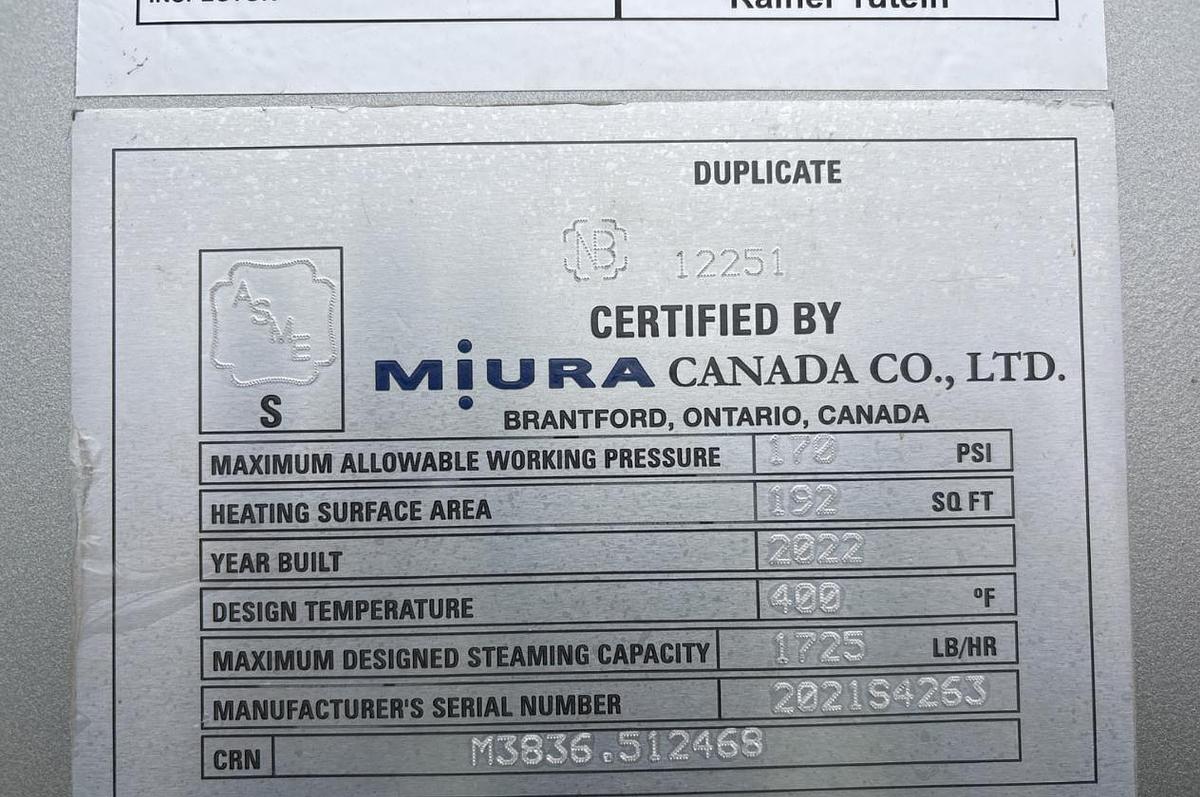

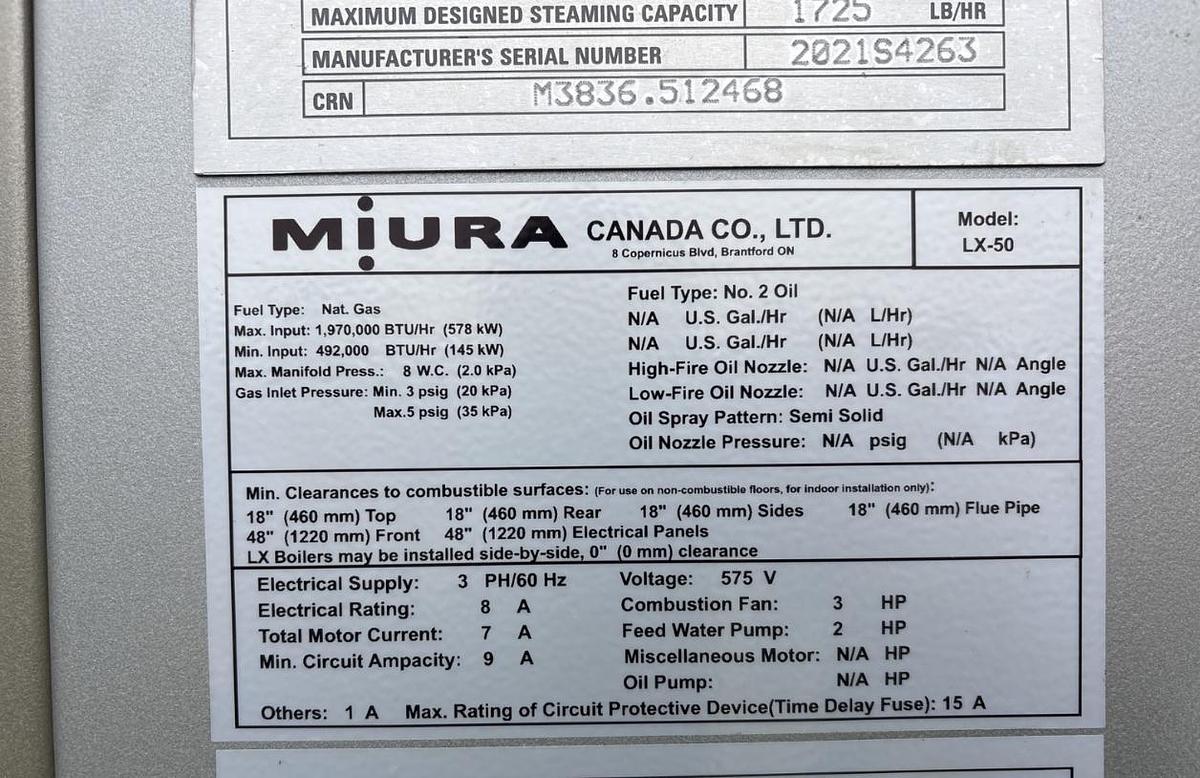

Certifications & Registration Numbers

• ASME Certification: "S" Stamp (#12251)
• Manufacturer Serial Number: 2021S4263
• Canadian Registration Number (CRN): M3836.512468

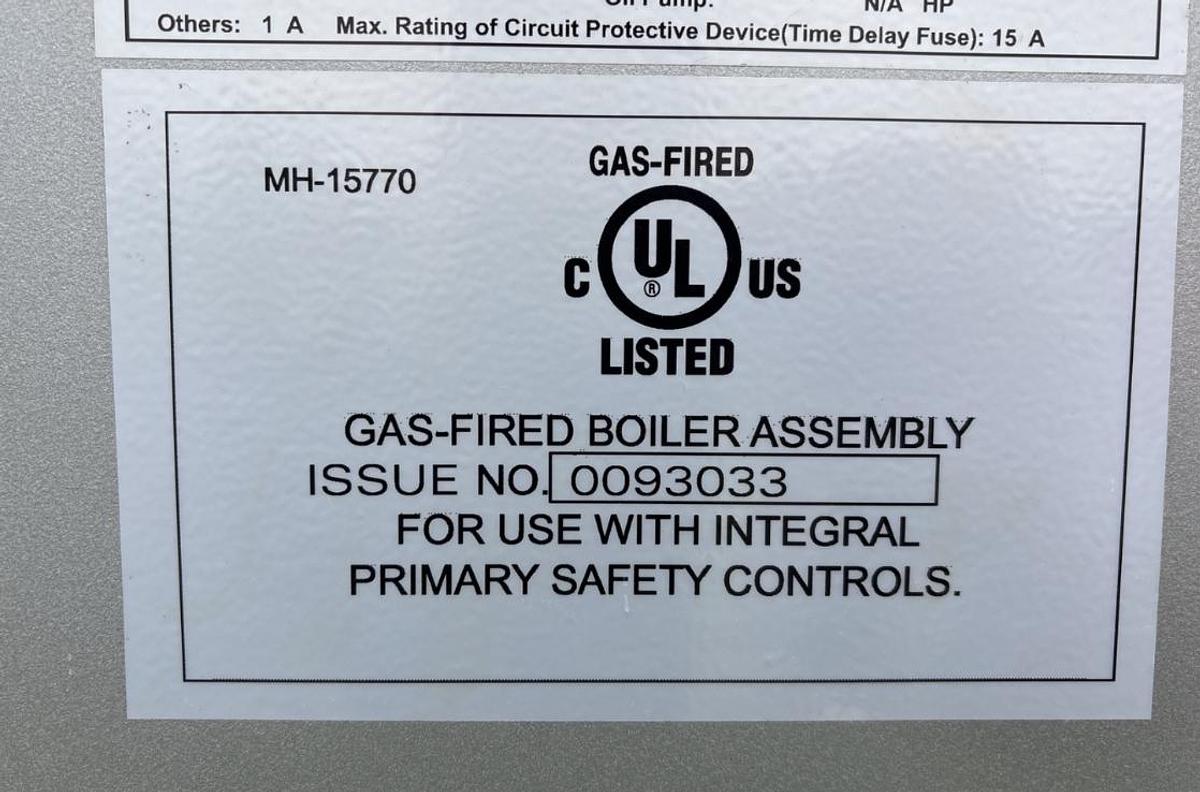

• UL Listed: Gas-Fired Boiler Assembly (Issue No. 0093033)
• National Board No.: 12251
• Certifying Body: Miura Canada Co., Ltd. – 8 Copernicus Blvd, Brantford, ON

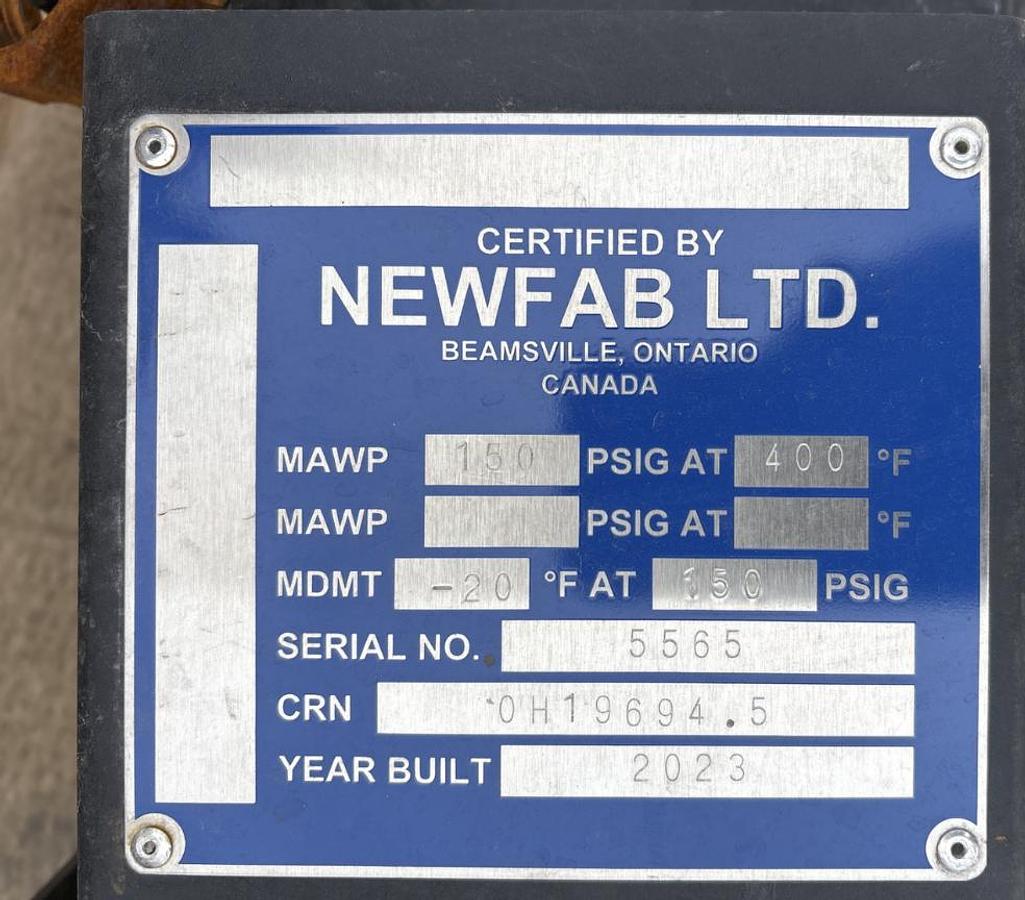

• Secondary Certification: NEWFAB LTD. (Beamsville, Ontario) - Serial No. 5565, CRN 0H19694.5

Construction Details

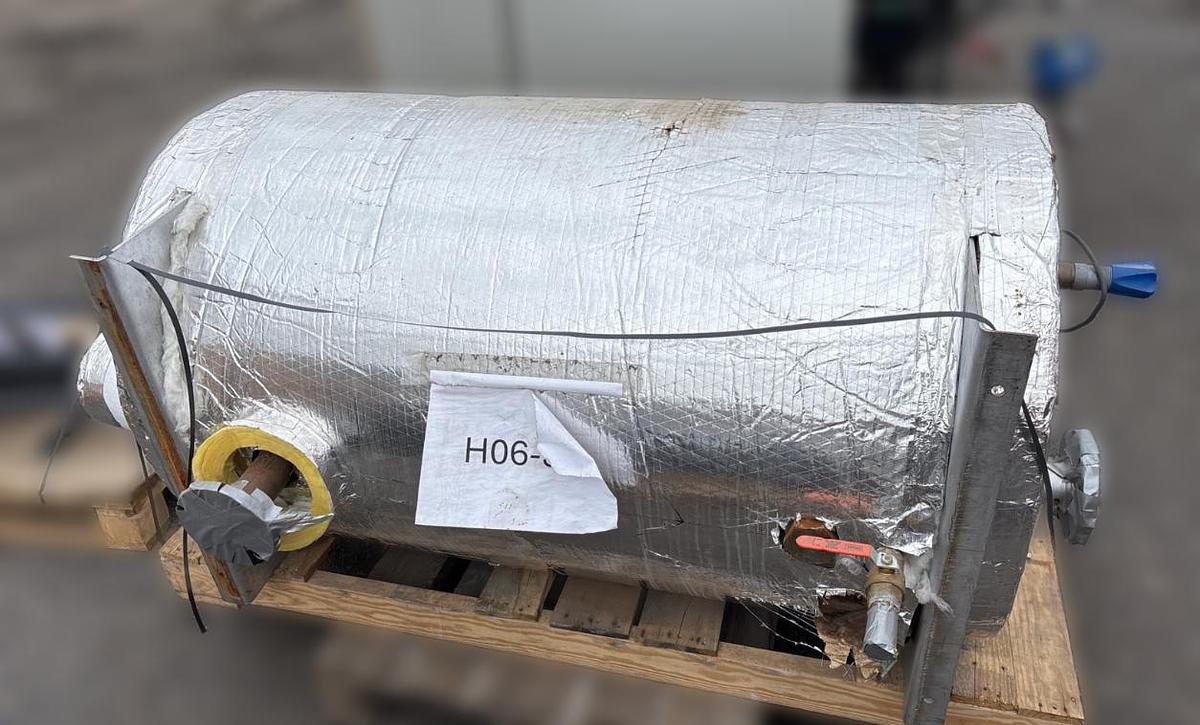

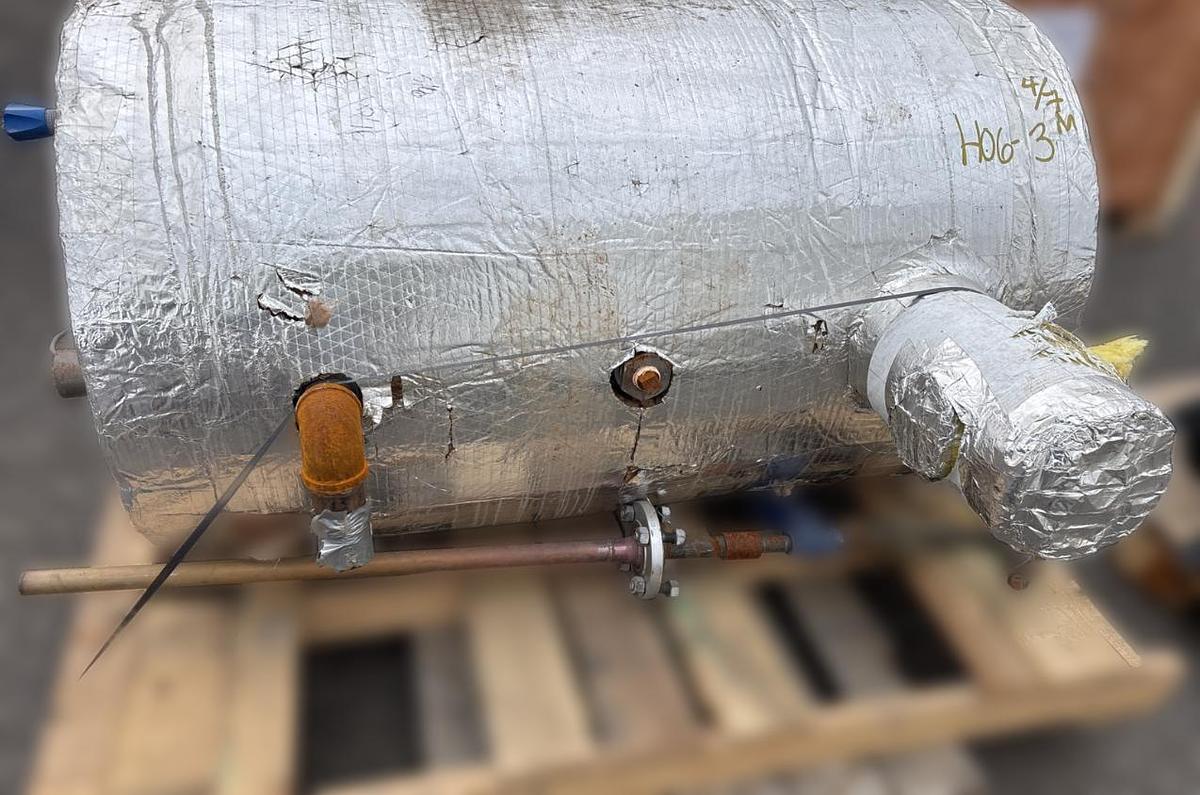

Pressure Vessel Components

• Drums: Two 12.00" diameter x 2'11" length drums
• Shell Material: SA-106 Gr. B, 0.375" thickness
• Tube Sheets: 0.75" thick, flat design
• Boiler Tubes: 2.375" diameter, SA-178 Gr. A material
• Economizer: 5" R half circle design with SA-106 Gr.B construction

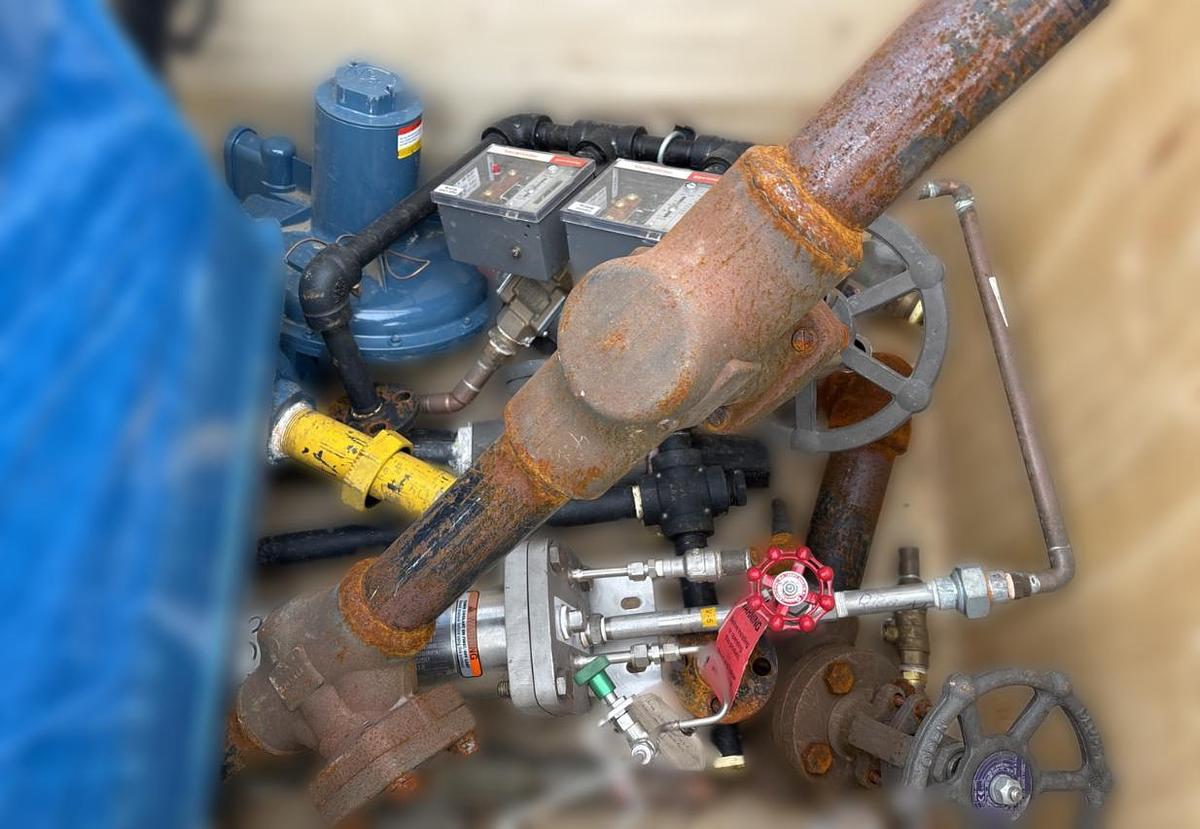

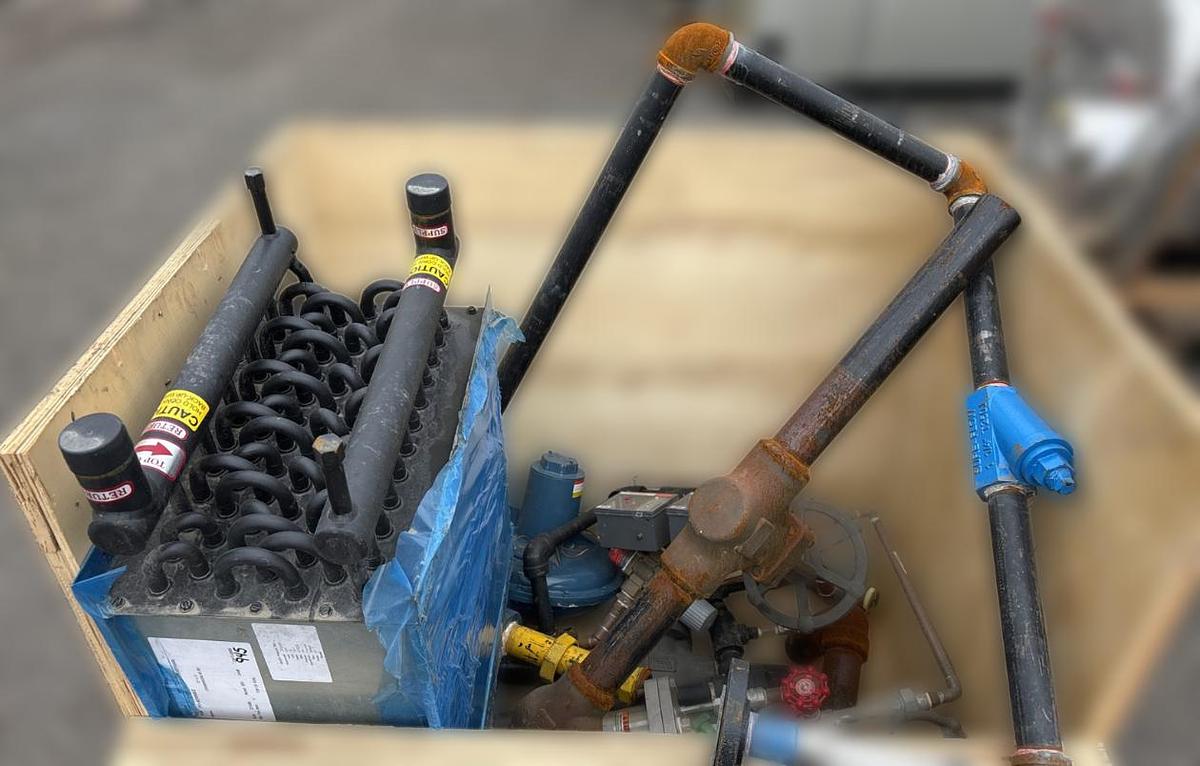

Piping and Connections

• Main Steam Valve Pipe: 2" SCH 80, SA-106 Gr.B
• Pressure Vessel Outlet: 5" SCH.40 nozzle
• Separator Return: 2½" SCH.40 nozzle
• Various Control Pipes: Multiple 1" to ¾" SCH.80 connections

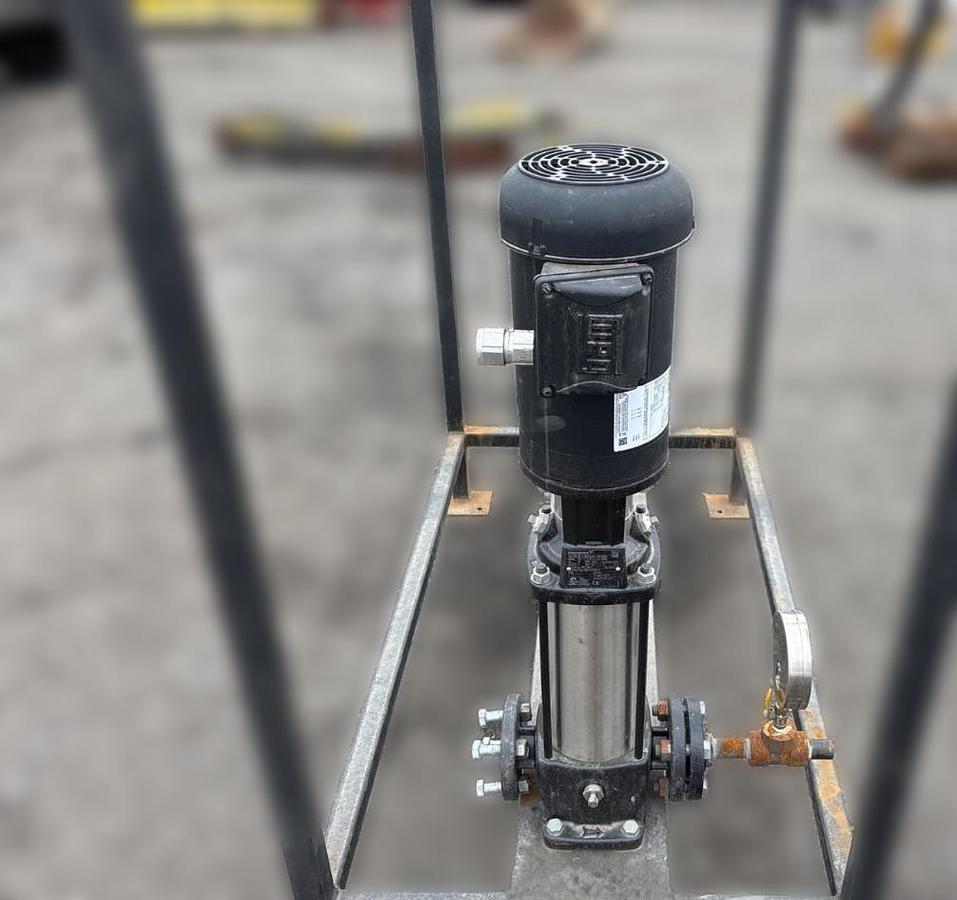

• Feed Water System: Complete with dedicated 2 HP pump

Ideal Applications

• Manufacturing & Processing Plants - High-demand steam for production processes
• Food & Beverage Processing - Consistent, clean steam for processing and cleaning
• Healthcare & Pharmaceutical - Reliable steam for sterilization and facility heating
• District Heating Systems - Efficient steam distribution for campus environments
• Industrial Laundries - High-capacity steam for commercial washing operations
• Textile Manufacturing - Process steam for dyeing and finishing operations

Key Benefits

Efficiency & Performance

✓ Rapid Steam Generation - Miura's compact water tube design for quick startup

✓ High Efficiency - Optimized combustion system with variable firing rates

✓ Modular Design - Multiple units can be manifolded for increased capacity

✓ Precise Control - Advanced combustion management for consistent output

Safety & Compliance

✓ UL Listed & CRN Registered - Full compliance for Canadian and U.S. installations

✓ Integral Safety Controls - Built-in primary safety systems

✓ Low Water Volume - Reduced safety risks compared to fire tube boilers

✓ ASME Code Construction - Engineered to Section I standards

Installation & Maintenance

✓ Compact Footprint - Space-saving design ideal for retrofits

✓ Easy Access - Front-facing controls and maintenance points

✓ Proven Reliability - Miura's reputation for long-term performance

✓ Parts Availability - Ongoing manufacturer support

Condition & Documentation

This unit comes with complete ASME Form P-3 Manufacturer's Data Report and supplementary documentation, ensuring full traceability and compliance verification. All pressure vessel components have been thoroughly inspected and certified by authorized inspectors.

Note: This is a once-through water tube boiler with no fixed steam or water line, designed for forced flow steam generation. Professional installation and commissioning recommended to ensure optimal performance and safety compliance.
