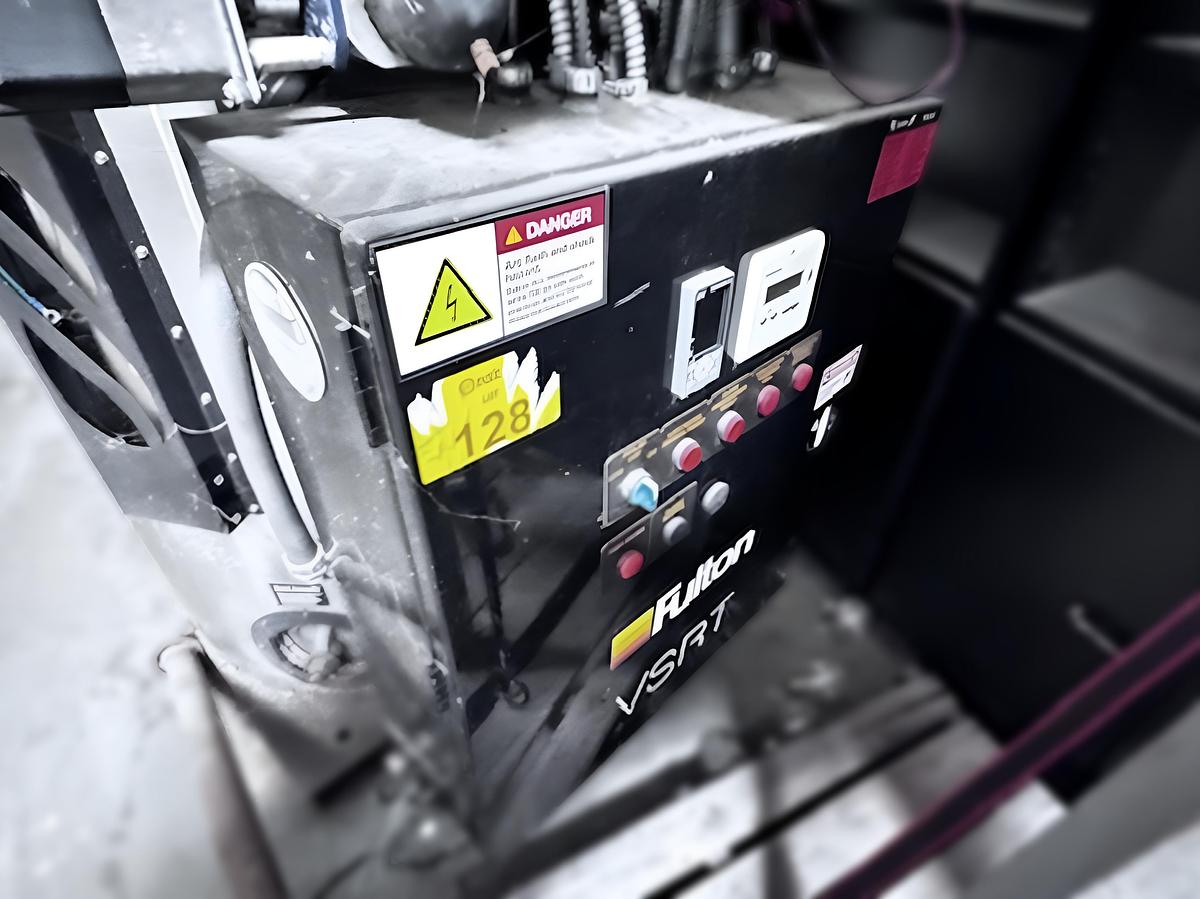

Fulton Vertical Spiral Rib Tubeless Boiler System – 2018, 1,050,000 BTU/hr, 150 PSI

Overview

This complete Fulton Vertical Spiral Rib Tubeless Boiler system, manufactured in 2018, delivers turnkey steam generation for commercial and light-industrial applications. The vertical, space-saving boiler—rated at 1,050,000 BTU/hr and 150 PSI—is supplied with its own feed-water tank, blow-down assembly, full piping, and stack, so you can install and commission quickly with minimal external equipment requirements.

Utilizing Fulton’s patented spiral-rib, tubeless heat-transfer design and clean-burning natural-gas burner, this packaged system maximizes energy efficiency, reduces maintenance, and ensures reliable performance.

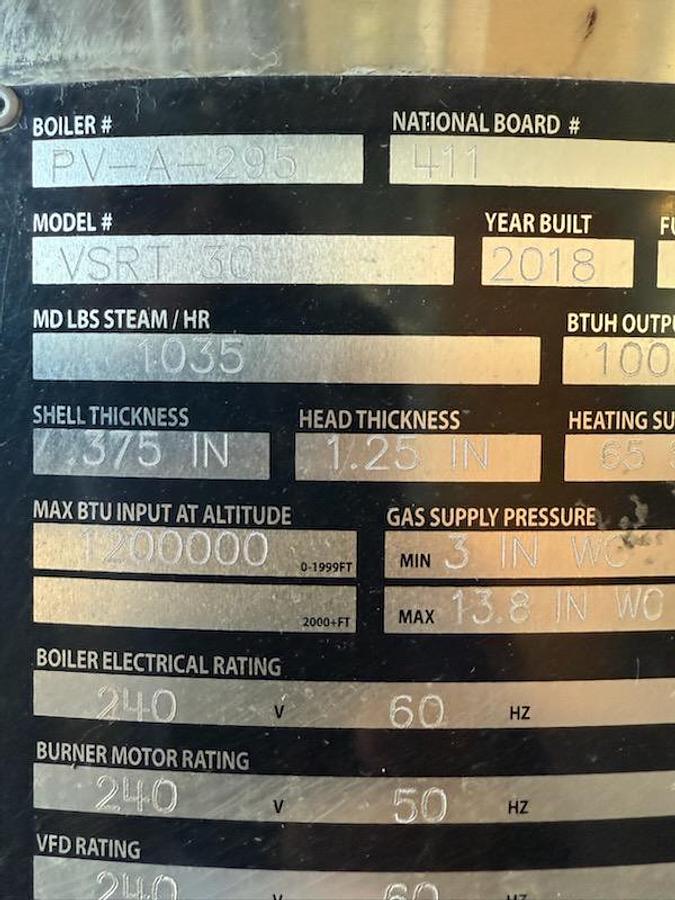

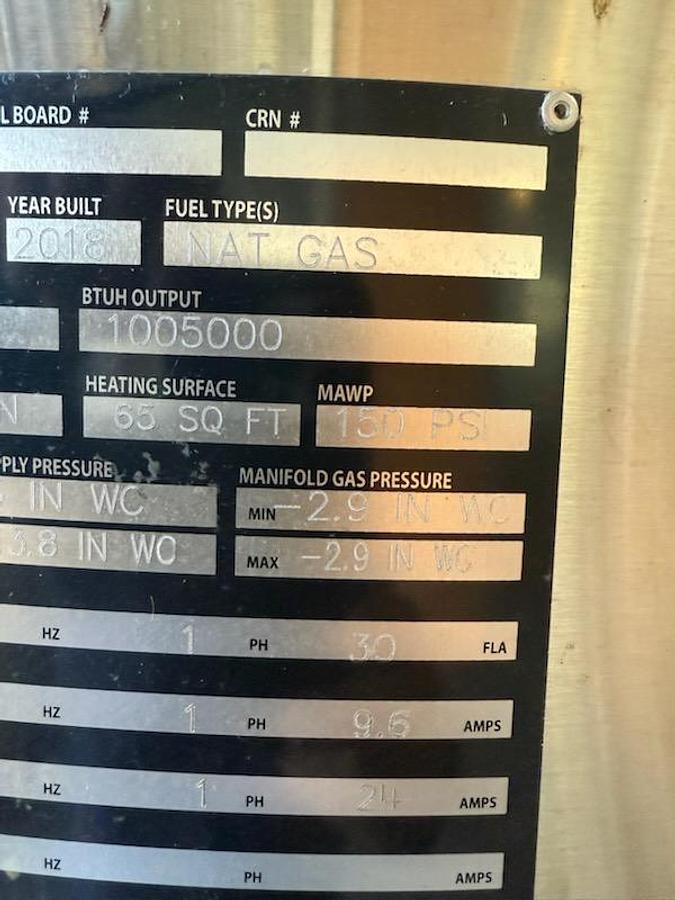

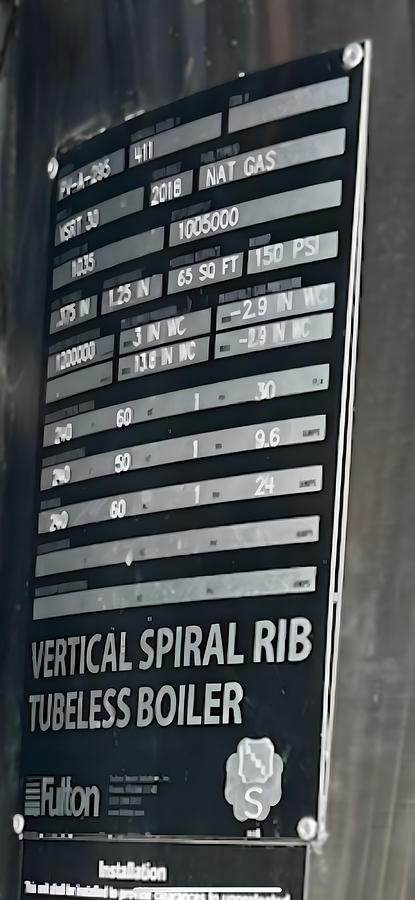

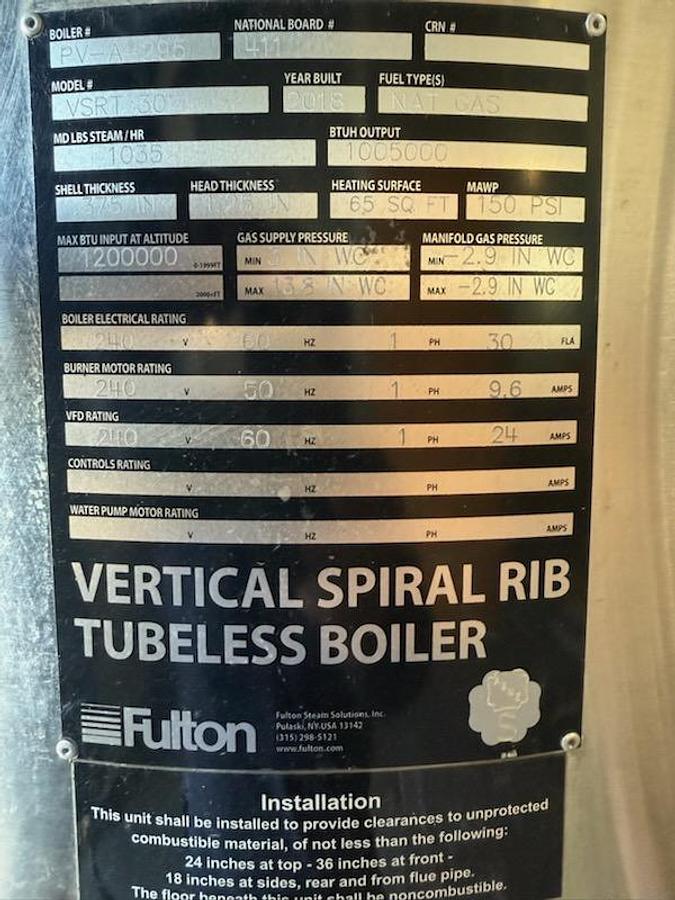

Design and Performance

• Model: VSRT-30
• Year Built: 2018
• Fuel Type: Natural Gas
• Input Capacity: 1,050,000 BTU/hr
• Maximum Working Pressure: 150 PSI
• Boiler Heating Surface: 65 sq ft
• Gas Pressure Requirements:
• Inlet: 3″ WC
• Min/Max: –2.9″ WC / –0.9″ WC
• Electrical Requirements:
• Main Supply: 460 V / 3 Phase / 60 Hz
• Control Circuit: 120 V / 1 Phase / 60 Hz
• Pump & Blower Loads: 9.6 A / 24 A

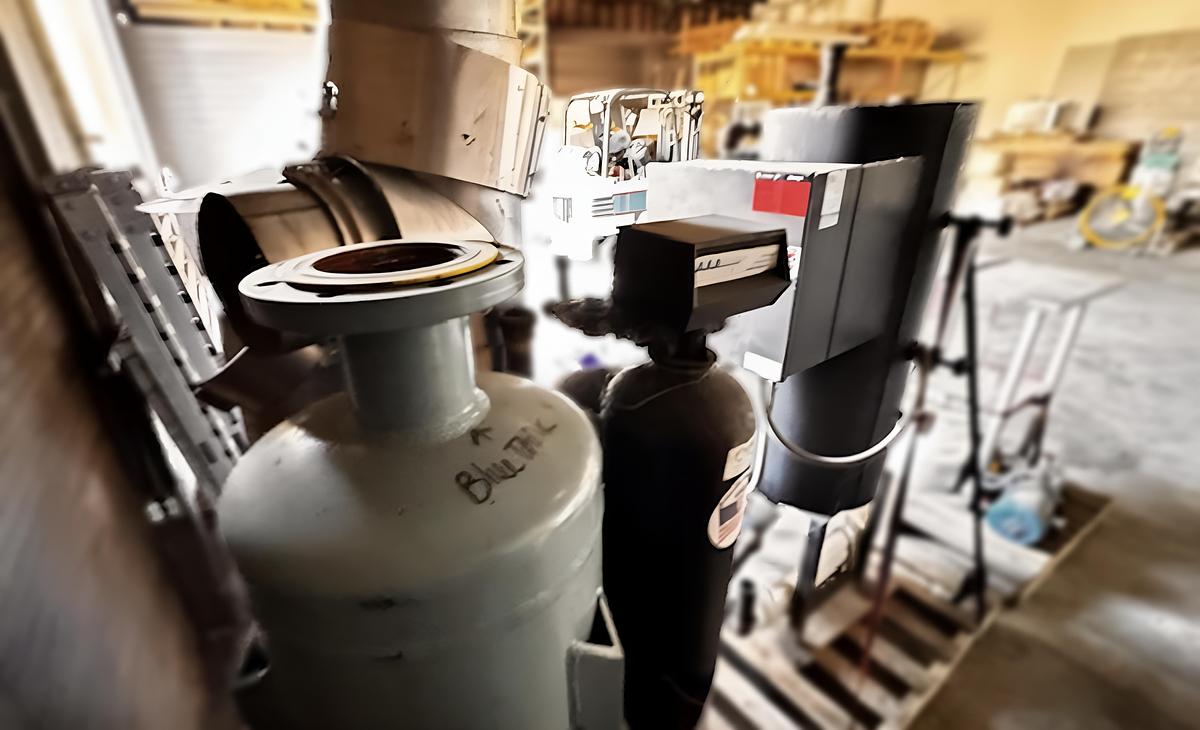

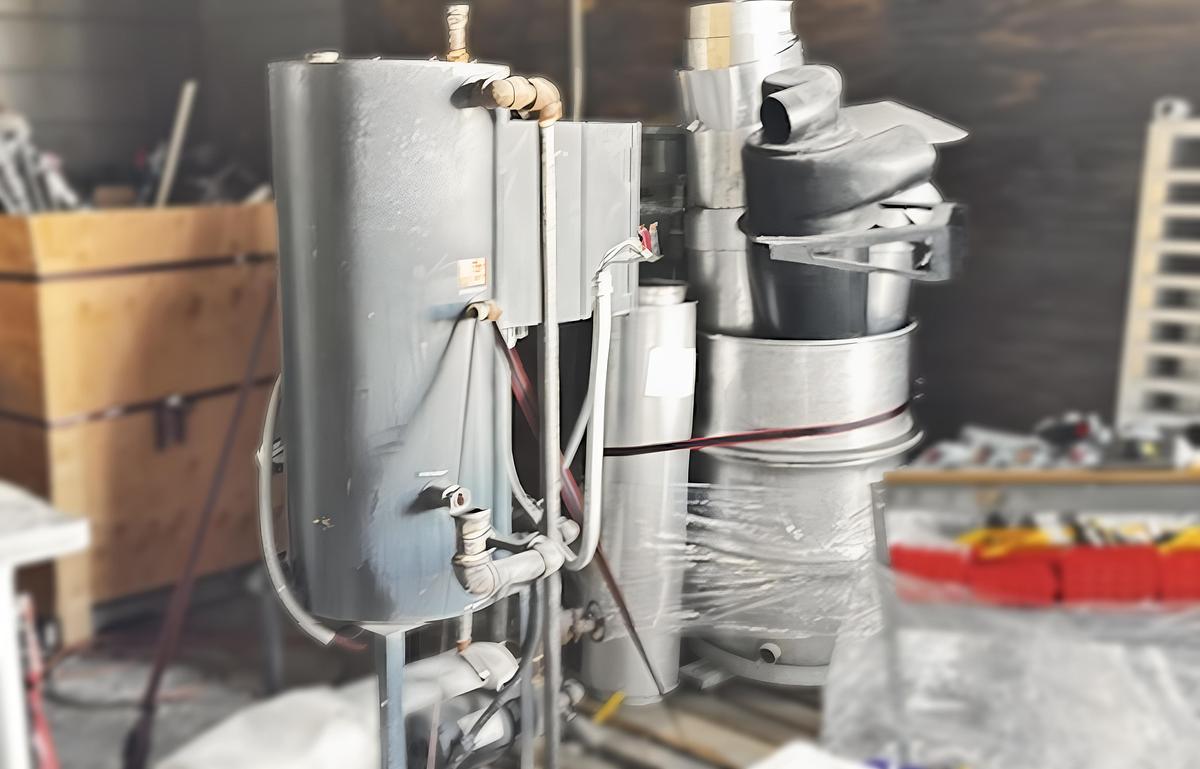

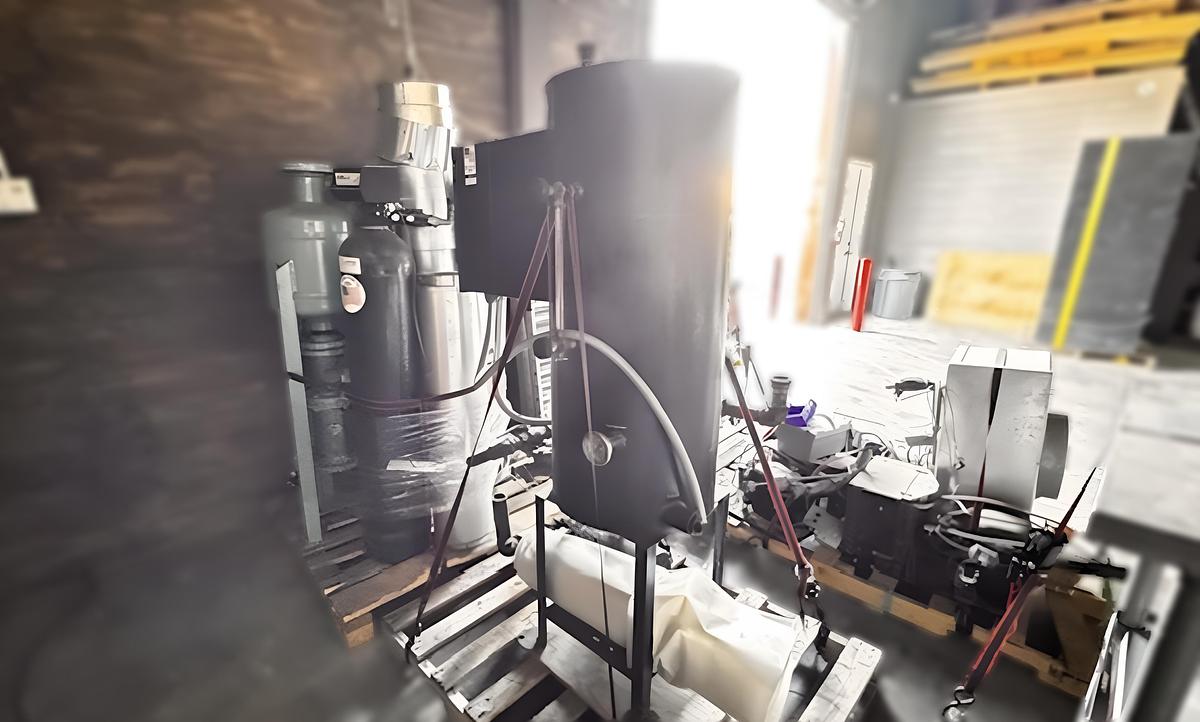

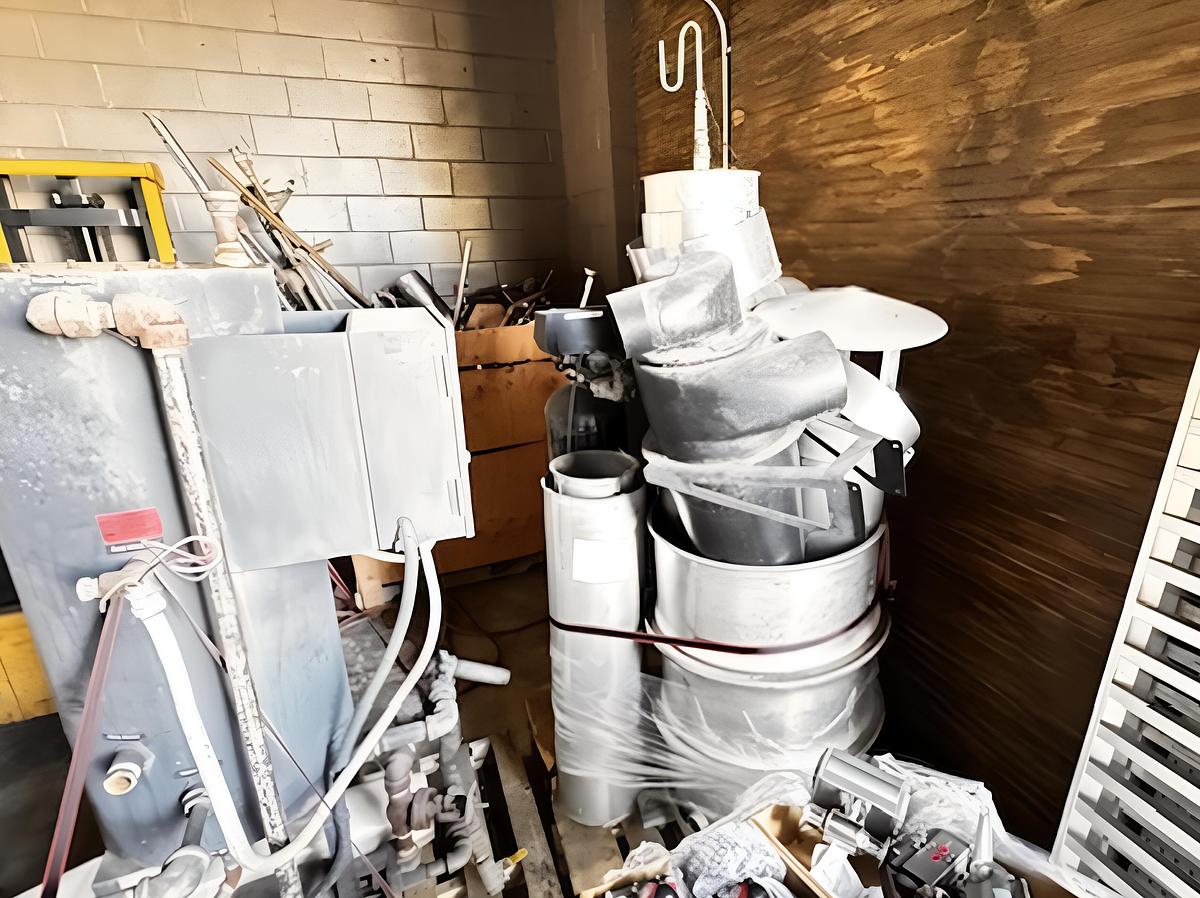

System Components

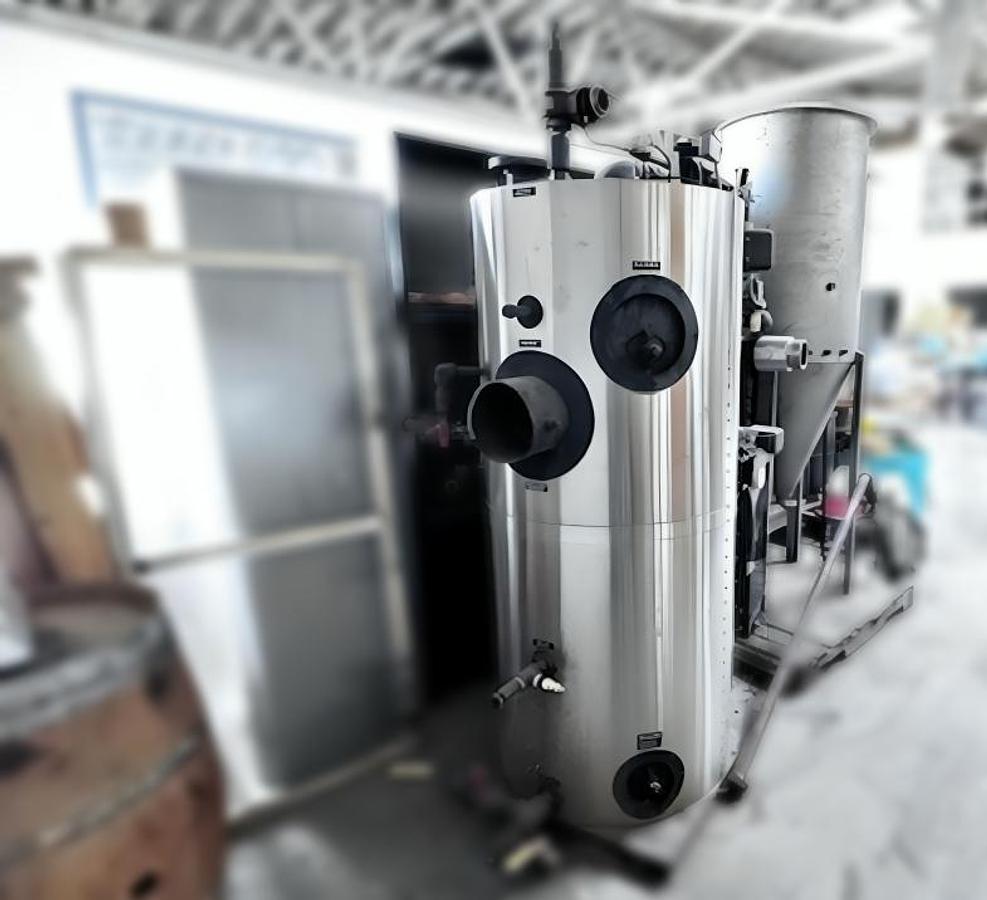

• Vertical Tubeless Boiler (VSRT-30) with spiral-rib heat exchanger

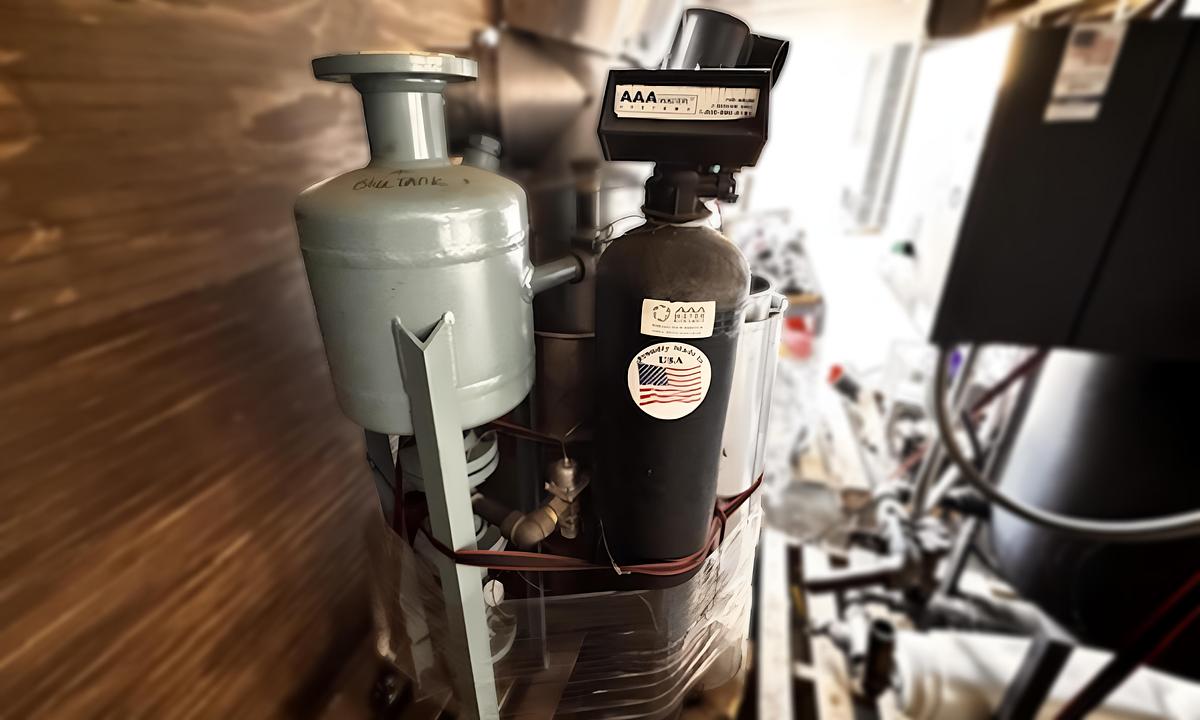

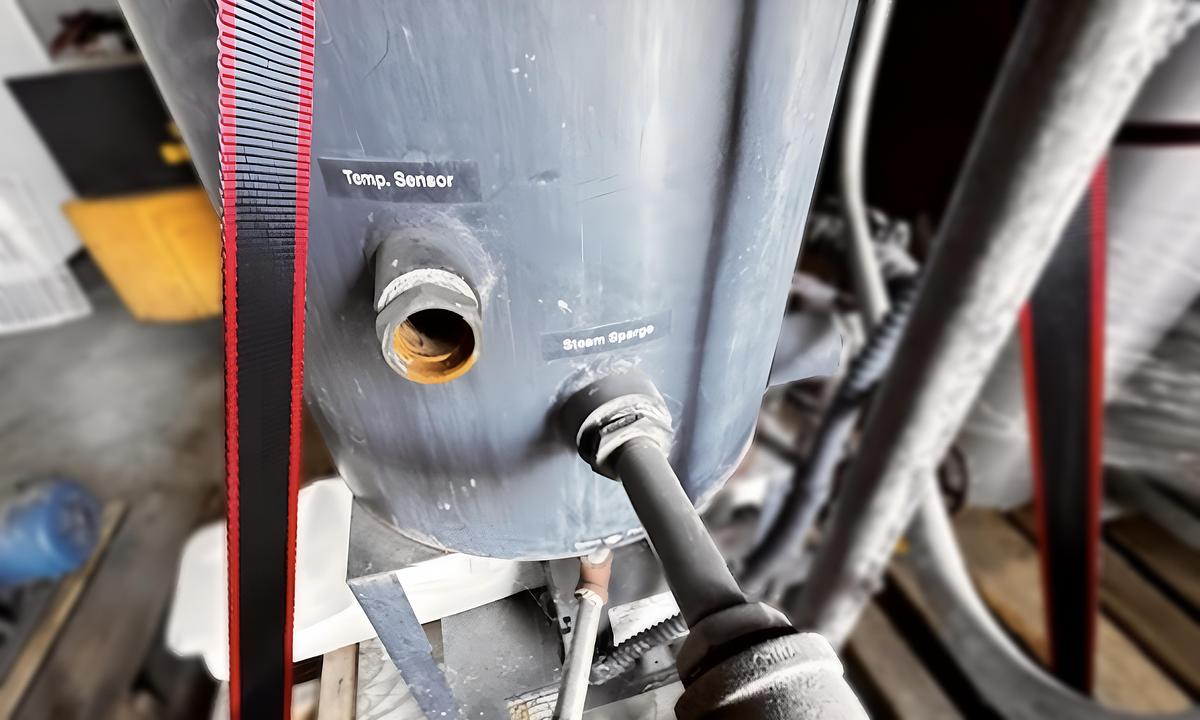

• Feed-Water Tank with level control and low-water cut-off

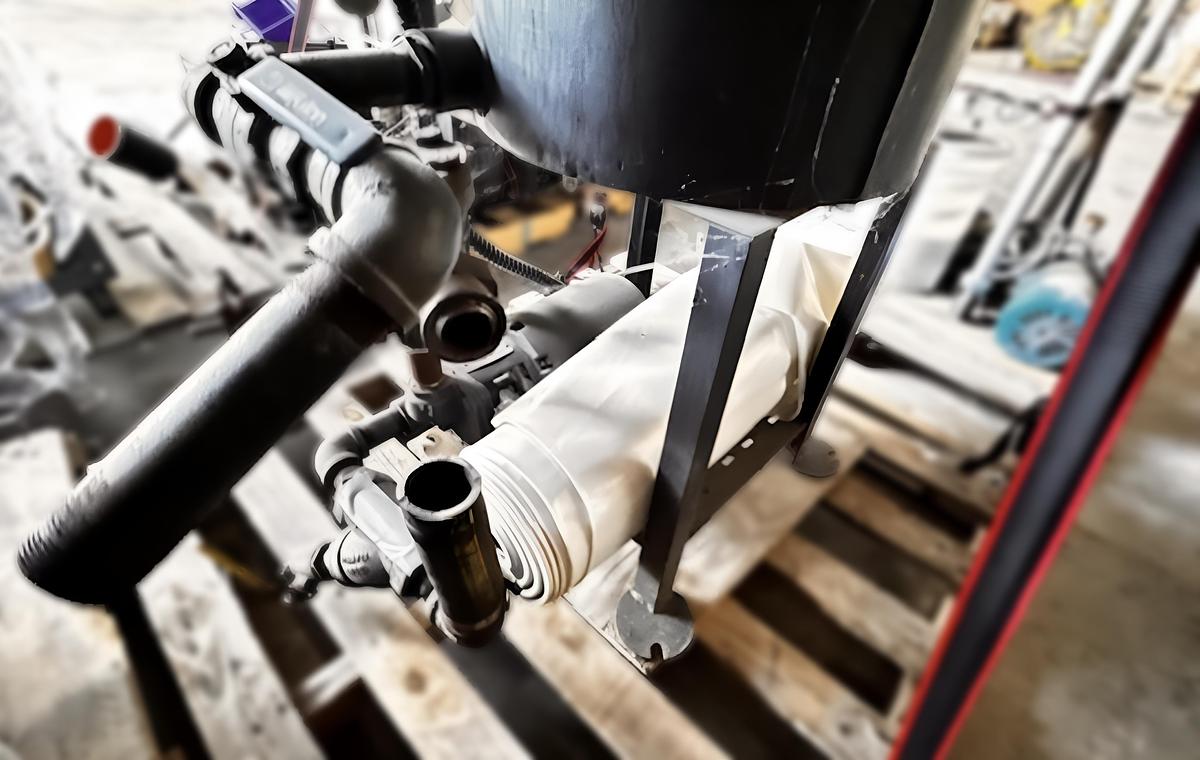

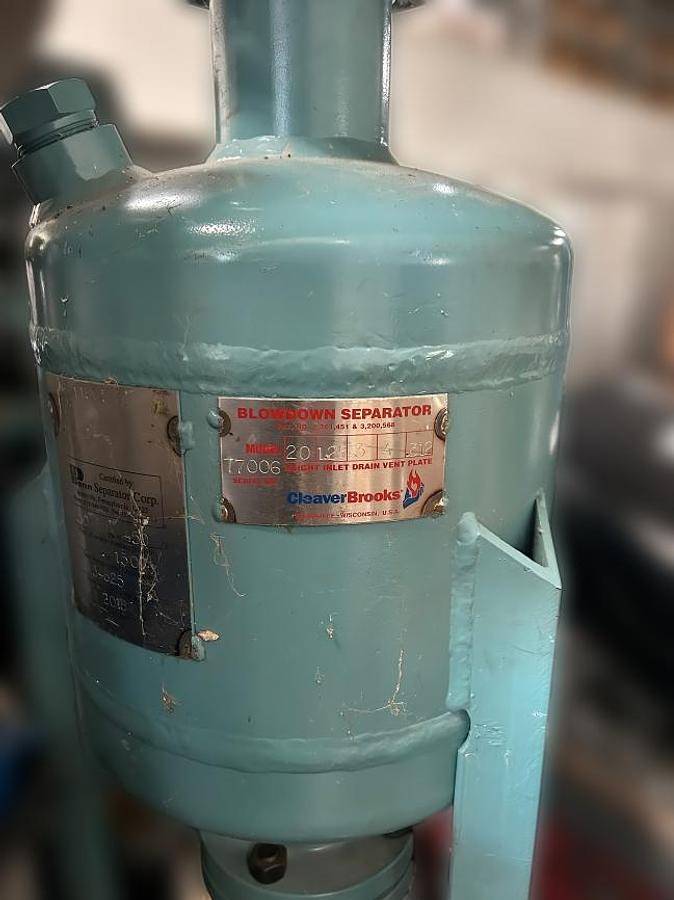

• Blow-Down Assembly for ash and sediment removal

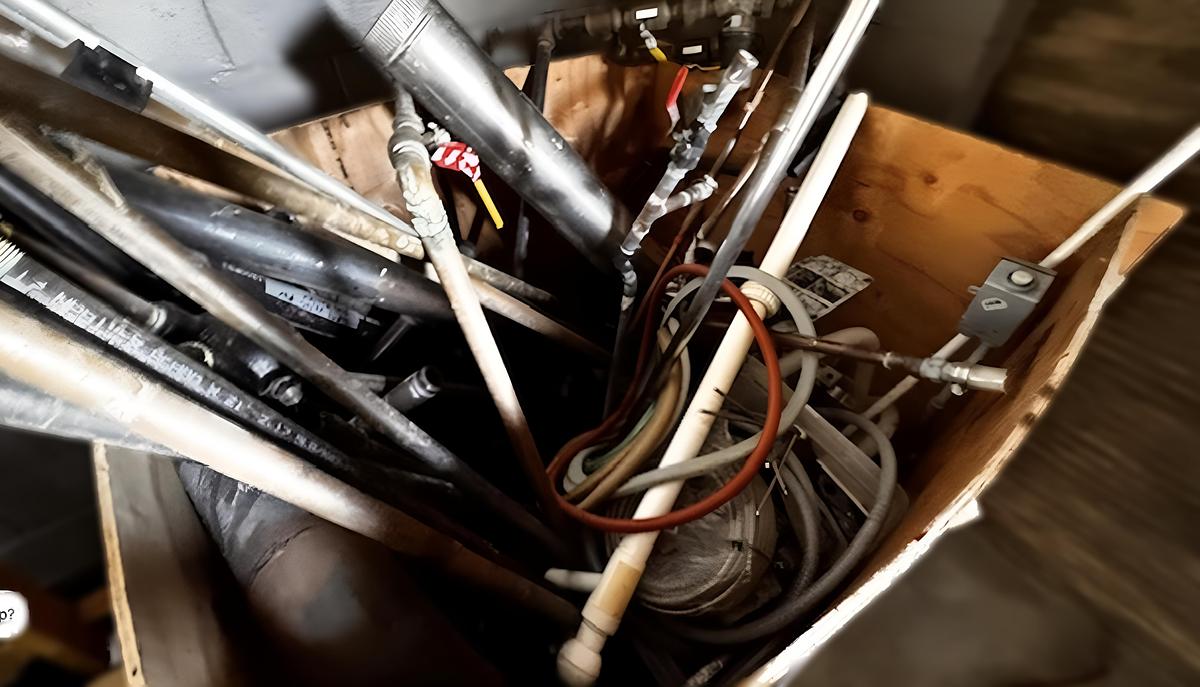

• Complete Piping Package (steam, condensate return, safety valves)
• Exhaust Stack with draft hood and support hardware

Ideal Applications

• Breweries & Distilleries
• Hospitals & Healthcare Facilities
• Commercial Laundries
• Universities & Laboratories
• HVAC Steam Humidification
• Light Manufacturing

Key Benefits

• ✓ Plug-and-play system—includes boiler, tank, piping, and stack
• ✓ Compact vertical footprint saves valuable floor space
• ✓ Tubeless design for easier maintenance and long service life
• ✓ Low emissions and efficient combustion
• ✓ High steam output relative to size
• ✓ Fully ASME & UL certified for safety and regulatory compliance

Additional Information

• Condition: Used
• Manufacturer: Fulton
• Model: VSRT-30 Vertical Spiral-Rib Boiler
• System Year: 2018
• Certifications: ASME pressure vessel, UL listed burner
• Safety Features: Integrated low-water cut-off, safety relief valve, burner management controls
