700 HP Cleaver Brooks CB Packaged High-Pressure Steam Boiler – 1997 CB200-700-125

Overview

This Used 700 HP Cleaver Brooks CB Packaged High-Pressure Steam Boiler is engineered for demanding industrial applications. Operating at a design pressure of 125 PSI, it delivers consistent and efficient steam output. With a substantial input capacity of 20,291,000 BTU/hr, this boiler supports dual-fuel operation (natural gas or No. 2 fuel oil), providing flexibility and efficiency.

Manufactured in 1997, this model (CB200-700-125) embodies Cleaver Brooks’ renowned build quality and long-term reliability.

Design and Performance

• Horsepower: 700 HP
• Design Pressure: 125 PSI (High-Pressure Steam)
• Fuel Type: Natural Gas / No. 2 Oil
• Input Capacity: 20,291,000 BTU/hr
• Natural Gas Consumption: Approx. 20,291 CFH
• Oil Consumption: Approx. 204.1 GPH
• Blower Motor: 50 HP
• Air Compressor Motor: 7.5 HP
• Main Power Supply: 460V / 3 Phase / 60 Hz / 100 Amp
• Minimum Circuit Ampacity: 125 Amp
• Max Rating of Circuit Protection: 200 Amp
• Control Circuit: 120V / 1 Phase / 60 Hz / 7 Amp
• Oil Pump Motor: 200V / 3 Phase / 60 Hz / 3.4 Amp

Ideal Applications

• Manufacturing Facilities
• Industrial Process Plants
• District Heating Systems
• Chemical and Pharmaceutical Production
• Institutional and Commercial Steam Systems

Benefits

✓ Reliable high-pressure steam generation for industrial use

✓ Dual-fuel capability increases flexibility and backup security

✓ Energy-efficient operation with natural gas or oil

✓ Heavy-duty blower motor supports robust combustion

✓ Cleaver Brooks quality ensures long-term performance and safety

✓ UL-listed for compliance and safety

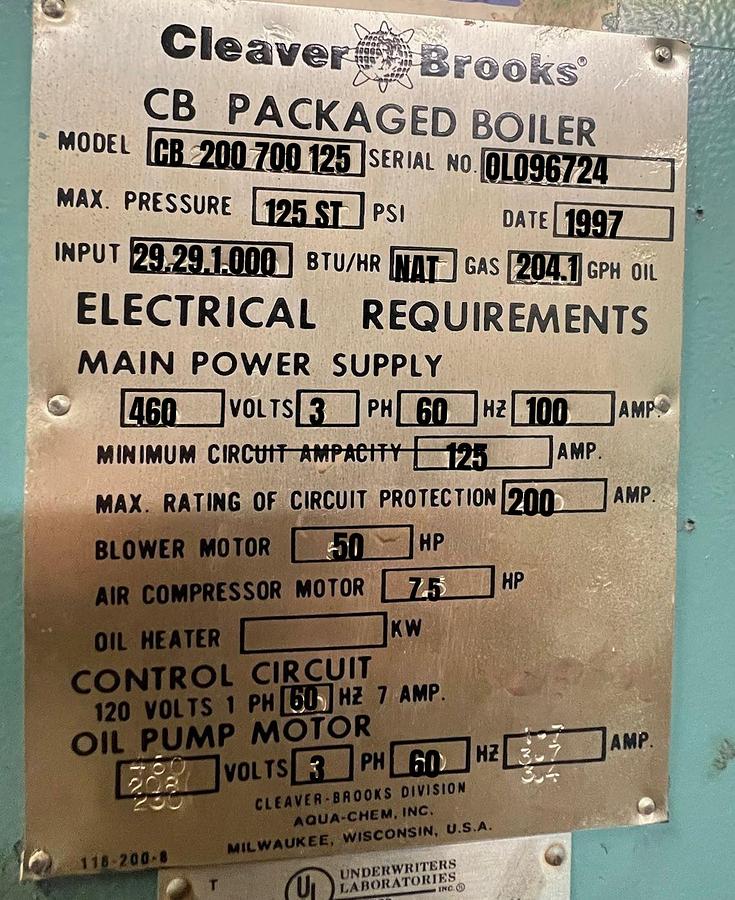

Additional Information

• Condition: Used
• Manufacturer: Cleaver Brooks
• Model: CB200-700-125
• Serial Number: OL096724
• Year Built: 1997
• Boiler Type: Packaged High-Pressure Steam Boiler
• Certification: UL Listed Gas-Fired Boiler Assembly
• Safety Features: Primary Safety Controls Included
